Do not attach a temporary vehicle license across the
defogger grid on the rear window.
When you operate the rear window defogger, the
outside rearview mirrors are also heated to help remove
ice and fog.
I NOTICE:
Don’t use a razor blade or something else sharp
on the inside
of the rear window. If you do, you
could cut or damage the warming grid, and the
repairs wouldn’t be covered by your warranty.
Passenger Temperature Control
...... ........ ........ *...... . .......- ......... ......e... ........ .......... M _._e. ....
With this feature, the right
front seat passenger can
control the comfort setting
for their own zone.
To use ..........
......... ..... this feature, adjust the
...... side armrest to the desired
........ control on the passenger
comfort level.
The passenger temperature control on the passenger
armrest will illuminate only if the headlamps or parking
lamps are on.
ProCarManuals.com

Driving at Night
Night driving is more dangerous than day driving. One
reason is that some drivers are likely to be impaired
-- by
alcohol or drugs, with night vision problems, or by fatigue. Here are some
tips on night driving.
0
0
0
0
0
0
Drive defensively.
Don’t drink and drive.
Since you can’t see as well, you may need to
slow
down and keep more space between you and other
vehicles.
Slow down, especially on higher speed roads. Your
headlamps can light up only
so much road ahead.
In remote areas, watch for animals.
If you’re tired, pull off the road in a safe place and
rest.
4-15
ProCarManuals.com

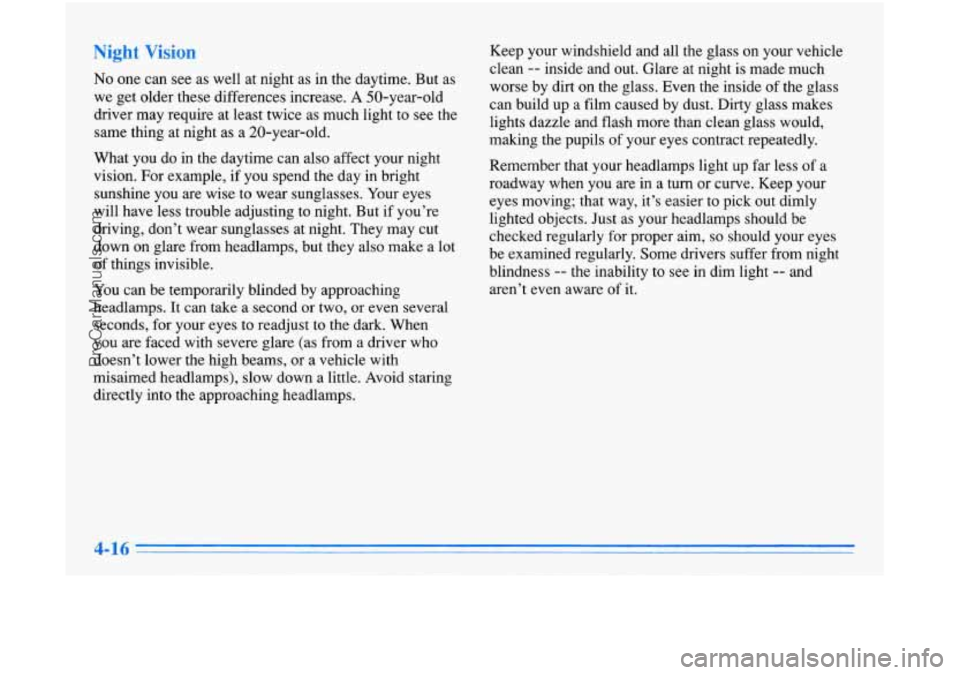

No one can see as well at night as in the daytime. But as
we get older these differences increase.
A 50-year-old
driver may require at least twice as much light to see the
same thing at night as a 20-year-old.
What you do in the daytime can also affect your night
vision. For example, if you spend the day in bright
sunshine you are wise to wear sunglasses. Your eyes
will have less trouble adjusting to night. But if you’re
driving, don’t wear sunglasses at night, They may cut
down
on glare from headlamps, but they also make a lot
of things invisible.
You can be temporarily blinded by approaching
headlamps. It can take a second or two, or even several
seconds, for your eyes to readjust to the dark. When
you
are faced with severe glare (as from a driver who
doesn’t lower the high beams, or a vehicle with
misaimed headlamps), slow down a little. Avoid staring
directly into the approaching headlamps. Keep
your windshield and all the glass on your vehicle
clean
-- inside and out. Glare at night is made much
worse by dirt on the glass. Even the inside of the glass
can build up a film caused by dust. Dirty glass makes
lights dazzle and flash more than clean glass would,
making the pupils of your eyes contract repeatedly.
Remember that your headlamps light up far less of a
roadway when you are in a turn
or curve. Keep your
eyes moving; that way, it’s easier to pick out dimly
lighted objects. Just as your headlamps should be
checked regularly for proper aim,
so should your eyes
be examined regularly. Some drivers suffer from night
blindness
-- the inability to see in dim light -- and
aren’t even aware
of it.
r 3- -
ProCarManuals.com

Hydroplaning
Hydroplaning is dangerous. So much water can build up
under your tires that they can actually ride on the water.
This can happen if the road is wet enough and you’re
going fast enough. When your vehicle is hydroplaning,
it has little or no contact with the road.
Hydroplaning doesn’t happen often. But it can
if your
tires haven’t much tread or if the pressure in one or
more is low. It can happen if a lot of water is standing on
the road. If you can see reflections from trees, telephone
poles or other vehicles, and raindrops “dimple” the
water’s surface, there could be hydroplaning.
Hydroplaning usually happens at higher speeds. There
just isn’t a hard and fast rule about hydroplaning. The
best advice
is to slow down when it is raining.
Driving Through Deep Standing Water
NOTICE:
If you drive too quickly through deep puddles or
standing water, water can come in through your
engine’s air intake and badly damage your
engine. Never drive through water that is slightly
lower than the underbody
of your vehicle. If you
can’t avoid deep puddles or standing water, drive
through them very slowly.
Some Other Rainy Weather Tips
0 Turn on your low-beam headlamps -- not just
your parking lamps
-- to help make you more
visible to others.
0 Besides slowing down, allow some extra following
distance. And be especially careful when you pass
another vehicle. Allow yourself more clear room
ahead, and be prepared to have your view restricted
by road spray.
Have good tires with proper tread depth. (See
“Tires” in the Index.)
ProCarManuals.com

Run your engine only as long as you must. This saves
fuel. When you run the engine, make it go a little faster
than just idle. That is, push the accelerator slightly. This
uses less fuel for the heat that you get and it keeps the
battery charged. You will need a well-charged battery to
restart the vehicle, and possibly for signaling later on
with your headlamps. Let the heater run for awhile.
Then, shut the engine off and close the window almost
all the way to preserve the heat. Start the engine again
and repeat this only when you feel really uncomfortable
from the cold. But do it as little as possible. Preserve the
fuel as long as you can.
To help keep warm, you can get
out of the vehicle and do some fairly vigorous exercises
every half hour or
so until help comes.
Loading Your Vehicle
OCCUPANTS
VEHICLE CAP. WT.
TIRE-LOADING INFORMATION
FRT. CTR. RR. TOTAL
LBS. KG
MAX. LOADING & GVWR SAME AS VEHICLE
CAPACITY WEIGHT XXX COLD TIRE
TIRE
SIZE SPEED PRESSURE
RTG PSI/KPa
FRT.
RR.
SPA.
IF TIRES ARE HOT, ADD 4PS1/28KPa
SEE OWNER’S MANUAL FOR ADDITIONAL
\I N FOR MAT1 0 N /
Two labels on your vehicle show how much weight it
may properly carry. The Tire-Loading Information label
found on the rear edge of the driver’s door tells you the
proper size, speed rating and recommended inflation pressure for the tires on your vehicle. It also gives you
important information about the number of people that
can be in your vehicle and the total weight that you can
carry. This weight is called the Vehicle Capacity Weight
and includes the weight of all occupants, cargo, and all
nonfactory-installed options.
ProCarManuals.com

Low-Beam Bulbs
1. Remove the air cleaner cover to get to the driver’s
side headlamp bulb.
1
Halogen bulbs have pressurized gas inside and
can burst if you drop or scratch the bulb. You or
others could be injured. Take special care when
handling and disposing
of halogen bulbs.
Headlamps
For the type of bulb, see “Replacement Bulbs” in
the Index.
2. Remove the radiator hose from the resonator
channel.
ProCarManuals.com

II
0
II
Unclip the bulb
assembly from the
wiring harness and
replace the bulb
assembly.
High-Beam Bulbs -
1. Pull up on the wiring harness. This unlocks the bu
.lb.
7. Reverse Steps 1-6 to replace the bulb assembly,
headlamp housing and
air cleaner cover and tube.
2. Now you can reach in behind the lamp housing and
pull out the bulb.
3. To replace the bulb, angle the new bulb into the
empty socket.
4. Push the base of the bulb down to lock it into place.
6-34
ProCarManuals.com

Headlamp Aiming
Your vehicle has the composite headlamp system. These
headlamps have horizontal and vertical aim indicators.
The aim has been pre-set at the factory and should need
no further adjustment.
If your vehicle is damaged in an accident and the
headlamp aim seems to
be affected, see your Aurora
retailer. Headlamps on damaged vehicles may require
recalibration
of the horizontal aim by your Aurora retailer.
To check the aim, the vehicle should be properly
prepared as follows:
The vehicle must have all four tires on a perfectly
level surface.
0 The vehicle should not have any snow, ice, or mud
attached to it.
There should not be any cargo or loading of vehicle,
except
it should have a full tank of gas and one
person or
160 pounds (75 kg) on the driver’s seat.
Tires should be properly inflated.
NOTICE:
To make sure your headlamps are aimed
properly, read all the instructions before beginning. Failure to follow these instructions
could cause damage to headlamp parts.
State inspection stations will allow a vertical reading of
plus
0.76 degrees or minus 0.76 degrees from the center
of the bubble.
It is recommended that the upper limit not exceed plus
0.4 degrees from the center of the bubble. Other drivers
may flash their bright lights at you if your adjustment is
much above plus
0.4 degrees.
If you find that the headlamp aiming needs adjustment,
follow these steps:
ProCarManuals.com

Start with the vertical headlamp aim. Don't try to adjust
the horizontal aim first. Adjustment screws can be
turned with an
E8 Torx@socket or T15 Torx screwdriver.
1. Check the vertical aim for each headlamp and adjust
it as necessary.
Turn the vertical aiming screw until
the bubble in the level is centered at
0 (zero).
2. Now adjust the horizontal aim. Check the horizontal
aim for each headlamp and adjust
it as necessary.
Turn the horizontal aiming screw until the pointer is
lined up with the
0 (zero).
is still correct after the horizontal aim adjustment.
Readjust, if necessary.
3. Now, re-check the vertical aim, to make sure it
ProCarManuals.com

NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling, speedometer/odometer
calibration, headlamp aim, bumper height, vehicle
ground clearance and tire or tire chain clearance
to the body and chassis.
See
“Changing a Flat Tire” in the Index for more
information.
Used Replacement Wheels
I
I 1
i
’ A CAUTION: I
Putting a used wheel on your vehicle is
dangerous. You can’t know how it’s been used or
how many miles it’s been driven. It could
fail
suddenly and cause an accident. If you have to
replace
a wheel, use a new GM original
equipment wheel.
Tire Chains
NOTICE:
Use tire chains only where legal and only when
you must. Use only
SAE Class ccS” type chains
that are the proper size for your tires. Install
them on the front tires and tighten them
as
tightly as possible with the ends securely
fastened. Drive slowly and follow the chain
manufacturer’s instructions.
If you can hear the
chains contacting your vehicle, stop and retighten
them.
If the contact continues, slow down until it
stops. Driving too fast or spinning the wheels
with chains on will damage your vehicle.
6-47
