OLDSMOBILE BRAVADA 1997 Manual Online

Windshield Wipers
You control the windshield wipers by turning the band
with the wiper symbol on it.
For a single wiping cycle, turn the band to MIST. Hold
it there until the wipers start, then let go. The wipers will
stop after one wipe.
If you want more wipes, hold the
band on MIST longer.
You can set the wiper speed for a long or short delay
between wipes. This can be very useful in light rain or
snow. Turn the band
to choose the delay time. The
closer to
LOW, the shorter the delay. For
steady wiping at low speed, turn the band away
from
you to the LOW position. For high-speed wiping,
turn the band further, to
HIGH. To stop the wipers,
move the band
to the OFF position.
Be sure to clear ice and snow from the wiper blades
before using
them. If they‘re frozen to the windshield,
carefully loosen or thaw them.
If your blades do become
worn
or damaged, get new blades or blade inserts.
Windshield Washer
At the top of the multifunction lever, there’s a paddle
marked with the windshield washer symbol and
PUSH.
To spray washer fluid on the windshield, press the
paddle. The wipers will clear the window and then
either stop or return to your preset speed.
In freezing weather, don’t use your washer until
the windshield
is warmed. Otherwise the washer
fluid can form ice on the windshield, blocking
your vision.
I I
I I.
ProCarManuals.com

Rear Window Washermiper
WASH
REAR WIPER
This switch is located on the instrument panel.
The rear window wiper operates with a constant five
second delay when the rear wiper switch is
in the ON
position. If the rear glass is opened, the wiper arm will
automatically park on the iiftgate. When the glass
is
completely closed, the wiper will resume the delay mode.
To wash the window, press and hold ON. The wipers
will continue to work after YOLI release the switch,
Press
OFF to turn the wiper off.
The rear window washer uses the same fluid bottle as
the windshield washer. However, the rear window
washer
will run out of fluid before the windshield
washer.
If you can wash your windshield but not your
rear window,
check your fluid level.
Cruise Control
really help on long trips.
Cruise control does not
work at speeds below about
. . .:. ,..< ,~-:,~:,-l 25 mph (40 km/h). .. ..
If you apply your brakes, the cruise control will shut off.
2-28
ProCarManuals.com

A CAUTIO .:
Cruise control can be dangerous where you
can’t drive safely at a steady speed. So,
don’t use your cruise control on winding
roads or in heavy traffic.
slippery roads. On such roads, fast changes
in tire traction can cause needless wheel
spinning, and you could lose control. Don’t
use cruise control on slippery roads.
Cruise control can be dangerous on Setting Cruise Control
If you
leave your cruise control switch on when
you’re not using cruise, you might hit a button
and go into cruise when you don’t want to. You
could be startled and even lose control. Keep the
cruise control switch
OFF until you want to
use
it.
1. Move the cruise control switch to ON.
2. Get up to the speed you want.
3. Press in the SET button
at the end
of the lever
and release it.
4. Take your foot off the accelerator pedal.
ProCarManuals.com

Resuming a Set Speed
Suppose you set your cruise control at a desired speed
and then you apply the brake. This, of course, shuts off
the cruise control. But you don’t need to reset it.
Once you’re going about
25 mph (40 km/h) or more,
you can move the cruise
control switch from
ON
to R/A for about a half
You’ll go right back up to your chosen speed and
stay there.
Remember, if you hold
the switch at R/A longer than a
half a second,
the vehicle will keep going faster until
you release the switch or apply the brake. You could be
startled and even lose control.
So unless you want to go
faster, don’t hold the switch at R/A.
Increasing Speed While Using Cruise Control
There are two ways to go to a higher speed:
0 Use the accelerator pedal to get to the higher speed.
Press the button at the end
of the lever, then release
the button and
the accelerator pedal. You’ll now
cruise at the higher speed.
0 Move the cruise switch from ON to WA. Hold it
there
until you get up to the speed you want, and
then release the switch.
(To increase your speed in
very small amounts, move
the switch to R/A. Each
time
you do this, your vehicle will go about 1 mph
(1.6 km/h) faster.)
Reducing Speed While Using Cruise Cor
Press in the button at the end of the lever until you reach
the lower speed you want, then release it.
To slow down in very small amounts, press the button
for less than a half
a second. Each time you do this,
you’ll go
1 mph (1.6 km/h) slower.
A -’
Passing Another Vehicle While Using Cruise Control
Use the accelerator pedal to increase your speed. When
you take your foot off the pedal, your vehicle will slow
down to the cruise control speed you set earlier.
2-30
ProCarManuals.com

Using Cruise Control on Hills
How well your cruise control will work on hills depends
upon your speed,
load and the steepness of the hills.
When going up steep hills, you may want to step on the
accelerator pedal to maintain your speed. When going
downhill, you may have to brake
or shift to a lower gear
to keep your speed down.
Of course, applying the brake
takes
you out of cruise control. Many drivers find this to
be too much trouble and don’t use cruise control on
steep hills.
Ending Cruise Control
There are two ways to turn off the cruise control:
Step lightly on the brake pedal.
Move the cruise switch to OFF.
Erasing Speed Memory
When you turn off the cruise control or the ignition,
your cruise control set speed memory
is erased.
Lamps
The switches are on the left side of your instrument panel.
Press the top switch with the parking lamps symbol on
it
to turn on:
Parking Lamps
Sidernarker Lamps
Taillamps
License Plate Lamps
Instrument Panel Lights
2-3 1
ProCarManuals.com

Press the bottom switch with the master lamps symbol on
it to turn on all the lamps listed as well as the headlamps.
Press the side of the switch marked
OFF to turn off
your lamps.
Lamps On Reminder
A reminder tone will sound when your headlamps or
parking lamps are turned on and your ignition is
in OFF,
LOCK or ACCESSORY. To turn the tone off, press the
OFF switch.
Daytime Running Lamps
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the day.
DRL can be helpful in many different driving
conditions, but they can be especially helpful in the
short periods after dawn and before sunset.
The DRL system
will make your headlamps come on at
reduced brightness when:
the ignition is on,
the headlalnp switch is off and
0 the parking brake is released. When
the DRL are
on, only your headlamps will be on.
The taillamps, sidemarker and other lamps won’t be
on.
The instrument panel won’t be lit up either.
When
it begins to get dark, your DRL indicator light
is a reminder to turn your headlamp switch on. The
other lamps that come
on with your headlamps will also
come on.
When you
turn the headlamp switch off, the regular
lamps will go off. and your headlamps
will change to
the reduced brightness of DRL.
To idle your vehicle with the DRL off, set the parking
brake. The DRL
will stay off until you release the
parking brake.
As with any vehicle, you should turn on the regular
headlamp system when you need
it.
2-32
ProCarManuals.com

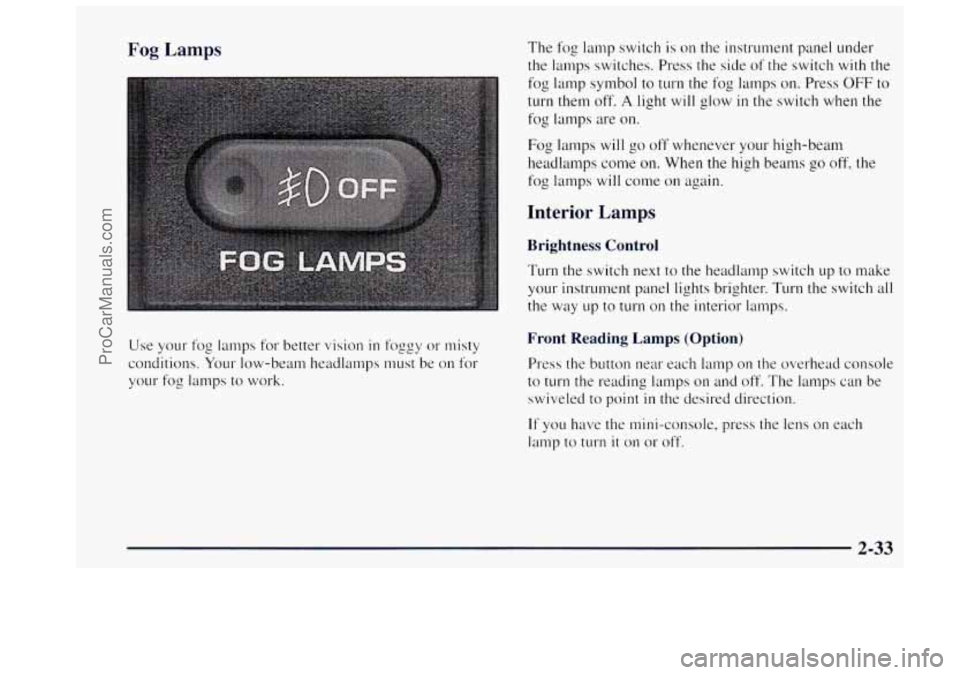

Fog Lamps The fog lamp switch is on the instrument panel under
the lamps switches. Press the side of the switch
with the
fog lamp symbol to turn the fog lamps on. Press OFF to
turn them off. A light will glow in the switch when the
fog lamps are on.
Fog lamps
will go off whenever your high-beam
headlamps come
on. When the high beams go off, the
fog lamps
will come on again.
Interior Lamps
Brightness Control
Turn the switch next to the headlarnp switch up to make
your instrument panel lights brighter. Turn the switch all
the way up to
turn on the interior lamps.
Use your fog lamps for better vision in foggy or misty
conditions.
Your low-beam headlamps must be on for
your fog lamps
to work.
Front Reading Lamps (Option)
Press the button near each lamp on the overhead console
to turn the reading lamps on and off. The lamps can be
swiveled to point
in the desired direction.
If you have the mini-console, press the lens on each
lamp to
turn it on or off.
2-33
-
ProCarManuals.com

Dome Lamps Mirrors
The rear dome lamp has a switch that lets you turn it on
from the rear
of the vehicle.
Press the side of the switch with the lamp symbol to turn
on the front and rear dome lamps. Pressing the other
side
of the switch will turn the cargo area dome lamp
off, even when the liftgate and doors are open.
The front dome lamp will come on whenever the doors
are open.
Inside Daymight Rearview Mirror
Press the tab under the mirror to reduce glare from
headlamps behind you.
Outside Manual Adjust Mirror
Adjust your outside mirrors so you can just see the side
of your vehicle.
You can fold them before entering a car wash. Pull the
mirrors in toward the vehicle. Push the mirrors back out
when finished.
2-34
ProCarManuals.com

Power Remote Control Mirror
The control is located on the
driver’s door armrest. Turn
the control to L or R to
choose the mirror, then
press the arrows
on the
outside switch ring
to adjust
the mirror.
Convex Outside Mirror
Your passenger’s side mirror is convex. A convex
mirror’s surface is curved
so you can see more from the
driver’s seat.
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder before
changing lanes.
Storage Compartments
Glove Box
To open your glove box, squeeze the lever at the top of
the glove
box and lower the door. Two cup depressions
are provided for your convenience, but the glove
box
should not be open while driving.
2-35
ProCarManuals.com

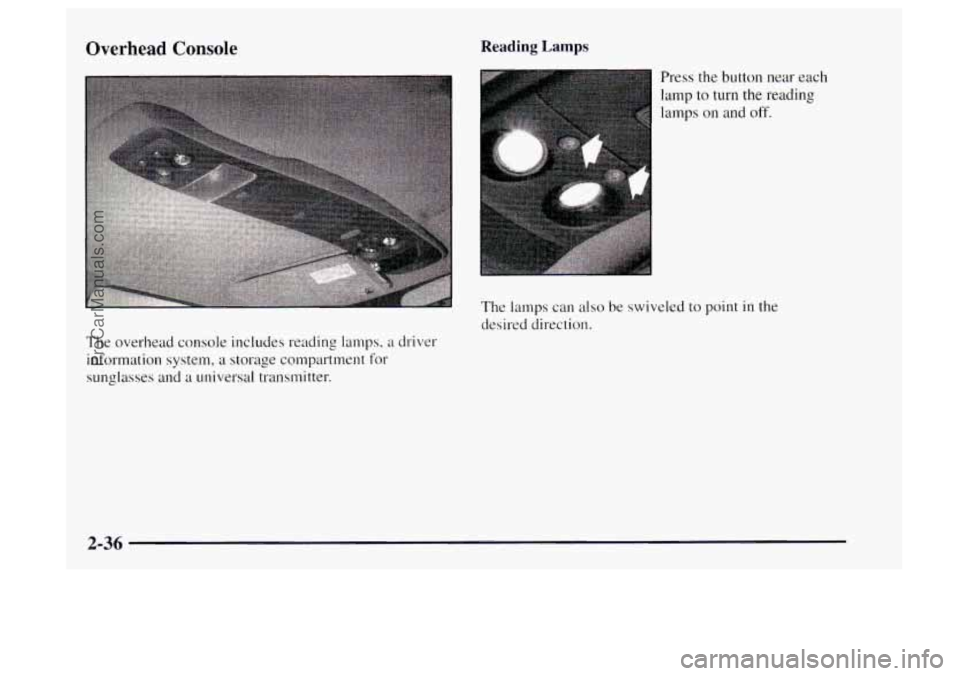

Overhead Console
The overhead console includes reading lamps, a driver
information system,
a storage compartment for
sunglasses and
a universal transmitter.
Reading Lamps
Press the button near each
lamp to
turn the reading
lamps on and
off.
The lamps can also be swiveled to point in the
desired direction.
2-36
