OLDSMOBILE BRAVADA 1997 Workshop Manual

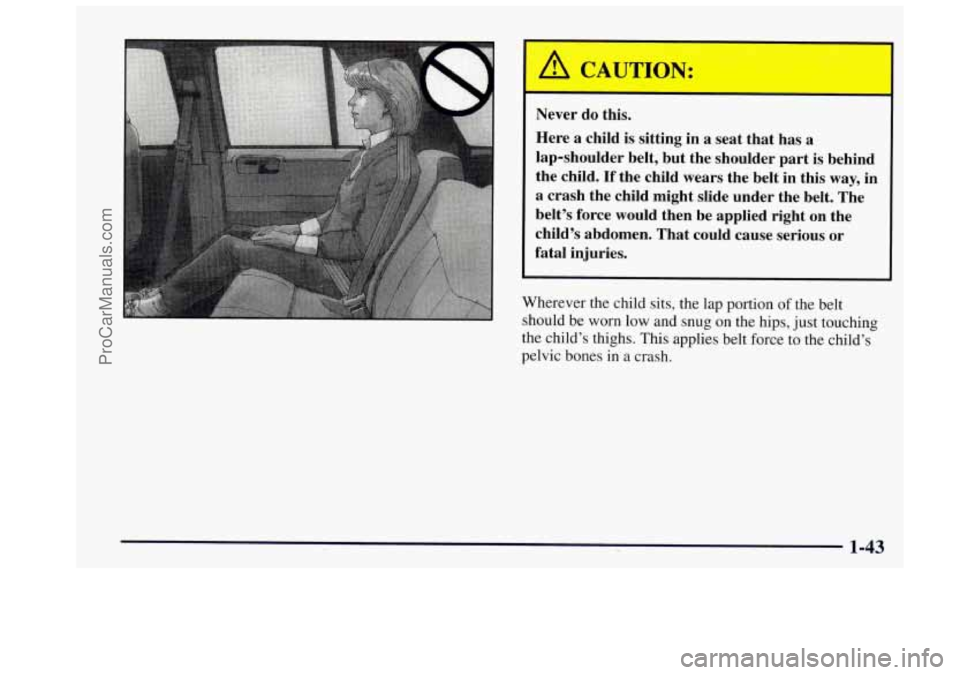

A CAUTION:
I
Never do this.
Here a child is sitting in a seat that has a
lap-shoulder belt, but the shoulder part is behind
the child.
If the child wears the belt in this way, in
a crash the child might slide under the belt. The
belt’s force would then be applied right on the
child’s abdomen. That could cause serious or
fatal injuries.
Wherever the child sits, the lap portion of the belt
should be worn low and snug on the hips, just touching
the child’s thighs. This applies belt force
to the child’s
pelvic bones in a crash.
1-43
ProCarManuals.com

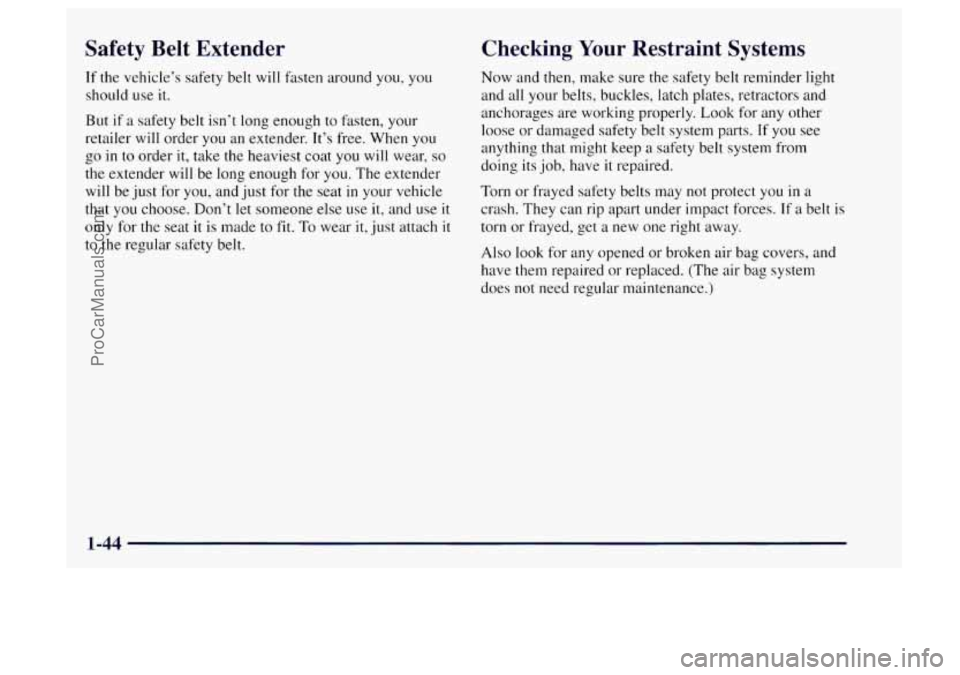

Safety Belt Extender
If the vehicle’s safety belt will fasten around you, you
should use it.
But
if a safety belt isn’t long enough to fasten, your
retailer will order you an extender. It’s free. When you
go
in to order it, take the heaviest coat you will wear, so
the extender will be long enough for you. The extender
will be just for you, and just for the seat
in your vehicle
that you choose. Don’t let someone else use
it, and use it
only for the seat it is made to fit. To wear it, just attach it
to the regular safety belt.
Checking Your Restraint Systems
Now and then, make sure the safety belt reminder light
and
all your belts, buckles, latch plates, retractors and
anchorages are working properly. Look for any other
loose
or damaged safety belt system parts. If you see
anything that might keep
a safety belt system from
doing its job, have
it repaired.
Torn or frayed safety belts may not protect you
in a
crash. They can rip apart under impact forces. If a belt is
torn or frayed, get a new one right away.
Also look for any opened or broken air bag covers, and
have them repaired or replaced. (The air bag system
does not need regular maintenance.)
1-44
ProCarManuals.com

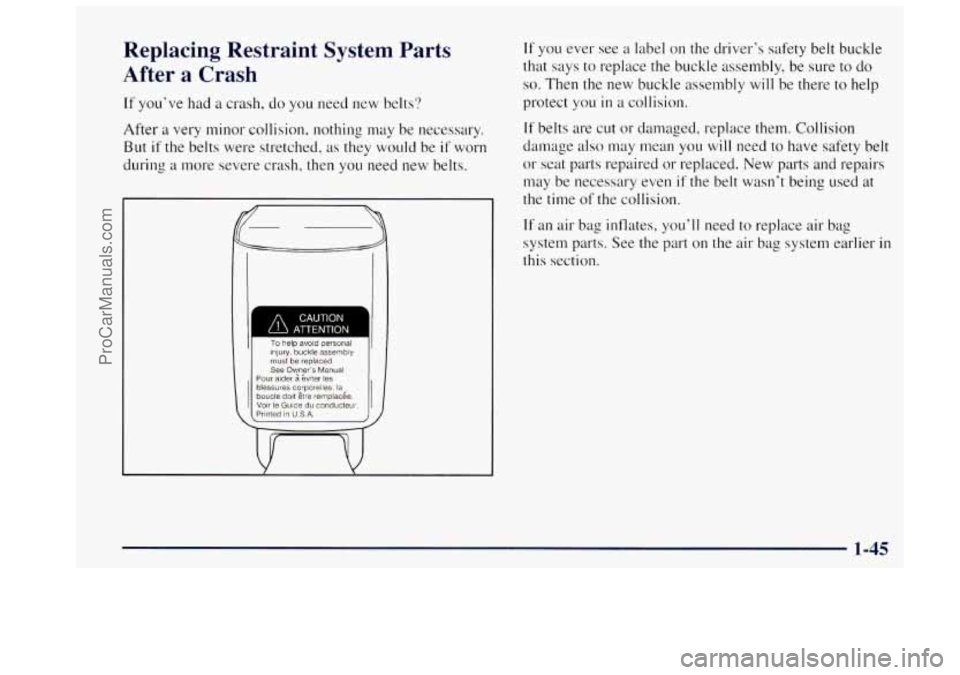

Replacing Restraint System Parts
After a Crash
If you’ve had a crash, do you need new belts?
After
a very minor collision, nothing may be necessary.
But
if the belts were stretched, as they wo~~ld be if worn
during a more severe crash, then
you need new belts.
injury. buckle assembly
must be replaced.
See Owner’s Manual
Pour aider
?I &iter les
blessures corporelles. la
boucle doit &re remplac6e.
Printed in
U.S.A. Voir le Gutde du conducteur.
CAUTION ATTENTION 1
If you ever see a label on the driver’s safety belt buckle
that says to replace the buckle assembly, be sure to do
so. Then the new buckle assernbly will be there to help
protect you
in a collision.
If belts are cut or damaged, replace them. Collision
damage also may mean
you will need to have safety belt
or seat parts repaired or replaced. New parts and repairs
may be necessary even
if the belt wasn’t being used at
the time of the collision.
If an air bag inflates, you’ll need to replace air bag
system parts. See the part
on the air bag system earlier in
this section.
ProCarManuals.com

1-46
ProCarManuals.com

a Section 2 Features and Controls
Here you can learn about the many standard and optional features on your Oldsnwbile, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you
if everything is
working properly
-- and what to do if you have a problem.
2-2
2 -4
2-5
2-6
2-7
2-
IO
2-1 1
2- 12
2-13
2-
14
2-15
2-18
2-22
2-34 Important Information
About Keys
Door Locks
Operation of Child Security Locks
Remote Keyless Entry
Battery Replacement for RKE
Preventing
Theft of Your Vehicle
New Vehicle "Break-In"
Ignition Positions
Tips
on Starting Your Engine
Using the Engine Coolant Heater
Automatic Transmission Operation
Parking Brake Guidelines
Important Information
on Engine Exhaust
Operation of Your Windows 2-2s
2-25
2-26
2-27
2-28
2-3
1
2-32
2-33
2-34
2-35
2-48 2-52
Adjusting the Tilt Steering Wheel
Functions
of the Multifunction Lever
How
to Use the HighLow Beam
Headlamp Changer
Windshield Wipers and Fluid
Using Cruise Control
Exterior Lamps Daytime Running Lamps (DRL)
Rearview Mirrors
Storage Compartments
Instrument Panel Overview
All About Your Warning Lights and Gages
Interior
Lamps
ProCarManuals.com

Keys
A CAUTION:
-
Leaving young children in a vehicle with the
ignition key
is dangerous for many reasons.
A child or others could be badly injured or
even killed.
They could operate power windows or other
controls or even make the vehicle move. Don't
leave the keys in a vehicle with young children.
2-2
ProCarManuals.com

This vehicle has one
double-sided key for the
ignition, liftgate and door
locks. It will fit with either
side up.
When a new vehicle is delivered, the retailer provides
the owner with a pair of identical keys and a key
code number.
The key code number tells your retailer or a qualified locksmith how to make extra keys. Keep this number in
a safe place. If you lose your keys, you’ll be able to have
new ones made easily using this number. Your selling
dealer should also have this number.
NOTICE:
Your vehicle has a number of new features that
can help prevent theft. But you can have a lot of
trouble getting into your vehicle if you ever lock
your keys inside. You may even have to damage
your vehicle to get in.
So be sure you have
extra keys.
2-3
ProCarManuals.com

1 Door Locks
Unlocked doors can be dangerous.
Passengers
-- especially children -- can easily
open the doors and fall out. When a door
is
locked, the inside handle won’t open it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be
so obvious: You increase the
chance
of being thrown out of the vehicle in a
crash if the doors aren’t locked. Wear safety belts
properly, lock your doors, and you will be
far
better off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle.
You can use your key to unlock your door from
the outside.
To lock your door from the inside, slide the lever on
your inside door rearward.
To unlock the door, slide the
lever
on your inside door
forward.
You will see a red
area on the lever.
2-4
I
ProCarManuals.com

Power Door Locks
*+ ;~.*. The power door lock switch
is located on the armrest.
Press
LOCK to lock all the
doors at once.
To unlock the doors, press the raised area next to the
key symbol.
The lever
on each rear door works only that door’s lock.
Rear Door Security Lock
With this feature, you can
lock the rear doors
so they
can’t be opened from the
inside by passengers.
Move the lock
up to lock
the doors and down to
release the
door locks.
Leaving Your Vehicle
If you are leaving the vehicle, take your key, open your
door
and set the locks from inside. Then get out and
close the door.
2-5
ProCarManuals.com

Keyless Entry System
You can lock and unlock your doors or unlock your
liftgate from up to
30 feet (9 m) away using the key
chain transmitter supplied with your vehicle.
Your Keyless Entry System operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry and Science
Canada Rules.
This device complies with
Part 15 of the FCC Rules.
Operation is subject to
the following two conditions:
(1) this device may not cause harmful interference,
and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
This device complies with RSS-210 of Industry and
Science Canada. Operation is subject to the following
two conditions:
(1) this device may not cause
interference, and
(2) this device must accept any
interference received, including interference that may
cause undesired operation
of the device.
The range
of this system is about 30 feet (9 m). At times
you may notice
a decrease in range. This is normal for
any remote lock control system.
If the transmitter does
not work
or if you have to stand closer to your vehicle
for the transmitter to work, try this:
0
0
0
0
Check to determine if battery replacement or
resynchronization
is necessary. See the instructions
that follow.
Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.
Check
the location. Other vehicles or objects may be
blocking the signal. Take
a few steps to the left
OS right.
If you’re still having trouble, see your Oldsmobile
retailer or
a qualified technician for service.
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use
this equipment.
Operation
When you press UNLOCK, the driver’s door and
liftgate will unlock automatically.
If you press
UNLOCK again within five seconds, all
the doors will
unlock. Press LOCK to lock all the doors.
Press the REAR button twice within
3 1/2 seconds to
unlock and unlatch the liftgate. The transmission must
be
in PARK (P) or NEUTRAL (N).
2-6
