lock OLDSMOBILE BRAVADA 1998 Owner's Guide

Locking Rear Axle
It can be dangerous to get out of your vehicle if
the shift lever
is not fully in PARK (P) with the
parking brake firmly set. Your vehicle can roll.
Don’t leave your vehicle when the engine is
running unless you have to.
If’ you’ve left the
engine running, the vehicle can move suddenly.
You or others could be injured.
To be sure your
vehicle won’t move, even when you’re on fairly
level ground, always set your parking brake and
move the shift lever to
PARK (P).
Follow the proper steps to be sure your vehicle won’t
move. See “Shifting Into
PARK (P)” in the Index.
If you’re pulling a trailer, see “Towing a Trailer” in
the Index. Your
locking rear axle can give you additional traction
on snow, mud, ice, sand or gravel.
It works like a
standard axle most of the time, but when one of the rear
wheels has no traction and the other does, this feature
will allow the wheel with traction to move the vehicle.
All- Wheel Drive
Your engine’s driving power is sent to all four wheels
for extra traction. All-wheel drive is like four-wheel
drive, but there is no lever
or switch to engage or
disengage the front axle. It
is fully automatic and
adjusts itself
as needed for road conditions.
2-24
ProCarManuals.com

Windows
Power Windows
The power windows controls are on each of the side
doors. With power windows, the switches control the
windows when the ignition is on or when Retained
Accessory Power (RAP) is present. (See "Retained
Accessory Power"
in the Index.') The driver's door has
a switch for the passenger windows as well. There
are individual controls
on each of the side doors.
Press the side of the switch with the down arrow to
lower a window. Press the side of the switch with the up
arrow
to raise a window.
Express-Down Window
The driver's window switch has an express-down
feature
that allows you to lower it without holding the
window switch. Hold the driver's window switch down
,for more than half a second to activate the express-down
feature. Lightly tap the switch
to open the window
slightly. The express-dawn feature can be interrupted
at any time by pressing the up arrow end of the switch.
Lockout Switch
Your vehicle has a lockout feature to prevent passengers
fro111 operating the power windows. Press LOCK to
activate this feature. Press NORM and the windows
return
to norrnal operation.
Horn
To sound the horn. press the center pad on the
steering wheel.
2-25
ProCarManuals.com

Tilt Wheel
You should adjust the
steering wheel before
you drive.
You can raise it to the highest level to give your legs
more room when
you enter and exit the vehicle.
To tilt the wheel, hold the steering wheel and pull the
lever toward you. Move the steering wheel
to a
comfortable level, then release the lever to lock the
wheel
in place.
Do not adjust the steering wheel while driving.
Turn SignalMultifunction Lever
0 Cruise Control
2-26
- -
ProCarManuals.com

Windshield Wipers
I-
You control the windshield wipers by turning the band
with
the wiper symbol on it.
For a single wiping cycle, turn the band to MIST. Hold
it there until the wipers start, then let go. The wipers will
stop after
one wipe. If you want more wipes, hold the
band
on MIST longer.
rcm
can set the wiper speed for a long or short delay
between wipes. This can be very useful
in light rain or
snow. Turn the band
to choose the delay time. The
closer
to LO, the shorter the delay. For steady
wiping at
low speed, turn the band away
from
you to LO. For high-speed wiping, turn the
band further, to HI. To stop the wipers, rnove the
band
to OFF.
Be sure to clear ice and snow from the wiper blades
before using them.
If they’re frozen to the windshield,
carefully loosen
or thaw them. IF your blades do become
worn
or damaged, get new blades or blade inserts.
Windshield Washer
There‘s a paddle marked with the windshield washer
symbol
on the top of the rnultifunction lever. To spray
washer fluid
on the windshield, push the paddle. The
wipers
will clear the window and then either stop or
return to your preset speed.
In freezing weather, don’t use your washer until
the windshield
is warmed. Otherwise the washer
fluid can form ice on the windshield, blocking
your vision.
2-28
-
ProCarManuals.com

To idle your vehicle with the automatic headlamp
system off, set the parking brake while the ignition is
off. Then start your vehicle. The automatic headlamp
system
will stay off until you release the parking brake.
As with any vehicle, you should turn on the regular
headlamp system when you need
it.
Lamps On Reminder
A reminder tone will sound when your headlamps or
parking lamps are manually turned on and your ignition
is
in OFF, LOCK or ACCESSORY. To turn the tone off, turn
the knob all the way to the left.
In the automatic mode, the
headlamps
turn off once the ignition key is in OF.
Daytime Running Lamps
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the day.
DRL can be helpful in many different driving
conditions, but they can be especially helpful
in the
short periods after dawn and before sunset.
The DRL system will
make your headlamps come on at
reduced brightness when:
the ignition is on,
the headlamp switch is in automatic headlamp mode and
0 the parking brake is released. When the
DRL are on, only your headlamps will be on.
The taillamps, sidemarker and other lamps won't be on.
The instrument panel won't be
lit up either.
When
it begins to get dark, the headlamps will
automatically switch from DRL
to the regular headlamps.
When you turn the headlamp switch off, the regular lamps
will go off, and your headlamps will change to the reduced
brightness of DRL provided
it is not dark outside.
To idle your vehicle with the DRL off, set the parking
brake. The DRL will stay off
until you release the
parking brake.
As with any vehicle. you should turn on the regular
headlamp system
when you need it.
Fog Lamps
Use your fog lamps for better vision in foggy or misty
conditions. Your low-beam headlamps must be
on for
your fog lamps to work.
The fog lamp switch is
on the instrument panel under
the lamps switch. Press the switch to turn the fog lamps
on. Press the switch again to turn them off.
A light will
glow
in the switch when the fog lamps are on.
Fog lamps will go off whenever your high-beam
headlamps come on. When the high beams go off, the
fog lamps
will come on again.
ProCarManuals.com

Luggage Carrier
If you try to carry something on top of your
vehicle that is longer
or wider than the luggage
carrier
-- like paneling, plywood, a mattress, and
so forth -- the wind can catch it as you drive
along. This can cause you to lose control. What
you are carrying could be violently torn
off, and
this could cause you or other drivers to have
a
collision, and of course damage your vehicle. You
may be able to carry something like this inside.
But, never carry something longer or wider than
the luggage carrier on top
of your vehicle.
A luggage carrier allows you to load things on top of
your vehicle. The luggage carrier has slats and side rails
attached to
the roof, sliding crossrails and places to use
for tying things down. These let you load some other
things on top
of your vehicle, as long as they are not
wider or longer than the luggage carrier. To slide the
crossrails to where you want them, push
up
on the lever under each side of the crossrail. This will
release the crossrail and allow you to slide it. When the
crossrail
is where you want it, push down on the lever to
lock it into place.
NOTICE:
Loading cargo that weighs more than 200 Ibs.
(91 kg) on the luggage carrier may damage
your vehicle.
When
you carry cargo on the luggage carrier of a
proper size and weight, put
it on the slats, as far
forward as you can. Then slide the crossrail up
against the rear of the load, to help keep it from
moving. You can then tie it down.
Don’t exceed the lnaximum vehicle capacity when loading
your vehicle. For more information on vehicle capacity
and loading, see “Loading
YOLK Vehicle” in the Index.
To prevent damage or loss of cargo as you’re driving,
check now and then
to make sure the luggage carrier is
locked and cargo is
still securely fastened.
ProCarManuals.com

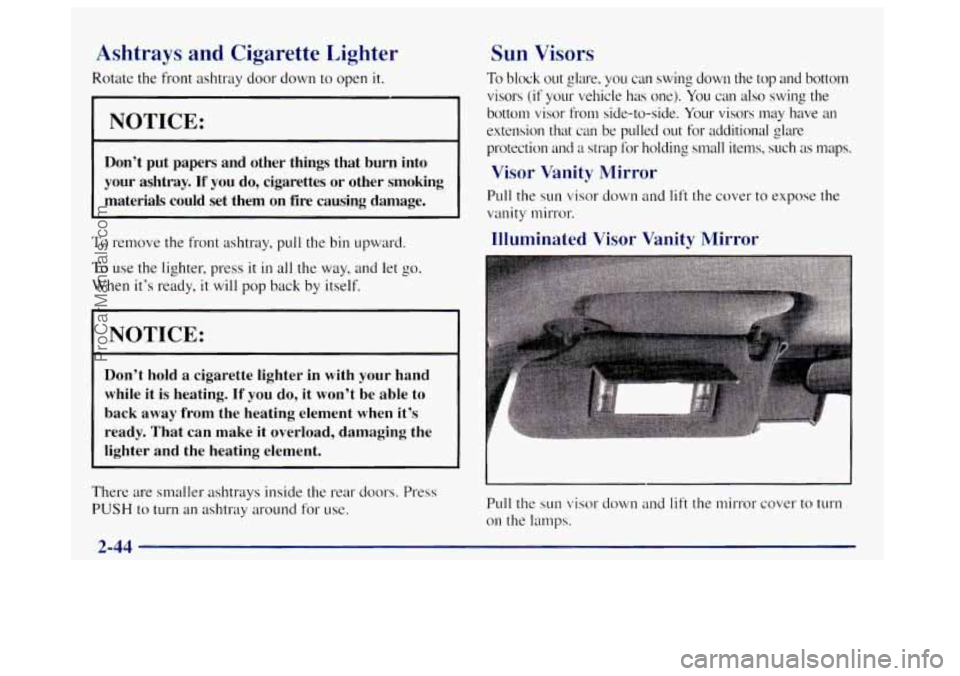

Ashtrays and Cigarette Lighter
Rotate the front ashtray door down to open it.
NOTICE:
Don’t put papers and other things that burn into
your ashtray.
If you do, cigarettes or other smoking
materials could set them on
fire causing damage.
To remove the front ashtray, pull the bin upward.
IO use the lighte’f, f~’esS it in all the way, and let go.
When it’s ready,
it will pop back by itself.
NOTICE:
Don’t hold a cigarette lighter in with your hand
while it is heating.
If you do, it won’t be able to
back away from the heating element when it’s
ready. That can make it overload, damaging the
lighter and the heating element.
There are smaller ashtrays inside the rear doors. Press
PUSH to turn an ashtray around for use.
Sun Visors
To block out glare, you can swing down the top and bottom
visors (if your vehicle has one). You
can also swing the
bottom visor from side-to-side. Your visors may have an
extension that can be pulled out for additional glare protection and
a strap for holding small items, such as maps.
Visor Vanity Mirror
Pull the sun visor clown and lift the cover to expose the
vanity mirror.
Illuminated Visor Vanity Mirror
W
Pull the sun visor down and lift the mirror cover to turn
on the lamps.
2-44
ProCarManuals.com

Accessory Power Outlets
With the accessory power outlets, you can plug in
auxiliary electrical equipment. The accessory power
outlets
are located near the center of the vehicle on the
lower part of the instrument panel. Just remove the plug
from the outlet and follow the proper installation
instructions that are included with any electrical
equipment you install.
These circuits are protected by a fuse and have
maximum current levels.
NOTICE:
When using the accessory power outlets,
maximum electrical load must not exceed
25
amps. Always turn off any electrical equipment
when not in use. Leaving electrical equipment on
for extended periods
will drain your battery.
Sunroof (If Equipped)
Your vehicle may be equipped with a power sliding sunroof.
To open or close your sunroof, the ignition or RAP needs to
be
on. See “Retained Accessory Power’‘ in the Index.
Press and release the rear side
of the button in the mini
console to open the sunroof. You can press the forward
side
of the button to close the sunroof. Once the sunroof
is closed, press the forward side of the button to open
the sunroof to the vent position.
The sunroof is also equipped with
a sunshade which you
can
pull forward to block sun rays.
2-45
ProCarManuals.com

Anti-Lock Brake System Warning Light
~ With the anti-lock brake
system, this light will
come on when you start
your e.ngine and may stay
on
for several seconds.
That’s normal.
If the light stays on, or comes on when you’re driving,
your vehicle needs service.
If the regular brake system
warning light
isn’t on, you still have brakes, but you
don’t have anti-lock brakes.
If the regular brake system
warning light
is also on, you don’t have anti-lock brakes
and there’s
a problem with your regular brakes. See
“Brake System Warning Light“ earlier
in this section.
The anti-lock brake system warning light should come
on briefly when you
turn the ignition key to RUN. If the
light doesn’t come on
then, have it fixed so it will be
ready to warn you
if there is a problem.
Engine Coolant Temperature Gage
This gage shows the
engine coolant temperature.
If the gage pointer moves
into the red area. your
engine is too hot!
It means that your engine coolant has overheated. If you
have been operating your vehicle under normal driving
conditions, you should pull
off the road. stop your
vehicle and
turn off the engine as soon as possible.
In “Problems on the Road,“ this manuill shows you what
to do. See “Engine Overheating”
in the Index.
2-57
ProCarManuals.com

Security Warning Light
This light will come on
briefly when you turn the
key toward
START. The
light will stay on
until the
engine starts.
Service 4WD Light
This light should come on
briefly when you turn on the
SERVICE
4WD
I ignition, as a check to show
If the light flashes, the Passlock system has entered a
tamper mode. If the vehicle fails to start, see "Passlock"
in the Index.
If the light comes on continuously while driving and
stays on, there may be a problem with the Passlock
system. Your vehicle
will not be protected by Passlock,
and you should see your retailer. The
SERVICE 4WD light
comes on to indicate that
there may be
a problem with the drive system and
service is required. Malfunctions can be indicated by the
system before any problem is apparent, which may
prevent serious damage to
the vehicle. This system is
also designed
to assist your service technician in
correctly diagnosing a malfunction.
ProCarManuals.com
