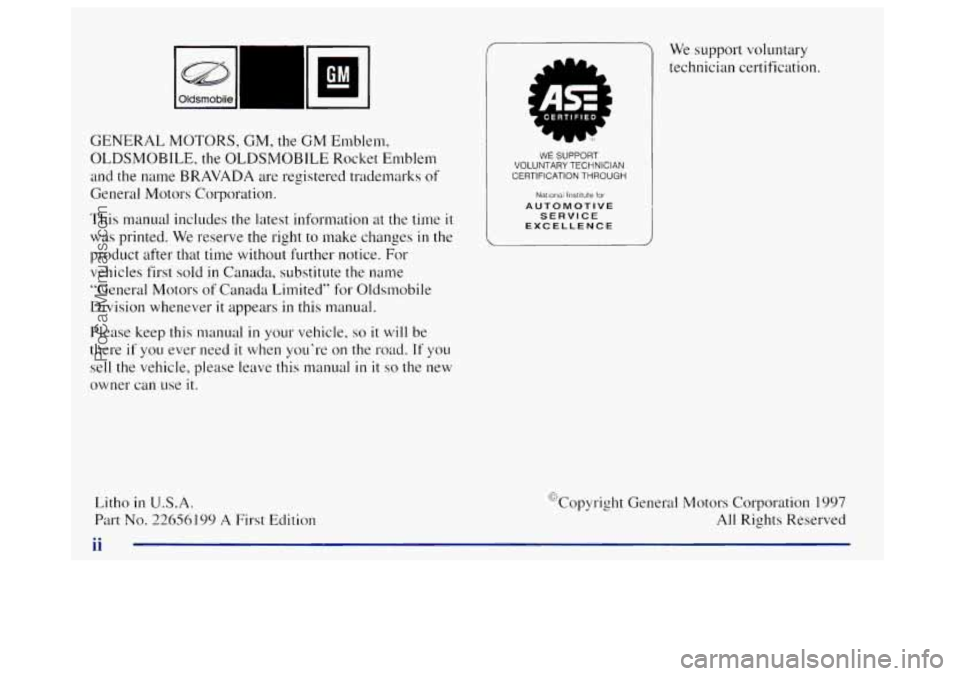

--n I
I GM
GENERAL MOTORS, GM, the GM Emblem,
OLDSMOBILE, the OLDSMOBILE Rocket Emblem
and the name BRAVADA are registered trademarks of
General Motors Corporation.
This manual includes the latest information at the time
it
was printed. We reserve the right to make changes in the
product after that time without
further notice. For
vehicles first sold
in Canada, substitute the name
“General Motors of Canada Limited” for Oldsmobile
Division whenever
it appears in this manual.
Please keep this manual
in your vehicle, so it will be
there
if you ever need it when you’re on the road. 1.f you
sell the vehicle, please leave this manual
in it so the new
owner can
use it.
Litho in U.S.A.
Part No. 22656 199 A First Edition
f
WE SUPPORT
VOLUNTARY TECHNICIAN
CERTIFICATION THROUGH
AUTOMOTIVE
Natlorlal Institute lor
SERVICE
EXCELLENCE
We support voluntary
~ technician certification.
“Copyright General Motors Corporation
1997
All Rights Reserved
ProCarManuals.com

Leaving Your Vehicle
If you are leaving the vehicle, take your key, open your
door and set the locks from inside. Then get out and
close the door.
Keyless Entry System
You can lock and unlock your doors or unlock your
liftgate from about
3 feet (1 m) up to 30 feet (9 m)
away using the keyless entry transmitter supplied with
your vehicle.
Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules and
with Industry Canada.
This device complies with Part
15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies
with RSS-2 10 of Industry Canada.
Operation is subject to
the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation
of
the device. Changes
or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
This system has a range
of about 3 feet (1 m) up to
30 feet (9 m). At times you may notice a decrease in
range. This is normal for any remote keyless entry
system.
If the transmitter does not work or if you have
to stand closer to your vehicle for the transmitter to
work,
try this:
Check to determine if battery replacement or
resynchronization is necessary. See the instructions
that follow.
Check the distance. You may be too far from your
vehicle.
You may need to stand closer during rainy
or snowy weather.
0 Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.
If you’re still having trouble, see your retailer or a
qualified technician for service.
2-6
ProCarManuals.com

Operation
When you press UNLOCK. the driver's door will
unlock automatically, the parking lamps will flash and
the interior lights will go on.
If you press UNLOCK
again
within three seconds, the remaining doors will
unlock, the parking lamps will flash and the interior
lights
will go on. Press LOCK to lock all the doors.
Press LOCK again and the horn will chirp.
Press the
REAR button twice within three seconds to
unlock the rear liftgate glass, the parking larnps will
flash and the interior lights will go on. The transmission
must be
in PARK (P) or NEUTRAL (N).
Remote Panic Alarm
When the button with the horn symbol on the key
transmitter
is pressed, the horn will sound and the
headlamps and taillamps will flash for
up to two
minutes. This can
be turned off by pressing the
horn button again, waiting for 30 seconds, or
starting the vehicle.
Matching Transmitter(s) To Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be purchased through your retailer. Remember
to bring
any
remaining transmitters
with you when you go to your
retailer. When the retailer matches the replacement
transmitter
to your vehicle. any remaining transmitters
must
also be matched. Once your retailer has coded the
new transmitter, the lost transmitter will
not unlock youI
vehicle.
Each vehicle can have only two transmitters
matched
to it.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should
last about two years.
You can tell the battery is weak
if the transmitter won't
work at the normal range
in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time
to change the battery.
I NOTICE:
When replacing the battery, use em nat to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage
the transmitter.
2-7
ProCarManuals.com

Starting Your Engine
Move your shift lever to PARK (P) or NEUTRAL (N).
Your engine won’t start in any other position -- that‘s a
safety feature. To restart when you’re already moving,
use NEUTRAL
(N) only.
NOTICE:
Don’t try to shift to PARK (P) if your vehicle is
moving. If you do, you could damage the
transmission. Shift to PARK
(P) only when your
vehicle is stopped.
1. Without pushing the accelerator pedal. turn your
ignition key to START. When the engine starts. let
engine gets warm.
2 *o of the key. The idle speed will go down as your
NOTICE:
Holding your key in START for longer than 15
seconds at a time will cause your battery to be
drained much sooner. And the excessive heat can
damage your starter motor.
2. If it doesn’t start right away, hold your key in
START. If it doesn’t start in 10 seconds, push the
accelerator pedal all the way down for five more
seconds, or
until it starts.
3. If your engine still won’t start (or starts but then
stops), wait
15 seconds and start over.
When the engine starts, let
go of the key and the
accelerator pedal.
NOTICE:
Your engine is designed to work with the
electronics
in your vehicle. If you add electrical
parts or accessories, you could change the
way
the engine operates. Before adding electrical
equipment, check with your retailer. If you don’t,
your engine might not perform properly.
If you ever have to have your vehicle towed, see
the part of’this manual that tells how to
do it
without damaging your vehicle. See “Towing
Your Vehicle” in the Index.
2-14
ProCarManuals.com

Exterior Lamps
Your parking lamp and headlamp switch is on the
driver’s side
of your instrument panel.
Rotate the knob to the right to the parking lamps symbol
to manually turn on:
Parking Lamps
Sidemarker Lamps
Tidillamps
0 License Plate Lamps
Instrument .Panel Lights Rotate
the knob
to the right to the master lamp symbol
to turn on all the lamps listed as well as the headlamps.
Rotate the knob all the way to the left to turn
off your
lamps and put the system
in auto headlamp mode.
Automatic Headlamp System
When it is dark enough outside, your automatic
headlamp system will turn on your headlamps at the
normal brightness along
with other lamps such as the
taillamps, sidemarker, parking lamps and the instrument
panel lights. The radio lights
will also be dim.
Your vehicle is equipped with a light sensor
on the top
of the instrument panel under the radio speaker grill, so
be sure it is not covered, which will cause the system to
be on whenever the ignition
is on.
The system may also turn on your lights when driving
through a parking gzage, heavy overcast weather, a tunnel
or fueling your vehicle in a low-light area. This is normal.
There is
a delay in the transition between the daytime and
nighttime operation
of the Daytime Running Lamps
(DRL) and the automatic headlamp systems
so that driving
under bridges or bright overhead street lights does not
afiect the system. The DRL and automatic headlamp
system
will only be affected when the light sensor sees a
change
in lighting lasting longer than the delay.
2-32
ProCarManuals.com

To idle your vehicle with the automatic headlamp
system off, set the parking brake while the ignition is
off. Then start your vehicle. The automatic headlamp
system
will stay off until you release the parking brake.
As with any vehicle, you should turn on the regular
headlamp system when you need
it.
Lamps On Reminder
A reminder tone will sound when your headlamps or
parking lamps are manually turned on and your ignition
is
in OFF, LOCK or ACCESSORY. To turn the tone off, turn
the knob all the way to the left.
In the automatic mode, the
headlamps
turn off once the ignition key is in OF.
Daytime Running Lamps
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the day.
DRL can be helpful in many different driving
conditions, but they can be especially helpful
in the
short periods after dawn and before sunset.
The DRL system will
make your headlamps come on at
reduced brightness when:
the ignition is on,
the headlamp switch is in automatic headlamp mode and
0 the parking brake is released. When the
DRL are on, only your headlamps will be on.
The taillamps, sidemarker and other lamps won't be on.
The instrument panel won't be
lit up either.
When
it begins to get dark, the headlamps will
automatically switch from DRL
to the regular headlamps.
When you turn the headlamp switch off, the regular lamps
will go off, and your headlamps will change to the reduced
brightness of DRL provided
it is not dark outside.
To idle your vehicle with the DRL off, set the parking
brake. The DRL will stay off
until you release the
parking brake.
As with any vehicle. you should turn on the regular
headlamp system
when you need it.
Fog Lamps
Use your fog lamps for better vision in foggy or misty
conditions. Your low-beam headlamps must be
on for
your fog lamps to work.
The fog lamp switch is
on the instrument panel under
the lamps switch. Press the switch to turn the fog lamps
on. Press the switch again to turn them off.
A light will
glow
in the switch when the fog lamps are on.
Fog lamps will go off whenever your high-beam
headlamps come on. When the high beams go off, the
fog lamps
will come on again.
ProCarManuals.com

Battery Run-Down Protection
This feature shuts off the dome, courtesy. vanity.
reading, glove
box and underhood lamps if they are left
on for more than
20 minutes when the ignition is off.
This
will keep your battery from running do~n.
Mirrors
Electrochromic Day/Night Rearview Mirror
This mirror auton~atically changes to reduce glare from
headlamps behind you.
A photocell on the back of the
mirror senses when
it is becoming dark outside. Another
photocell
built into the mirror surface senses when
headlamps are behind
you.
At night, when the glare is too high, the mirror will
gradually darken to reduce glare (this change may take a
few seconds). The mirror will return to its clear daytime
state when
the glare is reduced.
Press the button
at the base of the mirror to turn on the
automatic feature. The button has
an indicator light to
show
it is on. Press the button again to turn the
automatic feature
off.
Time Delay
The automatic mirror has a time delay feature which
prevents unnecessary switching from the night back to
the day position. This delay prevents rapid changing of
the mirror
as you drive under lights and through traffic.
Cleaning the Photocells
Use a cotton swab and glass cleaner to clean the
photocells
when necessary.
Outside Manual Adjust Mirror
Adjust your outside min-ors so you can just see the side
of your vehicle.
You can fold them before entering
a car wash. Pull the
mirrors in toward the vehicle. Push the mirrors back out
when finished.
2-35
ProCarManuals.com

If you have trouble programming the universal
transmitter, make sure that you have followed the
directions exactly as described and that the battery
in the
hand-held transmitter is not dead. If you still cannot
program
it, rotate the hand-held transmitter end over end
and try again. The universal transmitter may not work
with older garage door openers that do not meet current
Federal Consumer Safety Standards.
If you cannot
program the transmitter after repeated attempts, consult
your Oldsmobile retailer.
Be sure to keep the original hand-held transmitter
in case you need to erase and reprogram the
universal transmitter.
Operating the Transmitter
Press and hold the appropriate button on the universal
transmitter. The red light comes on while the signal is
being transmitted.
Note that the effective transmission range
of the
universal transmitter may differ from the hand-held
transmitter and from one channel to another.
Erasing Channels
To erase all three programmed channels, hold down the
two outside buttons
until the red light begins to flash.
Individual channels cannot be erased, but can be
reprogrammed using the procedure for programming the transmitter explained earlier.
Training a Garage Opener with a
“Rolling Code” Feature
If you programmed the universal transm-itter, but the
garage door
will not open, and if your garage door opener
was manufactured after
1995, your garage door may have
a security feature that changes the “code” of your garage
door opener every time
it is opened or closed.
To determine if your garage door opener has this
“rolling code” feature, press
the appropriate button on
the universal transmitter that was programmed. If the
red light flashes rapidly for one to two seconds, then
turns solid, your garage door opener has this feature.
2-48
ProCarManuals.com

Remember that in order for the automatic system
to perform
well, it needs A/C to provide
cooling performance.
Air Conditioning
On hot days, open the windows long enough to let hot
inside air escape. This reduces the time
it takes for your
vehicle to cool down. Then keep your windows closed
for the air conditioner to work its best.
For quick cool-down on very hot days, use
MAX A/C
with the temperature knob turned to the left. This setting
should be used to keep odors and/or dust from entering
the vehicle. For normal cooling on hot days, use A/C
with the temperature knob turned to the left.
On cool but sunny days, use BI-LEVEL A/C to deliver
warm air to the floor and cooler air to the instrument
panel outlets.
When the air conditioner is on, you may sometimes notice
slight changes
in your vehicle‘s engine speed and power.
This
is normal because the system is designed to cycle the
compressor on and off to keep the desired temperature.
Heating
The heater works best if you keep your windows closed
while using
it. On cold days, use HEATER with the
temperature knob turned
to the right. BLEND is useful
in cool weather when you have fog or ice on the
windshield or side windows.
If you use the optional engine coolant heater before
starting your engine, your heating system will produce
warmer air faster to heat the passenger compartment in
cold weather. See “Engine Coolant Heater”
in the Index.
Ventilation System
For mild outside temperatures when little heating or
cooling
is needed, use VENT to direct outside air
through your vehicle. Airflow is through the instrument
panel outlets.
Your vehicle’s ventilation system supplies outside air to
the inside of your vehicle when
it is moving. When the
vehicle is
not moving, you can get outside air to flow
through by selecting any mode and any fan speed.
3-5
ProCarManuals.com

AM-FM Stereo with Cassette Tape Player
and Automatic Tone Control
Playing the Radio
PWR-VOL: Press this knob to turn the system on and
off.
To increase volume, turn the knob to the right. Turn
it to the left to decrease volume.
RCL: Press this button briefly to recall the station being
played or to display the clock.
To change what is normally shown
on the display (station or time),
press
the
RCL button until you see the display you want, then
hold the RCL button until the display flashes. If you
press the button when the ignition is off, the clock will
show for
a few seconds.
Finding a Station
AM-FM: Press this button to switch between AM, FM 1
and FM2. The display shows your selection.
TUNE: Press this knob lightly so it extends. Turn it to
choose radio stations. Push the knob back into its stored
position when you’re not using
it.
SEEK: Press the up or down arrow to go to the next
higher
or lower station and stay there. The sound will
mute while seeking.
SCAN: Press this button and release it to listen to
stations for
a few seconds. The radio will go to a station,
stop for
a few seconds, then go on to the next station.
Press the button again to stop scanning. The sound will
mute while scanning, and
SCAN will appear on the
display.
If you press SCAN for more than two seconds,
the radio
will change to P SCAN mode. P SCAN will
appear on the display.
3-8
ProCarManuals.com
