set clock OLDSMOBILE CUTLASS 1997 Owners Manual

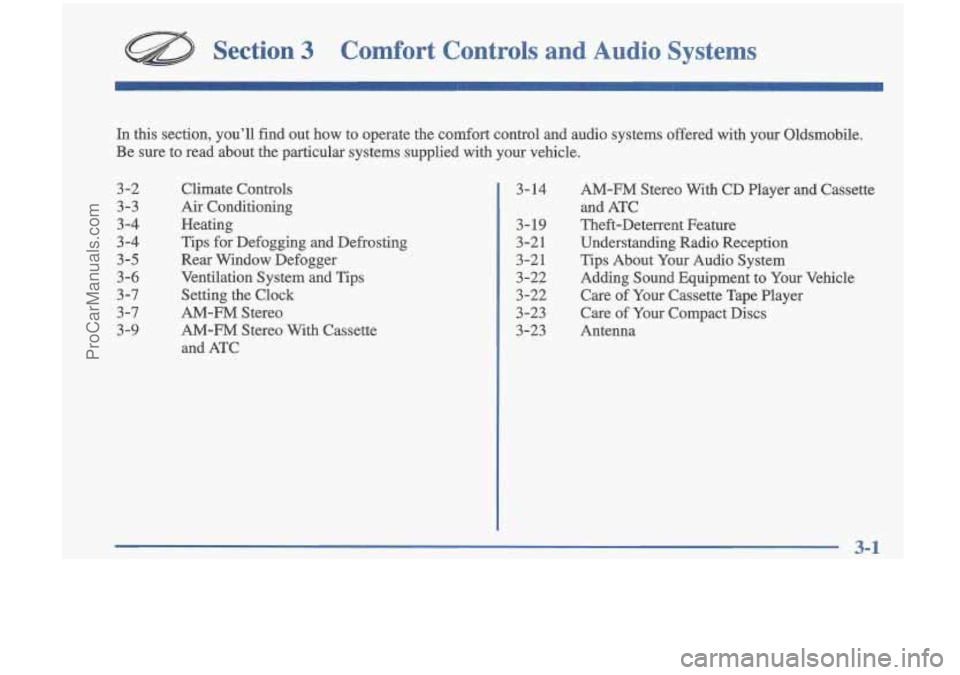

Section 3 Comfort Controls and Audio Systems
In this section, you’ll find out how to operate the comfort control and audio systems offered with your\
Oldsmobile.
Be sure to read about the particular systems supplied with your vehicle.
3-2
3-3
3-4
3-4
3-5
3-6 3-7
3-7
3-9 Climate Controls
Air Conditioning
Heating
Tips for Defogging and Defrosting
Rear Window Defogger
Ventilation System and Tips Setting the Clock
AM-FM Stereo
AM-FM Stereo With Cassette
and ATC 3-14
3- 19
3-21
3-21
3 -22
3-22
3-23
3-23 AM-FM
Stereo With CD Player and Cassette
and ATC
Theft-Deterrent Feature
Understanding Radio Reception
Tips About Your Audio System
Adding Sound Equipment to Your Vehicle
Care of Your Cassette Tape Player
Care of Your Compact Discs
Antenna
ProCarManuals.com

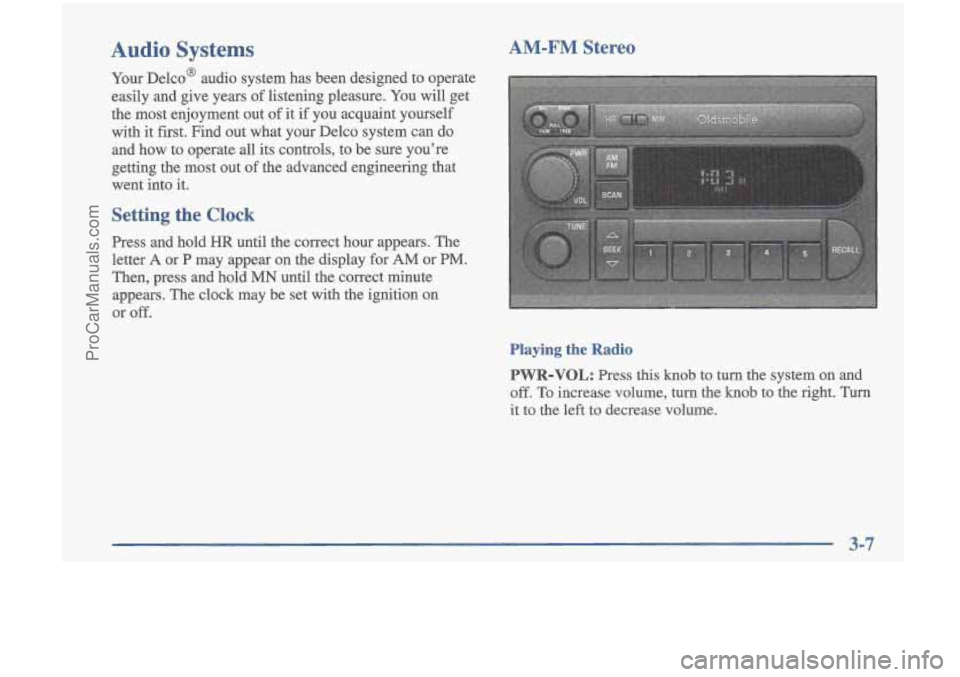

Audio Systems
Your DelcoB audio system has been designed to operate
easily .and give years of listening pleasure.
You will get
the most enjoyment out
of it if you acquaint yourself
with it first. Find out what your Delco system can do
and how to operate
all its controls, to be sure you’re
getting the most out of the advanced engineering that
went into it.
Setting the Clock
Press and hold HR until the correct hour appears. The
letter
A or P may appear on the display for AM or PM.
Then, press and hold MN until the correct minute
appears. The clock may be set with the ignition on
or
off.
AM-FM Stereo
Playing the Radio
PWR-VOL:
Press this knob to turn the system on and
off. To increase volume, turn the knob to the right. Turn
it
to the left to decrease volume.
ProCarManuals.com

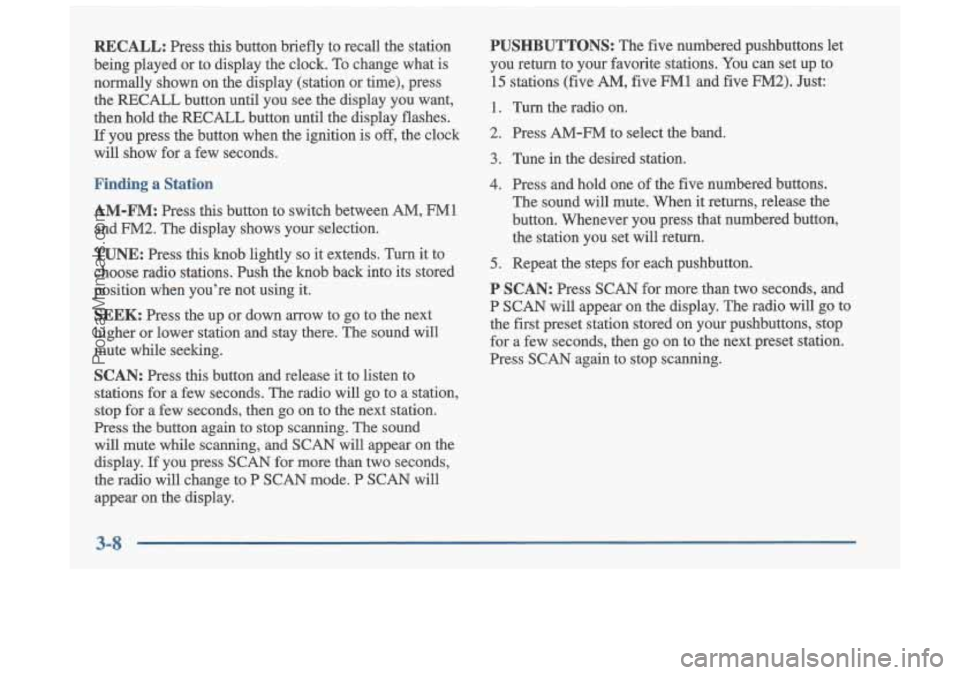

RECALL: Press this button briefly to recall the station
being played or to display the clock. To change what is
normally shown on the display (station or time), press the RECALL button until you see the display you want,
then hold the RECALL button until the display flashes.
If you press the button when the ignition is
off, the clock
will show for a few seconds.
Finding a Station
AM-FM: Press this button to switch between AM, FM1
and FM2. The display shows your selection.
TUNE: Press this knob lightly so it extends. Turn it to
choose radio stations. Push the knob back into its stored
position when you’re not using it.
SEEK: Press the up or down arrow to go to the next
higher or lower station and stay there. The sound will
mute while seeking.
SCAN: Press this button and release it to listen to
stations for a few seconds. The radio will go to a station,
stop for a few seconds, then go on to the next station.
Press the button again to stop scanning. The sound
will mute while scanning, and SCAN will appear on the display.
If you press SCAN for more than two seconds,
the radio will change to P SCAN mode.
P SCAN will
appear on the display.
PUSHBUTTONS: The five numbered pushbuttons let
you return to your favorite stations. You can set up to
15 stations (five AM, five FM1 and five FM2). Just:
1. Turn the radio on.
2. Press AM-FM to select the band.
3. Tune in the desired station.
4. Press and hold one of the five numbered buttons.
The sound will mute. When it returns, release the
button. Whenever you press that numbered button,
the station you set will return.
5. Repeat the steps for each pushbutton.
P SCAN: Press SCAN for more than two seconds, and
P SCAN will appear on the display. The radio will go to
the
first preset station stored on your pushbuttons, stop
for a few seconds, then go on to the next preset station.
Press SCAN again to stop scanning.
3-8
ProCarManuals.com

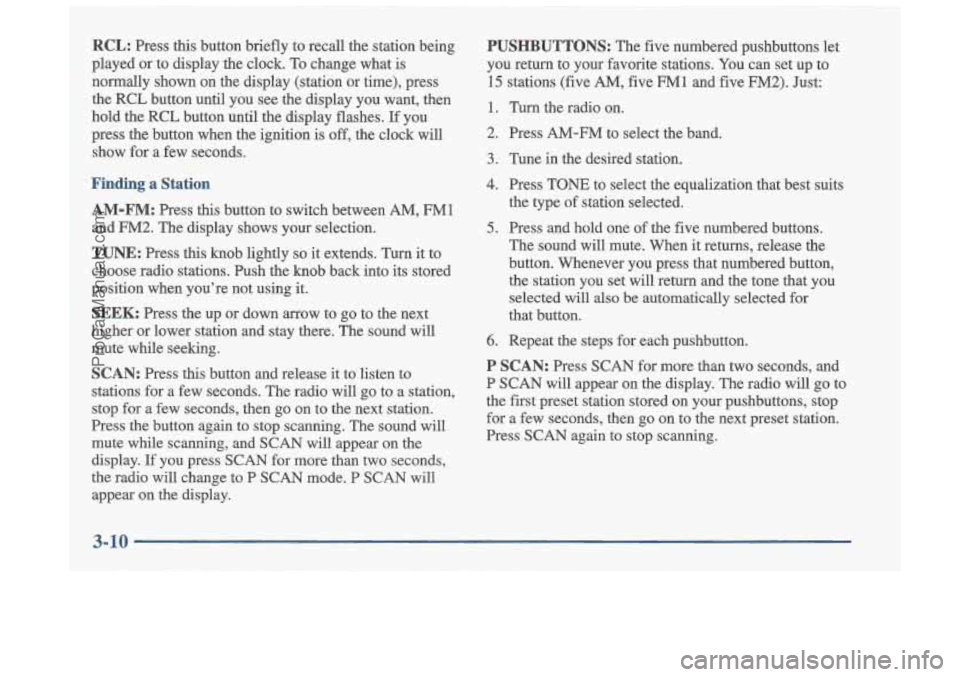

RCL: Press this button briefly to recall the station being
played or to display the clock. To change what
is
normally shown on the display (station or time), press
the RCL button until you see the display you want, then
hold the RCL button until the display flashes. If you
press the button when the ignition is
off, the clock will
show for a few seconds.
Finding a Station
AM-FM:
Press this button to switch between AM, FM1
and FM2. The display shows your selection.
TUNE: Press this knob lightly so it extends. Turn it to
choose radio stations. Push the knob back into its stored
position when you’re not using it.
SEEK: Press the up or down arrow to go to the next
higher or lower station and stay there. The sound will
mute while seeking.
SCAN: Press this button and release it to listen to
stations-for a few seconds. The radio
will go to a station,
stop for a few seconds, then go on to the next station.
Press the button again to stop scanning. The sound will
mute while scanning, and SCAN will appear on the display.
If you press SCAN for more than two seconds,
the radio will change to P SCAN mode. P SCAN will appear on the display.
PUSHBUTTONS: The five numbered pushbuttons let
you return to your favorite stations. You can set up to
15 stations (five AM, five FM1 and five FM2). Just:
1. Turn the radio on.
2. Press AM-FM to select the band.
3. Tune in the desired station.
4. Press TONE to select the equalization that best suits
the type of station selected.
5. Press and hold one of the five numbered buttons.
The sound will mute. When it returns, release the
button. Whenever you press that numbered button, the station you set will return and the tone that you selected will also be automatically selected for
that button.
6. Repeat the steps for each pushbutton.
P SCAN: Press SCAN for more than two seconds, and
P SCAN will appear on the display. The radio will go to
the first preset station stored on your pushbuttons, stop
for a
few seconds, then go on to the next preset station.
Press SCAN again to stop scanning.
3-10
ProCarManuals.com

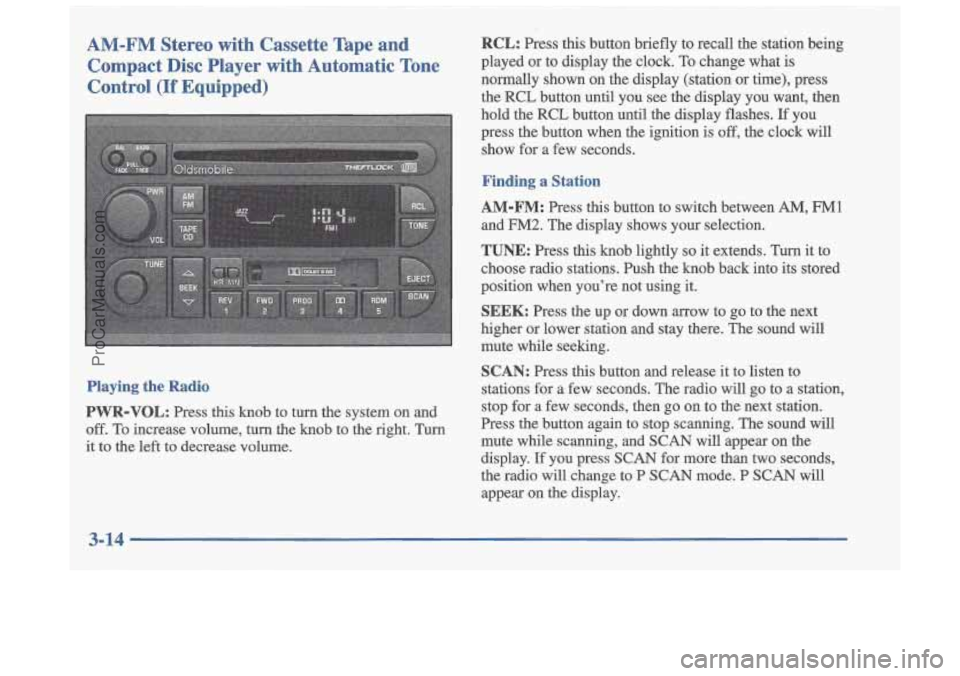

AM-FM Stereo with Cassette Tape and Compact Disc Player with Automatic Tone
Control
(If Equipped)
Playing the Radio
PWR-VOL: Press this knob to turn the system on and
off. To increase volume, turn the knob to the right. Turn
it to the left to decrease volume.

RCL: Press this button briefly to recall the station being
played or to display the clock.
To change what is
normally shown on the display (station or time), press
the RCL button until you see the display you want, then
hold the RCL button until the display flashes.
If you
press the button when the ignition
is off, the clock will
show for a few seconds.
Finding a Station
AM-FM:
Press this button to switch between AM, FM1
and FM2. The display shows your selection.
TUNE: Press this knob lightly so it extends. Turn it to
choose radio stations. Push the knob back into its stored
position when you’re not using it.
SEEK: Press the up or down arrow to go to the next
higher
or lower station and stay there. The sound will
mute while seeking.
SCAN: Press this button and release it to listen to
stations for a few seconds. The radio will go to a station,
stop for a few seconds, then go on to the next station.
Press the button again to stop scanning. The sound will
mute while scanning,
and SCAN will appear on the
display. If you press SCAN for more than two seconds,
the radio will change to P SCAN mode. P
SCAN will
appear on the display.
ProCarManuals.com

Brakes. Anti-Lock .......................... 2.54. 4.7
Braking
........................................ 4-6
Braking in Emergencies
........................... 4-9
Break.In. New Vehicle
.......................... 2-13
BTSICheck
................................... 7-39
Bulb Replacement
.............................. 6-26
Back-up Lamp
.............................. 6-29
CHMSL
.................................... 6-29
Dome Lamp
................................. 6-31
Front Turn Signal Lamps
....................... 6-27
Headlamps
.................................. 6-27
Rear Turn Signal Lamp
........................ 6-29
BTSI
.................................... 2.24. 7.39
Stoplamp
................................... 6-29
Taillamp
.................................... 6-29
.Capacities and Specifications
.................... 6-57
Carbon Monoxide
............... .2.10.2.25. 4.27 4-35
Cassette Deck Service
........................... 7-37
Cassette Tape Player
........................ 3.9. 3.14
Cassette Tape Player Care
........................ 3-22
CDPlayer
..................................... 3-14
CD Player Theft-Deterrent Feature
................. 3- 19
Center Console Storage Area
...................... 2-41
Center Rear Passenger Position
.................... 1-33
Certification Label
.............................. 4-3 1
Chains. Safety ................................. 4-36
Chains. Tire
................................... 6-40
Changing
a Flat Tire ............................. 5-20
Charging System Indicator Light
................... 2-52
Center High-Mounted Stoplamp Bulb Replacement
.... 6-29 Check Engine Light
............................. 2-55
Check Oil Light
........................... 2.59. 6. 10
Checking Your Restraint Systems
.................. 1-47
Chemical Paint Spotting
.......................... 6-47
Child Restraints
................................ 1-36
Securing in a Rear Outside Seat Position
........... 1-38
Securing in the Center Rear Seat Position
.......... 1-40
Securing in the Right Front Seat Position
.......... 1-42
TopStrap
................................... 1-37
WheretoPut
................................ 1-36
Circuit Breakers and Fuses
....................... 6-51
Cleaner.
Air ................................... 6-15
Cleaning
...................................... 6-41
Aluminum Wheels
............................ 6-46
Exterior LampsLenses
........................ 6-45
Fabric
........................... ' ........... 6-41
Glass
....................................... 6-44
Inside
of Your Oldsmobile ...................... 6-41
Instrument Panel
............................. 6-43
Leather
..................................... 6-43
Outside
of Your Oldsmobile .................... 6-44
Special Problems
............................. 6-42
Stains
...................................... 6-42
Tires
....................................... 6-46
Vinyl
....................................... 6-43
Wheels
..................................... 6-46
Windshield and Wiper Blades ................... 6-44
Climate Control System
........................... 3-2
Clock. Setting the
................................ 3-7
Comfort Controls
................................ 3-2
Compact Disc Care
............................. 3-23
