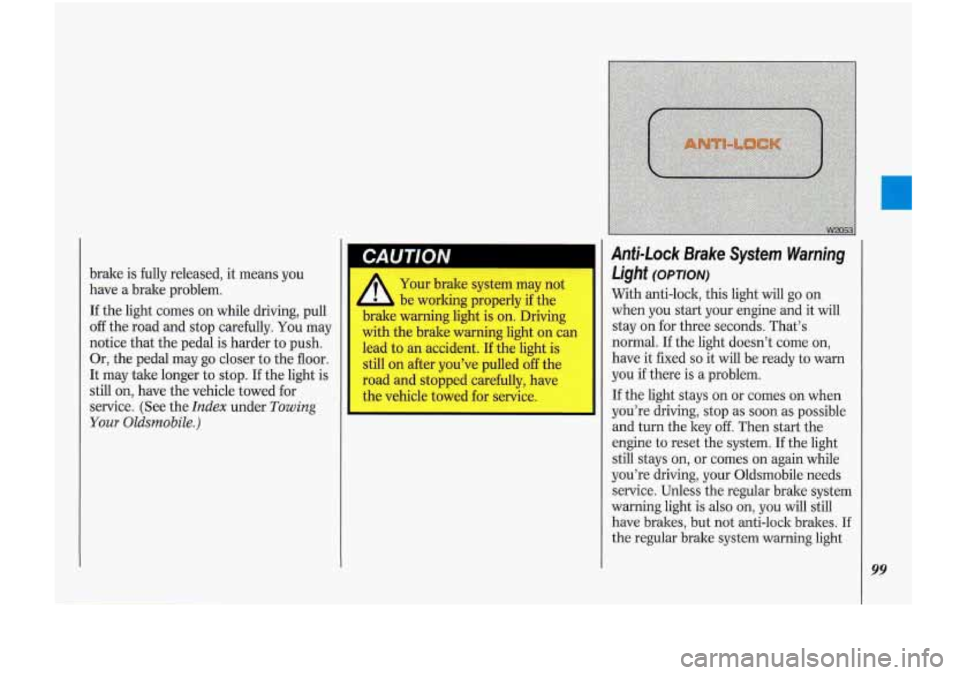

brake is fully released, it means you
have a brake problem.
If the light comes
on while driving, pull
off the road and stop carefully. You may
notice that the pedal is harder to push.
Or, the pedal may go closer to the floor.
It may take longer to stop. If the light is
still on, have the vehicle towed for
service. (See the
Index under Towing
Your Oldsrnobile.)
CAUTION
Your brake system may not I
be working properly if the
brake warning light is on. Driving
with the brake warning light on can
lead to an accident. If the light is
still on after you’ve pulled
off the
road and stopped carefully, have
the vehicle towed for service.
Anti-Lock Brake System Warning
Light
(opTloN)
With anti-lock, this light will go on
when you start your engine and it will
stay on for three seconds. That’s
normal. If the light doesn’t come on,
have it fixed
so it will be ready to warn
you if there is a problem.
If the light stays on or comes on when
you’re driving, stop as soon as possible
and turn the key
off. Then start the
engine to reset the system.
If the light
still stays on, or comes
on again while
you’re driving, your Oldsmobile needs
service. Unless the regular brake system
warning light
is also on, you will still
have brakes, but not anti-lock brakes.
If
the regular brake system warning light
99

100

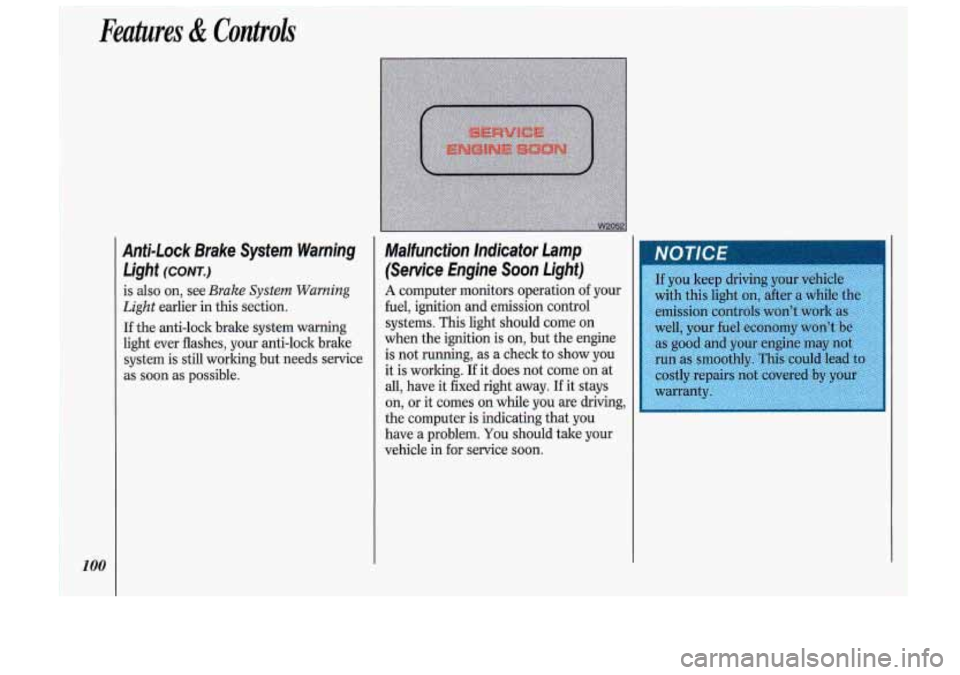

Anti-Lock Brake System Warning Light
(CONT.)
is also on, see Brake System Warning
Light earlier in this section.
If the anti-lock brake system warning
light ever flashes, your anti-lock bralre system is still working but needs service
as soon as possible.
Malfunction lnelicator Lamp
(Service Engine Soon Light)
A computer monitors operation of your
fuel, ignition and emission control
.systems.
This light should come on
when the ignition is on, but the engine
is not running, as a check
to show you-
it is working. If it does not come on at
all, have it fixed right away. If it stays
on,
or it comes on while you are driving,
the computer is indicating that you
have
a problem. You should take your
vehicle in
for service soon.

102

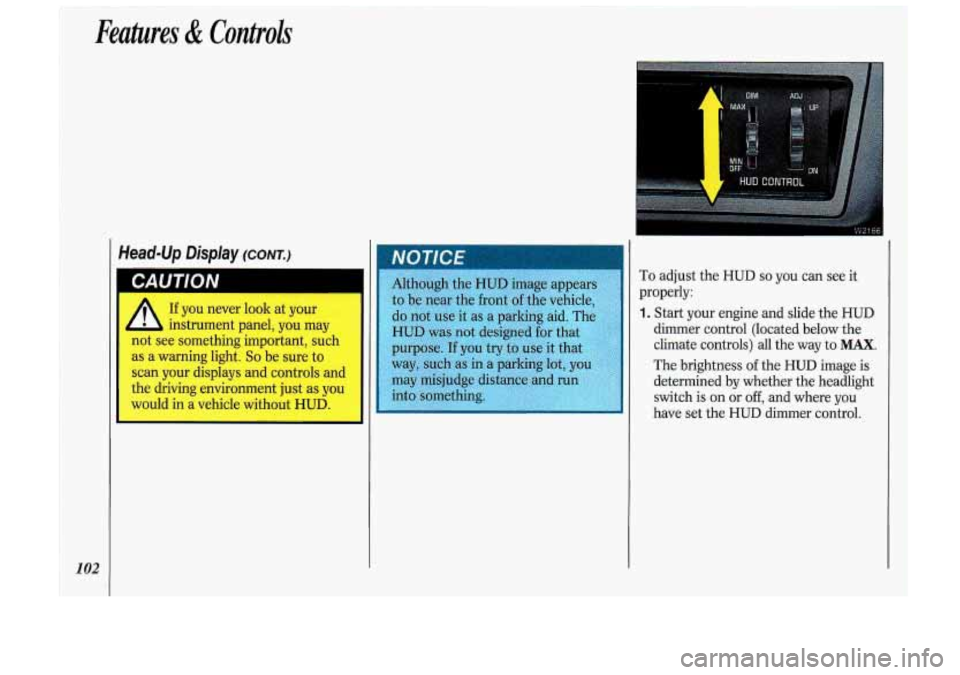

Although the HUD irinage apper
to be near the front
of the vehicl
do not, use it as a parking aid. T1
HUD was not designed For that
rpose.
If you try to use it that
way, such as in a parltirig lot, yo
may misjudge distance
ct run
:o somethin!
To adjust the HUD so you can see it
properly:
1. Start your engine and slide the HUD
dimmer control (located below the
climate controls) all the way to
MAX.
The brightness of the HUD image is
determined
by whether the headlight
switch is on or
off, and where you
have set the HUD dimmer control.

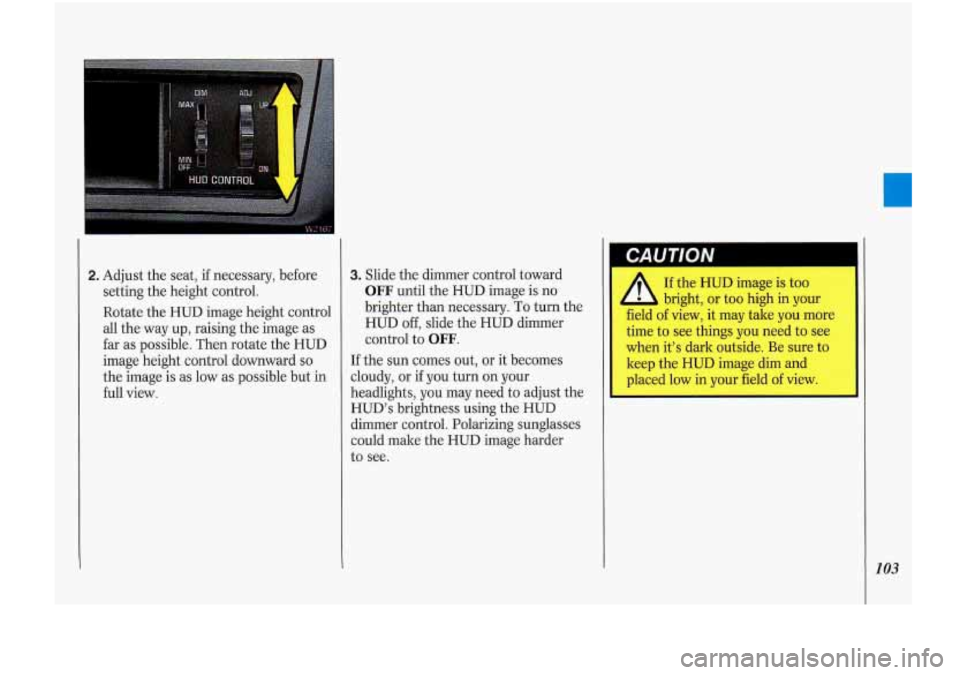

2. Adjust the seat, if necessary, before
setting the height control.
Rotate the HUD image height control
all the way up, raising the image as
far as possible. Then rotate the HUD
image height control downward
so
the image is as low as possible but in
full view.
3. Slide the dimmer control toward
OFF until the HUD image is no
brighter than necessary.
To turn the
HUD off, slide the HUD dimmer
control to
OFF.
If the sun comes out, or it becomes
cloudy, or
if you turn on your
headlights, you may need
to adjust the
HUD's brightness using the HUD
dimmer control. Polarizing sunglasses
could make the HUD image harder
to see.
I I
CAUTION I
A
If the HUD image is too
bright, or too high
in your
field of view, it may take you more
time to see things you need to see
when it's dark outside. Be sure to
I
keep the HUD image dim and
I placed low in your field of view.
203

Features & Controls
I
104

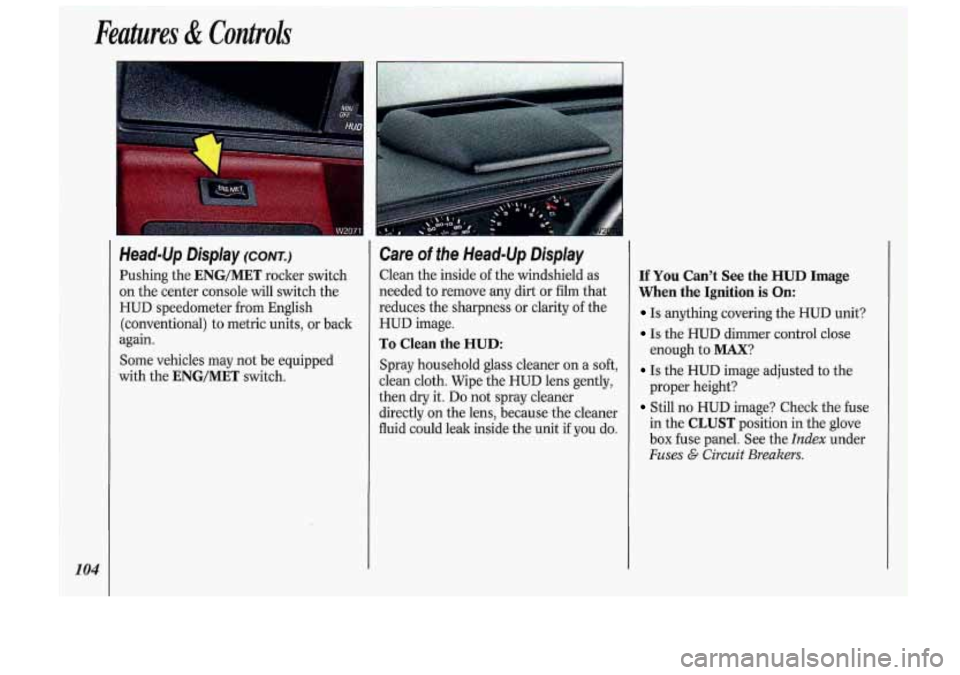

Head-Up Display (CONT.)
Pushing the ENG/MET rocker switch
on the center console
will switch the
HUD speedometer from English
(conventional) to metric units, or back
again.
Some vehicles may not be
equipped
with the ENG/MET switch.
Care of the Head-Up Display
Clean the inside of the windshield as
needed to remove any dirt or
film that
reduces the sharpness
or clarity of the
HUD image.
To Clean the HUD:
Spray household glass cleaner on a soft,
clean cloth. Wipe the HUD lens gently,
then
dry it. Do not spray cleaner
directly on the lens, because the cleaner
fluid could leak inside the unit
if you do.
If You Can’t See the HUD Image
When the Ignition
is On:
Is anything cbvering the HUD unit?
Is the HUD dimmer control close
enough
to MAX?
Is the HUD image-adjusted to the
proper height?
Still no HUD image? Check the fuse
in the
CLUST position in the glove
box fuse panel. See the Index under
Fuses G Circuit Breakers.
..

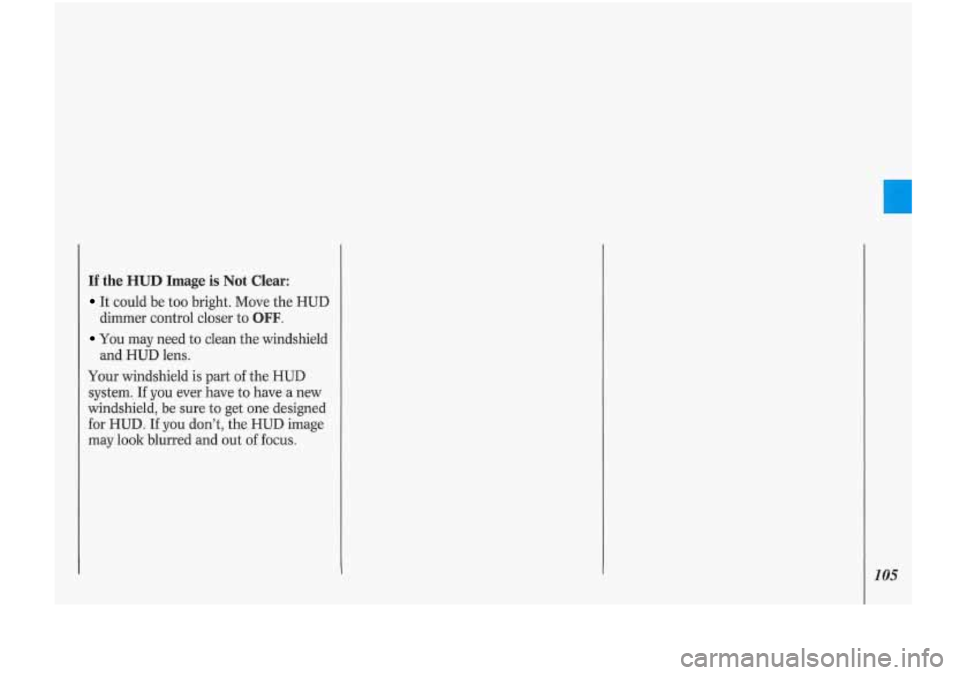

If the HUD Image is Not Clear:
It could be too bright. Move the HUD
dimmer control closer to
OFF.
You may need to clean the windshield
and HUD lens.
Your windshield is part of the HUD
system.
If you ever have to have a new
windshield, be sure
to get one designed
for HUD.
If you don’t, the HUD image
may look blurred and out
of focus.

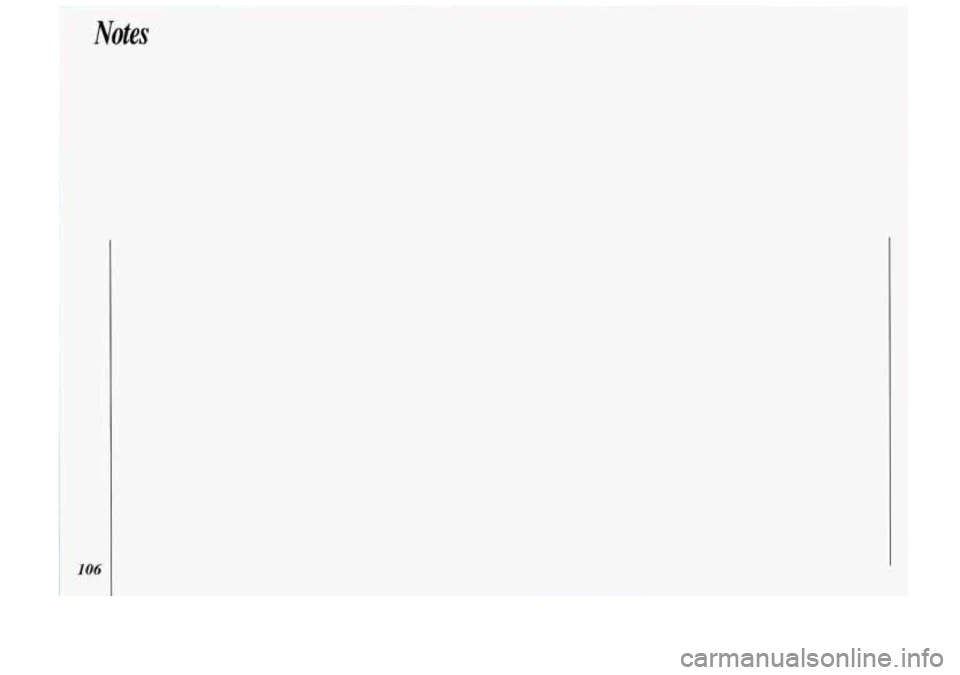

I Notes I
