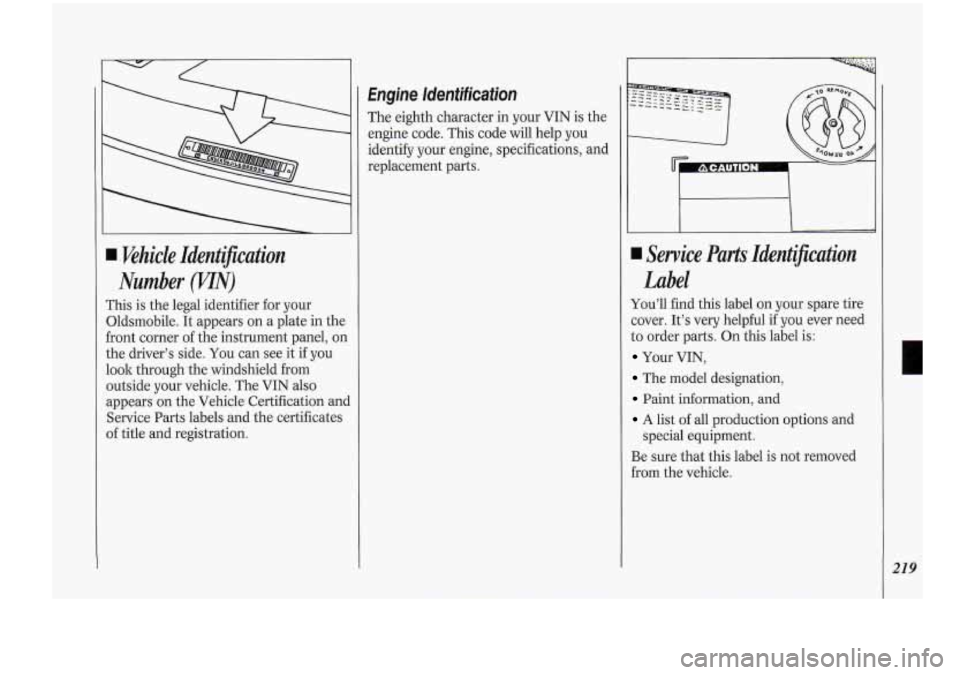

Wehick Identification
Number
m)
This is the legal identifier for your
Oldsmobile. It appears on a plate in the
front corner of the instrument panel, on
the driver’s side.
You can see it if you
look through the windshield from
outside your vehicle. The VIN also
appears on the Vehicle Certification anc
Service Parts labels and the certificates
of title and registration.
Engine Identification
The eighth character in your VIN is the
engine code. This code will help you
identify your engine, specifications, and
replacement parts.
Service Parts Identijcation
Label
You’ll find this label on your spare tire
:over. It’s very helpful
if you ever need
to order parts. On this label is:
Your VIN,
The model designation,
Paint information, and
A list of all production options and
Be sure that this label is not removed
€rom the vehicle.
special
equipment.
219

Service & Appearance Care
Add-on Electrical
Equijment
NOTICE:
Don’t add anything electrical to
your Oldsmobile unless you check
with your dealer first. Some
electrical equipment can damage
your vehicle and the damage
wouldn’t be covered by your
warranty. Some add-on electrical
equipment can keep other
components from working as they
should.
Your vehicle has an air bag system.
Before attempting to add anything
electrical to your Oldsmobile, see
Servicing Your Air Bag-Equipped
Oldsrnobile in the Index.
h
.. ...- . . . ... .. ....... . . _. . , 1
1 Fuses & Circuit Breakers
The wiring circuits in your vehicle are
protected from short circuits by a
combination of fuses, circuit breakers,
and fusible thermal links in the wiring
itself. This greatly reduces the chance of
damage caused by electrical problems.
Some fuses are located
in a fuse block
in the glove box as shown.above. To
locate the fuse block, lift out the storage
bin inside the glove box. See the
diagram later in this section. Another
set of fuses is located in the
component center, under the
instrument panel.
Additional fuses are located in the
underhood electrical centers
on the
right and left sides of the engine
compartment.

Spare fuses and a fuse puller are located
in the glove box lid.
To remove the
cover, press in on both ends of the
cover and pull it
off.
Place the wide end of the fuse puller
over the plastic end of the fuse. Squeeze
the ends over the fuse and pull it out.
To identify and check fuses, refer to the
charts on the following pages.
U
,ook at the silver-colored band inside
.he fuse.
If the band is broken or
nelted, replace the fuse. Be sure you
*eplace
a bad fuse with a new one of the
dentical size and rating.
221

Service & Appearance Care
Glove Box Fuse Block
n I I
1111211311
RADIO INDlC BLMTR I
1411511611
WIPER T/SIG STOP I
CTSY ARBGI DRLKS I
C/LTR VATS HVAC I
'uu' w bij I
ELEC CLSTR ABS I
ARBGP
1
2
8
9
10
11
12
13
14
15
16
17
18
Fuse Rating Circuitry
(AMP)
10 Radio & Clock
10 Rear Defogger Timer Relay; Instrument Cluster; Chime
Module; Cruise Control; DIU Module (Canada); ABS
Lamp Driver Module; SIR
20 Blower Motor
25 Windshield Wiper & Washer
10 Turn Signals/Flasher
15 Brake Lights
10 Courtesy, Glove Box, Underhood, Trunk, Header
15 SIR
20 Door Locks
15 Cigarette Lighter
Lights; Lighted
Inside Rearview Mirror
5 Vehicle Anti-Theft System (Pass-I 15 Blower Control Switch; Solenoid
15 Radio
& Clock; Passive Restraint Lockout, Passive
15 Cluster; HVAC Controls; HUD; DRL
5 ABS Control Module
Restraint
Timer; Chime Module; ABS; VATS
10 Power Door Lock Switch; Seat Belts; Power Outside
Mirrors; Power Antenna
Not Used
SIR (crank)
5

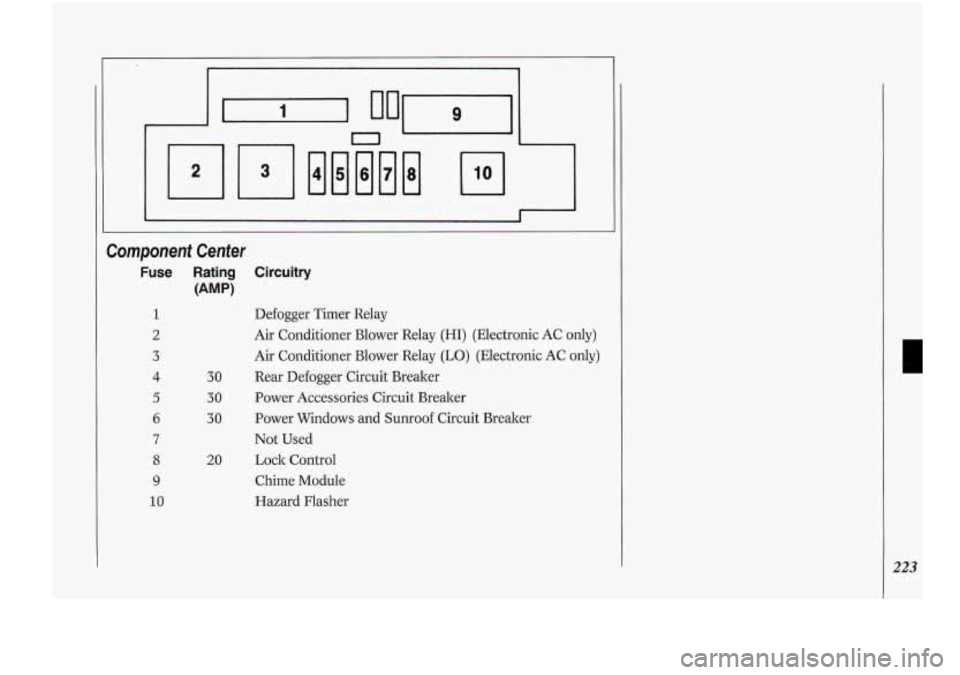

~ ~~ Component
Center
Fuse Rating Circuitry
(AMP)
1
2
3
4 30
5 30
6 30
7
8
9
10
20
Defogger Timer Relay
Air Conditioner Blower Relay (HI) (Electronic AC only)
Air Conditioner Blower Relay (LO) (Electronic AC only)
Rear Defogger Circuit Breaker
Power Accessories Circuit Breaker
Power Windows and Sunroof Circuit Breaker
Not Used
Lock Control
Chime Module
Hazard Flasher

Service & Appearance, Care
1 224

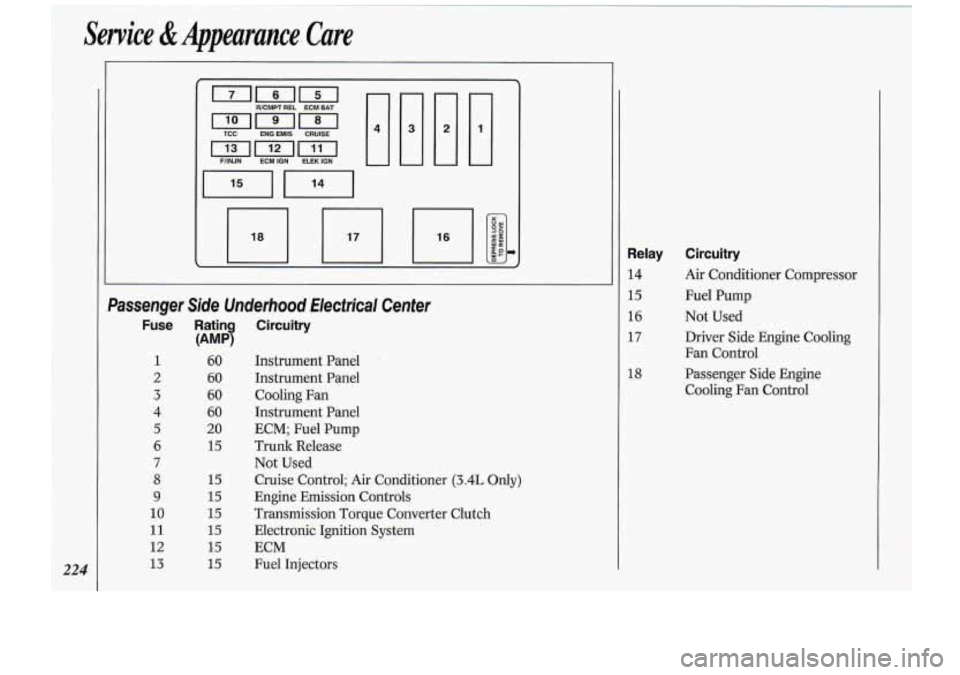

Passenger Side Underhood Electrical Center
Fuse Ratin Circuitry
(AMP7
1
2
3
4
5
6
7
8
9
10
11
12
13
60.
60
60
60
20
15
15
15
15
15
1-5
15 Instrument
Panel
Instrument Panel
Cooling Fan
Instrument Panel
ECM; Fuel Pump
Trunk Release
Not Used
Cruise Control; Air Conditioner (3.4L Only)
Engine Emission Controls
Transmission Torque Converter Clutch
Electronic Ignition System
ECM
Fuel Injectors
Relay
14
15
16
17
18
Circuitry
Air Conditioner Compressor
Fuel Pump
Not Used
Driver Side Engine Cooling
Fan Control
Passenger Side Engine
Cooling Fan Control

mmm FOGLPS PARKLPS HORN
Driver Side Underhood Electrical Center
Fuse Rating Circuitry
(AMP)
1
2
3
4
5
6
7
8
9
10
11
12
13
60
30
40
40
15
25
10
ABS
Headlamp Circuit Breaker
Ignition Switch
Ignition. Switch
Not Used
Not Used
Not Used
Horn
Park Lamps
Fog Lamps
Not Used
Not Used
Not Used
Relay
14
15
16
Circuitry
Horn
Fog Lamps
ABS

Service &Appearance Care

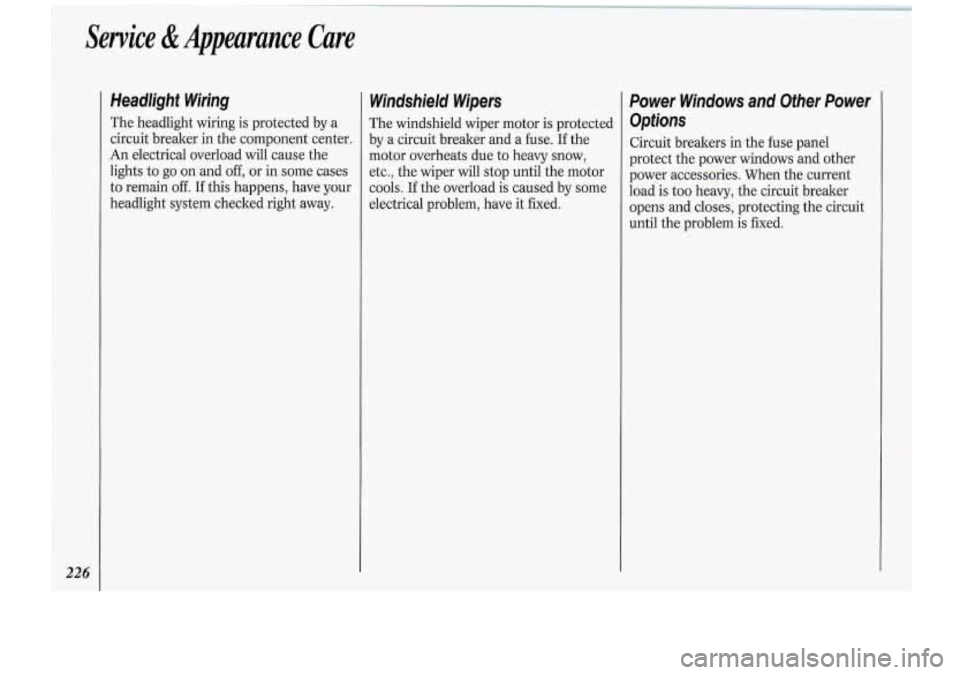

Headlight Wiring
The headlight wiring is protected by a
circuit breaker in the component center.
An electrical overload will cause the
lights to go
on and off, or in some cases
to remain off.
If this happens, have your
headlight system checked right away.
Windshield Wipers
The windshield wiper motor is protected
by a circuit breaker and a fuse.
If the
motor overheats due to heavy snow,
etc., the wiper will stop until the motor
cools.
If the overload is caused by some
electrical problem, have it fixed.
Power Windows and Other Power
Options
Circuit breakers in the fuse panel
protect the power windows and other
power accessories. When the current
load is too heavy, the circuit breaker
opens and closes, protecting the circuit
until the problem is fixed.

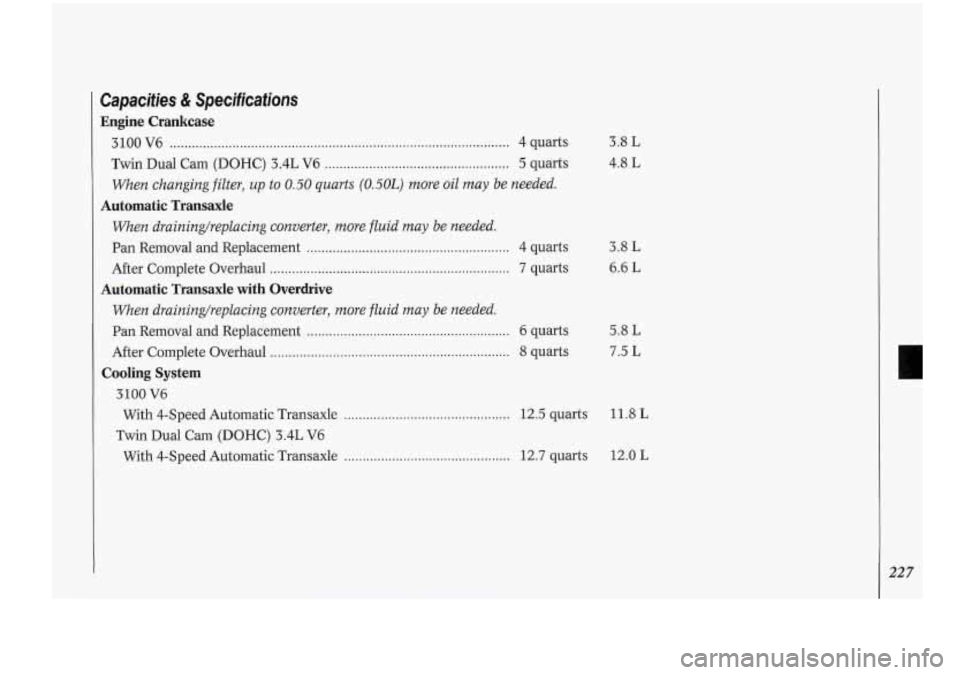

Capacities & Specifications
Engine Crankcase
3100 V6 ........................................................................\
.................... 4 quarts
Twin Dual Cam (DOHC) 3.4L V6 .................................................. 5 quarts
When changing filter, up to 0.50 quarts (0.50L) more oil may be needed.
When draininglreplacing converter, more. fluid
may be needed.
Pan Removal and Replacement ....................................................... 4 quarts
Automatic Transaxle
After Complete Overhaul ................................................................. 7 quarts
Automatic Transaxle with Overdrive
When draininglreplacing converter, more fluid may be needed.
Pan Removal and Replacement ....................................................... 6 quarts
After Complete Overhaul
................................................................. 8 quarts
Cooling System
3100 V6
With 4-Speed Automatic Transaxle ............................................. 12.5 quarts 11.8 L
With 4-Speed Automatic Transaxle ............................................. 12.7 quarts 12.0 L
Twin Dual Cam (DOHC) 3.4L V6 3.8
L
4.8 L
3.8 L
6.6 L
5.8 L
7.5 L
!
i

Service & Appearance Care

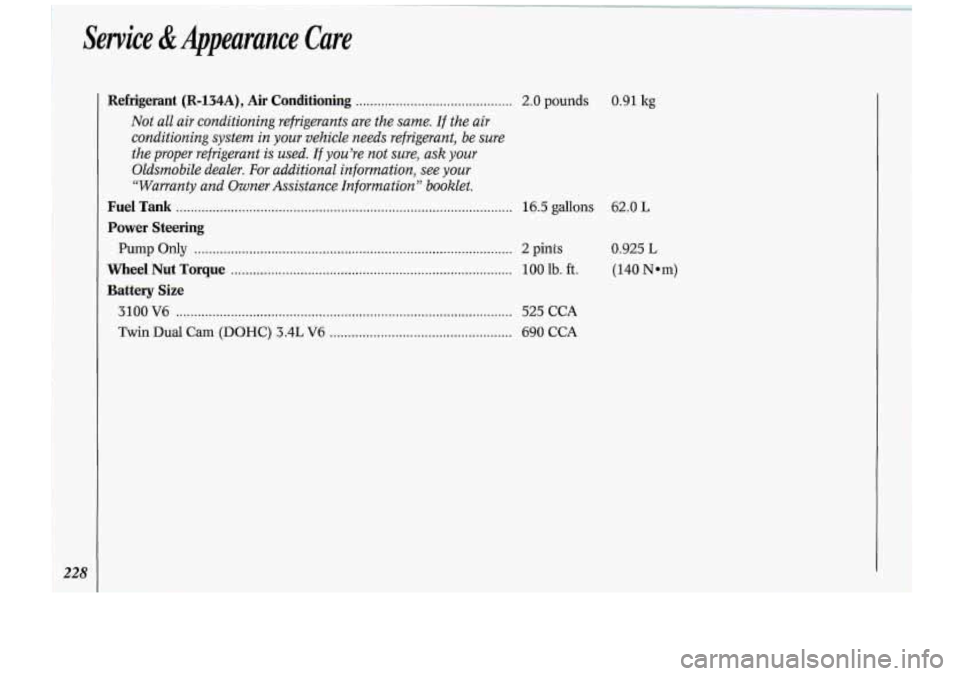

Refrigerant (R-l34A), Air Conditioning ........................................... 2.0 Dounds 0.91 kg
Not all air conditioning refrigerants are the same. If the air
conditioning system-in
your vehicle needs refrigerant, be sure
the proper refrigerant is used.
If you%e not sure, ask your
Oldsmobile dealer.
For additional information, see your
“Warranty and Owner Assistance Information ” booklet.
Fuel Tank ........................................................................\
.................... 16.5 gallons 62.0 L
Power Steering
Pump Only ........................................................................\
............... 2 pints 0.925 L
Wheel Nut Torque ........................................................................\
..... 100 lb. ft. (140 Nem)
Battery Size
3100 V6 ........................................................................\
.................... 525 CCA
Twin Dual Cam (DOHC) 3.4L V6 .................................................. 690 CCA
