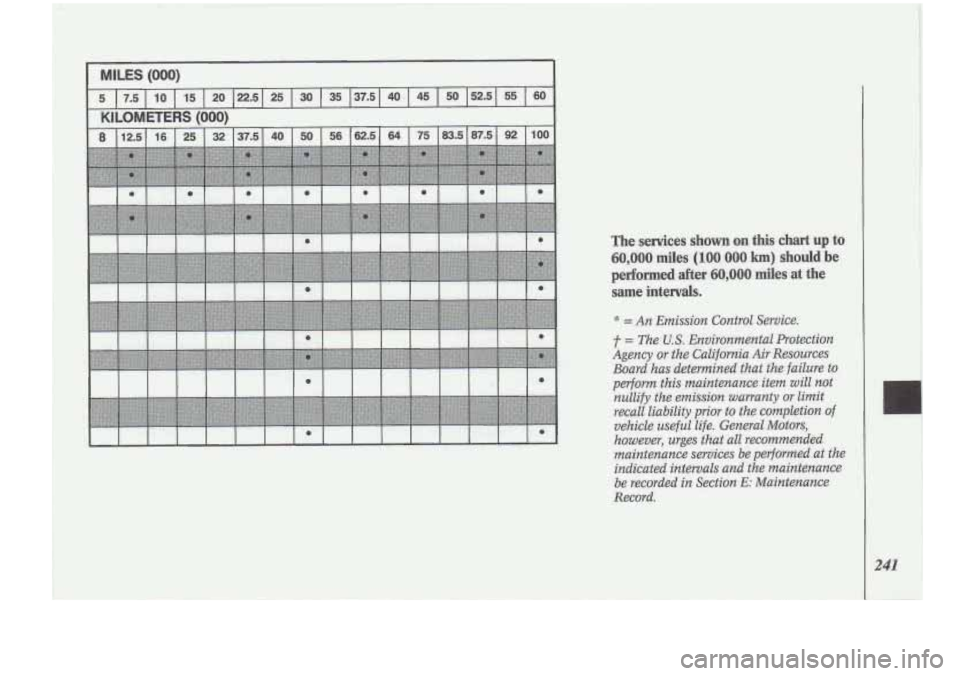

The services shown on this chart up to
60,000 miles (100 000 km) should be
performed after
60,000 miles at the
same intervals.
= An Emission Control Service.
t = The U.S. Environmental Protection
Agency
or the California Air Resources
Board has determined that the failure to
perform this maintenance item
will not
nullify the emission warranty
or limit
recall liability prior to the completion of
vehicle useful life. General Motors,
however, urges that all recommended
maintenance services be performed at the
indicated intervals and the maintenance
be recorded in Section
E: Maintenance
Record.
239

~~ ~ Maintenance Schedule

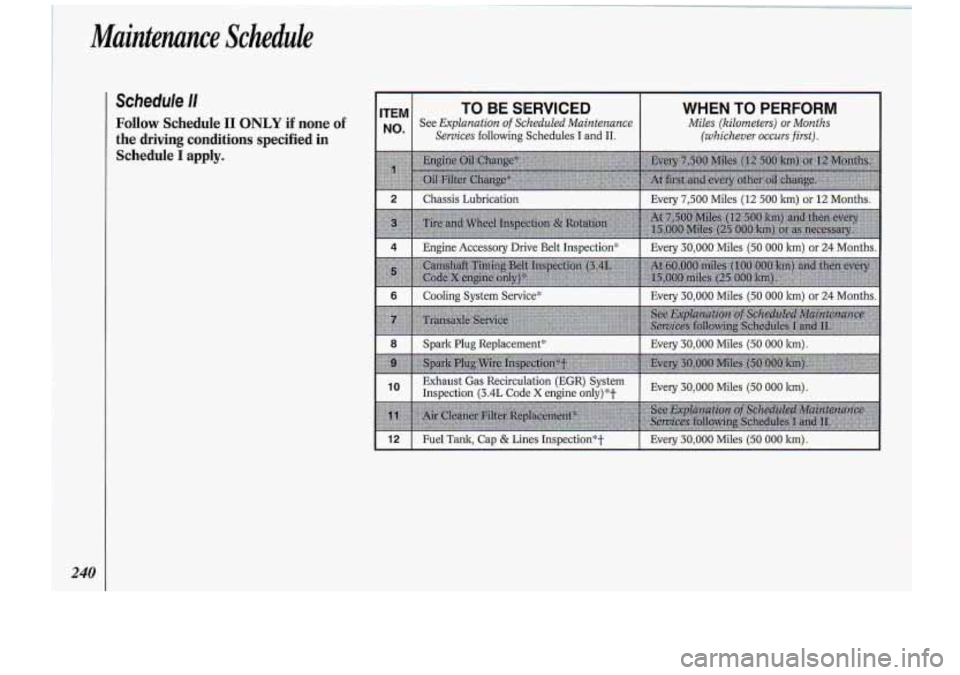

Schedule
I1 ITEM . TO BE SERVICED WHEN TO PERFORM
No' Follow Schedule I1 ONLY if none of See Explanation of Scheduled Maintenance Miles (kilometers) or Months
the driving conditions specified in Services following Schedules I and 11. (whichever occurs.first).
Schedule i apply.
-

I I I I I I I I I I I I I I I

Maintenance Schedule
242 ~

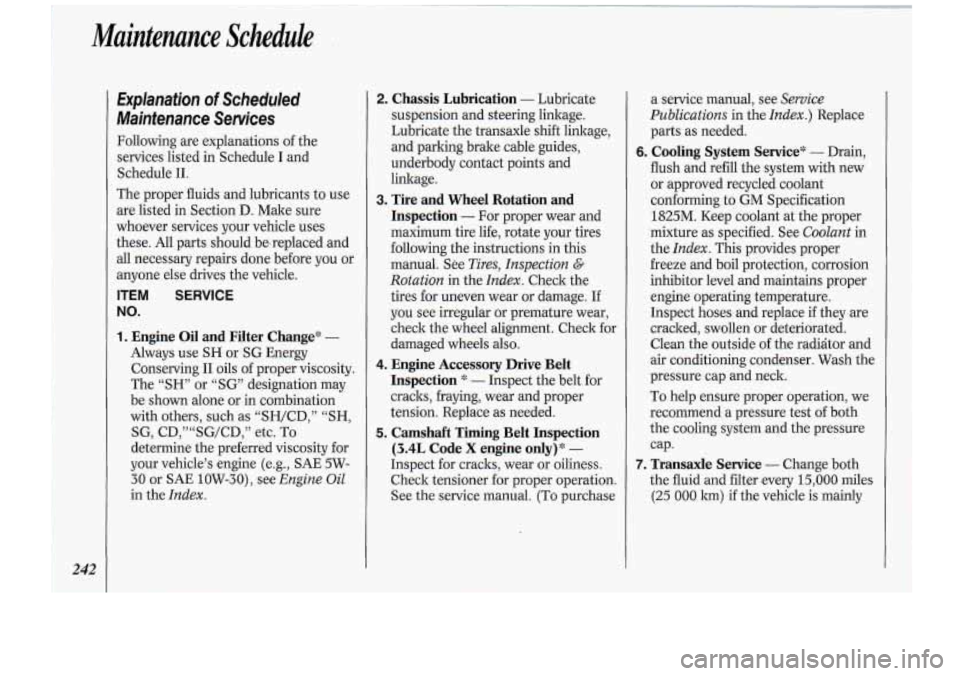

Explanation of~scheduled
Mainfenance Services
Following are explanations of the
services listed in Schedule I and
Schedule
11.
The proper fluids and lubricants to use
are listed in Section D. Make sure
whoever services your vehicle
uses
these. All parts should be-replaced and
all necessary repairs done before you or
anyone else drives the vehicle.
ITEM SERVICE
NO.
1. Engine Oil and Filter Change* -
Always use SH or SG Energy
Conserving I1 oils of proper viscosity.
The “SH” or “SG” designation may
be shown alone or in combination
with others, such as “SH/CD,” “SH,
SG, CD,”“SG/CD,” etc. To
determine the preferred viscosity for
your vehicle’s engine (e.g., SAE 5W-
30 or SAE 10W-30), see
Engine Oil
in the Index.
2. Chassis Lubrication - Lubricate
suspension and steering linkage.
Lubricate the transaxle shift linkage,
and parking brake cable guides,
underbody contact points and
linkage.
3. Tire and Wheel Rotation and
Inspection
- For proper wear and
maximum tire life, rotate your tires
following the instructions in this
manual. See
Tires, Inspection 6
Rotation in the hdex. Check the
tires for uneven wear or damage.
If
you see irregular or premature wear,
check the wheel alignment. Check for
damaged wheels also.
Inspection *‘ - Inspect the belt for
cracks, fraying, wear and proper
tension. Replace as needed.
5. Camshaft Timing Belt Inspection
(3.4L Code X engine only) * -
Inspect for cracks, wear or oiliness.
Check tensioner for proper operation.
See the service manual.
(To purchase
4. Engine Accessory Drive Belt
a service manual, see Service
Publications
in the Index.) Replace
parts as needed.
6. Cooling System Service* - Drain,
flush and refill the system with new
or approved recycled. coolant
conforming
to GM Specification
1825M. Keep coolant at the proper
mixture as specified. See
Coolant in
the
Index. This provides proper
freeze and boil protection, corrosion
inhibitor level and maintains proper
engine operating temperature.
Inspect hoses and replace
if they are
cracked, swollen or deteriorated.
Clean the outside of the radiator and
air conditioning condenser. Wash the
pressure cap and neck.
To help ensure proper operation, we
recommend a pressure test of both
the cooling system and the pressure
cap.
7. Transaxle Service - Change both
the fluid and filter .every
15,000 miles
(25
000 lm) if the vehicle is mainly

driven under one or more of these
c.onditions:
In heavy city traffic where the
outside temperature: regularly
reaches
90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
(With some models, you shouldn’t
ever tow
a trailer. See Towing a
Trailer
in the Index.)
Uses such as.found in taxi, police
car or delivery service.
If-you do not use your vehicle under
any of these conditions, change both
the fluid and filter every
100,000
miles (166 000 km) .

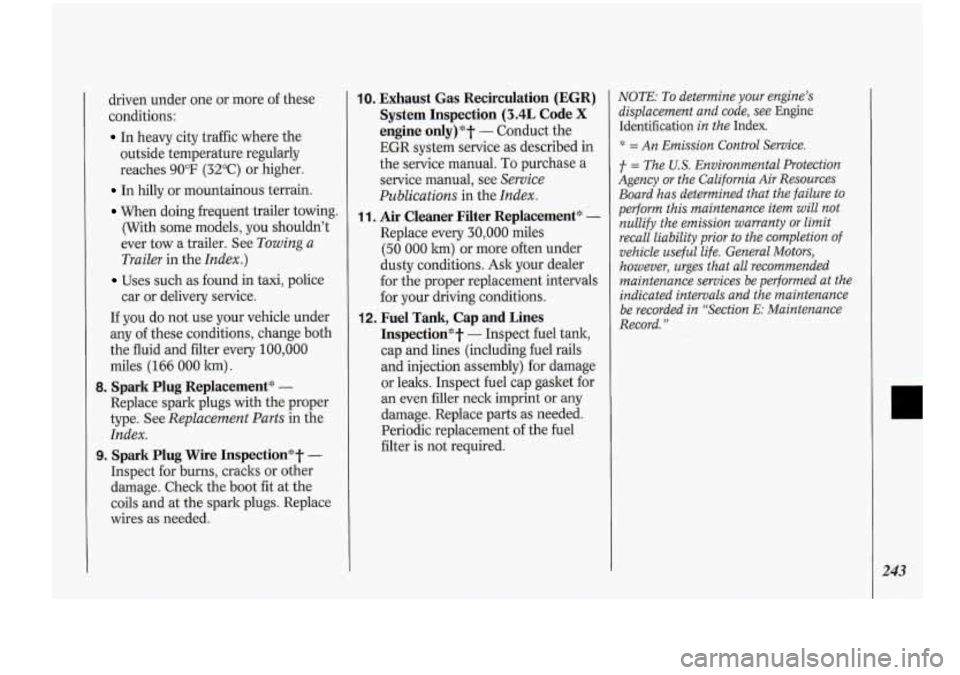

Replace spark plugs with the proper
type. See
Replacement-Parts in the
Index.
9. Spark Plug Wire Inspection*T -
Inspect for burns, .cracks or other
damage. Check the boot fit at the
coils and at the spark plugs. Replace
wires as needed.
8. Spark PIug~Replacement* -
-10. Exhaust Gas Recirculation (EGR)
System Inspection
(3.4L Code X
engine only)*? - Conduct the
EGR system service-as described in
the service manual.
To purchase a
service manual, see Service
Publications
in the Index.
1 1. Air Cleaner Filter Replacementgc -
Replace every 30,000 miles
(50 000 lun) or more often under
dusty conditions. Ask your dealer
for the proper replacement intervals
for your driving conditions.
12. Fuel Tank, Cap and Lines
Inspectiong‘t
- Inspect fuel tank,
cap and lines (including fuel rails
and injection assembly). for damage
or leaks. Inspect fuel cap gasket for
an even filler neck imprint or any
damage. Replace parts as needed.
Periodic replacement of the fuel
filter is not required.
NOTE: To determine your engine’s
displacement and code, see
Engine
Identification
in the Index.
* = An Emission Control Service.
f = The U.S. Environmental Protection
Agency
or the California Air Resources
Board has determined that the failure to
perform this maintenance item will not
nullify the emission warranty
or limit
recall liability prior to the completion of
vehicle
useful life. General Motors,
however, urges that all recommended
maintenance services be performed at the
indicated intervals and the maintenance
be recorded in “Section
E: Maintenance
Record.”
243

Maintenance Schedule
244

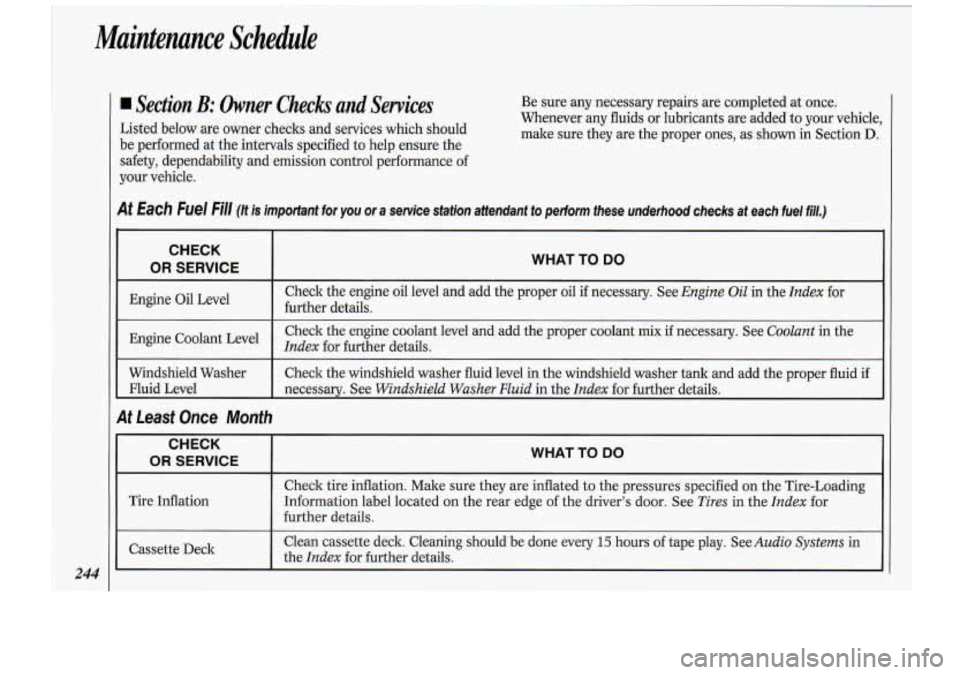

Section B: Owner Checks and Services
Listed below are owner checks and services which. should
be performed at the intervals specified to help ensure the
safety, dependability and emission control performance of
your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to
your vehicle
make sure they are the proper ones, as shown in Section D.
At Each Fuel Fill -(It is important for you or a service station attendant to perform these underhood checks at each fuel fill.)
I
CHECK
OR SERVICE WHAT TO DO.
Engine Oil Level
Check
the engine oil level and add the proper oil if necessary. See Engine Oil in the Index for
further details.
Engine Index for further details.
Check
the engine coolant level and add the proper coolant mix if necessary. See Coolant in the
Windshield Washer Check the windshield washer fluid level in the windshield washer tank and add the proper fluid
if
Fluid Level necessary. See Windshield Washer Fluid in the Index for further details.
At Least Once Month
CHECK
OR SERVICE WHAT TO DO
Tire
Inflation Check
tire inflation. Make sure they are inflated to the pressures specified on the Tire-Loading
Information label located on the rear edge of the driver’s door. See Tires in the Index for
further details.
Cassette Deck
I
Clean cassette deck. Cleaning should be done every 15 hours of tape play, See Audio Systems in
the
Index for further details.

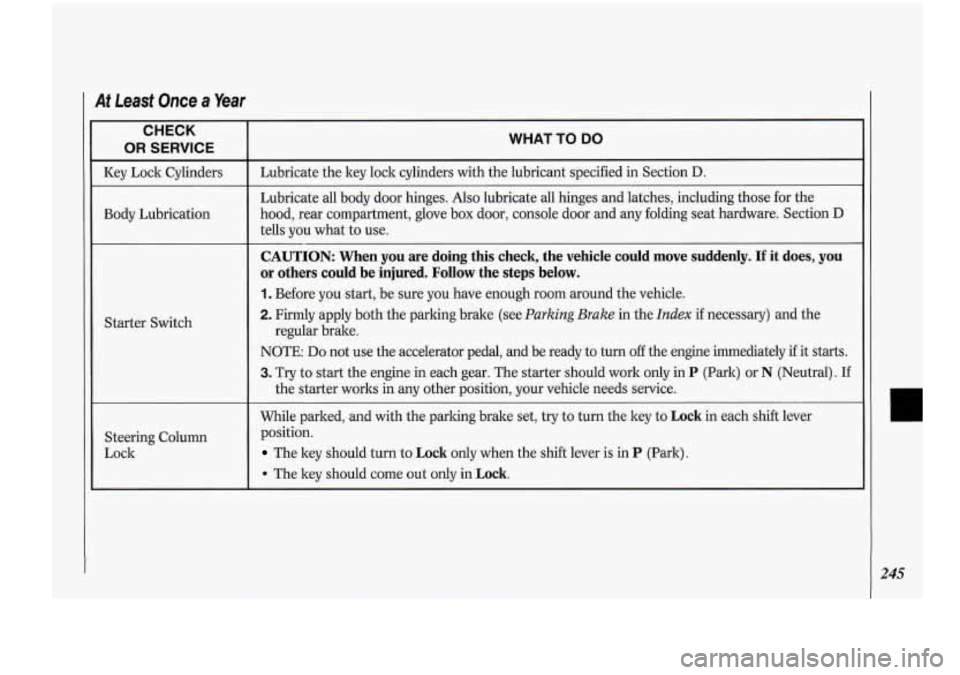

I At Least Once a Year
~~
CHECK
I OR SERVICE
Key Lock Cylinders
Body Lubrication
Starter Switch
Steering Column
Lock
WHAT TO DO
~. ~ .
Lubricate the key lock cylinders with the lubricant specified in Section D.
Lubricate all body door hinges. Also lubricate all hinges and latches, including those for the
hood, rear compartment, glove box door, console door and any folding seat hardware. Section
D
tells you what to use.
CAUTION: When you.are doing this check, the vehicle could move suddenly.\
If it does, you
or others could be injured. Follow.the steps below.
1. .Before you start, be sure you have enough room around the vehicle.
2. Firmly apply both. the parking brake (see Parking Brake in the Index if necessary) and the
NOTE:
Do not use the accelerator pedal, and be ready to turn off the engine immediately if it starts.
3. Try to start the engine in each gear. The starter should work only in P (Park) or N (Neutral). If
regular brake.
the starter works in any other position, your vehicle needs service.
While parked, and with the parking brake set,
try to turn the key to Lock in each shift lever
position.
The ley should turn to Lock only when the shift lever is in P (Park).
. The key should come out only in Lock.
245

Maintenance Schedule
246

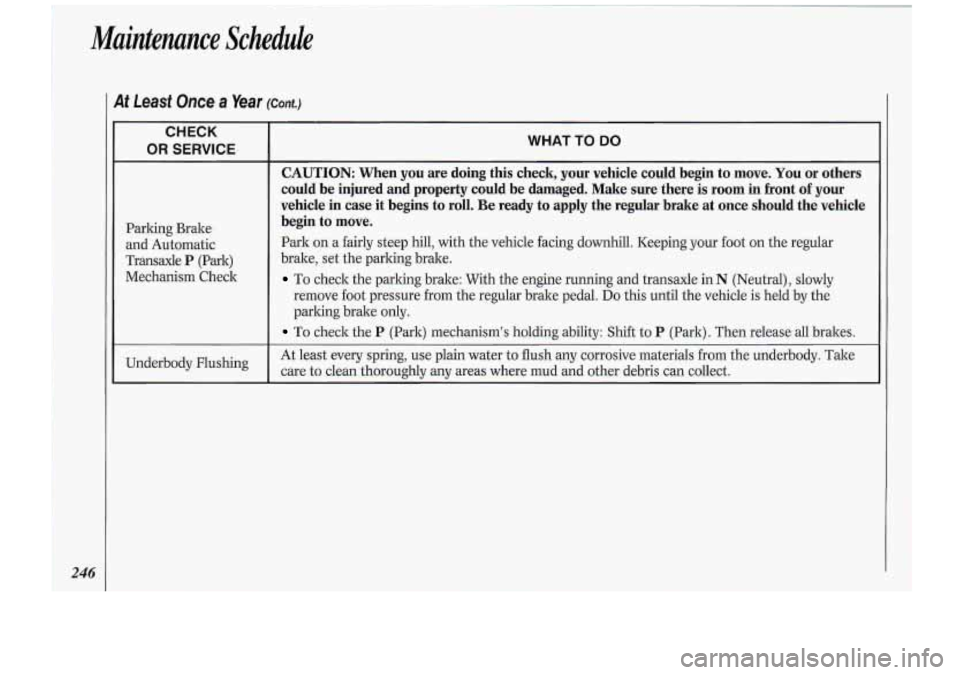

3f Least Once a Year (cant.)
CHECK
OR SERVICE
Parking Brake.
and Automatic
Transaxle
P (Park)
Mechanism Check
Underbody Flushing
WHAT TO DO
CAUTION: When you are doing this check, your vehicle could begin to move. You or others
could be injured and property could be damaged. Make sure there is room
in front of your
vehicle in case it begins to roll. Be ready to apply the regular brake at .once should the vehicle
begin to move.
Park on a fairly steep hill, with the vehicle facing downhill. Keeping your foot on the regular
brake, set the parking brake.
To check the parking brake: With the engine running and transaxle in N (Neutral), slowly
remove foot pressure from the regular brake pedal.
Do this until the vehicle is held by the
parlung brake only.
To check the P (Park) mechanism’s holding ability: Shift to P (Park). Then release all brakes.
At least every spring,
use plain water to flush any corrosive materials from the.underbody. Take
care
to clean thoroughly any areas where mud and other debris can collect.

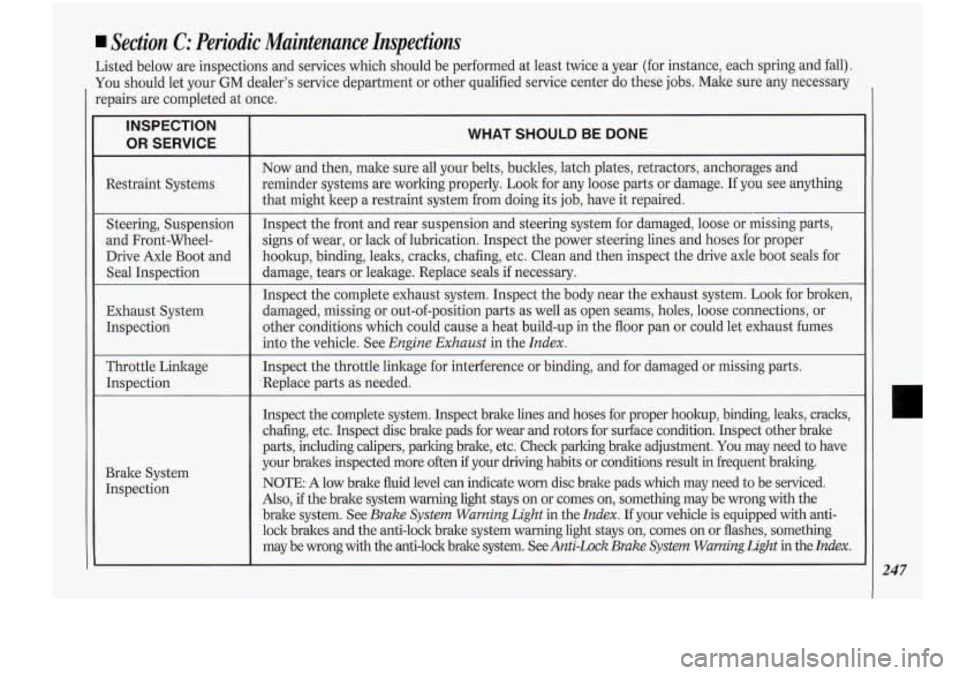

Section C: Periodic Maintenance Inspections
Listed below are inspections and services which should be performed at least twice a year (for instance, each spring and fall).
You should let your GM dealer’s service department or other qualified service center
do these jobs. Make sure any necessary
Bepairs are completed at once.
INSPECTION
OR SERVICE
Restraint Systems
Steering, Suspension
and FrontWheel-
Drive Axle Boot and
Seal Inspection
Exhaust System
Inspection
Throttle Linkage
Inspection
Brake System Inspection
WHAT SHOULD BE DONE
Now and then, make sure all your belts, buckles, latch plates, retractors, anchorages and
reminder systems are working properly. Look for any loose parts or damage.
If you see anything
that might keep a restraint system from doing its job, have it repaired.
Inspect the front and rear suspension and steering system for damaged, loose or missing parts,
signs of wear, or lack
of lubrication. Inspect the power steering lines and hoses for proper
hookup, binding, leaks, cracks, chafing, etc. Clean and then inspect the drive axle boot seals for
damage, tears or leakage. Replace seals if necessary.
Inspect the complete exhaust system. Inspect the body near the exhaust system. Look for broken,
damaged, missing or out-of-position parts as well as open seams, holes, loose connections, or
other conditions which could cause a heat build-up in the floor pan or could let exhaust fumes
into the vehicle. See
Engine Exhaust in the Index.
.. -
Inspect the throttle linkage for interference or binding, and for damaged or missing parts.
-Replace parts as needed.
Inspect the complete system. Inspect brake lines and hoses for proper hookup, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for wear and rotors for surface condition. Inspect other bralte
parts, including calipers, parking brake, etc. Check parking bralte adj\
ustment. You may need to have
your brakes inspected more often
if your driving habits or conditions result in frequent braking.
NOTE:-A low brake fluid level can indicate worn disc brake pads which may need to be serviced.
Also,
if the bralte system warning light stays on or comes on, something may be wrong with the
brake system. See
Brake System Warning Light in the Index. If your vehicle is equipped with anti-
lock brakes and the anti-lock bralte system warning
light stays on, comes on or flashes, something
may be wrong with the anti-lock brake system. See
Anti-Lock Brake System Warning Light in the Index.
247

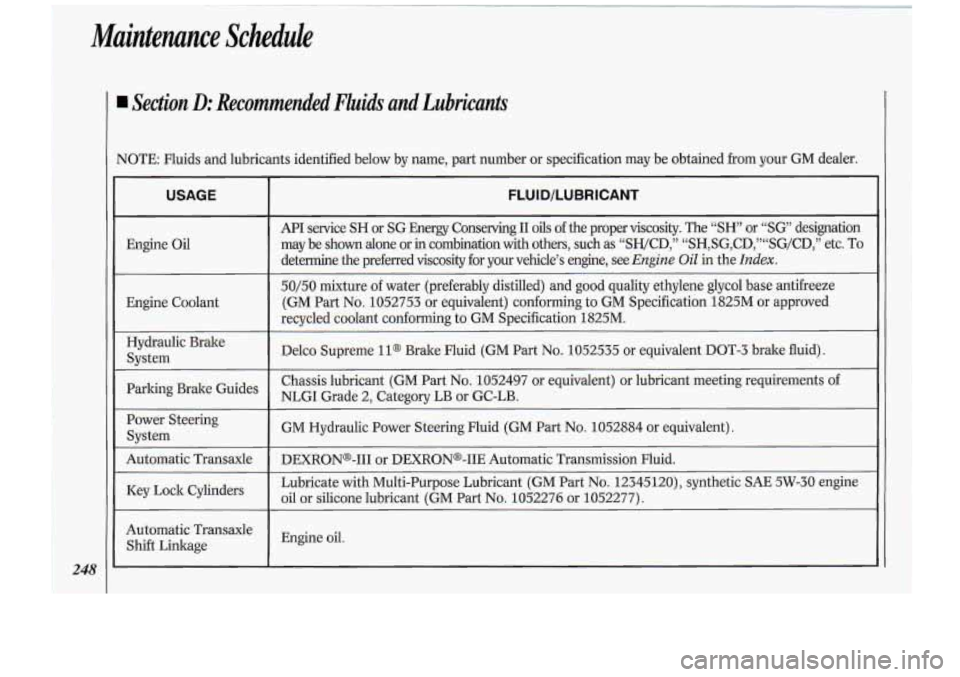

I Section D: Recommended Fluids and Lubricants
VOTE: Fluids and lubricants identified below by name, part number or specification may be obtained from your GM dealer.
I 248
USAGE
Engine Oil
Engine Coolant
Hydraulic Brake System
Parking Brake Guides
Power Steering System
Automatic Transaxle
Key Lock Cylinders
Automatic Transaxle Shift Linkage
FLUID/LUBRICANT
API service SH or SG Energy Conserving I1 oils of the proper viscosity. The “SH) or “SG’ designation
may be shown alone or
in combination with others, such as “SH/CD,” “SH,SG,CD,”“SG/CD,” etc.\
To
determine the preferred viscosity for your vehicle’s engine, see Engine Oil in the Index.
50/50 mixture of water (preferably distilled) and good quality ethylene glycol base antifreeze
(GM Part No. 1052753 or equivalent) conforming to GM Specification 1825M or approved
recycled coolant conforming to GM Specification
1825M.
Delco Supreme 1 1s Brake Fluid (GM Part No. 1052535 or equivalent DOT-3 brake fluid).
Chassis lubricant (GM Part No. 1052497 or equivalent) or lubricant meeting requirements of
NLGI Grade
2, Category LB or GC-LB.
GM Hydraulic Power Steering Fluid (GM Part No. 1052884 or equivalent).
DEXRONB-I11
or DEXRONB-IIE Automatic Transmission Fluid.
Lubricate with Multi-Purpose Lubricant (GM Part No. 12345120), synthetic SAE 5W-30 engine
oil or silicone lubricant (GM Part No. 1052276 or 1052277).
Engine oil.
