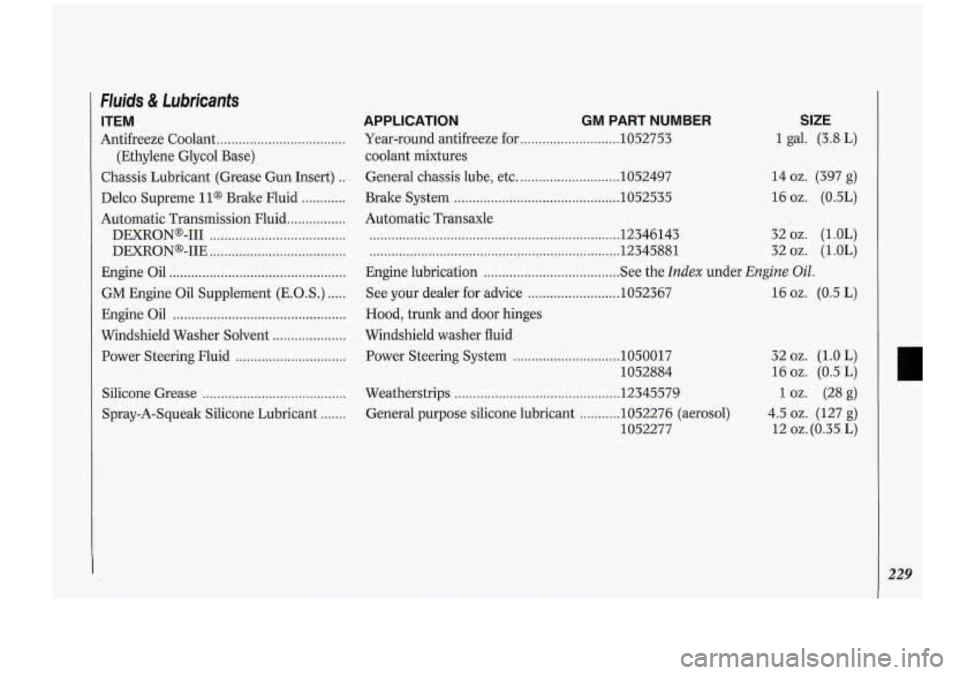

FIuids & Lubricants
ITEM
Antifreeze Coolant ...................................
Chassis Lubricant (Grease Gun Insert) ..
(Ethylene Glycol Base)
Delco Supreme
11s Brake Fluid ............
Automatic Transmission Fluid. ...............
DFXRONB-I11 .....................................
DEXRONa-IIE .....................................
Engine Oil ................................................
GM Engine Oil Supplement (E.O. S .) .....
Engine Oil ...............................................
Windshield Washer Solvent ....................
Power Steering Fluid ..............................
Silicone Grease .......................................
Spray-A-Squeak Silicone Lubricant .......
APPLICATION GM PART NUMBER
Year-round antifreeze for .......................... .lo52753
coolant mixtures
General chassis lube, etc.
........................... 1052497
Brake System
............................................. 1052535
SIZE
1 gal. (3.8 L)
14 oz. (397 g)
16 oz. (0.5L)
Automatic Transaxle
.................................................................... 12346143 32 oz. (1 .OL)
.................................................................... 12345881 32 oz. (1.OL)
Engine lubrication
..................................... See the Index under Engine Oil.
See yourdealer for advice ......................... 1052367
Hood, trunk and door hinges
Windshield washer fluid
Power Steering System
............................. 1050017
1052884
Weatherstrips
............................................ .12345579
General purpose silicone lubricant
.......... .lo52276 (aerosol)
1052277
16 oz. (0.5 L)
32 oz. (1 .O L)
16 oz. (0.5 L)
1 oz. (28 g)
4.5 oz. (127 g)
12 oz. (0.35.L)
229

Service & Appearance Care
Replacement Bulbs
OUTSIDE LIGHTS
Back-up Lights ........................................................................\
............
Front Parking/Turn Signal Lights ......................................................
License Plate Light ........................................................................\
......
Center High-Mounted Stoplight
Inside Vehicle, 2-Door Models
........................................................
Inside Vehicle, 4-DOOr Models ........................................................
Luggage Carrier Mount ....................................................................
Halogen Headlights
2-Door Models
Low Beam
........................................................................\
..............
High Beam ........................................................................\
.............
4-DOOr Models
Low Beam
........................................................................\
..............
High Beam ........................................................................\
.............
Fog Lights ........................................................................\
....................
Side Marker Lights
Front 2-Door Models
........................................................................\
.......
4-DoOr Models ........................................................................\
.......
Stop/Tail/Turn Signal Lights .............................................................
Luggage Compartment ........................................................................\

BULB
3057
2358NA
194
2355 891
891
H4351 (L)
H4352
(U)
9006
9005
885
24
24NA
3057
920

INSIDE LIGHTS
Ashtray ........................................................................\
........................
Center Instrument Cluster ..................................................................
Courtesy Lights
Door ........................................................................\
..........................
Rear ........................................................................\
...........................
Reading Lights
Front
........................................................................\
.........................
Inside Rearview Mirror ....................................................................
Rear ........................................................................\
...........................
Glove Box Light ........................................................................\
..........
Heater & A/C Control ........................................................................\

High Beam Indicator ........................................................................\
...
Indicator Lights ........................................................................\
...........
Turn Signal Indicators ........................................................................\

Visor Vanity Light ........................................................................\
.......
BULB
194
168. 194
12864
2 12-2
561
192
212-2 194
37
74
PC161
PC161
124
I
231

Service & Appearance Care

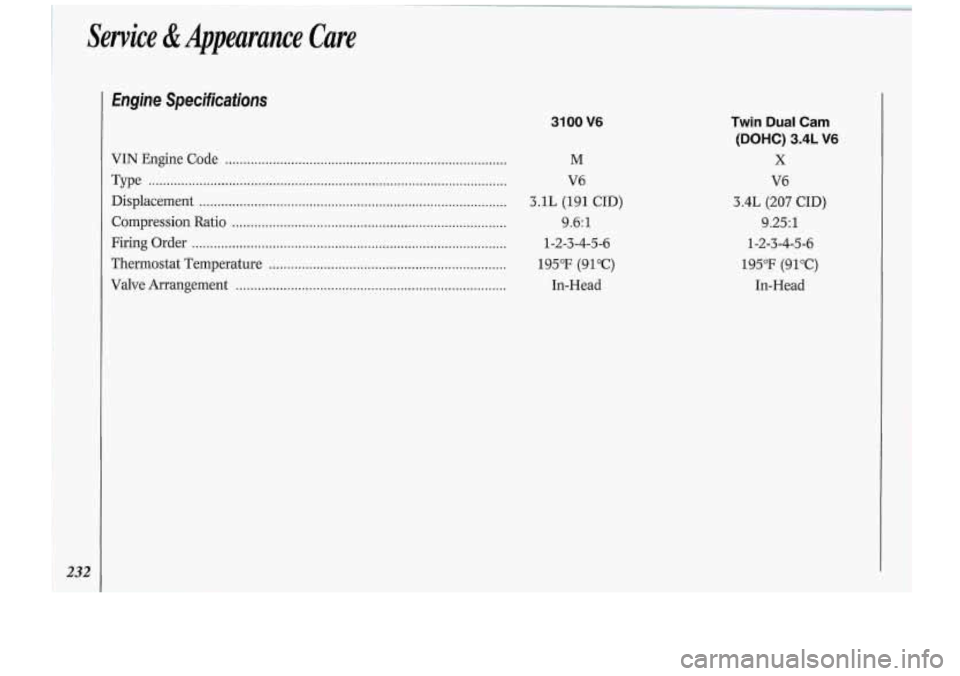

Engine Specificafions
VIN Engine Code ........................................................................\
.....
Type ........................................................................\
..........................
Displacement ........................................................................\
............
Compression Ratio ........................................................................\
...
Firing Order ........................................................................\
..............
Valve Arrangement ........................................................................\
..
Thermostat Temperature .................................................................
31 00 V6
M
V6
3.1L (191 CID)
9.6:
1
1-2-3-4-5-6
195°F (91°C) In-Head
Twin Dual Cam
(DOHC)
3.4L V6
X
V6
3.4L (207 CID)
9.25:l
1-2-3-4-5-6
195°F (91°C) In-Head

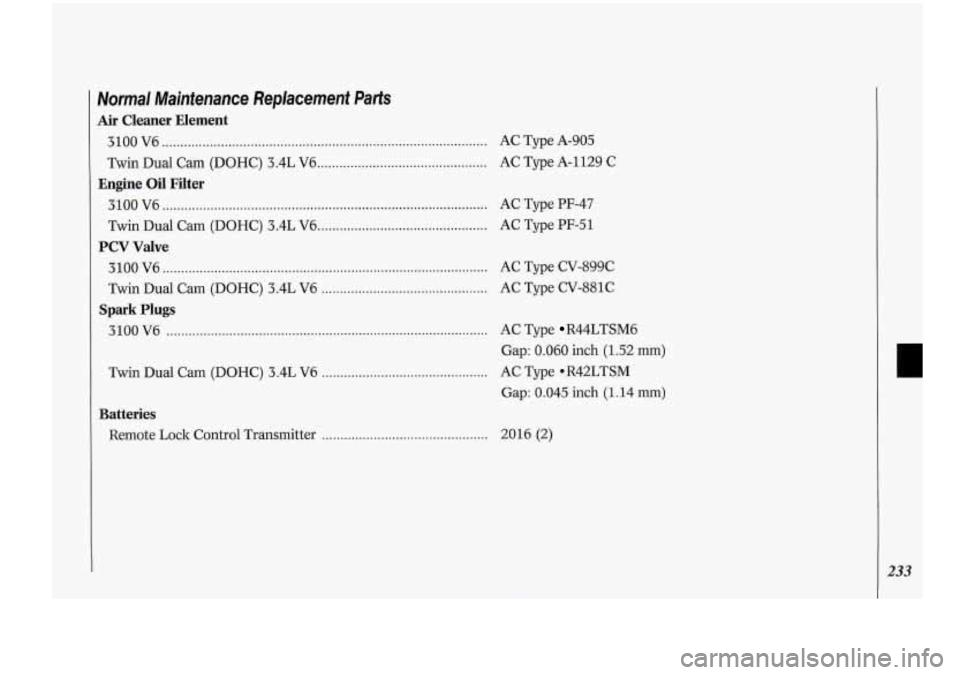

Normal -Maintenance Replacement Parts
Air Cleaner Element
3100 V6 ........................................................................\
................ AC Type A-905
Twin Dual Cam (DOHC) 3.4L V6
.............................................. AC Type A-1129 C
Engine Oil Filter
3100 V6 ........................................................................\
................ AC Type PF-47
Twin Dual Cam (DOHC) 3.4L V6
.............................................. AC Type PF-51
PCV Valve
3100 V6 ........................................................................\
................ AC Type CV-899C
Twin Dual Cam (DOHC) 3.4L V6
............................................. AC Type CV-881C
Spark Plugs
3100 V6 ........................................................................\
............... AC Type R44LTSM6
Gap: 0.060 inch
(1.52 mm)
Gap: 0.045 inch (1.14
mm)
Twin Dual Cam (DOHC) 3.4L V6 ............................................. AC Type eR42LTSM
Batteries
Remote Lock Control Transmitter ............................................. 2016 (2)

234
Notes

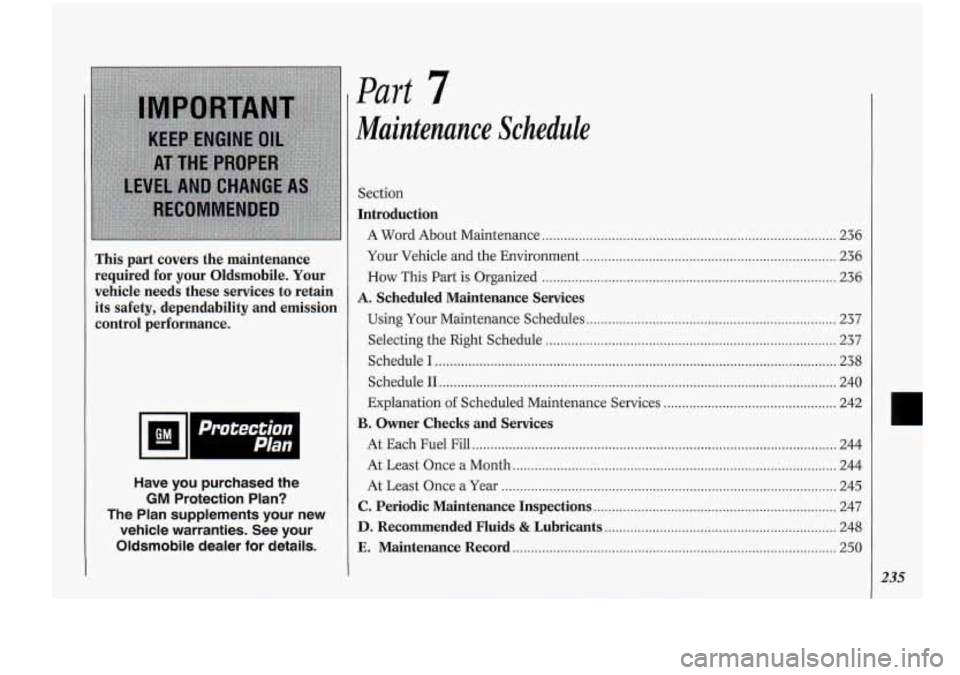

This part covers the maintenance
required for your Oldsmobile.
Your
vehicle needs these services to retain
its safety, dependability and emission
control performance.
Have you purchased the
GM Protection Plan?
The Plan supplements your new vehicle warranties. See your
Oldsmobile dealer for details.
Part 7
Maintenance Schedule
Section
Introduction
A Word About Maintenance ........................................................................\
........ 236
Your Vehicle and the Environment
..................................................................... 236
How This Part is Organized ........................................................................\
........ 236
A. Scheduled Maintenance Services
Using Your Maintenance Schedules .................................................................... 237
Selecting the Right Schedule
........................................................................\
....... 237
Schedule
I ........................................................................\
..................................... 238
Schedule
I1 ............................... ........................................................................\
.... 240
Explanation
of Scheduled Maintenance Services . .. . ... .. . .. . . . . .... .. . .. . .. . ..... . .... . ....... 242
B. Owner Checks and Services
At Each Fuel Fill ........................................................................\
........................... 244
At Least Once a Month
........................................................................\
................ 244
At Least Once
a Year ........................................................................\
................... 245
C. Periodic Maintenance Inspections .................. ................................................ 247
D. Recommended Fluids &Lubricants ............................................................... 248
E. Maintenance Record ........................................................................\
................ 250
235

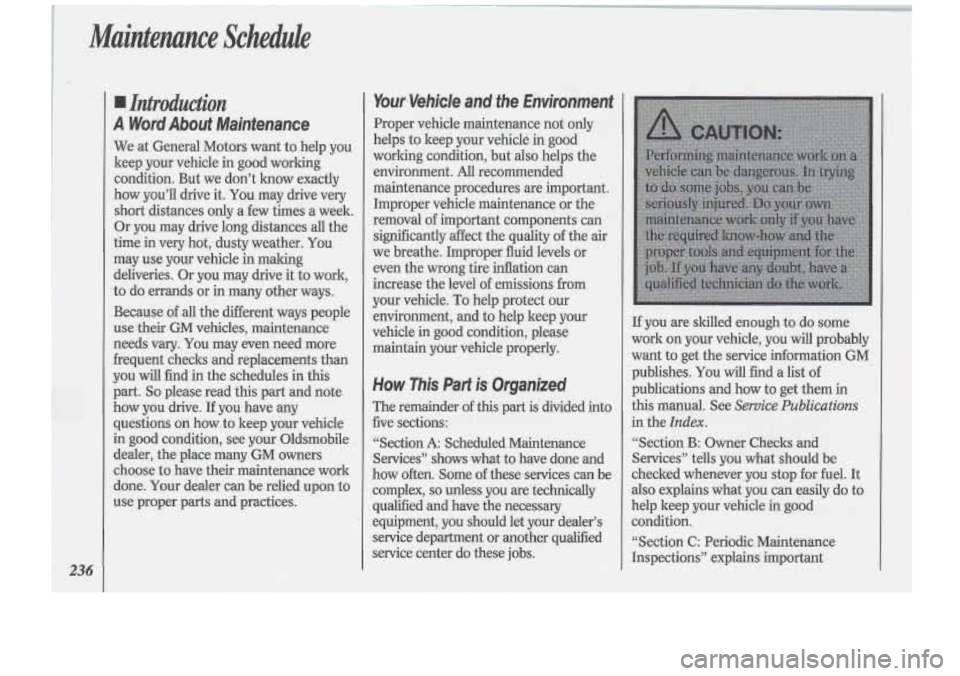

How This Part is, Organhed
!to
The remainder of this part is divided in
five sections:
“Section
A: Scheduled Maintenance-
Services”
shows what to have done .and
how often.- Some
of these.services am be
complex,
so unless you are technidy
qualified and have.the necessary
.equipment,
you should kt!tyour dealer’s
service department or another qualified
service Center
do these jobs.

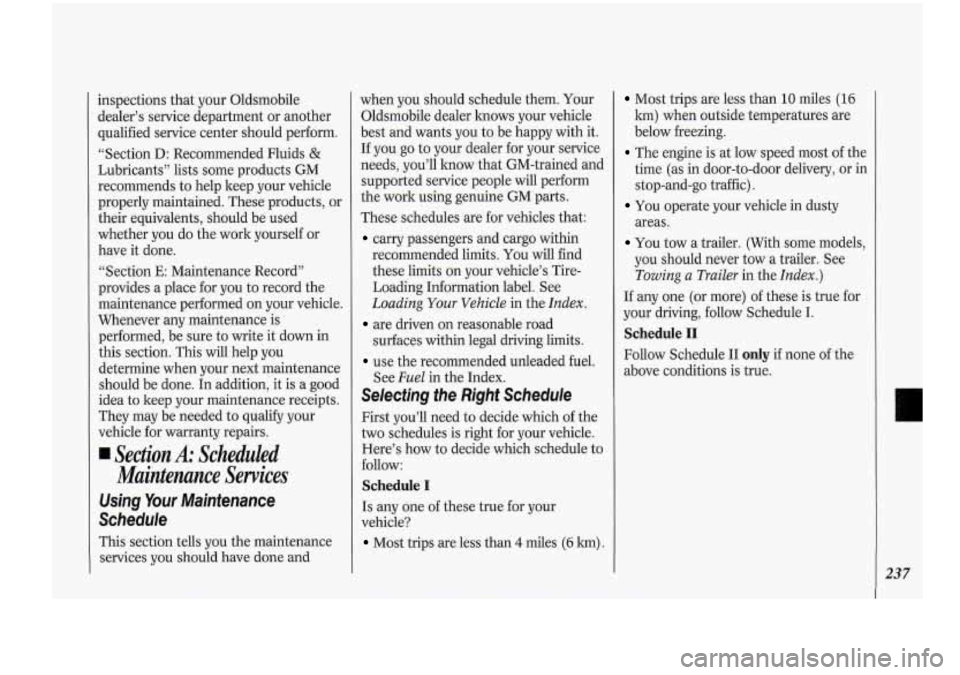

inspections that your Oldsmobile
dealer’s service department or another
qualified service center should perform.
“Section D: Recommended Fluids
&
Lubricants” lists some products GM
recommends to help keep your vehicle
properly maintained. These products, or
their equivalents, should be used
whether you do the work yourself or
have it done.
“Section
E: Maintenance Record”
provides a place for you to record the
maintenance performed on your vehicle.
Whenever any maintenance is
performed, be sure to write it down in
this section. This will.help you
determine when your next maintenance
should be done. In addition, it
is a good
idea to keep your maintenance receipts.
They may be needed to qual@ your
vehicle for warranty repairs.
Section A: Scheduled
Maintenance Services
Using Your Maintenance
Schedule
This section tells you the maintenance
services you should have done and when
you should schedule them. Your
Oldsmobile dealer knows your vehicle
best and wants you to be happy with it.
If you go to your dealer for your service
needs, you’ll how that GM-trained and
supported service people will perform
the work using genuine GM parts.
These schedules are for vehicles that:
carry passengers and cargo within
recommended limits. You will find
these limits on your vehicle’s Tire-
Loading Information label. See
Loading Your Vehicle in the Index.
are driven on reasonable road
surfaces within legal driving limits.
use the recommended unleaded fuel.
See
Fuel in the .Index.
Selecting fhe Right Schedule
First you’ll need to decide which of the
two schedules is right for your vehicle.
Here’s how
to decide which schedule to
follow:
Schedule I
Is any one of these true for your
vehicle?
Most trips are less than 4 miles (6 lm).
Most trips are less than 10 miles (16
lun) when outside temperatures are
below freezing.
The engine is at low speed most of the
time (as in door-to-door delivery, or in
stop-and-go traffic).
You operate your vehicle in dusty
areas.
You tow a trailer. (With some models,
you should never tow a trailer. See
Towing a Trailer in the Index.)
If any one (or more) of these is true for
your driving, follow Schedule
I.
Schedule I1
Follow Schedule I1 only if none of’the
above conditions is true.
L
237

Maintenance Schedule
238

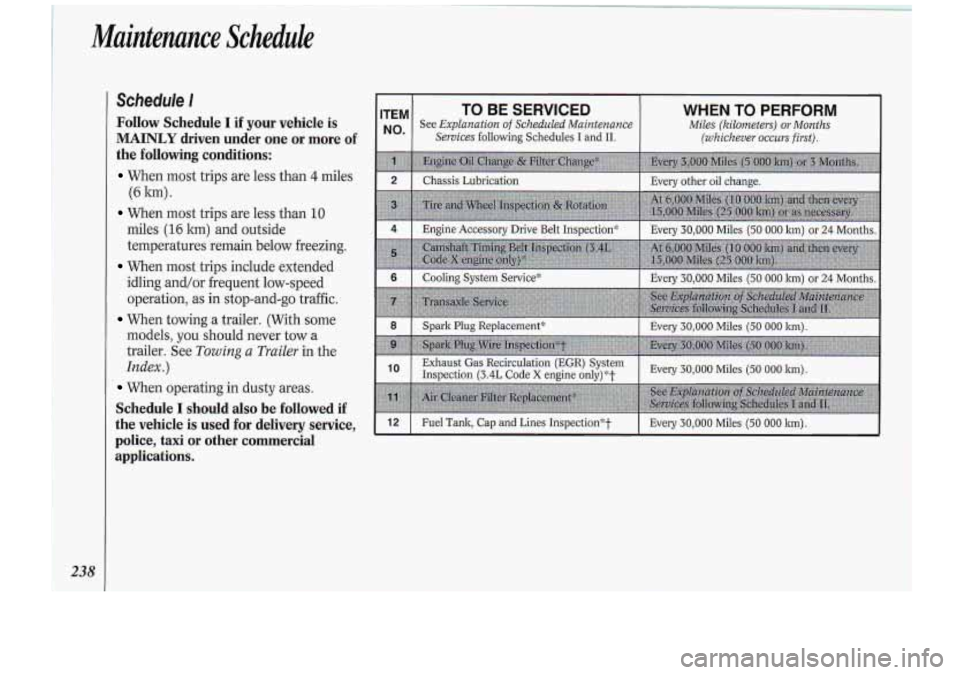

Schedule l
Follow Schedule I if your vehicle is
MAINLY driven under one or more of
the following conditions:
When most trips are less than 4 miles
When most trips are less than 10
(6 lun) .
miles (16 ltm) and outside
temperatures remain below freezing.
When most trips include extended
idling and/or frequent low-speed
operation, as in stop-and-go traffic.
When towing a trailer. (With some
models, you should never tow a
trailer. See
Towing a Trailer in the
Index.)
When operating in dusty areas.
Schedule I should also be followed if
the vehicle is used for delivery service,
police,
taxi or other commercial
applications.
ITEM TO BE SERVICED
Nom See Explanation of Scheduled Maintenance
Services
following Schedules I and 11.
WHEN TO PERFORM
Miles (kilometers) or Months
(whichever occurs first).
I 2 I Chassis Lubrication I Every other oil change. I
I 4 I Engine Accessory Drive Belt Inspection* I Every 30,000 Miles (50 000 lun) or 24 Months. I
I 6 I Cooling System Service" I Every 30,000 Miles (50 000 lun) or 24 Months. I
I
8 I Spark Plug Replacement* I Every 30,000 Miles (50 000 km). I
I 12 I Fuel Tanlc, Cap and Lines Inspection*+ I Every 30,000 Miles (50 000 lun).
~
I
I
