Headlight High-Low Beam Changer
To change the headlights from low
beam to high or high to low, pull the
turn signal/multifunction lever all the
way toward you. Then release
it:
When the high beams are on, a blue .
light on the instrument panel also will
be on.
Flash-to-Pass
Flash-to-pass lets you use your high
beam headlights to signal a driver in
front of you that you want to pass;
To use it, pull the turn signaVmu1tifunction
lever toward you.
If Your Headlights are Off
They’ll stay on as long as you hold the
lever there. Release the lever to turn
them off.
If Your Headlights are On:
No flash-to-pass. Use the lever to
change between high and low beams, as
explained under
Headlight High-Low
Beam Changer
earlier in this section.
If You Have Fog Lights:
They go off whenever the high beams
are on. When the high beams go off, the
fog lights will come on again, if the fog
light switch is on. Instrument Panel Intensity
Control
You can brighten or dim the instrument
panel lights by rotating the control. If
you rotate the control all-the way to.
INT your courtesy or interior lights will
come on.
Your high beam headlights will turn on.
79

I Features & Controls
I
I I\ I
Use your fog lights for better vision in
foggy or misty conditions.
To turn fog lights on, push the switch.
Push the switch again to turn the fog
lights off.
When using fog lights, the parking
lights or low beam headlights must be
on.
The fog lights will go
off whenever the
high beam headlights come on. When
the high beams go
off, the fog lights will
come
on again.
bonf ReadingIMap. Lights
rhese lights are part of the rearview
nirror. They go on when you open the
ioors. When the doors are closed, turn
:hem on and
off with the switch.
ro avoid draining your vehicle battery’s
?ewer, be sure to turn off all front and
:ear reading lights when leaving your
rehicle.
Rear Reading lights
These lights go on when you open the
doors.
To turn on the reading lights
when the doors are closed, push the
button in. Push the button again to turn
the light
off.
Illuminated Enfry
Your courtesy lights will come on and
stay on for a predetermined time
whenever you:
Open a door.
Press the UNLOCK button on the
Press the power door UNLOCK
If you open a door, the lights wiIl stay
on while it’s open and then turn
off
Remote Lock Control (if equipped).
switch.

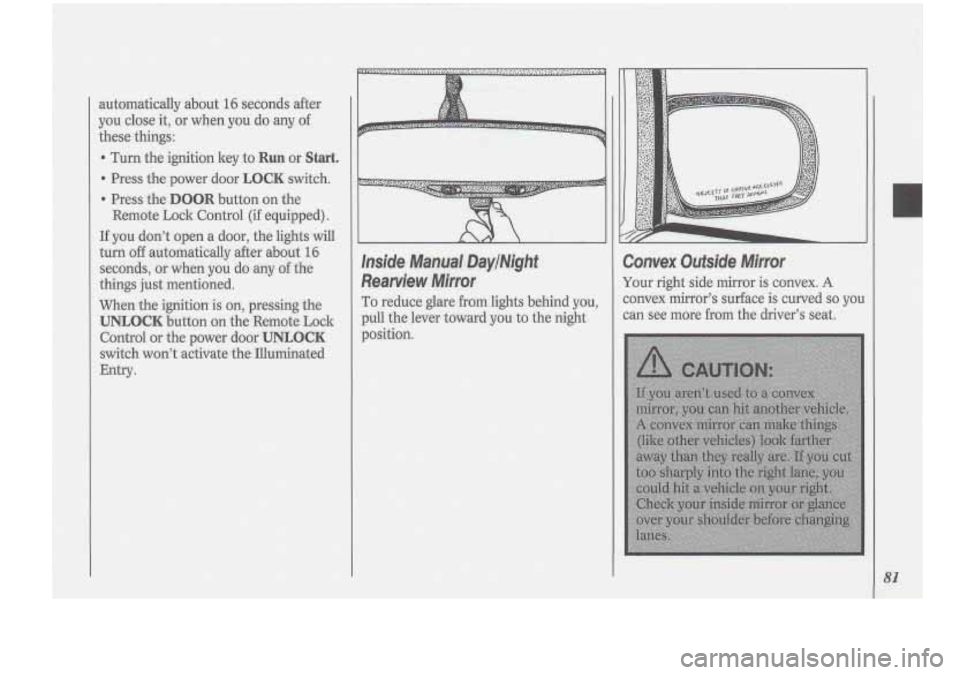

Inside Manual, DaylNight
Rearview
Mirror
To reduce glare from lights behind you,
pull the lever toward you to the night
position.
:onvex Outside Mirror
’our right side mirror is convex. A
onvex mirror’s sursface is cwved so you
an see more from the driver’s seat
81

Features & Controk
82

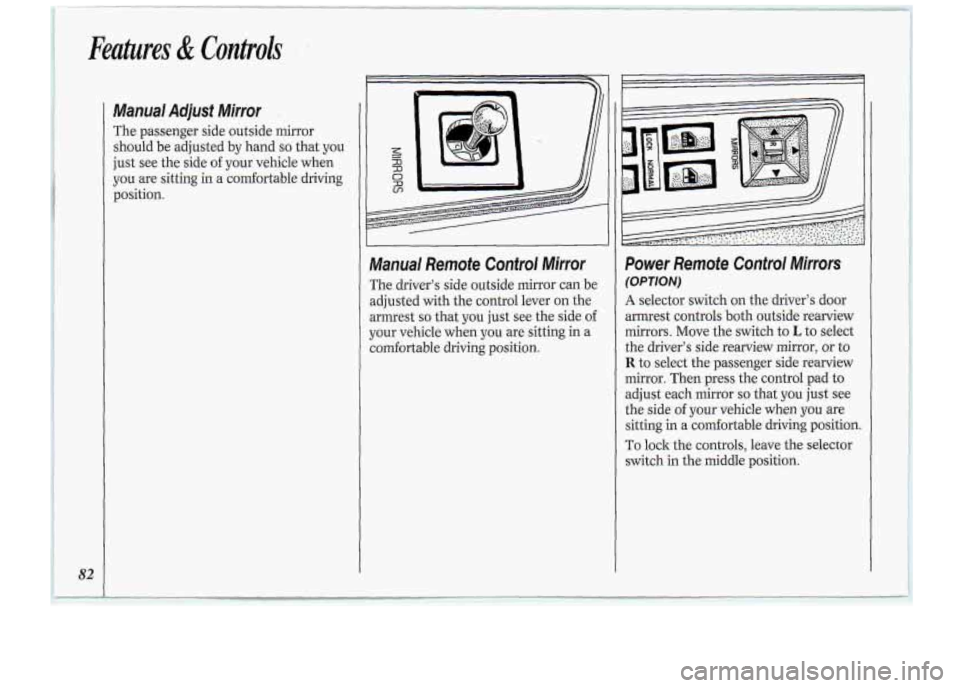

Manual Adjust Mirror
The passenger side outside mirror
should be adjusted by hand
so that you
just see the side
of your vehicle when
you are sitting in a cornfortable driving
position.
Manual Remote Confrol Mirror.
The driver's side outside mirror can be
adjusted with the control lever on the
armrest
so that you just see the side of
your vehicle when you are sitting in a
comfortable driving position.
Power Remote Confrol Mirrors
(OPTION)
A selector switch on the driver's door
armrest controls both outside rearview
mirrors. Move the switch to
L to select
the driver's side rearview mirror, or to
R to select the passenger side rearview
mirror. Then press the control pad to
adjust each mirror
so that you just see
the
side of your vehicle when you are
sitting in a comfortable driving position.
To lock the controls, leave the selector
switch in the middle position.
I I

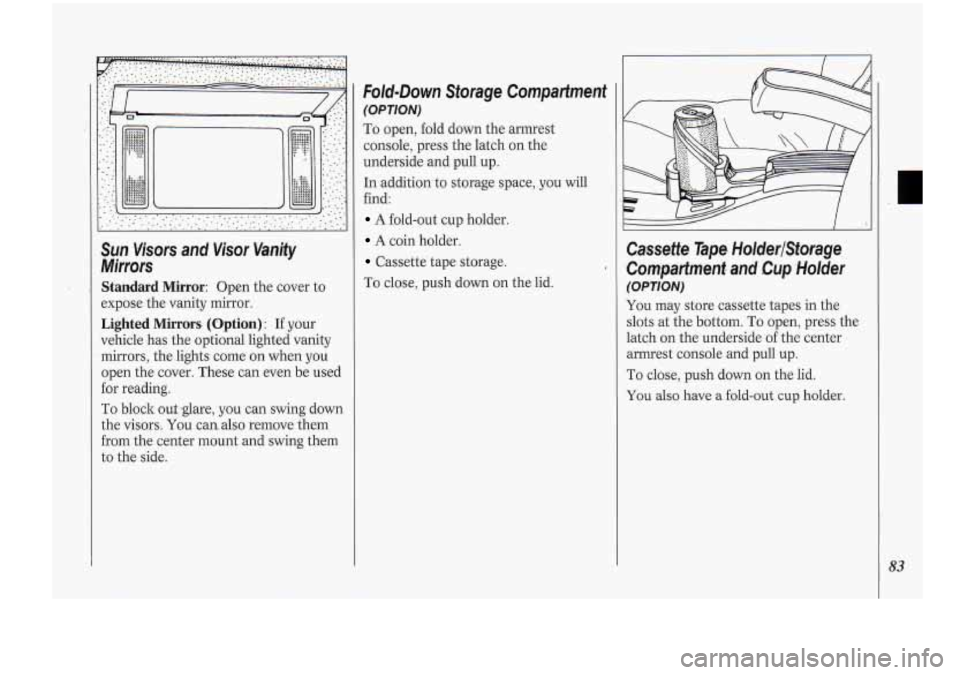

Sun Visors and Visor Va.nity
Mirrars
Standard Mirror: Open the cover to
expose the vanity mirror.
Lighted Mirrors- (Option) : If your
vehicle has the optional lighted vanity
mirrors, the .lights corne on when
you
open the cover. These can even be used
for reading.
To block out the visors,.
YOU canalso remove them
from the center mount and swing them
to the- side.
Fold-Down Storage Compartment
(OPTION)
To open, fold down the armrest
console, press the latch on the
underside
and pull up.
In addition,to storage space, you will
find:
A-fold-out cup holder.
A coin holder.
Cassette tape storage.
To close, push down on the lid.
Cassette Tape HotderlStwage
.CompaHment and Cup Holder
(OPTION)
You may store cassette tapes in the
slots at the bottom.
To open, press the
latch on the underside
of the center
armrest console and
pull up.
To close, push down on the lid.
You also have a fold-out cup holder.
83

Features & Controls
84

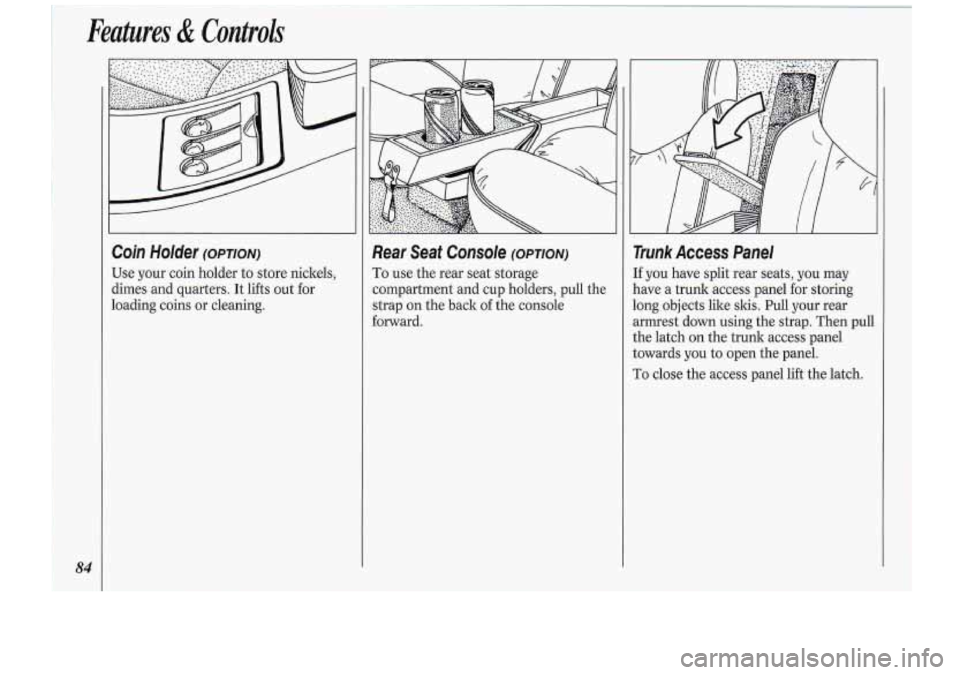

Coin Holder (OPTION)
Use your coin holder to store nickels,
dimes and quarters. It lifts out for
loading coins or cleaning.
... J
Rear Seat Console (OPTION)
To use the rear seat storage
compartment and cup holders, pull the
strap on the back of the console
forward.
Trunk Access Panel
If you have split rear seats, you may
have a trunk access panel for storing
long objects like skis.
Pull your rear
armrest down using the strap. Then pull
the latch on the trunk access panel
towards you to open the panel.
To close the access panel lift the latch.

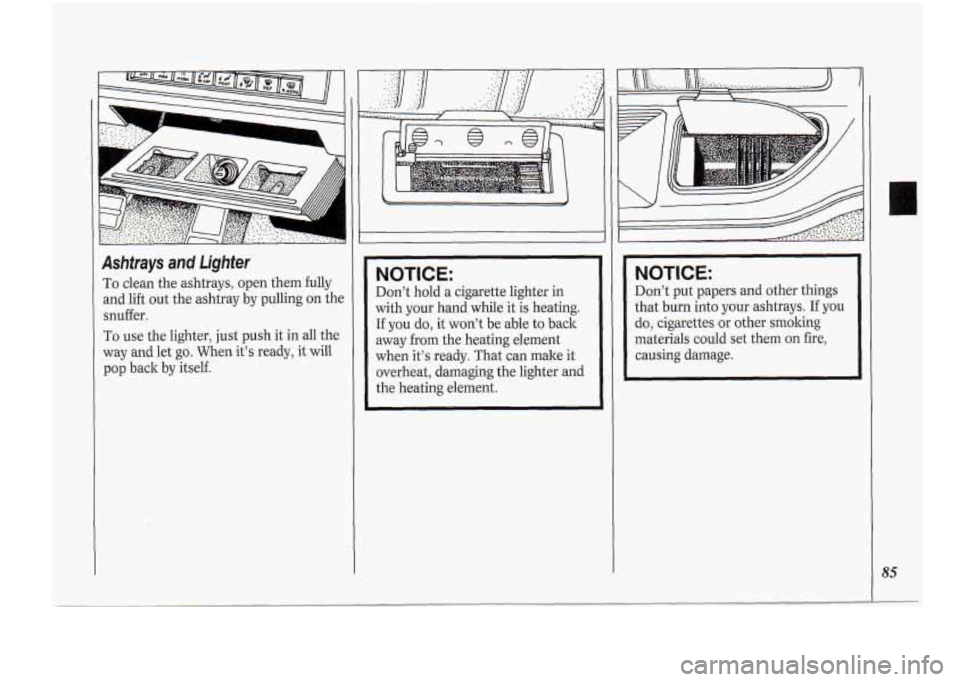

Ashtrays and Lighter
To clean the ashtrays, open them fully
and lift out the ashtray by pulling on the
snuffer.
To use the lighter, just push it in all the
way and let go. When it’s ready, it will
pop back by itself.
NOTICE:
Don’t hold a cigarette lighter in
with your hand while it is heating.
If you do, it won’t be able to back
away
from the heating element
when it’s ready. That can make it
overheat, damaging the lighter and
the heating element.
NOTICE:
Don’t put papers and other things
that burn into your ashtrays.
If you
do, cigarettes
or other smoking
materials could set them on fire,
causing damage.
85

86

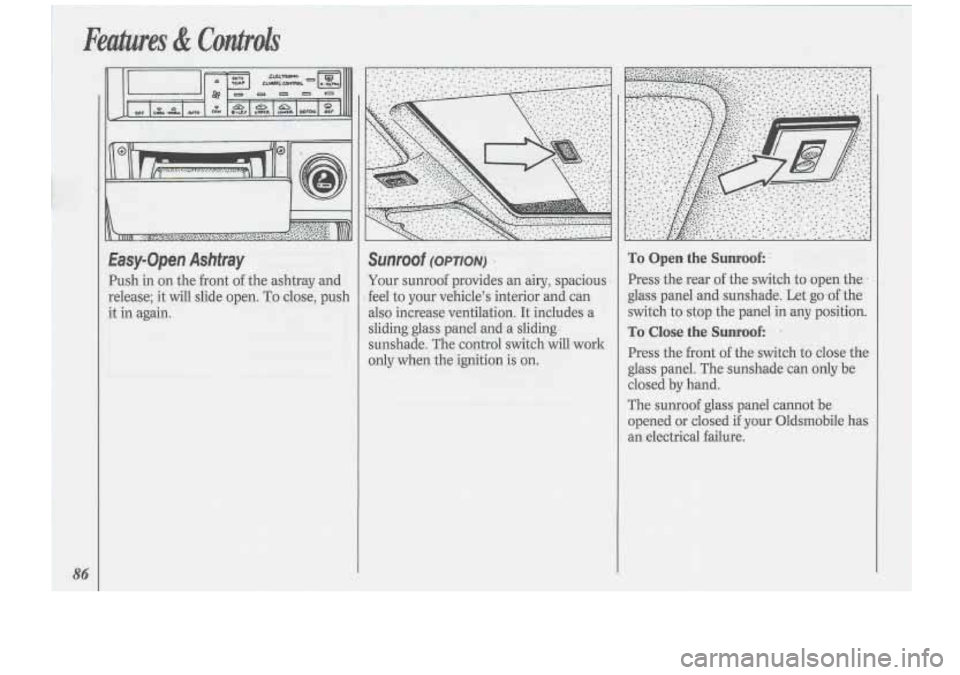

Easy-Open Ashtray
Push in on t.he front of the ashtray and
release;
it will slide open. To close, push
it in again.
Sunroof (OPTION) I
Your sunroof provides an airy, spacious
feel to your vehicle's interior and can
also increase ventilation. It includes a
sliding glass panel and a sliding
sunshade. The control switch will ,work
only when the ignition is
on.
To Open the Sunroof.
Press the rear of the switch to open the
glass panel and sunshade. Let go.of the
switch
to stop the panel in any position.
To Close the Sunroof: .
Press the front of the switch to close the
glass panel. The sunshade can
only be
closed by hand.
The sunroof glass panel cannot be
opened or closed
if your Oldsmobile has
an electrical failure.

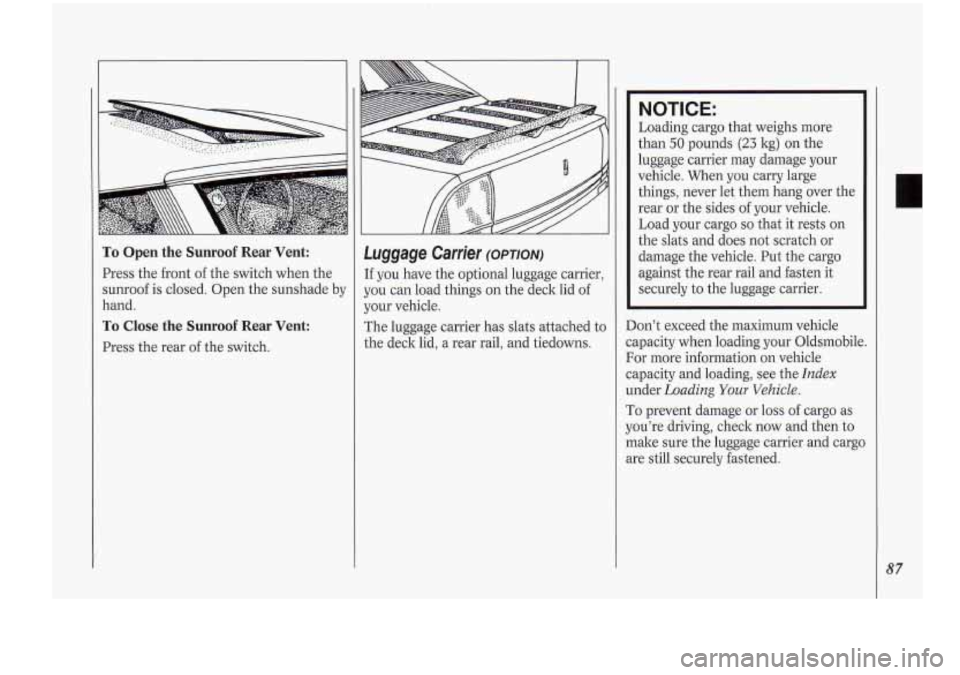

To Open the Sunroof Rear Vent:
Press the front of the switch when the
sunroof is closed. Open the sunshade by
hand.
To Close the Sunroof Rear Vent:
Press the rear of the switch.
Luggage Carrier (OPTION)
If you have the optional luggage carrier,
you can load things on the deck lid of
your vehicle.
The luggage carrier has slats attached to
the deck lid,
a rear rail, and tiedowns.
NOTICE:
Loading cargo that weighs more
than
50 pounds (23 kg) on the
luggage carrier may damage your
vehicle. When you carry large
things, never let them hang over the
rear or the sides
of your vehicle.
Load your cargo
so that it rests on
the slats and does not scratch or
damage the vehicle. Put the cargo
against the rear rail and fasten it
securely to the luggage carrier.
Don’t exceed the maximum vehicle
capacity when loading your Oldsmobile.
For more information on vehicle
capacity and loading, see the
Index
under Loading Your Vehicle.
To prevent damage or loss of cargo as
you’re driving, check now and then to
make sure the luggage carrier and cargo
are still securely fastened.
87
