mmm FOGLPS PARKLPS HORN

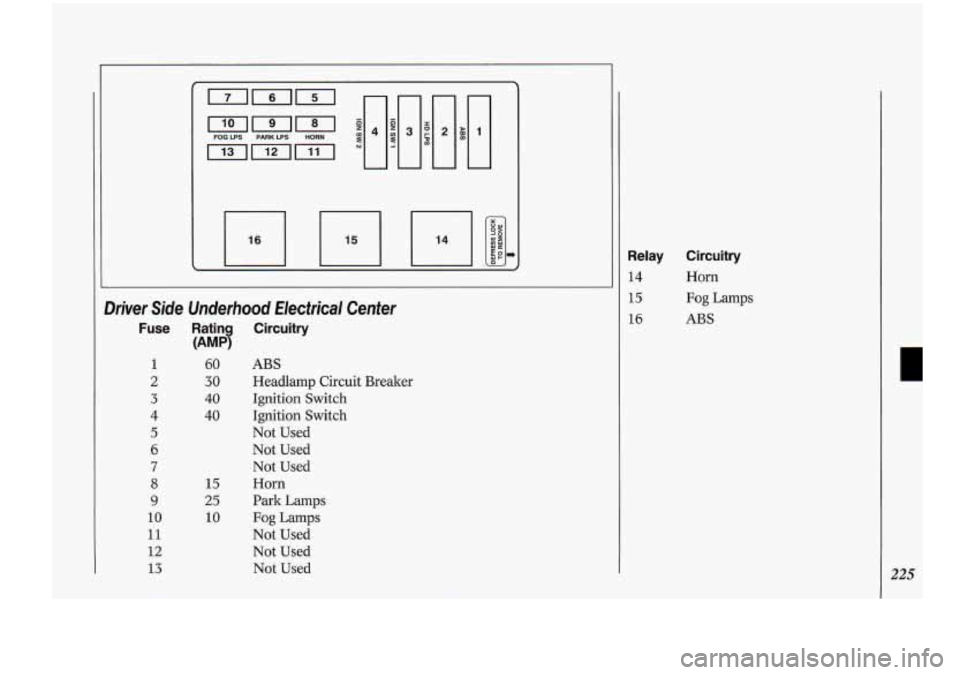

Driver Side Underhood Electrical Center
Fuse Rating Circuitry
(AMP)
1
2
3
4
5
6
7
8
9
10
11
12
13
60
30
40
40
15
25
10
ABS
Headlamp Circuit Breaker
Ignition Switch
Ignition. Switch
Not Used
Not Used
Not Used
Horn
Park Lamps
Fog Lamps
Not Used
Not Used
Not Used
Relay
14
15
16
Circuitry
Horn
Fog Lamps
ABS
