OLDSMOBILE SILHOUETTE 1993 Owners Manual

.. .................... .. , ......
~Iz;iiico]
.. .. ............. -----.-...I- ..... ............ ... .~ I
VOL , TUNE PREV NEXT REV FF COMP - _ - -. __ ...... ...... . :. ."/,. I ,=. , .ll?. 7 , - -- .. ..
0 0 . ... ............... .. ......... ..
. .,i.
1 EJCT - ST/PL 0 .____I 0 ~ .I ,$. ..... ...... .._.. .. .......... X306 1

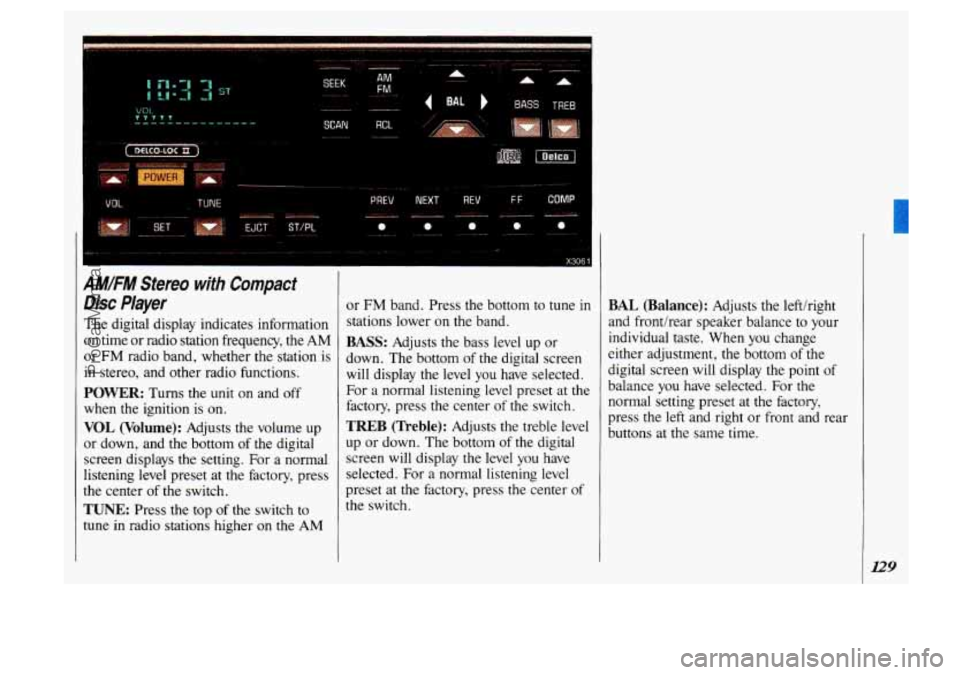

AMIFM Stereo wrth Compact
Disc
Player
The digital display indicates information
on time or radio station frequency, the AM
or
FM radio band, whether the station is
in stereo, and other radio functions.
POWER: Turns the unit on and off
when
the ignition is on.
VOL (Volume): Adjusts the volume up
or down, and the bottom
of the digital
screen displays
the setting. For a normal
listening level preset at the factory, press
the center of the switch.
TUNE: Press the top of the switch to
tune in radio stations higher on the AM or
FM band. Press the bottom to tune in
stations lower on
the band.
BASS: Adjusts the bass level up or
down. The bottom
of the digital screen
will display the level you have selected.
For a normal listening level preset at
th
factory, press the center of the switch. e
TREB (Treble): Adjusts the treble level
up or down. The bottom
of the digital
screen will display the level you have
selected. For a normal listening level
preset at the factory, press the center
of
the switch,
BAL (Balance): Adjusts the lefthight
and fronthear speaker balance to your
individual taste. When you change
either adjustment, the bottom
of the
digital screen will display the point of
balance
you have selected. For the
normal setting preset at the factory,
press the left and right or front and rear
buttons at the same time.
129
ProCarManuals.com

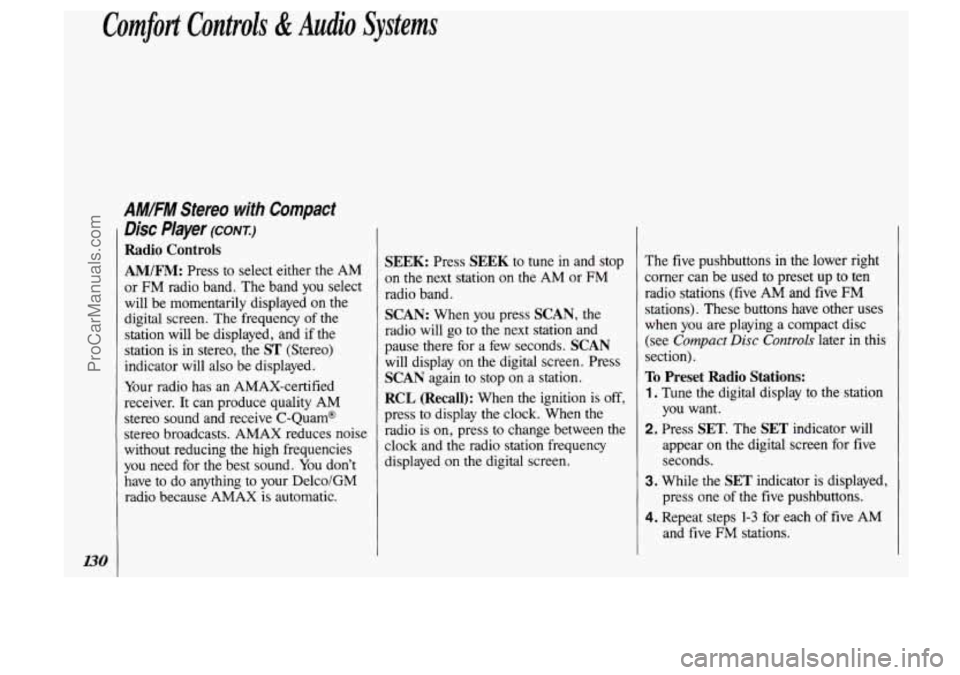

Comfort Controls & Audio Systems
AM/FM Stereo with Compact
Disc Player (CONT:)
Radio Controls
AM/FM: Press to select either the AM
or FM radio band. The band you select
will be momentarily displayed on the
digital screen. The frequency of the
station will be displayed, and if the
station is in stereo, the
ST (Stereo)
indicator will also be displayed.
Your radio has an AMAX-certified
receiver. It can produce quality AM
stereo sound and receive C-Quam@
stereo broadcasts. AMAX reduces noise
without reducing the high frequencies
you need for the best sound. You don’t
have to do anything to your Delco/GM
radio because AMAX is automatic.
SEEK: Press SEEK to tune in and stop
on the
next station on the AM or FM
radio band.
SCAN: When you press SCAN, the
radio will go to the next station and
pause there for
a few seconds. SCAN
will display on the digital screen. Press
SCAN again to stop on a station.
RCL (Recall): When the ignition is off,
press to display the clock. When the
radio is on, press to change between the
clock and
the radio station frequency
displayed on the digital screen. The
five pushbuttons in the lower right
corner can be used to preset up
to ten
radio stations (five AM and five FM
stations). These buttons have other uses
when you are playing a compact disc
(see Compact
Disc Controls later in this
section).
To Preset Radio Stations:
1 . Tune the digital display to the station
you want.
2. Press SET. The SET indicator will
appear on the digital screen for five
seconds.
3. While the SET indicator is displayed,
press one of
the five pushbuttons.
4. Repeat steps 1-3 for each of five AM
and five
FM stations.
ProCarManuals.com

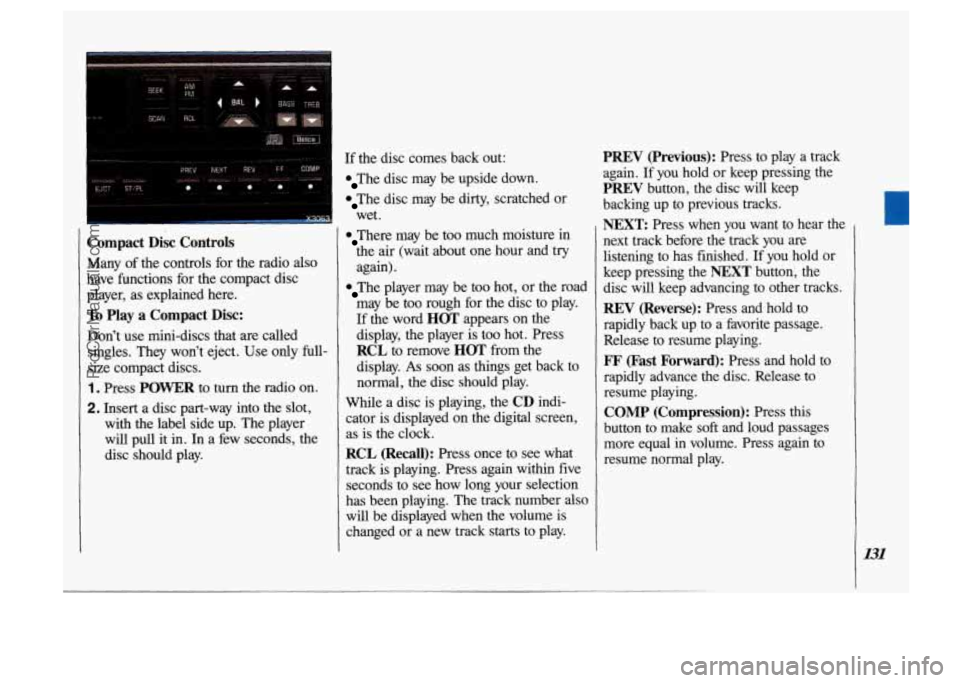

If the disc comes back out:
The disc may be upside down.
The disc may be dirty, scratched or
wet.
Compact Disc Controls
Many of the controls for the radio also
have functions for the compact disc
player, as explained here.
To Play a Compact Disc:
Don’t use mini-discs that are called
singles. They won’t eject. Use only
full-
size compact discs.
1 . Press POWER to turn the radio on.
2. Insert a disc part-way into the slot,
with the label side up. The player
will pull it in. In a few seconds, the
disc should play.
There may be too much moisture in
the air (wait about one hour and try
again).
The player may be too hot, or the road
may be too rough for the disc to play.
If the word H(YT appears on the
display, the player is too hot. Press
RCL to remove HOT from the
display.
As soon as things get back to
normal, the disc should play.
While a disc is playing, the
CD indi-
cator is displayed on the digital screen,
as is the clock.
RCL (Recall): Press once to see what
track is playing. Press again within five
seconds to see how long your selection
has been playing. The track number also
will be displayed when the volume is
changed or a new track starts
to play.
PREV (Previous): Press to play a track
again. If you hold or keep pressing the
PREV button, the disc will keep
backing up to previous tracks.
NEXT: Press when you want to hear the
next track before the track you are
listening
to has finished. If you hold or
keep pressing the
NEXT button, the
disc will keep advancing to other tracks.
REV (Reverse): Press and hold to
rapidly back up to a favorite passage.
Release to resume playing.
FF (Fast Forward): Press and hold to
rapidly advance the disc. Release to
resume playing.
COMP (Compression): Press this
button to make
soft and loud passages
more equal in volume. Press again to
resume normal play.
131
ProCarManuals.com

Comfort Controls & Audio Systems
AM/FM Stereo with Compact
Disc Player
(CONT.)
When Finished with the Compact
Disc Player:
If you press POWER or turn off the
ignition, the disc will stay in the player
and
start again when you turn on the
ignition or power switch. The disc will
begin playing at the point where it had
been stopped.
ST/PL (Stop/Play): Press to stop the
disc player; the radio will play. Press
again to play the disc (the player will
start playing the disc where it was
stopped earlier).
EJCT (Eject): Press to eject the disc;
the radio will play.
CD Player Anti-Theft Fieature
Delco LOC II@ is a security feature for
the compact disc player. It can be used
or ignored. If ignored, the system plays
normally.
If it is used, your player won’t
be usable if it is ever stolen, because it
will go to
LOC mode any time battery
power is removed. Until an unLOC
code is entered, it will not
turn on.
The instructions below tell you how to
enter a secret code into the system.
If
your vehicle loses battery power for any
reason, you must unlock the system with
the secret code before the radio will turn
on.
To Set the Anti-Theft System:
1. Write down any six-digit number and
keep it in a safe place.
2. Turn the ignition to the Accessory or
Run position.
3. Press the POWER button to turn the
radio
off.
4. Press the PREV and FF buttons
together. Hold them down until
“- - -” shows on the display (at least
five seconds). You are ready to enter
your secret code.
NOTE:
If you allow more than 15
seconds to elapse between any steps, the
radio automatically reverts to time and
you must
start the procedure over at step 4.
ProCarManuals.com

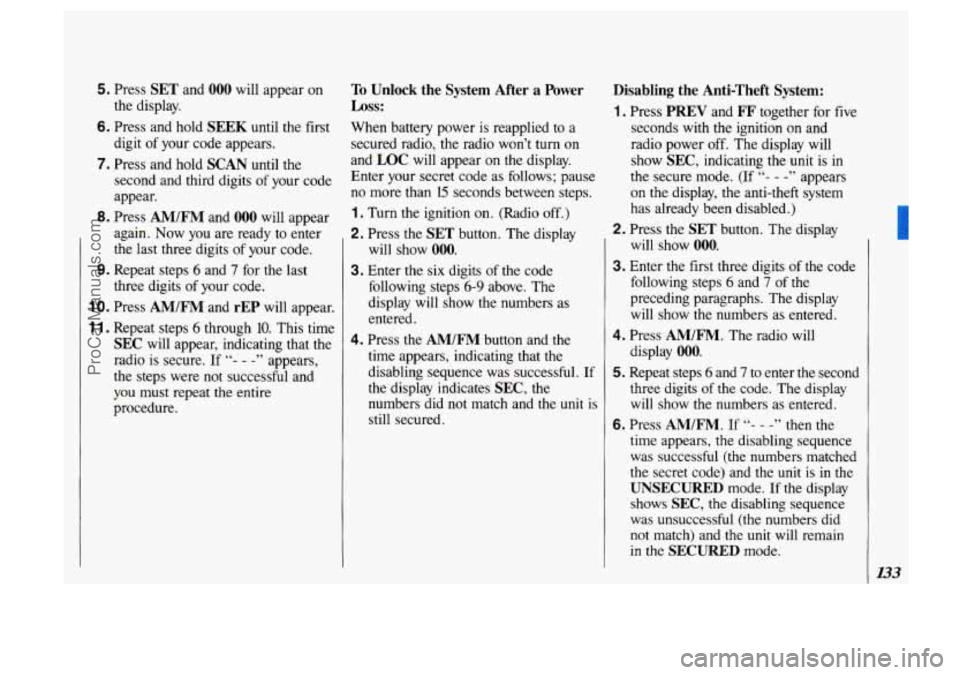

5. Press SET and 000 will appear on
the display.
6. Press and hold SEEK until the first
digit of your code appears.
7. Press and hold SCAN until the
second and third digits of your code
appear.
8. Press AM/FM and 000 will appear
again. Now you are ready to enter
the last three digits of your code.
9. Repeat steps 6 and 7 for the last
three digits of your code.
1 0. Press AM/FM and rEP will appear.
1 1. Repeat steps 6 through 10. This time
SEC will appear, indicating that the
radio is secure.
If “- - -” appears,
the steps were
not successful and
you must repeat the entire
procedure.
To Unlock the System After a Power
Loss:
When battery power is reapplied to a
secured radio, the radio won’t turn
on
and LOC will appear on the display.
Enter your secret code as follows; pause
no more than
15 seconds between steps.
1. Turn the ignition on. (Radio off.)
2. Press the SET button. The display
will show
000.
3. Enter the six digits of the code
following steps
6-9 above. The
display will show the numbers as
entered.
4. Press the AM/FM button and the
time appears, indicating that the
disabling sequence was successful.
If
the display indicates SEC, the
numbers did not match and the unit is
still secured.
Disabling the Anti-Theft System:
1. Press PREV and FF together for five
seconds with the ignition on and
radio power off. The display will
show SEC, indicating the unit is in
the secure mode. (If
“- - -” appears
on the display, the anti-theft system
has already been disabled.)
2. Press the SET button. The display
will show
000.
3. Enter the first three digits of the code
following steps
6 and 7 of the
preceding paragraphs. The display
will show the numbers as entered.
4. Press AM/FM. The radio will
display
000.
5. Repeat steps 6 and 7 to enter the second
three digits
of the code. The display
will show the numbers as entered.
6. Press
AM/FM. If bb- - -” then the
time appears, the disabling sequence
was successful (the numbers matched
the secret code) and the unit is in the
UNSECURED mode. If the display
shows
SEC, the disabling sequence
was unsuccessful (the numbers did
not match) and the
unit will remain
in the SECURED mode.
133
ProCarManuals.com

1"
ProCarManuals.com

,l

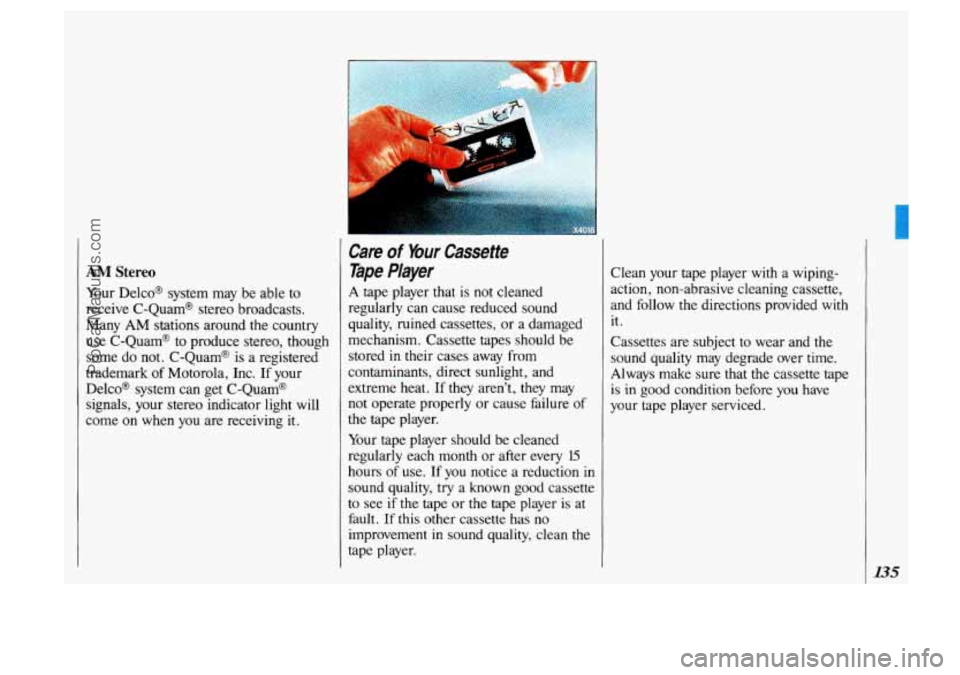

AM Stereo
Your Delco@ system may be able to
receive C-Quam@ stereo broadcasts.
Many
AM stations around the country
use C-Quam@ to produce stereo, though
some do not. C-Quam@ is a registered
trademark
of Motorola, Inc. If your
Delco@ system can get C-Quam@
signals, your stereo indicator light will
come on when you are receiving it.
Care of Your Cassette
Tape
Player
A tape player that is not cleaned
regularly can cause reduced sound
quality, ruined cassettes, or a damaged
mechanism. Cassette tapes should be
stored
in their cases away from
contaminants, direct sunlight, and
extreme heat.
If they aren't, they may
not operate properly or cause failure of
the tape player.
Your tape player should be cleaned
regularly each month
or after every 15
hours of use. If you notice a reduction in
sound quality, try a known good cassette
to see if
the tape or the tape player is at
fault. If this other cassette has no
improvement in sound quality, clean the
tape player. Clean your tape player with
a wiping-
action, non-abrasive cleaning cassette,
and follow the directions provided with
it.
Cassettes are subject to wear and the
sound quality may degrade over time.
Always make sure that the cassette tape
is in good condition before you have
your tape player serviced.
135
ProCarManuals.com

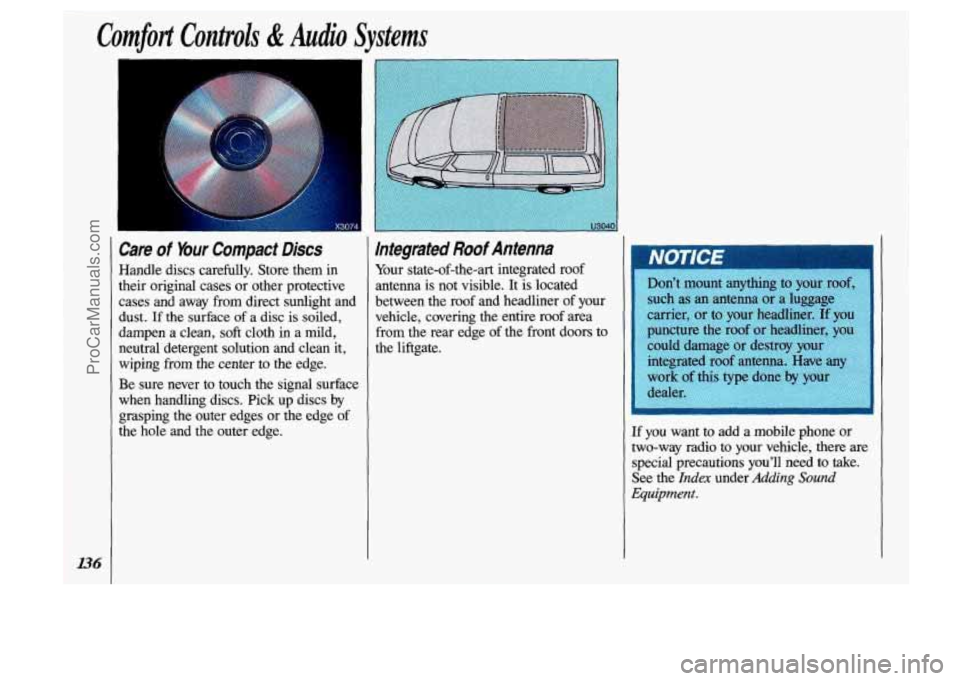

Care of Your Compact Discs
Handle discs carefully. Store them in
their original cases or other protective
cases and away from direct sunlight and
dust.
If the surface of a disc is soiled,
dampen a clean,
soft cloth in a mild,
neutral detergent solution and clean it,
wiping from the center to the edge.
Be sure never to touch the signal surface
when handling discs. Pick up discs
by
grasping the outer edges or the edge of
the hole and the outer edge.
integrated Roof Antenna
Your state-of-the-art integrated roof
antenna is not visible. It is located
between the roof and headliner
of your
vehicle, covering the entire roof area from the rear edge
of the front doors to
the liftgate.
NOTE€
If you want to add a mobile phone or
two-way radio to your vehicle, there are
special precautions you'll
need to take.
See the Index under Adding Sound
Equipment.
ProCarManuals.com

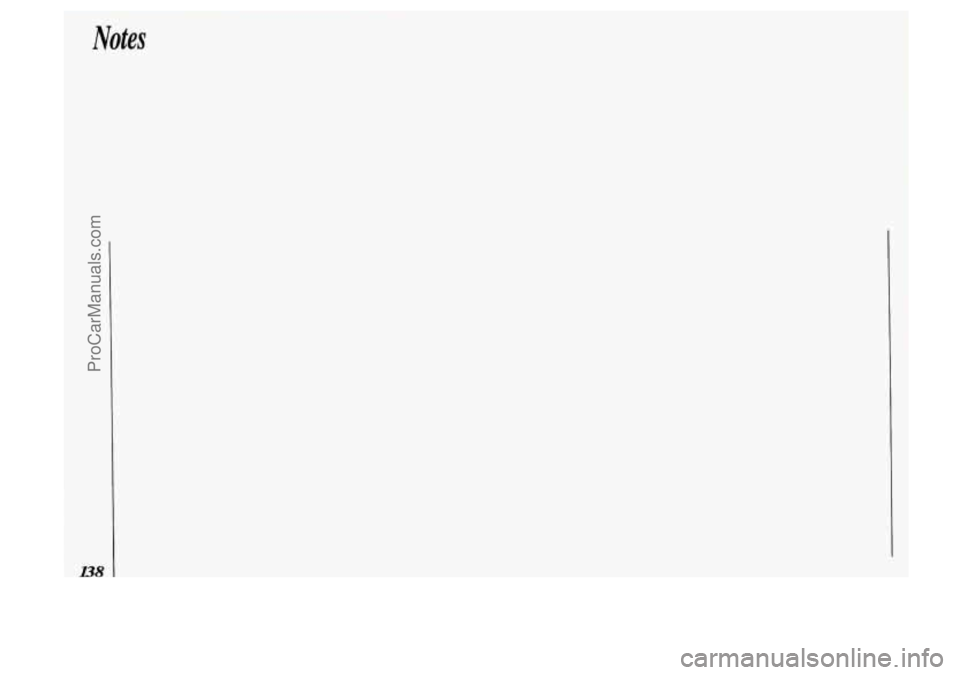

Notes
ProCarManuals.com

Notes
ProCarManuals.com
