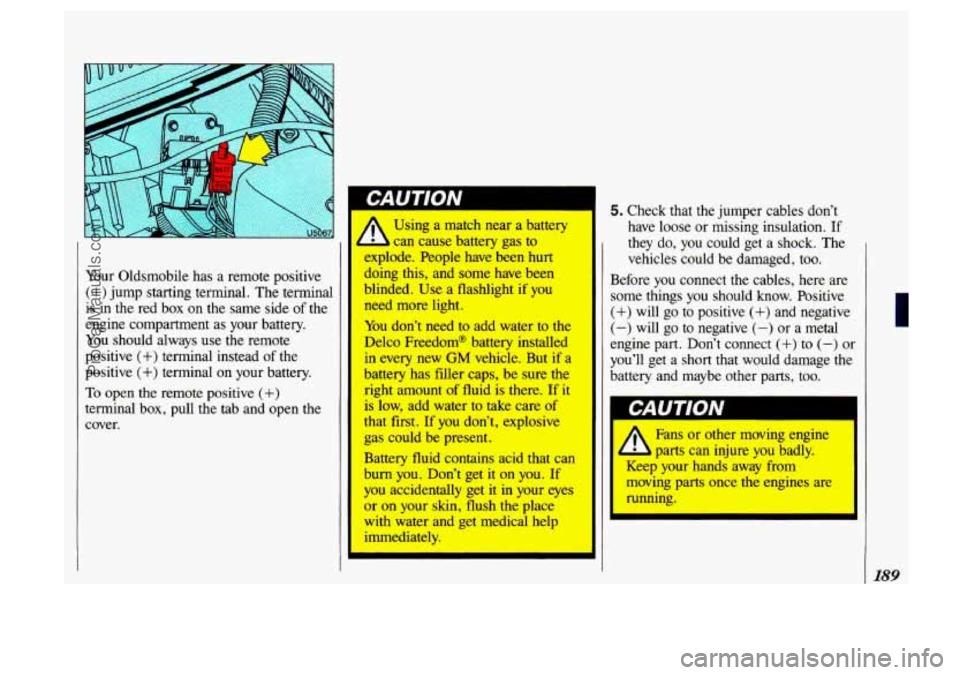

Your Oldsmobile has a remote positive
(+) jump starting terminal. The terminal
is in the red box on the same side
of the
engine compartment as your battery.
You should always use the remote
positive
(+) terminal instead of the
positive
(+) terminal on your battery.
To open the remote positive (+)
terminal box, pull the tab and open the
cover.
A
Using a match near a battery
can cause battery gas to
explode. People have been
hurt
doing this, and some have been
blinded. Use a flashlight if you
need more light.
You don’t need to add water to the
Delco Freedom@ battery installed
in every new
GM vehicle. But if a
battery has filler caps, be sure the
right amount of fluid is there. If
it
is low, add water to take care of
that first. If you don’t, explosive
gas could be present.
Battery fluid contains acid that can
bum you. Don’t get it on
you. If
you accidentally get it in your eyes
or
on your skin, flush the place
with water and get medical help
immediately.
5. Check that the jumper cables don’t
have loose or missing insulation. If
they do, you could get a shock. The
vehicles could be damaged, too.
Before you connect the cables, here are
some things you should know. Positive
(+) will go to positive (+) and negative
(-) will go to negative (-) or a metal
engine part. Don’t connect
(+) to (-) or
you’ll get a short that would damage the
battery and maybe other parts, too.
Fans
or other moving engine
parts can injure you badly.
Keep your hands away bm
moving parts once the engines are
running. I
I89
ProCarManuals.com

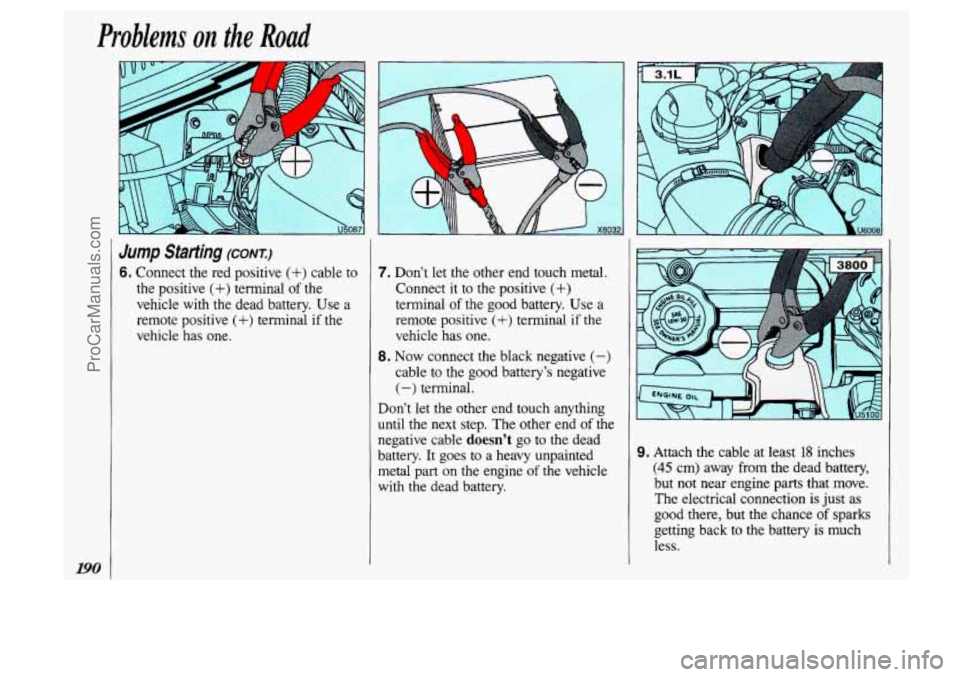

Jump Starting (CONT.)
6. Connect the red positive (+) cable to
the positive
(+) terminal of the
vehicle with the dead battery. Use a
remote positive
(+) terminal if the
vehicle has one.
0
7. Don’t let the other end touch metal.
Connect
it to the positive (+)
terminal of the good battery. Use a
remote positive (+) terminal if the
vehicle has one.
8. Now connect the black negative (-)
cable to the good battery’s negative
(-) terminal.
Don’t let the other end touch anything
until the next step. The other end
of the
negative cable
doesn’t go to the dead
battery. It goes to a heavy unpainted metal part on the engine of the vehicle
with the dead battery.
9. Attach the cable at least 18 inches
(45 cm) away from the dead battery,
but not near engine parts that move.
The electrical connection is just as
good there, but the chance of sparks
getting back to the battery is much
less.
ProCarManuals.com

10. Now start the vehicle with the good
battery and run the engine for a
while.
1 1. Try to start the vehicle with the
dead battery.
If it won’t start after a
few tries, it probably needs service.
-wP
1
1 2. Remove the cables in reverse order
to prevent electrical shorting. Take
care that they don’t touch each other
or any other metal.
X51 O(
Towing Your Oldsmobile
Try to have a GM dealer or a
professional towing service tow your
Oldsmobile. The usual towing
equipment is
:
(A) Sling-type tow truck
(B) Wheel-lift tow truck
(C) Car carrier
If your vehicle has been changed or
modified since it was factory-new by
adding aftermarket items like
fog lamps,
aero skirting, or special tires and
wheels, these instructions and
illustrations may not be correct.
Before
you do anything, turn on the
hazard warning flashers.
191
ProCarManuals.com

Problems on the Road
192

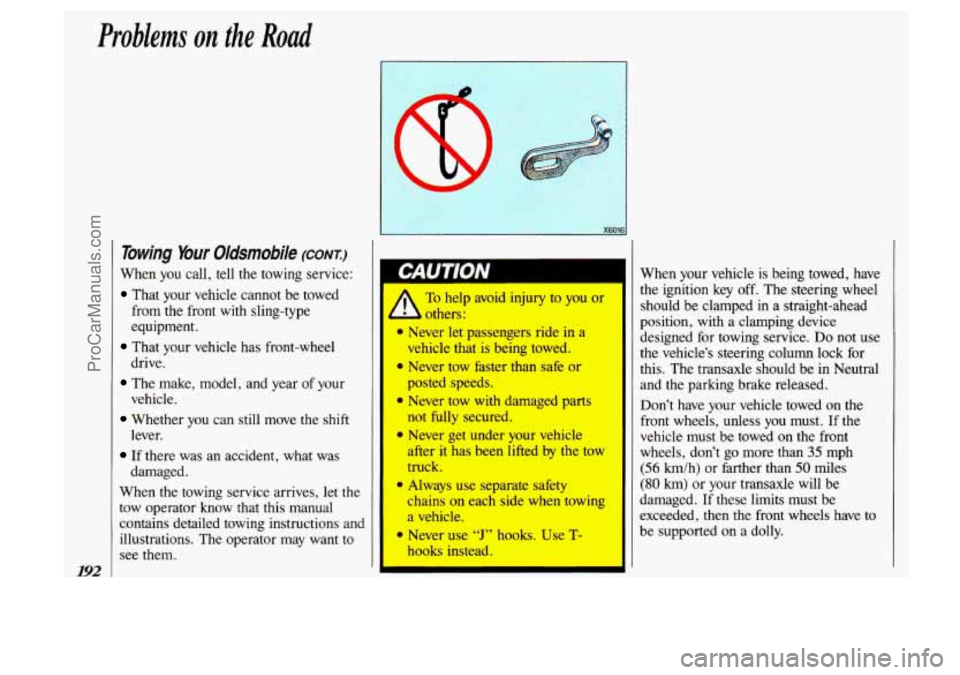

Towing Your Oldsmobile (CONT.:)
When you call, tell the towing service:
That your vehicle cannot be towed
from the front with sling-type
equipment.
drive.
vehicle. lever.
damaged.
That your vehicle has front-wheel
The make, model, and year of your
Whether you can still move the shift
If there was an accident, what was
When the towing service arrives, let the
tow operator know that this manual
contains detailed towing instructions and
illustrations. The operator may want to
see them.
1 X6016
m,. ,
L ‘~‘n help avoid injury to you or
0 Never let passengers ride in a
vehicle that is
being towed.
* Never tow faster than safe or
0 Never tow with damaged parts
0 Never get under your vehicle
posted speeds.
not fully secured.
after it has been lifted by the tow
truck.
chains on each side when towing
a vehicle.
Never use “J” hooks. Use T-
hooks instead.
* Always use separate safety When your vehicle is being towed, have
the
ignition key
off. The steering wheel
should be clamped in a straight-ahead
position, with
a clamping device
designed for towing service. Do not use
the vehicle’s steering column lock for
this. The transaxle should be
in Neutral
and the parking brake released.
Don’t have your vehicle towed on
the
front wheels, unless you must. If the
vehicle must be towed on the front
wheels, don’t
go more than 35 mph
(56 km/h) or farther than 50 miles
(80 km) or your transaxle will be
damaged. If these limits must be
exceeded,
then the front wheels have to
be supported on a dolly.
ProCarManuals.com

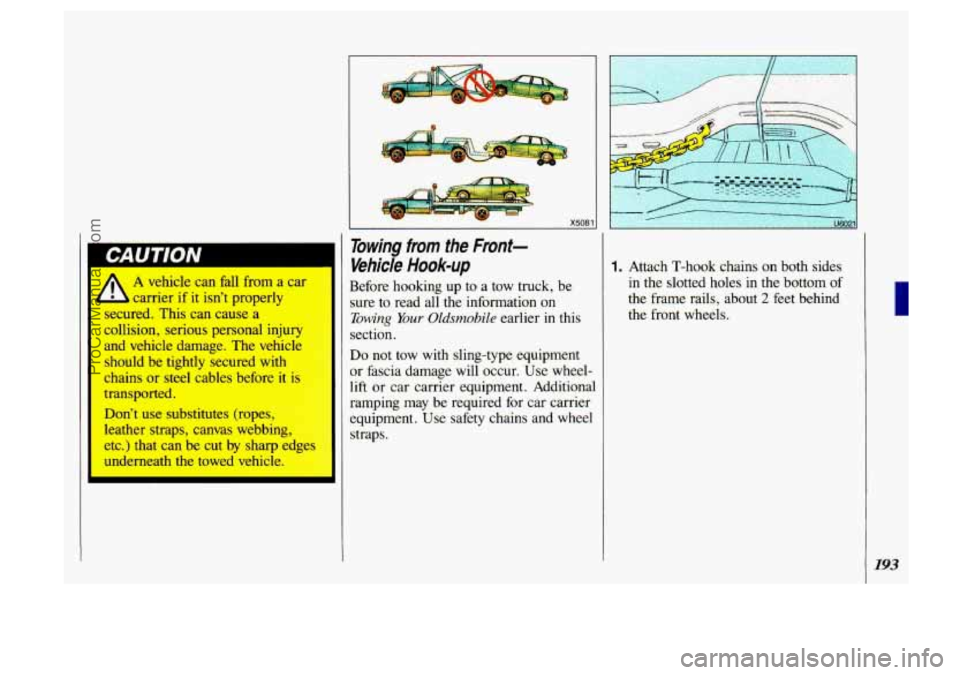

CAUTION
A
A vehicle can fall from a car
carrier if it isn’t properly
secured. This can cause a
collision, serious personal injury
and vehicle damage. The vehicle
should be tightly secured with
chains or steel cables before
it is
transported.
Don’t use substitutes (ropes,
C;-
leather straps, canvas webbing, &%
etc.) that can be cut by sharp edges‘
underneath the towed vehicle.
a
X508 1
Towing from the Front-
Vehice
Hook-up
Before hooking up to a tow truck, be
sure to read
all the information on
Towing Your Oldsrnobile earlier in this
section.
Do not tow with sling-type equipment
or fascia damage will occur. Use wheel-
lift or car carrier equipment. Additional
ramping may be required for car carrier
equipment. Use safety chains and wheel
straps.
1. Attach T-hook chains on both sides
in the slotted holes in the bottom of
the frame rails, about 2 feet behind
the front wheels.
193
ProCarManuals.com

Problems on the Road
194

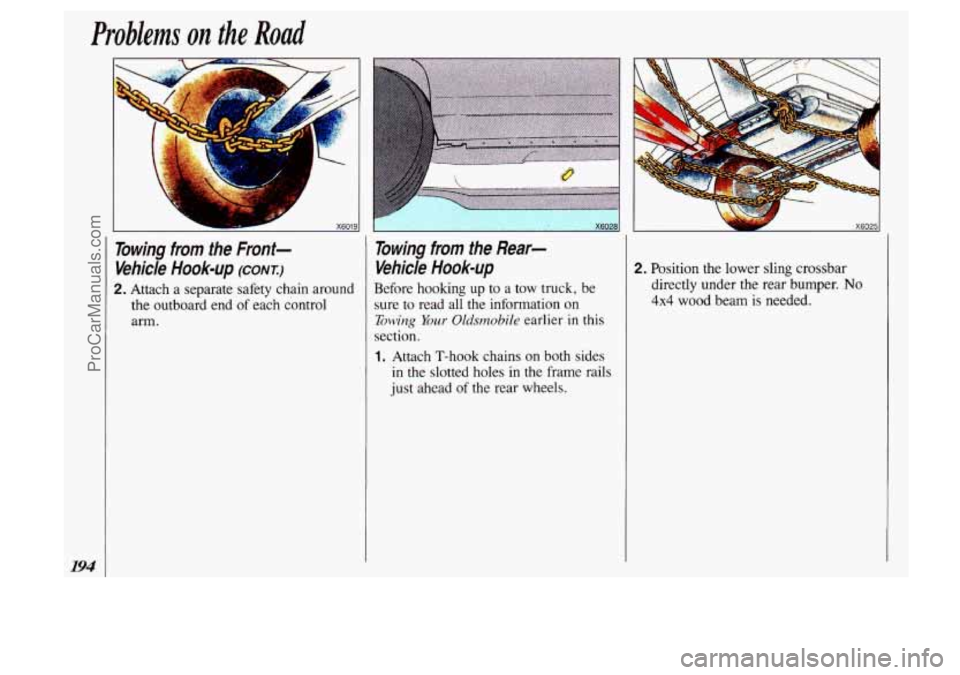

Towing from the Front- Vehicle
Hook-up (CONT:)
2. Attach a separate safety chain around
the outboard end of each control
arm.
.. , , .I ,,
Towing from the Rear-
Vehicle
Hook-up
Before hooking up to a tow truck, be
sure to read all the information on
Towing Your Oldsmobile earlier in this
section.
1. Attach T-hook chains on both sides
in the slotted holes in the frame rails
just ahead
of the rear wheels.
2. Position the lower sling crossbar
directly under the rear bumper.
No
4x4 wood beam is needed.
ProCarManuals.com

3. Attach a separate safety chain around
the end of each axle inboard of the
spring.
4. Be certain your vehicle is towed no
faster than
35 mph (56 km/h) and no
farther than
50 miles (80 km) to
avoid damage to your transaxle.
damaging a vehicle
luring a tow over rough surfaces,
Install a towing dolly beneath the
wheels that would otherwise be on
the ground during the tow. This
will increase clearance between
the
wheel lift equipment and the
underbody of the towed vehicle.
Engine Overheating If Steam is Coming from Your Engine
You will find a coolant temperature gage
on your Oldsmobile's instrument panel.
See the
Index under Coolant
Temperature
Gage.
A Steam from an overheated
r - n engine can bum you badly,
even
if you just open the hood. Stay
away from
the engine if you see or
hear steam coming from it. Just
turn
it off and get everyone away
from
the vehicle until it cools down.
Wait
until there is no sign of steam
or coolant before opening the hood.
If you keep driving when your
engine
is overheated, the liquids in
it can catch fire. You or others
could
be badly burned. Stop your
engine
if it overheats, and get out
of the vehicle
until the engine is
cool.
I
195
ProCarManuals.com

Problems on the Road

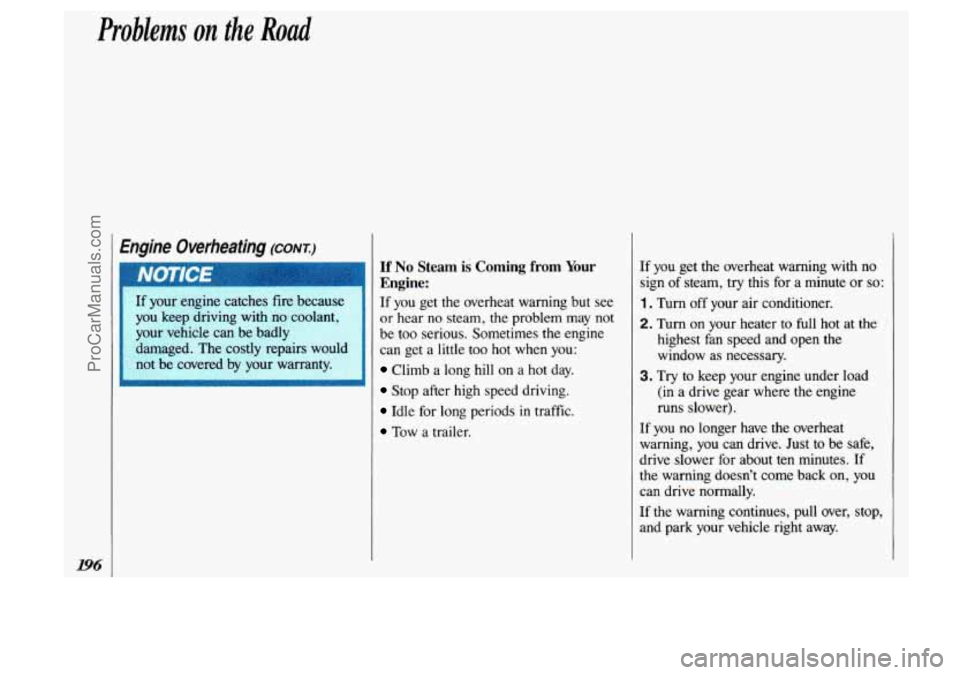

I Enaine overheating (CONT:)
you keep driving with no coolant
your vehicle can be badly
damaged. The costly repairs wou
not be covered bv vour warrantv.
If No Steam is Coming from Your
Engine:
If you get the overheat warning but see
or hear no steam, the problem may not
be too serious. Sometimes the engine
can get a little
too hot when you:
Climb a long hill on a hot day.
Stop after high speed driving.
Idle for long periods in traffic.
Tow a trailer. If you get
the overheat warning with no
sign of steam,
try this for a minute or so:
1 . Turn off your air conditioner.
2. Turn on your heater to full hot at the
highest fan speed and open the
window as necessary.
3. Try to keep your engine under load
(in a drive gear where the engine
runs slower).
If you no longer have the overheat
warning, you can drive. Just
to be safe,
drive slower for about ten minutes.
If
the warning doesn’t come back on, you
can drive normally.
If the warning continues, pull over, stop,
and park your vehicle right away.
ProCarManuals.com

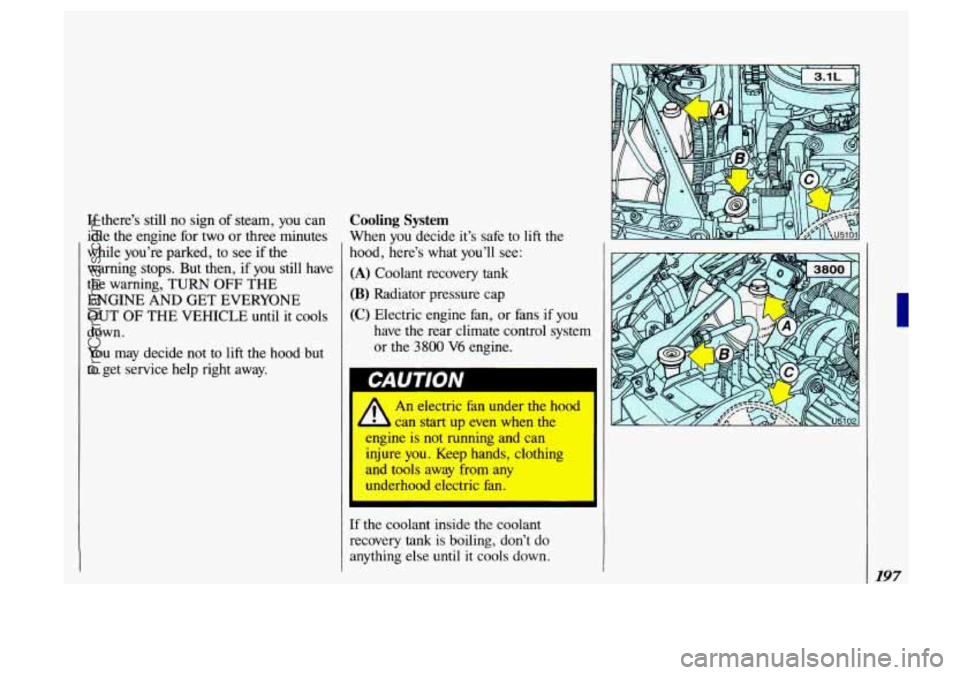

If there’s still no sign of steam, you can
idle the engine for two or three minutes
while you’re parked, to see if the
warning stops. But then, if you still have
the warning, TURN OFF THE
ENGINE AND
GET EVERYONE
OUT OF THE VEHICLE until it cools
down.
You may decide not to lift the hood but
to get service help right away.
Cooling System
When you decide it’s safe to lift the
hood, here’s what you’ll see:
(A) Coolant recovery tank
(B) Radiator pressure cap
(C) Electric engine fan, or fans if you
have the rear climate control system
or the
3800 V6 engine.
I A An electric fan under the hod
L can start up even when the
engine is not running and can
injure
you. Keep hands, clothing
and‘tools away from any
underhood electric fan.
If the coolant inside the coolant
recovery
tank is boiling, don’t do
anything else
until it cools down.
197
ProCarManuals.com

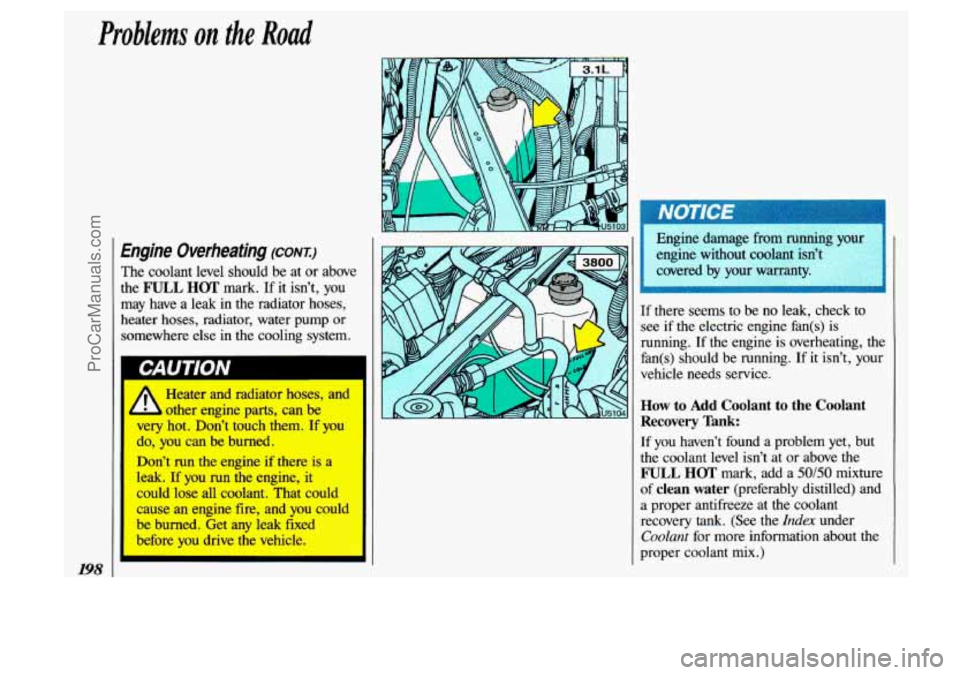

Engine Overheating (CONTI)
The coolant level should be at or above
the
FULL HOT mark. If it isn’t, you
may have a leak in the radiator hoses,
heater hoses, radiator, water pump or
somewhere else in the cooling system.
I, rn Heater and radiator hoses, and
b other engine parts, can be
VGI~ hot. Don’t touch them. If you
do, you can be
burned.
Don’t run the engine if there is a
leak. If you
run the engine, it
could lose all coolant. That could
cause an engine fire, and you
cou
be burned. Get any leak fix
before you drive the vehicle Engine damage from running your
: engine without coolant isn’t
i.: covered
by your warranty.
If there seems to be no leak, check to
see if the electric engine fan(s) is
running. If the engine is overheating, the
fan(s) should be running. If it isn’t, your
vehicle needs service.
How to Add Coolant to the Coolant
Recovery
Tank:
If you haven’t found a problem yet, but
the coolant level isn’t at or above the
FULL HOT mark, add a 50/50 mixture
of
clean water (preferably distilled) and
a proper antifreeze at the coolant
recovery
tank. (See the Index under
Coolant for more information about the
proper coolant mix.)
ProCarManuals.com
