OLDSMOBILE SILHOUETTE 1993 Owners Manual

To check on fuel availability, ask an auto
club, or contact
a major oil company
that does business in the country where
you'll be driving.
You can
also write us at the following
address for advice. Just tell us where
you're going and give your Vehicle
Identification Number (VIN)
.
General Motors of Canada Ltd.
International
Export Sales
P.O. Box 828
Oshawa, Ontario LlH 7N1, Canada

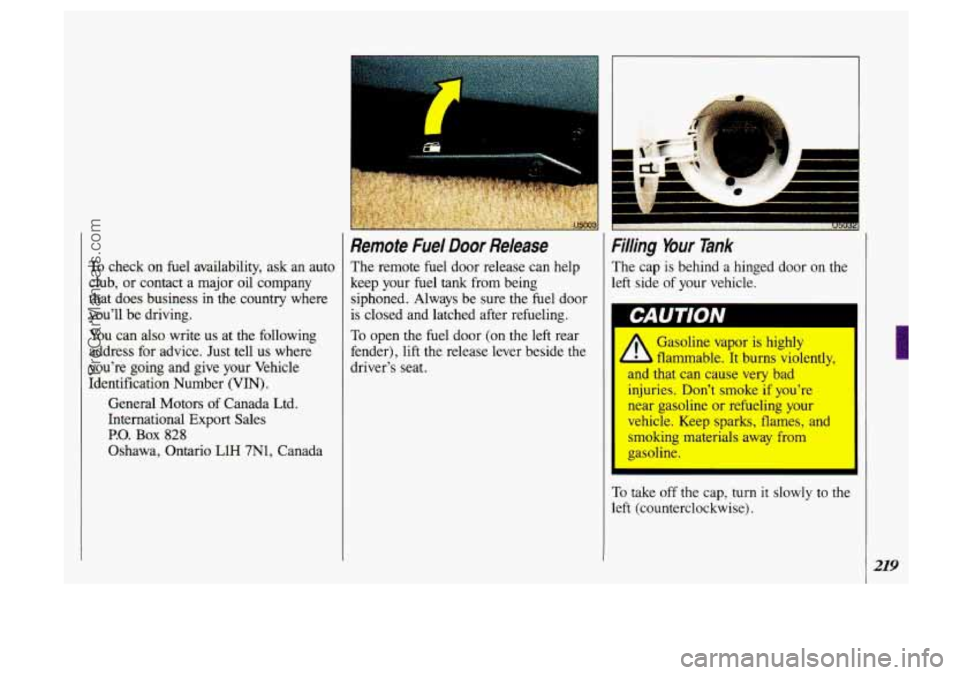

Remote Fuel Door Release
The remote fuel door release can help
keep your fuel tank from being siphoned. Always be sure the fuel door
is closed and latched after refueling.
To open the fuel door (on the left rear
fender), lift the release lever beside the
driver's seat.
Filling Your Tank
The cap is behind a hinged door on the
left side
of your vehicle.
h nammable. It burns violently,
lsoline vapor is highly
ana that can cause very bad
injuries. Don't smoke if you're
near gasoline or refueling your
vehicle. Keep sparks, flames, and
smoking materials away from
gasoline. I
1
To take off the cap, turn it slowly to the
left (counterclockwise).
219
ProCarManuals.com

Service & Appearance Care
220

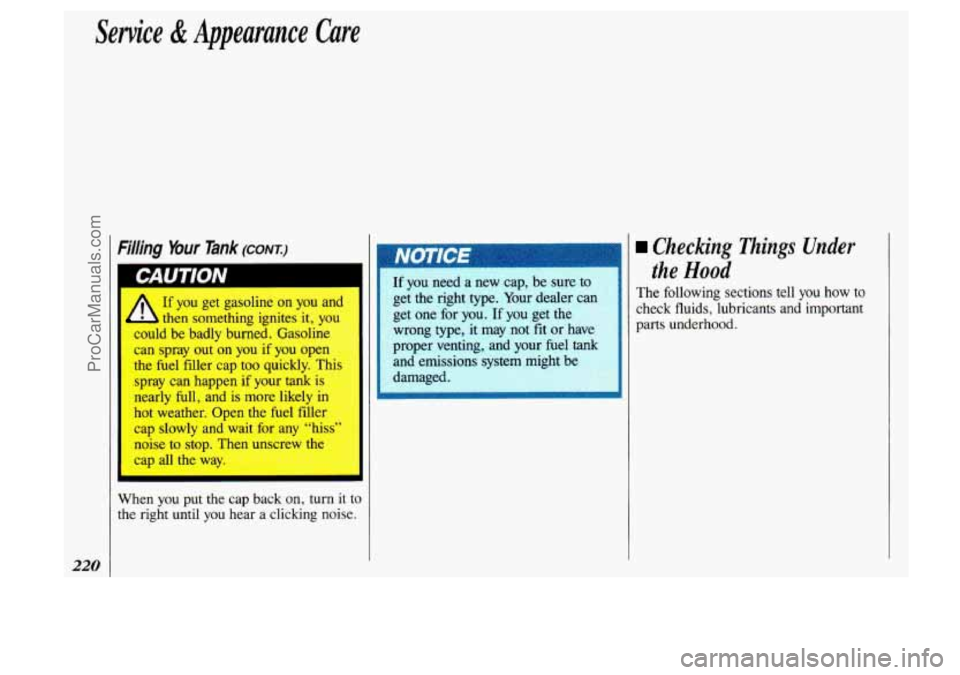

* If you get gasoline on you and
- then something ignites it, yor
could be badly burned. Gasoline
can spray out on you
if you open
the fuel filler cap too quickly. This
spray can happen if your
tank is
nearly full, and is more likely in
hot weather. Open the fuel filler
noise
to stop. Then unscrew the
cap all the way.
ap slowly and wait
for any "hiss'
type. Your dealer can
If you get
the
your fuel tank
not fit or have
I
Checking Things Under
the
Hood
The following sections tell you how to
check fluids, lubricants
and important
parts underhood.
When
you put the cap back on, turn it to
the right until you hear a clicking noise.
ProCarManuals.com

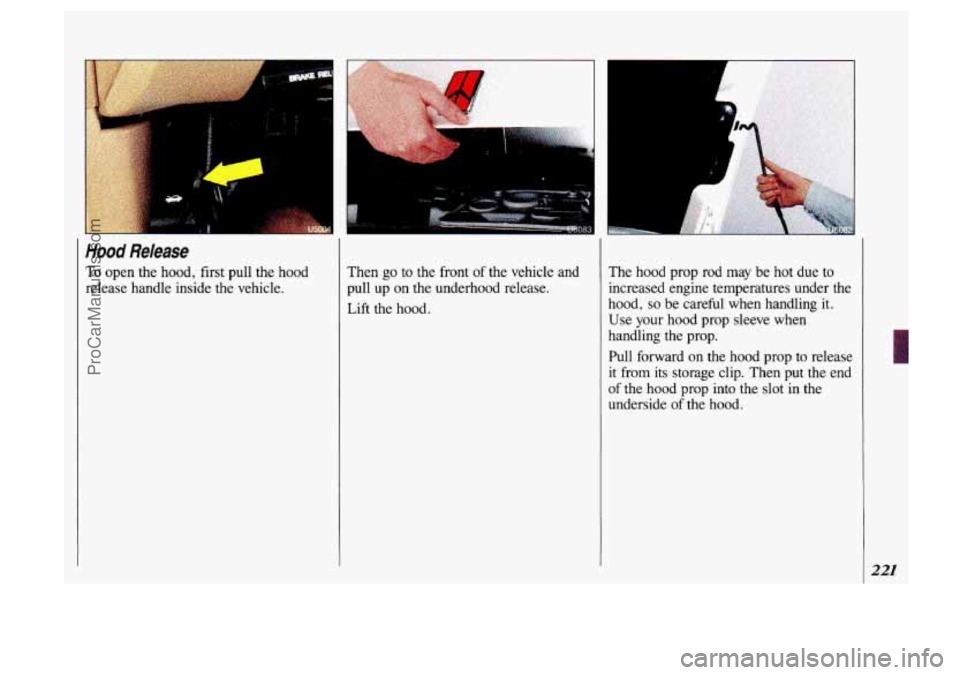

Hood Release
To open the hood, first pull the hood
release handle inside the vehicle. Then go to the front
of the vehicle and
pull up
on the underhood release.
Lift the hood. The
hood prop rod
may be hot due to
increased engine temperatures under the
hood,
so be careful when handling it.
Use your hood prop sleeve when
handling the prop.
Pull forward on the hood prop to release
it from its storage
clip. Then put the end
of the hood prop into the slot in the
underside
of the hood.
221
ProCarManuals.com

Service & Appearance Care

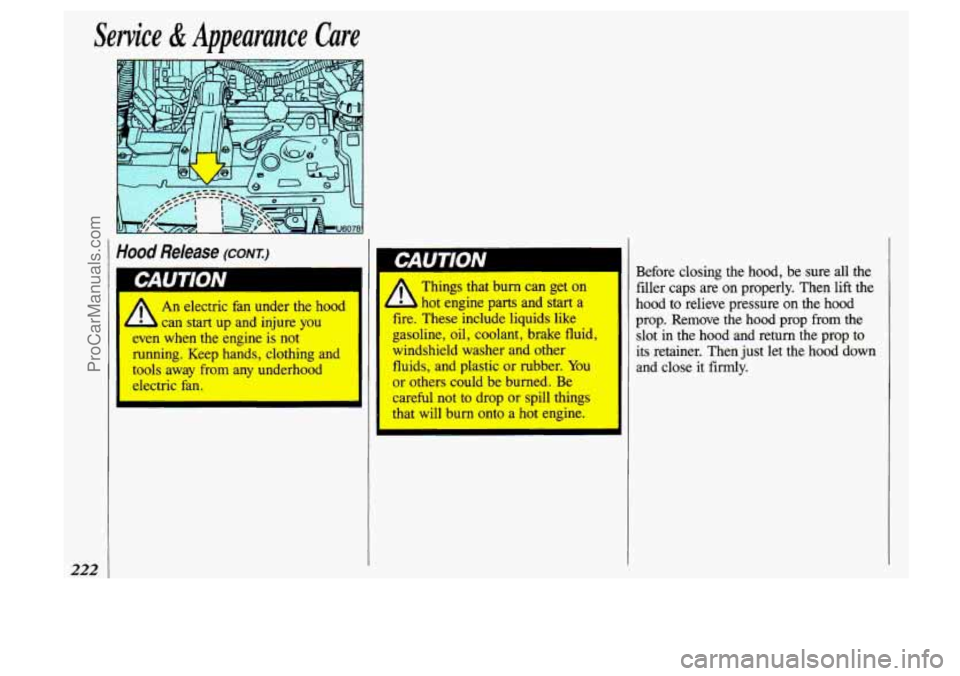

1 Hood Release (CONT.) I
I. CAUT'aN
An electric fan under the hood
can
start up and injure you
even when the engine is not
running. Keep hands, clothing and
tools away from any underhood
electric fan.
Things that burn can get on
hot engine parts and start a
~e. These include liquids like
gasoline, oil, coolant, brake fluid,
windshield washer and other
fluids, and plastic or rubber. You
or others could be burned. Be
cmh1 nut to drop or spill things
that wiU burn onto a hot engine.
Before closing the hood, be sure all the
filler caps are
on properly. Then lift the
hood
to relieve pressure on the hood
prop. Remove the hood prop from the
slot
in the hood and return the prop to
its retainer. Then just let the hood down
and close
it firmly.
*** I -- I
ProCarManuals.com

P P

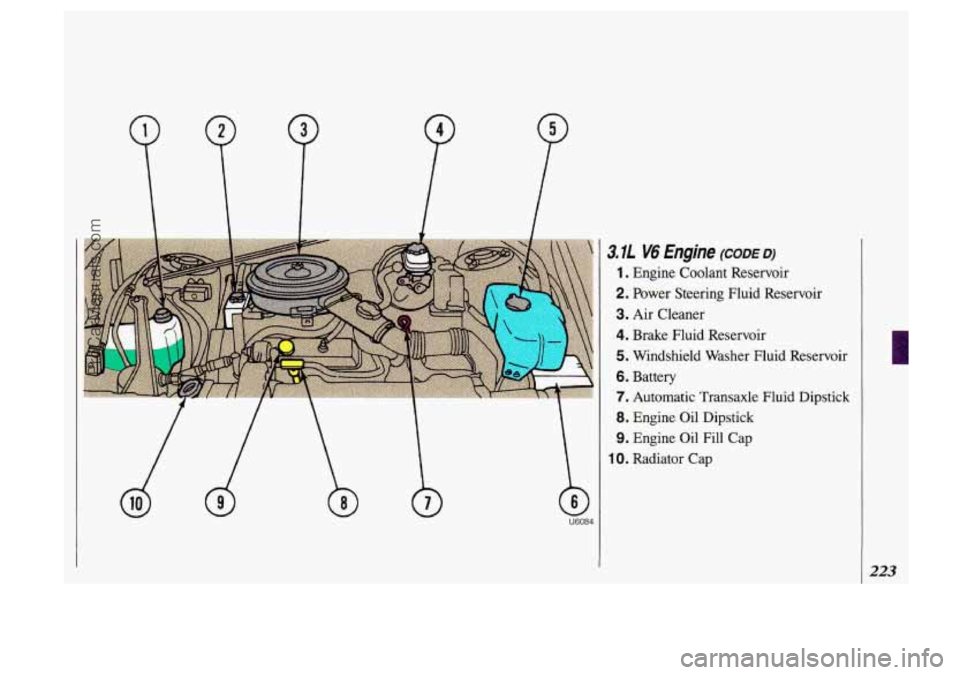

3,lL V6 Engine (CODE D)
1. Engine Coolant Reservoir
2. Power Steering Fluid Reservoir
3. Air Cleaner
4. Brake Fluid Reservoir
5. Windshield Washer Fluid Reservoir
6. Battery
7. Automatic Transaxle Fluid Dipstick
8. Engine Oil Dipstick
9. Engine Oil Fill Can
1 0. Radiator Cap
@ U6084
223
ProCarManuals.com

Service & Appearance Cure
224
P P

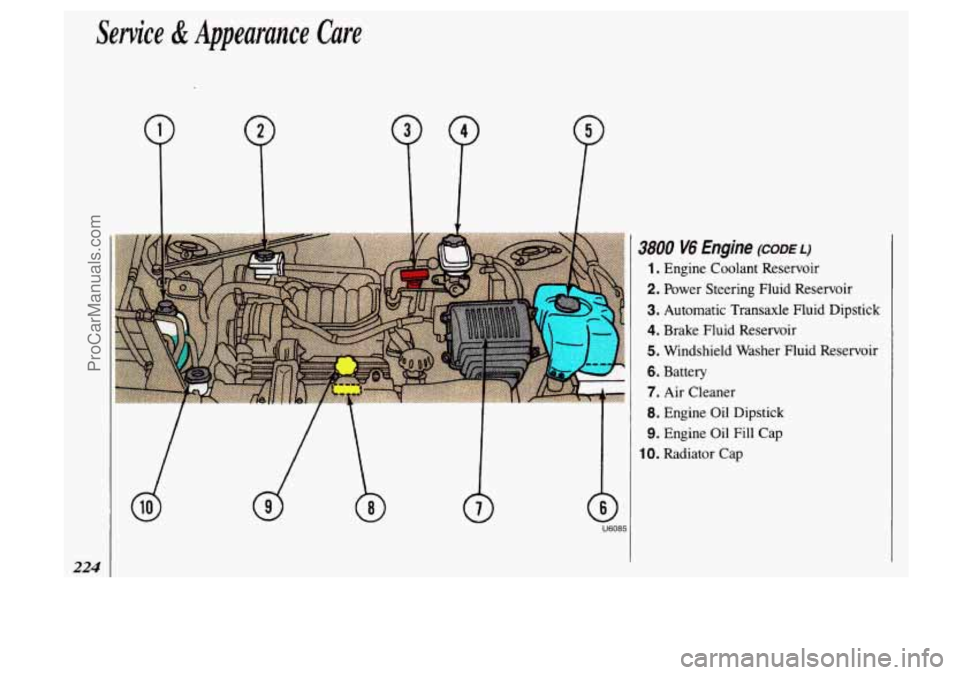

3800 V6 Engine (CODE L)
1 . Engine Coolant Reservoir
2. Power Steering Fluid Reservoir
3. Automatic Transaxle Fluid Dipstick
4. Brake Fluid Reservoir
5. Windshield Washer Fluid Reservoir
6. Battery
7. Air Cleaner
8. Engine Oil Dipstick
9. Engine Oil Fill Cap
10. Radiator Cap
(3 U6085
ProCarManuals.com

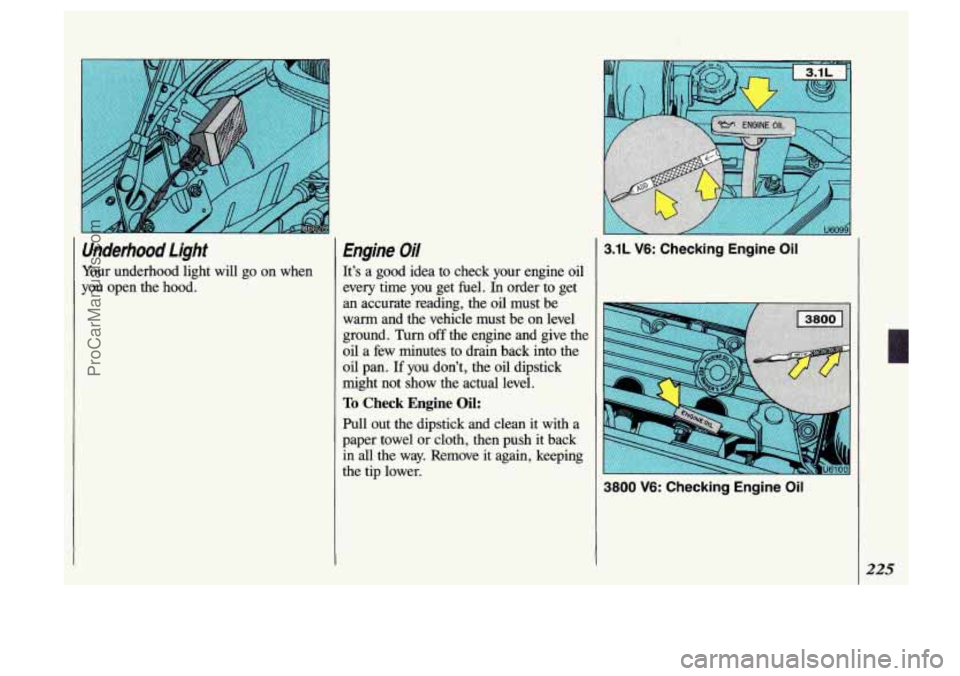

Underhood Light
Your underhood light will go on when
you open the hood.
Engine Oil
It’s a good idea to check your engine oil
every time you get fuel. In order to get
an accurate reading, the oil must be
warm and the vehicle must be on level
ground.
Turn off the engine and give the
oil a few minutes to drain back into the
oil pan. If you don’t, the oil dipstick
might not show the actual level.
To Check Engine Oil:
Pull out the dipstick and clean it with a
paper towel or cloth, then push it back
in
all the way. Remove it again, keeping
the tip lower.
I 3.1L V6: Checking Engine Oil
3800 V6: Checking Engine Oil
225
ProCarManuals.com

Service & Appearance Care
226

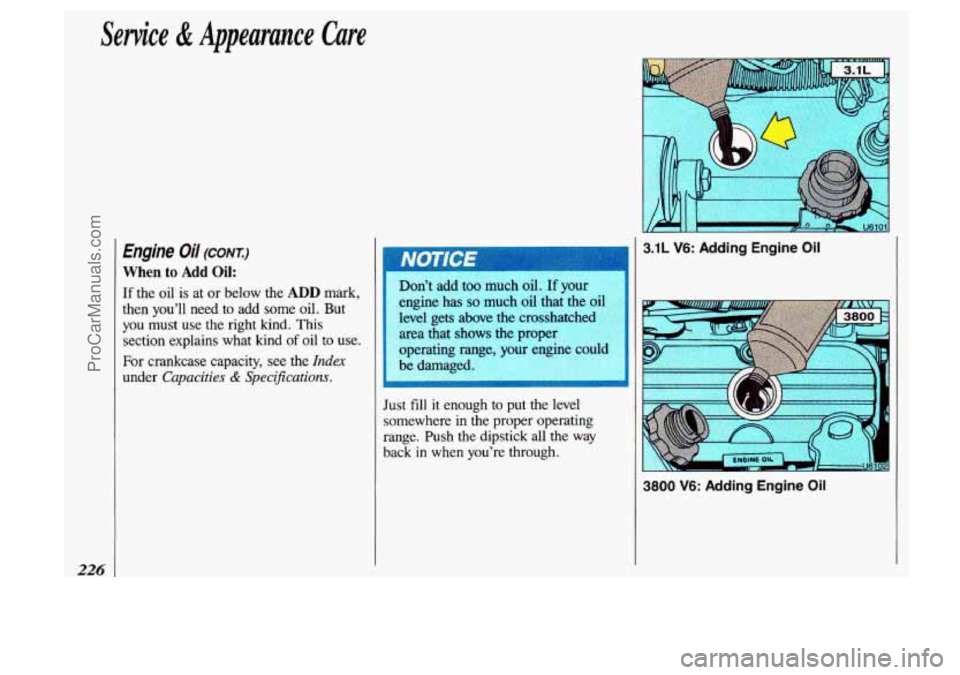

Engine Oil (CONT:)
When to Add Oil:
If the oil is at or below the ADD mark,
then you’ll need to add some oil. But
you must use the right kind. This
section explains what kind
of oil to use.
For crankcase capacity, see the
Index
under Capacities & Specljications.
UOTIC
I 3.1L V6: Adding Engine Oil
engine has so much oil that the oi
level gets above the crosshatched
area that
shows the proper
operating range,
your engine could
I
Just fill it enough to put the level
somewhere in the proper operating
range. Push the dipstick all the way
back
in when you’re through.
3800 V6: Adding Engine Oil
ProCarManuals.com

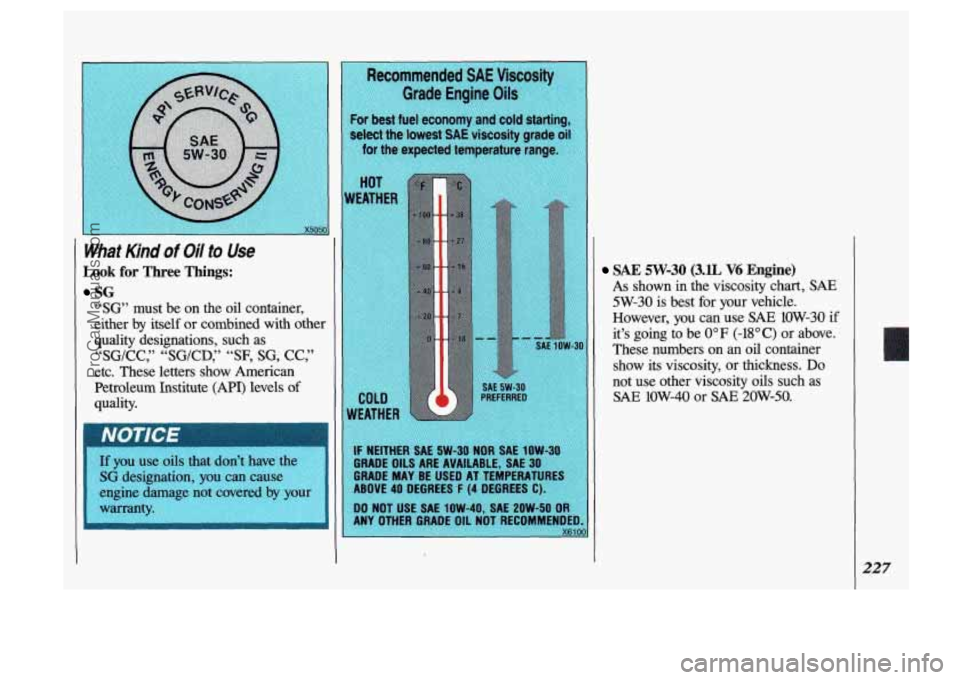

SG
“SG” must be on the oil container,
either by itself or combined with other
quality designations, such as
“SGICC,” “SGICD,” “SF, SG, CC,”
etc. These letters show American
Petroleum Institute
(API) levels of
quality.
If you use oils that don’t have the
SG designation? you can cause
engine damage not covered by your
warranty.
Grade E
For best fuel economy and cold starting,
select the lowest SAE viscosity grade oil
for the expected temperature range.
SAE 5W-30 (3.X V6 Engine)
As shown in the viscosity chart, SAE
5W-30 is best for your vehicle.
However, you can use
SAE 1OW-30 if
it’s going to be 0°F (-18°C) or above.
These numbers on
an oil container
show
its viscosity, or thickness. Do
not use other viscosity oils such as
SAE 1OW-40 or SAE 20W-50.
ProCarManuals.com

Service & Appearance Care
necommenueu ~AC vlsr;osny
Grade Engine Oils
228
What Kind of Oil to Use (CONI)
SAE 1OW-30 (3800 V6 Engine)
As shown in the viscosity chart, SAE
1OW-30 is best for your vehicle.
However, you can use
SAE 5W-30 if
it's going to be colder than
60°F
(16°C) before your next oil change.
When it's very cold, below
0°F
(-18" C), you should use SAE 5W-30.
These numbers on an oil container
show its viscosity, or thickness.
Do
not use other viscosity oils such as
SAE 1OW-40 or SAE 20W-50.
For best fuel economy and cold starting,
select the
lowest SAE viscosity grade oil
for the expected temperature range. I
HOT
YEATHER
COLD
N EATHER
. _._
SAE 5W-30
GRADE OILS ARE AVAILABLE, S
GRADE MAY BE USED AT TEMP
ABOVE
40 DEGREES F (4 DEGREE
DO NOT
USE SAE 1OW-40, SAE 20W-
Energy Conserving II
Oils with these words on the container
will help you save
fuel.
This doughnut-shaped logo (symbol) is
used on most oil containers to help you
select the correct oil.
You should look for
this on the oil
container, and use only those oils that
display the logo.
GM Goodwrench@ Oil
(in Canada, GM
Engine
Oil) meets all the requirements
for your vehicle.
