OLDSMOBILE SILHOUETTE 1993 Owners Manual

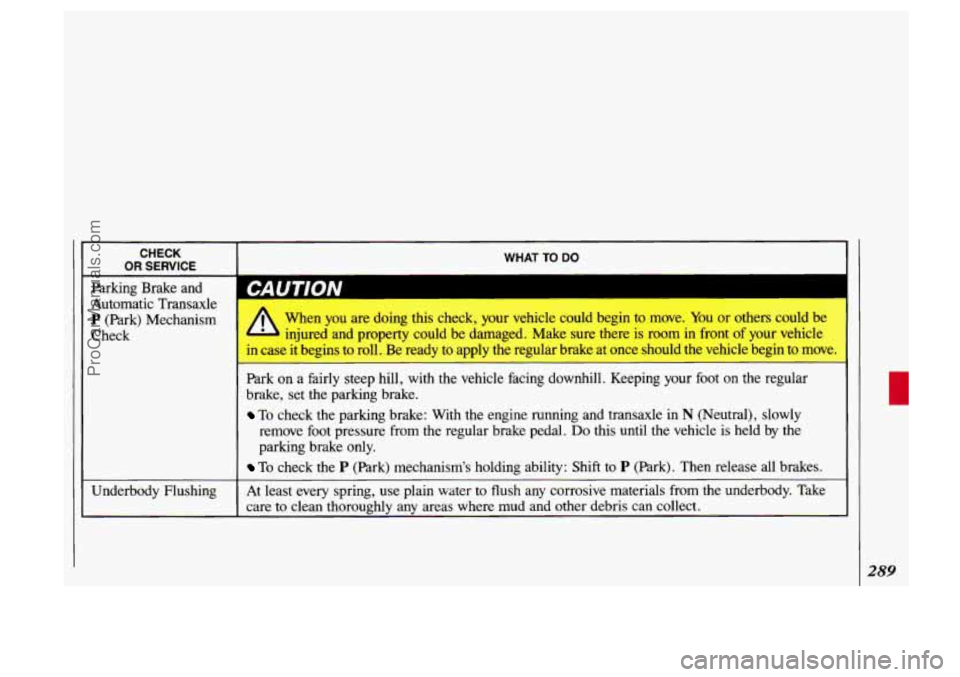

CHECK
OR SERVICE WHAT TO DO
~
Parking Brake and
Automatic Transaxle
P (Park) Mechanism
Check
1 CAUTION
Underbody Flushing When
you are doing this check, your vehicle could begin
to wuve. IUU ur olrlers could be
A injured and property could be damaged. Make sure there is room in front of your vehicle
in
case it hepins tn rnll Re rea& tn Rnnlv the recrlllar hmke at nnm chnlllrl the vehirle hemin tn mnw-
Park on a fairly steep hill, with the vehicle facing downhill. Keeping your foot on the regular
brake, set the parking brake.
To check the parking brake: With the engine running and transaxle in N (Neutral), slowly
remove foot pressure from the regular brake pedal.
Do this until the vehicle is held by the
parking brake
only.
To check the P (Park) mechanism’s holding ability: Shift to P (Park). Then release all brakes.
L
At least every spring, use plain water to flush any corrosive materials from the underbody. Take
care
to clean thoroughly any areas where mud and other debris can collect.
289
ProCarManuals.com

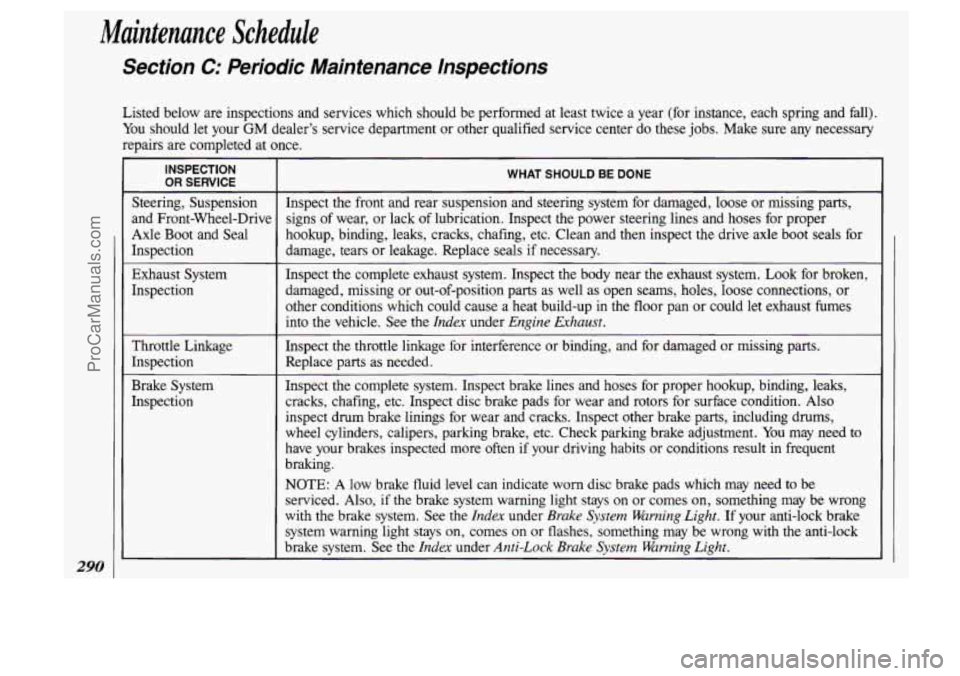

Maintenance Schedule
Section C: Periodic Maintenance lnspections
Listed below are inspections and services which should be performed at least twice a year (for instance, each spring and fall).
You should let your GM dealer’s service department or other qualified service center do these jobs. Make sure any necessary
repairs are completed at once.
290
INSPECTION
OR SERVICE
Steering, Suspension
and Front-Wheel-Drive
Axle Boot and Seal
Inspection
Exhaust System
Inspection
Throttle Linkage
Inspection
Brake System
Inspection
WHAT SHOULD BE DONE
Inspect the front and rear suspension and steering system for damaged, loose or missing parts,
signs of wear, or lack of lubrication. Inspect the power steering lines and hoses for proper
hookup, binding, leaks, cracks, chafing, etc. Clean and then in\
spect the drive axle boot seals for
damage, tears or leakage. Replace seals if necessary.
Inspect the complete exhaust system. Inspect the body near the exhaust system. Look for broken,
damaged, missing or out-of-position parts as well as open seams, holes, loose connections, or
other conditions which could cause a heat build-up in the floor pan or could let exhaust fumes
into the vehicle. See the
Index under Engine Exhaust.
Inspect the throttle linkage for interference or binding, and for damaged or missing parts.
Replace parts as needed.
Inspect the complete system. Inspect brake lines and hoses for \
proper hookup, binding, leaks,
cracks, chafing, etc. Inspect disc brake pads for wear and rotors for surface condition. Also
inspect drum brake linings for wear and cracks. Inspect other brake parts, including drums,
wheel cylinders, calipers, parking brake, etc. Check parking brake adjustment.
You may need to
have your brakes inspected more often
if your driving habits or conditions result in frequent
braking.
NOTE: A low brake fluid level can indicate worn disc brake pads which may need to be
serviced. Also, if the brake system warning light stays on or comes on, something may be wrong
with the brake system.
See the Index under Brake System Warning Light. If your anti-lock brake
system warning light stays on, comes on or flashes, something may be wrong with the anti-lock
brake system. See the
Index under Anti-Lock Brake System Warning Light.
ProCarManuals.com

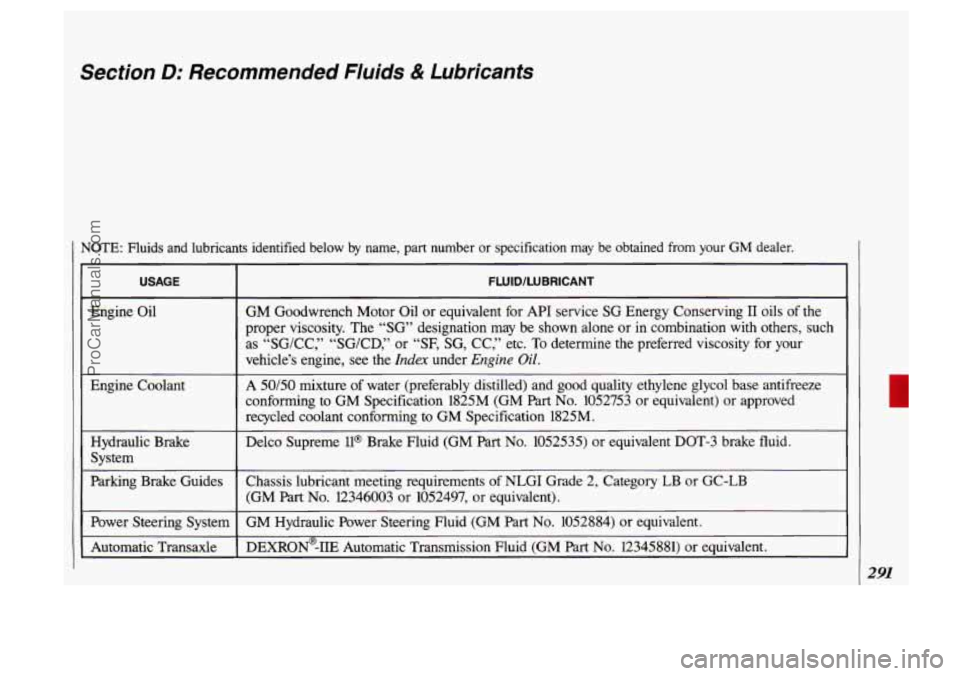

Section D: Recommended Fluids & Lubricants
I NOTE: Fluids and lubricants identified below by name, part number or specification may be obtained from your GM dealer.
USAGE
Engine Oil
Engine Coolant Hydraulic Brake
System
Parking Brake Guides
Power Steering System
Automatic Transaxle
FLUID/UIBRICANT
GM Goodwrench Motor Oil or equivalent for API service SG Energy Conserving I1 oils of the
proper viscosity. The “SG” designation may be shown alone or
in combination with others, such
as “SG/CC,” “SG/CD,” or “SF, SG, CC,” etc. To determine the preferred viscosity for your
vehicle’s engine, see the
Index under Engine Oil.
A 50/50 mixture of water (preferably distilled) and good quality ethylene glycol base antifreeze
conforming to GM Specification 1825M (GM Part
No. 1052753 or equivalent) or approved
recycled coolant conforming to GM Specification 1825M.
Delco Supreme
ll@ Brake Fluid (GM Part No. 1052535) or equivalent DOT-3 brake fluid.
~_______
Chassis lubricant meeting requirements of NLGI Grade 2, Category LB or GC-LB
(GM Part No. 12346003 or 1052497, or equivalent).
GM Hydraulic Power Steering Fluid (GM
Part No. 1052884) or equivalent.
DEXRON@-IIE Automatic Transmission Fluid (GM Part
No. 12345881) or equivalent.
291
ProCarManuals.com

Maintenance Schedule

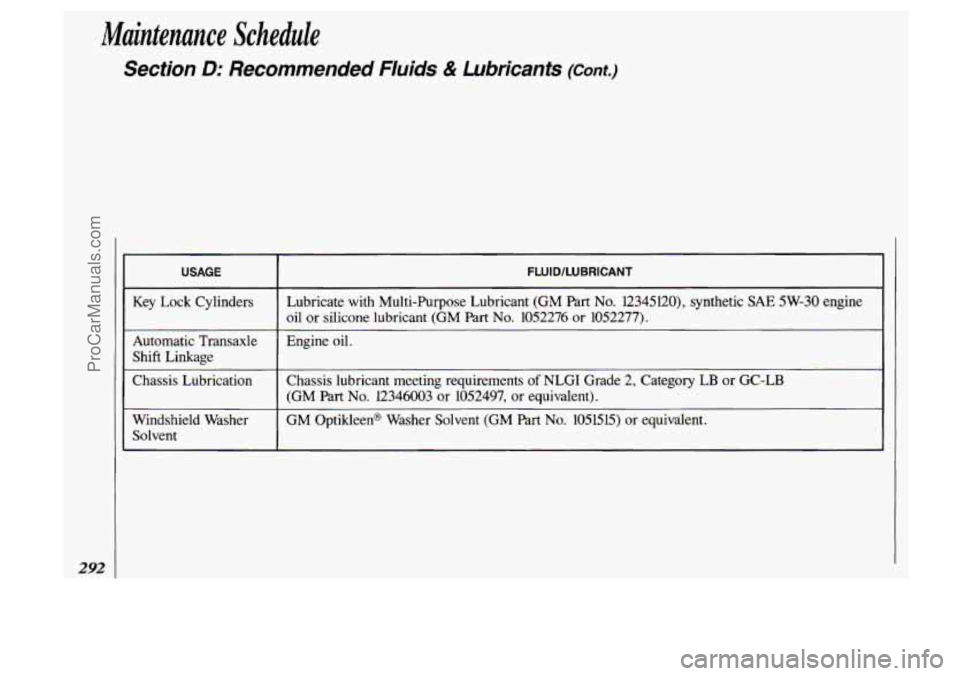

Section D: Recommended Fluids & Lubricants (Cont.)
292
USAGE
Key Lock Cylinders
Automatic Transaxle
Shift Linkage
Chassis Lubrication
Windshield Washer
Solvent
FLUID/LUBRICANT
Lubricate with Multi-Purpose Lubricant (GM Part No. 12345120), synthetic SAE 5W-30 engine
oil or
silicone lubricant (GM Part No. 1052276 or 1052277).
Engine oil.
Chassis lubricant meeting requirements
of NLGI Grade 2, Category LB or GC-LB
(GM Part No. 12346003 or 1052497, or equivalent). ~
GM Optikleen@ Washer Solvent (GM Part No. 1051515) or equivalent.
ProCarManuals.com

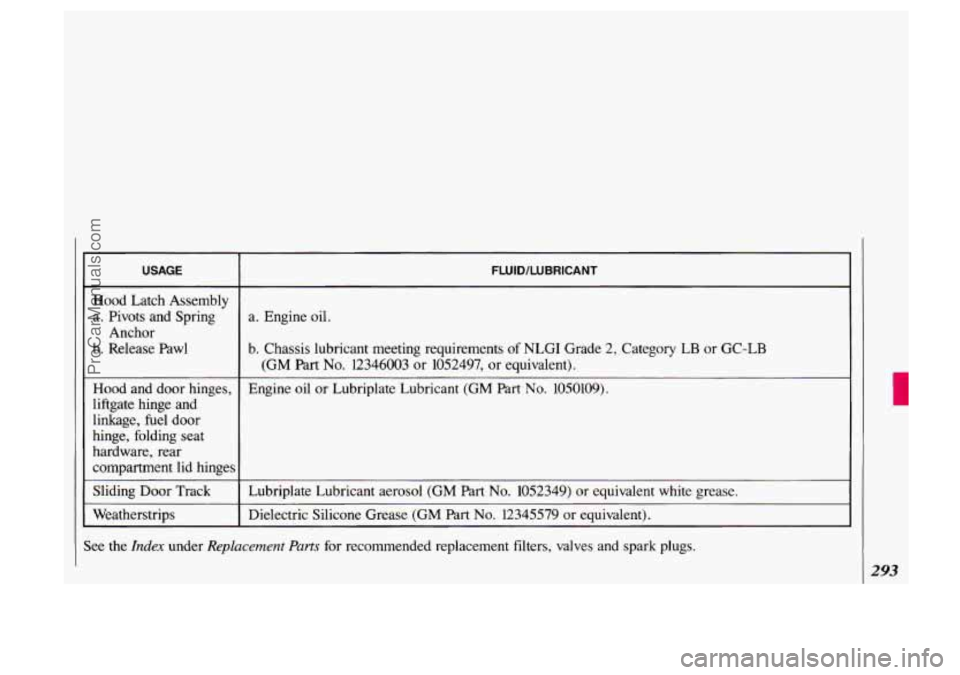

USAGE
Hood Latch Assembly a. Pivots and Spring
b. Release Pawl Anchor
Hood and door hinges,
liftgate hinge and
linkage, fuel door
hinge, folding seat
hardware, rear
compartment lid hinges
Sliding Door Track
~
Weatherstrips
FWID/LUBRICANT
a. Engine oil.
b. Chassis lubricant meeting requirements of NLGI Grade 2, Category LB or GC-LB
(GM Part
No. 12346003 or 1052497, or equivalent).
Engine oil or Lubriplate Lubricant (GM Part
No. 1050109).
Lubriplate Lubricant aerosol (GM
Part No. 1052349) or equivalent white grease.
Dielectric Silicone Grease (GM
Part No. 12345579 or equivalent).
I See the Index under Replacement Parts for recommended replacement filters, valves and spark plugs.
293
ProCarManuals.com

Maintenance Schedule

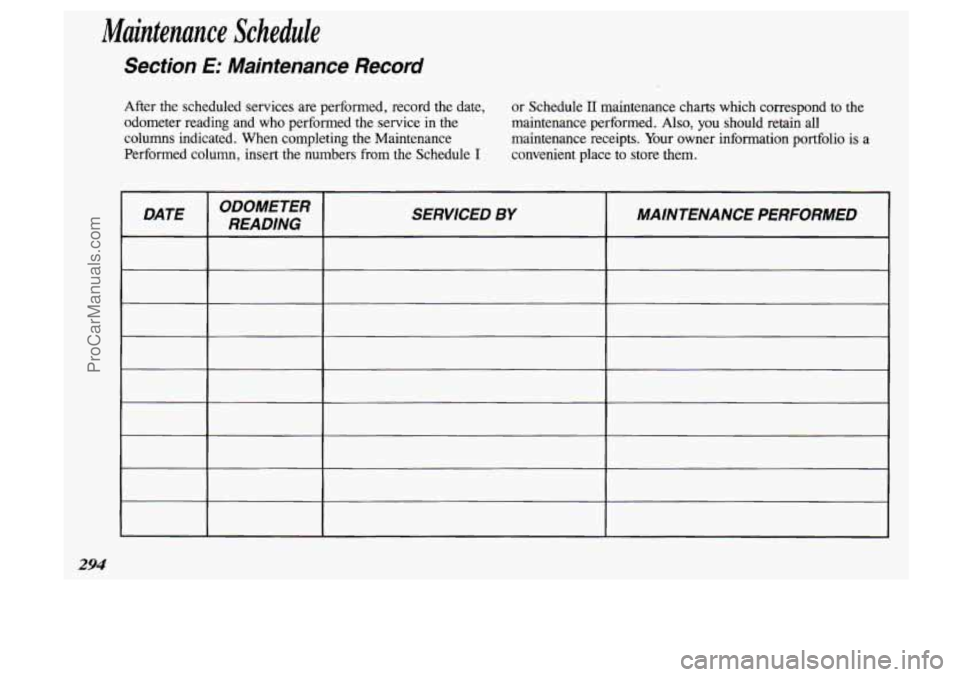

Section E: Maintenance Record
mter the scheduled services are performed, record the date,
or Schedule I1 maintenance charts which correspond to the
odometer reading and who performed the service in the
maintenance performed.
Also, you should retain all
columns indicated. When completing the Maintenance
maintenance receipts. Your owner information portfolio is a
Performed column, insert the numbers from the Schedule
I convenient place to store them.
DATE
294
---
ODOMETER
READING SERVICED BY MAINTENANCE PERFORMED
-
ProCarManuals.com

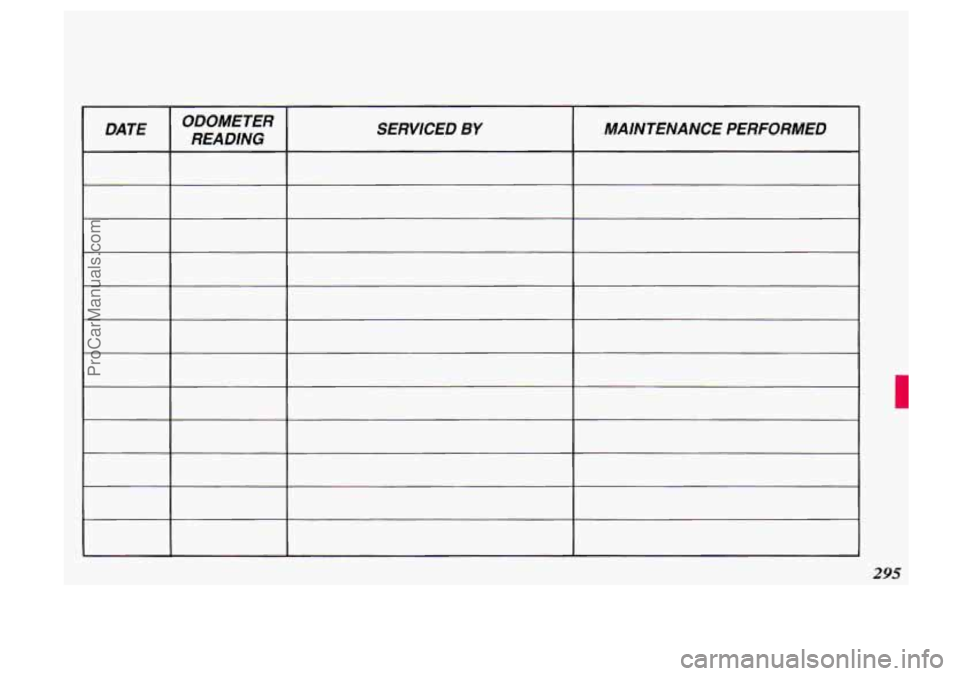

DATE ODOMETER
READING SERVICED BY MAINTENANCE PERFORMED
~~~~
295
ProCarManuals.com

ProCarManuals.com

Here you will find out how to contact
Oldsmobile if you need assistance.
This part also
tells you how to obtain
service publications and
how to report
any safety defects.

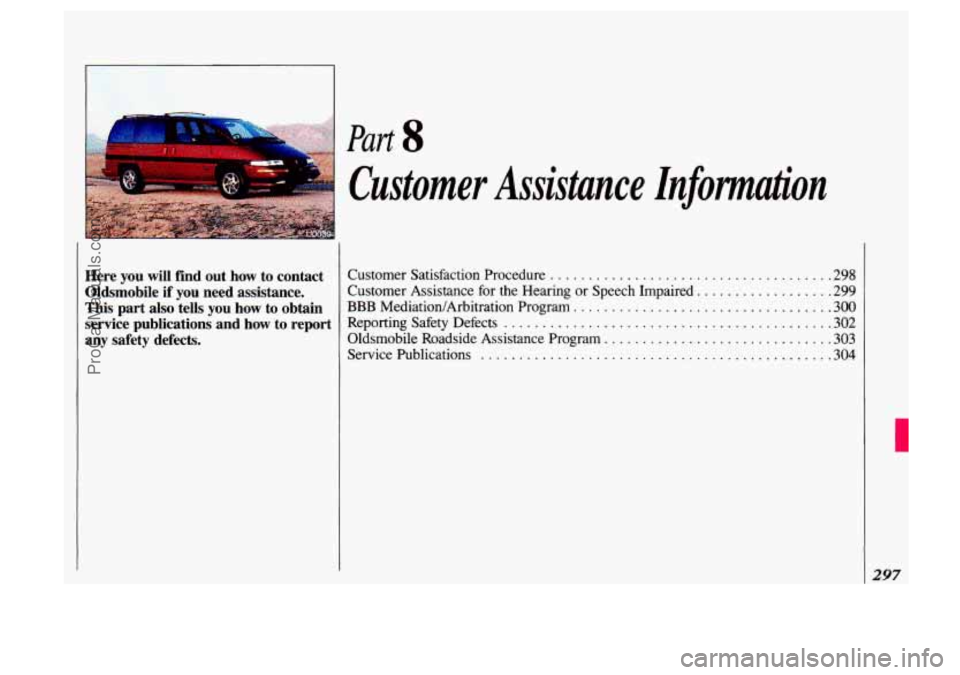

Part 8
Customer Assistance Infomation
Customer Satisfaction Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .298
Customer Assistance for the Hearing or Speech Impaired. . . . . . . . . . . . . . . . . .299
BBB MediatiodArbitration Program . . . . . . . . . . . . . . , . . . . . . . . . . . . . . . . . . .300
Reporting Safety Defects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .302
Oldsmobile Roadside Assistance Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .303
Service Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . - . . . . . . . . . . . . . . . . .304
297
ProCarManuals.com

Customer Assistance lnfomatmn
0
298

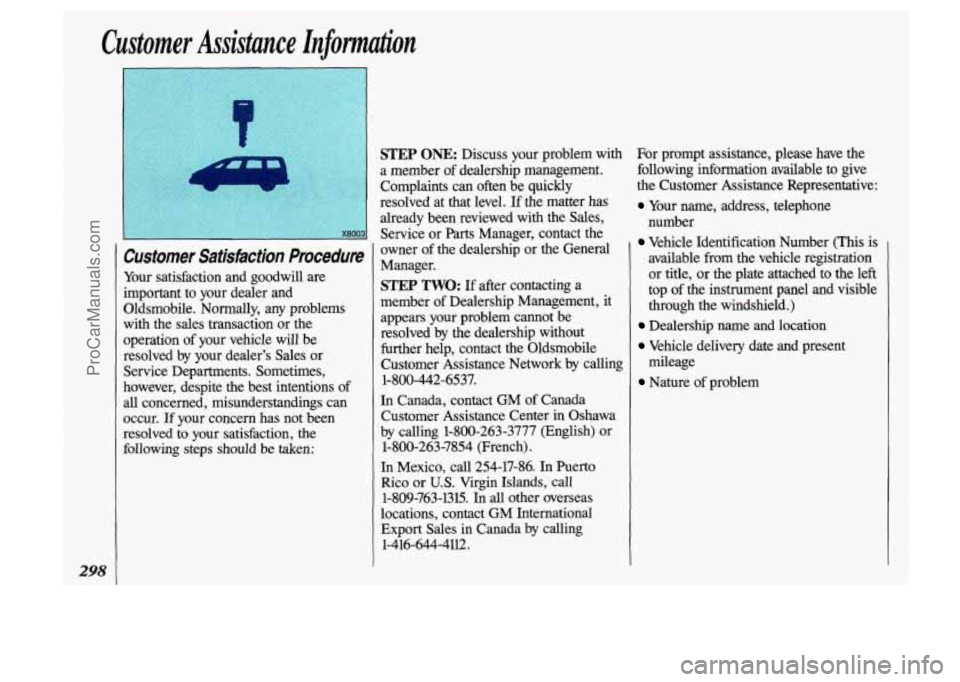

Customer Satisfaction Procedure
Your satisfaction and goodwill are
important to your dealer and
Oldsmobile. Normally, any problems
with the sales transaction or the
operation
of your vehicle will be
resolved
by your dealer's Sales or
Service Departments. Sometimes,
however, despite the best intentions
of
all concerned, misunderstandings can
occur.
If your concern has not been
resolved
to your satisfaction, the
following
steps should be taken:
STEP ONE: Discuss your problem with
a member
of dealership management.
Complaints can often be quickly
resolved at that level.
If the matter has
already been reviewed with the Sales, Service or
Parts Manager, contact the
owner
of the dealership or the General
Manager.
STEP TWO: If after contacting a
member of Dealership Management,
it
appears your problem cannot be
resolved
by the dealership without
further help, contact the Oldsmobile
Customer Assistance Network by calling
In Canada, contact GM of Canada
Customer Assistance Center in Oshawa
by calling 1-800-263-3777 (English) or
1-800-263-7854 (French).
In Mexico, call 254-17-86. In Puerto
Rico or
U.S. Virgin Islands, call
1-809-763-1315. In all other overseas
locations, contact GM International
Export Sales in Canada
by calling
1-800-442-6537.
1-416-644-4112,
For prompt assistance, please have the
following
information available to give
the Customer Assistance Representative:
Your name, address, telephone
number
Vehicle Identification Number (This is
available from the vehicle registration
or title,
or the plate attached to the left
top
of the instrument panel and visible
through the windshield.)
Dealership name and location
Vehicle delivery date and present
Nature of problem
mileage
