key OLDSMOBILE SILHOUETTE 1994 Owner's Manual

Features & Controls
100

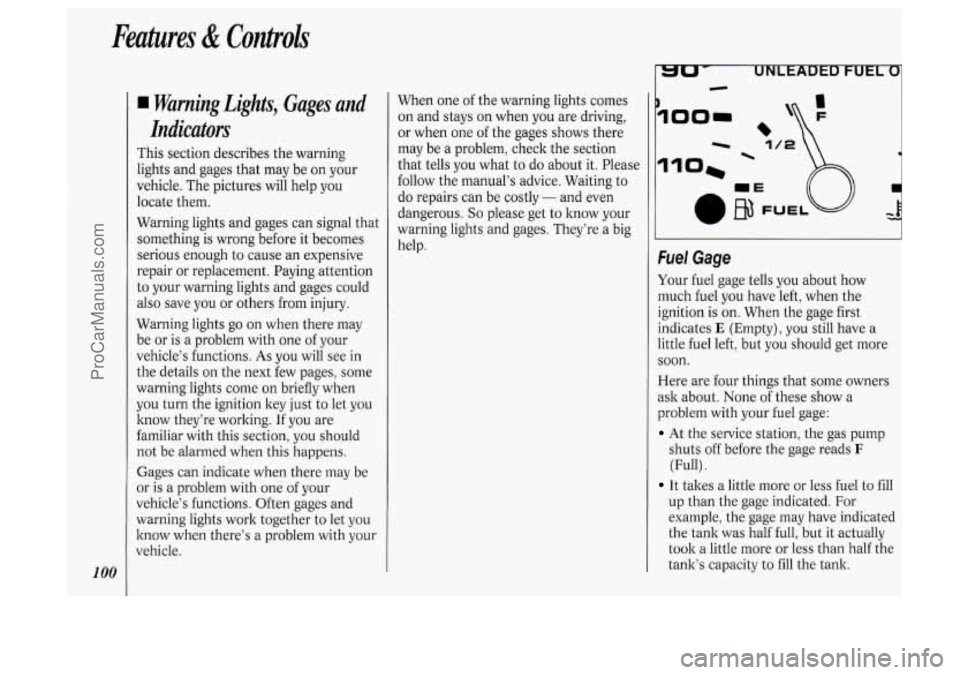

Warning Lights, Gages and
Indicators
This section describes the warning
lights and gages that may be on your
vehicle. The pictures will help you
locate them.
Warning lights and gages can signal that
something
is wrong before it becomes
serious enough to cause an expensive
repair or replacement. Paying attention
to your warning lights and gages could
also save you or others from injury.
Warning lights go on when there may
be or is a problem with one of your
vehicle's functions. As you will see in
the details on the next few pages, some
warning lights come on briefly when
you turn the ignition key just to let you
know they're working. If you are
familiar with this section, you should
not be alarmed when this happens.
Gages can indicate when there may be
or
is a problem with one of your
vehicle's functions. Often gages and
warning lights work together to let you
know when there's a problem with your
vehicle. When
one of the warning lights comes
on and stays on when you are driving,
or when one
of the gages shows there
may be a problem, check the section
that tells you what to do about it. Please
follow the manual's advice. Waiting to
do repairs can be costly
- and even
dangerous.
So please get to know your
warning lights and gages. They're a big
help.
- UNLtADtU FUtL
-
I
loo= ,
fuel Gage
Your fuel gage tells you about how
much fuel you have left, when the
ignition is
on. When the gage first
indicates
E (Empty), you still have a
little fuel left, but you should get more
soon.
Here are four things that some owners
ssk about. None of these show a
problem with your fuel gage:
At the service station, the gas pump
shuts off before the gage reads
F
(Full) .
It takes a little more or less fuel to fill
up than the gage indicated. For
example, the gage may have indicated
the tank was half full, but it actually
took a little more or less than half the
tank's capacity to
fill the tank.
ProCarManuals.com

According to the American Medical
Association, a 180-pound (82 kg)
person who drinlts three 12-ounce
(355
ml) bottles of beer in an hour will end
up with a BAC of about
0.06 percent.
The person would reach the same BAC
by drinking three 4-ounce (120 ml)
glasses of wine or three mixed drinks
if
each had 1% ounces (45 ml) of a liquor
like whiskey, gin or vodka.
It’s the amount of alcohol that counts.
For example, if the same person drank
three double martinis
(3 ounces or 90
ml of liquor each) within an hour, the
person’s BAC would be close to 0.12
percent. A person who consumes food
just before or during drinking will have
a slightly lower BAC level.
Drinking That Will Result in a
BAC of -05% in the Time Shown
3 HOURS
2 HOURS
1 HOUR
1 f \- ++ .... +-.: ........ t.....-L.. r 1””’ I 100 120 140 160 180 200 220 240 BODY ViEIGHT IN POUNDS
The law in most U.S. states sets the
egal limit at a BAC of 0.10 percent. In
2anada the limit
is 0.08 percent, and in
some other countries it’s lower than
:hat. The BAC will be over 0.10 percent
lfter three to six drinlts (in one hour).
3f course, as we’ve seen, it depends on
low much alcohol is in the drinks, and
low quickly the person drinks them.
But it’s very important to keep in mind
:hat the ability to drive is affected well
3elow a BAC of
0.10 percent. Research
shows that the driving skills of many
?eople are impaired at a BAC approaching
0.05 percent, and
that the
effects are worse at night. All drivers are
impaired at BAC levels above
0.05
percent. Statistics show that the chance
of being in
an accident increases sharply
for drivers who have a BAC of
0.05
percent or above. A driver with a BAC
level of
0.06 percent (three beers in one
hour for a 180-pound or
82 kg person)
has doubled his or her chance of having
an accident. At a BAC level of
0.10
percent, the chance of that driver
having an accident is six times greater;
at a level of 0.15 percent, the chances
are twenty-five times greater! And, the
body takes about an hour to rid itself
of
the alcohol in one drink. No amount of
coffee or number
of cold showers will
speed that up.
Wl be careful” isn’t the right answer.
What
if there’s an emergency, a need to
take sudden action, as when a child
darts into the street? A person with a
higher BAC might not be able to react
quickly enough to avoid the collision.
There’s something else about drinking
and driving that many people don’t
133
ProCarManuals.com

Problems on the Road
158
I Hazard Warning Flashers
Your hazard warning flashers let you
warn others. They also let police know
you have a problem. Your front and rear
turn signal lights will flash on and off. Your
hazard warning flashers switch is
on the steering column below the
ignition switch. Press the button in to
make your front and rear turn signal
lights flash on and off.
Your hazard warning flashers work no
matter what position your key
is in, and
even
if the key isn’t in.
To turn off the flashers, pull out on the
collar.
When the hazard warning flashers are
on, your turn signals won’t work.
Other Warning Devices
If you carry reflective triangles, you can
set one up at the side of the road about
300 feet (100 m) behind your vehicle.
I Jump Starting
If your battery has run down, you may
want to use another vehicle and some
jumper cables
to start your Oldsrnobile.
But please follow the steps below to do
it safely.
ProCarManuals.com

When you call, tell the towing service:
That your vehicle cannot be towed
from the front with sling-type
equipment.
drive.
vehicle.
lever. damaged.
That your vehicle has front-wheel
The make, model, and year of your
Whether you can still move the shift
If there W~S an accident, what was
When the towing service arrives, let the
tow operator know that this manual
contains detailed towing instructions
and illustrations. The operator may
want to see them.
I should be clamped in a straight-ahead
When your vehicle
is being towed, have
the ignition key
off. The steering wheel designed for towing service.
Do not
use
the vehicle’s steering column lock for
this. The transaxle should be in Neutral
and the parking brake released.
Don’t have your vehicle towed on the
front wheels, unless
you must. If the
vehicle must be towed on the front
wheels, don’t go more than
35 mph (56
l or your transaxle will be damaged.
If these
limits must be exceeded, then the front
wheels have to be supported on a dolly.
1 63
ProCarManuals.com

Service &Appeurunce Cure
220
+I
r=J
HORN
prpl
m
STOP-HA2 F-PUMP
m3 AUX
r?]
.pg
TURN BIU
GAGE
prpl LPS
(31 ABS
RDO 2
pTo4
ca
rn
ca
R-WIPER F-WIPER
rfpl IGN
HTR-A/C R-BLWR
Position Rating (AMP.)
CTSY
ELC
HORN STOP HAZ
F PUMP
AUX
TAIL
ECM
TURN B/U
GAGE
LPS
ABS RD02
WIPER
FflIPER
IGN
HTR A/C
R BLWR 15
20
15
15
10
20
15
10
15
7.5
7.5
3
15
20
25 15
25
25
Circuitry
Dome Lamps, Courtesy Lamps, Power Door Lock Switches, Glove
Box Lamp, Power Mirrors, Power Sliding Delay Lock Module
Auto Level Control, Underhood Lamp
Horns, Horn Relay, Safety Belt Buzzer
Front/Rear Turn Lamps, Front Side Marker Lamps, Rear Stop Lamps,
Instrument Cluster Turn Indicator Lamps, Cruise Brake Switch
Fuel Pump, Oil Pressure Sender/Fuel Pump Switch
Radio, Front Cigar Lighter, Accessory Power Outlet
Front Park Lamps, Rear Tail Lamps, Front Side Marker Lamps,
License Plate Lamp, Radio, Heat/Vent/AC Control Head, Power
Sliding Door
Throttle Body Fuel Injection, Fuel Pump Relay, Elec. Vac. Reg. Valve,
Elec. Control Module, Elec. Spark Control Module
Front/Rear Turn Lamps, Front Side Marker Lamps, Cluster Turn
Telltale, Back-up Lamps, Fog Lamps
Cluster, Anti-Lock Brake System Lamp Module, Elec. Level Control Sensor
Cluster, Radio, Wiper Switch, Headlamp Switch? Rear Blower Switch,
Heat/Vent/AC Control Head, Door Switch Illumination, Front/Rear
Ashtray Illumination Bulbs
Anti-Lock Brake System Radio
Rear WiperNasher Motors; Overhead Console Compass
Front Wiperflasher Motor
A/C Compressor, A/C Solenoid Box, Compressor Relay, Temp.
Door
Motor, Low Blower Relay; Heat/Vent/AC Control Head; Cruise
Module; Cooling Fan Relay; Rear Defogger Relay; Key Chime; Vehicle
Speed Sensor Buffer and Generator Charge Discrete, Transaxle
Converter Clutch Switch
Front/Rear Blower Motors, High Blower Relay
Rear Blower, Rear Heat/Vent/AC
ProCarManuals.com

r&
p.L34
R-WIPER
F-WIPER
c-,
HTR-AIC
m3 R-BLWR
1
Position Rating
(AMP.)
CTSY
ELC HORN
STOP HAZ
RDOl/AUX
TAIL
ABS ECM
TURN B/U
GAGE
LPS
RD02
WIPER
FmIPER
IGN
HTR A/C
R BLWR 15
20
15
15
20
15
3
10
15
7.5
7.5
15
20
25
15
25
25
Circuitry
Dome
Lamps! Courtesy Lamps, Power Door Lock Switches, Glove Box
Lamp, Power Mirrors, Power Sliding Delay Lock Module
Auto Level Control, Underhood Lamp
Horns, Horn Relay, Safety Belt Buzzer
Front/Rear Turn Lamps, Front Side Marker Lamps, Rear Stop Lamps,
Instrument Cluster Turn Indicator Lamps
Radio, Front Cigar Lighter, Accessory Power Outlet
Front Park Lamps, Rear Tail Lamps, Front Side Marker Lamps, License
Plate Lamp, Radio, Heat/Vent/AC Control Head, Power Sliding Door
Anti-Lock Bralte/Traction Control System
Mass Air Flow Sensor, Electronic Control Module
Front/Rear Turn Lamps, Front Side Marker Lamps, Cluster Turn Telltale,
Back-up Lamps,
Fog Lamps
Cluster, Anti-Lock Brake System Lamp Module, Elec. Level Control Sensor
Cluster, Radio, Wiper Switch, Headlamp Switch, Rear Blower Switch,
Heat/Vent/AC Control Head, Door Switch Illumination, Front/Rear
Ashtray Illumination Bulbs
Radio
Rear Wiper/Washer Motors; Overhead Console Compass
Front Wipermasher Motor
A/C Solenoid Box, Temp. Door Motor, Low Blower Relay; Heat/Vent/AC
Control Head; Cooling Fan Relay; Rear Defogger Relay; Key Chime;
Transaxle Converter Clutch Solenoid and Generator Charge Discrete
Front/Rear Blower Motors, High Blower Relay
Rear Blower, Rear Heat/Vent/AC
221
ProCarManuals.com

At Least Once a Year
CHECK
OR SERVICE WHAT TO DO
I Key Lock Cylinders I Lubricate the key lock cylinders with the lubricant specified in Section D.
I
Body Lubrication Lubricate
all body door hinges, including the liftgate.
Also lubricate all hinges and latches,
including those for the hood, sliding door track, rear compartment, glove box door, console door,
and any folding seat hardware. Section
D tells you what to use.
Starter Switch
CAUTION. When you are doing this check, the vehicle could move suddenly\
. If it does, you
or others could be injured. Follow the steps below.
1. Before you start, be sure you have enough room around the vehicle.
2. Firmly apply both the parking brake (see Parking Brake in the Index if necessary) and the
NOTE:
Do not use the accelerator pedal, and be ready to turn off the engine immediately if it starts.
3. Try to start the engine in each gear. The starter should work only in P (Park) or N (Neutral). If
regular brake.
~ the starter works in any other position, your vehicle needs service.
1 Steering Column
1 Lock I
While parked, and with the parking brake set, try to turn the key to LOCK in each shift lever
position.
The key should turn to LOCK only when the shift lever is in P (Park).
The key should come out only in LOCK.
241
ProCarManuals.com

266
Gate Ajar Light ................................ 107
Gear Positions
Gearshift Lever
Glove Boxes/Storage (see
Shifting the Transaxle )
(see Shifting the Transaxle)
Compartment 88
alogen Bulbs ............................... 203
...................................
H
Hazard
Warning Flashers ................ 158
Replacing
....................................... 203
Headlights
.......................................... 74
Headlight
& Taillight. Removing
and
High-Low Beam Changer
.................. 75
Instrument Panel Intensity Control
.. 76
On” Reminder
................................ 75
Replacement Bulb
.......................... 228
Wiring
............................................ 223
Head Restraint
................................... 14
Heater (see
Comfort Controls)
High Beams ........................................ 75
Hill and Mountain Roads
................ 147
Hood Release
................................... 186
LL
Operation ......................................... 75
“Highway Hypnosis”
....................... 146
Hills. Parking on
.............................. 156
Safety Warning
.............................. 187
Warning. Overheated
Engine
.......................... 187. 198. 199
Horn .................................................... 69 Hot
Engine. Safety
Warnings
............. 166. 187. 198. 199
Hydroplaning
.................................... 144
Identification Number. Vehicle
...... 21 8
Idling Your Engine ....................... 67. 68
If You’re Stuck: In Sand. Mud.
Ice or Snow
.................................... 179
Ignition Key
................................................... 44
Positions
.......................................... 58
Illuminated Entry System
.................. 50
Indicator Lights (see Warning Lights)
Infant Restraint (see Child Restraints)
Inflation. Tire ........................... 178. 208
Inflator.
Air ......................................... 85
Inside Rearview Mirror
...................... 86
Instrument Panel
................................ 97
Instrument Panel Cluster
................... 98
Instrument Panel Intensity Control
.. 76
Instrument Panel Warning Lights
... 100
Interior Lights
........................ 76, 79. 80
Override Switch
83 ...............................
J- ack, Tire ......................................... 172
Jump Starting
................................... 158
Keyless Entry, Remote
..................... 48
Keys
.................................................... 44
L ane Change Indicator .................... 71
Front
................................................ 23
Rear
.................................................. 32
Use by Children ......................... 34, 39
Level Control, Electronic
............ 94, 206
Liftgate
....................................... 56, 107
Lighter
................................................ 89
Lights Dome
................................................. 84
Fog
................................................... 76
Headlights
........................................ 74
Interior Lights Control
.................... 76
Interior Lights Override Switch
...... 83
On” Reminder
................................ 75
Reading
...................................... 80, 83
Removing &
Lap-Shoulder Belt .............................. 23
(6
Rear Interior Lights ......................... 84
Replacement Bulbs
........................ 228
Replacing Bulbs
................... 204, 228
Taillights
........................................ 204
Turn Signal
...................................... 71
Underhood
..................................... 190
Warning Lights
.............................. 100
Lights On Reminder
........................... 75
Loading Your Vehicle
................ 92, 206
Locks Manual
....................................... 45, 52
Power ............................................... 46
ProCarManuals.com
