OLDSMOBILE SILHOUETTE 1995 Manual Online

1.
2.
3.
4.
5.

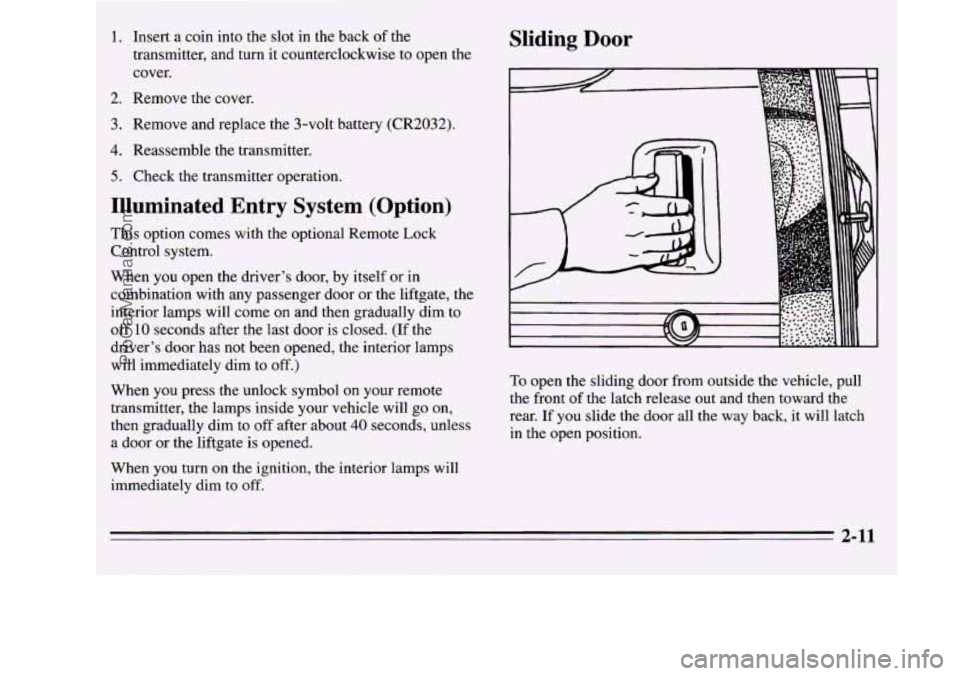

Insert a coin into the slot in the back of the
transmitter, and turn it counterclockwise to open the
cover.
Remove the cover.
Remove and replace the 3-volt battery (CR2032).
Reassemble the transmitter. Check the transmitter operation.
Illuminated Entry System (Option)
This option comes with the optional Remote Lock
Control system.
When you open the driver’s door, by itself or in
combination with any passenger door or the liftgate, the
interior lamps will come on and then gradually dim to
off 10 seconds after the last door is closed. (If the
driver’s door has not been opened, the interior lamps
will immediately dim to
off.)
When you press the unlock symbol on your remote
transmitter, the lamps inside your vehicle will
go on,
then gradually dim to
off after about 40 seconds, unless
a door or the liftgate is opened.
When you turn on the ignition, the interior lamps will
immediately dim
to off.
Sliding Door
To open the sliding door from outside the vehicle, pull
the front
of the latch release out and then toward the
rear.
If you slide the door all the way back, it will latch
in the open position.
2-11
ProCarManuals.com

r Sliding Door Lock
Ii
To move the door forward, you must first pull the inside
or outside latch release out and then forward, or the
door
will remain latched in the open position. Lock the sliding door from the inside
by sliding the
manual locking lever down. Unlock it
by sliding the
lever
up.
If you have the optional power door locks, the sliding
door lock has
a delay feature. See “Power Door Locks”
or “Automatic Door Locks”
in the Index.
2-12
ProCarManuals.com

With this option, you can open and close the sliding
door with switches inside your vehicle.
If you have the
optional Remote Lock Control system,
you can also
operate the sliding door with your remote transmitter.
See “Remote Lock Control” in the Index. When
your vehicle
goes through an automatic car wash,
be sure the power sliding door enable switch
is in the
OFF position.
2-13
ProCarManuals.com

To open or close the sliding door, press and release one
of two PWR DOOR switches. There is one mounted
on
the wall, just in front of the sliding door; the other is the
rear-most switch on
the side of the overhead console.
(If you have the compact overhead console, this switch
is located between the reading lamps.) The sliding door must be unlocked
for the power sliding
door to operate. The ignition does not have to be on and
the key does
not have to be in the ignition. To prevent
accidental operation
of the sliding door, disable the
power sliding door by placing
the power sliding door
enable switch in the
OFF position.
When the key is
in the ignition in the RUN position, the
power sliding door will only open if the transaxle is in
PARK
(P). The transaxle does not have to be in PARK
(P) to close the door. If the enable switch is ON and the
power sliding door
is open or in the process of closing
when you shift out of PARK
(P), a tone will sound and
the power sliding door warning light on your instrument
panel will flash (see “Power Sliding Door Warning
Light” in the Index). This is a warning light that the
sliding door is not completely closed.
2-14
ProCarManuals.com

If anything obstructs the power sliding door while it is
closing, the door will automatically reverse to the open
position, provided
it meets sufficient resistance.
Resistance must be as strong as the force of the closing
door, or stronger. The force of the closing door increases
significantly as the door approaches the latch position.
Objects caught in the path
of the sliding door may be
damaged. Make sure the door path is clear before
closing the door.
To manually open the power sliding door when the
sliding door enable switch is in the
ON position, pull the
inside or outside latch release and let go; the door will
open fully and remain ,latched in the open position.
To manually open the power sliding door when the
enable switch is in the
OFF position, pull the inside or
outside latch release and slide the door all the way back
to the latch position.
2-15
ProCarManuals.com

To manually close the power sliding door when the sliding
door enable switch
is in the ON position, pull the inside or
outside latch release or the edge
of the door. Move the door
about four inches toward the closed position and release.
The door will close completely and latch for you.
To manually close the power sliding door when the
enable switch is in the
OFF position, pull the inside or
outside latch release and slide the door all the way
forward
to the latch position.
On vehicles equipped with the optional power sliding
door,
a low voltage battery may cause the system to
become inoperative. This is a built-in feature to prevent
damage to the power sliding door motor.
When the battery has been charged, follow these steps:
1. Make sure the door is in the closed position.
2. Turn the ignition off.
3. Remove the fuse marked TAIL from the fuse panel.
4. Wait 30 seconds.
5. Reinstall the fuse.
6. Cycle the door open and closed with either the wall
mounted
or overhead console switch. Wait three
seconds before opening and closing the door again.
If this does not restore power sliding door operation, see
your retailer for service.
2-16
ProCarManuals.com

Sliding Door Security Lock
Your Oldsmobile is equipped with a sliding door
security lock that helps prevent passengers from opening
the sliding door from the inside.
If you have the optional power sliding door, you can
override the security lock by pressing the
PWR DOOR
switch when the power sliding door enable switch is in
the
ON position. See “Power Sliding Door” earlier in
this section.
The security lock lever is located on the inside of the
sliding door, near the rear edge of the door.
To access
the lever, open the sliding door. Use the security lock
label on the rear edge of the door as a guide. Reach your
hand around the inside rear corner of the sliding door to
access the lever.
I ,;I m
CHILD
I SECURITY
LOCK
To use the security lock, move the security lock lever all
the way up and close the door.
If you have the optional power sliding door, slide the
power sliding door enable switch on the overhead
console to the
OFF position. The sliding door cannot be
opened from the inside when this feature is in use.
2-17
ProCarManuals.com

.-e.- - .- ’ - - .,’. . . . . * .. . . - . . , ... .-.- : . . If you have the optional power sliding door, slide the
power sliding door enable switch to the
ON position.
Press either
PWR DOOR switch.
You should let adults and older children know how the
security lock works, and how to cancel the lock.
If you
don’t, adults or older children who ride in the rear won’t
be able to open the sliding door from the inside when
the security lock feature is in use.
To Cancel the Sliding Door Lock
1. Unlock the sliding door from the inside and open the
door from the outside.
2. Move the security lock lever all the way down.
The sliding door lock will now work normally.
If you want to open the sliding door when the security
lock
is on, unlock the sliding door from the inside and
open the door from the outside.
2-18
ProCarManuals.com

Liftgate Lock Raising the Liftgate
Open the liftgate using the handle above the license
plate. Once slightly opened, the liftgate will rise
by
itself. Lamps in the liftgate will come on, illuminating
the rear cargo area (see “Rear Interior Lamps” in the
Index).
I NOTICE:
Be sure there are no overhead obstructions, such
as a garage door, before you open the liftgate.
You could slam the liftgate into something and
break the glass.
To unlock the liftgate, insert the door key and turn the
lock clockwise. The liftgate will automatically lock
when you close it.
If you have the optional power door locks or the Remote
Lock Control system, the liftgate will lock and unlock
differently. See “Power Lock Control’’ in the Index.
2-19
ProCarManuals.com

To close the liftgate, pull down on the strap, then firmly
shut the liftgate. Don’t drive with the liftgate open, even
slightly. See “Exhaust” in the Index.
A light on your instrument panel will warn you if the
liftgate is not completely closed (see “Liftgate Ajar
Warning Light” in the Index).
2-20
