dead battery OLDSMOBILE SILHOUETTE 1995 Owners Manual

6. Check that the jumper cables don’t have loose or
missing insulation.
If they do, you could get a shock.
The vehicles could be damaged, too.
Before you connect the cables, here are some things
you should know. Positive
(+) will go to positive (+)
and negative (-) will go to negative (-) or a metal
engine part. Don’t connect
(+) to (-) or you’ll get a
short that would damage the battery and maybe other
parts, too.
7. Connect the red positive (+) cable to the positive (+)
terminal of the vehicle with the dead battery. Use a
remote positive (+) terminal if the vehicle has one.
5-5
ProCarManuals.com

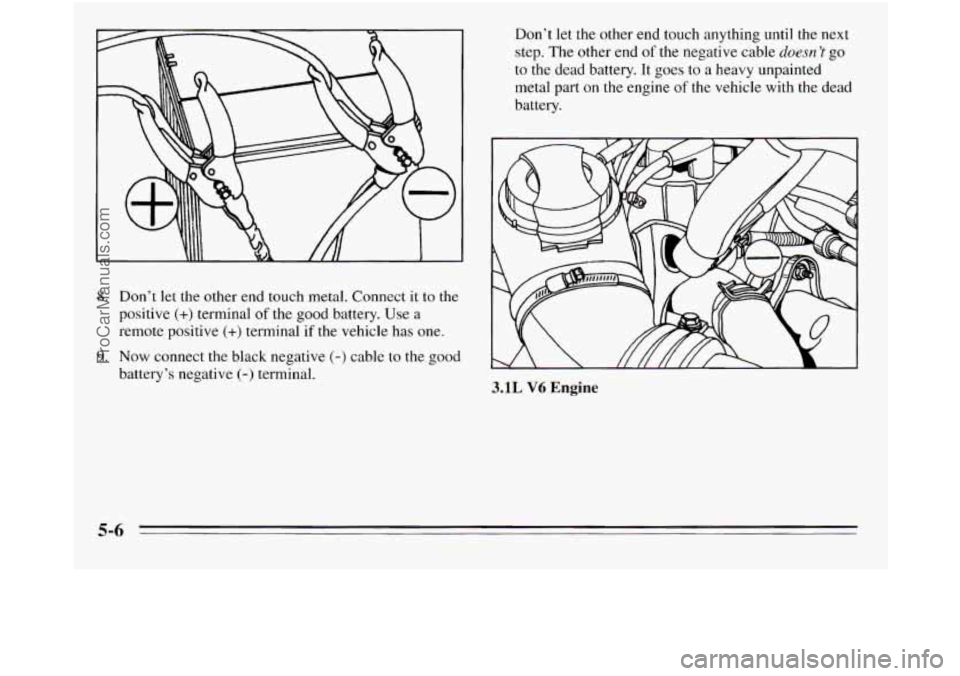

8. Don’t let the other end touch metal. Connect it to the
positive
(+) terminal of the good battery. Use a
remote positive
(+) terminal if the vehicle has one.
9. Now connect the black negative (-) cable to the good
battery’s negative
(-) terminal. Don’t
let the other end touch anything
until the next
step. The other end of the negative cable doesn ’t go
to the dead battery. It goes to a heavy unpainted
metal part on
the engine of the vehicle with the dead
battery.
3.1L V6 Engine
5-6
ProCarManuals.com

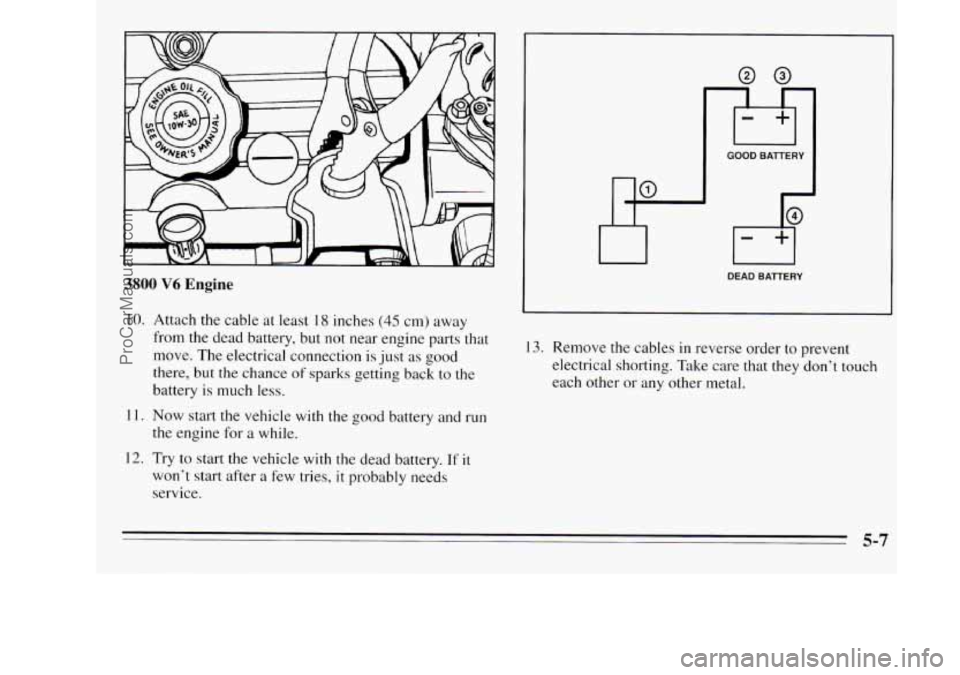

3800 V6 Engine
10. Attach the cable at least 18 inches (45 cm) away
from the dead battery, but not near engine parts that
move. The electrical connection is just as
good
there, but the chance of sparks getting back to the
battery is much
less.
11. Now start the vehicle with the good battery and run
the engine for
a while.
12. Try to start the vehicle with the dead battery. If it
won’t start after a few tries, it probably needs
service.
GOOD BATTERY
DEAD BATTERY
13. Remove the cables in reverse order to prevent
electrical shorting. Take care that they don’t touch
each other or any other metal.
5-7
ProCarManuals.com

To Resume a Set Speed ........................ 2-46
ToSet
..................................... 2-45
Traction Control
............................. 2-45
UseonHills
................................ 2-48
Cupholders
................................. 2.65. 66
Customer Assistance for the Hearing or
SpeechImpaired
............................... 8-2
Customer Assistance Information
................... 8- 1
Customer Satisfaction Procedure .................... 8- 1
Damage. Finish ............................... 6-48
Dead Battery ................................... 5-2
Defects. Reporting
............ i .................. 8-4
Defensive Driving
............................... 4- 1
Defogging ..................................... 3-6
Defrosting
..................................... 3-6
Directional Controls
.............................. 3-2
Dolby@
B Noise Reduction ....................... 3- 13
Dome Lamp ................................... 2-55
Door Lock. Sliding .............................. 2- 12
Door Lock. Sliding Door Child Security ... ......... 2- 17
DoorLocks ..................................... 2-3
Doors. Front
.......................... I ......... 2-3
Driver Position
................................. 1 - 1 8
Driver’s 4-Way Manual Seat
....................... 1 - 1
Driver’s 6-Way Power Seat ......................... 1-3
Driving On..Grades. With a Trailer .................. 4-37
Driving
AtNight
................................... 4-15
Defogger. Rear Window .......................... 3-7 City
....................................... 4-19
Defensive
................................... 4-1
Drunken
.................................... 4-2
Freeway
.................................... 4-20
In a Blizzard
................................ 4-27
In Foreign Countries
........................... 6-4
In the Rain
.................................. 4-17
OnCurves .................................. 4-11
On Hill and Mountain Roads ................... 4-23
OnSnowandIce
............................. 4-25
Through Deep Standing Water
.................. 2-27
Winter
..................................... 4-24
With a Trailer
............................... 4-35
Drunken Driving
.......... ..................... 4-2
Dump and
Stow Feature ........................... 1-6
Electrical Equipment. Adding .......... 2.25. 3.21. 6-51
Electronic Level Control
......................... 2-68
Enginecoolant
................................. 6-22
Adding
.................................... 6-23
Checking ................................... 6-23
Heater
................................ 2.27. 6. 16
Temperature Gage
............................ 2-80
Exhaust
.................................... 2-37
Identification ................................ 6-51
Running it While You’re Parked
................. 2-37
Specifications
.. :’. ........................... 6-60
Starting
.................................... 2-24
Engine
Overheating
................................. 5-15
9-4
ProCarManuals.com
