OLDSMOBILE SILHOUETTE 1996 Owners Manual

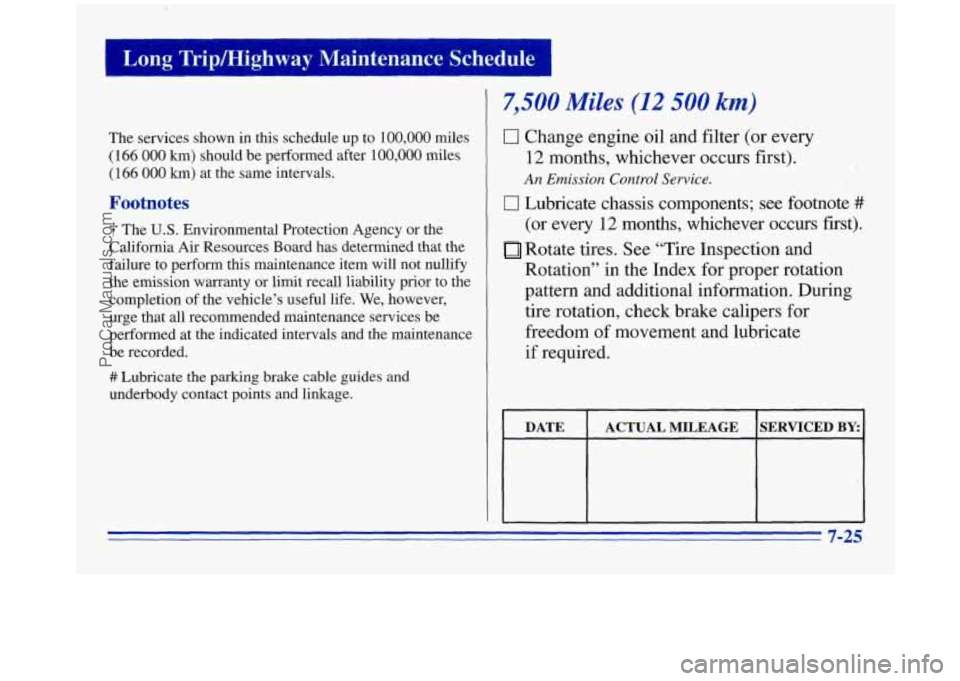

[ Long Tripmighway Maintenance Schedule 1
The services shown in this schedule up to 100,000 miles
(166
000 km) should be performed after 100,000 miles
( 166 000 km) at the same intervals.
Footnotes
3- The U.S. Environmental Protection Agency or the
California Air Resources
Board has determined that the
’ failure to perform this maintenance item will not nullify
the emission warranty
or limit recall liability prior to the
completion of the vehicle’s useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the maintenance
be recorded.
## Lubricate the parking brake cable guides and
underbody contact points and linkage.
7,500 Miles (12 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
,n Lubricate chassis components; see footnote ##
(or every 12 months, whichever occurs first).
Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information. During tire rotation, check brake calipers for
freedom
of movement and lubricate
if required.
.,
ProCarManuals.com

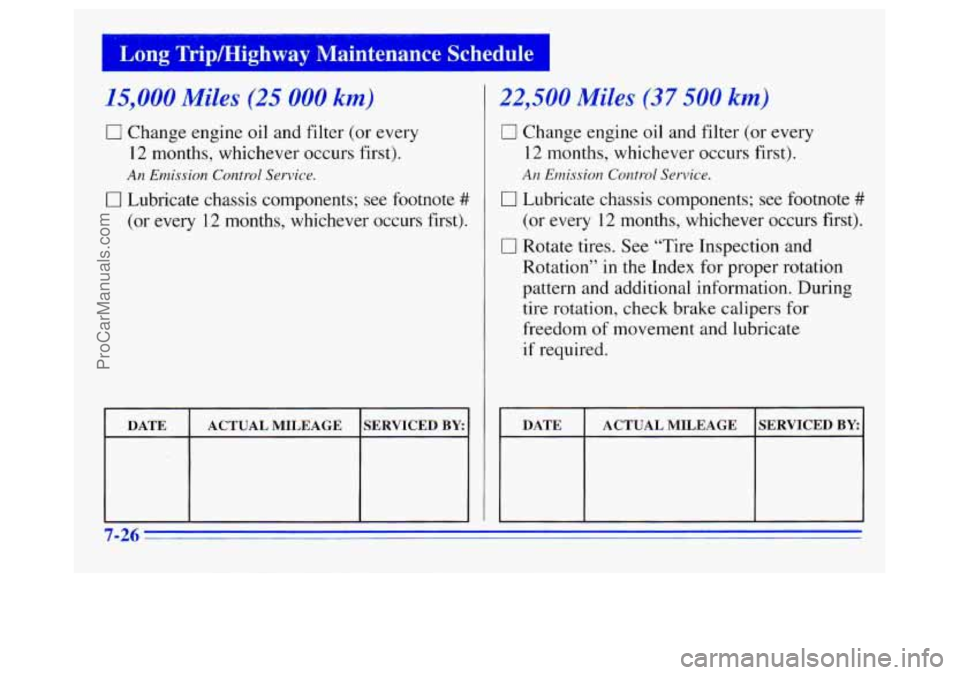

I ” Long Tripmighway Maintenance Schedule
15,000 Miles (25 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote #
(or every 12 months, whichever occurs first).
DATE SERVICED BY ACTUAL MILEAGE
22,500 Miles (37 500 km)
17 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote ##
(or every 12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information. During
tire rotation, check brake
calipers for
freedom of movement and lubricate
if required.
DATE ACTUAL MILEAGE SERVICED BY
7-26
ProCarManuals.com

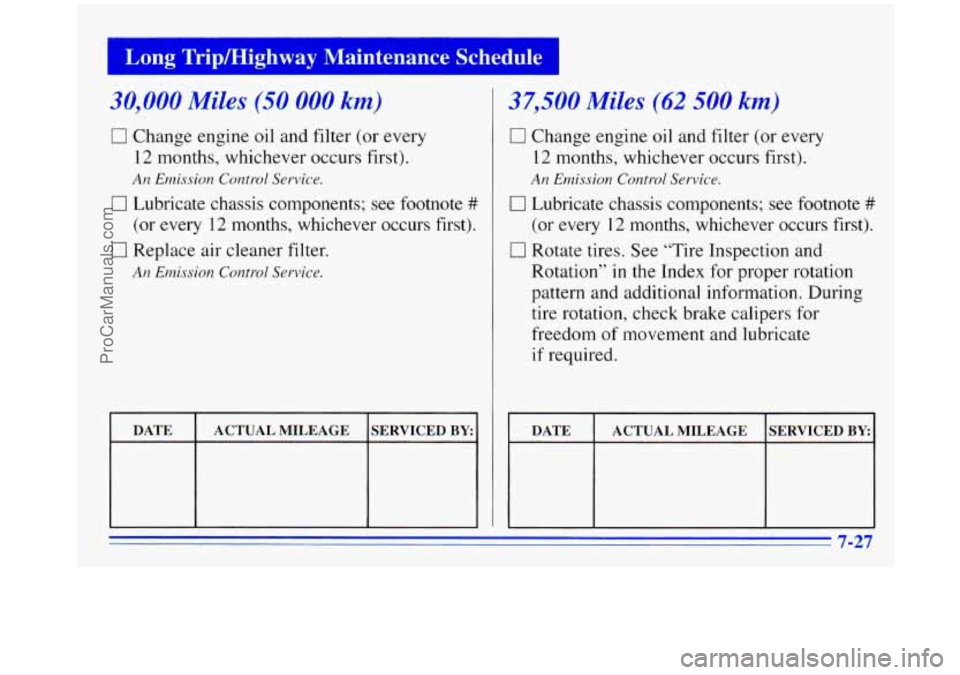

I ’ Long Trip/Highway Maintenance Schedule I
30,000 Miles (50 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote #
(or every 12 months, whichever occurs first).
0 Replace air cleaner filter.
An Emission Control Service.
DATE ACTUAL MILEAGE SERVICED BY _--
37,500 Miles (62 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote ##
(or every 12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation”
in the Index for proper rotation
pattern and additional information. During
tire rotation, check brake calipers for
freedom of movement and lubricate
if required.
DATE ACTUAL MILEAGE SERVICED BY
7-27
ProCarManuals.com

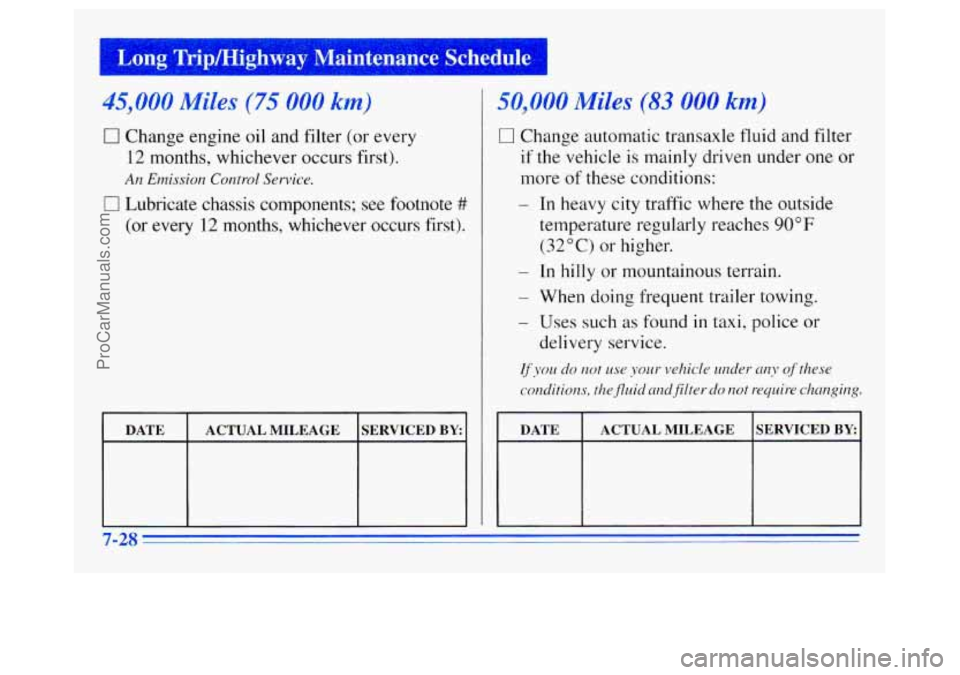

Long Tripmighway Maintenance Schedule I
45,000 Miles (75 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote ##
(or every 12 months, whichever occurs first).
I DATE I ACTUALMILEAGE SERVICED BY
50,000 Miles (83 000 km)
0 Change automatic transaxle fluid and filter
if the vehicle is mainly driven under one or
more of these conditions:
- In heavy city traffic where the outside
temperature regularly reaches
90°F
(32°C) or higher.
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or
delivery service.
I~YOLL do not use your vehicle under any of these
conditions, the fluid andfilter do not require changing.
DATE SERVICED BY ACTUAL MILEAGE
7-28
ProCarManuals.com

Long Tripmighway Maintenance Schedule
52,500 Miles (87 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote #
(or every 12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information. During
tire rotation, check brake calipers for
freedom of movement and lubricate
if required.
DATE ACTUAL MILEAGE SERVICED BY:
60,000 Miles (100 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote #
(or every 12 months, whichever occurs fiist).
0 Inspect engine accessory drive belt.
0 Replace air cleaner filter.
An Emission Control Service.
0 Inspect fuel tank, cap and lines for damage
or leaks. Inspect fuel cap gasket for any
damage. Replace parts as needed.
An Emission Control Service. 3-
7-29
ProCarManuals.com

Long TripMighway Maintenance. Schedule I
67,500 Miles (112 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis Components; see footnote #
(or every 12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information. During
tire rotation, check brake calipers
for
freedom of movement and lubricate
if required.
DATE SERVICED BY ACTUAL MILEAGE
75,000 Miles (125 000 km)
CI Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote ##
(or every 12 months, whichever occurs first).
DATE
SERVICED BY ACTUAL MILEAGE
7-30
ProCarManuals.com

Long Tripmighway Maintenance Schedule
82,500 Miles (137 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote #
(or every 12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information. During tire rotation, check brake calipers for
freedom of movement and lubricate
if required.
DATE SERVICED BY ACTUAL MILEAGE
90,000 Miles (150 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
17 Lubricate chassis components; see footnote #
(or every 12 months, whichever occurs first).
0 Replace air cleaner filter.
An Emission Control Service.
DATE SERVICED BY ACTUAL MILEAGE
7-31
ProCarManuals.com

qng Tripmighway Maintenance Schedule
, ; ., ‘:, ;: .
97,500 Miles (162 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote #
(or every 12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation’’ in the Index for proper rotation
pattern and additional information. During
tire rotation, check brake calipers for
freedom
of movement and lubricate
if required.
100,000 Miles (166 000 km)
0 Drain, flush and refill cooling system
(or every
60 months since last service,
whichever occurs first). See “Engine
Coolant’’
in the Index for what to use.
Inspect hoses. Clean radiator, condenser,
pressure cap and neck. Pressure test the
cooling system and pressure cap.
An Ernission Corztrol Service.
0 Inspect spark plug wires.
An Ernission Control Service.
7-32
ProCarManuals.com

Long Tripmighway Maintenance Schedule
0 Replace spark plugs.
0 Change automatic transaxle fluid and filter
if the vehicle
is mainly driven under one or
more
of these conditions:
- In heavy city traffic where me outside
temperature regularly reaches
90 OF
(32°C) or higher.
An Emission Control Service.
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or
delivery service.
If you do not use your vehicle under any of these
conditions, the fluid
andfilter do not require changing
DATE
SERVICED BY ACTUAL MILEAGE
7-33
ProCarManuals.com

Part B: Owner Checks and Services
Listed below are owner checks and services which
should be performed at the intervals specified
to help
ensure the safety, dependability and emission control
performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in Part D.
At Each Fuel Fill
It is important for you or a service station attendant to
pevforrn these underhood checks at each fixelfill.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. See “Engine Oil” in
the Index for
further details.
Engine Coolant Level Check
Check the engine coolant level and add the proper
coolant mix if necessary. See “Engine Coolant” in the
Index for further details.
Windshield Washer Fluid Level Check
Check the windshield washer fluid level in the
windshield washer tank and add the proper fluid if
necessary. See “Windshield Washer Fluid” in the Index
for further details.
At Least Once a - -011
Tire Inflation Check
Make sure tires are inflated to the correct pressures.
See “Tires” in the Index for further details.
Cassette Deck Service
Clean cassette deck. Cleaning should be done every
50 hours of tape play. See “Audio Systems” in the Index
for further details.
7-34
