Section 3 Comfort Controls and Audio Syster1.-
In this section, you’ll find out how to operate the comfort control and audio systems offered with your Oldsmobile.
Be sure
to read about the particular systems supplied with your vehicle.
3-2 3-3
3-4
3-4
3-5
3-8
3-8
3-9
3-9
3-15 Comfort Controls
Air Conditioning
Heating Ventilation System and Tips
Rear Climate Control
Tips for Defogging and Defrosting
Rear Window Defogger
Setting the Clock
Radios
Rear Seat Audio
3- 17
3 -24
3-26
3-27
3-27
3-28
3-28
3-30
3-30 Remote Compact
Disc Player
Theft-Deterrent Feature
Steering Wheel Controls
Understanding Radio Reception
Tips About Your Audio System
Adding Sound Equipment to Your Vehicle
Care
of Your Cassette Tape Player
Care
of Your Compact Discs
Antenna
ProCarManuals.com

Comfort Controls
This section tells you how to make your air system work
for
you. Your comfort control system uses
ozone-friendly
R- 134a refrigerant.
With these systems you can control the heating, cooling
and ventilation in your Oldsmobile. Your vehicle
also
has a flow-through ventilation system described later in
this section.
Fan Knob
The left knob is the fan knob and selects the force of air
you want. Turn the knob clockwise to increase fan speed
and counterclockwise to decrease fan speed.
The fan
must be turned on for the air conditioning compressor
to operate.
Temperature Knob
The center knob controls the temperature of the air
coming through the system. Turn it counterclockwise
(toward the blue area) for cooler air. Turn it clockwise
(toward the red area) for warmer air.
Mode Knob
This knob selects the direction of where the air will
enter the vehicle.
+e
/J UPPER: This setting directs outside air through
the instrument panel outlets.
+fl BI-LEV This setting directs outside air into your
vehicle
in two ways. Cooler air is directed toward your
upper body through the front instrument panel outlets,
while warmed air is directed through the heater ducts at
your feet.
+e
3-2
ProCarManuals.com

0
+fl LOWER: This setting brings in most of the air
through the floor ducts. This setting is also used to send
air to
the rear of the vehicle. Keep the area under the
front seats free of objects that could obstruct airflow to
the rear of the vehicle.
+’ DEFOG: This setting directs air to the windshield
and through the floor ducts. This mode is particularly
useful during cold or inclement weather because of your
Oldsmobile Silhouette’s larger windshield area.
w.
DEFROST This setting directs most of the air to
the windshield and side window vents.
Mode Buttons
RECIRC: Press this button (the light will glow)
to limit the amount of fresh air entering your vehicle by
recirculating much of the air inside your vehicle. You
may
use this setting to limit odors entering your vehicle.
Press the OUTSIDE AIR button (the light on the
RECIRC button
will go off) to let outside air circulate
into
the vehicle.
OUTSIDE AIR: Press this button (the light will
glow) to send outside air into your vehicle. Using this
setting while trying to defrost or defog the windows will
help clear the vents
of moisture. Press the RECIRC button
(the light
on the OUTSIDE AIR button
off) to limit outside air entering the vehicle.
Air Conditioning
will go
On very hot days, your vehicle will cool down more
quickly and economically
if you open the windows long
enough to let hot, inside air escape.
For all settings, adjust
the temperature control knob and fan speed
as desired.
To get maximum cooling or a quick cool-down on very
hot days, press
the A/C and RECIRC buttons (the lights
will glow) and turn the temperature knob to the left
(toward the blue area). Adjust the mode knob
to direct
the air to the desired location. This setting should not be
used for long periods
of time because the air may
become too cold and dry. Push the A/C button again (the
light will go off) to turn off the air conditioning.
When the air conditioner compressor is on, you may
sometimes notice slight changes
in your vehicle’s engine
performance and power. This is normal. The system is
designed to help fuel economy while it maintains
the
desired cooling level.
The air conditioner removes moisture from the air,
so
you may sometimes notice water dripping from under
your vehicle when
it is idling or after it has been turned
off. This is normal.
3-3
ProCarManuals.com

Section 6 Service and Appearance Care
Here you will find information about the care of your Oldsmobile. This section begins with service information, and
then it shows how to check important fluid and lubricant levels. There is also technical information about your
vehicle, and a part devoted
to its appearance care.
6-2
6- 3
6-4
6-5
6-7
6-10 6-15
6-16 6-17
6-20 6- 24
6-25
6-26
6-30 6-30
6-3
1
6-38 Doing
Your Own Service Work
What Kind
of Fuel to Use
Using Fuel in Foreign Countries
Where to Put the Fuel and Filling the Tank
Checking Things Under the Hood
Checking Your Engine
Oil
Air Cleaner
Pollen Filter
Automatic Transaxle Fluid
Engine Coolant
Power Steering Fluid
Where to Fill
the Windshielc 9 Washer Fluic
Important Brake Information
Information on Your Vehicle’s Battery
Tips on Vehicle Storage
Bulb Replacement Procedures
Windshield Wiper Blade Replacement 6-40
6-42
6-44
6-47 6-49
6-50
6-52
6-53 6-54
6-55 6-56
6-57
6-62
6-62
6-62 6-63
6-63 How and
When to Check Tire Inflation
When
it is Time to Buy New Tires
Wheel Alignment
Cleaning the Inside of Your Vehicle
Care of the Safety Belts
Cleaning
the Outside of Your Vehicle
How to Clean Aluminum Wheels
Underbody Maintenance
Recommended Appearance Care Materials
Your Vehicle Identification Number
(VIN)
The Electrical System
Fuses and Circuit Breakers
Replacement Bulb Types for Your Vehicle
Capacities and Specifications
Air Conditioning Specifications
Vehicle Dimensions
Normal Replacement Parts
6-1
ProCarManuals.com

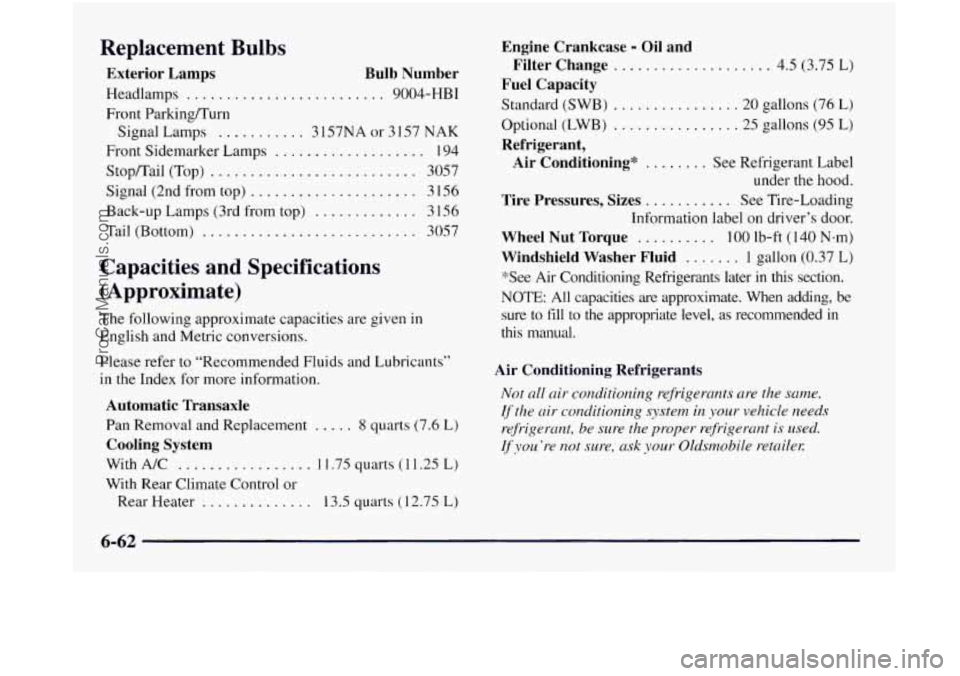

Replacement Bulbs
Exterior Lamps Bulb Number
Headlamps ......................... 9004-HBI
Front Parking/Turn Signal Lamps
........... 3 157NA or 3 IS7 NAK
Stopmail (Top) .......................... 3057
Signal (2nd from top)
..................... 3 156
Back-up Lamps (3rd from top) ............. 3 1 S6
Tail (Bottom) ........................... 3057
Front Sidemarker
Lamps
................... 194
Capacities and Specifications
(Approximate)
The following approximate capacities are given in
English and Metric conversions.
Please refer
to “Recommended Fluids and Lubricants”
in the Index for more information.
Automatic Transaxle
Pan Removal and Replacement ..... 8 quarts (7.6 L)
Cooling System
With A/C ................. 1 1.75 quarts (1 1.25 L)
With Rear Climate Control or
Rear Heater
.............. 13.5 quarts ( 12.75 L)
Engine Crankcase - Oil and
Filter Change
.................... 4.5 (3.75 L)
Fuel Capacity
Standard (SWB) ................ 20 gallons (76 L)
Optional (LWB) ................ 25 gallons (95 L)
Refrigerant,
Air Conditioning*
........ See Refrigerant Label
under the hood.
Tire Pressures, Sizes ........... See Tire-Loading
Information
label on driver’s door.
Wheel Nut Torque .......... 100 lb-ft (140 Nem)
Windshield Washer Fluid ....... 1 gallon (0.37 L)
*See Air Conditioning Refrigerants later in this section.
NOTE: All capacities are approximate. When adding, be
sure to fill
to the appropriate level, as recommended in
this manual.
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
rcfr-igerant,
be sure the proper refrigerunt is used.
If you’re not sure, ask your Oldsmobile retailel:
6-62
ProCarManuals.com

Section 9 Index
Accessory Power Outlet ......................... 2-84
Adding Equipment to the Outside
Of Your Vehicle ...... 6-3
AirBag
....................................... 1-43
How Does
it Restrain .......................... 1-47
Howitworks
................................ 1-45
Location
.................................... 1-45
Readiness Light
......................... 1.44, 2.94
Servicing
................................... 1-48
What Makes it Inflate
.......................... 1-46
What Will You See After it Inflates
............... 1-47
When Should it Inflate
......................... 1-46
Aircleaner
.................................... 6-15
Air Conditioning
................................ 3-3
Air Conditioning Refrigerants
..................... 6-62
AirInflator
.................................... 2-86
Alignment and Balance. Tire
...................... 6-44
Aluminum Wheels. Cleaning
...................... 6-52
Antenna. Integrated Windshield
.................... 3-30
Antifreeze ..................................... 6-20
Anti-Lock
........................................
Brake System Warning Light ................ 2.96. 4.7
Brakes
...................................... 4-7
Adjusting the Split Bench Seat
.................... 1 . 19
Appearance Care
............................... 6-46
Appearance Care Materials
....................... 6-54
Ashtray
....................................... 2-82
Audio Systems
.................................. 3-9
Automatic Door Locks
............................ 2-6
Automatic Overdrive
............................ 2-33
Automatic Transaxle Check
....................... 7-38
Automatic Transaxle Fluid
........................ 6-17
HowtoAdd
................................. 6-20
How to Check
............................... 6-18
When
to Check and Change ..................... 6-17
Automatic Transaxle Operation
.................... 2-31
Shifting
..................................... 2-31
Automatic Transaxle Park Mechanism Check
......... 7-40
Battery Saver
................................. 2-61
Battery
....................................... 6-30
Jump Starting
................................. 5-3
Warnings
................................ 5.3. 5.5
BBB Auto Line
................................. 8-7
Before Leaving on a Long Trip
.................... 4-22
Better Business Bureau Mediation
................... 8-7
9-1
ProCarManuals.com

Radios ........................................ 3-9
Radios. Steering Wheel Controls
................... 3-26
Rain. Driving In
................................ 4- I7
Reading Lamps
................................ 2-65
Cargo Lamp
................................. 2-64
Rear
AirVents
.................................... 3-7
Climate Control
............................... 3-5
Comfort Controls
.............................. 3-6
Fan Control
.................................. 3-6
Outside Seat Position .......................... 1-49
Safety
Belt Comfort Guides ..................... 1-52
Seat Audio
............................. 3- 15. 3-23
Seat Passengers
.............................. 1-49
Seats
........................................ 1-6
Storage
..................................... 2-76
Towing
..................................... 5-11
Window Defogger
............................. 3-8
Windshield Washer
........................... 2-55
Rearview Mirror, Inside Day/Night
................. 2-66
Reclining Front and Captain’s Seatbacks
.............. 1-4
Recovery Tank, Coolant .......................... 5- 16
Refrigerants,
Air Conditioning .................... 6-62
Remote Compact Disc Player
.......................... 3- I7
Operation of the Power Sliding Door .............. 2-9
Battery Replacement
.......................... 2- IO
Resynchronizing ............................. 2- I2
Remote Lock
Control
............................. 2-7 Removing
Captain’s Chairs
.............................. 1-26
Second Row Solid Bench Seat
.................... 1-8
Split Bench Seat
.............................. 1-20
Third Row Solid Bench Seat .................... 1-14
Replacement BLIlbs
...................................... 6-62
Parts
....................................... 6-63
Wheel
...................................... 6-44
Replacing Captain’s Chairs
.............................. 1-27
Second Row Solid Bench Seat
................... 1 . IO
Split Bench Seat .............................. 1-22
Third Row Solid Bench Seat
.................... 1 . 16
Replacing Safety Belts ........................... 1-80
Reporting Safety Defects
.......................... 8-8
Resetting the Power Sliding Door
.................. 2-19
Restraints Checking
................................... 1-80
Head
........................................ 1-6
Replacing Parts After a Crash
................... 1-80
Second Row Safety Belt Stowage
................. 1-7
System Check ................................ 7-38
Restraints. Child
................................ 1-68
Reverse
....................................... 2-32
Right Front Passenger Position
.................... 1-43
Roadside Assistance
.............................. 8-5
Rocking Your Vehicle
........................... 5-34
Rotation
. Tires ................................. 6-41
ProCarManuals.com
