Page 253 of 444
City Driving Here are ways to increase your safety in city driving:
0
0
0
One of the biggest problems with city streets is the
amount of traffic on them. You’ll want
to watch out for
what the other drivers are doing and pay attention to
traffic signals. Know
the best way to get to where
you are
going. Get a city map and plan your trip into an
unknown part
of the city just as you would for a
cross-country trip.
Try to use the freeways that rim and crisscross most
large cities. You’ll save time and energy. (See the
next part, “Freeway Driving.”)
Treat a green light as a warning signal.
A traffic
light is there because the corner is busy enough to
need it. When a light turns green, and just before you
start to move, check both ways
for vehicles that have
not cleared the intersection or may be running the
red light.
4-21
ProCarManuals.com
Page 258 of 444
I

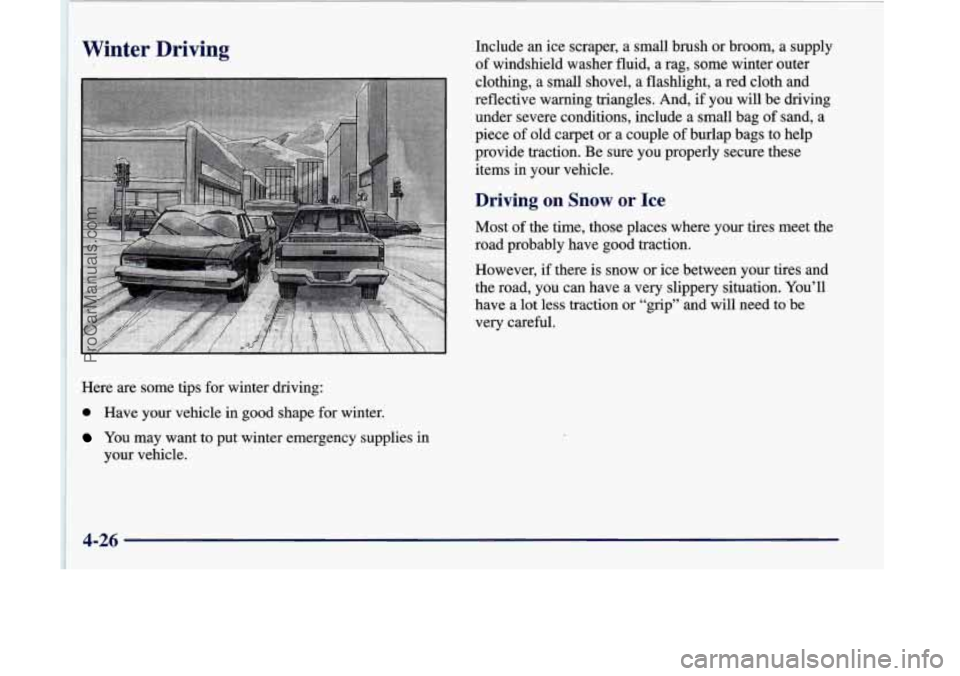

Winter Driving Include an ice scraper, a small brush or broom, a supply
of windshield washer fluid, a rag, some winter outer
clothing,
a small shovel, a flashlight, a red cloth and
reflective warning triangles. And, if you will be driving
under severe conditions, include
a small bag of sand, a
piece of old carpet or a couple
of burlap bags to help
provide traction. Be sure you properly secure these
items in your vehicle.
Driving on Snow or Ice
Here are some tips for winter driving:
0 Have your vehicle in good shape for winter. Most
of the time, those places where your tires
meet the
road probably have good traction.
However,
if there is snow or ice between your tires and
the road, you can have a very slippery situation. You’ll
have
a lot less traction or “grip” and will need to be
very careful.
I You may want to put winter emergency supplies in
your vehicle.
ProCarManuals.com
Page 331 of 444
Engine Coolant
The cooling s stem in your vehicle is filled with
DEX-COOL engine coolant. This coolant is designed
to remain in your vehicle for
5 years or 150,000 miles
(240 000 lunb whichever occurs first, if you add only
DEX-COOL extended life coolant.
J
The following explains your cooling system and how
to add coolant when it is low. If you have a problem
with engine overheating, see “Engine Overheating” in
the Index.
A 50/50 mixture of water and DEX-COOL@
coolant will:
Give freezing protection down to -34°F (-37°C).
0 Give boiling protection up to 265 OF (1 29 O C).
Protect against rust and corrosion.
Help keep the proper engine temperature.
Let the warning lights and gages work as
they should.
NOTICE:
When adding coolant, it is important that you
use only
DEX-COOL@ (silicate-free) coolant.
If coolant other than DEX-COOL is added to
the system, premature engine, heater core or
radiator corrosion may result. In addition, the
engine coolant will require change sooner
-- at
30,000 miles (50 000 km) or 24 months,
whichever occurs
first. Damage caused by the
use of coolant other than DEX-COOL@ is not
covered by your new vehicle warranty.
6-21
ProCarManuals.com
Page 338 of 444
BRAKE
United States Canadian
When your brake fluid falls to a low level, your brake
warning light will come on. See “Brake System Warning
Light” in the Index.
What to Add
When
you do need brake fluid, use only DOT-3
brake fluid -- such as Delco Supreme 1 1 @ (GM Part
No. 12377967). Use new brake fluid from a sealed
container only.
Always clean the brake fluid reservoir cap and the area
around the cap before removing it. This will help keep
dirt from entering the reservoir. With the wrong kind
of fluid in your brake
system, your brakes may not work well, or they
may not even work at all. This could cause
a
crash. “1 Always use the proper brake fluid.
NOTICE:
0
0
Using the wrong fluid can badly damage
brake system parts. For example, just
a few
drops of mineral-based oil, such as engine
oil, in your brake system can damage brake
system parts
so badly that they’ll have to be
replaced. Don’t let someone put in the
wrong kind of fluid.
If you spill brake fluid on your vehicle’s
painted surfaces, the paint finish can be
damaged. Be careful not to spill brake fluid
on your vehicle.
If you do, wash it off
immediately. See “Appearance Care” in
the Index.
6-28
ProCarManuals.com
Page 339 of 444
Brake Wear
Your vehicle has front disc brakes and rear drum brakes.
Disc brake pads have built-in wear indicators that
make a high-pitched warning sound when the brake
pads are worn and new pads are needed. The sound may
come and go or be heard all the time your vehicle is
moving (except when you are pushing
on the brake
pedal firmly).
I A CAUTION:
The brake wear warning sound means that soon
your brakes won’t work well. That could lead to
an accident. When you hear the brake wear
warning sound, have your vehicle serviced.
NOTICE:
Continuing to drive with worn-out brake pads
could result in costly brake repair.
Some driving conditions or climates may cause a brake
squeal when the brakes are first applied
or lightly
applied. This does not mean something is wrong with
your brakes.
Properly torqued wheel nuts are necessary to help
prevent brake pulsation. When tires are rotated, inspect
brake pads for wear and evenly torque wheel nuts in
the proper sequence
to GM specifications.
Your rear drum brakes don’t have wear indicators, but
if you ever hear
a rear brake rubbing noise, have the
rear brake linings inspected immediately. Also, the rear
brake drums should be removed and inspected each time
the tires are removed for rotation or changing. When
you have the front brake pads replaced, have the rear
brakes inspected, too.
Brake linings should always be replaced as complete
axle sets.
See “Brake System Inspection’’ in Section
7 under
Part
C “Periodic Maintenance Inspections.”
Brake Pedal Travel
See your retailer if the brake pedal does not return to
normal height, or if there is a rapid increase in pedal
travel. This could be a sign of brake trouble.
6-29
ProCarManuals.com
Page 427 of 444
Section 9 Index
Accessory Idator System ....................... 2-78
Accessory Power Outlets
......................... 2-81
Adding Equipment to the Outside Of Your Vehicle
...... 6-3
Adjusting the Bucket Seats
....................... 1-16
Adjusting the Split Bench Seat
..................... 1-9
AirBag
....................................... 1-38
How Does it Restrain
.......................... 1-44
Howitworks
................................ 1-41
Location
.................................... 1-41
Readiness Light
......................... 1.40. 2.87
Servicing
................................... 1-46
What Makes it Inflate
.......................... 1-43
What Will You See After
it Inflates ............... 1-44
When Should it Inflate
......................... 1-42
Aircleaner
.................................... 6-15
Air Conditioning Refrigerants ..................... 6-65
Air Filter Replacement, Passenger Compartment ...... 6-16
Airhflator
.................................... 2-78
Alignment and Balance, Tire
...................... 6-45
Aluminum Wheels, Cleaning
...................... 6-52
Antenna, Integrated Windshield
.................... 3-27
Antifreeze
..................................... 6-21
Brakes
...................................... 4-7
Brake System Warning Light
................ 2-89, 4-7
Appearancecare
............................... 6-47
Appearance Care Materials
....................... 6-54
AirConditioning
................................ 3-3
hti-LOck Ashtray
....... ........... a.......i.. .. .i-...<.:..i.. 2-77
Audio Systems
.................................. 3-9
Automatic
Door Locks ............................ 2-6
Automatic Overdrive
............................ 2-32
Automatic Transaxle Check
....................... 7-30
Automatic Transaxle Fluid
........................ 6-18
HowtoAdd
................................. 6-20
How to Check
............................... 6-18
When to Check and Change
..................... 6-18
Automatic Transaxle Operation
.................... 2-30
Shifting
..................................... 2-30
Automatic Transaxle
Park Mechanism Check ......... 7-32
Battery
...................................... 6-30
Jump Starting
................................. 5-3
BatterySaver .................................. 2-64
BBB Auto Line
................................. 8-7
Before Leaving on a Long
Trip .................... 4-23
Better Business Bureau Mediation
................... 8-7
Blizzard
...................................... 4-28
Brake Warnings
................................ 5.3. 5.5
Adjustment
.................................. 6-30
Fluid
....................................... 6-27
Master Cylinder
.............................. 6-27
Parking
..................................... 2-34
ProCarManuals.com
Page 428 of 444
Brake (Continued) PedalTravel
................................. 6-29
Replacing System Parts
........................ 6-30
System Warning Light
.................... 2.88. 6.28
Trailer
...................................... 4-37
Transaxle Shift Interlock
....................... 2-37
Transaxle Shift Interlock Check
.................. 7-3 1
Wear ....................................... 6-29
Brakes. Anti-Lock
............................... 4-7
Braking
........................................ 4-6
Braking in Emergencies
.......................... 4- 10
Break-In. New Vehicle
.......................... 2-25
BTSI
......................................... 2-37
BTSICheck
................................... 7-31
Bucketseats
................................... 1-15
Adjusting
................................... 1-16
Folding or Reclining the Seatback
................ 1 - 15
Removing
................................... 1-16
Replacing
................................... 1-19
Bulb Replacement .............................. 6-3 1
Canada. Ordering Service and Owner Publications .... 8-9
Canadian Roadside Assistance ...................... 8-6
Capacities and Specifications
...................... 6-64
Captain’s Chairs
................................ 1-21
Reclining
the Seatback ......................... 1-2 1
Removing ................................... 1-22
Replacing
................................... 1-23
Carbon Monoxide
.................... 2-38.4-29. 4-36
Cassette Deck Service
........................... 7-29
Cassette Tape Player
............................ 3- 10
Cassette Tape Player Care ........................ 3-26 CD Adapter Kits
............................... 3-14
CD Player Theft-Deterrent Feature
................. 3-21
Center Dome Lamp
............................. 2-63
Center Passenger Position (Bench Seat)
............. 1-53
Center Passenger Position (Bucket Seat)
............. 1-54
Certificationflire Label
.......................... 4-30
Chains. Safety
................................. 4-37
Chains. Tire
................................... 6-46
Changing
a Flat Tire ............................. 5-24
Charging System Indicator Light
................... 2-88
Checking Your Restraint Systems
.................. 1-89
Chemical Paint Spotting.
......................... 6-53
Child Restraints
................................ 1-70
Built-in
..................................... 1-59
Cleaning Built-in
............................. 6-49
Securing in
a Rear Outside Seat Position ........... 1-77
Securing in the Center Rear Seat Position
(Bucketseat)
............................... 1-81
Securing
in the Center Rear Seat Position
(Third Row Bench)
.......................... 1-79
Securing
in the Right Front Seat Position .......... 1-83
TopStrap
................................... 1-76
WheretoPut
................................ 1-75
Children
...................................... 1-56
Cigarette Lighter
............................... 2-77
Circuit Breakers and Fuses
....................... 6-57
Cleaner. Air
................................... 6-15
Cleaning Alum~num Wheels
............................ 6-52
Built-in Child Restraint
........................ 6-49
Fabric
...................................... 6-48
Glass
....................................... 6-50
Inside of Your Vehicle
......................... 6-47
Instrument Panel
............................. 6-49
9-2
ProCarManuals.com
Page 430 of 444
Driving (Continued)
On Curves
.................................. 4- 11
On Grades While Towing a Trailer ............... 4-39
On Hill and Mountain Roads
.................... 4-24
On Snow and Ice
............................. 4-26
Throughwater
............................... 4-20
WetRoads
.................................. 4-18
Winter
...................................... 4-26
With a Trailer
................................ 4-37
Dump and
Stow Feature ........................... 1-7
Electrical Equipment. Adding .................... 2-28
Electrical System
............................... 6-56
Electronic Level Control
......................... 4-32
Engine
....................................... 6-10
Coolant ..................................... 6-21
Coolant Heater
............................... 2-29
Coolant Level Check
.......................... 7-29
Coolant Temperature Gage
..................... 2-92
Cooling System
.............................. 6-64
Exhaust
..................................... 2-38
Identification
................................ 6-55
OilLevelCheck
.............................. 7-29
Overheated Protection Operating Mode
........... 5- 13
Overheating
................................. 5-13
Specifications
................................ 6-64
StartingYour
................................ 2-27
Temperature Warning Light
..................... 2-92
Additives
................................... 6-14
Checking
................................... 6-12
Running
While Parked
......................... 2-39
Engine Oil
............................... 2-96. 6-11 Used
....................................... 6-15
What Kind to Use
............................. 6-13
WhentoAdd
................................ 6-12
Equipment. Adding to the Outside
Of Your Vehicle ..... 6-3
When
to Change
.............................. 6-14
Exhaust. Engine ................................ 2-38
Exit Lighting
.................................. 2-62
Fabric Cleaning
............................... 6-48
Fan Knob. Climate Control System
.................. 3-2
Filling a Portable Fuel Container
.................... 6-7
Filling Your Tank
................................ 6-5
Filter. Air
..................................... 6-15
Filter. Passenger Compartment Air
................. 6-16
Finishcare
.................................... 6-51
Finish Damage
................................. 6-53
FirstGear
..................................... 2-33
Flashers. Hazard Warning
......................... 5-2
Flat Tire. Changing
............................. 5-24
Fluid Capacities
................................ 6-64
FogLmps
.................................... 2-60
Folding Driver’s Seatback
......................... 1-3
Foreign Countries. Fuel
........................... 6-5
FrenchLanguage Manual
11
FrontDoor ..................................... 2-4
Front Parking/Turn Signal Lamp Bulb Replacement
.... 6-34
Front Seat Storage Bin
........................... 2-71
Front Seat Storage Net
........................... 2-71
Front Sidemarker Lamp Bulb Replacement
........... 6-36
FrontTowing
.................................. 5-10
Fluids and Lubricants
............................ 7-34
.. ...........................
9-4
.
ProCarManuals.com
Page 431 of 444
Fuel .......................................... 6-3
Filling Your Tank
.............................. 6-5
In Foreign Countries
........................... 6-5
Fuses and Circuit Breakers
....................... 6-57
Gage
....................................... 2-98
Gages Engine Coolant Temperature
.................... 2-92
Fuel
....................................... 2-98
Speedometer
................................. 2-85
Tachometer
.................................. 2-86
Garage Door Opener Compartment
................. 2-67
Gear Positions. Automatic Transaxle
................ 2-30
GloveBox
.................................... 2-65
Gross Axle Weight Rating ........................ 4-31
Gross Vehicle Weight Rating
...................... 4-30
Guide en Francais
11
GAWR ....................................... 4-31
.. .................................
GVWR ....................................... 4-30
Halogen Bulbs
................................ 6-31
Hazard Warning Flashers
.......................... 5-2
Head Restraints ................................. 1-6
Headlamps
.................................... 2-59
Bulb Replacement
............................ 6-3 1
On Reminder ................................ 2-59
Wiring
..................................... 6-56
Hearing Impaired. Customer Assistance
.............. 8-4
Heating
........................................ 3-4
High-Beam Headlamps
.......................... 2-53
Highway Hypnosis
.............................. 4-24
High/Low Beam Changer ...................... 2-53 Hill
and Mountain Roads
......................... 4-24
Hitches. Trailer
................................. 4-36
Hood Checking Things Under
......................... 6-8
Prop
........................................ 6-9
Release
...................................... 6-8
Horn
......................................... 2-51
Hydroplaning
.................................. 4-20
Ignition Positions
.............................. 2-26
Illuminated Entry
............................... 2-61
Illuminated Visor Vanity Mirrors
................... 2-78
Inflation. Tire
.................................. 6-40
Inflator. Air
................................... 2-78
Inside Daymight Rearview Mirror
................. 2-64
Inspections Brakesystem
................................ 7-33
Exhaust Systems
............................. 7-33
Front-Wheel-Drive Axle Boot
.................. 7-33
Front-Wheel-Drive Axle Seal
................... 7-33
Radiator and Heater Hose
...................... 7-33
Steering
.................................... 7-33
Suspension
.................................. 7-33
Throttle Linkage .............................. 7-33
Instrumentpanel
............................... 2-82
Cleaning
.................................... 6-49
Cluster
..................................... 2-84
FuseBlock
.................................. 6-57
Light Intensity Control
......................... 2-61
Instrument Panel
S witchbank ...................... 2-13
Interior Lamps
................................. 2-61
Control
..................................... 2-61
OverrideSwitch
.............................. 2-61
ProCarManuals.com
Page 432 of 444
Jack. Tire .................................... 5-27
Jump Starting
................................... 5-3
Key Lock Cylinders Service ..................... 7-30
Keys
.......................................... 2-2
Labels CertificationRire
............................. 4-30
Service Parts Identification
..................... 6-55
Tire-Loading Information
...................... 4-30
Vehicle Identification Number
................... 6-55
Delayed Illumination
.......................... 2-62
Dome
...................................... 2- 63
Exit Lighting
................................ 2-62
Exterior
.................................... 2-59
Fog
........................................ 2-60
Illuminated Entry
............................. 2-6 1
Interior
..................................... 2- 61
OnReminder ................................ 2-59
Rearcargo
.................................. 2-63
Underhood
.................................. 6-11
Leaving Your Vehicle
............................. 2-7
Leaving Your Vehicle with the Engine Running
....... 2-36
Liftgate
....................................... 2- 20
Lirrhter ....................................... 2-77
Lamps
Lights
Air Baa Readiness ....................... 1.40. 2.87
Anti-LGck Brake System Warning
............ 2.89. 4.7
Brake System Warning
.................... 2.88. 6.28
Charging System Indicator
...................... 2-88 DoorAjar
................................... 2-97
Engine Temperature Warning
................... 2-92
Interior
..................................... 2-61
Low Coolant Warning
.................... 2.93, 6.23
Low Fuel Warning
............................ 2-98
Low Oil Level
.......................... 2.96. 6. 11
Low Traction
............................ 2.91. 4.9
Oil Pressure
................................. 2-96
Power Sliding Door
........................... 2-97
Safety Belt Reminder
..................... 1-25, 2.87
Service Engine Soon
.......................... 2-93
Traction Control System Warning
........... 2-90. 4-10
Loading Your Vehicle ........................... 4-30
Automatic Door
............................... 2-6
Cylinders
................................... 7-30
Door
........................................ 2.4
Ignition Transaxle Check
....................... 7-32
Key Lock Cylinder Service
..................... 7-30
Last Door Closed Locking
....................... 2-6
Lockout Deterrent
............................. 2-7
PowerDoor
.................................. 2-5
Sliding Door
................................. 2-14
Sliding Door Child Security
..................... 2-19
Sliding Door Delayed Locking
................... 2-7
Locks and Lighting Choices
...................... 2-40
Loss of Control
................................ 4-15
Low Coolant Warning Light
................. 2-93, 6-23
Low Fuel Warning Light
......................... 2-98
Low Oil Level Light
....................... 2-96, 6-11
Low Traction Light
......................... 2-91, 4-9
Lubricants and Fluids
............................ 7-34
Lubrication Service. Body
........................ 7-30
Locks
9-6
. ..
ProCarManuals.com
