2-70 Rear Reading Lamps
There are two reading lamps in the third row headliner,
above the outboard seating positions.
To turn on or off either reading lamp, press the lens
of the lamp.
There is also a reading lamp in the second row,
integrated with the dome lamp. To turn on or off either
reading lamp, press the button next to the lamp lens.
These lamps will not turn on if the interior lamps
override switch is on. See ªInterior Lamps Override
Switchº in the Index.
Dome Lamp
The dome lamp is located in the center of your vehicle
and has two buttons to manually turn on and off the
lamp. The dome lamp will come on each time you
open a door, unless you turn on the interior lamps
override feature. See ªInterior Lamps Override Switchº
in the Index.
Cargo Lamp
The cargo lamp is located in the rear of your vehicle,
above the liftgate opening, and does not have a switch.
The cargo lamp will come on each time you open a
door, unless you turn on the interior lamps override.
See ªInterior Lamps Override Switchº in the Index.
Battery Saver
Your vehicle has a feature to help prevent you from
draining the battery, in case you accidentally leave the
interior lamps on. If you leave any interior lamps on
while the ignition is in LOCK or OFF, they will
automatically turn off after 10 minutes. The lamps won't
come back on again until you do one of the following:

Turn the ignition to RUN or ACCESSORY,

turn the interior lamps thumbwheel all the way
clockwise, then slightly back counterclockwise, or

open (or close and reopen) a door that is closed.
If your vehicle has less than 15 miles (25 km) on the
odometer, the battery saver will turn off the lamps after
only three minutes.

2-97
Speedometer and Tamper
Resistant Odometer
Your speedometer lets you see your speed in both
miles per hour (mph) and kilometers per hour (km/h).
Your odometer shows how far your vehicle has been
driven, in either miles (used in the United States) or
kilometers (used in Canada).
Your vehicle has a tamper
-resistant odometer.
You may wonder what happens if your vehicle needs a
new odometer installed. If the new one can be set to the
mileage total of the old odometer, then that will be done.
If it can't, then it's set at zero and a label must be put on
the driver's door to show the old mileage reading when
the new odometer was installed.
Dual Trip Odometers
In addition to the standard odometer, the cluster can
also display two separate trip odometers (designated by
the letter ªAº or ªBº in the display window) as well as
your vehicle's Engine Oil Life (designated by the word
OIL in the display window). The display can be toggled
between the odometer, the trip odometers and engine
oil life by quickly pressing and releasing the trip/reset
button located to the right of the temperature gage.
The display toggles once each time the trip/reset
button is pressed for less than 1.5 seconds. The display
toggles in the following sequence: Odometer
- Trip
Odometer A
- Trip Odometer B - Engine Oil Life.
If the engine oil life is left on the display, it will
automatically toggle back to the odometer after
approximately 15 seconds. Each of the two trip
odometers can be used to keep track of different trip
distances (for example, the mileage of a long trip and
the mileage driven on the current tank of fuel).
The trip odometers will continue to keep track of
miles (kilometers) driven even if they are not currently
displayed. To reset the odometer to zero (0), push and
hold the trip/reset button for at least 1.5 seconds,
but less than three seconds. Only the trip odometer
that is showing in the display will be reset.

2-98
Retro-Active Reset
Each of the two trip odometers has a feature called
retro
-active reset. This feature can be used to set
either (or both) trip odometer(s) to the number of
miles (kilometers) driven since the ignition was last
turned on. This can be used if you forget to reset your
trip odometer at the beginning of a trip. To use the
retro
-active reset feature, push and hold the trip/reset
button for at least three seconds. The trip odometer will
then display the number of miles (kilometers) driven
since the ignition was last turned on and you began
driving. (If you use the retro
-active reset feature after
you have started the vehicle, but before you begin
moving, the display will show the number of miles
(kilometers) you drove during the last ignition cycle.)
Once you begin driving, the trip odometer will
accumulate mileage. For example, if you have driven
5.0 miles (8.0 km) since you started your vehicle, and
then activate the retro
-active reset feature, the display
will show 5.0 miles (8.0 km). As you drive, the display
will then increase to 5.1 (8.2 km), 5.2 (8.4 km), etc.
Only the trip odometer that is displayed will be affected
by the retro
-active reset so that both trip odometers can
be used separately.
Tachometer
The tachometer displays the engine speed in revolutions
per minute (rpm).
NOTICE:
Do not operate the engine with the tachometer
in the red area, or engine damage may occur.

6-49

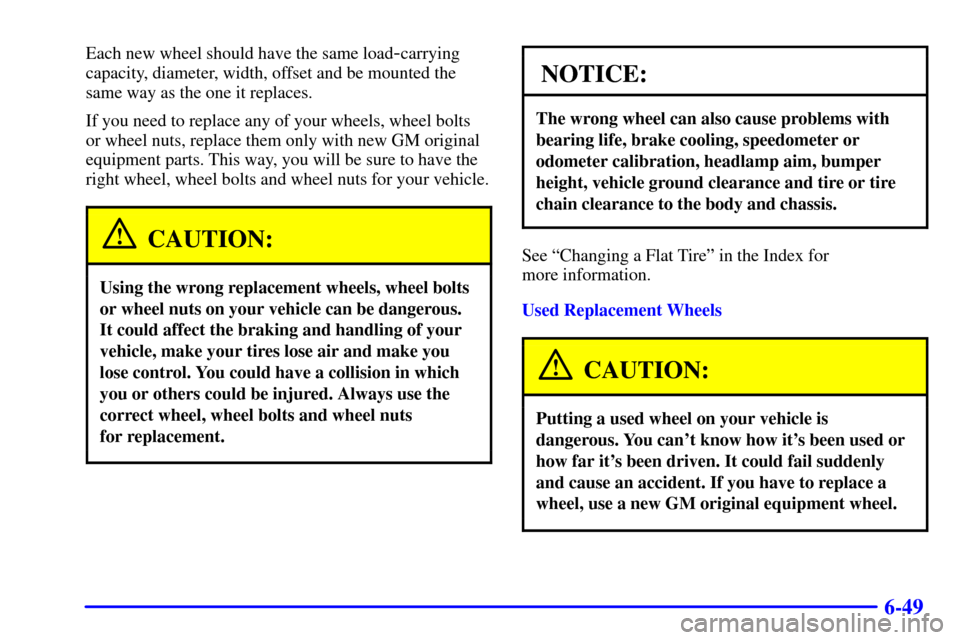

Each new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted the
same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts
or wheel nuts, replace them only with new GM original
equipment parts. This way, you will be sure to have the
right wheel, wheel bolts and wheel nuts for your vehicle.
CAUTION:
Using the wrong replacement wheels, wheel bolts
or wheel nuts on your vehicle can be dangerous.
It could affect the braking and handling of your
vehicle, make your tires lose air and make you
lose control. You could have a collision in which
you or others could be injured. Always use the
correct wheel, wheel bolts and wheel nuts
for replacement.
NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper
height, vehicle ground clearance and tire or tire
chain clearance to the body and chassis.
See ªChanging a Flat Tireº in the Index for
more information.
Used Replacement Wheels
CAUTION:
Putting a used wheel on your vehicle is
dangerous. You can't know how it's been used or
how far it's been driven. It could fail suddenly
and cause an accident. If you have to replace a
wheel, use a new GM original equipment wheel.

7-23
Part E: Maintenance Record
After the scheduled services are performed, record the date, odometer reading and who performed the service in the
boxes provided after the maintenance interval. Any additional information from ªOwner Checks and Servicesº or
ªPeriodic Maintenanceº can be added on the following record pages. Also, you should retain all maintenance receipts.
Your owner information portfolio is a convenient place to store them.
Maintenance Record
DATEODOMETER
READINGSERVICED BYMAINTENANCE PERFORMED

7-24
Maintenance Record
DATEODOMETER
READINGSERVICED BYMAINTENANCE PERFORMED
