jump start OLDSMOBILE SILHOUETTE 2003 Owners Manual

Section 5 Service and Appearance Care
Service ............................................................ 5.3
Doing Your Own Service Work
......................... 5.3
Adding Equipment to the Outside
of
Your Vehicle .............................................. 5-4
Fuel
.............................................................. -5-5
Gasoline Octane
............................................ 5-5
Gasoline Specifications
................................... 5-5
California Fuel
............................................... 5-6
Additives
....................... .... ......... 5-6
Fuels in Foreign Countries
........... ..... 5-7
Filling Your Tank
............................ ..... 5-7
Filling a Portable Fuel Container
.................... 5-9
Checking Things Under the
Hood .................. -5-1 0
Hood Release .............................................. 5-10
Engine Compartment Overview ....................... 5-12
Engine Oil
................................................... 5-14
Engine Air CleanedFilter
................................ 5-19
Automatic Transaxle Fluid
.............................. 5-20
Radiator Pressure Cap
............................... 5-26
Engine Overheating
.................................... 5-26
Cooling System
............................. , ....... 5-29
Power Steering Fluid .................. , ....... 5-37
Windshield Washer Fluid
................. , ....... 5-38
Brakes
.......................... .... ........ 5-39
r.--.:.-- ---I-.- b CI lyll IC uuvlal I1 4-LU c r)r) .............................................
Battery ........................................................ 5.43
Jump Starting
............................................... 5-44
All-Wheel Drive
.............................................. 5-50
Bulb Replacement .......................................... 5-52
Halogen Bulbs
.............................. ......... 5-52
Front Turn Signal, Sidemarker and
Taillamps, Turn Signal, Stoplamps and
Headlamps
...................................... ..... 5-52
Parking Lamps
.............................. ..... 5-54
Replacement Bulbs
....................................... 5-57
Back-up Lamps
......................................... 5-56
Windshield Wiper Blade Replacement
.............. 5-58
Tires
.............................................................. 5-60
Inflation
- Tire Pressure ................................ 5-61
Tire Inspection and Rotation
........................... 5-62
When It
Is Time for New Tires ....................... 5-63
Buying New Tires
......................................... 5-64
Uniform Tire Quality Grading
.......................... 5-65
Wheel Alignment and Tire Balance
.................. 5-66
Wheel Replacement
...................................... 5-66
Tire Chains
.................................................. 5-67
Accessory Inflator
......................................... 5-68
If a Tire Goes Flat ........................................ 5-69
Changing a Flat Tire ..................................... 5-70
Compact Spare Tire ...................................... 5-86
5- 1

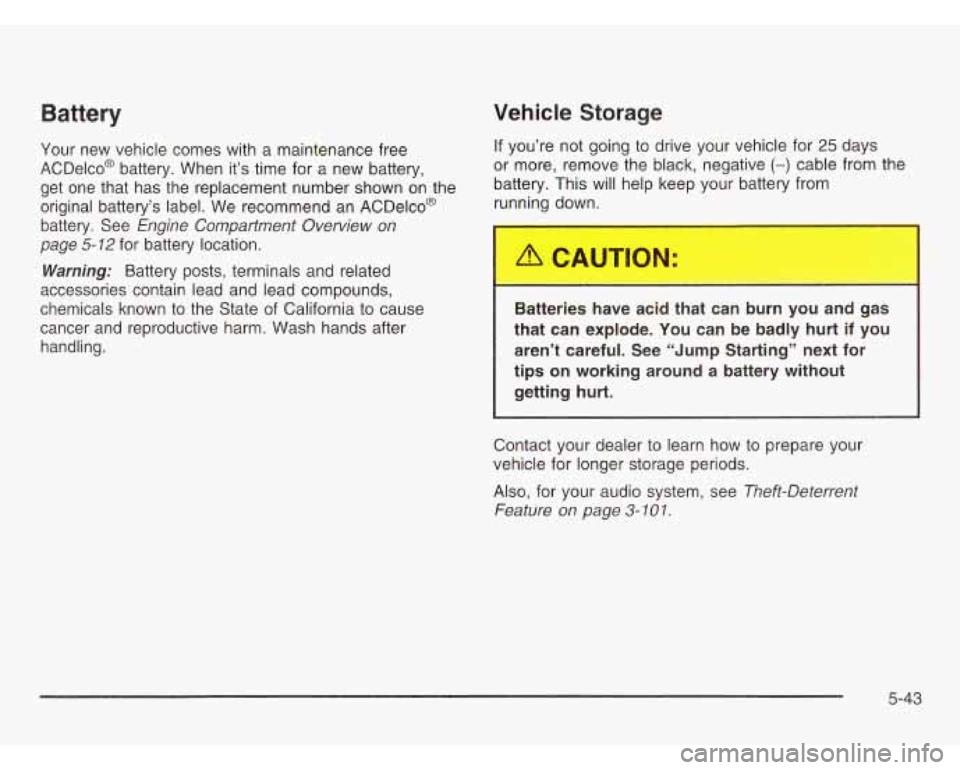

Battery Vehicle Storage
Your new vehicle comes with a maintenance free
ACDelco@ battery. When it’s time for a new battery,
get one that has the replacement number shown on the
original battery’s label. We recommend an ACDelco@ battery. See
Engine Comparfment Overview on
page
5-72 for battery location.
Warning: Battery posts, terminals and related
accessories contain lead and lead compounds,
chemicals known to the State of California to cause
cancer and reproductive harm. Wash hands after
handling.
If you’re not going to drive your vehicle for 25 days
or more, remove the black, negative
(-) cable from the
battery. This will help keep your battery from
running down.
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt
if you
aren’t careful. See “Jump Starting” next for
tips on working around a battery without
getting hurt.
Contact your dealer to learn how to prepare your
vehicle for longer storage periods.
Also, for your audio system, see
Theft-Deterrent
Feature
on page 3- IO 1.
5-43

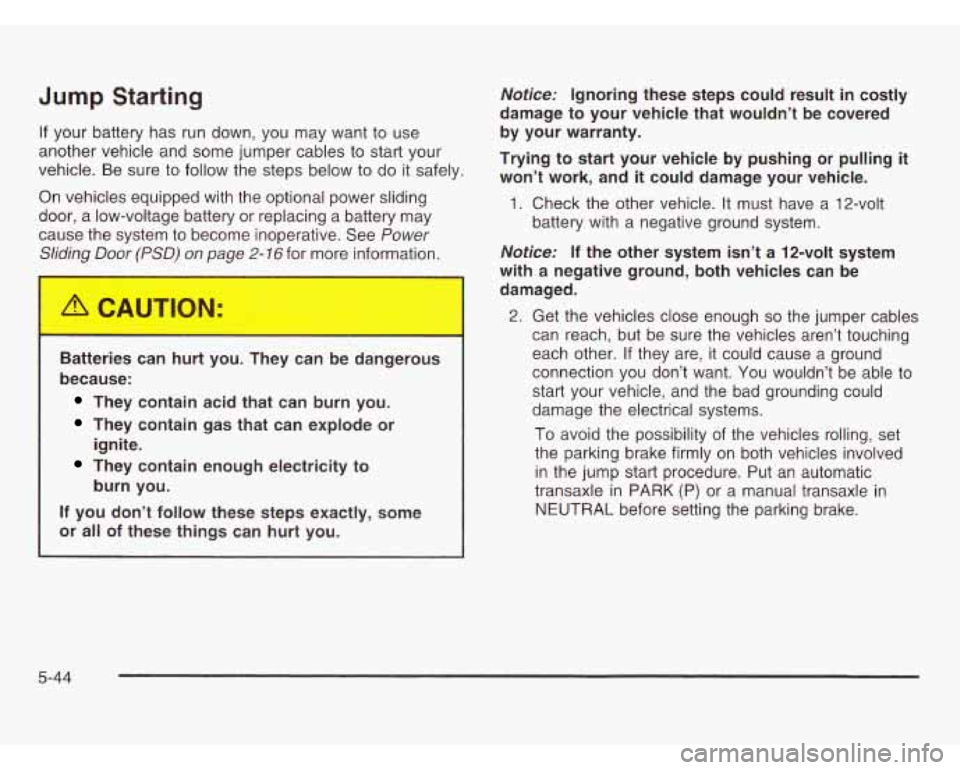

Jump Starting
If your battery has run down, you may want to use
another vehicle and some jumper cables to start your
vehicle. Be sure to follow the steps below to
do it safely.
On vehicles equipped with the optional power sliding
door, a low-voltage battery or replacing a battery may
cause the system
to become inoperative. See Power
Sliding Door (PSD) on paae 2-76for more information.
Batteries can
.. -.rt you. The, :an ._ 5 d-.. .gerous
because:
They contain acid that can burn you.
They contain gas that can explode or
They contain enough electricity to
ignite.
burn you.
If you don’t follow these steps exactly, some
or all
of these things can hurt you.
Notice: Ignoring these steps could result in costly
damage to your vehicle that wouldn’t be covered
by your warranty.
Trying to start your vehicle by pushing or pulling
it
won’t work, and it could damage your vehicle.
1. Check the other vehicle. It must have a 12-volt
battery with a negative ground system.
Notice: If the other system isn’t a 12-volt system
with a negative ground, both vehicles can be
damaged.
2. Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles aren’t touching
each other. If they are, it could cause a ground
connection you don’t want. You wouldn’t be able to
start your vehicle, and the bad grounding could
damage the electrical systems.
To avoid the possibility of the vehicles rolling, set
the parking brake firmly on both vehicles involved
in the jump start procedure. Put an automatic
transaxle in PARK (P) or a manual transaxle in
NEUTRAL before setting the parking brake.
5-44

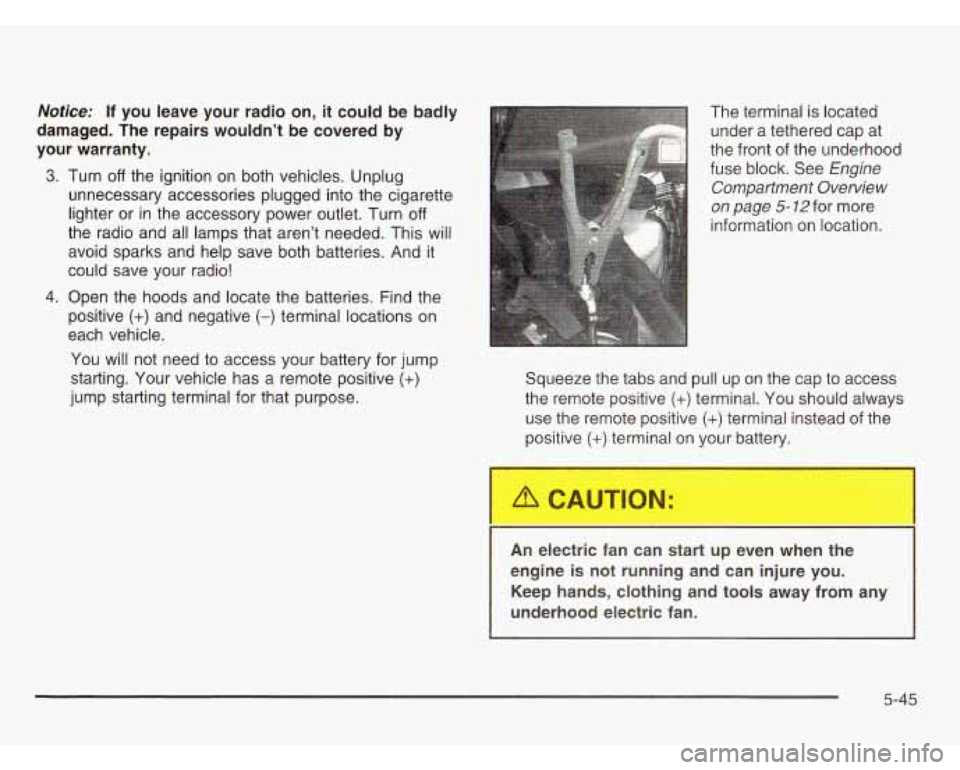

Notice: If you leave your radio on, it could be badly
damaged. The repairs wouldn’t be covered by
your warranty.
3.
4.
Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into the cigarette
lighter or in the accessory power outlet. Turn
off
the radio and all lamps that aren’t needed. This will
avoid sparks and help save both batteries. And it
could save your radio!
Open the hoods and locate the batteries. Find the
positive
(+) and negative (-) terminal locations on
each vehicle.
You will not need to access your battery for jump
starting. Your vehicle has a remote positive
(+)
jump starting terminal for that purpose. The terminal is located
under a tethered cap at
the front of the underhood
fuse block. See
Engine
Compartment Overview
on page
5- 12 for more
information on location.
Squeeze the tabs and pull up
on the cap to access
the remote positive
(+) terminal. You should always
use the remote positive
(+) terminal instead of the
positive (+) terminal on your battery.
An electric fan can start up ever !hen the
engine is not running and can injure you.
Keep hands, clothing and tools away from any
underhood electric fan.
5-45

9. Connect the other end
of the negative
(-)
cable at least 18 inches
(45 cm) away from
the dead battery, but not near engine
parts that move.
The electrical connection is just as good there, and
the chance
of sparks getting back to the battery
is much less.
10. Now start the vehicle with the good battery and run
the engine for a while.
11. Try to start the vehicle that had the dead battery.
If it won’t start after a few tries, it probably needs
service.
Notice: Damage to your vehicle may result from
electrical shorting
if jumper cables are removed
incorrectly.
To prevent electrical shorting, take care
that the cables don’t touch each other or any
other metal. The repairs wouldn’t be covered by
your warranty.
5-48

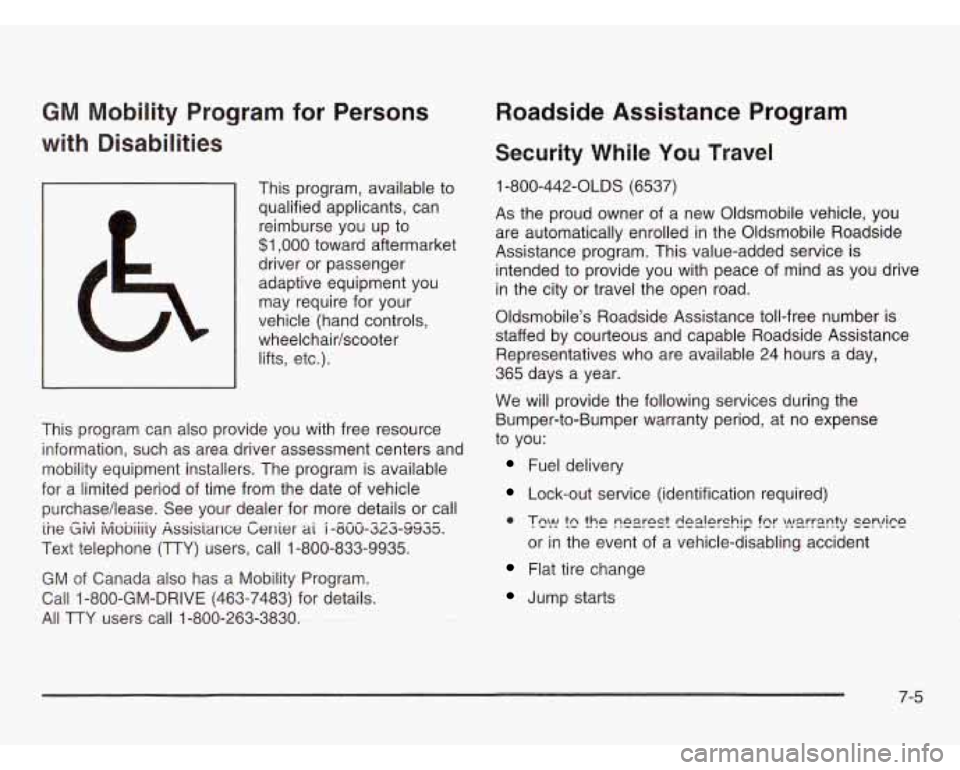

GM Mobility Program for Persons
with Disabilities
This program, available to
qualified applicants, can
reimburse you up to
$1,000 toward aftermarket
driver or passenger
adaptive equipment you may require for your
vehicle (hand controls, wheelchair/scooter
lifts, etc.).
This program can also provide you with free resource
information, such as area driver assessment centers and
mobility equipment installers. The program is available
for a limited period of time from the date of vehicle
purchase/lease. See your dealer for more details or call
ine Givi iviobiiiiy Assisiance Center ai i -KG-323-9935.
Text telephone (TTY) users, call 1-800-833-9935.
GM of Canada also has a Mobility Program.
Call
1 -800-GM-DRIVE (463-7483) for details.
--All TT-Y WS-CA 1 -8QO-S330--
Roadside Assistance Program
Security While You Travel
1 -800-442-OLDS (6537)
As the proud owner of a new Oldsmobile vehicle,
you
are automatically enrolled in the Oldsmobile Roadside
Assistance program. This value-added service is
intended to provide you with peace
of mind as you drive
in the city or travel the open road.
Oldsmobile’s Roadside Assistance toll-free number is
staffed by courteous and capable Roadside Assistance Representatives who are available 24 hours a day,
365 days a year.
We will provide the following services during the
Bumper-to-Bumper warranty period, at no expense
to you:
Fuel delivery
Lock-out service (identification required)
. TQ\,?! ?Q fhe nezmnt rkaka!e-Ship for \,?Clmlt)/ spyjcp
or in the event of a vehicle-disabling accident
Flat tire change
Jump starts
~~ ~~~~~ ~~~~ ~~~ ~ ~~~~ ~~~ ~
7-5

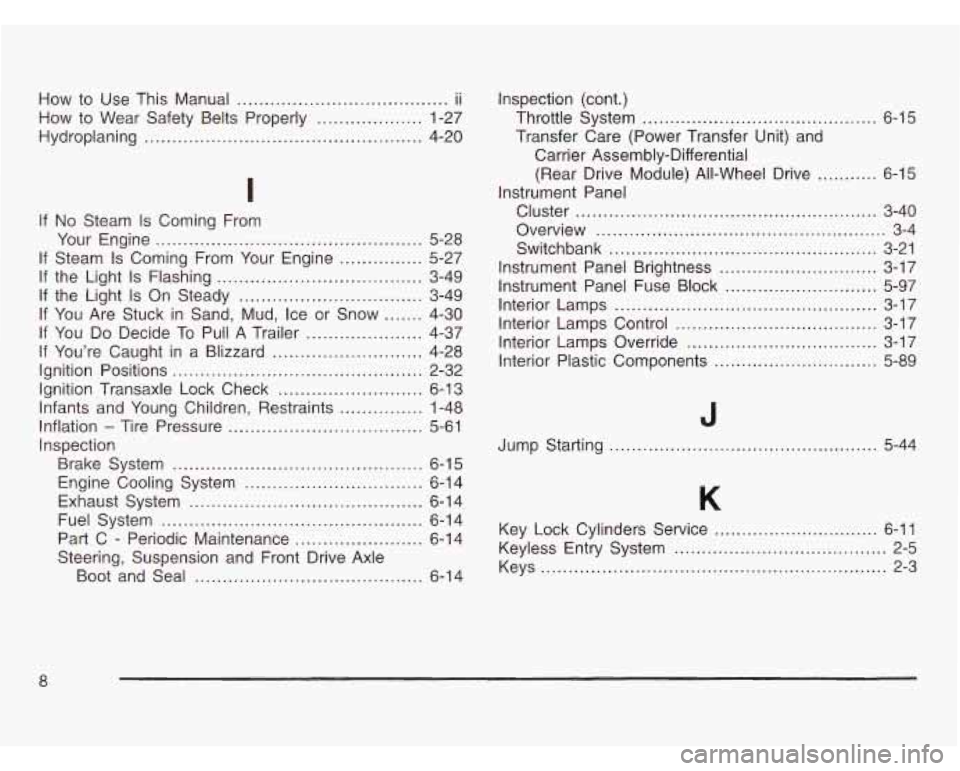

How to Use This Manual ................... .... ii
How to Wear Safety Belts Properly ............... 1-27
Hydroplaning
.................................................. 4-20
I
If No Steam Is Coming From
If Steam Is Coming From Your Engine ............... 5-27
If the Light Is Flashing ..................................... 3-49
If the Light Is On Steady ................................. 3-49
If You Are Stuck in Sand. Mud. Ice or Snow
....... 4-30
If You Do Decide To Pull A Trailer ..................... 4-37
Your
Engine
................................................ 5-28
If You’re Caught in a Blizzard ........................... 4-28
Ignition Positions
............................................. 2-32
Ignition Transaxle Lock Check
.......................... 6-13
Infants and Young Children, Restraints
............... 1-48
Inflation
- Tire Pressure ................................... 5-61
Inspection Brake System
............................................. 6-15
Engine Cooling System
................................ 6-14
Exhaust System
.......................................... 6-14
Fuel System
............................................... 6-14
Part C - Periodic Maintenance ....................... 6-14
Steering, Suspension and Front Drive Axle
Boot and Seal
..................................... 6-14 Inspection
(cont.)
Throttle System
........................................... 6-15
Transfer Care (Power Transfer Unit) and
Carrier Assembly-Differential
(Rear Drive Module) All-Wheel Drive
........... 6-15
Instrument Panel Cluster
..........................................
Overview ......................................
Switchbank ....................................
Instrument Panel Brightness ................
Instrument Panel Fuse Block ...............
Interior Lamps ...................................
Interior Lamps Control ........................
Interior Lamps Override ......................
Interior Plastic Components .................
....
.......... 3-40
........... 3-4
.......... 3-21
.......... 3-17
.......... 5-97
.......... 3-17
.......... 3-17
.......... 3-17
.......... 5-89
Jump Starting
......................... . 5-44
Key Lock Cylinders Service
................. .... .......... 6-11
Keyless Entry System
....................................... 2-5
Keys
............................................................... 2-3
