Interior lamps
1. Using a suitable screwdriver
covered by a cloth, pry lens away
from roof lining.
2. Remove bulb by pulling straight
out.
3. Insert new bulb, ensuring contact
springs hold the bulb securely.
4. Reinstall lens in roof lining by
pushing it back into original
position.
Instrument illumination
Have bulbs replaced by a workshop.
Electrical system
Fuses
Only install fuses of the specified
rating. Each fuse has its rating written
on it, in addition the fuses are colour
coded.
There are two fuse boxes in the
vehicle: the instrument panel fuse
box is located on the left-hand side of
the vehicle below the instrument
panel and the engine compartment
fuse box is located next to the battery.
It is advisable to carry a full set of
fuses.
Spare fuses can be kept in the engine
compartment fuse box.
When replacing a fuse, turn off the
respective switch and the ignition.

10-12 Vehicle care
A defective fuse can be recognized
by its melted wire. A new fuse should
only be installed after the cause of the
trouble has been eliminated.
To help in replacing fuses, a fuse
extractor is located in the instrument
panel fuse box and in the engine
compartment fuse box.
Do not use tools that conduct
electricity when changing fuses.Instrument panel fuse box
Located on the left-hand side of the
vehicle, below the instrument panel.
To open the fuse box, push the cover
at both ends and remove.
Do not store any objects behind the
cover.

10-13Vehicle care
Some circuits may be protected by
several fuses.
Engine compartment fuse
box
Petrol engines
The fuse box is located next to the
battery in the engine compartment.
To open, disengage cover and tilt
upwards. No. Circuit
1-
2Ignition coils
3Reversing lamp
4Instrument cluster
5Accessory socket, cigarette
lighter, power exterior mirror
6Infotainment system
7Power window
8Wipers/washer
9Power steering
10Airbag system
11ABS, ESP
12Tail lamp
13-
14Door lock
15Diesel engine
16Starter motor
17-
18Heater fan
19Rear fog lamp
20Infotainment system
21Heated rear window
22Horn, hazard warning
23Manual transmission
24Power windows No. Circuit
9 Danger
Switch off ignition before opening
the engine compartment fuse
box.

10-14 Vehicle care
Do not store any objects behind the
cover.
Some circuits may be protected by
several fuses.Diesel engines
The fusebox is located behind the
rear of the battery.
To open, disengage cover and lift
upwards.
No. Circuit
1Heater fan
2Fuel injection
3Air conditioning compressor
4Automatic transmission
5Brake lamp switch
6ABS, ESP
7Starter motor
8-
9Power steering control
module
10Ignition switch
11Radiator fan
12-
13ABS, ESP
14-
15Engine electrics
16Front fog lamps
17Headlamp (left)
18Headlamp (right) No. Circuit

10-15Vehicle care
Some circuits may be protected by
several fuses.
Wheels
Tyres
Factory-fitted tyres are matched to
the chassis and offer optimum driving
comfort and safety.
Winter tyres 3
Tyres of size 165/70 R 14 and
185/60 R 15 may be used as winter
tyres.
Winter tyres improve safety at
temperatures below 7
°C and should
therefore be fitted on all the wheels.
Depending on national regulations, a
notice indicating the maximum
permissible speed for the tyres must
be affixed within the driver's field of
vision.
The maximum permissible speed
varies from country to country on
account of national regulations.
Ensure that winter tyres are inflated
to the correct pressure specified by
the tyre manufacturer. No. Circuit
1Starter motor
2Air conditioning compressor
3Fuel pump
4Fuel injection
5Heater fan
6Radiator fan
7Power steering control
module
8ABS, ESP
9ABS, ESP
10Brake lamp switch
11Headlamp (right)
12Headlamp (left)
13Front fog lamps
14Ignition switch
15Ignition switch, power
windows, wipers, starter No. Circuit

10-16 Vehicle care
Tyre designations
Meanings:
e.g. 185/60 R 15 84 T
Speed code letters:

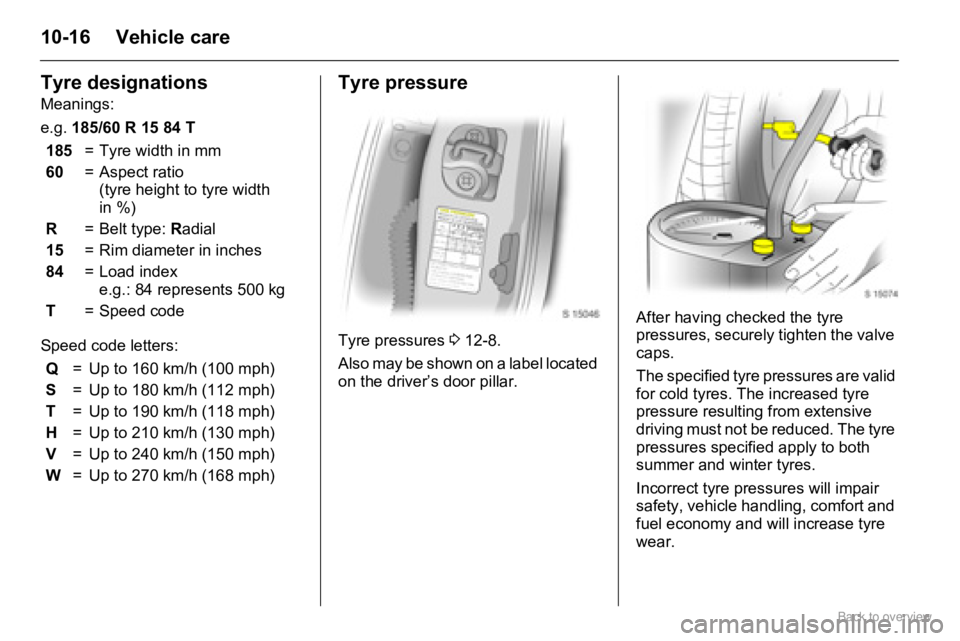

Tyre pressure
Tyre pressures 3 12-8.
Also may be shown on a label located
on the driver’s door pillar.After having checked the tyre
pressures, securely tighten the valve
caps.
The specified tyre pressures are valid
for cold tyres. The increased tyre
pressure resulting from extensive
driving must not be reduced. The tyre
pressures specified apply to both
summer and winter tyres.
Incorrect tyre pressures will impair
safety, vehicle handling, comfort and
fuel economy and will increase tyre
wear. 185= Tyre width in mm
60= Aspect ratio
(tyre height to tyre width
in %)
R= Belt type: Radial
15= Rim diameter in inches
84= Load index
e.g.: 84 represents 500 kg
T= Speed code
Q= Up to 160 km/h (100 mph)
S= Up to 180 km/h (112 mph)
T= Up to 190 km/h (118 mph)
H= Up to 210 km/h (130 mph)
V= Up to 240 km/h (150 mph)
W= Up to 270 km/h (168 mph)

10-17Vehicle care
Tyre condition
Drive over edges slowly and at a right
angle if possible. When parking,
ensure that the tyres are not pressed
against the edge of the kerb.
Check tyres regularly for damage
(foreign bodies, punctures, cuts,
cracks, bulges in sidewalls). Check
wheels for damage. In the event of
damage or abnormal wear, seek the
assistance of a workshop.
Different tyre and wheel
types
If tyres of a different size to those
fitted at the factory are used (this
includes winter tyres), the electronic speedometer may possibly need to
be reprogrammed, to ensure that the
speed displayed is correct.
Wheel covers 3
Wheel covers and tyres that are
approved for the vehicle and comply
with all of the relevant wheel and tyre
combination requirements must be
used.
If the wheel covers and tyres used
are not approved, make sure that the
tyres do not have a beaded edge.
Remove wheel covers before fitting
tyre chains, to avoid damaging the
wheel covers.

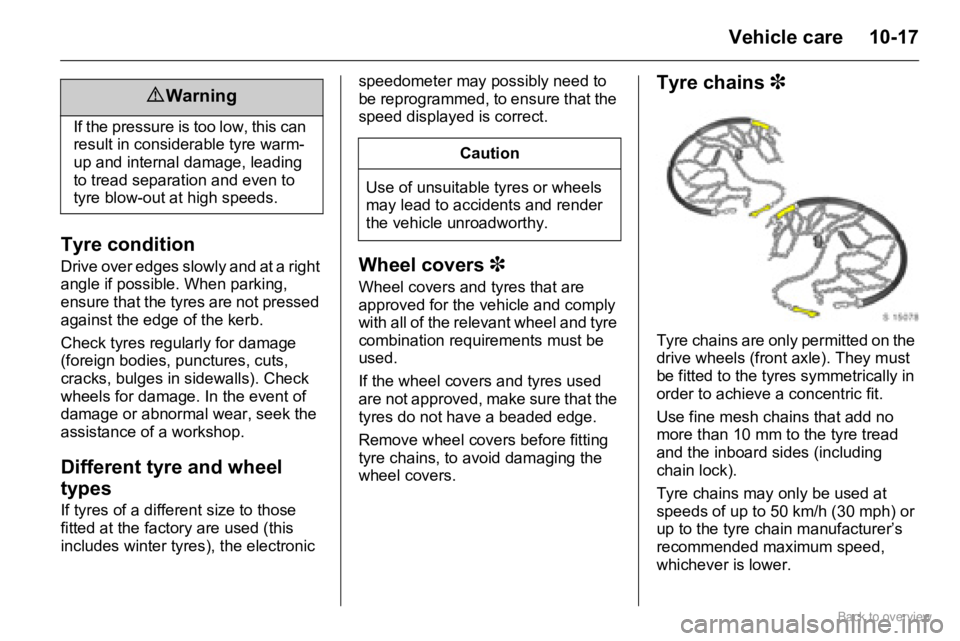

Tyre chains 3
Tyre chains are only permitted on the
drive wheels (front axle). They must
be fitted to the tyres symmetrically in
order to achieve a concentric fit.
Use fine mesh chains that add no
more than 10 mm to the tyre tread
and the inboard sides (including
chain lock).
Tyre chains may only be used at
speeds of up to 50 km/h (30 mph) or
up to the tyre chain manufacturer’s
recommended maximum speed,
whichever is lower.
9 Warning
If the pressure is too low, this can
result in considerable tyre warm-
up and internal damage, leading
to tread separation and even to
tyre blow-out at high speeds.
Caution
Use of unsuitable tyres or wheels
may lead to accidents and render
the vehicle unroadworthy.

10-18 Vehicle care
Tyre chains must not be used on the
temporary spare wheel.
Tyre repair kit 3
Minor damage to the tyre tread can
be temporarily repaired with the tyre
repair kit.
Do not remove foreign bodies from
the tyres. Damaged areas bigger
than 4 mm and damage at the tyre
rim cannot be repaired using the tyre
repair kit.
Never use the liquid sealant on more

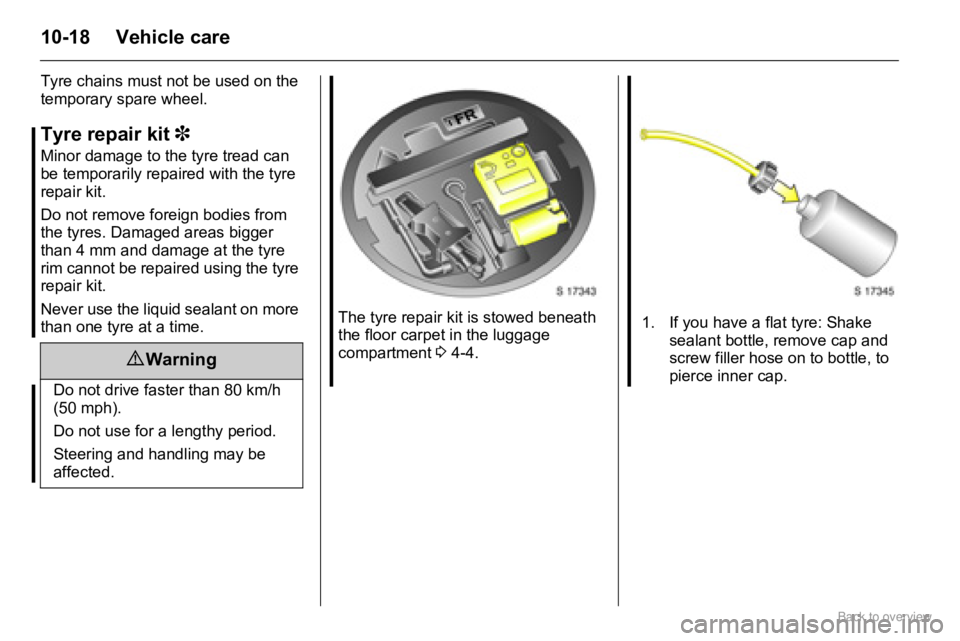

than one tyre at a time.The tyre repair kit is stowed beneath
the floor carpet in the luggage
compartment 3 4-4.
9 Warning
Do not drive faster than 80 km/h
(50 mph).
Do not use for a lengthy period.
Steering and handling may be
affected.

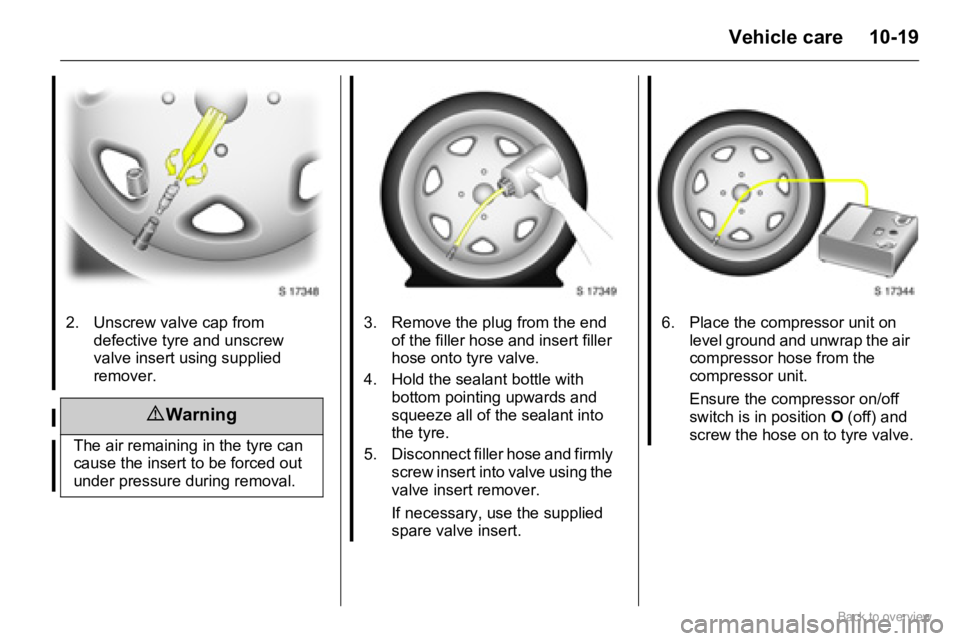

1. If you have a flat tyre: Shake
sealant bottle, remove cap and
screw filler hose on to bottle, to
pierce inner cap.

10-19Vehicle care
2. Unscrew valve cap from
defective tyre and unscrew
valve insert using supplied
remover.
9 Warning
The air remaining in the tyre can
cause the insert to be forced out
under pressure during removal.
3. Remove the plug from the end
of the filler hose and insert filler
hose onto tyre valve.
4. Hold the sealant bottle with
bottom pointing upwards and
squeeze all of the sealant into
the tyre.
5. Disconnect filler hose and firmly
screw insert into valve using the
valve insert remover.
If necessary, use the supplied
spare valve insert.6. Place the compressor unit on
level ground and unwrap the air
compressor hose from the
compressor unit.
Ensure the compressor on/off
switch is in position O (off) and
screw the hose on to tyre valve.

10-20 Vehicle care

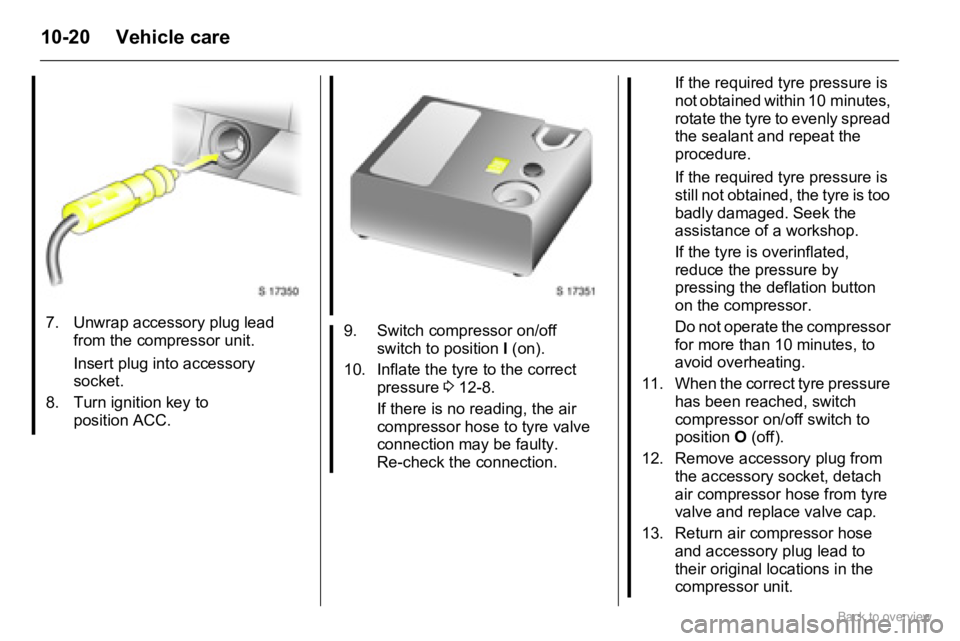

7. Unwrap accessory plug lead
from the compressor unit.
Insert plug into accessory
socket.
8. Turn ignition key to
position ACC.9. Switch compressor on/off
switch to position I(on).
10. Inflate the tyre to the correct
pressure 3 12-8.
If there is no reading, the air
compressor hose to tyre valve
connection may be faulty.
Re-check the connection.
If the required tyre pressure is
not obtained within 10 minutes,
rotate the tyre to evenly spread
the sealant and repeat the
procedure.
If the required tyre pressure is
still not obtained, the tyre is too
badly damaged. Seek the
assistance of a workshop.
If the tyre is overinflated,
reduce the pressure by
pressing the deflation button
on the compressor.
Do not operate the compressor
for more than 10 minutes, to
avoid overheating.
11. When the correct tyre pressure
has been reached, switch
compressor on/off switch to
position O(off).
12. Remove accessory plug from
the accessory socket, detach
air compressor hose from tyre
valve and replace valve cap.
13. Return air compressor hose
and accessory plug lead to
their original locations in the
compressor unit.
