7-11Infotainment system
Operation of a handsfree attachment
with no outside antenna, using the
mobile telephone standards GSM
900/1800/1900 and UMTS, may take
place only if the maximum
transmission power of the mobile
telephone does not exceed 2 Watts,
in the case of GSM 900, and
otherwise 1 Watt.
For safety reasons, we recommend
that you do not use the phone while
driving. Even use of a handsfree set
can be a distraction while driving.
Observe any country-specific
regulations.
When used in the vehicle interior,
mobile telephones and radio
equipment (CB) with integrated
antenna may cause malfunctions in
the vehicle electronics.
9 Warning
Mobile telephones and radio
equipment (CB) should only be
used with an antenna fitted on the
vehicle exterior.

8-1 Climate controls
Climate controlsClimate control system
Ventilation, heating and cooling 3 are
combined into one unit that is
designed to provide comfort
regardless of the season, weather or
outside temperature.
Button for cooling n (or A/C) is only
present in version with air
conditioning system3.
Heating and ventilation
controls
TemperatureHeating and ventilation
controls............................... 8-1
Air vents ............................... 8-4
Heated rear window,
heated exterior mirrors 3 .... 8-5
Air intake .............................. 8-6
Pollen filter............................ 8-6
To red = Warm
To blue = Cold

8-2Climate controls

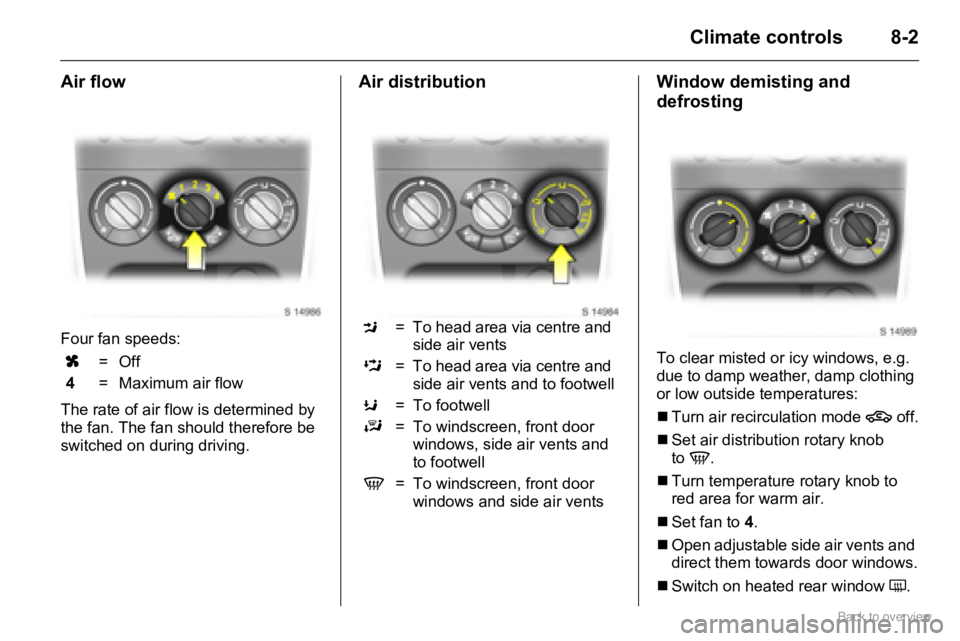

Air flow
Four fan speeds:
The rate of air flow is determined by
the fan. The fan should therefore be
switched on during driving.
Air distribution Window demisting and
defrosting
To clear misted or icy windows, e.g.
due to damp weather, damp clothing
or low outside temperatures:
„Turn air recirculation mode 4 off.
„Set air distribution rotary knob
toV.
„Turn temperature rotary knob to
red area for warm air.
„Set fan to 4.
„Open adjustable side air vents and
direct them towards door windows.
„Switch on heated rear window Ü. x=Off
4= Maximum air flow
M= To head area via centre and
side air vents
L= To head area via centre and
side air vents and to footwell
K= To footwell
J= To windscreen, front door
windows, side air vents and
to footwell
V= To windscreen, front door
windows and side air vents

8-3 Climate controls
For simultaneous warming of the
footwell, set air distribution rotary
knob to J.
Switch on air conditioning 3 to
improve defrosting efficiency when
position J or V is selected.
Air recirculation mode 3
During ’normal’ operation, the
heating, ventilation and air
conditioning system 3 uses outside
air. To prevent fumes or unpleasant
odours from entering the vehicle
when in stationary traffic and when
rapid heating or cooling of the
passenger compartment is required, press button 4; control indicator in
the button illuminates and air is
recirculated.
Press button 4 again to turn air
recirculation mode off; control
indicator in the button extinguishes
and outside air is drawn into the
vehicle.
Air conditioning system 3
Operational only with engine running
and with the fan switched on:
Control indicator in the button
illuminates when air conditioning is
enabled and extinguishes when the
system is switched off.
Cooling switches off automatically at
low outside temperatures.
Switch off cooling when not required,
in order to save fuel.
9 Warning
Air recirculation mode should only
be used for brief periods, due to
gradual deterioration in air quality
and an increase in humidity,
causing windows to mist up.
Driving with air recirculation mode
on for extended periods may
cause vehicle occupants to feel
drowsy.
Press button n (or A/C) = On
Press button again = Off

8-4Climate controls
Even with air conditioning on, if
temperature rotary knob is set to
warm, the vehicle will still produce
warm air in the passenger
compartment.
To improve efficiency of the air
conditioning, always close the
windows, to prevent chilled air from
escaping.
In very high temperatures, before
starting the engine, allow hot air to
escape from the vehicle by opening
the windows and switching on the
fan.
When the air conditioning system is
switched on, open adjustable side air
vents so that the evaporator does not
ice up due to lack of air movement.
When cooling (air conditioning
compressor) is switched on,
condensation forms, which is
expelled from the underside of the
vehicle.
To ensure continuously efficient
performance and prolong the life of
the air conditioning system, it must be switched on for a few minutes once a
week, irrespective of the weather and
time of year.
Malfunctions in the system must not
be rectified by the owner: seek the
assistance of a workshop.

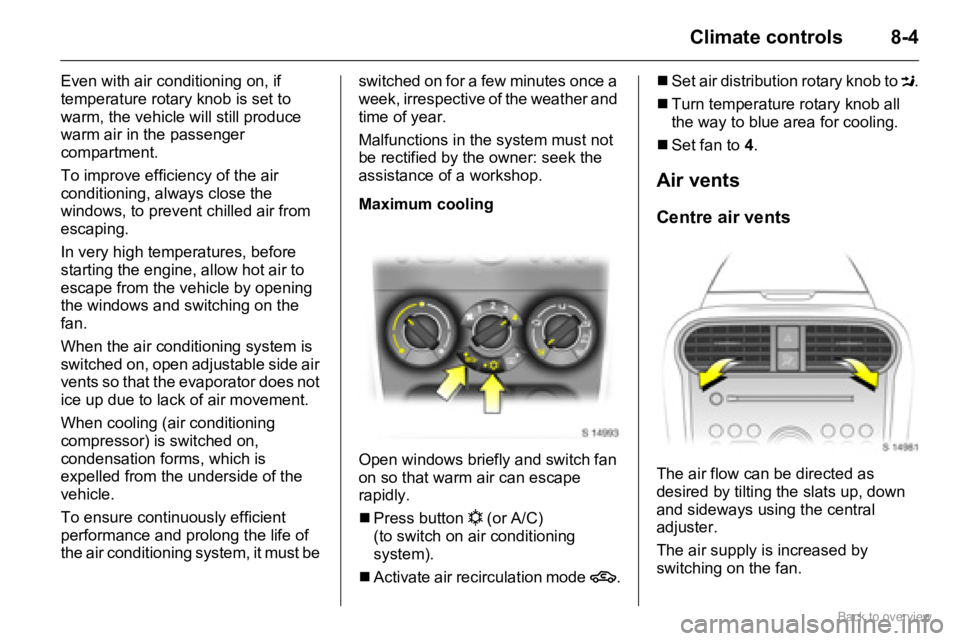

Maximum cooling
Open windows briefly and switch fan
on so that warm air can escape
rapidly.
„Press button n (or A/C)
(to switch on air conditioning
system).
„Activate air recirculation mode 4.„Set air distribution rotary knob to M.
„Turn temperature rotary knob all
the way to blue area for cooling.
„Set fan to 4.
Air vents
Centre air vents
The air flow can be directed as
desired by tilting the slats up, down
and sideways using the central
adjuster.
The air supply is increased by
switching on the fan.

8-5 Climate controls

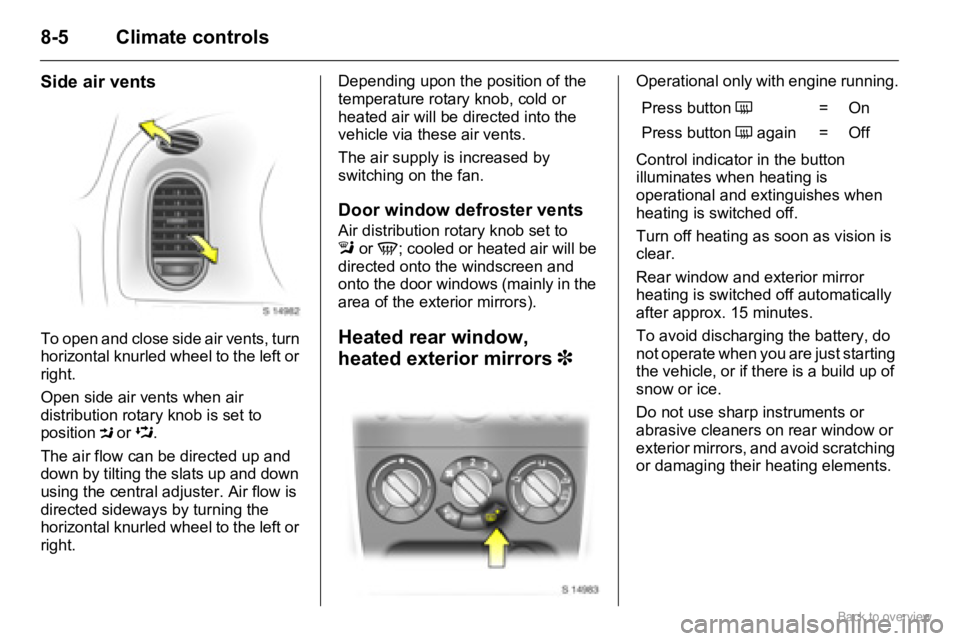

Side air vents
To open and close side air vents, turn
horizontal knurled wheel to the left or
right.
Open side air vents when air
distribution rotary knob is set to
position M or L.
The air flow can be directed up and
down by tilting the slats up and down
using the central adjuster. Air flow is
directed sideways by turning the
horizontal knurled wheel to the left or
right.Depending upon the position of the
temperature rotary knob, cold or
heated air will be directed into the
vehicle via these air vents.
The air supply is increased by
switching on the fan.
Door window defroster vents
Air distribution rotary knob set to
lorV; cooled or heated air will be
directed onto the windscreen and
onto the door windows (mainly in the
area of the exterior mirrors).
Heated rear window,
heated exterior mirrors3
Operational only with engine running.
Control indicator in the button
illuminates when heating is
operational and extinguishes when
heating is switched off.
Turn off heating as soon as vision is
clear.
Rear window and exterior mirror
heating is switched off automatically
after approx. 15 minutes.
To avoid discharging the battery, do
not operate when you are just starting
the vehicle, or if there is a build up of
snow or ice.
Do not use sharp instruments or
abrasive cleaners on rear window or
exterior mirrors, and avoid scratching
or damaging their heating elements.
Press button Ü=On
Press button Ü again = Off

8-6Climate controls
Maintenance

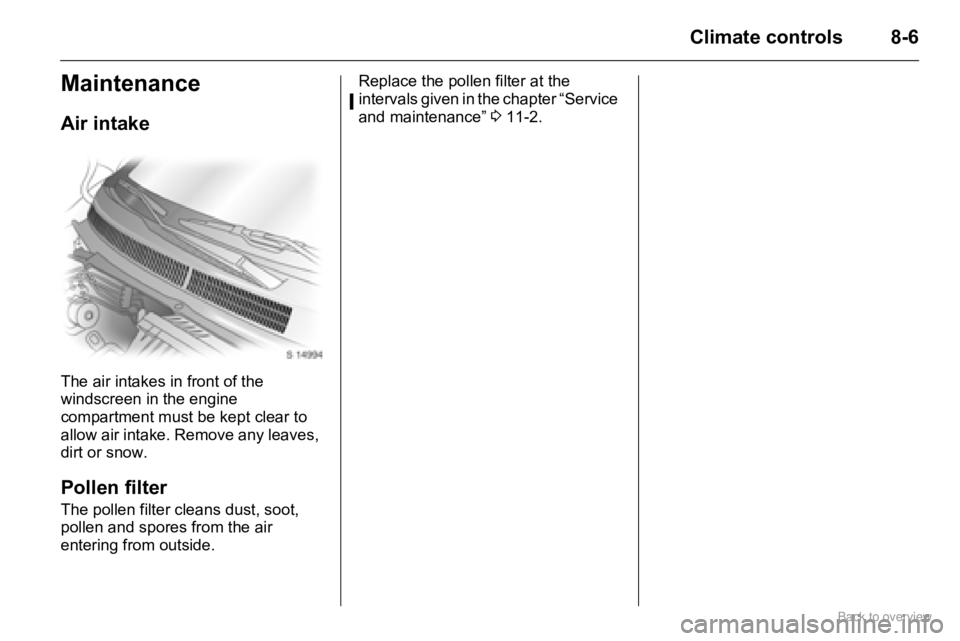

Air intake
The air intakes in front of the
windscreen in the engine
compartment must be kept clear to
allow air intake. Remove any leaves,
dirt or snow.
Pollen filter
The pollen filter cleans dust, soot,
pollen and spores from the air
entering from outside. Replace the pollen filter at the
intervals given in the chapter “Service
and maintenance” 311-2.

9-1 Driving and operating
Driving and
operatingStarting the vehicle
Driving hints
During the first 1000 km (600 miles),
drive your vehicle at various speeds.
Do not use full throttle. Never allow
the engine to labour at low revs.
Make good use of all gears. Depress
the accelerator pedal a maximum of
around three quarters of the available
pedal travel in all gears and drive
ranges.
Do not brake unnecessarily hard for
the first 200 km (125 miles).
When the vehicle is driven for the first
time, wax and oil on the exhaust
system may evaporate, producing
smoke-like emissions which should
not be inhaled. Allow wax and oil to
evaporate while the vehicle is in the
open air.
Never coast with engine not running
as many units may then not function
(e.g. brake servo unit, power
steering, airbag system). Driving in
this manner is a danger to yourself
and others.Pedals
To ensure the pedal travel is
uninhibited, there must be no mats in
the area of the pedals.

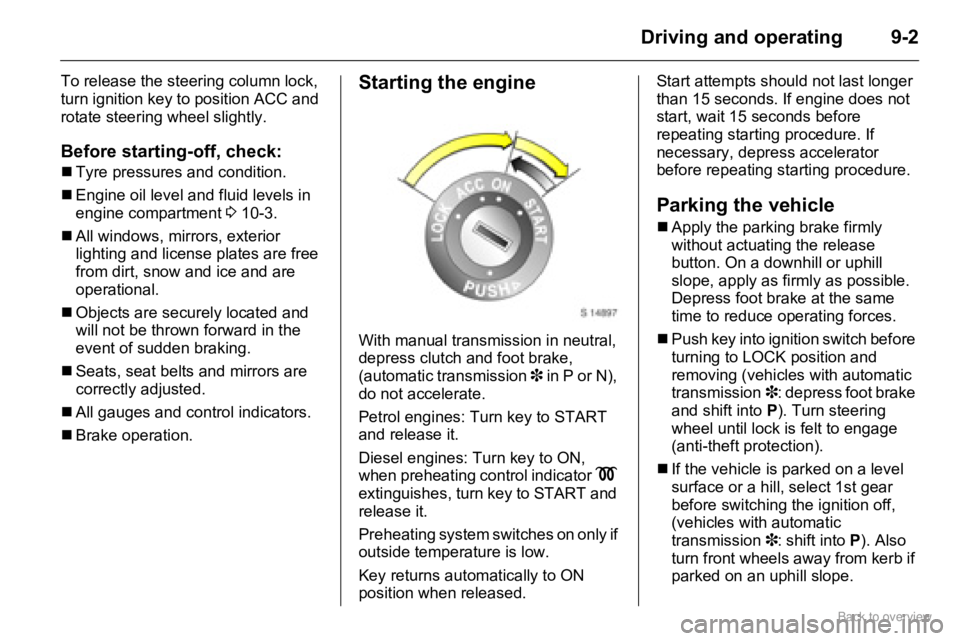

Ignition positionsStarting the vehicle ............... 9-1
Transmission ........................ 9-3
Engine exhaust..................... 9-7
Brakes .................................. 9-9
Ride control systems ............ 9-10
Fuel ...................................... 9-12

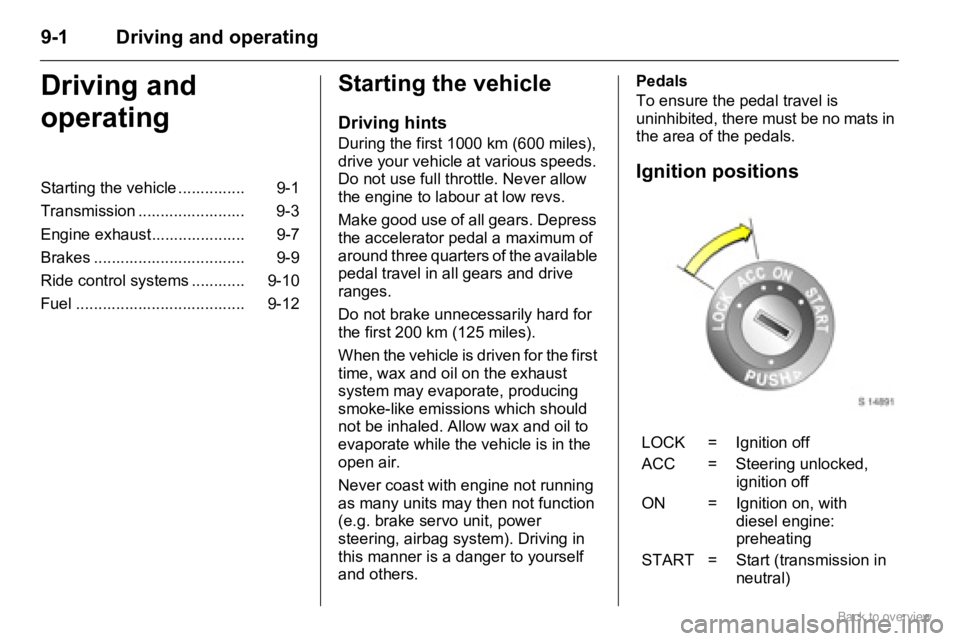

LOCK = Ignition off
ACC = Steering unlocked,
ignition off
ON = Ignition on, with
diesel engine:
preheating
START = Start (transmission in
neutral)

9-2Driving and operating
To release the steering column lock,
turn ignition key to position ACC and
rotate steering wheel slightly.
Before starting-off, check:
„Tyre pressures and condition.
„Engine oil level and fluid levels in
engine compartment 3 10-3.
„All windows, mirrors, exterior
lighting and license plates are free
from dirt, snow and ice and are
operational.
„Objects are securely located and
will not be thrown forward in the
event of sudden braking.
„Seats, seat belts and mirrors are
correctly adjusted.
„All gauges and control indicators.
„Brake operation.
Starting the engine
With manual transmission in neutral,
depress clutch and foot brake,
(automatic transmission 3 in P or N),
do not accelerate.
Petrol engines: Turn key to START
and release it.
Diesel engines: Turn key to ON,
when preheating control indicator N
extinguishes, turn key to START and
release it.
Preheating system switches on only if
outside temperature is low.
Key returns automatically to ON
position when released.Start attempts should not last longer
than 15 seconds. If engine does not
start, wait 15 seconds before
repeating starting procedure. If
necessary, depress accelerator
before repeating starting procedure.
Parking the vehicle
„Apply the parking brake firmly
without actuating the release
button. On a downhill or uphill
slope, apply as firmly as possible.
Depress foot brake at the same
time to reduce operating forces.
„Push key into ignition switch before
turning to LOCK position and
removing (vehicles with automatic
transmission3: depress foot brake
and shift into P). Turn steering
wheel until lock is felt to engage
(anti-theft protection).
„If the vehicle is parked on a level
surface or a hill, select 1st gear
before switching the ignition off,
(vehicles with automatic
transmission 3: shift into P). Also
turn front wheels away from kerb if
parked on an uphill slope.

9-3 Driving and operating
„If the vehicle is parked on a
downhill slope, select reverse gear
before switching the ignition off,
(vehicles with automatic
transmission 3: shift into P). Also
turn front wheels towards kerb.
„Switch off exterior lamps, otherwise
the headlamp warning device will
sound when the driver’s door is
opened.
„Cooling fans may run on after the
engine has been switched off 3
10-1.
Parking over things that
burn
Do not park vehicle on easily ignitable
surfaces as the hot exhaust system
temperatures could cause the
surface to ignite.
Transmission
Automatic transmission 3
The engine can only be started when
the selector lever is in position P or N.
When starting in P or N, depress foot
brake before selecting a gear, then
release the parking brake.
Do not accelerate whilst gearshifting.
If a gear has been selected and the
foot brake is released without
accelerating, the vehicle will "creep".
Never operate the foot brake and
accelerator simultaneously.
Selecting D puts the transmission in
automatic mode.
Only select 3, 2 or L to prevent
automatic upshifting above the
selected gear or as an aid to engine
braking.
The selected gear is shown in the
transmission display.

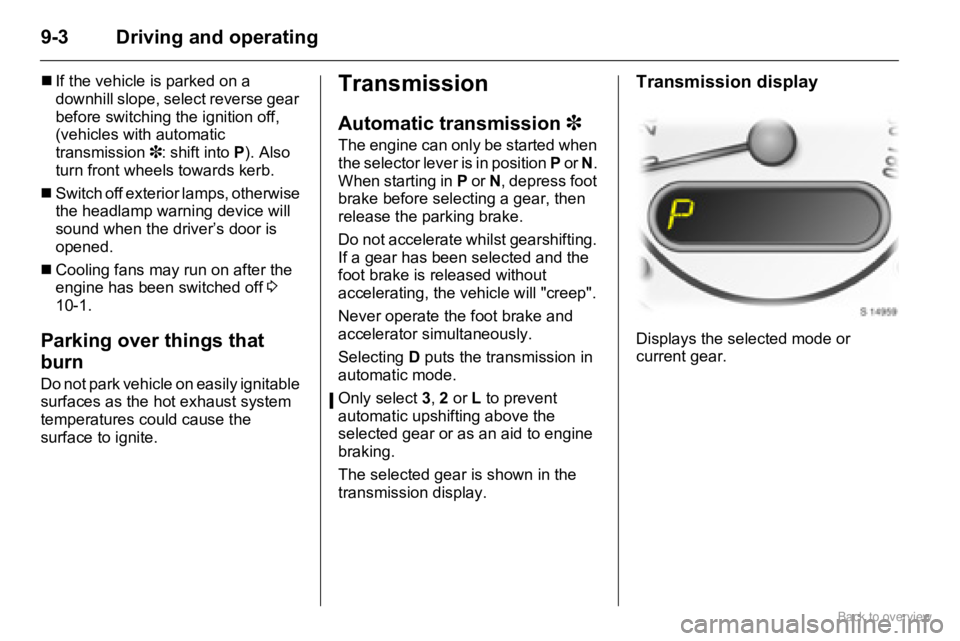

Transmission display
Displays the selected mode or
current gear.
