OPEL ANTARA 2009 Owner's Manual

Locks, doors, windows21
Locks, doors, windowsReplacement keys
The key is a constituent of the electronic
immobiliser. In case of loss, replacement
keys can be ordered from your Opel
Partner by quoting the key number and
Vehicle Identification Number (VIN).
Once a new transmitter is coded, the lost
transmitter will not unlock your vehicle.
Ordering keys from an Opel Partner
guarantees problem-free operation of the
electronic immobiliser.
Keep spare key in a safe place.
Locks - see page 205.
Car Pass
The Car Pass contains all of the vehicle’s
data and should therefore not be kept in
the vehicle.
Have your Car Pass on hand when
consulting an Opel Partner.

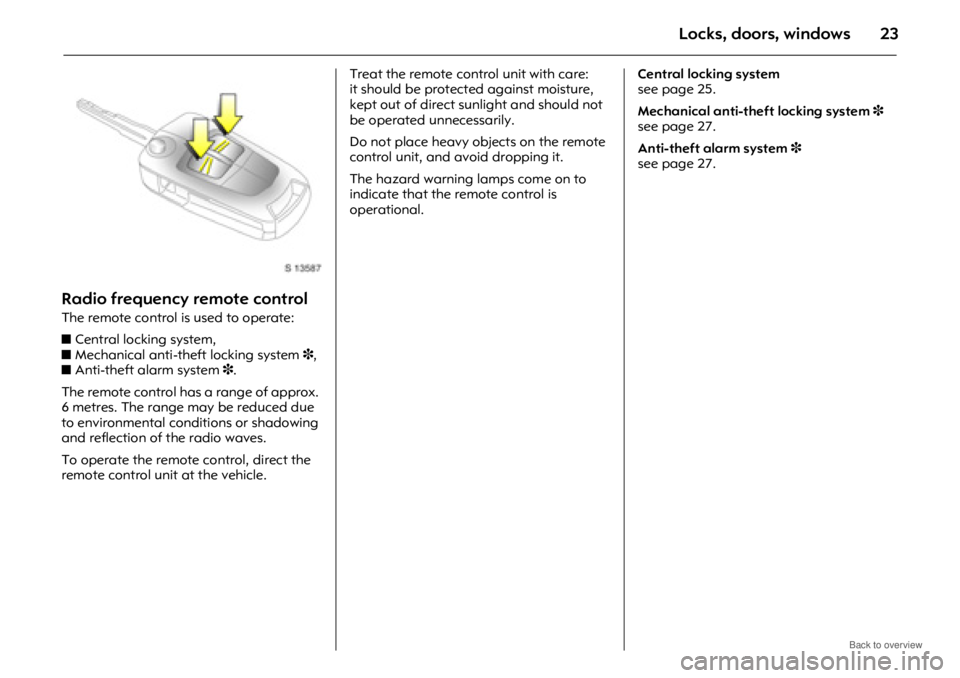

Key with foldaway key section 3
Press button to extend. Press button to
retract; key section audibly engages.
Replacement keys .............................. 21
Car Pass............................................... 21
Key with foldaway key section
3...... 21
Electronic immobiliser......................... 22
Radio frequency remote control ....... 23
Central locking system ....................... 25
Tailgate ............................................... 26
Mechanical anti-theft locking system 3........................................... 27
Anti-theft alarm system 3................. 27
Child safety locks ................................ 30
Exterior mirrors.................................... 30
Interior mirror ...................................... 31
Electric windows.................................. 32
Sun visors............................................. 34
Slide/tilt sun roof 3............................. 34

Locks, doors, windows22
Electronic immobiliser
The system checks whether the vehicle may
be started using the key that has been
inserted. If the key is recognised as
"authorised", the vehicle can be started.
The check is carried out via a transponder
housed in the key.
The electronic immobiliser is automatically
activated when the key is turned to LOCK
position and removed from the ignition
switch. Control indicator
o for immobiliser
The control indicator illuminates when the
ignition is switched on, then extinguishes.
If the control indicator stays illuminated
after the ignition is switched on, there is a
fault in the immobiliser system.
z Turn key to LOCK po sition and remove,
z wait approximately two seconds,
z then repeat starting procedure.
If the control indicator fails to extinguish,
try to start the engine using the spare key
and seek the assistance of a workshop. Note
The immobiliser does not lock the doors.
Therefore, after leaving the vehicle, always
lock it and switch on the anti-theft alarm
system 3
- see pages 25, 27.

Locks, doors, windows23
Radio frequency remote control
The remote control is used to operate:
z Central locking system,
z Mechanical anti-the ft locking system 3,
z Anti-theft alarm system 3.
The remote control has a range of approx.
6 metres. The range may be reduced due
to environmental conditions or shadowing
and reflection of the radio waves.
To operate the remote control, direct the
remote control unit at the vehicle. Treat the remote control unit with care:
it should be protected against moisture,
kept out of direct sunlight and should not
be operated unnecessarily.
Do not place heavy objects on the remote
control unit, and av
oid dropping it.
The hazard warning lamps come on to
indicate that the remote control is
operational. Central locking system
see page 25.
Mechanical anti-theft locking system
3
see page 27.
Anti-theft alarm system 3
see page 27.

Locks, doors, windows24
Fault
If the central locking system cannot be
operated with the remote control, this may
be due to the following reasons:
zThe remote control is out of range.
z The battery voltage of the remote
control is too low. Change the battery in
the remote control unit.
z The remote control has been repeatedly
operated outside the vehicle’s reception
range (e.g. at too great a distance from
the vehicle). The remote control must be
reprogrammed. We recommend you
consult your Opel Partner.
z The system has been overloaded as a
result of repeated operation at short
intervals. The power supply is cut-off for
a brief period.
z Interference from higher power radio
waves from other sources.
Lock or unlock the doors manually using
the key or central locking switch -
see page 25.
Have cause of fault remedied by a
workshop. Changing battery in remote control unit
Replace the battery in accordance with the
information on pages 206 to 212 or when
the range of the remote control starts to
become reduced.
Key with foldaway key section
:
open cover by hand.
Remove used battery, taking care to avoid
touching the circuit board to other
components.
Ensure the new battery is installed correctly
with positive (+) side facing up.
Close cover, ensuring it audibly engages in
the key part. Key with fixed key section
:
insert a small screwdriver in the notch on
the cover and prise it open.
Remove used battery, taking care to avoid
touching the circuit board to other
components.
Ensure the new battery is installed correctly
with positive (+) side facing down towards
the base.
Close cover, ensuring it audibly engages in
the key part.
9 Warning
Used lithium batteries can harm the
environment. Make sure that you dispose
of old batteries in accordance with
environmental protection regulations.
Do not dispose with household refuse.

Locks, doors, windows25
Central locking system
For front doors, rear doors, tailgate and
tank flap.
To lock:
Press button p on remote control
- or -
With the doors closed, press central locking
switch
m in driver’s door.
The central locking system can be
activated with the windows open.
Always ensure that the doors, bonnet,
tailgate, sun roof 3 and windows are
properly closed and that there are no
passengers left in the vehicle before
locking with the remote control. To unlock:
Press button
q on remote control
- or -
Press central locking switch
m in driver’s
door.
If no door is opened within approx.
30 seconds after the vehicle has been
unlocked via the remote control, the vehicle
is relocked automatically and anti-theft
alarm 3 is reactivated.
When button q is pressed, the instrument
panel illuminates for approx. 30 seconds or
until ignition switch is turned to the

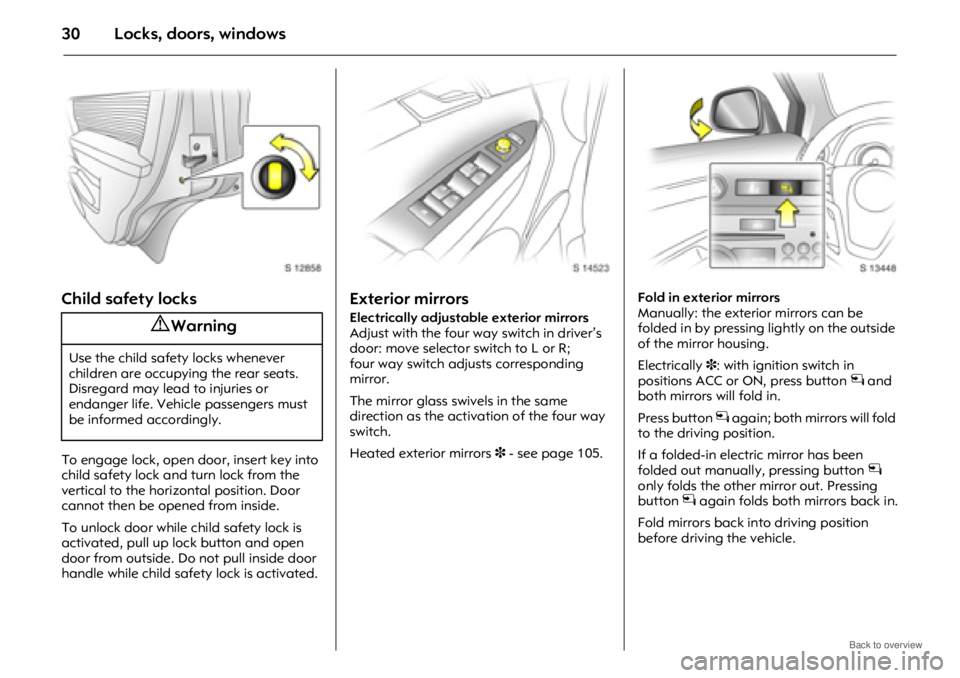

ACC position. Central locking switch
mUse the central locking switch to lock or
unlock the doors, tailgate and tank flap
from inside the vehicle.
Press the right part of the switch to lock or
the left part of the switch to unlock.9 Warning
For safety reasons, the vehicle cannot be
locked or unlocked via the remote control
(and the anti-theft system 3 will not be
activated) if the key is in the ignition
switch.

Locks, doors, windows26

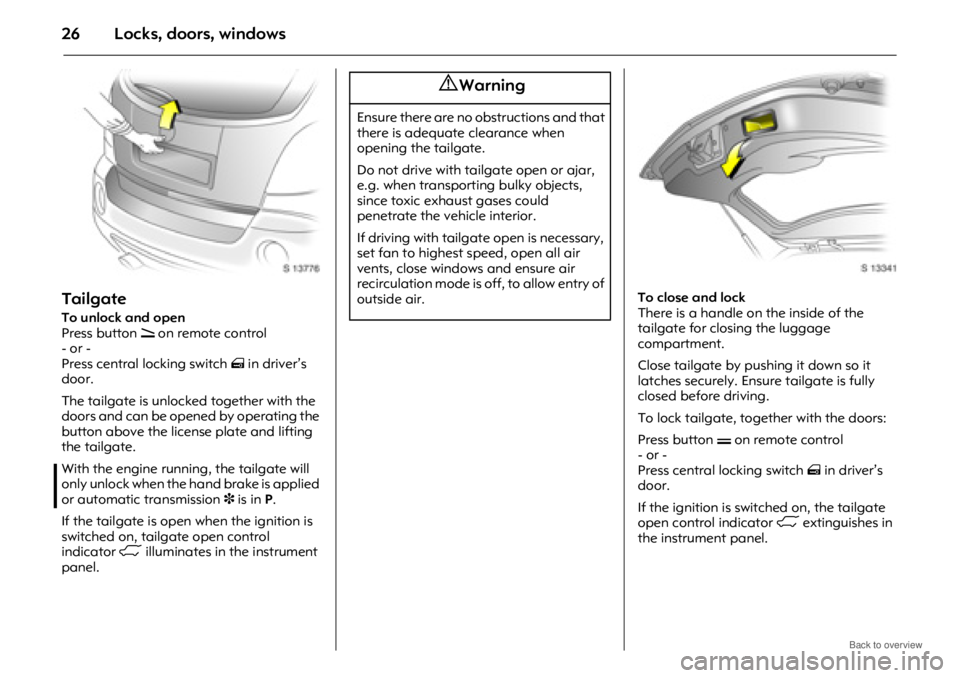

Tailgate
To unlock and open
Press button q on remote control
- or -
Press central locking switch
m in driver’s
door.
The tailgate is unlocked together with the
doors and can be opened by operating the
button above the license plate and lifting
the tailgate.
With the engine running, the tailgate will
only unlock when the hand brake is applied
or automatic transmission 3 is in P.
If the tailgate is open when the ignition is
switched on, tailg ate open control
indicator 1 illuminates in the instrument
panel. To close and lock
There is a handle on the inside of the
tailgate for closing the luggage
compartment.
Close tailgate by push
ing it down so it
latches securely. Ensure tailgate is fully
closed before driving.
To lock tailgate, together with the doors:
Press button p on remote control
- or -
Press central locking switch
m in driver’s
door.
If the ignition is switched on, the tailgate
open control indicator 1 extinguishes in
the instrument panel.
9 Warning
Ensure there are no obstructions and that
there is adequate clearance when
opening the tailgate.
Do not drive with tailgate open or ajar,
e.g. when transporting bulky objects,
since toxic exhaust gases could
penetrate the vehicle interior.
If driving with tailgat e open is necessary,
set fan to highest speed, open all air
vents, close windows and ensure air
recirculation mode is off, to allow entry of
outside air.

Locks, doors, windows27
Mechanical anti-theft locking
system 3
To lock:
All doors and the tailgate must be closed;
press button p on remote control again
within 3 seconds after locking
- or -
Turn key in driver's door lock towards rear
of vehicle again within 3 seconds after
locking, then turn it back to the vertical
position and remove.
Lock buttons on all doors are positioned
such that doors cannot be opened. To unlock
:
Press button q on remote control
- or -
Turn key in driver's d oor lock towards front
of vehicle, then turn it back to the vertical
position and remove.Anti-theft alarm system 3
The system monitors:
zFront and rear doors.
z Tailgate, bonnet.
z Ignition switch.
z Passenger compartment 3.
z Vehicle tilt, e.g. if it is raised 3.
z Siren power supply 3.
9 Warning
Do not use the system if there are people
in the vehicle. The doors cannot be
unlocked from inside.
9 Warning
Unlocking is not possible in any other
way, so keep spare key in a safe place.

Locks, doors, windows28
The remote control unit is used to operate
the anti-theft alarm system.
To activate
Always ensure that the doors, bonnet,
tailgate, sun roof 3 and windows are
properly closed and that there are no
passengers left in the vehicle before
activating anti-theft alarm system.
Press button p on remote control
- or -
Lock driver’s door by turning key in door
lock towards rear of vehicle then turn it
back to the vertical position and remove;
z Hazard warning lamps flash once,
z All doors are locked,
z Anti-theft system is activated after
approx. 30 seconds. Confirm that the cont
rol indicator starts
flashing slowly, after illuminating for
approx. 30 seconds, to show that the anti-
theft system has been activated.
If button p is pressed again, the anti-theft
alarm system will activate automatically,
bypassing the 30 second delay.
If the hazard warning lamps do not flash
on activation or the control indicator
flashes quickly, this may indicate that a
door, the tailgate or the bonnet is not fully
closed. Activation without monitoring of
passenger compartment and vehicle tilt
3
Switch on when, for example, animals are
to be left in the vehicle.
9 Warning
Do not use the system if there are
passengers in the vehicle. The doors
cannot be unlocked from the inside when
the alarm is activated.
1. Close tailgate and bonnet.
2. Press button
a in the roof lining.
Control indicator a illuminates in
yellow in the instrument panel.
3. Close doors.
4. Switch on anti-theft alarm system. Control indicator for anti-theft alarm
system illuminates. After a 30 second
delay, the system is activated without
monitoring of the passenger
compartment or vehicle tilt.
Control indicator
a remains
illuminated in the instrument panel
until the system is switched off by
pressing button
a again.

Locks, doors, windows29
Control indicator for anti-theft alarm
system3
The control indicator illuminates to show
that the system is operational when the
doors are locked with the remote control or
the key. When the doors are unlocked with
the key or remote control, the control
indicator extinguishes. To deactivate
Press button
q on remote control
- or -
Unlock driver’s door by turning key in door
lock towards front of vehicle, then turn it
back to the vertical position and remove:
z Hazard warning lamps flash twice,
z All doors are unlocked,
z Anti-theft system is deactivated.
If the driver’s door is not opened, or the
engine is not started within 30 seconds of
deactivation, all doors are automatically
relocked and the system is reactivated.
If the alarm has been triggered, the hazard
warning lamps will not flash upon
deactivation.
Note
The anti-theft alarm system cannot be
deactivated in any other way, so keep a
spare key in a safe place.
Changes to the vehicle interior, such as the
use of seat covers, could impair the
function of passenger compartment
monitoring 3. Alarm
While the alarm system is switched on, the
alarm can be triggered, indicated by:
z
an acoustic signal (horn) and
z a visual signal (exterior lamps).
The number and duration of the alarms are
legally established.
The alarm is stopped by pressing q or p
on the remote control or by unlocking
the driver’s door with the correct key.
The anti-theft alarm system is deactivated
at the same time.

Locks, doors, windows30
Child safety locks
To engage lock, open door, insert key into
child safety lock and turn lock from the
vertical to the horizontal position. Door
cannot then be opened from inside.
To unlock door while child safety lock is
activated, pull up lock button and open
door from outside. Do not pull inside door
handle while child safety lock is activated.
Exterior mirrors
Electrically adjustable exterior mirrors
Adjust with the four way switch in driver’s
door: move selector switch to L or R;
four way switch adjusts corresponding
mirror.
The mirror glass swivels in the same
direction as the activation of the four way
switch.
Heated exterior mirrors 3 - see page 105. Fold in exterior mirrors
Manually: the exterior mirrors can be
folded in by pressing lightly on the outside
of the mirror housing.
Electrically
3: with ignition switch in
positions ACC or ON, press button n and
both mirrors will fold in.
Press button n again; both mirrors will fold
to the driving position.
If a folded-in electric mirror has been
folded out manually, pressing button n
only folds the other mirror out. Pressing
button n again folds both mirrors back in.
Fold mirrors back in to driving position
before driving the vehicle.9 Warning
Use the child safety locks whenever
children are occupying the rear seats.
Disregard may lead to injuries or
endanger life. Vehicle passengers must
be informed accordingly.
