In brief9Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Manual anti-dazzle interior mirror
3 26, Automatic anti-dazzle interior
mirror 3 27.
Exterior mirrors
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 25,
Electric adjustment 3 25, Folding
exterior mirrors 3 25, Heated
exterior mirrors 3 26.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 39, Ignition
positions 3 116.

10In briefInstrument panel overview

In brief111Power windows .....................28
2 Exterior mirrors .....................25
3 Cruise control .....................130
Speed limiter ....................... 131
4 Side air vents ...................... 113
5 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist .................100
Exit lighting ......................... 104
Parking lights ...................... 101
Buttons for Driver
Information Centre ................73
6 Instruments .......................... 62
7 Steering wheel controls .......57
8 Driver Information Centre ...... 73
9 Windscreen wiper,
windscreen washer
system, headlight washer
system, rear window
wiper, rear window washer
system ................................... 58
10 Central locking system ..........20
Hazard warning flashers ....100Control indicator for airbag
deactivation .......................... 68
Control indicator for front
passenger seat belt .............68
11 Info Display ........................... 77
12 Centre air vents .................. 113
13 Glovebox .............................. 48
14 Traction Control system
(TC) ..................................... 128
Electronic Stability Control (ESC) .................................. 129
Parking assist systems .......133
Unlock button for boot lid ......23
15 Climate control system ........ 106
16 AUX input, USB input, SD
card slot ................................ 10
17 Power outlet .......................... 62
18 Selector lever, manual
transmission ....................... 124
Automatic transmission ......121
19 Electric parking brake .........126
20 Ignition switch with
steering wheel lock ............11621Horn ..................................... 58
Driver airbag ........................ 40
22 Bonnet release lever ..........140
23 Storage compartment,
fuse box ............................. 157
24 Steering wheel adjustment ..57
25 Light switch .......................... 93
Headlight range
adjustment ........................... 96
Front fog lights ...................101
Rear fog light ...................... 101
Instrument illumination .......102

12In briefExterior lighting

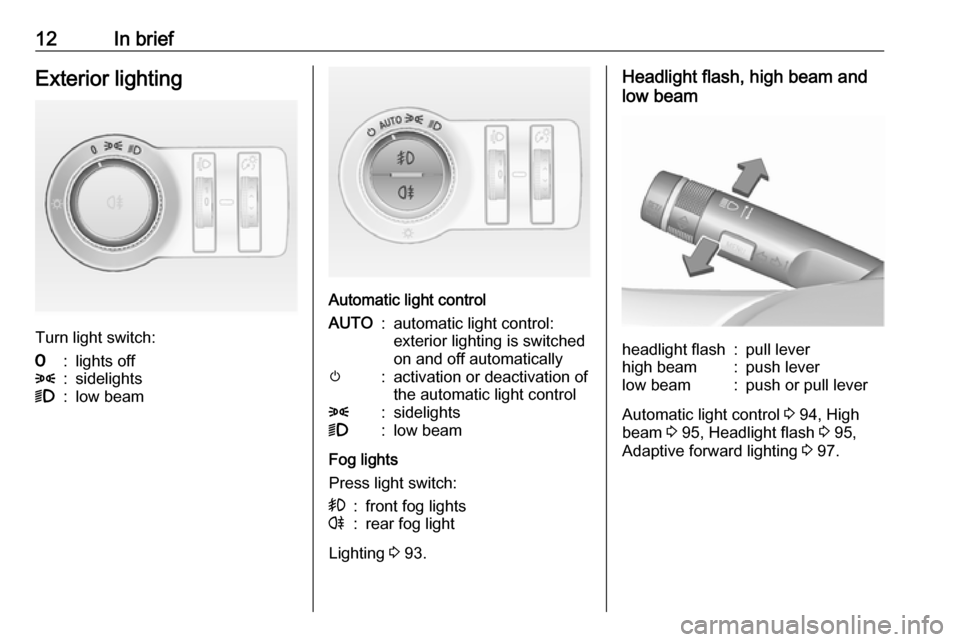

Turn light switch:
7:lights off8:sidelights9:low beam
Automatic light control
AUTO:automatic light control:
exterior lighting is switched
on and off automaticallym:activation or deactivation of
the automatic light control8:sidelights9:low beam
Fog lights
Press light switch:
>:front fog lightsr:rear fog light
Lighting 3 93.
Headlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:push or pull lever
Automatic light control 3 94, High
beam 3 95, Headlight flash 3 95,
Adaptive forward lighting 3 97.

In brief13Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 100, Parking lights 3 101.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 100.
Horn
Press j.

14In briefClimate control
Heated rear window, heated
exterior mirrors
The heating is operated by pressing
Ü .
Heated rear window 3 30.
Demisting and defrosting the
windows
Press V.
Set the temperature control to the
highest level.
Heated rear window Ü on.
Climate control system 3 106.
Washer and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping or automatic
wiping with rain sensorOFF:off
For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.
Windscreen wiper 3 58, Wiper
blade replacement 3 145.

In brief15Windscreen and headlight
washer
Pull lever.
Windscreen and headlight washer
system 3 58, Washer fluid 3 143.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal, press the
release button on the selector lever
and engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 124.
Automatic transmissionP:parkR:reverseN:neutralD:automatic modeM:manual mode: move selector
lever from D to the left.<:manual mode upshifting]:manual mode downshifting
The selector lever can only be moved
out of P when the ignition is on and
the brake pedal is applied. To engage
P or R, press the release button.
Automatic transmission 3 121.

16In briefStarting off
Check before starting off ● Tyre pressure and condition 3 160, 3 186.
● Engine oil level and fluid levels 3 141.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats, and seat belts 3 25, 3 32,
3 37.
● Brake function at low speed, particularly if the brakes are wet.Starting the engine
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Operate clutch and brake.
● Automatic transmission in P or N.
● Do not operate accelerator pedal.
● Turn key to position 3 and
release.
Starting the engine 3 117.
Parking9 Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply the parking brake. Activate the manual
parking brake without pressing the release button. Apply as
firmly as possible on a downhill slope or uphill slope. Depress
brake pedal at the same time to
reduce operating force.
For vehicles with electric
parking brake, pull switch m for
approx. one second.
The electric parking brake is
applied when control indicator
m illuminates 3 69.
● Switch off the engine.
● If the vehicle is on a level surface or uphill slope, engage
first gear or set the selector

In brief17lever to position P before
removing the ignition key. On
an uphill slope, turn the front
wheels away from the kerb.
If the vehicle is on a downhill
slope, engage reverse gear or
set the selector lever to position P before removing the ignition
key. Turn the front wheels
towards the kerb.
● Close the windows.
● Remove the ignition key from the ignition switch. Turn the
steering wheel until the
steering wheel lock is felt to
engage.
For vehicles with automatic
transmission, the key can only
be removed when the selector
lever is in position P.
●
Lock the vehicle by pressing e on
the radio remote control.
● The engine cooling fans may run
after the engine has been
switched off 3 140.
Caution
After running at high engine
speeds or with high engine loads,
operate the engine briefly at a low load or run in neutral for
approx. 30 seconds before
switching off, in order to protect
the turbocharger.
Keys, locks 3 18, Laying the vehicle
up for a long period of time 3 139.

18Keys, doors and windowsKeys, doors and
windowsKeys, locks ................................... 18
Keys .......................................... 18
Radio remote control .................19
Memorised settings ...................20
Central locking system ..............20
Automatic locking ......................22
Child locks ................................. 22
Doors ........................................... 23
Load compartment ....................23
Vehicle security ............................ 24
Anti-theft locking system ...........24
Immobiliser ................................ 24
Exterior mirrors ............................ 25
Convex shape ........................... 25
Electric adjustment ....................25
Folding mirrors .......................... 25
Heated mirrors ........................... 26
Interior mirrors ............................. 26
Manual anti-dazzle ....................26
Automatic anti-dazzle ................27
Windows ...................................... 27
Windscreen ............................... 27
Manual windows ........................27Power windows ......................... 28
Heated rear window ..................30
Sun visors .................................. 30Keys, locks
KeysCaution
Do not attach heavy or bulky items to the ignition key.
Replacement keys
The key number is specified on a
detachable tag.
The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.
Locks 3 174.
The code number of the adapter for
the locking wheel nuts is specified on
a card. It must be quoted when
ordering a replacement adapter.
Wheel changing 3 166.
