OPEL ASTRA SALOON 2014 Service Manual

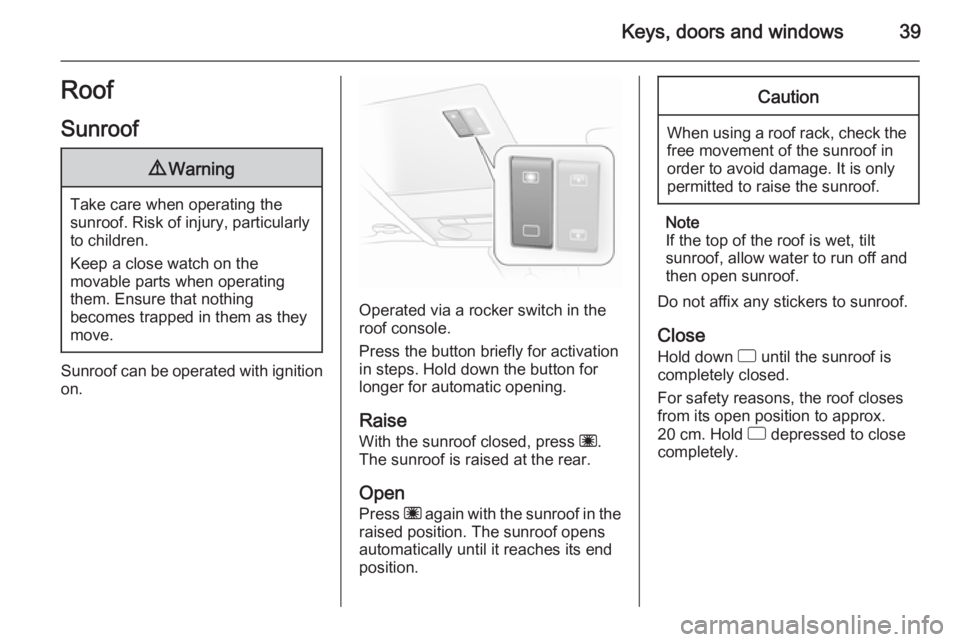

Keys, doors and windows39Roof
Sunroof9 Warning
Take care when operating the
sunroof. Risk of injury, particularly to children.
Keep a close watch on the
movable parts when operating
them. Ensure that nothing
becomes trapped in them as they
move.
Sunroof can be operated with ignition on.
Operated via a rocker switch in the
roof console.
Press the button briefly for activation
in steps. Hold down the button for
longer for automatic opening.
Raise
With the sunroof closed, press ü.
The sunroof is raised at the rear.
Open Press ü again with the sunroof in the
raised position. The sunroof opens
automatically until it reaches its end
position.
Caution
When using a roof rack, check the free movement of the sunroof in
order to avoid damage. It is only
permitted to raise the sunroof.
Note
If the top of the roof is wet, tilt
sunroof, allow water to run off and
then open sunroof.
Do not affix any stickers to sunroof.
Close
Hold down d until the sunroof is
completely closed.
For safety reasons, the roof closes
from its open position to approx.
20 cm. Hold d depressed to close
completely.

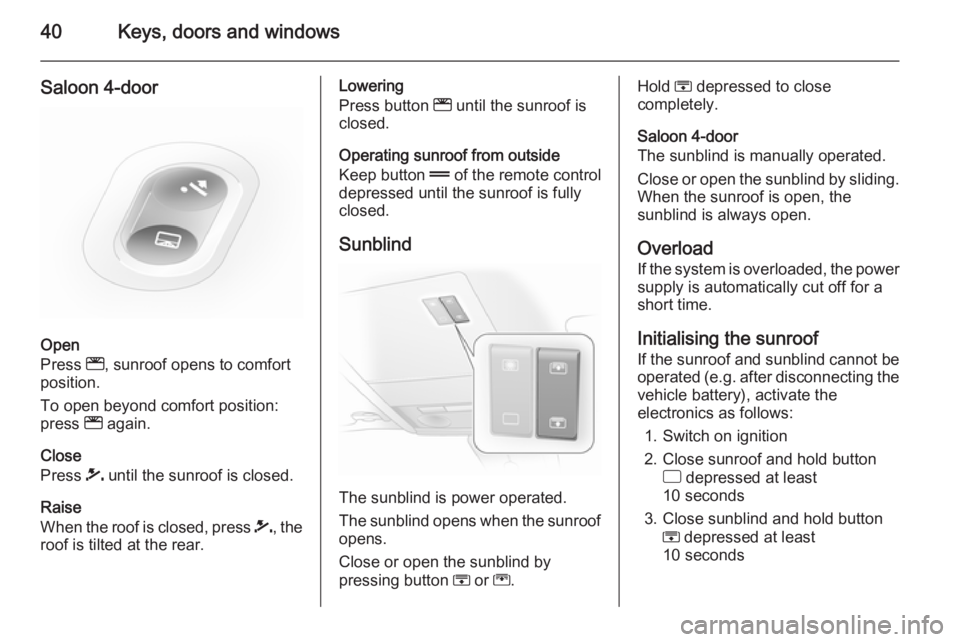

40Keys, doors and windows
Saloon 4-door
Open
Press l, sunroof opens to comfort
position.
To open beyond comfort position:
press l again.
Close
Press \ until the sunroof is closed.
Raise
When the roof is closed, press \, the
roof is tilted at the rear.
Lowering
Press button l until the sunroof is
closed.
Operating sunroof from outside
Keep button & of the remote control
depressed until the sunroof is fully
closed.
Sunblind
The sunblind is power operated.
The sunblind opens when the sunroof
opens.
Close or open the sunblind by
pressing button H or G.
Hold
H depressed to close
completely.
Saloon 4-door
The sunblind is manually operated.
Close or open the sunblind by sliding. When the sunroof is open, the
sunblind is always open.
Overload If the system is overloaded, the powersupply is automatically cut off for a
short time.
Initialising the sunroof
If the sunroof and sunblind cannot be operated (e.g. after disconnecting the
vehicle battery), activate the
electronics as follows:
1. Switch on ignition
2. Close sunroof and hold button d depressed at least
10 seconds
3. Close sunblind and hold button H depressed at least
10 seconds

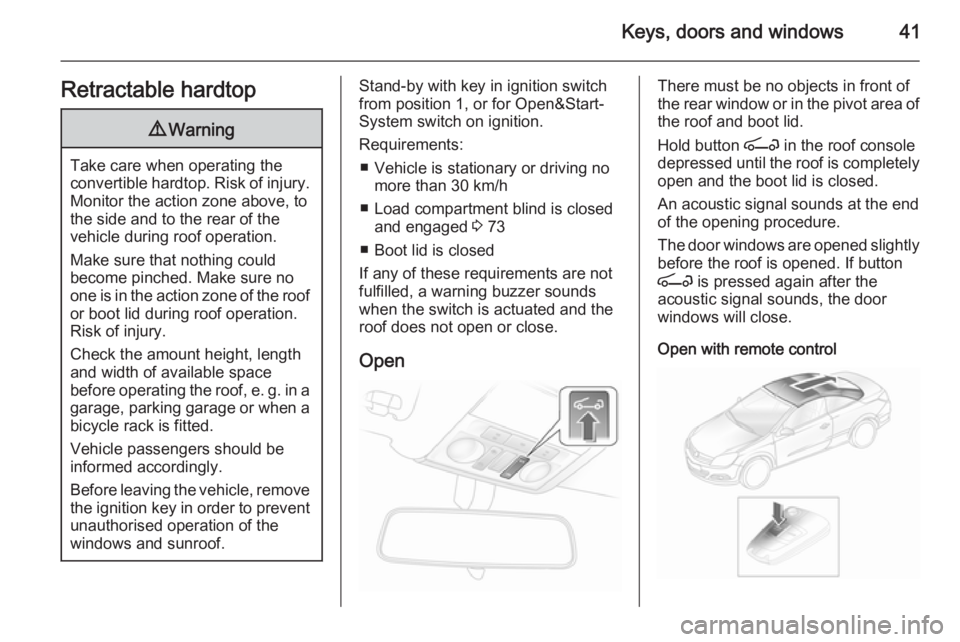

Keys, doors and windows41Retractable hardtop9Warning
Take care when operating the
convertible hardtop. Risk of injury. Monitor the action zone above, to
the side and to the rear of the
vehicle during roof operation.
Make sure that nothing could
become pinched. Make sure no
one is in the action zone of the roof
or boot lid during roof operation.
Risk of injury.
Check the amount height, length
and width of available space
before operating the roof, e. g. in a
garage, parking garage or when a bicycle rack is fitted.
Vehicle passengers should be
informed accordingly.
Before leaving the vehicle, remove
the ignition key in order to prevent unauthorised operation of the
windows and sunroof.
Stand-by with key in ignition switch from position 1, or for Open&Start-
System switch on ignition.
Requirements: ■ Vehicle is stationary or driving no more than 30 km/h
■ Load compartment blind is closed and engaged 3 73
■ Boot lid is closed
If any of these requirements are not
fulfilled, a warning buzzer sounds
when the switch is actuated and the
roof does not open or close.
OpenThere must be no objects in front of
the rear window or in the pivot area of the roof and boot lid.
Hold button > in the roof console
depressed until the roof is completely
open and the boot lid is closed.
An acoustic signal sounds at the end
of the opening procedure.
The door windows are opened slightly before the roof is opened. If button
> is pressed again after the
acoustic signal sounds, the door
windows will close.
Open with remote control

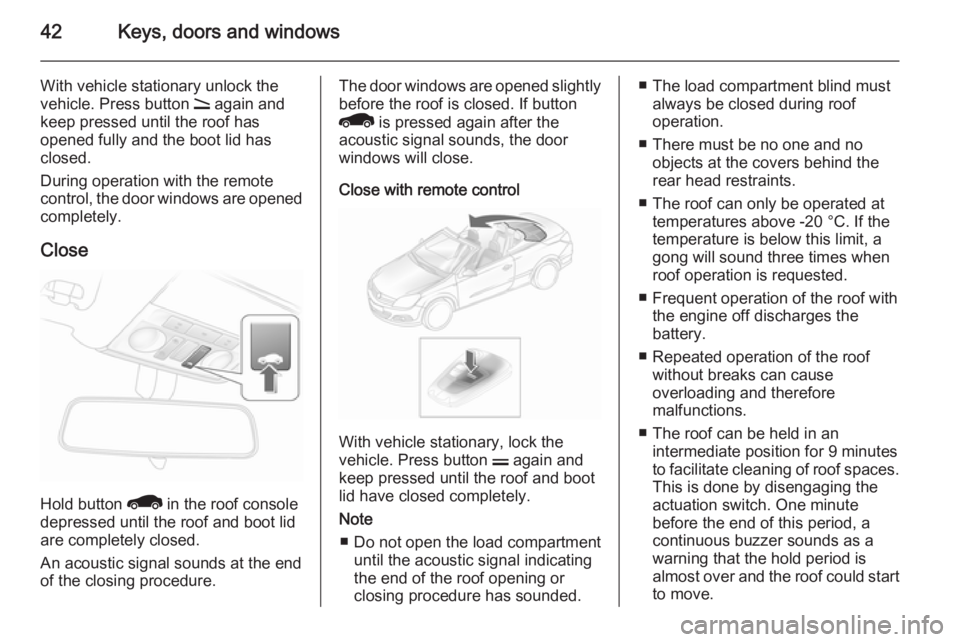

42Keys, doors and windows
With vehicle stationary unlock the
vehicle. Press button q again and
keep pressed until the roof has
opened fully and the boot lid has
closed.
During operation with the remote
control, the door windows are opened completely.
Close
Hold button < in the roof console
depressed until the roof and boot lid are completely closed.
An acoustic signal sounds at the end
of the closing procedure.
The door windows are opened slightly before the roof is closed. If button
< is pressed again after the
acoustic signal sounds, the door
windows will close.
Close with remote control
With vehicle stationary, lock the
vehicle. Press button p again and
keep pressed until the roof and boot
lid have closed completely.
Note ■ Do not open the load compartment until the acoustic signal indicating
the end of the roof opening or
closing procedure has sounded.
■ The load compartment blind must always be closed during roof
operation.
■ There must be no one and no objects at the covers behind the
rear head restraints.
■ The roof can only be operated at temperatures above -20 °C. If the
temperature is below this limit, a
gong will sound three times when
roof operation is requested.
■ Frequent operation of the roof with the engine off discharges the
battery.
■ Repeated operation of the roof without breaks can cause
overloading and therefore
malfunctions.
■ The roof can be held in an intermediate position for 9 minutes
to facilitate cleaning of roof spaces.
This is done by disengaging the
actuation switch. One minute
before the end of this period, a
continuous buzzer sounds as a
warning that the hold period is
almost over and the roof could start to move.

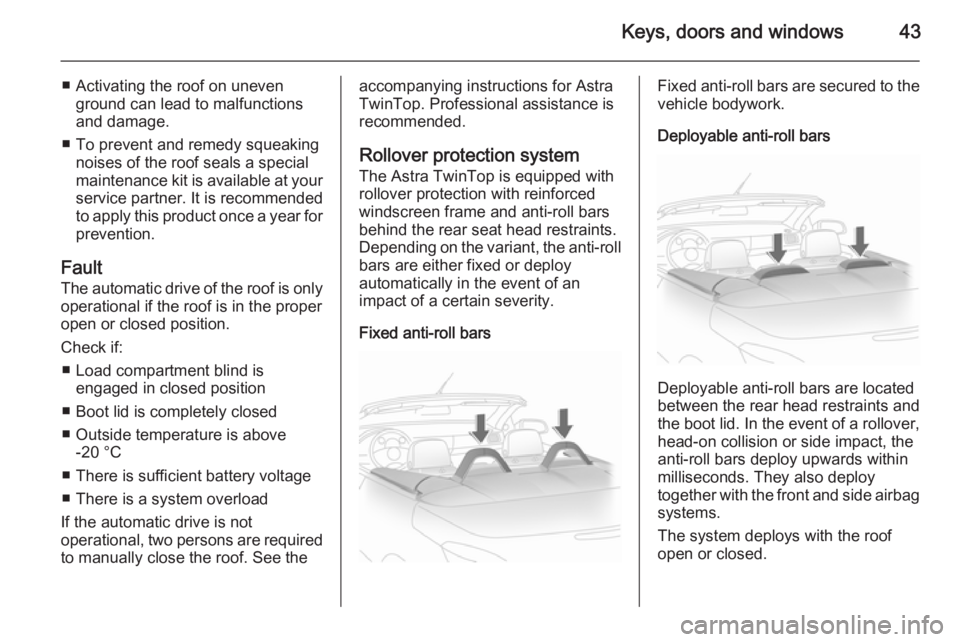

Keys, doors and windows43
■ Activating the roof on unevenground can lead to malfunctionsand damage.
■ To prevent and remedy squeaking noises of the roof seals a special
maintenance kit is available at your service partner. It is recommendedto apply this product once a year for prevention.
Fault
The automatic drive of the roof is only operational if the roof is in the proper
open or closed position.
Check if: ■ Load compartment blind is engaged in closed position
■ Boot lid is completely closed
■ Outside temperature is above -20 °C
■ There is sufficient battery voltage
■ There is a system overload
If the automatic drive is not
operational, two persons are required
to manually close the roof. See theaccompanying instructions for Astra
TwinTop. Professional assistance is recommended.
Rollover protection system The Astra TwinTop is equipped with
rollover protection with reinforced
windscreen frame and anti-roll bars
behind the rear seat head restraints.
Depending on the variant, the anti-roll
bars are either fixed or deploy
automatically in the event of an
impact of a certain severity.
Fixed anti-roll barsFixed anti-roll bars are secured to the vehicle bodywork.
Deployable anti-roll bars
Deployable anti-roll bars are located
between the rear head restraints and the boot lid. In the event of a rollover, head-on collision or side impact, the
anti-roll bars deploy upwards within
milliseconds. They also deploy
together with the front and side airbag
systems.
The system deploys with the roof
open or closed.

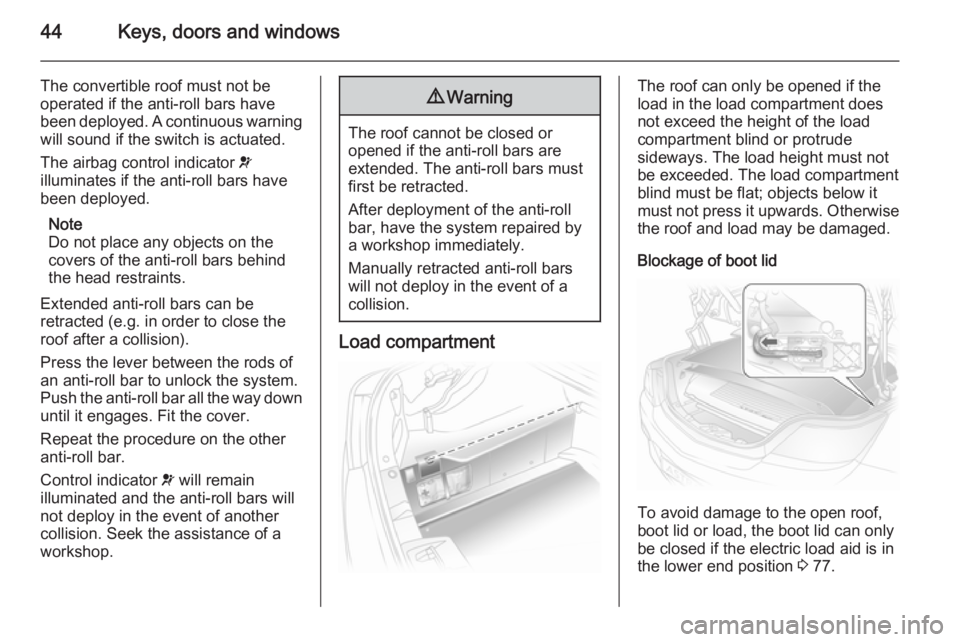

44Keys, doors and windows
The convertible roof must not be
operated if the anti-roll bars have
been deployed. A continuous warning will sound if the switch is actuated.
The airbag control indicator v
illuminates if the anti-roll bars have
been deployed.
Note
Do not place any objects on the
covers of the anti-roll bars behind
the head restraints.
Extended anti-roll bars can be
retracted (e.g. in order to close the
roof after a collision).
Press the lever between the rods of
an anti-roll bar to unlock the system.
Push the anti-roll bar all the way down
until it engages. Fit the cover.
Repeat the procedure on the other
anti-roll bar.
Control indicator v will remain
illuminated and the anti-roll bars will not deploy in the event of another
collision. Seek the assistance of a workshop.9 Warning
The roof cannot be closed or
opened if the anti-roll bars are
extended. The anti-roll bars must
first be retracted.
After deployment of the anti-roll
bar, have the system repaired by
a workshop immediately.
Manually retracted anti-roll bars
will not deploy in the event of a
collision.
Load compartment
The roof can only be opened if the
load in the load compartment does
not exceed the height of the load
compartment blind or protrude
sideways. The load height must not
be exceeded. The load compartment
blind must be flat; objects below it must not press it upwards. Otherwise the roof and load may be damaged.
Blockage of boot lid
To avoid damage to the open roof,
boot lid or load, the boot lid can only
be closed if the electric load aid is in
the lower end position 3 77.

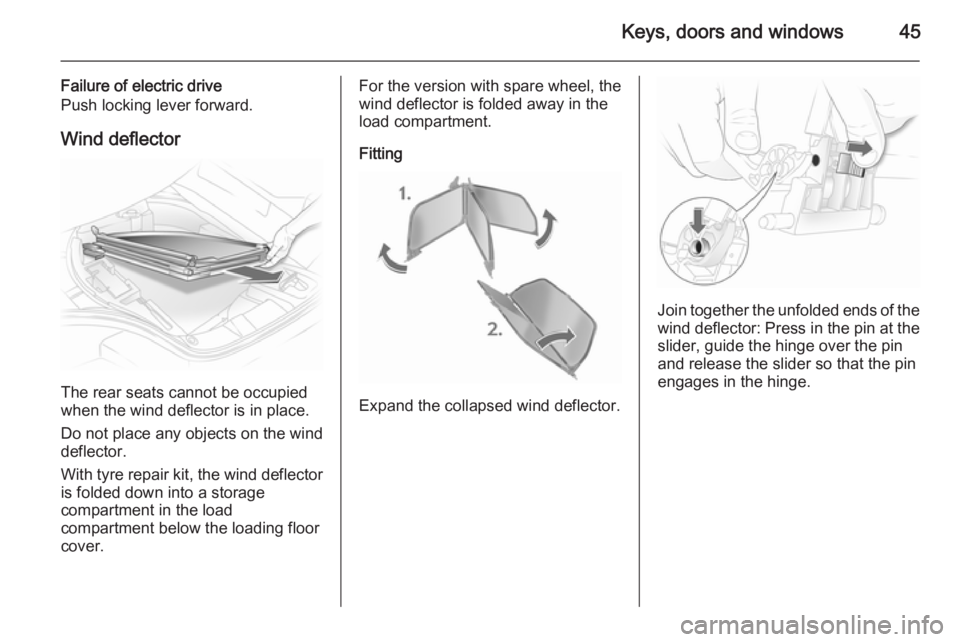

Keys, doors and windows45
Failure of electric drive
Push locking lever forward.
Wind deflector
The rear seats cannot be occupied
when the wind deflector is in place.
Do not place any objects on the wind deflector.
With tyre repair kit, the wind deflector is folded down into a storage
compartment in the load
compartment below the loading floor
cover.
For the version with spare wheel, the
wind deflector is folded away in the
load compartment.
Fitting
Expand the collapsed wind deflector.
Join together the unfolded ends of the wind deflector: Press in the pin at the
slider, guide the hinge over the pin
and release the slider so that the pin
engages in the hinge.

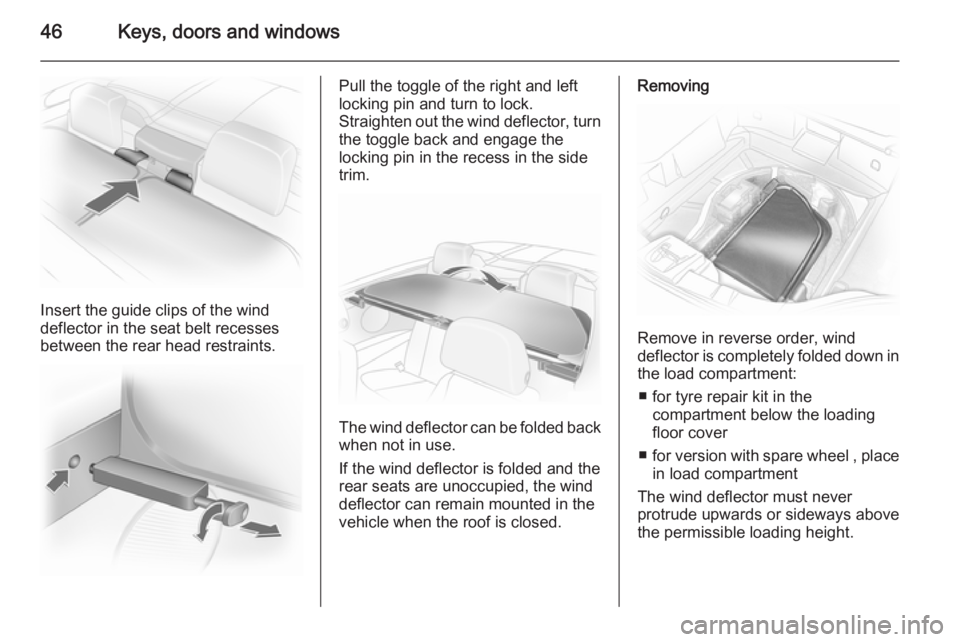

46Keys, doors and windows
Insert the guide clips of the wind
deflector in the seat belt recesses
between the rear head restraints.
Pull the toggle of the right and left
locking pin and turn to lock.
Straighten out the wind deflector, turn
the toggle back and engage the
locking pin in the recess in the side
trim.
The wind deflector can be folded back when not in use.
If the wind deflector is folded and the
rear seats are unoccupied, the wind
deflector can remain mounted in the
vehicle when the roof is closed.
Removing
Remove in reverse order, wind
deflector is completely folded down in
the load compartment:
■ for tyre repair kit in the compartment below the loading
floor cover
■ for version with spare wheel , place
in load compartment
The wind deflector must never
protrude upwards or sideways above
the permissible loading height.

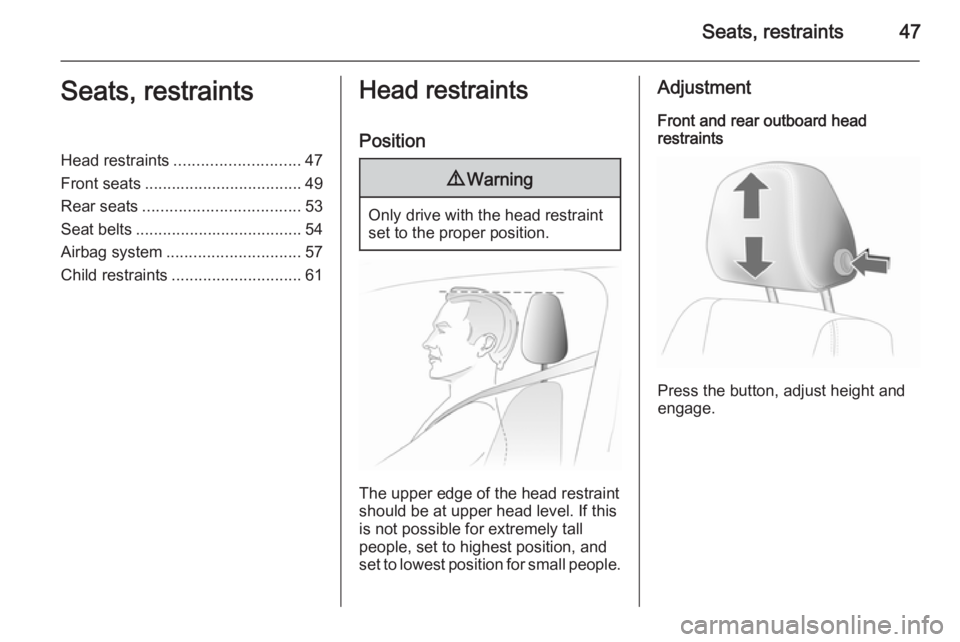

Seats, restraints47Seats, restraintsHead restraints............................ 47
Front seats ................................... 49
Rear seats ................................... 53
Seat belts ..................................... 54
Airbag system .............................. 57
Child restraints ............................. 61Head restraints
Position9 Warning
Only drive with the head restraint
set to the proper position.
The upper edge of the head restraint
should be at upper head level. If this
is not possible for extremely tall
people, set to highest position, and
set to lowest position for small people.
Adjustment
Front and rear outboard head
restraints
Press the button, adjust height and
engage.

48Seats, restraints
Rear centre head restraint
Pull the head restraint upwards or
press the catch to release and push the head restraint downwards.
Adjusting the rear head restraints,
Astra TwinTop
Pull the head restraint up or press
both catches to release and then
push the head restraint downwards.
Do not place any objects on the cover behind the head restraints or between
the head restraints and the anti-roll
bars.
Removing
Press the catches and pull up the
head restraint.
Active head restraints
In the event of a rear-end impact, the active head restraints tilt slightly
forwards. The head is more
effectively supported so the risk of
whiplash injury is reduced.
Active head restraints are identified
by the lettering ACTIVE on the head
restraint guide sleeves.
