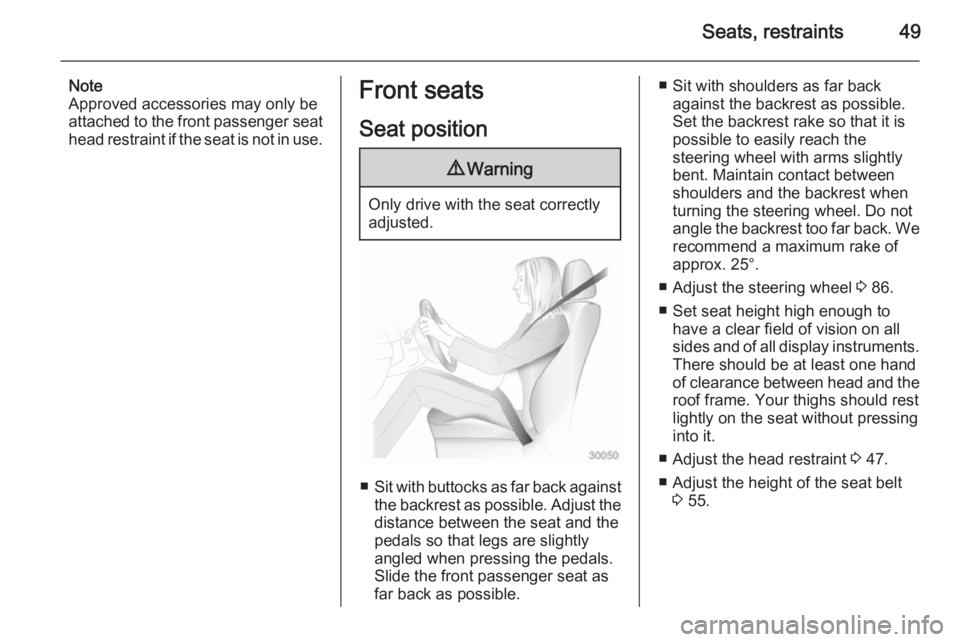

Seats, restraints49
Note
Approved accessories may only be
attached to the front passenger seat head restraint if the seat is not in use.Front seats
Seat position9 Warning
Only drive with the seat correctly
adjusted.
■ Sit with buttocks as far back against
the backrest as possible. Adjust the distance between the seat and the
pedals so that legs are slightly
angled when pressing the pedals.
Slide the front passenger seat as
far back as possible.
■ Sit with shoulders as far back against the backrest as possible.
Set the backrest rake so that it is possible to easily reach the
steering wheel with arms slightly bent. Maintain contact between
shoulders and the backrest when
turning the steering wheel. Do not
angle the backrest too far back. We recommend a maximum rake of
approx. 25°.
■ Adjust the steering wheel 3 86.
■ Set seat height high enough to have a clear field of vision on allsides and of all display instruments.
There should be at least one hand
of clearance between head and the
roof frame. Your thighs should rest
lightly on the seat without pressing
into it.
■ Adjust the head restraint 3 47.
■ Adjust the height of the seat belt 3 55.

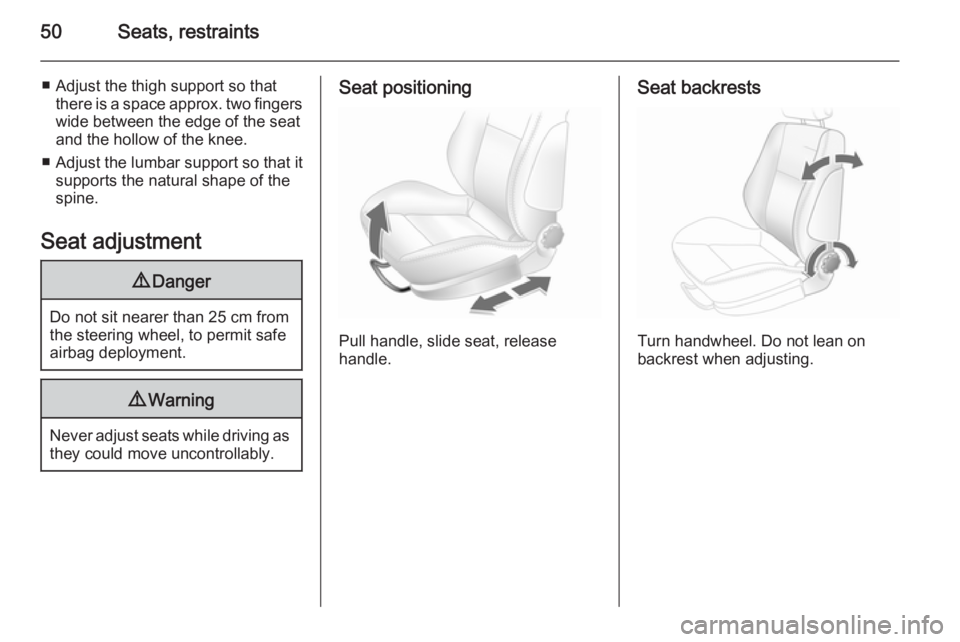

50Seats, restraints
■ Adjust the thigh support so thatthere is a space approx. two fingers
wide between the edge of the seat
and the hollow of the knee.
■ Adjust the lumbar support so that it
supports the natural shape of the
spine.
Seat adjustment9 Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.
9 Warning
Never adjust seats while driving as
they could move uncontrollably.
Seat positioning
Pull handle, slide seat, release
handle.
Seat backrests
Turn handwheel. Do not lean on
backrest when adjusting.

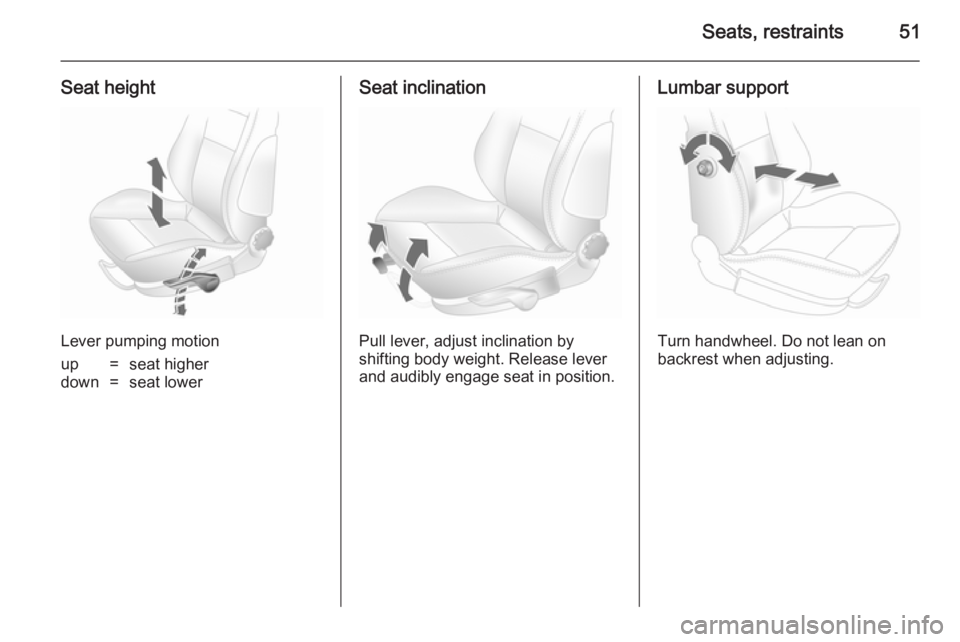

Seats, restraints51
Seat height
Lever pumping motion
up=seat higherdown=seat lowerSeat inclination
Pull lever, adjust inclination by
shifting body weight. Release lever
and audibly engage seat in position.
Lumbar support
Turn handwheel. Do not lean on
backrest when adjusting.

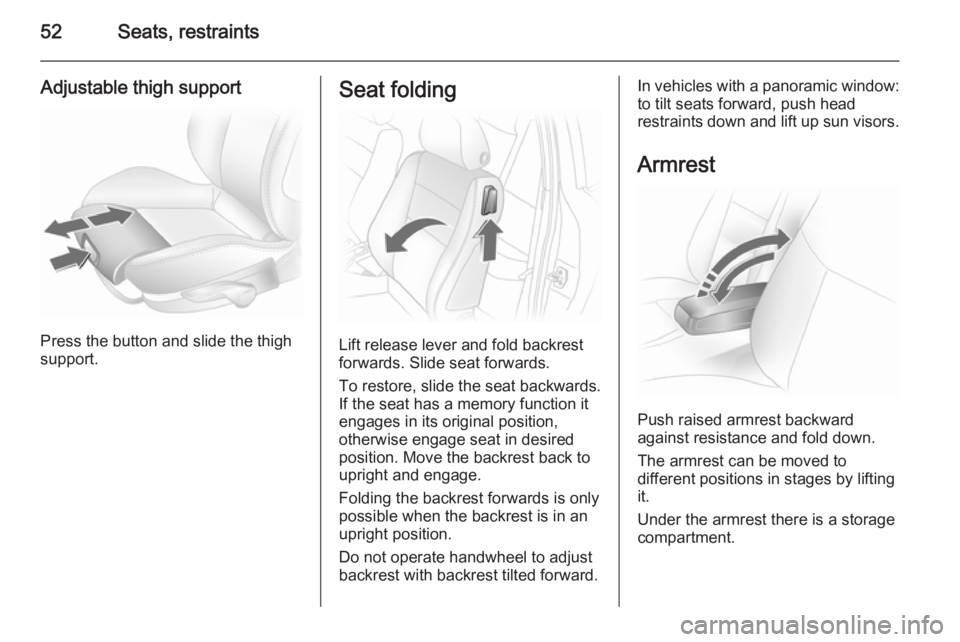

52Seats, restraints
Adjustable thigh support
Press the button and slide the thigh
support.
Seat folding
Lift release lever and fold backrest
forwards. Slide seat forwards.
To restore, slide the seat backwards.
If the seat has a memory function it
engages in its original position,
otherwise engage seat in desired
position. Move the backrest back to
upright and engage.
Folding the backrest forwards is only
possible when the backrest is in an
upright position.
Do not operate handwheel to adjust
backrest with backrest tilted forward.
In vehicles with a panoramic window:
to tilt seats forward, push head
restraints down and lift up sun visors.
Armrest
Push raised armrest backward
against resistance and fold down.
The armrest can be moved to
different positions in stages by lifting
it.
Under the armrest there is a storage
compartment.

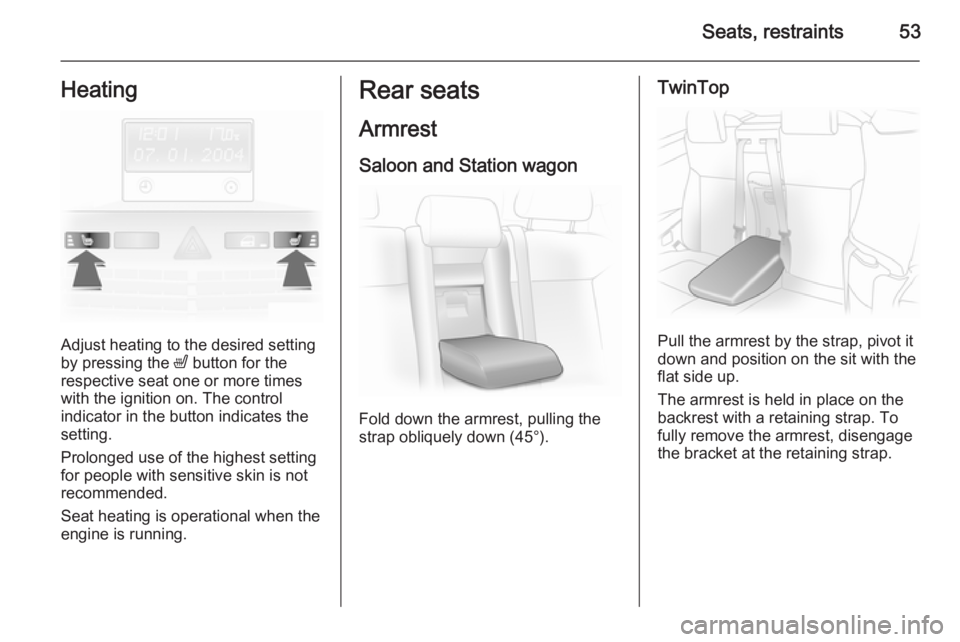

Seats, restraints53Heating
Adjust heating to the desired setting
by pressing the ß button for the
respective seat one or more times
with the ignition on. The control
indicator in the button indicates the
setting.
Prolonged use of the highest setting
for people with sensitive skin is not
recommended.
Seat heating is operational when the
engine is running.
Rear seats
Armrest
Saloon and Station wagon
Fold down the armrest, pulling the
strap obliquely down (45°).
TwinTop
Pull the armrest by the strap, pivot it
down and position on the sit with the
flat side up.
The armrest is held in place on the
backrest with a retaining strap. To
fully remove the armrest, disengage
the bracket at the retaining strap.

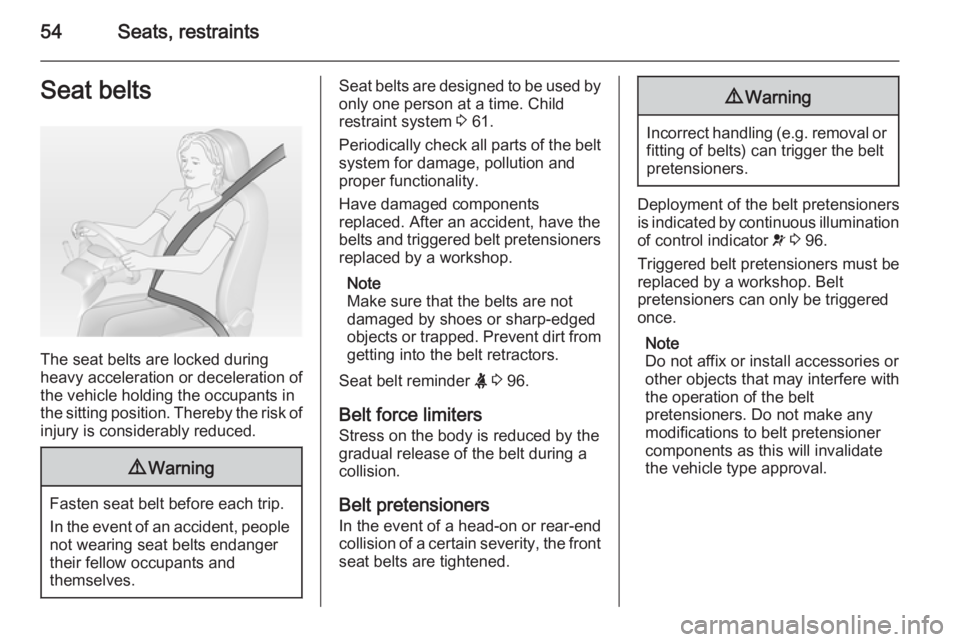

54Seats, restraintsSeat belts
The seat belts are locked during
heavy acceleration or deceleration of
the vehicle holding the occupants in
the sitting position. Thereby the risk of injury is considerably reduced.
9 Warning
Fasten seat belt before each trip.
In the event of an accident, people
not wearing seat belts endanger their fellow occupants and
themselves.
Seat belts are designed to be used by only one person at a time. Child
restraint system 3 61.
Periodically check all parts of the belt
system for damage, pollution and
proper functionality.
Have damaged components
replaced. After an accident, have the
belts and triggered belt pretensioners replaced by a workshop.
Note
Make sure that the belts are not
damaged by shoes or sharp-edged
objects or trapped. Prevent dirt from
getting into the belt retractors.
Seat belt reminder X 3 96.
Belt force limiters
Stress on the body is reduced by the
gradual release of the belt during a
collision.
Belt pretensionersIn the event of a head-on or rear-endcollision of a certain severity, the front
seat belts are tightened.9 Warning
Incorrect handling (e.g. removal or
fitting of belts) can trigger the belt
pretensioners.
Deployment of the belt pretensioners
is indicated by continuous illumination
of control indicator v 3 96.
Triggered belt pretensioners must be replaced by a workshop. Belt
pretensioners can only be triggered
once.
Note
Do not affix or install accessories or
other objects that may interfere with
the operation of the belt
pretensioners. Do not make any
modifications to belt pretensioner components as this will invalidate
the vehicle type approval.

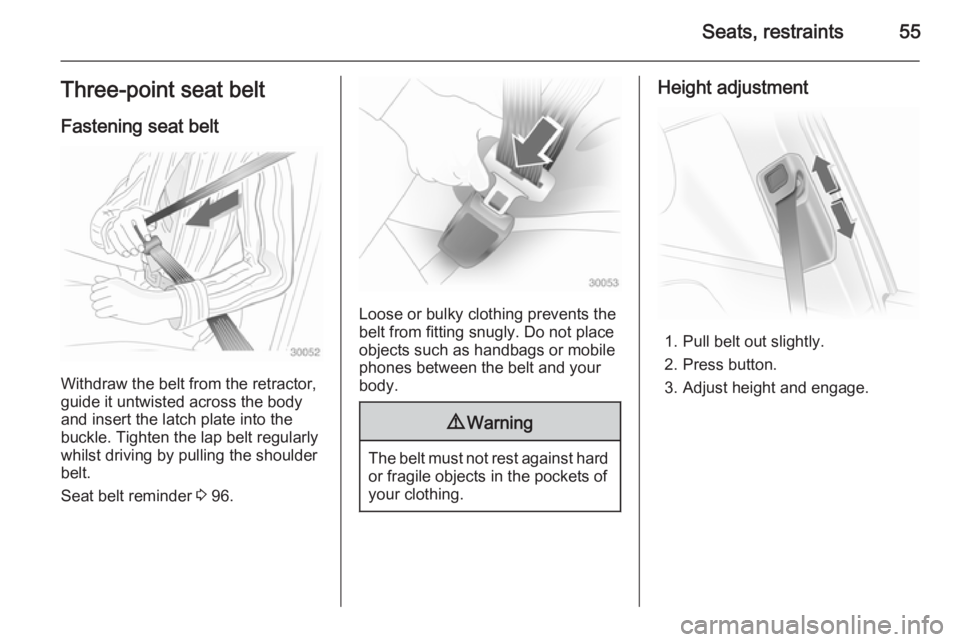

Seats, restraints55Three-point seat belt
Fastening seat belt
Withdraw the belt from the retractor,
guide it untwisted across the body
and insert the latch plate into the
buckle. Tighten the lap belt regularly
whilst driving by pulling the shoulder
belt.
Seat belt reminder 3 96.
Loose or bulky clothing prevents the
belt from fitting snugly. Do not place
objects such as handbags or mobile
phones between the belt and your body.
9 Warning
The belt must not rest against hard
or fragile objects in the pockets of
your clothing.
Height adjustment
1. Pull belt out slightly.
2. Press button.
3. Adjust height and engage.

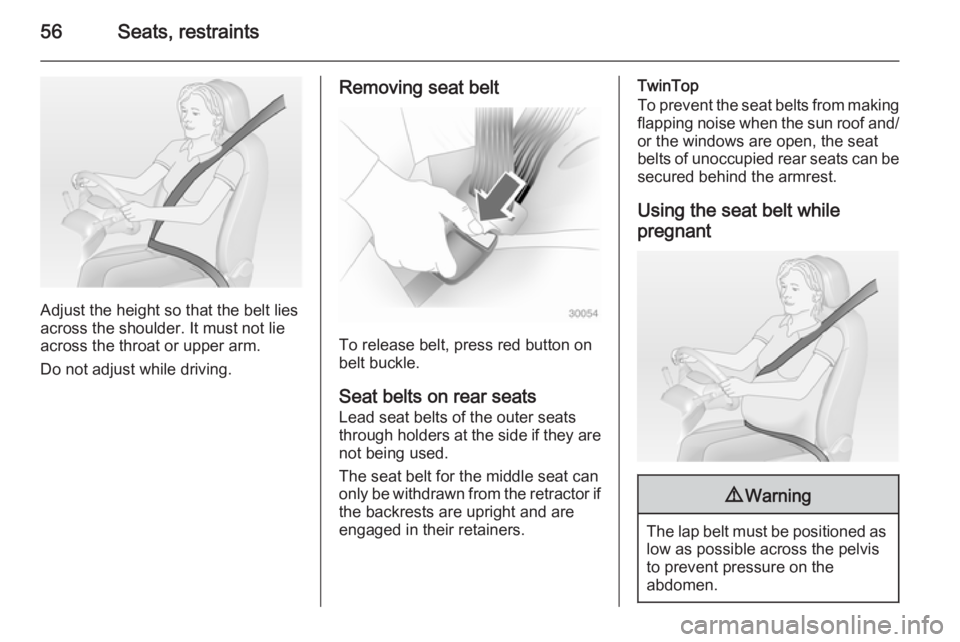

56Seats, restraints
Adjust the height so that the belt lies
across the shoulder. It must not lie across the throat or upper arm.
Do not adjust while driving.
Removing seat belt
To release belt, press red button on
belt buckle.
Seat belts on rear seats
Lead seat belts of the outer seats
through holders at the side if they are not being used.
The seat belt for the middle seat can
only be withdrawn from the retractor if
the backrests are upright and are
engaged in their retainers.
TwinTop
To prevent the seat belts from making
flapping noise when the sun roof and/ or the windows are open, the seat
belts of unoccupied rear seats can be
secured behind the armrest.
Using the seat belt whilepregnant9 Warning
The lap belt must be positioned as
low as possible across the pelvis
to prevent pressure on the
abdomen.

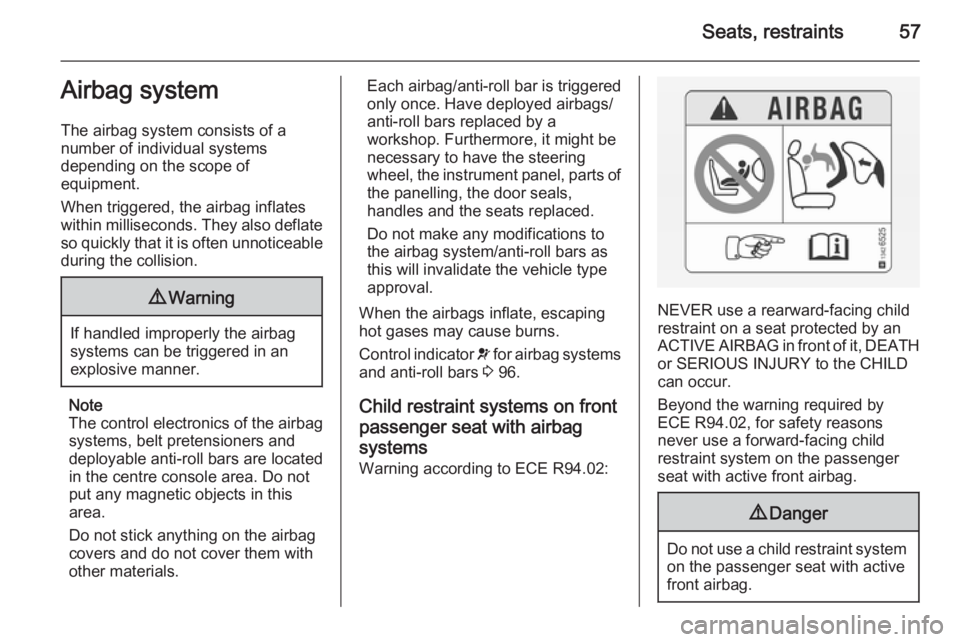

Seats, restraints57Airbag system
The airbag system consists of a
number of individual systems
depending on the scope of
equipment.
When triggered, the airbag inflates
within milliseconds. They also deflate
so quickly that it is often unnoticeable during the collision.9 Warning
If handled improperly the airbag
systems can be triggered in an
explosive manner.
Note
The control electronics of the airbag systems, belt pretensioners and
deployable anti-roll bars are located
in the centre console area. Do not
put any magnetic objects in this
area.
Do not stick anything on the airbag
covers and do not cover them with
other materials.
Each airbag/anti-roll bar is triggered
only once. Have deployed airbags/
anti-roll bars replaced by a
workshop. Furthermore, it might be
necessary to have the steering
wheel, the instrument panel, parts of
the panelling, the door seals,
handles and the seats replaced.
Do not make any modifications to
the airbag system/anti-roll bars as
this will invalidate the vehicle type
approval.
When the airbags inflate, escaping
hot gases may cause burns.
Control indicator v for airbag systems
and anti-roll bars 3 96.
Child restraint systems on front
passenger seat with airbag
systems
Warning according to ECE R94.02:
NEVER use a rearward-facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the CHILD
can occur.
Beyond the warning required by
ECE R94.02, for safety reasons
never use a forward-facing child
restraint system on the passenger
seat with active front airbag.
9 Danger
Do not use a child restraint system
on the passenger seat with active
front airbag.

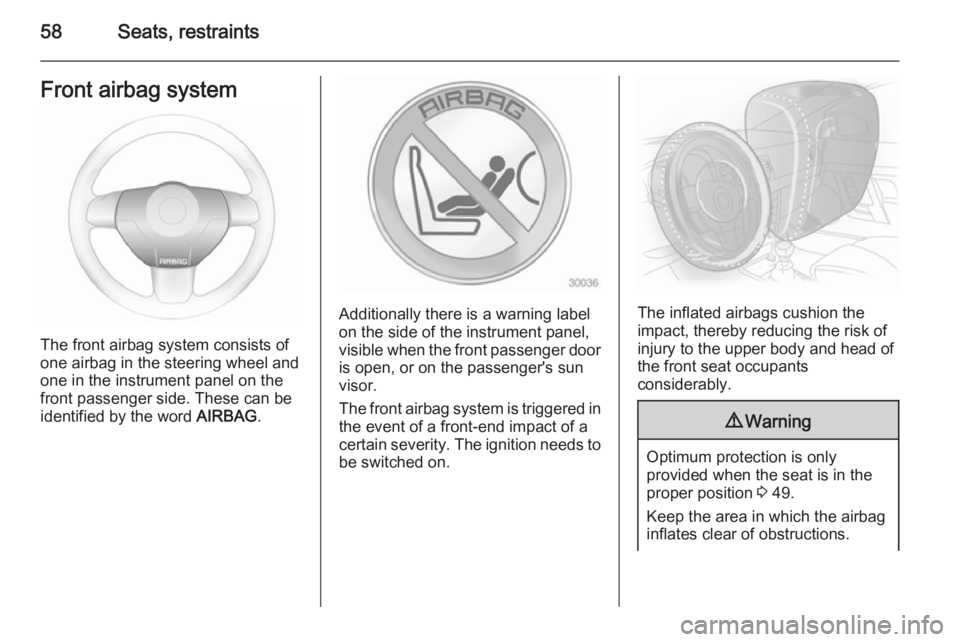

58Seats, restraintsFront airbag system
The front airbag system consists of
one airbag in the steering wheel and
one in the instrument panel on the
front passenger side. These can be
identified by the word AIRBAG.
Additionally there is a warning label
on the side of the instrument panel,
visible when the front passenger door
is open, or on the passenger's sun
visor.
The front airbag system is triggered in
the event of a front-end impact of a
certain severity. The ignition needs to be switched on.The inflated airbags cushion the
impact, thereby reducing the risk of
injury to the upper body and head of
the front seat occupants
considerably.
9 Warning
Optimum protection is only
provided when the seat is in the
proper position 3 49.
Keep the area in which the airbag
inflates clear of obstructions.
