OPEL ASTRA SALOON 2014 Owners Manual

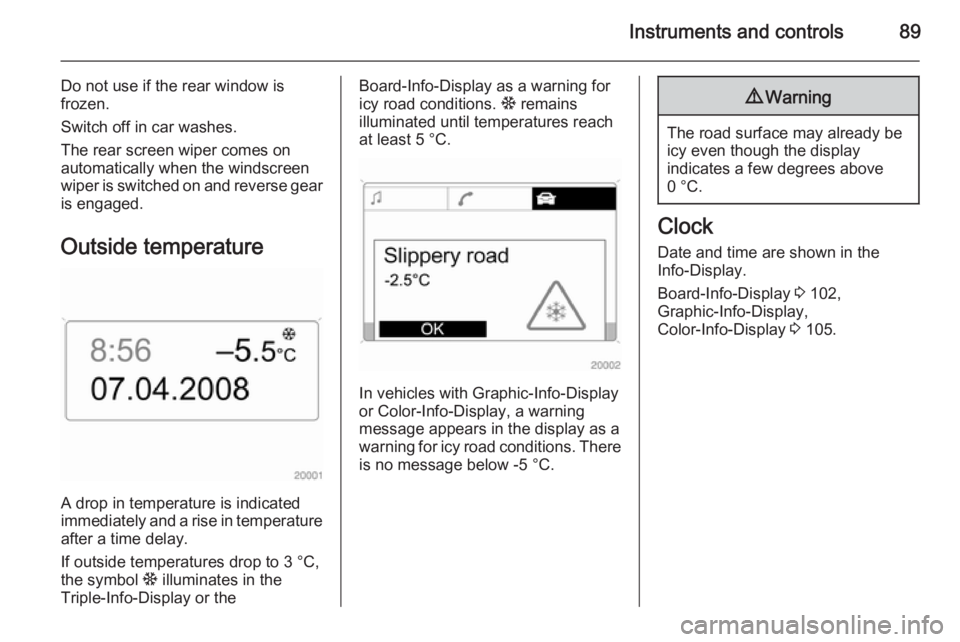

Instruments and controls89
Do not use if the rear window is
frozen.
Switch off in car washes.
The rear screen wiper comes on
automatically when the windscreen
wiper is switched on and reverse gear
is engaged.
Outside temperature
A drop in temperature is indicated
immediately and a rise in temperature
after a time delay.
If outside temperatures drop to 3 °C, the symbol : illuminates in the
Triple-Info-Display or the
Board-Info-Display as a warning for
icy road conditions. : remains
illuminated until temperatures reach
at least 5 °C.
In vehicles with Graphic-Info-Display
or Color-Info-Display, a warning
message appears in the display as a warning for icy road conditions. There is no message below -5 °C.
9 Warning
The road surface may already be
icy even though the display
indicates a few degrees above
0 °C.
Clock
Date and time are shown in the
Info-Display.
Board-Info-Display 3 102,
Graphic-Info-Display,
Color-Info-Display 3 105.

90Instruments and controls
Set date and time inTriple-Info-Display
To set time, hold the setting button in the instrument panel depressed for
approx. 2 seconds. A brief press will
set the flashing value. Hold the button
depressed for 2 seconds again to
switch to the next unit and to exit
setting mode.
Automatic time synchronisation
The RDS signal of most VHF
transmitters automatically sets the
time, identified by } in the display.
Some transmitters do not send a
correct time signal. In such cases, we recommend to switch off automatic
time synchronisation.
Activate setting mode and set it to year setting. Hold the Ö button
depressed about 3 seconds until }
flashes in the display and “RDS TIME" appears. The function is
activated (RDS TIME 1) or
deactivated (RDS TIME 0) with
the ; button. Exit setting mode using
the Ö button.
Power outlets
Some vehicles have a power outlet
for the connection of electrical
accessories instead of a cigarette
lighter.
Station wagons have an additional
accessory socket in the load
compartment.

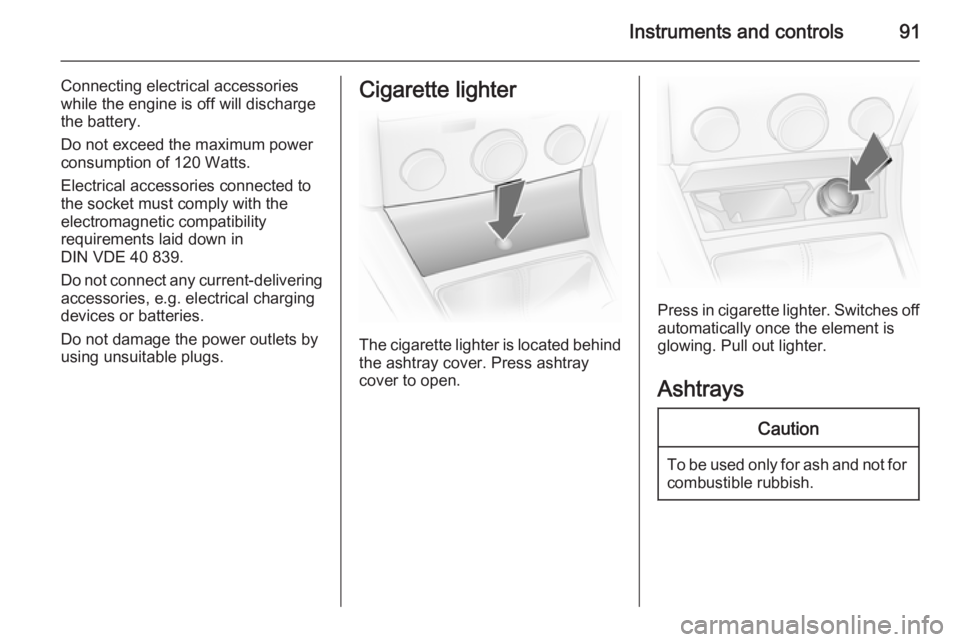

Instruments and controls91
Connecting electrical accessorieswhile the engine is off will discharge
the battery.
Do not exceed the maximum power
consumption of 120 Watts.
Electrical accessories connected to
the socket must comply with the
electromagnetic compatibility
requirements laid down in
DIN VDE 40 839.
Do not connect any current-delivering
accessories, e.g. electrical charging
devices or batteries.
Do not damage the power outlets by
using unsuitable plugs.Cigarette lighter
The cigarette lighter is located behind
the ashtray cover. Press ashtray
cover to open.
Press in cigarette lighter. Switches off automatically once the element is
glowing. Pull out lighter.
Ashtrays
Caution
To be used only for ash and not forcombustible rubbish.

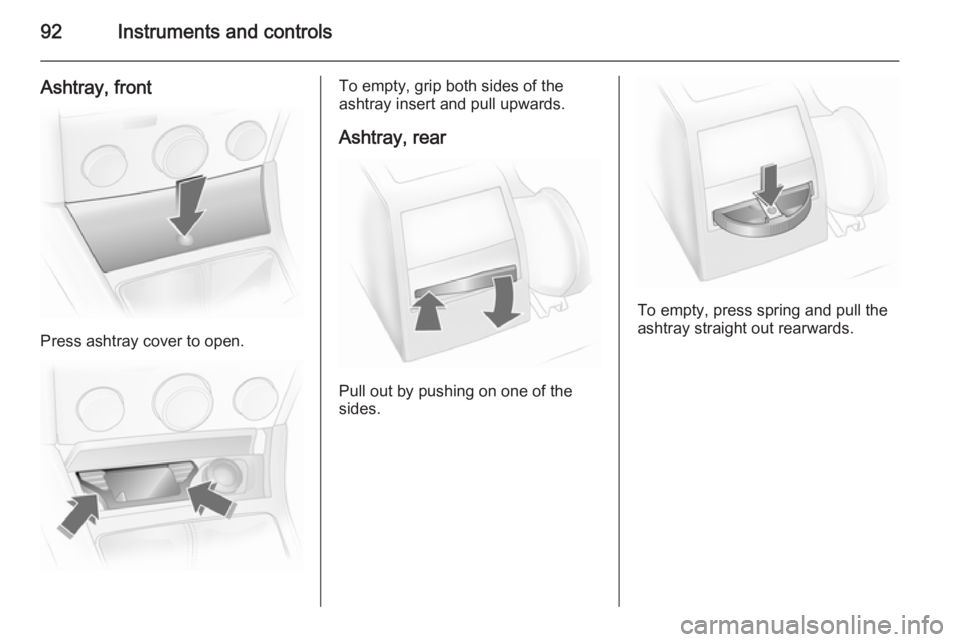

92Instruments and controls
Ashtray, front
Press ashtray cover to open.
To empty, grip both sides of the
ashtray insert and pull upwards.
Ashtray, rear
Pull out by pushing on one of the
sides.
To empty, press spring and pull the
ashtray straight out rearwards.

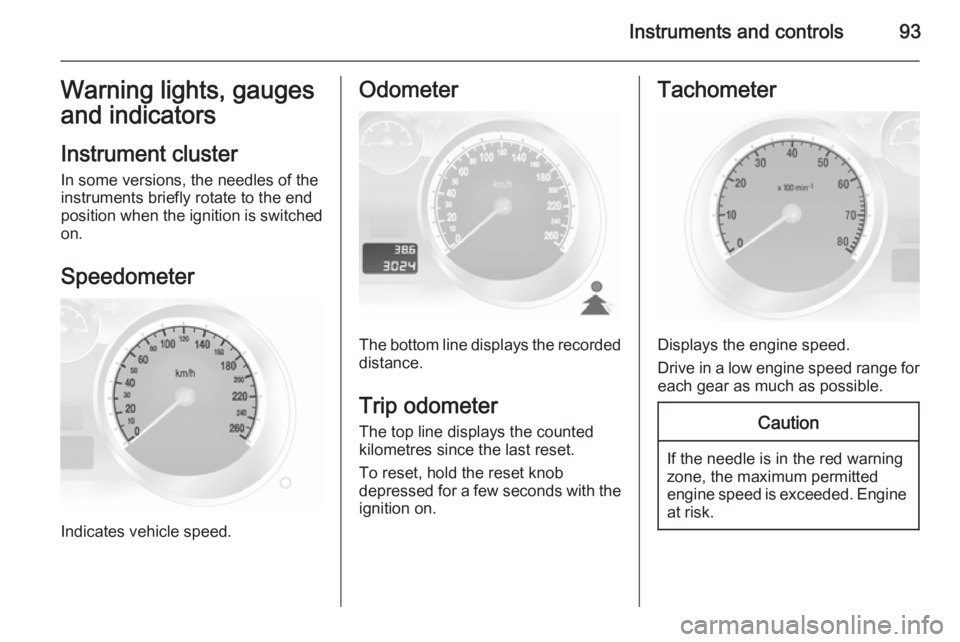

Instruments and controls93Warning lights, gauges
and indicators
Instrument cluster
In some versions, the needles of the
instruments briefly rotate to the end
position when the ignition is switched on.
Speedometer
Indicates vehicle speed.
Odometer
The bottom line displays the recorded distance.
Trip odometer The top line displays the counted
kilometres since the last reset.
To reset, hold the reset knob
depressed for a few seconds with the ignition on.
Tachometer
Displays the engine speed.
Drive in a low engine speed range for each gear as much as possible.
Caution
If the needle is in the red warning
zone, the maximum permitted
engine speed is exceeded. Engine at risk.

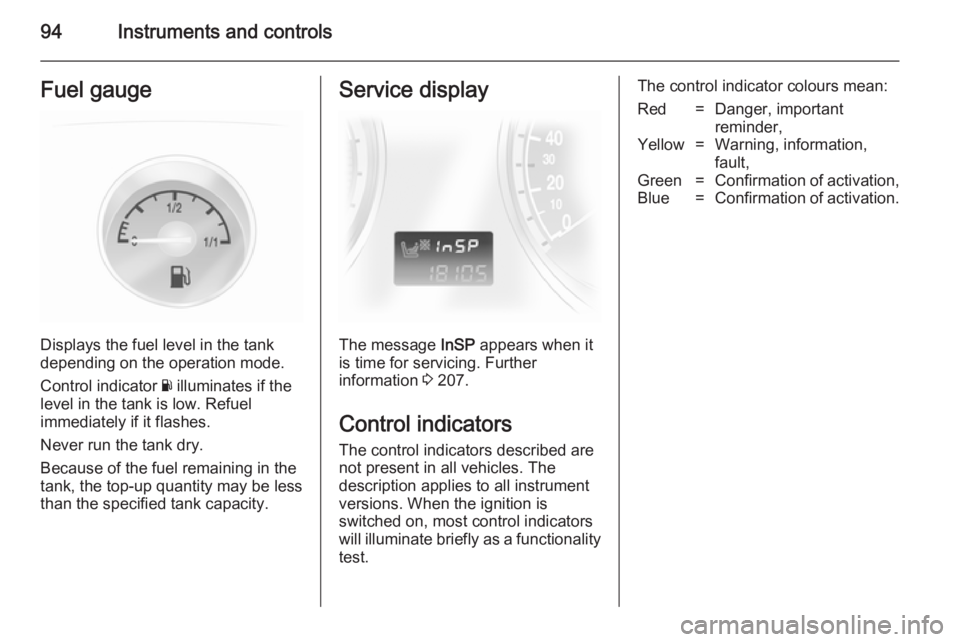

94Instruments and controlsFuel gauge
Displays the fuel level in the tank
depending on the operation mode.
Control indicator Y illuminates if the
level in the tank is low. Refuel
immediately if it flashes.
Never run the tank dry.
Because of the fuel remaining in the
tank, the top-up quantity may be less
than the specified tank capacity.
Service display
The message InSP appears when it
is time for servicing. Further
information 3 207.
Control indicators
The control indicators described are
not present in all vehicles. The
description applies to all instrument
versions. When the ignition is
switched on, most control indicators
will illuminate briefly as a functionality
test.
The control indicator colours mean:Red=Danger, important
reminder,Yellow=Warning, information,
fault,Green=Confirmation of activation,Blue=Confirmation of activation.

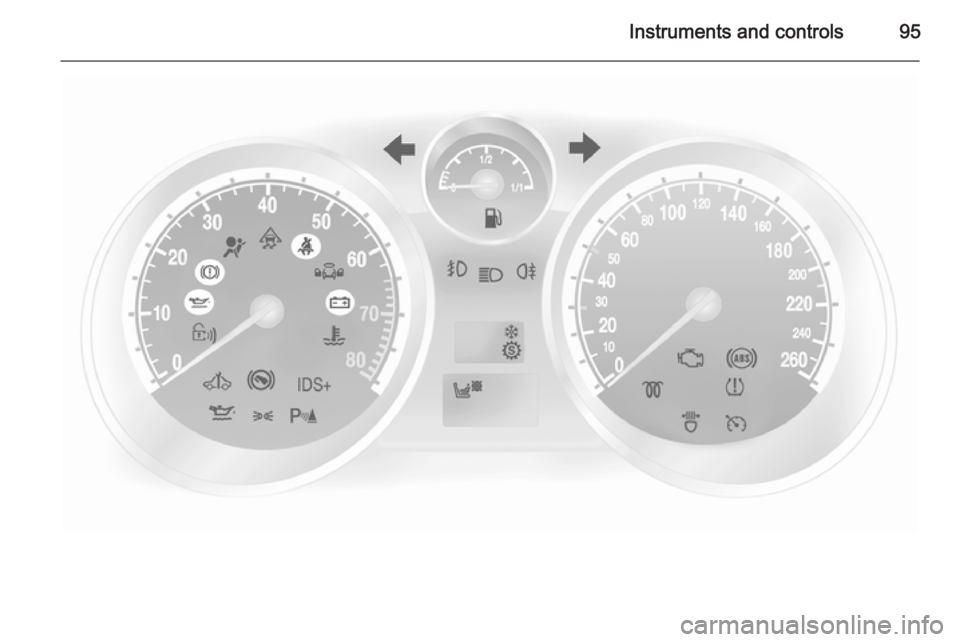

Instruments and controls95

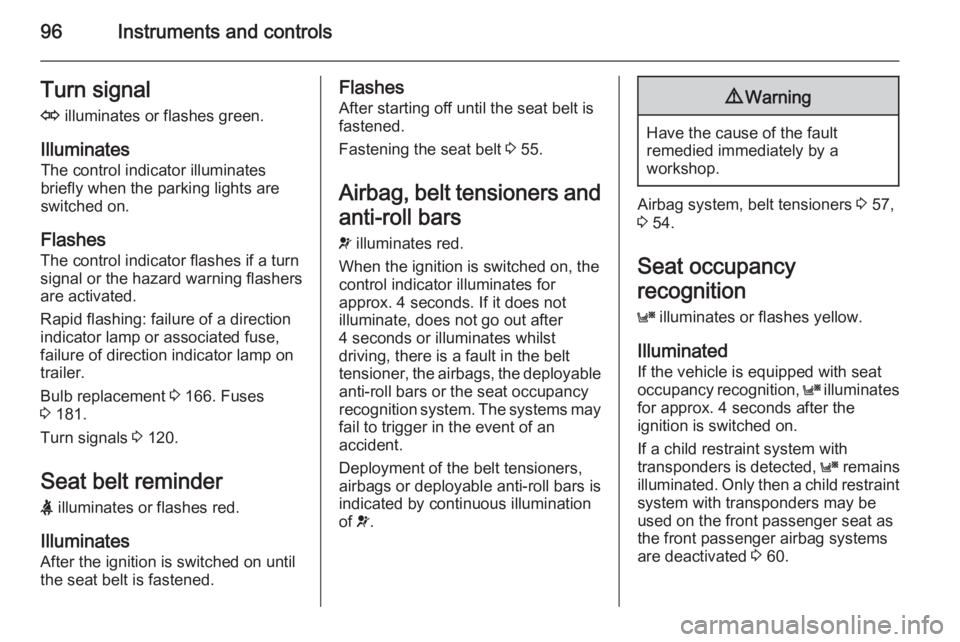

96Instruments and controlsTurn signal
O illuminates or flashes green.
Illuminates The control indicator illuminates
briefly when the parking lights are
switched on.
Flashes
The control indicator flashes if a turn
signal or the hazard warning flashers
are activated.
Rapid flashing: failure of a direction
indicator lamp or associated fuse,
failure of direction indicator lamp on
trailer.
Bulb replacement 3 166. Fuses
3 181.
Turn signals 3 120.
Seat belt reminder X illuminates or flashes red.
Illuminates After the ignition is switched on until
the seat belt is fastened.Flashes
After starting off until the seat belt is
fastened.
Fastening the seat belt 3 55.
Airbag, belt tensioners and
anti-roll bars v illuminates red.
When the ignition is switched on, the
control indicator illuminates for
approx. 4 seconds. If it does not
illuminate, does not go out after
4 seconds or illuminates whilst
driving, there is a fault in the belt
tensioner, the airbags, the deployable
anti-roll bars or the seat occupancy
recognition system. The systems may fail to trigger in the event of an
accident.
Deployment of the belt tensioners,
airbags or deployable anti-roll bars is
indicated by continuous illumination
of v.9 Warning
Have the cause of the fault
remedied immediately by a
workshop.
Airbag system, belt tensioners 3 57,
3 54.
Seat occupancy
recognition y illuminates or flashes yellow.
Illuminated
If the vehicle is equipped with seat occupancy recognition, y illuminates
for approx. 4 seconds after the
ignition is switched on.
If a child restraint system with
transponders is detected, y remains
illuminated. Only then a child restraint system with transponders may be
used on the front passenger seat as
the front passenger airbag systems
are deactivated 3 60.

Instruments and controls979Danger
If a child restraint system is fitted
and the control indicator is not
illuminated while driving, the front
and side airbag for the front
passenger seat are not
deactivated.
Flashes
Fault in system or child restraint system with transponders defective
or improperly fitted 3 60.
9 Danger
Flashing of the control indicator
while driving indicates a fault.
Have the cause of the fault
remedied by a workshop
immediately.
Child restraint system with transponders 3 65.
Charging system
p illuminates red.
Illuminates when the ignition is
switched on and goes out shortly after
the engine starts.
Illuminates when the engine is
running
Stop, switch off engine. Battery is not
charging. Engine cooling may be
interrupted. In diesel engines, power
to the brake servo unit may be cut.
Seek the assistance of a workshop.
Malfunction indicator light
Z illuminates or flashes yellow.
Illuminates when the ignition is
switched on and goes out shortly after the engine starts.
Illuminates when the engine is
running Fault in the emission control system.
The permitted emission limits may be
exceeded. Immediately seek the
assistance of a workshop.Flashes when the engine is
running
Fault that could lead to catalytic
converter damage. Ease up on the
accelerator until the flashing stops.
Seek the immediate assistance of a
workshop.
Service vehicle soon A illuminates or flashes yellow.
Illuminates when the engine is
running
Fault in engine or transmission
electronics 3 140, 3 144. The
electronics switch to an emergency
running programme. Fuel
consumption may be increased and
the vehicle handling may be impaired.
If the fault persists after restarting thevehicle, consult a workshop.
Illuminates together with InSP4 in the service display Seek the assistance of a workshop for
draining the diesel fuel filter 3 110.

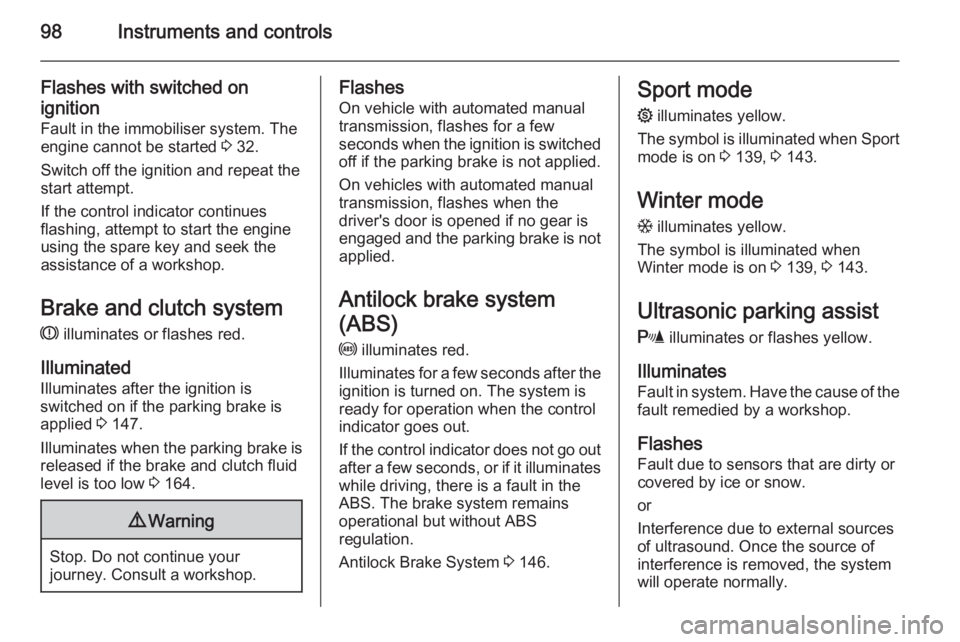

98Instruments and controls
Flashes with switched on
ignition
Fault in the immobiliser system. The
engine cannot be started 3 32.
Switch off the ignition and repeat the
start attempt.
If the control indicator continues
flashing, attempt to start the engine
using the spare key and seek the
assistance of a workshop.
Brake and clutch system R illuminates or flashes red.
Illuminated
Illuminates after the ignition is
switched on if the parking brake is
applied 3 147.
Illuminates when the parking brake is
released if the brake and clutch fluid
level is too low 3 164.9 Warning
Stop. Do not continue your
journey. Consult a workshop.
Flashes
On vehicle with automated manual
transmission, flashes for a few
seconds when the ignition is switched
off if the parking brake is not applied.
On vehicles with automated manual
transmission, flashes when the
driver's door is opened if no gear is
engaged and the parking brake is not
applied.
Antilock brake system
(ABS) u illuminates red.
Illuminates for a few seconds after the ignition is turned on. The system is
ready for operation when the control indicator goes out.
If the control indicator does not go out after a few seconds, or if it illuminates
while driving, there is a fault in the
ABS. The brake system remains
operational but without ABS
regulation.
Antilock Brake System 3 146.Sport mode
1 illuminates yellow.
The symbol is illuminated when Sport
mode is on 3 139, 3 143.
Winter mode
T illuminates yellow.
The symbol is illuminated when
Winter mode is on 3 139, 3 143.
Ultrasonic parking assist
r illuminates or flashes yellow.
Illuminates
Fault in system. Have the cause of the fault remedied by a workshop.
Flashes Fault due to sensors that are dirty or
covered by ice or snow.
or
Interference due to external sources of ultrasound. Once the source of
interference is removed, the system
will operate normally.
