OPEL CascadaOwner's Manual

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............20
Seats, restraints ........................... 46
Storage ........................................ 70
Instruments and controls .............78
Lighting ...................................... 110
Climate control ........................... 123
Driving and operating .................133
Vehicle care ............................... 181
Service and maintenance ..........226
Technical data ........................... 229
Customer information ................241
Index .......................................... 246Contents

2IntroductionIntroduction

Introduction3Vehicle specific data
Please enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and maintenance" and "Technical data"
as well as on the identification plate.
Introduction
Your vehicle is a designed
combination of advanced technology, safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this Owner's Manual.When this Owner's Manual refers to aworkshop visit, we recommend your
Opel Dealer.
All Opel Dealers provide first-class
service at reasonable prices.
Experienced mechanics trained by
Opel work according to specific Opel
instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this manual ■ This manual describes all options and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model variant, country specifications, special
equipment or accessories.
■ The "In brief" section will give you an initial overview.
■ The table of contents at the beginning of this manual and withineach section shows where the
information is located.■ The index will enable you to search
for specific information.
■ This Owner's Manual depicts left- hand drive vehicles. Operation is
similar for right-hand drive vehicles.
■ The Owner's Manual uses the factory engine designations. The
corresponding sales designations
can be found in the section
"Technical data".
■ Directional data, e.g. left or right, or
front or back, always relate to the
direction of travel.
■ The vehicle display screens may not support your specific language.
■ Display messages and interior labelling are written in bold letters.
Danger, Warnings and
Cautions9 Danger
Text marked 9 Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.

4Introduction9Warning
Text marked 9 Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.
Caution
Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.
Symbols
Page references are indicated with 3.
3 means "see page".
We wish you many hours of
pleasurable driving.
Adam Opel AG

Introduction5

6In briefIn briefInitial drive informationVehicle unlocking
Press button c briefly to unlock the
doors and boot lid. Open the doors by
pulling the handles.
Soft top 3 35, Windows 3 32.
To open the boot lid, push the brand
emblem at the bottom half.
Pressing button x opens the boot
lid while the vehicle remains locked.
Radio remote control 3 21, Central
locking system 3 22, Load
compartment 3 25.

In brief7Seat adjustmentSeat lengthwise adjustment
Pull handle, slide seat, release
handle.
Seat position 3 48, Seat adjustment
3 49.
9 Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.
Seat backrests
Turn lever to the rear, adjust
inclination and release lever. Allow
the seat to engage audibly.
Seat position 3 48, Seat adjustment
3 49, Seat folding 3 51.
Seat height
Lever pumping motion
up=seat higherdown=seat lower
Seat position 3 48, Seat adjustment
3 49.

8In brief

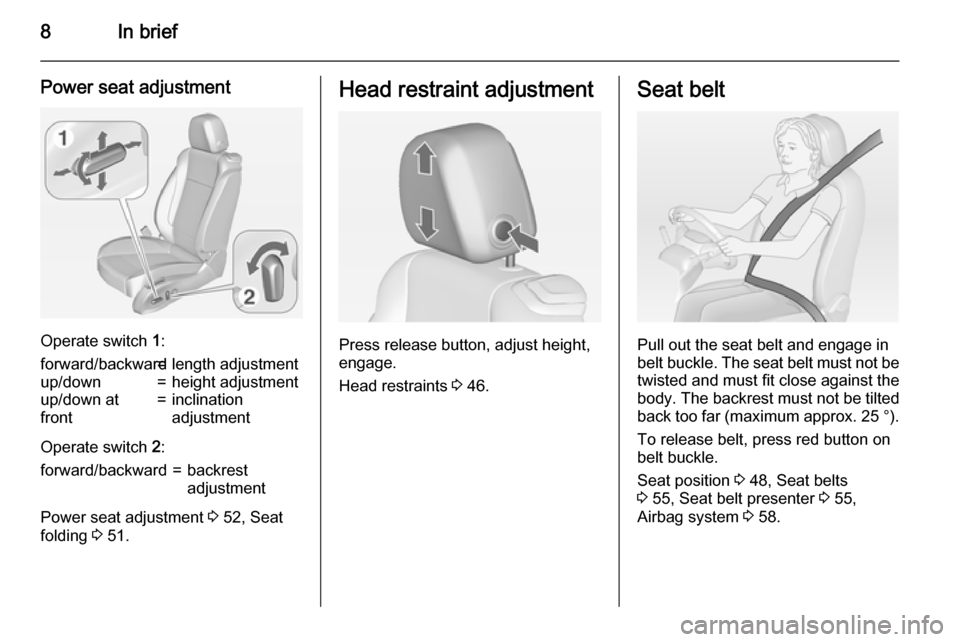

Power seat adjustment
Operate switch 1:
forward/backward=length adjustmentup/down=height adjustmentup/down at
front=inclination
adjustment
Operate switch 2:
forward/backward=backrest
adjustment
Power seat adjustment 3 52, Seat
folding 3 51.
Head restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 46.
Seat belt
Pull out the seat belt and engage in
belt buckle. The seat belt must not be twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25 ° ).
To release belt, press red button on belt buckle.
Seat position 3 48, Seat belts
3 55, Seat belt presenter 3 55,
Airbag system 3 58.
