OPEL COMBO 2010 Owners Manual

185 Technical data
Performance EngineZ 14 XEP Z 16 YNG Z 13 DTJ Z 17 DTH
Maximum speed
1) [km/h]
5-speed manual transmission
Manual transmission automated
1)The maximum speed is achievable with a maximum of half payload. Optional equipment may reduce the specified maximum speed of the vehicle.
164
–165
–152
2)
152
2)
2)Specific version with electronic speed limitation at 125 km/h.
170
–

186 Technical dataFuel consumption, CO
2-emissions
Directive 80/1268/EEC (last changed by
2004/3/EC) has applied for the
measurement of fuel consumption since
1996.
The directive is oriented to actual driving
practices: Urban driving is rated at
approx.
1/3 and off-road driving with
approx. 2/3 (urban and extra-urban
consumption). Cold starts and acceleration
phases are also taken into consideration.
The specification of CO
2 emission is also a
constituent of the directive.The figures given must not be taken as a
guarantee for the actual fuel consumption
of a particular vehicle.
All values stem from the EU base model
with standard equipment.
The calculation of fuel consumption as
specified by directive 2004/3/EC takes
account of the vehicle’s kerb weight,
ascertained in accordance with the said
regulation. Optional extras may result in
slightly higher fuel consumption and CO
2
emission levels than those quoted.
Saving Fuel, Protecting the Environment
3108.
Fuel consumption, natural gasThe data on fuel consumption has been
ascertained with reference fuel G20
(methane content 99 - 100 mol%) under
prescribed driving conditions (see previous
columns). The fuel consumption values will
deviate from those specified if natural gas
with a lower methane content is used.
All values stem from the EU base model
with standard equipment. The
consumption calculated according to the
1999/100/EC directive takes into
consideration the kerb weight laid down in
agreement with this regulation. Additional
equipment as well as the gas condition,
filling station pressure, mode of driving and
the road and traffic conditions can lead to
higher consumptions and CO
2 values than
those specified.

187 Technical data
Fuel consumption, CO
2 emissions
(up to tyre width of 185 mm)

Fuel consumption, CO
2 emissions
(up to tyre width of 205 mm)

Engine
Z 14 XEP Z 13 DTJ Z 17 DTH
Manual/manual transmission automated
urban [l/100 km]
extra-urban [l/100 km]
altogether [l/100 km]
CO
2 [g/km] 7.9/–
5.2/–
6.2/–
148/– 6.1/ 5.9
4.5/ 4.5
5.1/ 5.0
134/135 6.6/–
4.4/–
5.2/–
140/–
Engine
Z 14 XEP Z 13 DTJ Z 17 DTH
Manual/manual transmission automated
urban [l/100 km]
extra-urban [l/100 km]
altogether [l/100 km]
CO2 [g/km] 8.1/–
5.4/–
6.4/–
153/– 6.3/ 6.1
4.7/ 4.7
5.3/ 5.2
139/140 6.8/–
4.6/–
5.4/–
146/–

188 Technical dataFuel consumption
(H gas)
1)
1)These values relate to the use of test gas G20 (H gas) in compliance with calculation method
1999/100/EC
.
Engine Z 16 YNG
Manual transmission
urban [m
3/100 km]
extra-urban [m
3/100 km]
altogether [m3/100 km] 10.1
5.9
7.5
Fuel consumption
(H gas)
1)
Engine
Z 16 YNG
Manual transmission
urban [kg/100 km]
extra-urban [kg/100 km]
altogether [kg/100 km] 6.6
3.9
4.9 CO
2 emissions
2)(natural gas operation, g/km according to 80/1268/EEC)
2)Emission reduction as per Euro4.Engine Z 16 YNG
CO
2 altogether [g/km] 133

189
Technical data
Weights, payload and roof load The payload is the difference between the
permitted gross vehicle weight (see
identification plate 3182) and the EC kerb
weight.
To calculate the kerb weight, enter the
data for your vehicle below:
is the EC kerb weight.
Optional equipment and accessories
increase the kerb weight, which means that
the payload will also change slightly.
Note the weights given in the vehicle
documents and the identification plate. The combined total of front and rear axle
loads must not exceed the permissible
gross vehicle weight. For example, if the
front axle is bearing its maximum
permissible load, the rear axle can only
bear a load that is equal to the gross
vehicle weight minus the front axle load.
The permissible axle loads must not be
exceeded.
See the identification plate or vehicle
documents for permissible axle loads.
Caravan/trailer towing 3126. Roof load
The permissible roof load is 100 kg. The
roof load consists of the weight of the roof
rack plus the load carried.
Driving hints 3106. Roof rack 3125.
zKerb weight from
Table 1 3190 +.............. kg
zWeight of heavy
accessories from
Table 2 3190 +.............. kg
Total =.............. kg

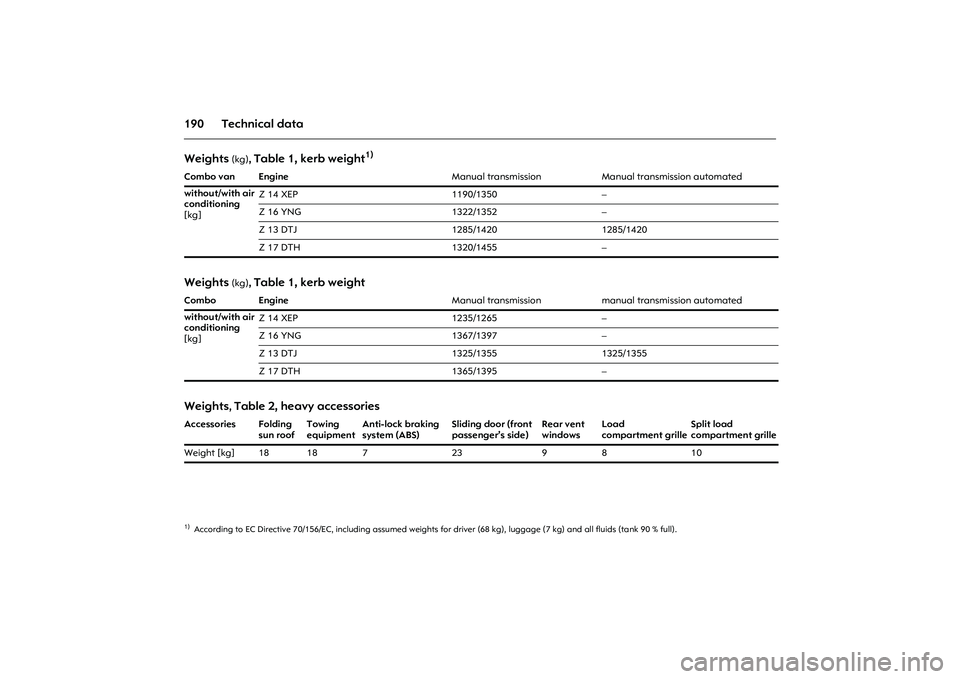

190 Technical dataWeights
(kg)
, Table 1, kerb weight
1)
1)According to EC Directive 70/156/EC, including assumed weights for driver (68 kg), luggage (7 kg) and all fluids (tank 90 % full). Combo van EngineManual transmission Manual transmission automated
without/with air
conditioning
[kg]Z 14 XEP 1190/1350 –
Z 16 YNG 1322/1352 –
Z 13 DTJ 1285/1420 1285/1420
Z 17 DTH 1320/1455 –Weights
(kg)
, Table 1, kerb weight
Combo EngineManual transmission manual transmission automated
without/with air
conditioning
[kg]Z 14 XEP 1235/1265 –
Z 16 YNG 1367/1397 –
Z 13 DTJ 1325/1355 1325/1355
Z 17 DTH 1365/1395 –Weights
, Table 2, heavy accessories
Accessories Folding
sun roofTowing
equipmentAnti-lock braking
system (ABS)Sliding door (front
passenger’s side) Rear vent
windowsLoad
compartment grilleSplit load
compartment grille
Weight [kg] 18 18 7 23 9 8 10

191
Technical data
Tyres Not all tyres available on the market
currently meet the structural requirements.
We recommend that you consult an Opel
Partner concerning suitable tyre makes.
These tyres have undergone special tests
to establish their reliability, safety and
specific suitability for Opel vehicles.
Despite continuous market monitoring, we
are unable to assess these attributes for
other tyres, even if they have been granted
approval by the relevant authorities or in
some other form.
Further information 3121. Winter tyres
3
Tyre sizes 185/60 R 15, 185/65 R 15,
195/45 R 16 and 195/50 R 16 are not
permitted for winter driving.
Exception: Tyres of size 185/60 R 15 may be
used as winter tyres on the Combo
Tramp/Arizona. If winter tyres are in use, the spare wheel
may still be fitted with a summer tyre. Use
of the spare wheel may alter vehicle
handling. Obtain a replacement for the
faulty tyre as soon as possible, and have
the wheel balanced and fitted to the
vehicle.
Further information 3124.
Tyre chains
3
Tyre chains may be used on the front
wheels only.
We recommend the use of tyre chains with
a fine mesh that add no more than 10 mm
to the running surface and the insides of
the tyres (including chain lock).
Tyre chains are not permitted on the spare
wheel and tyres sizes 185/60 R 15,
185/65 R 15, 195/45 R 16 and 195/50 R 16.
Exception: Tyre chains on tyres of size
185/60 R 15 are permitted on Combo
Tramp/Arizona.
Tyre chains are generally permitted on
tyres of size 185/55 R 15.
Further information 3125. Wheels Wheel bolt tightening torque: 110 Nm.
Spare wheel
3
Depending on the version, the spare wheel
is designed for use as a temporary spare
wheel 3: the handling of the vehicle may
change if the spare wheel is used. Replace
a defective tyre as soon as possible,
balance the wheel and fit it to vehicle. Pay
attention to notes on this page and on
3125, 3135.
On vehicles with alloy wheels 3 the spare
wheel may have a steel rim.
The spare wheel can be fitted with a
smaller tyre
1) and a smaller rim than the
wheels fitted on the vehicle.
Tyre pressure (overpressure)The specified tyre pressure are valid for
cold tyres. The increased tyre pressure
resulting from extensive driving must not
be reduced. The tyre pressure specified on
the following pages apply to both summer
and winter tyres.
The spare wheel must always be filled with
the tyre pressure for a full load - see tables
on following pages.
Temporary spare wheel tyre pressure 3 –
see tables on the following pages.
Further information 3121 to 3125. 1)Country-specific version: The spare wheel is
only permitted for use as a temporary spare.

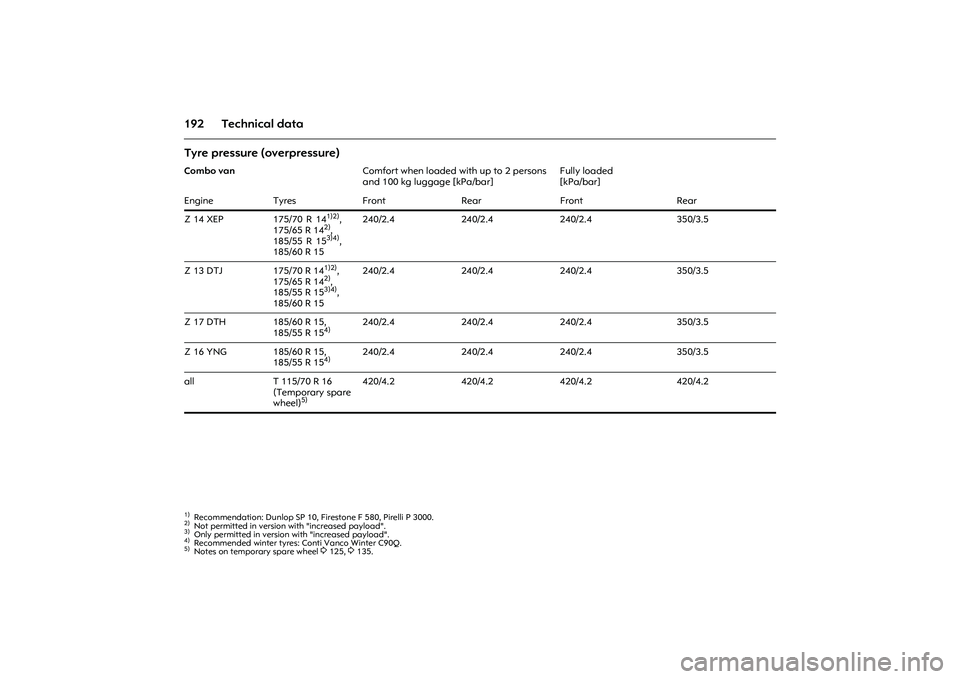

192 Technical dataTyre pressure (overpressure) Combo vanComfort when loaded with up to 2 persons
and 100 kg luggage [kPa/bar]Fully loaded
[kPa/bar]
Engine Tyres Front Rear Front Rear
Z 14 XEP 175/70 R 14
1)2)
,
175/65 R 14
2),
185/55 R 153)4)
,
185/60 R 15
1)Recommendation: Dunlop SP 10, Firestone F 580, Pirelli P 3000. 2)Not permitted in version with "increased payload".3)Only permitted in version with "increased payload".4)Recommended winter tyres: Conti Vanco Winter C90Q.
240/2.4 240/2.4 240/2.4 350/3.5
Z 13 DTJ 175/70 R 14
1)2)
,
175/65 R 14
2),
185/55 R 153)4)
,
185/60 R 15240/2.4 240/2.4 240/2.4 350/3.5
Z 17 DTH 185/60 R 15,
185/55 R 15
4)
240/2.4 240/2.4 240/2.4 350/3.5
Z 16 YNG 185/60 R 15,
185/55 R 15
4)
240/2.4 240/2.4 240/2.4 350/3.5
all T 115/70 R 16
(Temporary spare
wheel)
5)
5)Notes on temporary spare wheel
3125,
3135.420/4.2 420/4.2 420/4.2 420/4.2

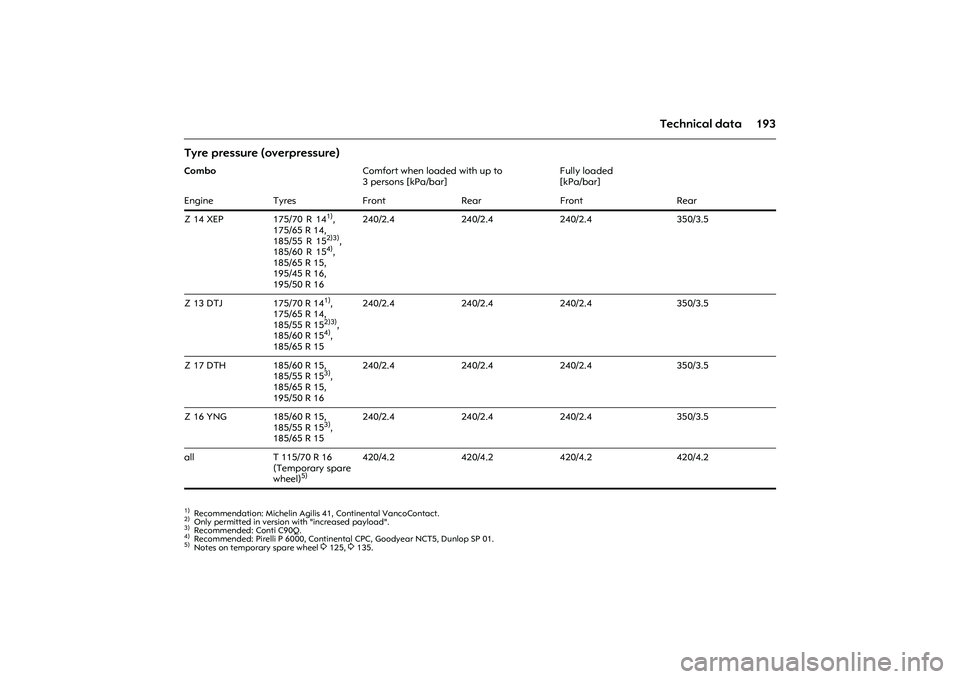

193 Technical data
Tyre pressure (overpressure) ComboComfort when loaded with up to
3persons[kPa/bar]Fully loaded
[kPa/bar]
Engine Tyres Front Rear Front Rear
Z 14 XEP 175/70 R 14
1),
175/65 R 14,
185/55 R 152)3)
,
185/60 R 15
4),
185/65 R 15,
195/45 R 16,
195/50 R 16
1)Recommendation: Michelin Agilis 41, Continental VancoContact. 2)Only permitted in version with "increased payload".3)Recommended: Conti C90Q.4)Recommended: Pirelli P 6000, Continental CPC, Goodyear NCT5, Dunlop SP 01.
240/2.4 240/2.4 240/2.4 350/3.5
Z 13 DTJ 175/70 R 14
1),
175/65 R 14,
185/55 R 152)3)
,
185/60 R 15
4),
185/65 R 15240/2.4 240/2.4 240/2.4 350/3.5
Z 17 DTH 185/60 R 15,
185/55 R 153),
185/65 R 15,
195/50 R 16240/2.4 240/2.4 240/2.4 350/3.5
Z 16 YNG 185/60 R 15,
185/55 R 153),
185/65 R 15 240/2.4 240/2.4 240/2.4 350/3.5
all T 115/70 R 16
(Temporary spare
wheel)
5)
5)Notes on temporary spare wheel
3125,
3135.420/4.2 420/4.2 420/4.2 420/4.2

194 Technical dataTyre pressure (overpressure)Combo Tramp/ArizonaComfort when loaded with
up to 3 persons [kPa/bar]Fully loaded
[kPa/bar]
Engine Tyres Front Rear Front Rear
Z 14 XEP,
Z 16 YNG,
Z 13 DTJ,
Z 17 DTH 185/60 R 15,
185/65 R 15
1)
1)Recommended: Goodyear Eagle Hydragrip.
240/2.4 240/2.4 240/2.4 350/3.5
