Opel Service, maintenance
Picture no: 18113s.tif
Engine oil On vehicles with engine oil level check 3,
the engine oil level is monitored
automatically 370. We recommend that
you check the engine oil level before
starting a long journey.
Picture no: 13212s.tif
Check with the vehicle on a level surface.
The engine must be at operating
temperature and switched off for at least
5minutes.
Picture no: 16495s.tif
Pull out the dipstick, wipe it clean, insert it
to the stop on the handle, pull out and read
the engine oil level.
Push in the oil dipstick up to the stop on the
handle and give it half a turn.
Different dipsticks are used depending on
engine variant.
When the engine oil level has dropped to
the MIN mark, top up engine oil.

176 Opel Service, maintenance

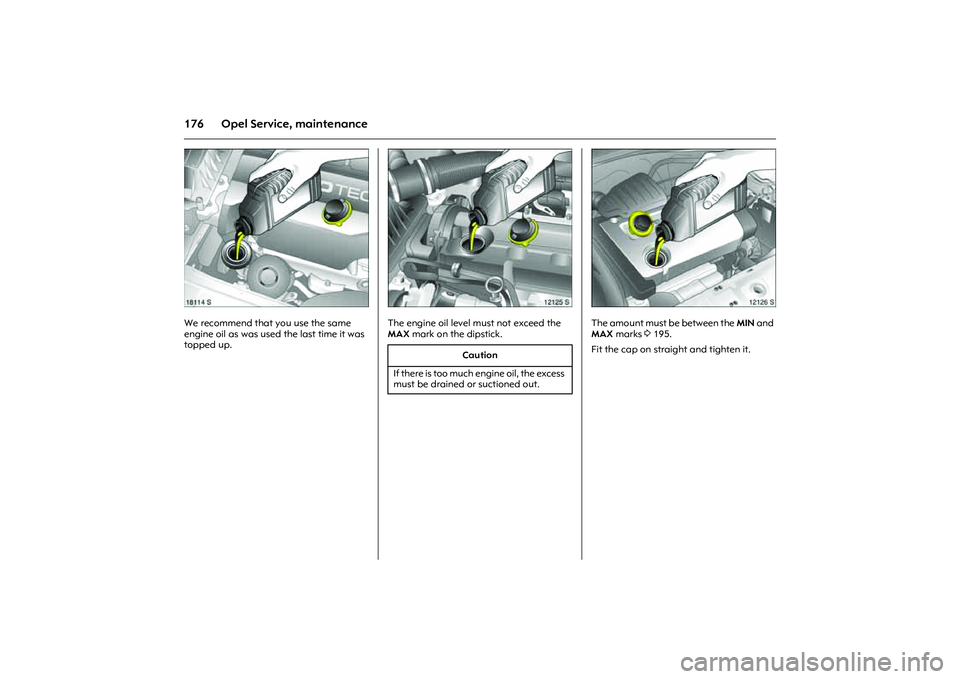

Picture no: 18114s.tif
We recommend that you use the same
engine oil as was used the last time it was
topped up.
Picture no: 12125s.tif
The engine oil level must not exceed the
MAX mark on the dipstick.
Picture no: 12126s.tif
The amount must be between the MIN and
MAX marks 3195.
Fit the cap on straight and tighten it.
Caution
If there is too much engine oil, the excess
must be drained or suctioned out.

177
Opel Service, maintenance
Diesel fuel filter On the event of engine oil change, have
fuel filter checked for possible water
residue by a workshop.
Illumination of A indicates water in the
fuel filter 3.
Have fuel filter checked at shorter intervals
if the vehicle is subjected to extreme
operating conditions such as high humidity
(primarily in coastal areas), extremely high
or low outside temperatures and
substantially varying daytime and
night-time temperatures.
Coolant The coolant provides anti-freeze
protection down to approx. -28 C. .
Picture no: 11676s.tif
Antifreeze and corrosion protection
Have the concentration of the radiator
contents tested by a workshop before
winter starts. The amount of antifreeze
must provide protection down to approx.
-28 C. A lower antifreeze concentration
will reduce the amount of protection from
frost and corrosion. Add antifreeze if
necessary.
If coolant loss is topped up with water,
have concentration checked and add
antifreeze if necessary. Caution
Only use approved anti-freeze.
Coolant additives for additional
corrosion protection and sealing small
leaks can cause operation problems. No
liability is accepted for damage caused
by using coolant additives.
9 Warning
Antifreeze is a danger to health; it must
therefore be kept in the original
container and out of the reach of
children.

178 Opel Service, maintenance
Picture no: 13213s.tif
Coolant level
In a closed cooling system, there is hardly
any loss.
When the cooling system is cold, the level of
coolant should lie above the KALT/COLD
mark. Top up if the level is low. Top up with anti-freeze. If no anti-freeze is
available, fill with clean tap water or
distilled water. Have the anti-freeze
concentration checked.
Have the cause of coolant loss rectified by
a workshop.
Fit the cap on straight and tighten it.
Brakes A screeching noise indicates that the brake
lining is at its minimum thickness.
Continued driving is possible. Have the
brake lining replace as soon as possible.
Once new brake lining is fitted, do not
brake unnecessarily hard for the first
200 km.
9 Warning
Allow the engine to cool before opening
the cap. Carefully open the cap,
relieving the overpressure slowly.
Caution
Too low a coolant level can cause
engine damage.

179
Opel Service, maintenance
Brake fluid Changing brake fluid
Brake fluid is hygroscopic, i. e. it absorbs
water. If the brakes become hot, such as
when driving on long downhill stretches,
vapour bubbles can form in the water,
which can have an extremely adverse
effect on braking power (depending on the
proportion of water).
Therefore, keep to the specified change
intervals.
Picture no: 13328j.tif
Windscreen wiper replacement Wiper blades on the windscreen
Lift wiper arm. Move release lever and
detach wiper blade.
Picture no: 9392t.tif
Wiper blades 3 on the rear window
Lift wiper arm. Disengage wiper blade as
shown in illustration and remove.
9 Warning
Brake fluid is poisonous and corrosive.
Do not allow it to come into contact with
eyes, skin, fabrics or painted surfaces.
9 Warning
Have the brake fluid change performed
by a workshop. Please comply with the
legal environmental and health
regulations – concerning the disposal of
brake fluid.

180 Opel Service, maintenance
Picture no: 11678s.tif
Windscreen washer system Reservoir for windscreen washer and rear
windscreen washer at driver’s side in
engine compartment.
Fill with clean water mixed with cleaner
and anti-freeze.
Make sure there is sufficient anti-freeze
protection.
When closing the reservoir, press the lid
firmly over the beaded edge all the way
round.
Picture no: 13488a.tif
Battery The vehicle battery is maintenance-free.
Batteries do not belong in household
waste. They must be disposed of at an
appropriate recycling collection point.
The retrofitting of electrical or electronic
accessories may subject the battery to
additional loading and cause it to become
discharged. Please seek advice concerning
the technical options, such as installing a
more powerful battery. Laying up the vehicle for more than
4 weeks can lead to battery discharge.
Disconnect the negative terminal of the
vehicle battery.
Ensure the ignition is switched off before
connecting or disconnecting the vehicle
battery.
Protecting electronic components In order to prevent faults in electronic
components in the electrical system, never
connect or disconnect battery with engine
running or ignition switched on. Never start
engine with battery disconnected, e.g.
when starting using jump leads.
To avoid damaging the vehicle, do not
make any modifications to the electrical
system, e. g. connecting additional
consumers or tampering with electronic
control units (chip tuning).
9 Warning
Electronic ignition systems generate very
high voltages. Do not touch the ignition
system; high voltage can be fatal.

181
Opel Service, maintenance
Laying the vehicle up for a long
period of time If the vehicle is to be laid up for several
months, the following work should be
undertaken to prevent damage.
zWash and wax the vehicle 3161.
zHave the wax in the engine
compartment and underbody checked.
zClean and preserve rubber seals.
zChange engine oil.
zCheck anti-freeze and corrosion
protection 3177.
zCheck the coolant level; top up
anti-freeze if necessary 3178.
zDrain the windscreen washer system.
zIncrease tyre pressure to the value
specified for full load 3121, 3191. zPark the vehicle in dry and
well-ventilated place. With manual
transmission select first or reverse gear;
with manual transmission automated 3
move the selector lever to the centre
position before switching the ignition off.
Use chocks or the like to prevent the
vehicle from rolling.
zDo not apply hand brake.
zDisconnect the clamp from the negative
terminal of the vehicle battery.
Putting the vehicle back into
servicePerform the following work before
recommissioning the vehicle:
zConnect the clamp to the negative
terminal of the vehicle battery.
zCheck tyre pressure 3121, 3191.
zTop up the windscreen washer system
3180.
zCheck engine oil level 3175.
zCheck coolant level 3178.
zFit the number plate if necessary.

182 Technical dataTechnical data
Picture no: 11679s.tif
Vehicle data The technical data is determined in
accordance with European Community
standards. We reserve the right to make
modifications. Specifications in the vehicle
documents always have priority over those
given in this Owner’s Manual.
The identification plate is affixed to the
front right door frame.
Picture no: 11724s.tif
In other versions the type plate is attached
to the right spring strut dome in the engine
compartment. Vehicle data ......................................... 182
Engine data.......................................... 184
Performance......................................... 185
Fuel consumption, CO
2-emissions ......
186
Fuel consumption, natural gas........... 186
Weights, payload and roof load ........ 189
Tyres ..................................................... 191
Capacities ............................................ 195
Dimensions ........................................... 196
Mounting dimensions of towing
equipment with fixed coupling
ball bar............................................... 197

183
Technical data
Picture no: 13329j.tif
Information on identification plate

Picture no: 11680s.tif
The vehicle identification number is
stamped on the identification plate and in
the vehicle floor on the right-hand side
under a cover between the front passenger
door and seat.
The vehicle identification number may be
attached to the instrument panel. Engine code and engine number. Marked
on engine block at left side of engine in
petrol engines, and beneath diesel
injection pump at right side of engine in
diesel engines.
1Manufacturer
2Type approval number
3Vehicle identification number
4Gross vehicle weight rating
5Permissible gross train weight
6Maximum permissible front axle load
7Maximum permissible rear axle load
8Vehicle-specific or country-specific
data

184 Technical dataEngine data Sales designation
Engine identifier code1.4 TWINPORT
Z 14 XEPCNG
Z 16 YNG1.3 CDTI
Z 13 DTJ1.7 CDTI
Z 17 DTH
Number of cylinders 4 4 4 4
Piston displacement [cm
3 ] 1364 1598 1248 1686
Brake horse power [kW/bhp]
at rpm 66
560069
620055
400074
4400
Torque [Nm]
at rpm 125
4000133
4200170
1750 to 2500240
2300
Fuel type
1)
1)Standard high-quality fuels, unleaded DIN EN 228, diesel DIN EN 590. Any commercially available natural gas containing methane can be used for
natural gas operation.
Petrol Natural gas/petrol Diesel Diesel
Octane requirement [RON]
2)
recommended
possible
possible
Cetane requirement [CN]
2)
2)Standard high-quality fuels: R = Regular, P = Premium, PP = Premium Plus, D = Diesel. Value printed in bold: recommended fuel.
95 (P)
3)
98 (PP)
3)
91 (R)
3)4)
–
3)Knock control system automatically adjusts ignition timing according to type of fuel used (octane number). 4)Slight reduction in engine output and torque if 91 RON is used.
95 (P)
3)
98 (PP)
3)
–
––
–
–
49 (D)
5)
5)A lower value is possible with winter diesel fuels.
–
–
–
49 (D)
5)
Max. permissible engine speed,
continuous operation approx. [rpm ]. 6200 6400 5020 to 5180 5000 to 5200
Oil consumption [l/1000 km] 0.6 0.6 0.6 0.6
