fog light bulb OPEL COMBO 2010 Owners Manual

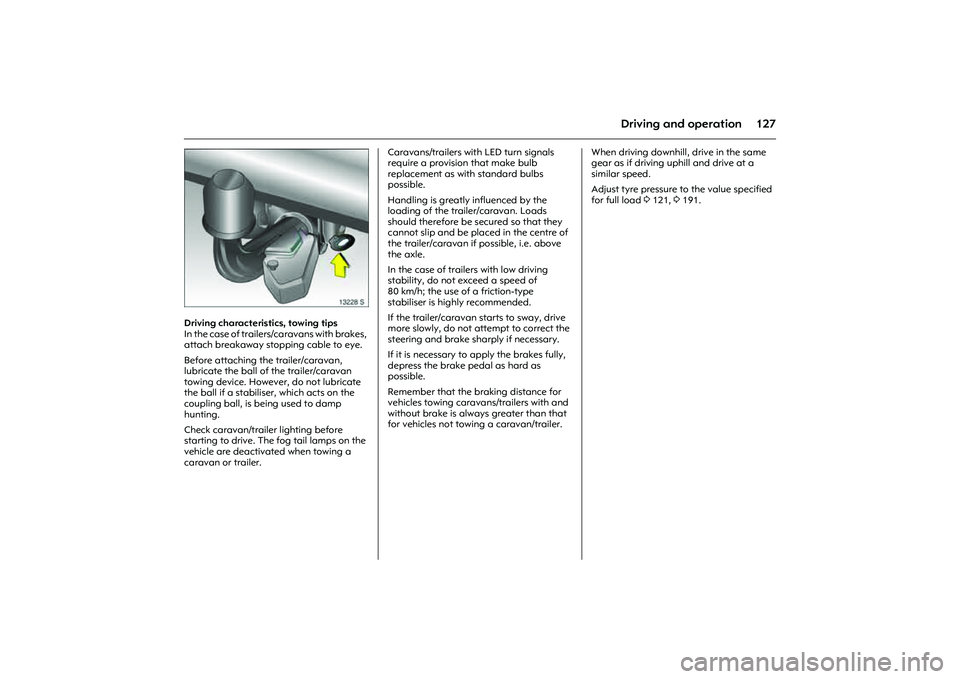

127
Driving and operation
Picture no: 13228s.tif
Driving characteristics, towing tips
In the case of trailers/caravans with brakes,
attach breakaway stopping cable to eye.
Before attaching the trailer/caravan,
lubricate the ball of the trailer/caravan
towing device. However, do not lubricate
the ball if a stabiliser, which acts on the
coupling ball, is being used to damp
hunting.
Check caravan/trailer lighting before
starting to drive. The fog tail lamps on the
vehicle are deactivated when towing a
caravan or trailer. Caravans/trailers with LED turn signals
require a provision that make bulb
replacement as with standard bulbs
possible.
Handling is greatly influenced by the
loading of the trailer/caravan. Loads
should therefore be secured so that they
cannot slip and be placed in the centre of
the trailer/caravan if possible, i.e. above
the axle.
In the case of trailers with low driving
stability, do not exceed a speed of
80 km/h; the use of a friction-type
stabiliser is highly recommended.
If the trailer/caravan starts to sway, drive
more slowly, do not attempt to correct the
steering and brake sharply if necessary.
If it is necessary to apply the brakes fully,
depress the brake pedal as hard as
possible.
Remember that the braking distance for
vehicles towing caravans/trailers with and
without brake is always greater than that
for vehicles not towing a caravan/trailer. When driving downhill, drive in the same
gear as if driving uphill and drive at a
similar speed.
Adjust tyre pressure to the value specified
for full load 3121, 3191.

157
Self-help, vehicle care
Picture no: 12449s.tif
Tail lamps 1. Disengage cover by pressing retaining
lugs and remove.
Picture no: 13725s.tif
2. Detach plug connector from bulb
mounting.
3. Grip the bulb housing from the outside,
slacken the two knurled nuts using the
wheel bolt spanner 3 and unscrew by
hand.
4. Detach bulb housing.
5. Press retaining lugs on bulb mounting
together and remove bulb mounting, as
shown in illustration 13726 S.
Picture no: 13726s.tif
Lamps from top to bottom:
6. Remove bulb from socket.
7. Insert a new bulb. Engage the bulb
mounting in the bulb housing. Insert the
bulb housing into the vehicle body.
Screw the fixing nuts onto setscrews by
hand and tighten. Engage the plug
connector. Place the cover in position
and close. Reversing light/brake light
Turn signal lamp
Reversing light
Fog tail lamp (country-specific version:
fog tail lamp at one side only).

200 IndexFFan ............................................................ 94
Fault .......................................................... 37
Filling station
Capacities ........................................... 195
Engine oil level ................................... 175
Fuel ............................................. 110, 184
Opening the bonnet .......................... 128
Tyre pressure ...................................... 191
Vehicle data ............................... 182, 183
Windscreen washer system ............... 180
First-aid kit ............................................. 133
Flat tyre .................................................. 142
Fog lamps ................................................ 86
Bulb replacement ............................... 156
Fog tail lamp ............................................ 86
Bulb replacement ............................... 157
Foot brake ...................................... 118, 120
Front passenger airbag .......................... 56
Fuel ................................................. 110, 184
Fuel consumption ......... 108, 110, 185, 186
Fuel filter ................................................. 177
Fuel gauge ......................................... 73, 74
Fuel level ................................................... 73
Fuel selection button ............................. 113
Fuel system, diesel ................................. 128
Fuse remover ......................................... 145
Fuses ....................................................... 145
GGas type
H gas .......................................... 110, 188
L gas ................................................... 110
Gears ................................................ 15, 105
Generator, see Alternator ....................... 69
Genuine Opel Parts and Accessories ... 174
Glasses compartment ............................. 63
Glove compartment ................................ 63
Graphical information display ............... 76
Gross vehicle weight .............................. 189
Gross vehicle weight rating .................. 189HHalogen headlamp system .................. 151
Hand brake ................................ 16, 17, 120
Hazard warning lamps ........................... 86
Head restraints .................................. 40, 41
Headlamp flash ....................................... 85
Headlamp range adjustment ................. 87
Headlamp switch ................................ 6, 84
Headlamp washer system ........ 13, 83, 180
Headlamps ................................................ 6
Daytime running lights ........................ 84
Driving abroad ..................................... 89
Fog lamps ............................................ 86
Reversing lamps .................................. 85
Warning device .................................... 82
Headlights
Changing bulbs ......................... 151, 155
Heated exterior mirrors ............... 14, 35, 37Heated front seats .................................. 40
Heated rear window ......................... 14, 37
Heating .............................................. 92, 95
Seats ..................................................... 40
With the air conditioning system ....... 92
Height adjustment
Seat belts ............................................. 52
Steering wheel ........................................6
High pressure jet cleaner ...................... 163
Horn .......................................................... 13
IIdentification plate ........................ 182, 183
Idling ...................................................... 105
Ignition logic ............................................ 82
Ignition switch .......................................... 16
Ignition system .............................. 174, 180
Immobiliser .............................................. 21
Information display ................................. 76
Infotainment system ......................... 76, 90
Instrument illumination ........................... 87
Bulb replacement .............................. 159
Instrument panel ........................................9
Instruments .............................. 9, 66, 71, 72
Interior mirror ....................................... 6, 35
Interruption of power supply
Easytronic ........................................... 105
Electric windows .................................. 37JJack ................................................ 136, 139
Jump leads ............................................. 129
