manual transmission OPEL COMBO 2010 Owners Manual

12 In BriefControl indicators >
Fog lamps 3,
366, 386.
A
Engine electronics,
Immobiliser3, Manual
transmission automated 3,
Fault,
321, 366, 3116.
Z
Exhaust gases 3,
367, 3115.
v
Airbag systems 3,
Belt tensioners,
367, 350, 359.
I
Engine oil pressure,
367.
O
Turn signal lamps,
368, 385.
C
Main beam,
368, 385.
!
Preheating 3, diesel particle
filter 3,
368, 3116.
T
Winter programme of the
manual transmission
automated 3,
3103.
r
Fog tail lamp,
369, 386.
p
Alternator,
369.
R
Brake system,
clutch system 3,
369, 3179.
u
Anti-lock Braking System 3,
3119.
S
Engine oil level 3,
370, 3175.
EPSElectric power steering 3,
370.
Y
Fuel level,
370, 3111.

15
In Brief
Picture no: 15120s.tif
Manual transmission Reverse gear: With the vehicle stationary,
lift the ring under the gear-lever knob
3 seconds after depressing the clutch, and
then engage the gear.
If the gear does not engage, put the lever
into neutral, release the clutch pedal and
depress again; then repeat gear selection.
Manual transmission 3105.
Picture no: 12466s.tif
Manual transmission
automated
3
To move the selector lever from N to R
press the button on the lever.
Only start in N with foot brake applied.
Manual transmission automated 3 3100.
Before starting off, check zTyre pressure and tyre condition 3121,
3191,
zEngine oil level and fluid levels in engine
compartment 3174 to 3180,
zAll windows, mirrors, exterior lighting
and number plates are free from dirt,
snow and ice and operational,
zSeats, seat belts and mirrors are
correctly adjusted 338, 348, 334,
zCheck brake function at low speed,
particularly if the brakes are wet.
N
= Idle speed/start position
o
= Drive position (centre position)
+
=Higher gear
-
= Lower gear
A/M
= Switch between Automatic and
Manual mode
R
= Reverse gear (with selector lever
lock)

16 In Brief
Picture no: 15678t.tif
Steering wheel lock and ignitionTurn key to position 1. Move the steering
wheel slightly to release the steering wheel
lock.
Picture no: 15582a.tif
Starting the engine Depress the clutch and brake pedals,
manual transmission automated 3 in N, do
not accelerate; for diesel engine, turn key
to position 2; when control indicator !
goes out turn the key to position 3 and
release it when the engine is running.
To repeat the start procedure or switch off
the engine, turn the key back to 0.
To switch on the ignition, turn the key to 2.
Picture no: 11554s.tif
To release the hand brake: Raise
lever slightly, press release
button, lower lever fully Hand brake 369, 3120.
0
=Ignition off
1
= Steering free, ignition off
2
=Ignition on,
with diesel engine: pre-heating
3
=Starting

17
In Brief
Parking the vehicle zAlways apply handbrake firmly without
operating the release button, and apply
as firmly as possible on a downhill or
uphill slope.
zSwitch off the engine and ignition by
turning the ignition key to 0 and
removing it. Turn the steering wheel until
you can feel its lock engage (anti-theft
protection).
On vehicles with manual transmission
automated3, control indicator R
flashes for a few seconds after the
ignition is switched off if the hand brake
has not been applied.
zIf the vehicle is parked on a level surface
or an uphill slope, with a manual
gearbox select first gear or with manual
transmission automated 3 move the
selector lever to the centre position
before switching off the ignition. Also
turn the front wheels away from the kerb
if the vehicle is on an uphill slope.
If the vehicle is on a downhill slope, with
manual gearbox or manual transmission
automated 3 select reverse gear before
switching off the ignition. Also turn the
front wheels towards the kerb. zLock the vehicle with the key in the lock
or the p button on the remote control.
Activate the anti-theft locking system 3
and anti-theft alarm system 3 by
pressing the p button twice.
Advice when parkingzDo not park vehicle on easily ignitable
surfaces as the hot exhaust system
temperatures could cause the surface to
ignite.
zClose windows.
zThe engine cooling fans may run after
the engine has been switched off, 3174.
Locking doors 322, Remote control 3 323,
Central locking system 3 324, Anti-theft
alarm system 3 331, Vehicle
decommissioning 3181.
Interesting functions

21
Keys, doors, windows
Picture no: 15761t.tif
Electronic immobiliser The system checks whether the vehicle is
allowed to start with the key used. Once
the transponder in the key is recognised,
the vehicle can be started.
The electronic immobiliser activates
automatically when the key is removed
from the ignition switch.
Picture no: 11718s.tif
Control indicator for immobilizer A
Control indicator A illuminates briefly
after the ignition is switched on.
If the control indicator flashes when the
ignition is on, there is a fault in the system;
the engine cannot be started. Switch off
the ignition and then repeat the start
attempt.
If the control indicator A continues to
flash, please try to start the engine using
the second key and contact a workshop. If control indicator A lights up after the
engine has started, there is a fault in the
engine electronics or the manual
transmission automated 3104.
Note
The immobiliser does not lock the doors.
You should always lock the vehicle after
leaving it and switch on the anti-theft
alarm system 3, 322, 324, 331.

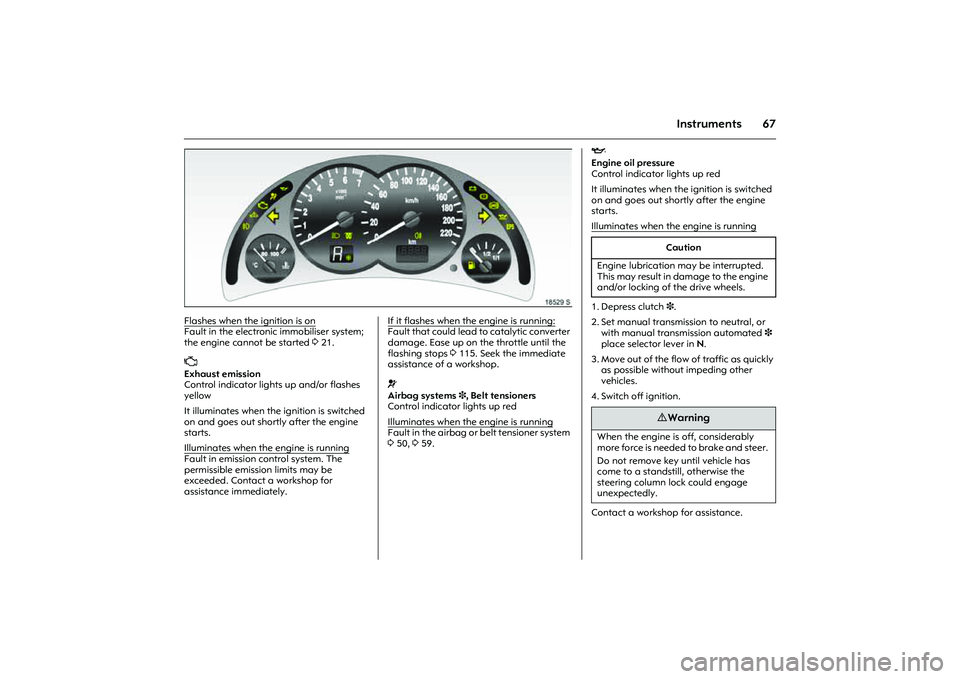

67
Instruments
Picture no: 18529s.tif
Flashes when the ignition is onFault in the electronic immobiliser system;
the engine cannot be started 321.Z

Exhaust emission
Control indicator lights up and/or flashes
yellow
It illuminates when the ignition is switched
on and goes out shortly after the engine
starts.
Illuminates when the engine is running
Fault in emission control system. The
permissible emission limits may be
exceeded. Contact a workshop for
assistance immediately.
Picture no:
If it flashes when the engine is running:Fault that could lead to catalytic converter
damage. Ease up on the throttle until the
flashing stops 3115. Seek the immediate
assistance of a workshop. v
Airbag systems 3, Belt tensioners
Control indicator lights up red
Illuminates when the engine is runningFault in the airbag or belt tensioner system
350, 359.
I

Engine oil pressure
Control indicator lights up red
It illuminates when the ignition is switched
on and goes out shortly after the engine
starts.
Illuminates when the engine is running
1. Depress clutch 3.
2. Set manual transmission to neutral, or
with manual transmission automated 3
place selector lever in N.
3. Move out of the flow of traffic as quickly
as possible without impeding other
vehicles.
4. Switch off ignition.
Contact a workshop for assistance. Caution
Engine lubrication may be interrupted.
This may result in damage to the engine
and/or locking of the drive wheels.
9 Warning
When the engine is off, considerably
more force is needed to brake and steer.
Do not remove key until vehicle has
come to a standstill, otherwise the
steering column lock could engage
unexpectedly.

68 InstrumentsO

Turn signal lamps
Control indicator flashes green.
The control indicator flashes if a turn signal
or the hazard warning flashers are
activated.
Rapid flashing: lamp or associated fuse
has failed.
Replacing bulbs 3151. Fuses 3145.
C

Main beam
Control indicator lights up blue.
It is illuminated when main beam is on and
during headlamp flash 385.
Picture no: 18529s.tif
!

Preheating3, diesel particle filter 3
Control indicator lights up and/or flashes
yellow
Illuminated
Preheating activated. Only activates when
outside temperatures are low.
Flashes

(in vehicles with diesel particle filter)
Control indicator ! flashes if the filter
requires cleaning and previous driving
conditions did not permit automatic
cleaning. Continue driving and if possible
do not allow engine speed to drop below
2000 rpm.
Picture no:
The control indicator ! goes off as soon
as the self-cleaning operation is complete.
Diesel particle filter 3116.T
Winter programme of the manual
transmission automated3
Symbol is lit in the transmission display if
the Winter programme is activated 3103.

69
Instruments
r
Fog tail lamp
Control indicator lights up yellow.
Illuminates when the fog tail lamp is on
386. p

Alternator
Control indicator lights up red
It illuminates when the ignition is switched
on and goes out shortly after the engine
starts.
Illuminates when the engine is running
Stop and turn engine off. battery is not
charged. Engine cooling may be
interrupted. Contact a workshop.
R

Brake system, clutch system 3
Control indicator lights up or flashes red.
Illuminated
Illuminates when the ignition is switched on
if the hand brake is applied 3120.
Illuminates when the hand brake is
released if the fluid level for the brake or
clutch system 3 is low 3179.
FlashesOn vehicles with manual transmission
automated 3, control indicatorR flashes
for a few seconds after the ignition is
switched off if the hand brake has not been
applied.
u

Anti-lock Braking System 3
Control indicator lights up red
Illuminates while driving
Fault in the anti-lock braking system 3119.
9 Warning
Stop. Do not continue your journey.
Consult a workshop.

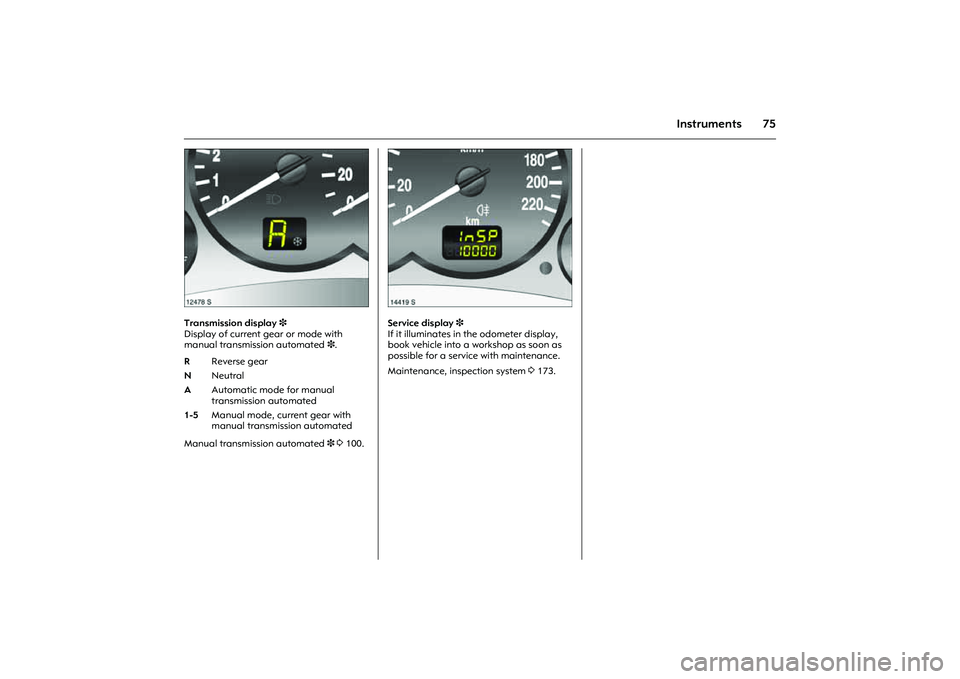

75
Instruments
Picture no: 12478s.tif
Transmission display 3
Display of current gear or mode with
manual transmission automated 3.
Manual transmission automated 3 3100.
Picture no: 14419s.tif
Service display 3
If it illuminates in the odometer display,
book vehicle into a workshop as soon as
possible for a service with maintenance.
Maintenance, inspection system 3173. RReverse gear
NNeutral
AAutomatic mode for manual
transmission automated
1-5Manual mode, current gear with
manual transmission automated

82 InstrumentsSetting display mode 3
Display brightness is independent of
vehicle lighting. Settings are made as
follows:
Select menu item Day / Night from the
Settings menu.
The options are displayed.
Automatic: Adapted based on vehicle
lighting.
Always day design: Black text on light
background.
Always night design: White text on dark
background.
Selections are indicated by a o in front of
the menu item.
Ignition logic 3
Setting, see infotainment system
instructions.
Warning buzzersWhen starting the engine or while driving:
zif seat belt 3 is not fastened.
zIf the speed programmed at the
factory3 is exceeded.
zIf the car has automated manual
transmission 3 and the driver’s door is
opened when the engine is running, a
gear is engaged and the foot brake is
not depressed.
When parking the vehicle and opening
the driver’s door:
zwhen the ignition key is in the ignition
switch.
zwith parking lamps or dipped beam on.
zif the turn signal lever is engaged.
Picture no: 14055h.tif
Windscreen wipers Move lever upwards to switch on.
&=Fast
%=Slow
$= Adjustable interval switching
§=Off
