seats OPEL COMBO 2010 Owners Manual

Contents
In Brief ........................................................ 2
Keys, doors, windows ............................. 20
Seats, Interior .......................................... 38
Instruments ............................................. 66
Lighting ................................................... 84
Infotainment system .............................. 90
Climate control ....................................... 92
Driving and operation ......................... 100
Self-help, vehicle care .......................... 128
Opel Service, maintenance .................. 164
Technical data ..................................... 182
Index ...................................................... 198

3
In Brief
Picture no: 18081s.tif
Unlocking the leaf doors
3: Turn
the key to the vertical position or
press the
q
button on the remote
control 3
To open the right leaf door, pull on the
handle and pull open the door. To open the
left leaf door, turn the handle on the inside.
When using the remote control, the leaf
doors are only unlocked if the key slot in the
lock is in the vertical position.
If the key slot is in the horizontal position,
the leaf doors are always locked.
Remote control 3 323,
Central locking system 3 324,
Anti-theft alarm system 3 331,
Leaf doors 3 329.
Picture no: 13189s.tif
To adjust front seat leg room
3:
Pull handle, slide seat, release
handle
After adjusting, move the seat until you
can feel it engage.
Seats 338, Seat position 339.
Picture no: 13714s.tif
To adjust front seat backrests:
Turn handwheel Do not lean on seat backrest whilst
adjusting it.
Seats 338, Seat position 339.

4In Brief
Picture no: 12429s.tif
Front seat height
3: Pull lever at
side
Lift lever and relieve some weight from seat
to raise it or press down on seat with body
weight to lower it.
Never adjust the driver’s seat whilst driving.
It could move in an uncontrolled manner
when the lever has been pulled.
Seats 338, Seat position 339.
Picture no: 11536s.tif
To fold front seat backrest
forward
3: Raise release lever
Seats 338, Seat position 339.
Picture no: 13781s.tif
Adjust head restraint height
3 of
front and rear outboard seats: Tilt
forward to release, hold in place,
adjust height and release again
Head restraint 340, Head restraint
position 341, Rear, centre head restraint 3
341.

15
In Brief
Picture no: 15120s.tif
Manual transmission Reverse gear: With the vehicle stationary,
lift the ring under the gear-lever knob
3 seconds after depressing the clutch, and
then engage the gear.
If the gear does not engage, put the lever
into neutral, release the clutch pedal and
depress again; then repeat gear selection.
Manual transmission 3105.
Picture no: 12466s.tif
Manual transmission
automated
3
To move the selector lever from N to R
press the button on the lever.
Only start in N with foot brake applied.
Manual transmission automated 3 3100.
Before starting off, check zTyre pressure and tyre condition 3121,
3191,
zEngine oil level and fluid levels in engine
compartment 3174 to 3180,
zAll windows, mirrors, exterior lighting
and number plates are free from dirt,
snow and ice and operational,
zSeats, seat belts and mirrors are
correctly adjusted 338, 348, 334,
zCheck brake function at low speed,
particularly if the brakes are wet.
N
= Idle speed/start position
o
= Drive position (centre position)
+
=Higher gear
-
= Lower gear
A/M
= Switch between Automatic and
Manual mode
R
= Reverse gear (with selector lever
lock)

27
Keys, doors, windows
Picture no: 18098s.tif

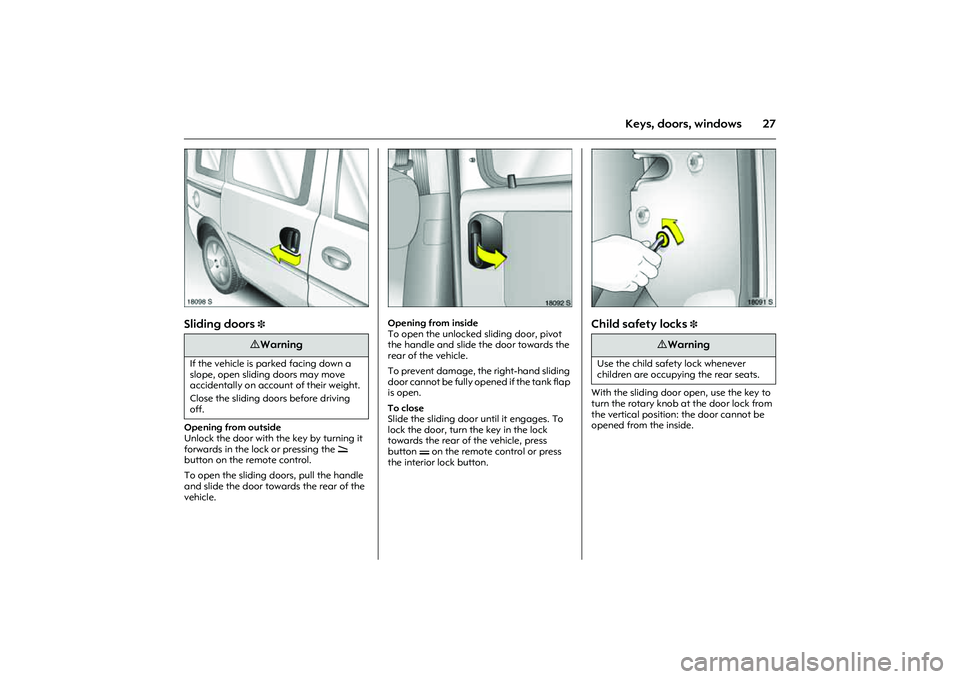

Sliding doors
3
Opening from outside
Unlock the door with the key by turning it
forwards in the lock or pressing the q
button on the remote control.
To open the sliding doors, pull the handle
and slide the door towards the rear of the
vehicle.
Picture no: 18092s.tif
Opening from inside
To open the unlocked sliding door, pivot
the handle and slide the door towards the
rear of the vehicle.
To prevent damage, the right-hand sliding
door cannot be fully opened if the tank flap
is open.
To close
Slide the sliding door until it engages. To
lock the door, turn the key in the lock
towards the rear of the vehicle, press
button p on the remote control or press
the interior lock button.
Picture no: 18091s.tif
Child safety locks
3
With the sliding door open, use the key to
turn the rotary knob at the door lock from
the vertical position: the door cannot be
opened from the inside.
9 Warning
If the vehicle is parked facing down a
slope, open sliding doors may move
accidentally on account of their weight.
Close the sliding doors before driving
off.
9 Warning
Use the child safety lock whenever
children are occupying the rear seats.

38 Seats, InteriorSeats, Interior
Picture no: 13189s.tif
Front seats Adjust longitudinal seat position
Pull the handle at the front of the seat,
move the seat and then release the handle
Picture no: 13714s.tif
Adjusting the backrests
Take the pressure off the backrest and turn
the hand wheel on the side. Front seats ........................................... 38
Head restraints .................................... 40
Luggage compartment extension ..... 42
Lashing eyes 3.................................... 44
Luggage compartment cover3......... 44
Safety net 3......................................... 45
Load compartment grille3................ 46
Notes on loading the vehicle .............. 47
Three-stage safety system.................. 48
Three-point seat belts ......................... 48
Belt tensioners...................................... 50
Operation of the seat belts................. 52
Child restraint system 3...................... 53
Mounting clips 3 for ISOFIX child
restraint systems ............................... 55
Airbag system ...................................... 56
Use of child restraint systems 3......... 61
Cigarette lighter 3............................... 61
Accessory socket 3.............................. 61
Ashtray 3............................................. 62
Stowage compartments ...................... 63
Extendable stowage trays 3.............. 64
Coin holder 3....................................... 65
Sun visors.............................................. 65
9 Warning
Never adjust seats while driving. They
may make uncontrolled movements.

39
Seats, Interior
Picture no: 12429s.tif

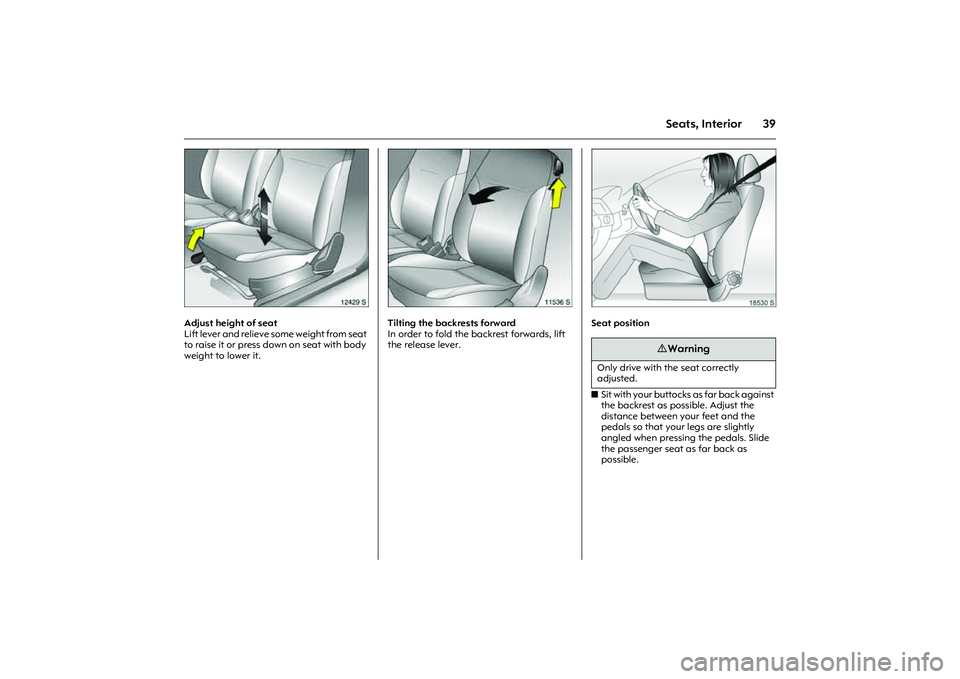

Adjust height of seat
Lift lever and relieve some weight from seat
to raise it or press down on seat with body
weight to lower it.
Picture no: 11536s.tif
Tilting the backrests forward
In order to fold the backrest forwards, lift
the release lever.
Picture no: 18530s.tif
Seat position
zSit with your buttocks as far back against
the backrest as possible. Adjust the
distance between your feet and the
pedals so that your legs are slightly
angled when pressing the pedals. Slide
the passenger seat as far back as
possible.
9 Warning
Only drive with the seat correctly
adjusted.

40 Seats, InteriorzSit with your shoulders as far back
against the backrest as possible. Set the
backrest rake so that you can easily
reach the steering wheel with your arms
slightly bent. Maintain contact between
your shoulders and the backrest when
turning the steering wheel. Do not angle
the backrest too far back. We
recommend a maximum rake of
approx. 25.
zAdjust the steering wheel 36.
zSet seat height 3 high enough to have a
clear field of vision on all sides and of all
display instruments. There should be at
least six inches of clearance between
your head and the headlining. Your
thighs should rest lightly on the seat
without pressing into it.
zAdjust the head restraint.
zAdjust the height of the seat belt 352.
Picture no: 15997s.tif
Heated front seats 3
Two pushbuttons ß in centre console.
With the ignition switched on, the heating
of the relevant front seat is activated by
pressing the button ß.
LED ß on: the relevant front seat is heated.
LED ß off: heating of relevant front seat is
switched off.
For vehicles with natural gas operation 3,
only switch ß is available. Operation for
both front seats when the ignition is on.
Picture no: 13781s.tif
Head restraints Adjusting the front and outboard rear
seat headrestraints 3
To adjust, hold head restraint at side, tilt
forward, hold and adjust height.
To improve visibility when the rear seats
are unoccupied or to fold down a rear seat
or the front passenger seat, push the head
restraint all the way down or remove.
If the rear seats are occupied, adjust the
rear head restraints to the appropriate
level for the occupant’s body size.
The open frame head restraint on the
Combo Van cannot be adjusted.

41
Seats, Interior
Picture no: 12435s.tif

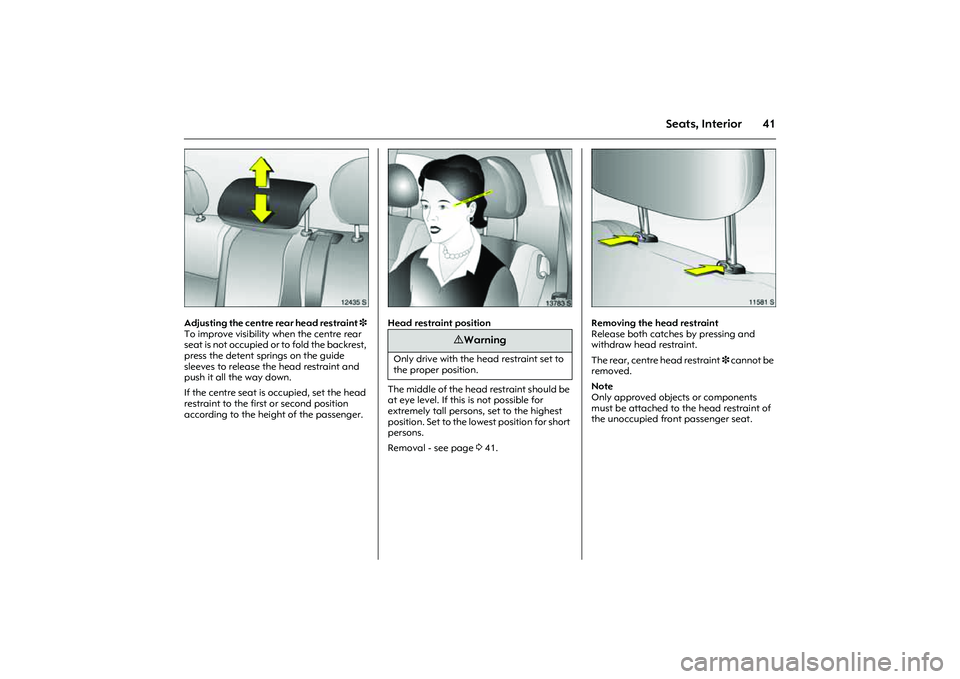

Adjusting the centre rear head restraint 3
To improve visibility when the centre rear
s e a t i s n o t o c c u p i e d o r t o f o l d t h e b a c k r e s t ,
press the detent springs on the guide
sleeves to release the head restraint and
push it all the way down.
If the centre seat is occupied, set the head
restraint to the first or second position
according to the height of the passenger.
Picture no: 13783s.tif
Head restraint position
The middle of the head restraint should be
at eye level. If this is not possible for
extremely tall persons, set to the highest
position. Set to the lowest position for short
persons.

Removal - see page 341.
Picture no: 11581s.tif
Removing the head restraint
Release both catches by pressing and
withdraw head restraint.
The rear, centre head restraint 3 cannot be
removed.
Note
Only approved objects or components
must be attached to the head restraint of
the unoccupied front passenger seat.
9 Warning
Only drive with the head restraint set to
the proper position.

42 Seats, InteriorLuggage compartment extension Remove the luggage compartment
cover3 if necessary 344.
Pull out the push-in collars 3 for the ISOFIX
child-restraint system mounting.
Closely follow the installation instructions
accompanying the ISOFIX child restraint
system.
Picture no: 18099s.tif
Folding down the rear seat backrests
Push the rear, outer head restraint 3 down
completely or remove it 340. Push the rear,
centre head restraint3 down completely
341.
To fold one or both of the rear seat
backrests, press the button at the top to
release the backrest and fold it onto the
seat cushion.
Picture no: 18100s.tif
– or –
Remove the rear, outer head restraints3
340. Push the rear, centre head restraint3
down completely 341.
Hook seat belt buckles on rear seat
backrests.
Pull up one or both rear seat cushions using
the straps provided.
