OPEL CORSA 2009 Owners Manual

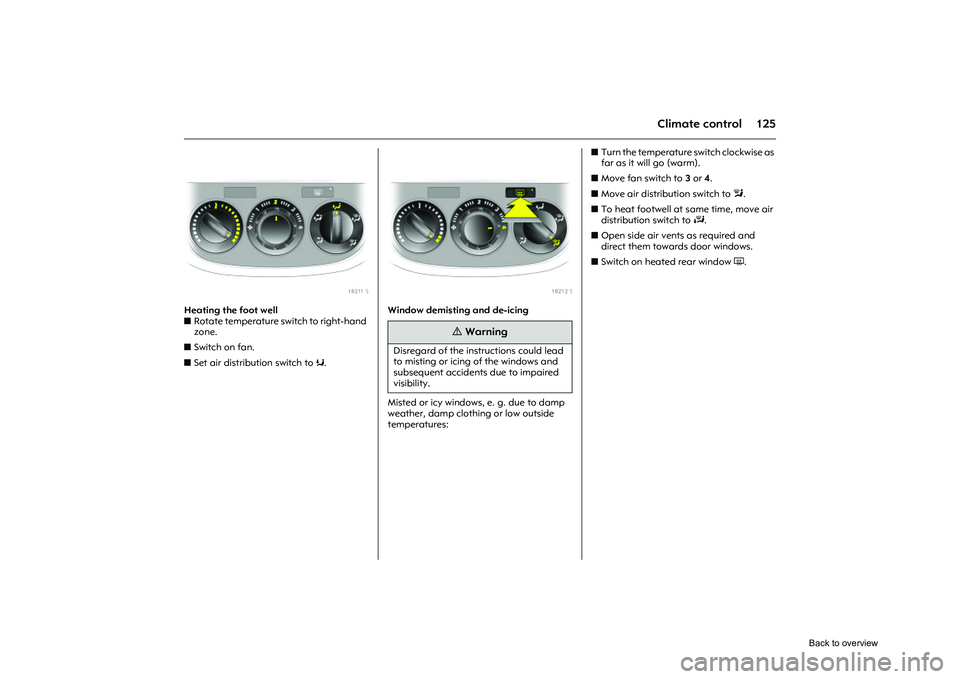

125
Climate control
Picture no: 18211s.tif
Heating the foot well
zRotate temperature switch to right-hand
zone.
z Switch on fan.
z Set air distribution switch to K.
Picture no: 18212s.tif
Window demisting and de-icing
Misted or icy windows, e. g. due to damp
weather, damp clothing or low outside
temperatures: z
Turn the temperature switch clockwise as
far as it will go (warm).
z Move fan switch to 3 or 4.
z Move air distribution switch to l.
z To heat footwell at same time, move air
distribution switch to J.
z Open side air vents as required and
direct them towards door windows.
z Switch on heated rear window Ü.
9
Warning
Disregard of the instructions could lead
to misting or icing of the windows and
subsequent accidents due to impaired
visibility.
Back to overview

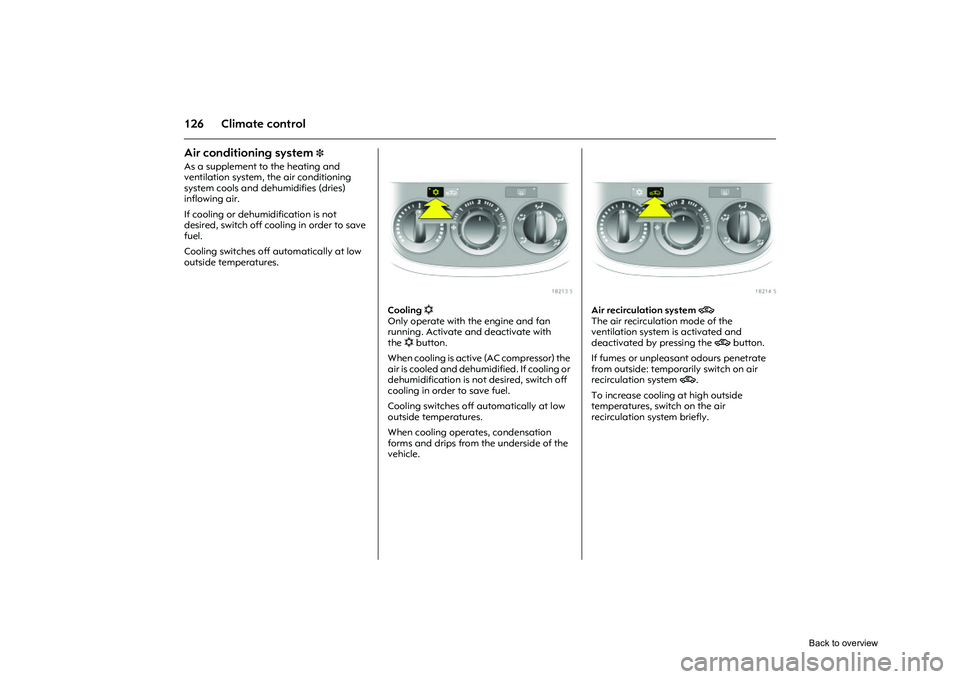

126 Climate controlAir conditioning system
3
As a supplement to the heating and
ventilation system, the air conditioning
system cools and dehumidifies (dries)
inflowing air.
If cooling or dehumidification is not
desired, switch off cooling in order to save
fuel.
Cooling switches off automatically at low
outside temperatures.
Picture no: 18213s.tif
Cooling n
Only operate with the engine and fan
running. Activate and deactivate with
the n button.
When cooling is active (AC compressor) the
air is cooled and dehumid ified. If cooling or
dehumidification is not desired, switch off
cooling in order to save fuel.
Cooling switches off automatically at low
outside temperatures.
When cooling operates, condensation
forms and drips from the underside of the
vehicle.
Picture no: 18214s.tif
Air recirculation system 4
The air recirculation mode of the
ventilation system is activated and
deactivated by pressing the 4 button.
If fumes or unpleasant odours penetrate
from outside: temporarily switch on air
recirculation system 4.
To increase cooling at high outside
temperatures, switch on the air
recirculation system briefly.
Back to overview

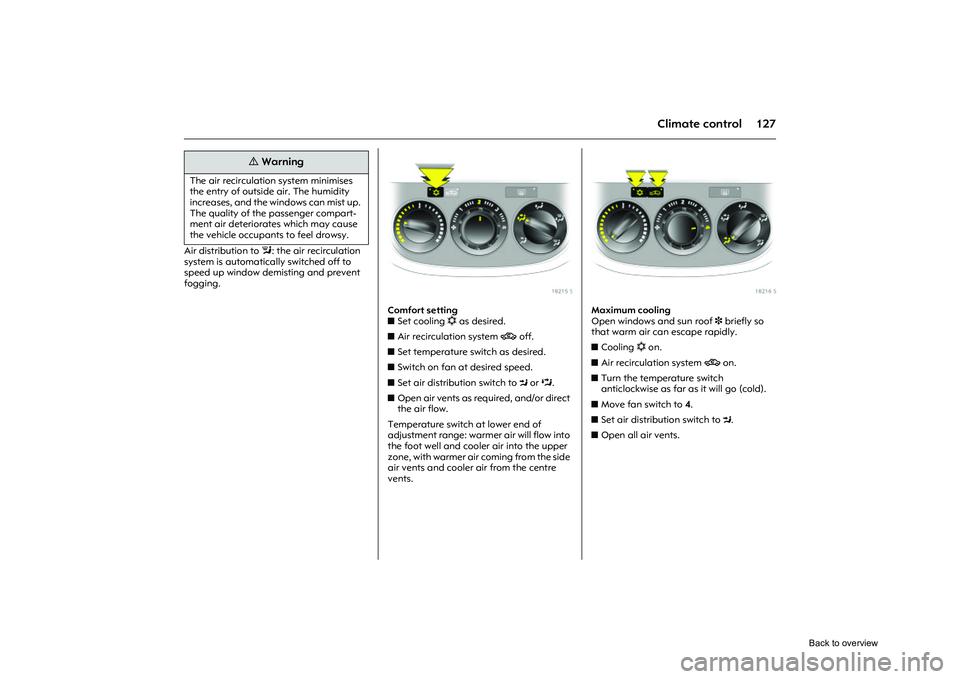

127
Climate control
Air distribution to l: the air recirculation
system is automatically switched off to
speed up window demisting and prevent
fogging.
Picture no: 18215s.tif
Comfort setting
z Set cooling n as desired.
z Air recirculation system 4 off.
z Set temperature switch as desired.
z Switch on fan at desired speed.
z Set air distribution switch to M or L.
z Open air vents as required, and/or direct
the air flow.
Temperature switch at lower end of
adjustment range: warm er air will flow into
the foot well and cooler air into the upper
zone, with warmer air coming from the side
air vents and cooler air from the centre
vents.
Picture no: 18216s.tif
Maximum cooling
Open windows and sun roof 3 briefly so
that warm air can escape rapidly.
z Cooling n on.
z Air recirculation system 4 on.
z Turn the temperature switch
anticlockwise as far as it will go (cold).
z Move fan switch to 4.
z Set air distribution switch to M.
z Open all air vents.
9
Warning
The air recirculation system minimises
the entry of outside air. The humidity
increases, and the windows can mist up.
The quality of the passenger compart-
ment air deteriorates which may cause
the vehicle occupants to feel drowsy.
Back to overview

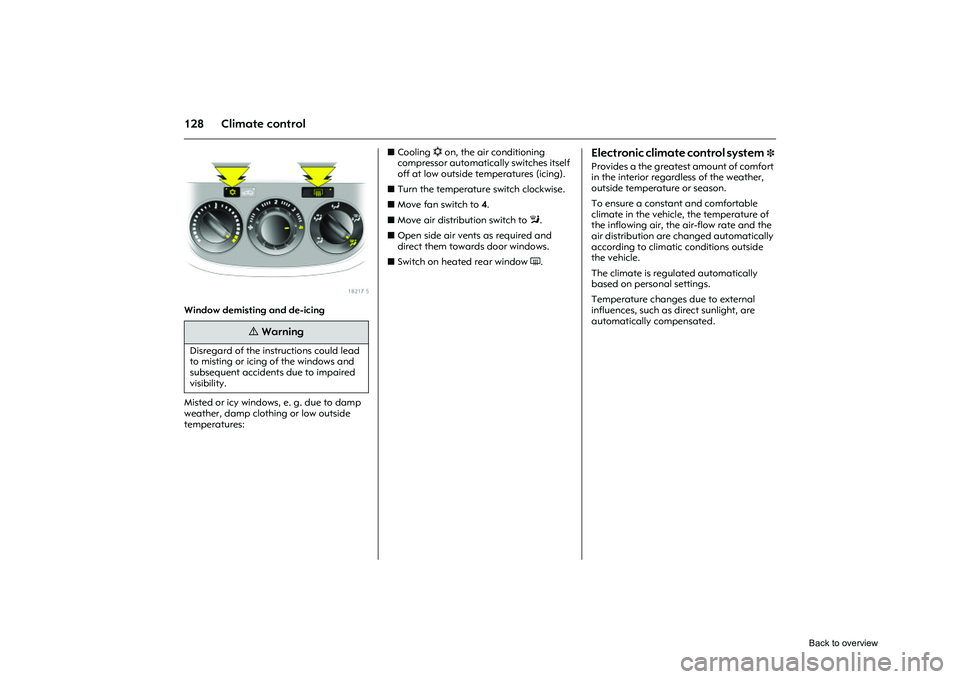

128 Climate control
Picture no: 18217s.tif
Window demisting and de-icing
Misted or icy windows, e. g. due to damp
weather, damp clothi ng or low outside
temperatures: z
Cooling n on, the air conditioning
compressor automatically switches itself
off at low outside temperatures (icing).
z Turn the temperature switch clockwise.
z Move fan switch to 4.
z Move air distribution switch to l.
z Open side air vents as required and
direct them towards door windows.
z Switch on heated rear window Ü.
Electronic climate control system
3
Provides a the greatest amount of comfort
in the interior regardless of the weather,
outside temperature or season.
To ensure a constant and comfortable
climate in the vehicle, the temperature of
the inflowing air, the air-flow rate and the
air distribution are changed automatically
according to climatic conditions outside
the vehicle.
The climate is regulated automatically
based on personal settings.
Temperature changes due to external
influences, such as direct sunlight, are
automatically compensated.
9
Warning
Disregard of the inst ructions could lead
to misting or icing of the windows and
subsequent accidents due to impaired
visibility.
Back to overview

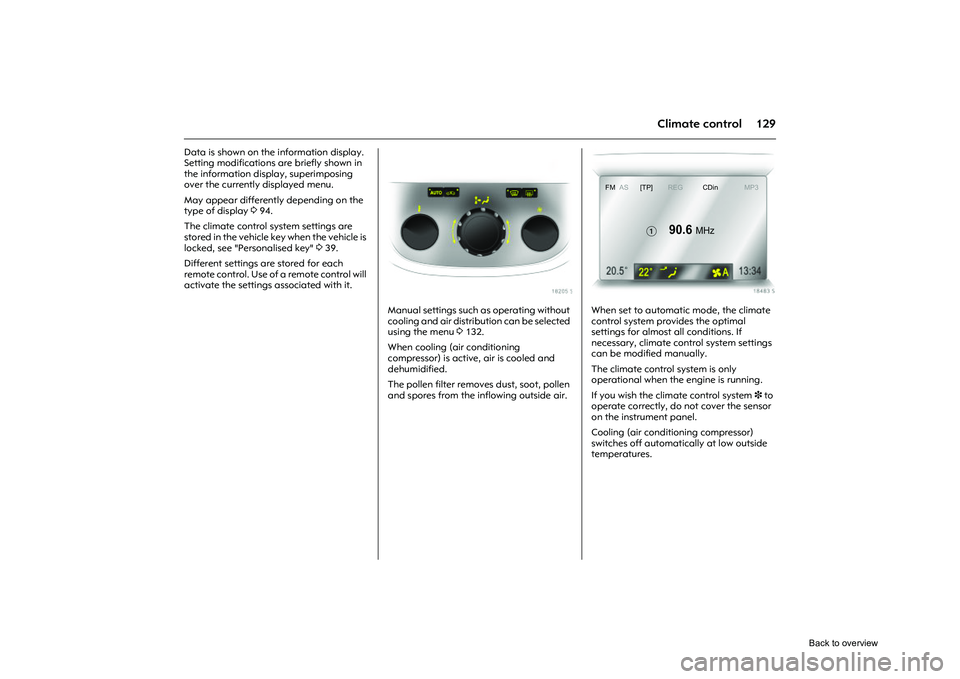

129
Climate control
Data is shown on the information display.
Setting modifications are briefly shown in
the information display, superimposing
over the currently displayed menu.
May appear differently depending on the
type of display 394.
The climate control system settings are
stored in the vehicle key when the vehicle is
locked, see "Personalised key" 339.
Different settings are stored for each
remote control. Use of a remote control will
activate the settings associated with it.
Picture no: 18205s.tif
Manual settings such as operating without
cooling and air distribu tion can be selected
using the menu 3132.
When cooling (air conditioning
compressor) is active, air is cooled and
dehumidified.
The pollen filter removes dust, soot, pollen
and spores from the inflowing outside air.
Picture no: 18483s.tif
When set to automatic mode, the climate
control system provides the optimal
settings for almost all conditions. If
necessary, climate cont rol system settings
can be modified manually.
The climate control system is only
operational when the engine is running.
If you wish the climate control system 3 to
operate correctly, do not cover the sensor
on the instrument panel.
Cooling (air conditioning compressor)
switches off automati cally at low outside
temperatures.
FM AS [TP] REG CDin MP3

90.6
MHz
Back to overview

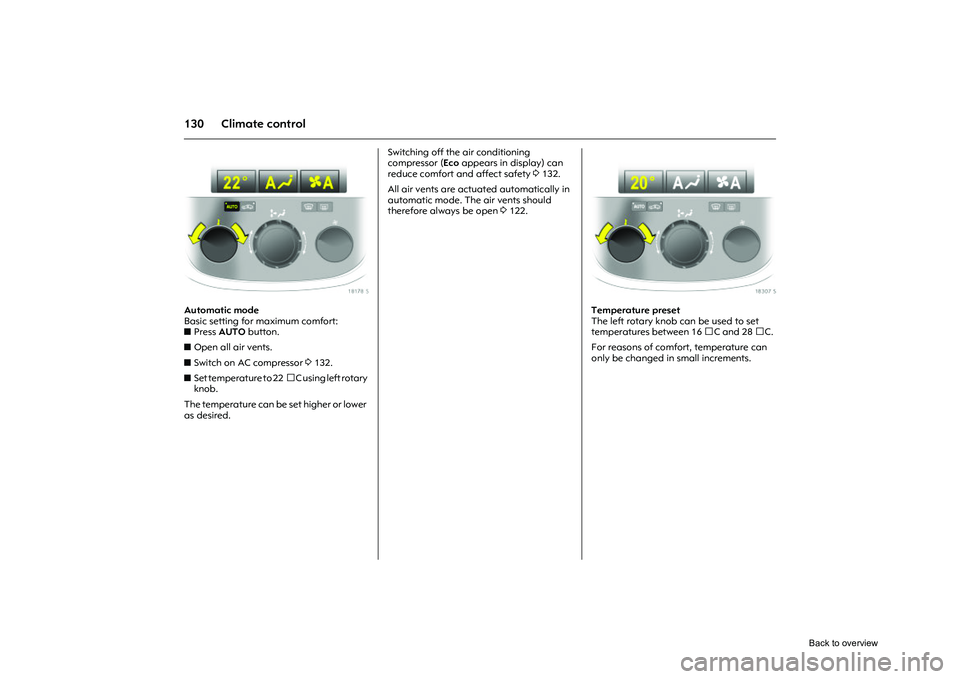

130 Climate control
Picture no: 18178s.tif
Automatic mode
Basic setting for maximum comfort:
zPress AUTO button.
z Open all air vents.
z Switch on AC compressor 3132.
z Set temperature to 22 C using left rotary
knob.
The temperature can be set higher or lower
as desired. Switching off the air conditioning
compressor (
Eco appears in display) can
reduce comfort and affect safety 3132.
All air vents are actuated automatically in
automatic mode. The air vents should
therefore always be open 3122.
Picture no: 18307s.tif
Temperature preset
The left rotary knob can be used to set
temperatures between 16 C and 28 C.
For reasons of comfort, temperature can
only be changed in small increments.
Back to overview

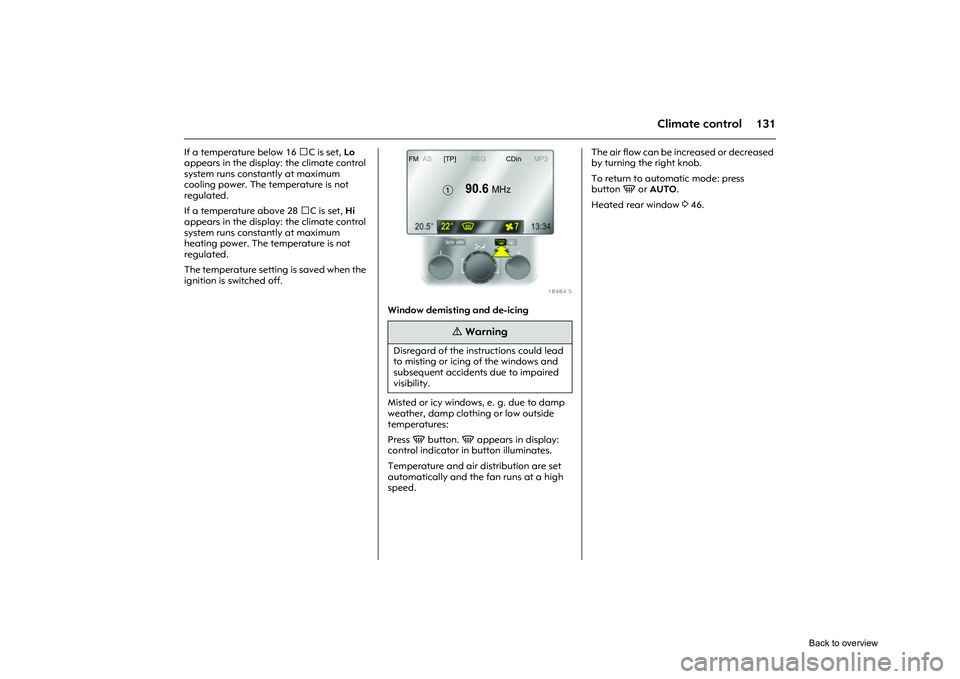

131
Climate control
If a temperature below 16 C is set, Lo
appears in the display: the climate control
system runs constantly at maximum
cooling power. The temperature is not
regulated.
If a temperature above 28 C is set, Hi
appears in the display: the climate control
system runs constantly at maximum
heating power. The temperature is not
regulated.
The temperature setting is saved when the
ignition is switched off.
Picture no: 18484s.tif
Window demisting and de-icing
Misted or icy windows, e. g. due to damp
weather, damp clothing or low outside
temperatures:
Press V button. V appears in display:
control indicator in button illuminates.
Temperature and air distribution are set
automatically and the fan runs at a high
speed. The air flow can be increased or decreased
by turning the right knob.
To return to automatic mode: press
button
V or AUTO .
Heated rear window 346.
9
Warning
Disregard of the instructions could lead
to misting or icing of the windows and
subsequent accidents due to impaired
visibility.
FM AS [TP] REG CDinMP3

90.6
MHz
Back to overview

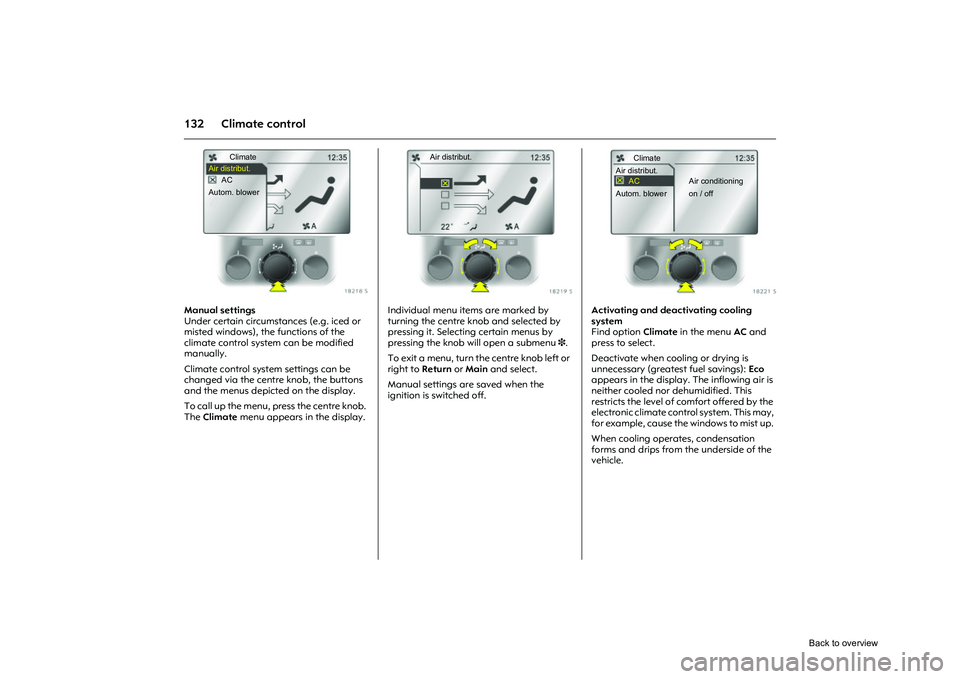

132 Climate control
Picture no: 18218s.tif
Manual settings
Under certain circumstances (e.g. iced or
misted windows), the functions of the
climate control system can be modified
manually.
Climate control system settings can be
changed via the centre knob, the buttons
and the menus depicted on the display.
To call up the menu, press the centre knob.
The Climate menu appears in the display.
Picture no: 18219s.tif
Individual menu items are marked by
turning the centre knob and selected by
pressing it. Selecting certain menus by
pressing the knob will open a submenu 3.
To exit a menu, turn the centre knob left or
right to Return or Main and select.
Manual settings are saved when the
ignition is switched off.
Picture no: 18221s.tif
Activating and deactivating cooling
system
Find option Climate in the menu AC and
press to select.
Deactivate when cooling or drying is
unnecessary (greatest fuel savings): Eco
appears in the display. The inflowing air is
neither cooled nor dehumidified. This
restricts the level of comfort offered by the
electronic climate control system. This may,
for example, cause the windows to mist up.
When cooling operates, condensation
forms and drips from the underside of the
vehicle.
Climate
Air distribut.
AC
Autom. blower
Air distribut.
Climate
Air distribut. AC Air conditioning
Autom. blower on / off
Back to overview

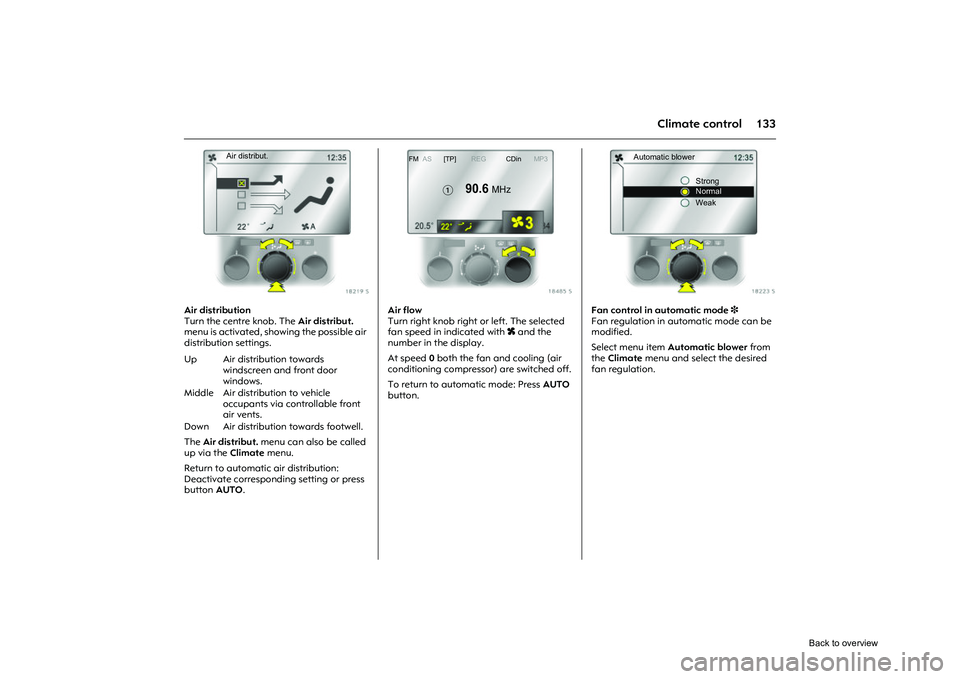

133
Climate control
Picture no: 18219s.tif
Air distribution
Turn the centre knob. The Air distribut.
menu is activated, showing the possible air
distribution settings.
The Air distribut. menu can also be called
up via the Climate menu.
Return to automatic air distribution:
Deactivate corresponding setting or press
button AUTO.
Picture no: 18485s.tif
Air flow
Turn right knob right or left. The selected
fan speed in indicated with x and the
number in the display.
At speed 0 both the fan and cooling (air
conditioning compressor) are switched off.
To return to automatic mode: Press AUTO
button.
Picture no: 18223s.tif
Fan control in automatic mode 3
Fan regulation in automatic mode can be
modified.
Select menu item Automatic blower from
the Climate menu and select the desired
fan regulation.
Up Air distribution towards
windscreen and front door
windows.
Middle Air distribution to vehicle occupants via controllable front
air vents.
Down Air distribution towards footwell.
Air distribut.
FM AS [TP] REG CDinMP3

90.6
MHz
Automatic blower
Strong
Normal
Weak
Back to overview

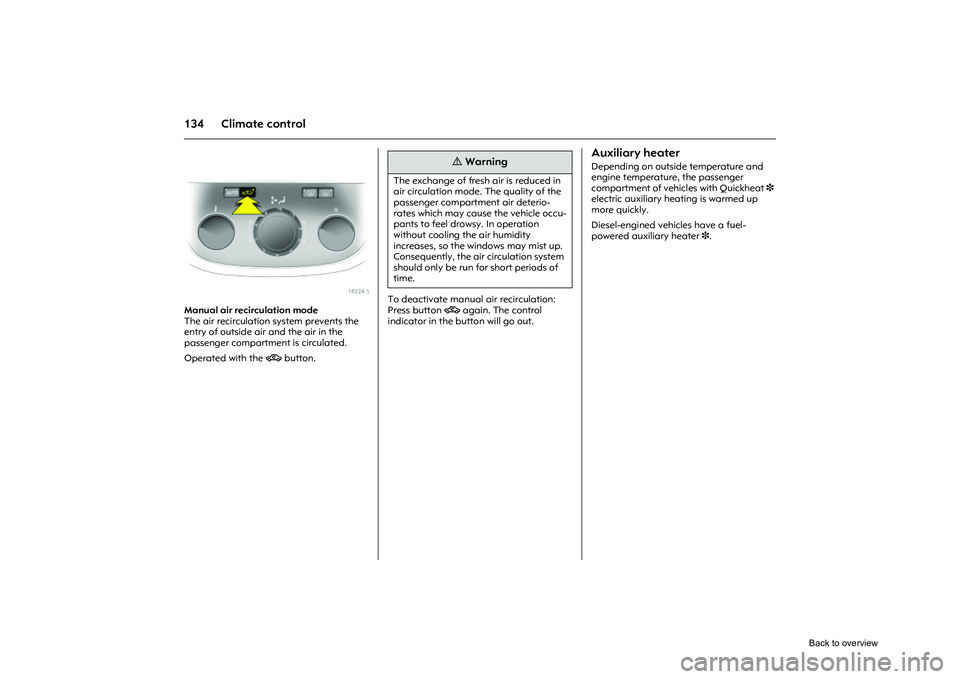

134 Climate control
Picture no: 18224s.tif
Manual air recirculation mode
The air recirculation system prevents the
entry of outside air and the air in the
passenger compartment is circulated.
Operated with the 4 button. To deactivate manual
air recirculation:
Press button 4 again. The control
indicator in the butt on will go out.
Auxiliary heater Depending on outside temperature and
engine temperature, the passenger
compartment of vehicles with Quickheat 3
electric auxiliary heating is warmed up
more quickly.
Diesel-engined vehicles have a fuel-
powered auxiliary heater 3.
9
Warning
The exchange of fresh air is reduced in
air circulation mode. The quality of the
passenger compartment air deterio-
rates which may cause the vehicle occu-
pants to feel drowsy. In operation
without cooling the air humidity
increases, so the windows may mist up.
Consequently, the air circulation system
should only be run for short periods of
time.
Back to overview
