OPEL CORSA 2009 Owners Manual

95
Instruments, controls
Picture no: 17913s.tif

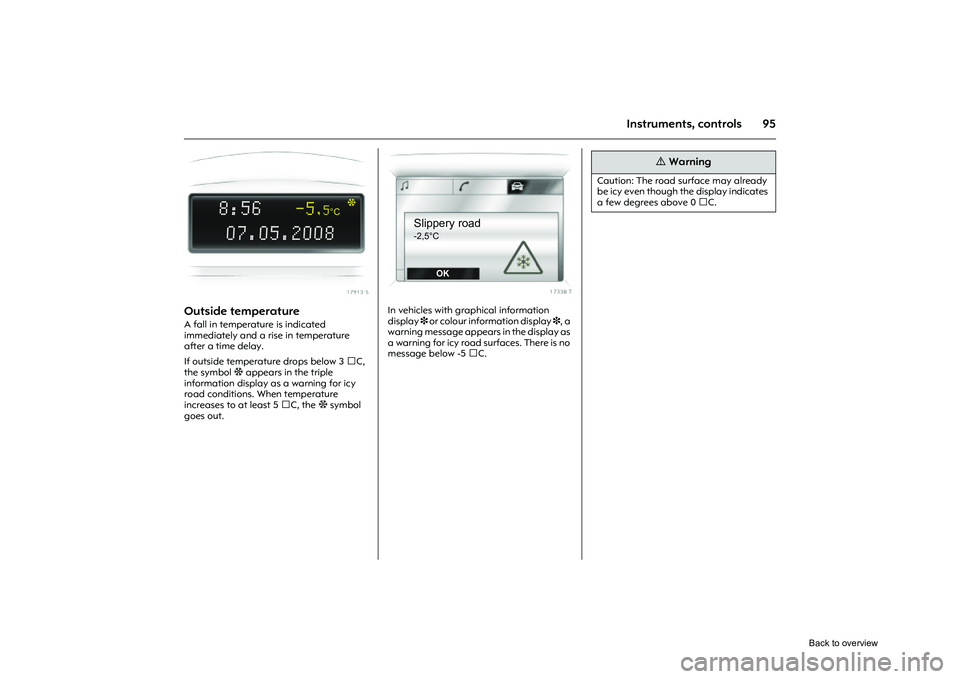

Outside temperature A fall in temperature is indicated
immediately and a rise in temperature
after a time delay.
If outside temperature drops below 3 C,
the symbol : appears in the triple
information display as a warning for icy
road conditions. When temperature
increases to at least 5 C, the : symbol
goes out.
Picture no: 17338t.tif
In vehicles with graphical information
display 3 or colour information display 3, a
warning message appears in the display as
a warning for icy road surfaces. There is no
message below -5 C.
:
8:56
-5
,5
°C
07.05.2008
Slippery road-2,5°C
OK
9
Warning
Caution: The road surface may already
be icy even though the display indicates
a few degrees above 0 C.
Back to overview

96 Instruments, controls
Picture no: 17914s.tif

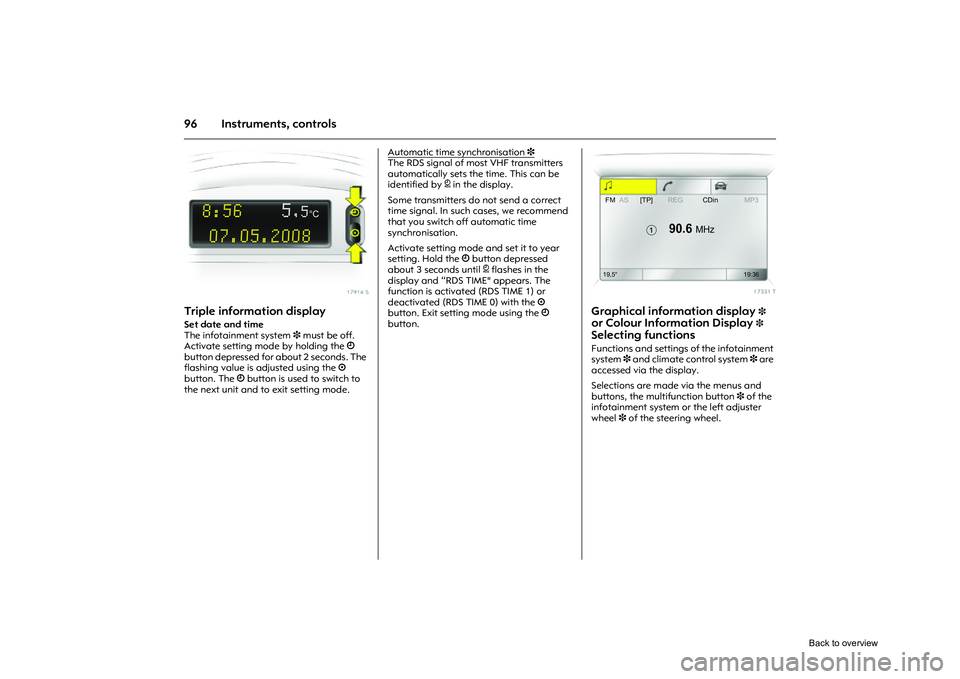

Triple information display Set date and time
The infotainment system 3 must be off.
Activate setting mode by holding the Ö
button depressed for about 2 seconds. The
flashing value is adjusted using the ;
button. The Ö button is used to switch to
the next unit and to exit setting mode. Automatic time synchronisation
3
The RDS signal of most VHF transmitters
automatically sets the time. This can be
identified by } in the display.
Some transmitters do not send a correct
time signal. In such cases, we recommend
that you switch off automatic time
synchronisation.
Activate setting mode and set it to year
setting. Hold the Ö button depressed
about 3 seconds until } flashes in the
display and “RDS TIME" appears. The
function is activated (RDS TIME 1) or
deactivated (RDS TIME 0) with the ;
button. Exit setting mode using the Ö
button.
Picture no: 17331t.tif
Graphical information display
3
or Colour Information Display 3
Selecting functions
Functions and settings of the infotainment
system 3 and climate control system 3 are
accessed via the display.
Selections are made via the menus and
buttons, the multifunction button 3 of the
infotainment system or the left adjuster
wheel 3 of the steering wheel.
8:56
5
,5
°C
07.05.2008
FM AS [TP] REG CDin MP3

90.6
MHz
19,5° 19:36
Back to overview

97
Instruments, controls
Picture no: 18612t.tif

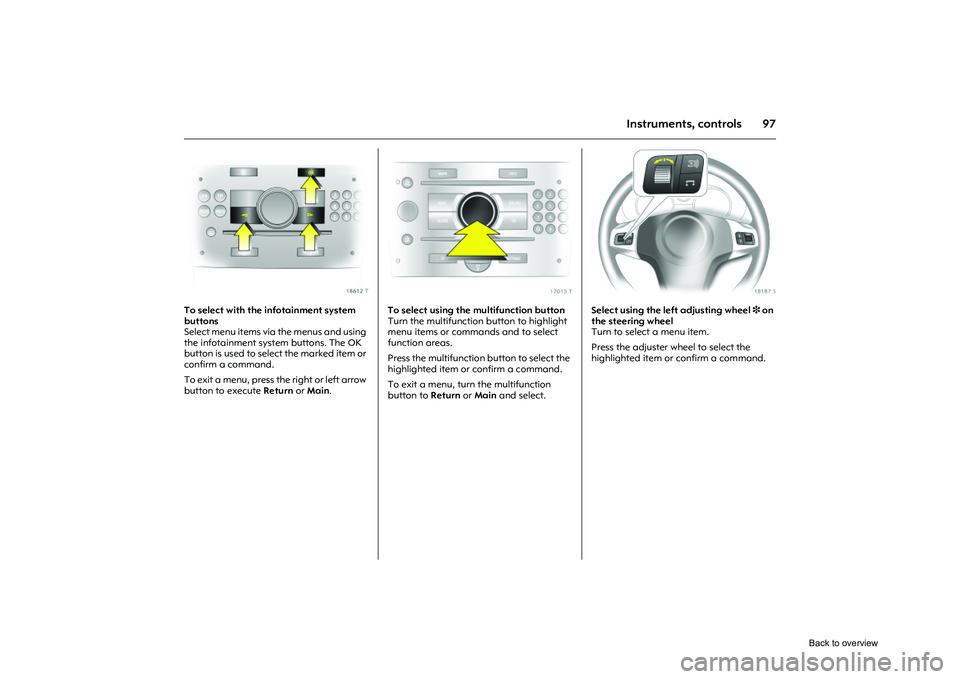

To select with the infotainment system
buttons
Select menu items via the menus and using
the infotainment system buttons. The OK
button is used to select the marked item or
confirm a command.
To exit a menu, press the right or left arrow
button to execute Return or Main .
Picture no: 17013t.tif
To select using the multifunction button
Turn the multifunction button to highlight
menu items or commands and to select
function areas.
Press the multifunction button to select the
highlighted item or confirm a command.
To exit a menu, turn the multifunction
button to Return or Main and select.
Picture no: 18187s.tif
Select using the left adjusting wheel 3 on
the steering wheel
Turn to select a menu item.
Press the adjuster wheel to select the
highlighted item or confirm a command.
Back to overview

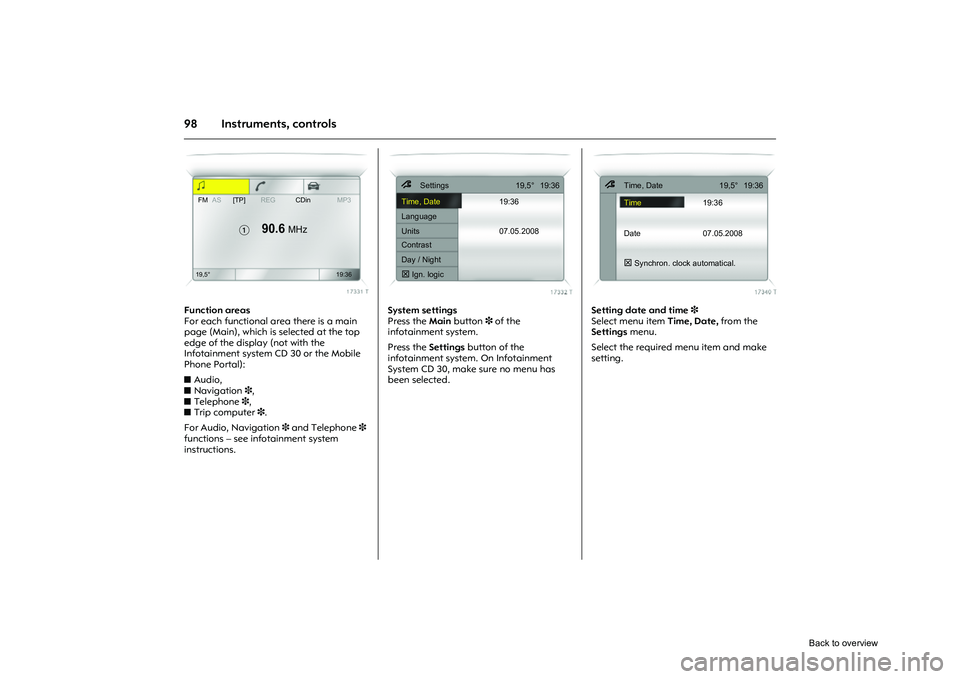

98 Instruments, controls
Picture no: 17331t.tif
Function areas
For each functional area there is a main
page (Main), which is selected at the top
edge of the display (not with the
Infotainment system CD 30 or the Mobile
Phone Portal):
zAudio,
z Navigation 3,
z Telephone 3,
z Trip computer 3.
For Audio, Navigation 3 and Telephone 3
functions – see infotainment system
instructions.
Picture no: 17332t.tif
System settings
Press the Main button 3 of the
infotainment system.
Press the Settings button of the
infotainment system . On Infotainment
System CD 30, make sure no menu has
been selected.
Picture no: 17340t.tif
Setting date and time 3
Select menu item Time, Date, from the
Settings menu.
Select the required menu item and make
setting.
FM AS [TP] REG CDin MP3

90.6
MHz
19,5° 19:36
7
Settings19,5° 19:36
Time, Date 19:36
Language
Units 07.05.2008
Contrast
Day / Night
! Ign. logic
7 Time, Date 19,5° 19:36
Time 19:36
Date 07.05.2008! Synchron. clock automatical.
Back to overview

99
Instruments, controls

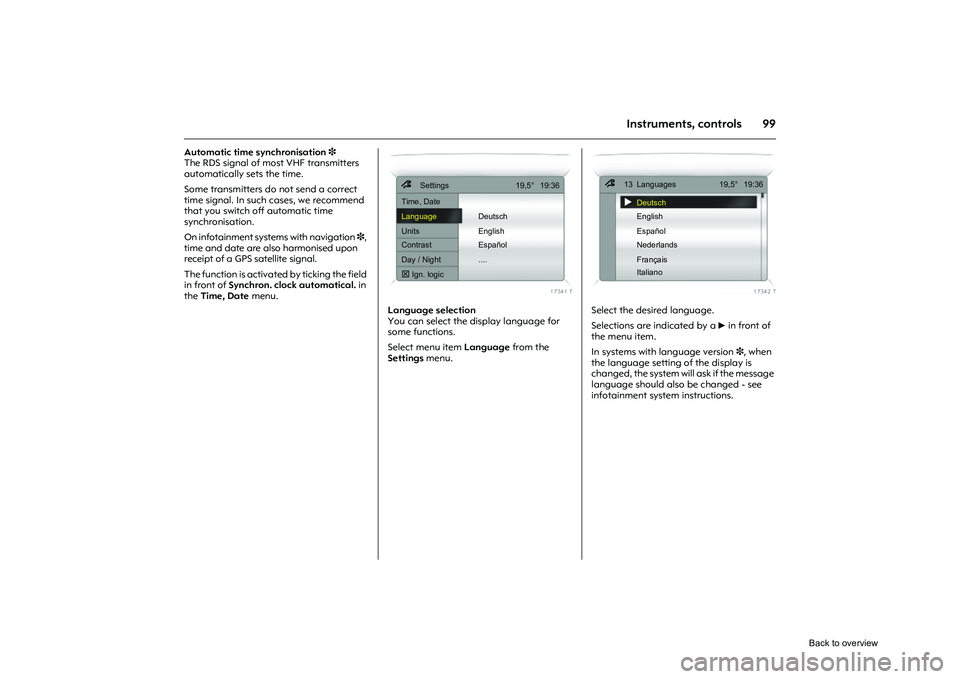

Automatic time synchronisation 3
The RDS signal of most VHF transmitters
automatically sets the time.
Some transmitters do not send a correct
time signal. In such cases, we recommend
that you switch off automatic time
synchronisation.
On infotainment systems with navigation 3,
time and date are also harmonised upon
receipt of a GPS satellite signal.
The function is activated by ticking the field
in front of Synchron. clock automatical. in
the Time, Date menu.
Picture no: 17341t.tif
Language selection
You can select the display language for
some functions.
Select menu item Language from the
Settings menu.
Picture no: 17342t.tif
Select the desired language.
Selections are indicated by a 6 in front of
the menu item.
In systems with language version 3, when
the language setting of the display is
changed, the system will ask if the message
language should also be changed - see
infotainment system instructions.
7
Settings 19,5° 19:36
Time, Date
Language Deutsch
Units English
Contrast Español
Day / Night ....
! Ign. logic
7
13 Languages 19,5° 19:36!
Deutsch
English
Español
Nederlands
Français
Italiano
Back to overview

100 Instruments, controls
Picture no: 17343t.tif

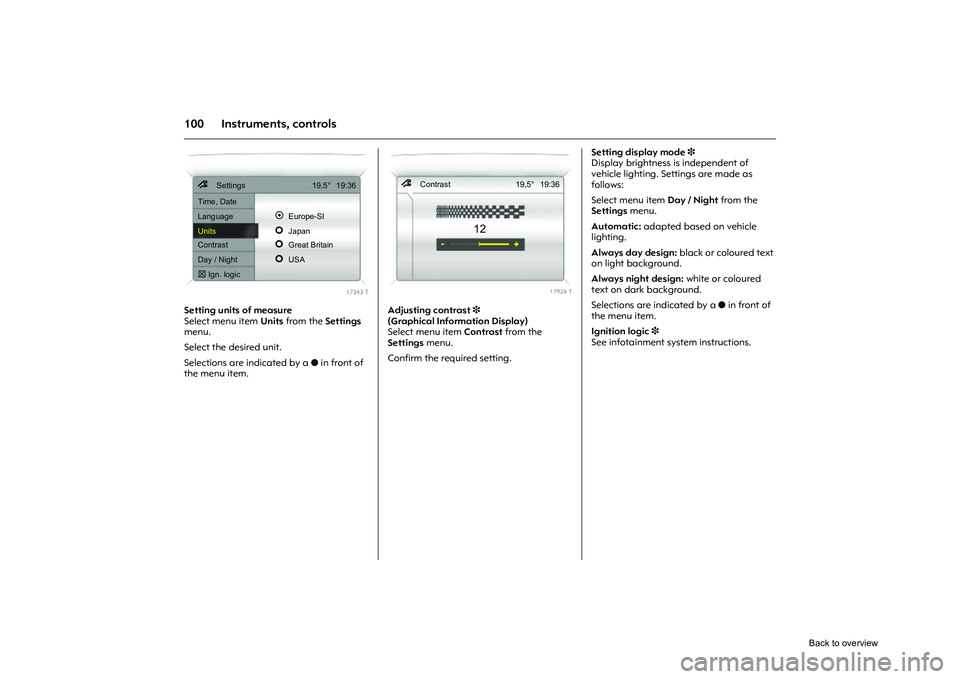

Setting units of measure
Select menu item Units from the Settings
menu.
Select the desired unit.
Selections are indicated by a o in front of
the menu item.
Picture no: 17926t.tif
Adjusting contrast 3
(Graphical Information Display)
Select menu item Contrast from the
Settings menu.
Confirm the required setting. Setting display mode
3
Display brightness is independent of
vehicle lighting. Settings are made as
follows:
Select menu item Day / Night from the
Settings menu.
Automatic: adapted based on vehicle
lighting.
Always day design: black or coloured text
on light background.
Always night design: white or coloured
text on dark background.
Selections are indicated by a o in front of
the menu item.
Ignition logic 3
See infotainment sy stem instructions.
7 Settings 19,5° 19:36
Time, Date
Language
!
Europe-SI
Units
"
Japan
Contrast
"
Great Britain
Day / Night
"
USA
! Ign. logic
7 Contrast 19,5° 19:36

12
Back to overview

101
Instruments, controls
Picture no: 17344t.tif

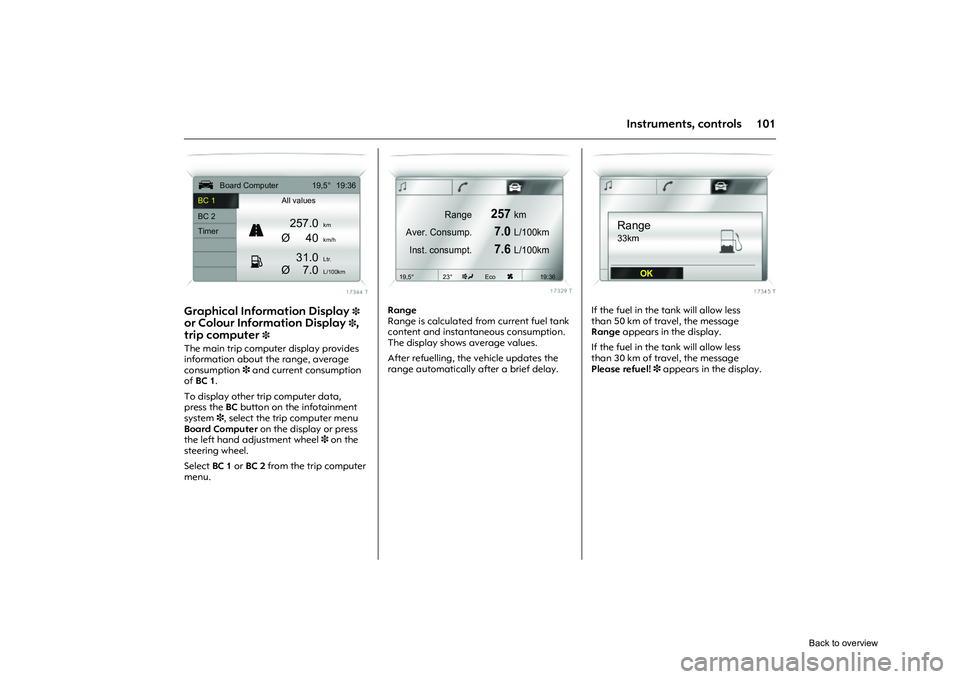

Graphical Information Display
3
or Colour Information Display 3,
trip computer
3
The main trip computer display provides
information about the range, average
consumption 3 and current consumption
of BC 1 .
To display other trip computer data,
press the BC button on the infotainment
system 3, select the trip computer menu
Board Computer on the display or press
the left hand adjustment wheel 3 on the
steering wheel.
Select BC 1 or BC 2 from the trip computer
menu.
Picture no: 17329t.tif
Range
Range is calculated fr om current fuel tank
content and instantaneous consumption.
The display shows average values.
After refuelling, the vehicle updates the
range automatically after a brief delay.
Picture no: 17345t.tif
If the fuel in the tank will allow less
than 50 km of travel, the message
Range appears in the display.
If the fuel in the tank will allow less
than 30 km of travel, the message
Please refuel! 3 appears in the display.
Ü
Board Computer 19,5° 19:36
BC 1 All values
BC 2
257.0
km
Timer
Ø40
km/h
31.0
Ltr.
Ø
7.0
L/100km
1
8
Range
257
km
Aver. Consump.
7.0
L/100km
Inst. consumpt.
7.6
L/100km
19,5° 23° 5 Eco
x
19:36
Range33km
OK
Back to overview

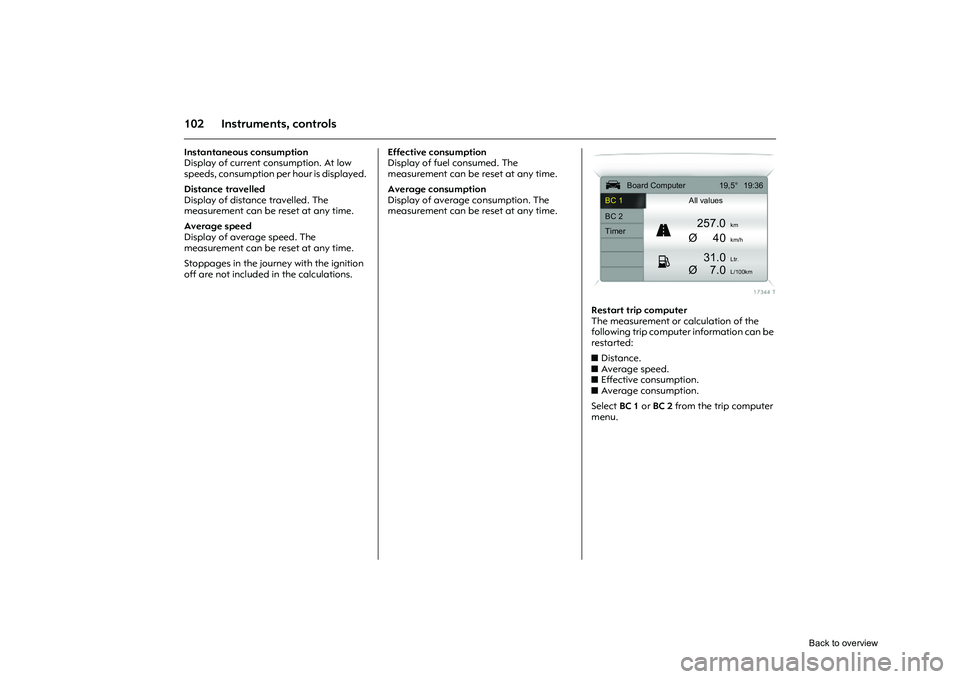

102 Instruments, controlsInstantaneous consumption
Display of current consumption. At low
speeds, consumption per hour is displayed.
Distance travelled
Display of distance travelled. The
measurement can be reset at any time.
Average speed
Display of average speed. The
measurement can be reset at any time.
Stoppages in the journey with the ignition
off are not included in the calculations. Effective consumption
Display of fuel consumed. The
measurement can be reset at any time.
Average consumption
Display of average consumption. The
measurement can be reset at any time.
Picture no: 17344t.tif
Restart trip computer
The measurement or calculation of the
following trip computer information can be
restarted:
z
Distance.
z Average speed.
z Effective consumption.
z Average consumption.
Select BC 1 or BC 2 from the trip computer
menu.
Ü
Board Computer 19,5° 19:36
BC 1 All values
BC 2
257.0
km
Timer
Ø40
km/h
31.0
Ltr.
Ø
7.0
L/100km
1
8
Back to overview

103
Instruments, controls
Picture no: 17346t.tif

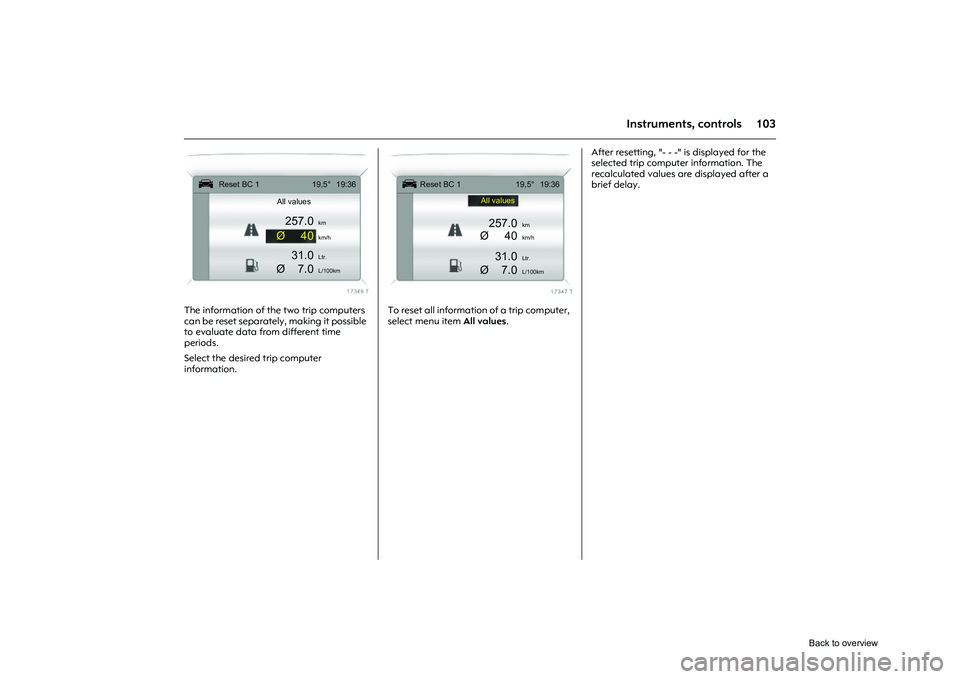

The information of the two trip computers
can be reset separately, making it possible
to evaluate data from different time
periods.
Select the desired trip computer
information.
Picture no: 17347t.tif
To reset all information of a trip computer,
select menu item All values. After resetting, "- - -" is displayed for the
selected trip computer information. The
recalculated values are displayed after a
brief delay.
Ü
Reset BC 1
19,5° 19:36
All values
257.0
km
Ø40
km/h
31.0
Ltr.
Ø
7.0
L/100km
Ü
Reset BC 1 19,5° 19:36
All values
257.0
km
Ø40
km/h
31.0
Ltr.
Ø
7.0
L/100km
Back to overview

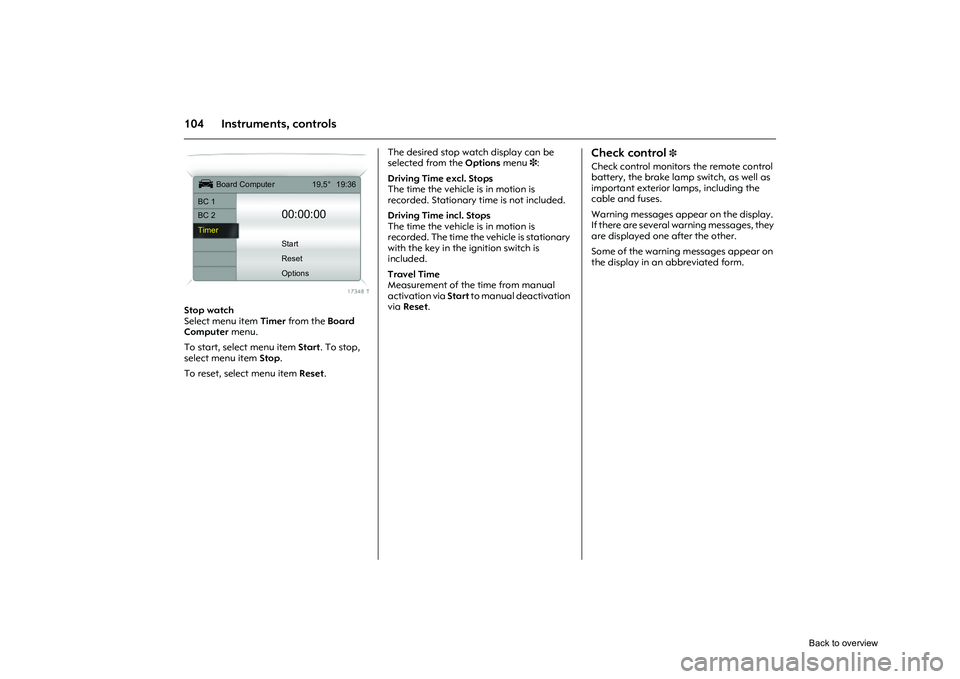

104 Instruments, controls
Picture no: 17348t.tif
Stop watch
Select menu item Timer from the Board
Computer menu.
To start, select menu item Start. To stop,
select menu item Stop.
To reset, select menu item Reset . The desired stop watch display can be
selected from the
Optionsmenu 3:
Driving Time excl. Stops
The time the vehicle is in motion is
recorded. Stationary time is not included.
Driving Time incl. Stops
The time the vehicle is in motion is
recorded. The time the vehicle is stationary
with the key in the ignition switch is
included.
Travel Time
Measurement of the time from manual
activation via Start to manual deactivation
via Reset .
Check control
3
Check control monitors the remote control
battery, the brake lamp switch, as well as
important exterior lamps, including the
cable and fuses.
Warning messages appear on the display.
If there are several warning messages, they
are displayed one after the other.
Some of the warning messages appear on
the display in an abbreviated form.
Ü
Board Computer 19,5° 19:36
BC 1
BC 2
00:00:00
Timer Start
Reset
Options
Back to overview
