Seats, Interior
Picture no: 18306s.tif

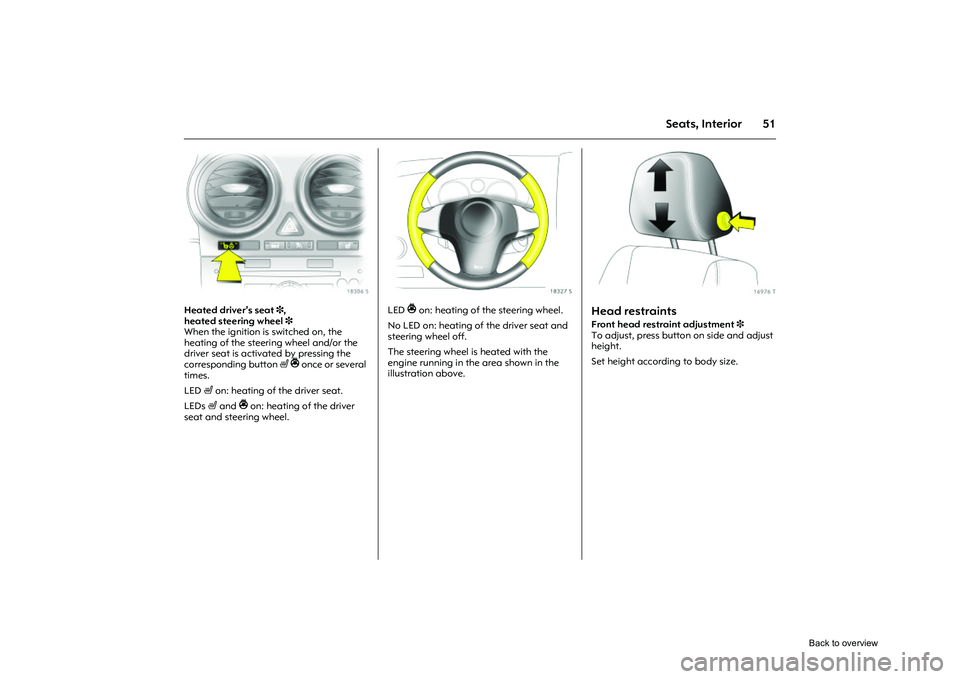

Heated driver’s seat 3,
heated steering wheel 3
When the ignition is switched on, the
heating of the steering wheel and/or the
driver seat is activated by pressing the
corresponding button ß - once or several
times.
LED ß on: heating of the driver seat.
LEDs ß and - on: heating of the driver
seat and steering wheel.
Picture no: 18327s.tif
LED - on: heating of the steering wheel.
No LED on: heating of the driver seat and
steering wheel off.
The steering wheel is heated with the
engine running in the area shown in the
illustration above.
Picture no: 16976t.tif
Head restraintsFront head restraint adjustment 3
To adjust, press button on side and adjust
height.
Set height according to body size.
Back to overview

76 Seats, InteriorActivation

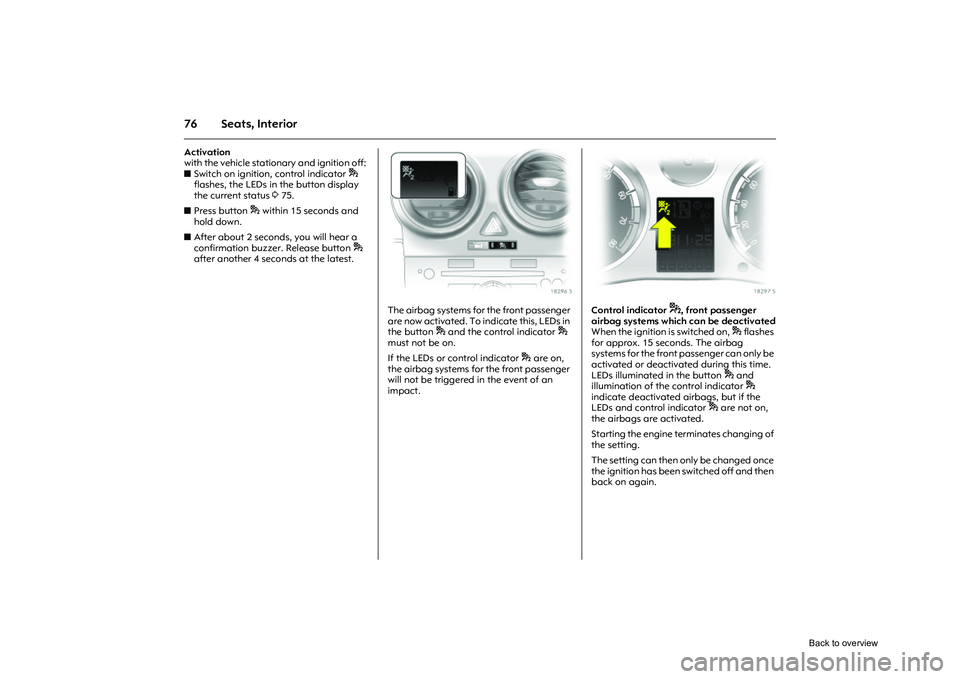

with the vehicle stationary and ignition off:
zSwitch on ignition, control indicator *
flashes, the LEDs in the button display
the current status 375.
z Press button * within 15 seconds and
hold down.
z After about 2 seconds, you will hear a
confirmation buzzer. Release button *
after another 4 seconds at the latest.
Picture no: 18296s.tif
The airbag systems for the front passenger
are now activated. To indicate this, LEDs in
the button * and the control indicator *
must not be on.
If the LEDs or control indicator * are on,
the airbag systems for the front passenger
will not be triggered in the event of an
impact.
Picture no: 18297s.tif
Control indicator
*
, front passenger
airbag systems which can be deactivated
When the ignition is switched on, * flashes
for approx. 15 seconds. The airbag
systems for the front passenger can only be
activated or deactivate d during this time.
LEDs illuminated in the button * and
illumination of the control indicator *
indicate deactivated airbags, but if the
LEDs and control indicator * are not on,
the airbags are activated.
Starting the engine terminates changing of
the setting.
The setting can then only be changed once
the ignition has been switched off and then
back on again.
Back to overview

77
Seats, Interior
Picture no: 18298s.tif
The system for deactivation of the airbag
systems for the front passenger can be
identified from the sticker on the side of the
instrument panel, visible when the front

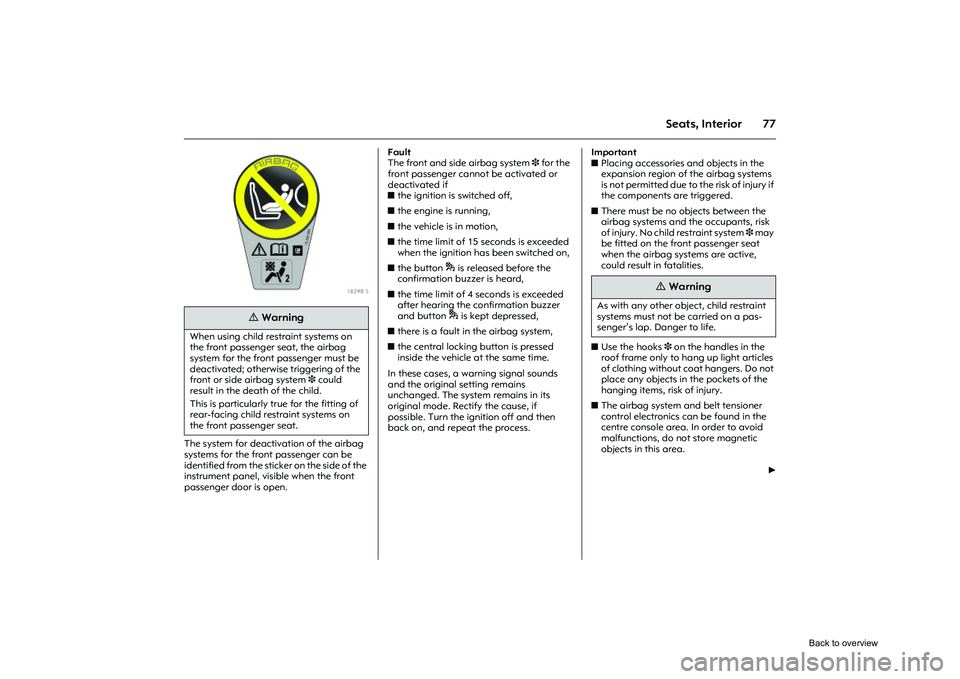

passenger door is open. Fault
The front and side airbag system
3 for the
front passenger cannot be activated or
deactivated if
z the ignition is switched off,
z the engine is running,
z the vehicle is in motion,
z the time limit of 15 seconds is exceeded
when the ignition has been switched on,
z the button * is released before the
confirmation buzzer is heard,
z the time limit of 4 seconds is exceeded
after hearing the confirmation buzzer
and button * is kept depressed,
z there is a fault in the airbag system,
z the central locking button is pressed
inside the vehicle at the same time.
In these cases, a warning signal sounds
and the original setting remains
unchanged. The system remains in its
original mode. Rectify the cause, if
possible. Turn the ignition off and then
back on, and repeat the process. Important
z
Placing accessories and objects in the
expansion region of the airbag systems
is not permitted due to the risk of injury if
the components are triggered.
z There must be no objects between the
airbag systems and the occupants, risk
of injury. No child restraint system 3 may
be fitted on the front passenger seat
when the airbag systems are active,
could result in fatalities.
z Use the hooks 3 on the handles in the
roof frame only to hang up light articles
of clothing without co at hangers. Do not
place any objects in the pockets of the
hanging items, risk of injury.
z The airbag system and belt tensioner
control electronics can be found in the
centre console area. In order to avoid
malfunctions, do not store magnetic
objects in this area.
6
9
Warning
When using child restraint systems on
the front passenger seat, the airbag
system for the front passenger must be
deactivated; otherwise triggering of the
front or side airbag system 3 could
result in the death of the child.
This is particularly true for the fitting of
rear-facing child restraint systems on
the front passenger seat.
9
Warning
As with any other object, child restraint
systems must not be carried on a pas-
senger’s lap. Danger to life.
Back to overview

80 Seats, Interior
Picture no: 18192s.tif

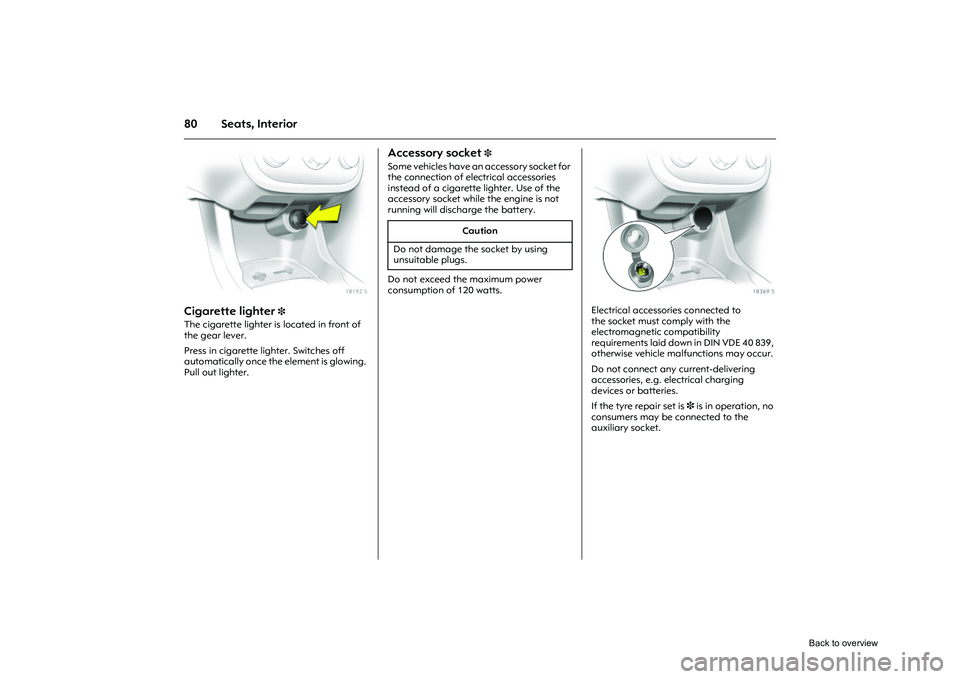

Cigarette lighter
3
The cigarette lighter is located in front of
the gear lever.
Press in cigarette lighter. Switches off
automatically once the element is glowing.
Pull out lighter.
Accessory socket
3
Some vehicles have an accessory socket for
the connection of electrical accessories
instead of a cigarette lighter. Use of the
accessory socket while the engine is not
running will discharge the battery.
Do not exceed the maximum power
consumption of 120 watts.
Picture no: 18369s.tif
Electrical accessories connected to
the socket must comply with the
electromagnetic compatibility
requirements laid down in DIN VDE 40 839,
otherwise vehicle malfunctions may occur.
Do not connect any current-delivering
accessories, e.g. electrical charging
devices or batteries.
If the tyre repair set is 3 is in operation, no
consumers may be connected to the
auxiliary socket.
Caution
Do not damage the socket by using
unsuitable plugs.
Back to overview

85
Instruments, controls
r

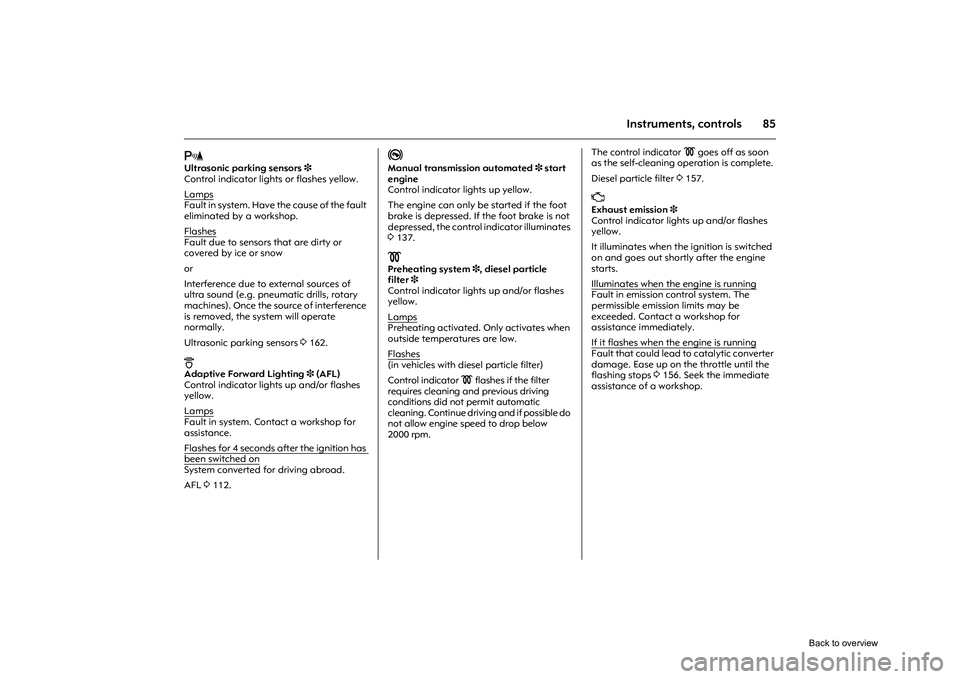

Ultrasonic parking sensors 3
Control indicator lights or flashes yellow.
Lamps
Fault in system. Have the cause of the fault
eliminated by a workshop.
Flashes
Fault due to sensors that are dirty or
covered by ice or snow
or
Interference due to external sources of
ultra sound (e.g. pneumatic drills, rotary
machines). Once the source of interference
is removed, the system will operate
normally.
Ultrasonic parking sensors 3 162.
B
Adaptive Forward Lighting 3 (AFL)
Control indicator lights up and/or flashes
yellow.
Lamps

Fault in system. Contact a workshop for
assistance.
Flashes for 4 seconds after the ignition has
been switched on

System converted for driving abroad.
AFL 3112.
j

Manual transmission automated 3 start
engine
Control indicator lights up yellow.
The engine can only be started if the foot
brake is depressed. If the foot brake is not
depressed, the control indicator illuminates
3 137.
!

Preheating system 3, diesel particle
filter 3
Control indicator lights up and/or flashes
yellow.
Lamps

Preheating activated. Only activates when
outside temperatures are low.
Flashes
(in vehicles with diesel particle filter)
Control indicator ! flashes if the filter
requires cleaning and previous driving
conditions did not permit automatic
cleaning. Continue driving and if possible do
not allow engine speed to drop below
2000 rpm. The control indicator
! goes off as soon
as the self-cleaning op eration is complete.
Diesel particle filter 3157.
Z

Exhaust emission 3
Control indicator lights up and/or flashes
yellow.
It illuminates when the ignition is switched
on and goes out shortly after the engine
starts.
Illuminates when the engine is running
Fault in emission control system. The
permissible emission limits may be
exceeded. Contact a workshop for
assistance immediately.
If it flashes when the engine is runningFault that could lead to catalytic converter
damage. Ease up on the throttle until the
flashing stops 3156. Seek the immediate
assistance of a workshop.
Back to overview

86 Instruments, controls
Picture no: 18469s.tif
A

Engine electronics, transmission
electronics 3, immobiliser,
diesel fuel filter 3
Control indicator lights up and/or flashes
yellow.
It illuminates for a few seconds when the
ignition is switched on.
Illuminates when the engine is running

Fault in engine electronics or transmission
electronics. Electronics switches to
emergency running program, fuel
consumption may increase and driveability
of vehicle may be affected 3156. If the
fault is still there when the engine is started
again, contact a workshop for assistance.
Picture no:
Lamps
together with InSP4 on the service
display: Diesel fuel filter needs to be
drained of water 3244.
Flashes when the ignition is on

Fault in the electronic immobiliser system;
the engine cannot be started 327.
S

Engine oil level 3
Control indicator lights up yellow.
The engine oil level is checked
automatically.
Illuminates when the engine is running

Engine oil level too low. Check engine oil
level and top up engine oil if necessary
3 242.
I

Engine oil pressure
Control indicator lights up red.
It illuminates when the ignition is switched
on and goes out shortly after the engine
starts.
Illuminates when the engine is running
1. Depress clutch.
2. Shift manual transmission or manual
transmission automated 3 into neutral;
for automatic transmission 3, set
selector lever to N.
3. Move out of the flow of traffic as quickly as possible without impeding other
vehicles.
4. Switch off ignition.
Contact a workshop for assistance. Caution
Engine lubrication may be interrupted.
This may result in damage to the engine
and/or locking of the drive wheels.
9
Warning
When the engine is off, considerably
more force is needed to brake and steer.
Do not remove key until vehicle has
come to a standstill, otherwise the
steering column lock could engage
unexpectedly.
Back to overview

87
Instruments, controls
p

Alternator
Control indicator lights up and/or flashes
red.
It illuminates when the ignition is switched
on and goes out shortly after the engine
starts.
Flashes during or after engine start
Battery voltage too lo w. Have electrical
system tested by a workshop.
Illuminates when the engine is runningStop and switch engine off. Battery will not
be charged. Engine cooling may be
interrupted. Effect of brake servo unit may
stop in vehicles with diesel engines.
Contact a workshop for assistance. p
Electro-hydraulic power assisted steering
Control indicator lights up yellow.
Fault in electro-hydr aulic power assisted
steering system. The power assisted
steering may have failed. The vehicle can
be steered but considerably more force is
required. Contact a workshop for
assistance.
O

Turn signal lamps
Control indicator flashes green.
The control indicator flashes if a turn signal
or the hazard warning flashers are
activated.
Rapid flashes: A turn signal lamp or the
related fuse has failed, failure of turn signal
lamp on the trailer 3.
Change bulbs 3212. Fuses 3 209.
Y
Fuel level
Control indicator lights up and/or flashes
yellow
Lamps

Level in fuel tank too low.
Flashes
Fuel level is used up, fuel immediately.
Never let the tank run dry!
Erratic fuel supply can cause catalytic
converter to overheat 3155.
Diesel engines: Bleed the fuel system after
running empty 3190.
C

Main beam
Control indicator lights up blue.
It is illuminated when main beam is on and
during headlamp flash 311, 3109.
W
Coolant temperature
Stop, switch off engine.
Check coolant level immediately 3244.
If there is sufficient coolant, consult a
workshop. Caution
Coolant temperature too high.
Back to overview

89
Instruments, controls
v

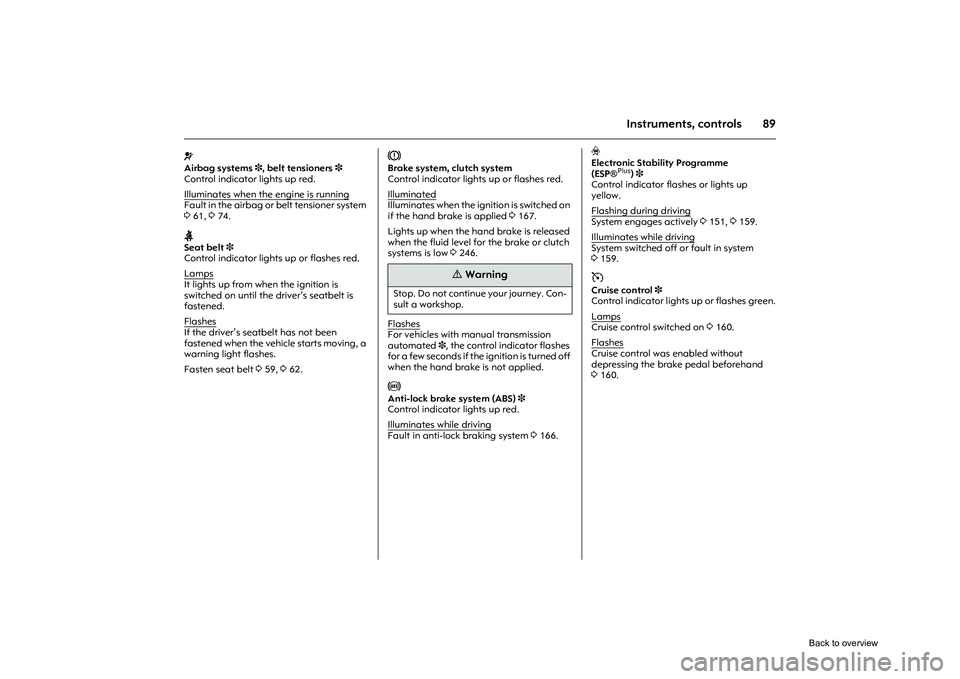

Airbag systems 3, belt tensioners 3
Control indicator lights up red.
Illuminates when the engine is runningFault in the airbag or belt tensioner system
3 61, 374.X
Seat belt 3
Control indicator lights up or flashes red.
Lamps

It lights up from when the ignition is
switched on until the dr iver’s seatbelt is
fastened.
Flashes
If the driver’s seatbelt has not been
fastened when the vehicle starts moving, a
warning light flashes.
Fasten seat belt 359, 362.
R

Brake system, clutch system
Control indicator lights up or flashes red.
Illuminated
Illuminates when the ignition is switched on
if the hand brake is applied 3167.
Lights up when the hand brake is released
when the fluid level for the brake or clutch
systems is low 3246.
FlashesFor vehicles with ma nual transmission
automated 3, the control indicator flashes
for a few seconds if the ignition is turned off
when the hand brake is not applied. u

Anti-lock brake system (ABS) 3
Control indicator lights up red.
Illuminates while driving
Fault in anti-lock braking system 3166.
v
Electronic Stability Programme
(ESP ®
Plus
)3
Control indicator flashes or lights up
yellow.
Flashing during driving
System engages actively 3151, 3159.
Illuminates while drivingSystem switched off or fault in system
3 159.m

Cruise control 3
Control indicator lights up or flashes green.
Lamps

Cruise control switched on 3160.
Flashes
Cruise control was enabled without
depressing the brake pedal beforehand
3 160.
9
Warning
Stop. Do not continue your journey. Con-
sult a workshop.
Back to overview

90 Instruments, controls

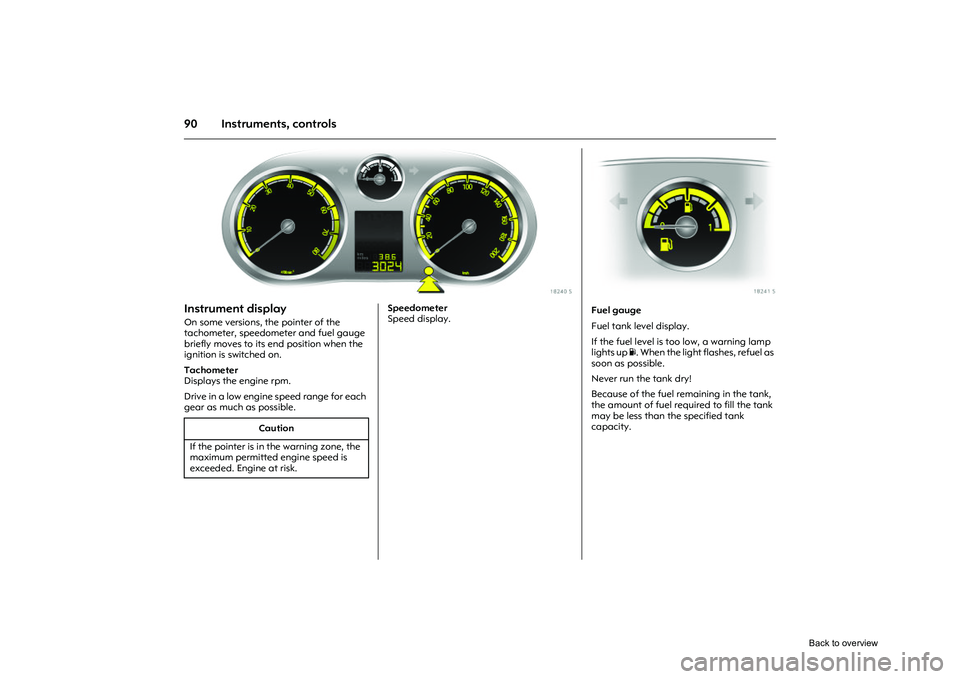

Picture no: 18240s.tif
Instrument display On some versions, the pointer of the
tachometer, speedometer and fuel gauge
briefly moves to its end position when the
ignition is switched on.
Tachometer
Displays the engine rpm.
Drive in a low engine speed range for each
gear as much as possible.
Picture no:
Speedometer
Speed display.
Caution
If the pointer is in the warning zone, the
maximum permitted engine speed is
exceeded. Engine at risk.
Picture no: 18241s.tif
Fuel gauge

Fuel tank level display.
If the fuel level is too low, a warning lamp
lights up Y. When the light flashes, refuel as
soon as possible.
Never run the tank dry!
Because of the fuel remaining in the tank,
the amount of fuel requ ired to fill the tank
may be less than the specified tank
capacity.
Back to overview

105
Instruments, controls
Acknowledge warning messages as
described on page 96, confirm.
Unacknowledged warning messages can
be re-displayed later.
Warning messages:Remote Control
Battery
check
Remote control battery voltage too low
3 32.
Brakelight switch
check
Brake light does not come on during
braking. Have the cause of the fault
eliminated immediately by a workshop.
Picture no: 18435s.tif
If there is a fault in the lighting system, the
respective location of the fault is displayed
as text, e.g.:
Brakelight
check right
Interruption of power supply
Stored warning messages appear on the
display one after the other.
Warning buzzersWhen starting the engine or whilst
driving:
z If seat belt is not fastened 3.
z If a door or the luggage compartment
has not been closed correctly when you
set off.
z Once you have reached a certain speed
if the hand brake is applied.
z If the speed programmed at the factory 3
is exceeded.
z If the car has automated manual
transmission 3 and the driver’s door is
opened when the engine is running, a
gear is engaged and the foot brake is
not depressed.
z Warning signal sounded three times if
the Flex-Fix system is extended 3 and
reverse gear is selected.
When the vehicle is parked and the
driver’s door is opened:
z When the key is in the ignition switch 3.
z With parking lamps or dipped beam on.
z For automated manual transmission 3, if
the hand brake is not applied and no
gear is engaged when the engine is
switched off.
Brakelightcheck right
OK
Back to overview
