Data specific to your vehiclePlease enter your vehicle’s data here so that it is readily accessible. Please refer to the sections "Servicing and maintenance" and "Technical
data" and the identification plate. Fuel
Designation
Engine oil
Grade
Viscosity
Tyre pressure
Tyre size Front
Rear
Summer tyres
Winter tyres
Weights
Gross vehicle weight rating
– EC kerb weight
=Loading
Back to overview

IntroductionYour vehicle is an intelligent combination
of forward-looking technology, impressive
safety, environmental friendliness and
economy.
It now lies with you to drive your vehicle
safely and to see it performs perfectly. This
Owner’s Manual provides you with all the
necessary information to that end.
Make sure your passengers are aware of
the possible risk of accident and injury
which may result from improper use of the
vehicle.
You must always comply with the specific
laws of the country that you are in. These
laws may differ from the information in this
Owner’s Manual.
When this Manual refers to a workshop visit,
we recommend your Opel Service Partner.
All Opel Service Partners provide first-class
service at reasonable prices. Experienced
mechanics trained by Opel work according
to specific Opel instructions.
The Owner’s Manual, infotainment system
instructions and the vehicle Service and
Warranty Booklet should always be kept
ready to hand in the vehicle glove
compartment. Make use of the Owner’s Manual zThe "In Brief" section will give you an
initial overview. z
The table of contents at the beginning of
the owner’s manual and within the
individual chapters will show you where
everything is.
z Its index will help you find what you
want.
z Yellow arrows in the illustrations serve as
points of reference or indicate some
action to be performed.
z Black arrows in the illustrations indicate
a reaction or a second action to be
performed.
z This Owner’s Manual depicts left-hand
drive vehicles. Right-hand drive vehicles
are operated in the same way.
z The Owner’s Manual uses the internal
engine codes. The corresponding sales
designations are found in the chapter
"Technical data".
z Directional data, e.g. left or right, or
front or back, in the descriptions always
relate to the direction of travel.
Symbols6 Continue reading on next page. 3
signifies equipment not fitted to all
vehicles (model variants, engine options,
models specific to one country, optional
equipment, Genuine Opel Parts and
Accessories).
Page references are indicated with 3 .
3 means "see page".
9
Danger,
9 Warning, Caution
Safe driving! Adam Opel GmbH
9
Danger
Text marked 9Danger provides
information on risk of endangering life.
Failure to comply with the instructions
could endanger life.
9
Warning
Text marked 9 Warning provides
information on risk of accident or injury.
Failure to comply with the instructions
could lead to injury.
Caution
Text marked Caution provides
information on possible damage to the
vehicle Failure to comply with the
instructions could lead to vehicle
damage.
Back to overview

10 In BriefControl indicators w
Deflation detection system 3,
3 84, 3164.
r
Ultrasonic parking sensors 3,
fault,
3 162.
B
Adaptive driving light 3, fault,
3 112, 3117.
j
Manual transmission
automated 3, starting the
engine 3,
3 85, 3137.
!
Preheating system 3,
Diesel particle filter 3,
3 85.
Z
Exhaust gases 3,
3 85, 3156.
A
Engine electronics, transmission
electronics 3, immobiliser, diesel
fuel filter 3 , fault,
3 27, 386, 3142, 3148, 3156.
S Engine oil level 3
,
3 86, 3242.
I
Engine oil pressure,
386.
p
Alternator,
3
87.
p
Electro-hydraulic power
assisted steering,
387.
O
Turn signal lamps,
311, 387.
Y
Fuel level,
387, 390.
C
Main beam,
311, 387.
W
Coolant temperature,
387, 3244.
*
Deactivate front passenger
airbag systems,
375.
T
Winter setting for automatic
transmission
3 or automated
transmission 3,
3 140, 3146.
1
Manual transmission
automated SPORT mode
3,
3 139, 3146.
q
Headlamp range adjustment,
375.
8
Exterior lights,
388, 3108.
>
Fog lamps 3,
3 88, 3110.
v
Airbag systems, belt tensioners,
361, 374.
X
Seat belt 3,
3 89, 362.
r
Fog tail lamp,
388, 3110.
R
Brake system, clutch system,
389, 3167, 3246.
u
Anti-lock brake system,
3166.
v
Electronic Stability Programme
(ESP®
Plus
) 3 ,
3 151.
m
Cruise control 3,
3 161.
Back to overview

15
In Brief
Picture no: 18180s.tif
Automated manual
transmission
3
Always move the selector lever in the
appropriate direction right up to the stop.
It will automatically re turn to the neutral
position after each operation.
The foot brake must be depressed when
starting.
Automated manual transmission 3 3 136.
Picture no: 18181s.tif
Automatic transmission
3
Only start engine in P or N. To come out
of P, turn the ignition, operate the foot
break and press the button.
Deactivate the selector lever lock by
pressing the button.
6 Automatic transmission 3 3144.
Before starting off, check z Tyre pressure an d tyre condition 3169,
3 264.
z Engine oil level and fluid levels in engine
compartment, 3241 to 3248.
z All windows, mirrors, exterior lighting
and number plates are free from dirt,
snow and ice and operational.
z Seats, seat belts and mirrors are
correctly adjusted 348, 358, 342.
z Check brake function at low speed,
particularly if the brakes are wet.
N = Idling
o =Driving position
+ =Higher gear
- =Lower gear
A = Switch between Automatic and
Manual mode
R = Reverse gear (with selector lever
lock)
P = Park position
R = Reverse gear
N = Neutral (idling)
D = Automatic gear selection
3 =1st to 3rd gear
2 = 1st and 2nd gear
1 =1st gear
Back to overview

16 In Brief
Picture no: 16982t.tif

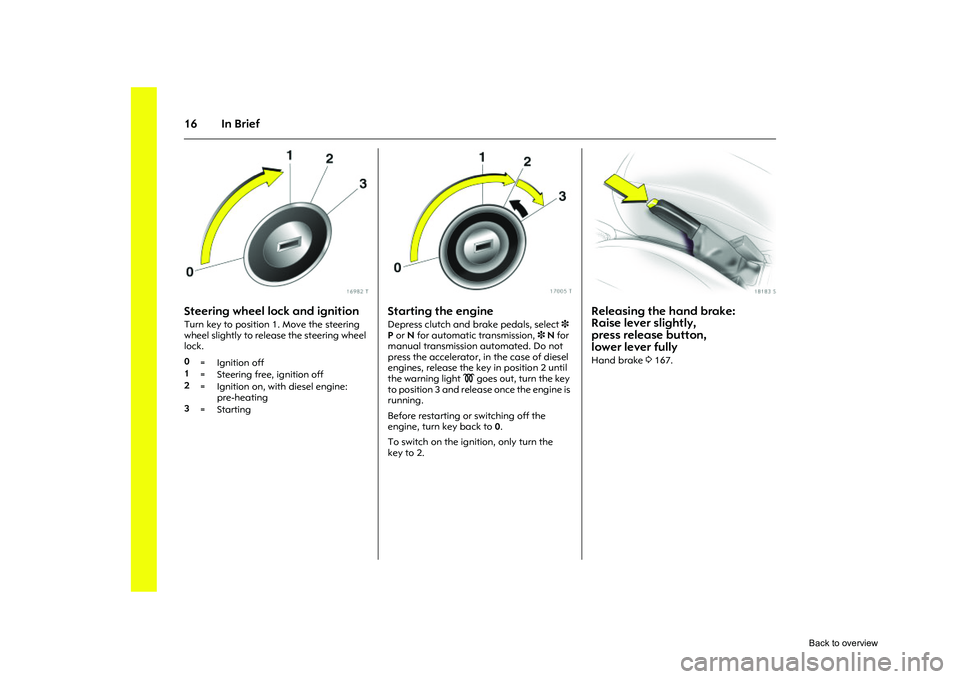

Steering wheel lock and ignitionTurn key to position 1. Move the steering
wheel slightly to release the steering wheel
lock.
Picture no: 17005t.tif
Starting the engineDepress clutch and brake pedals, select 3
P or N for automatic transmission, 3N for
manual transmission automated. Do not
press the accelerator, in the case of diesel
engines, release the key in position 2 until
the warning light ! goes out, turn the key
to position 3 and release once the engine is
running.
Before restarting or switching off the
engine, turn key back to 0.
To switch on the ignition, only turn the
key to 2.
Picture no: 18183s.tif
Releasing the hand brake:
Raise lever slightly,
press release button,
lower lever fully Hand brake 3167.
0
=Ignition off
1 = Steering free, ignition off
2 = Ignition on, with diesel engine:
pre-heating
3 =Starting
Back to overview

17
In Brief

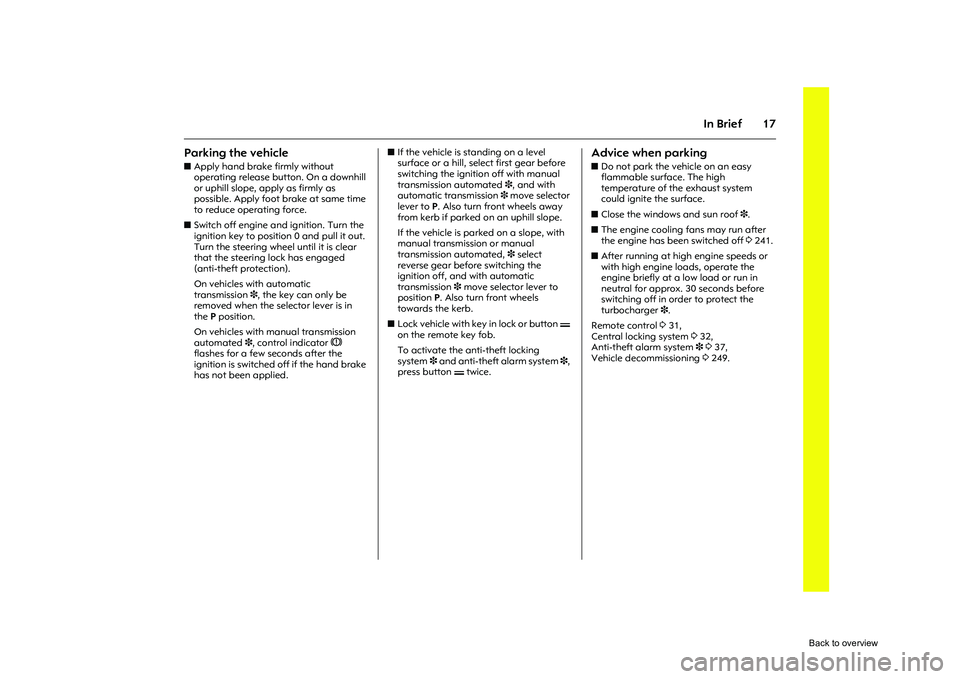

Parking the vehicle zApply hand brake firmly without
operating release bu tton. On a downhill
or uphill slope, apply as firmly as
possible. Apply foot brake at same time
to reduce operating force.
z Switch off engine and ignition. Turn the
ignition key to position 0 and pull it out.
Turn the steering wheel until it is clear
that the steering lock has engaged
(anti-theft protection).
On vehicles with automatic
transmission 3, the key can only be
removed when the selector lever is in
the P position.
On vehicles with manual transmission
automated 3, control indicator R
flashes for a few seconds after the
ignition is switched off if the hand brake
has not been applied. z
If the vehicle is standing on a level
surface or a hill, select first gear before
switching the ignition off with manual
transmission automated 3, and with
automatic transmission 3 move selector
lever to P. Also turn front wheels away
from kerb if parked on an uphill slope.
If the vehicle is parked on a slope, with
manual transmi ssion or manual
transmission automated, 3 select
reverse gear before switching the
ignition off, and with automatic
transmission 3 move selector lever to
position P. Also turn front wheels
towards the kerb.
z Lock vehicle with key in lock or button p
on the remote key fob.
To activate the anti-theft locking
system 3 and anti-theft alarm system 3,
press button p twice.
Advice when parking zDo not park the vehicle on an easy
flammable surface. The high
temperature of the exhaust system
could ignite the surface.
z Close the windows and sun roof 3.
z The engine cooling fans may run after
the engine has been switched off 3241.
z After running at high engine speeds or
with high engine loads, operate the
engine briefly at a low load or run in
neutral for approx. 30 seconds before
switching off in order to protect the
turbocharger 3.
Remote control 331,
Central locking system 332,
Anti-theft alarm system 3 3 37,
Vehicle decommissioning 3249.
Back to overview

27
Keys, doors, windows, sun roof
Picture no: 17349t.tif
Electronic immobiliser The system checks whether the vehicle is
allowed to start with the key used. Once
the transponder in the key is recognised,
the vehicle can be started.
The electronic immobiliser activates
automatically when the key is removed
from the ignition switch.
Picture no: 18231s.tif
Control indicator for immobilizer A
Control indicator A illuminates briefly
when the ignition is switched on.
If the control indicator flashes when the
ignition is on, there is a fault in the system;
the engine cannot be started. Switch off
the ignition and then repeat the start
attempt.
If the control indicator A continues to
flash, please try to start the engine using
the second key and contact a workshop. If control indicator
A illuminates after the
engine has started, there is a fault in the
engine electronics or transmission
electronics 33142, 3148, 3156 or there is
water in the diesel fuel filter 33244.
Note
The immobiliser does not lock the doors.
You should always lock the vehicle after
leaving it and switch on the anti-theft
alarm system 3 3 33, 337.
Back to overview

43
Keys, doors, windows, sun roof
Picture no: 18248s.tif

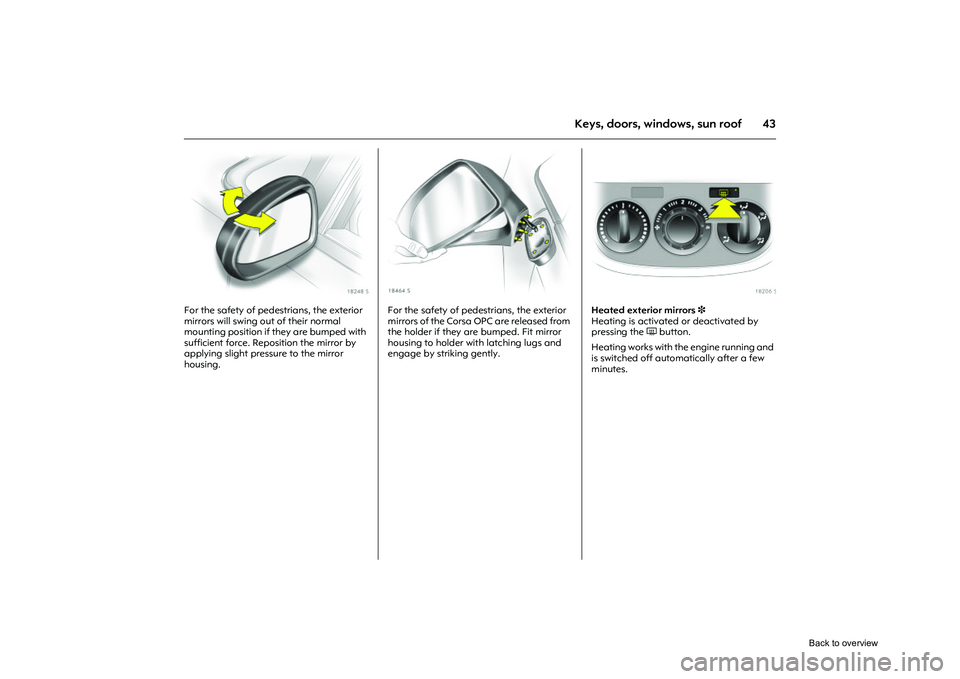

For the safety of pedestrians, the exterior
mirrors will swing out of their normal
mounting position if they are bumped with
sufficient force. Reposition the mirror by
applying slight pressure to the mirror
housing.
Picture no: 18464s.tif
For the safety of pedestrians, the exterior
mirrors of the Corsa OPC are released from
the holder if they are bumped. Fit mirror
housing to holder with latching lugs and
engage by striking gently.
Picture no: 18206s.tif
Heated exterior mirrors 3
Heating is activated or deactivated by
pressing the Ü button.
Heating works with the engine running and
is switched off automatically after a few
minutes.
Back to overview

46 Keys, doors, windows, sun roof
Picture no: 18206s.tif

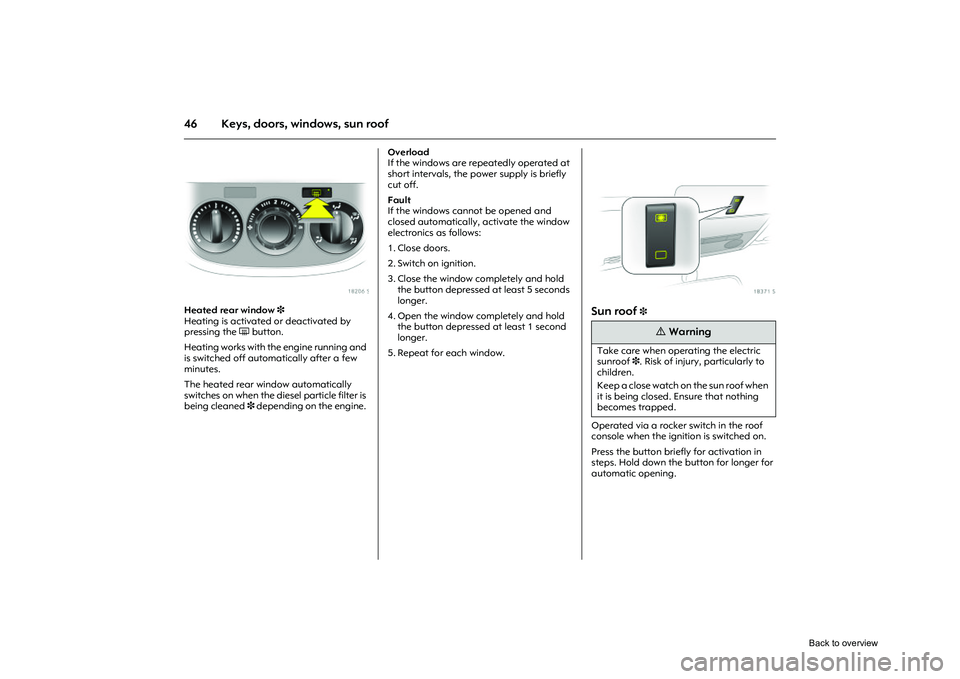

Heated rear window 3
Heating is activated or deactivated by
pressing the Ü button.
Heating works with the engine running and
is switched off automatically after a few
minutes.
The heated rear window automatically
switches on when the diesel particle filter is
being cleaned 3 depending on the engine. Overload
If the windows are repeatedly operated at
short intervals, the power supply is briefly
cut off.
Fault
If the windows cannot be opened and
closed automatically, activate the window
electronics as follows:
1. Close doors.
2. Switch on ignition.
3. Close the window completely and hold
the button depressed at least 5 seconds
longer.
4. Open the window completely and hold the button depressed at least 1 second
longer.
5. Repeat for each window.
Picture no: 18371s.tif
Sun roof
3
Operated via a rocker switch in the roof
console when the ignition is switched on.
Press the button briefly for activation in
steps. Hold down the button for longer for
automatic opening.
9
Warning
Take care when oper ating the electric
sunroof 3. Risk of injury, particularly to
children.
Keep a close watch on the sun roof when
it is being closed. Ensure that nothing
becomes trapped.
Back to overview

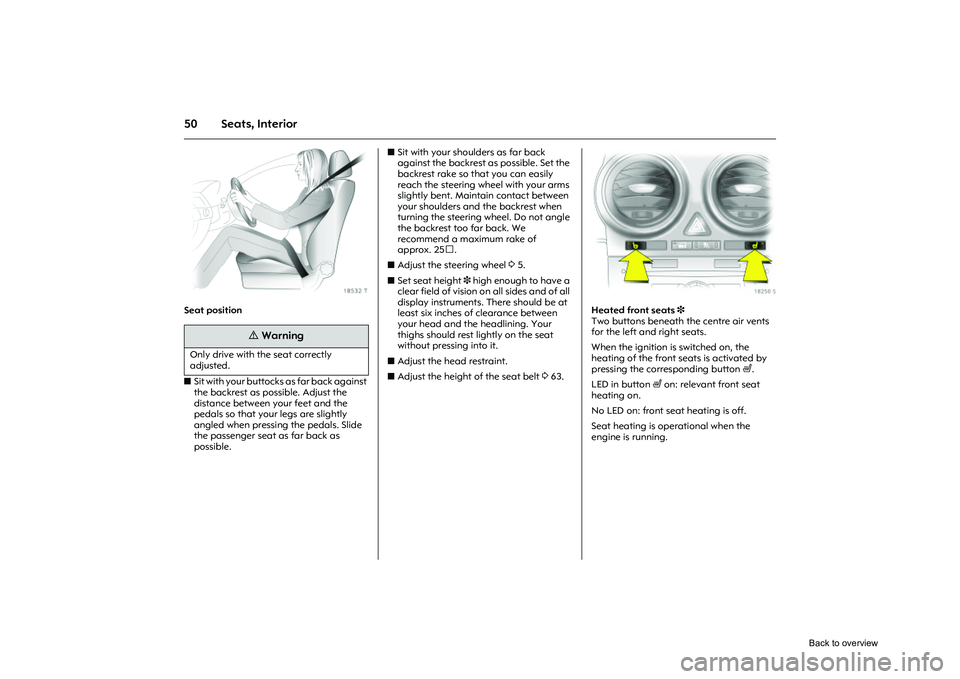

50 Seats, Interior
Picture no: 18532t.tif
Seat position
zSit with your buttocks as far back against
the backrest as possible. Adjust the
distance between your feet and the
pedals so that your legs are slightly
angled when pressing the pedals. Slide
the passenger seat as far back as
possible. z
Sit with your shou lders as far back
against the backrest as possible. Set the
backrest rake so that you can easily
reach the steering wheel with your arms
slightly bent. Maintain contact between
your shoulders and the backrest when
turning the steering wheel. Do not angle
the backrest too far back. We
recommend a maximum rake of
approx. 25.
z Adjust the steering wheel 35.
z Set seat height 3 high enough to have a
clear field of vision on all sides and of all
display instruments. There should be at
least six inches of clearance between
your head and the headlining. Your
thighs should rest lightly on the seat
without pressing into it.
z Adjust the head restraint.
z Adjust the height of the seat belt 363.
Picture no: 18250s.tif
Heated front seats 3
Two buttons beneath the centre air vents
for the left and right seats.
When the ignition is switched on, the
heating of the front seats is activated by
pressing the corresponding button ß.
LED in button ß on: relevant front seat
heating on.
No LED on: front seat heating is off.
Seat heating is op erational when the
engine is running.
9
Warning
Only drive with the seat correctly
adjusted.
Back to overview
