OPEL CORSA 2009 Workshop Manual

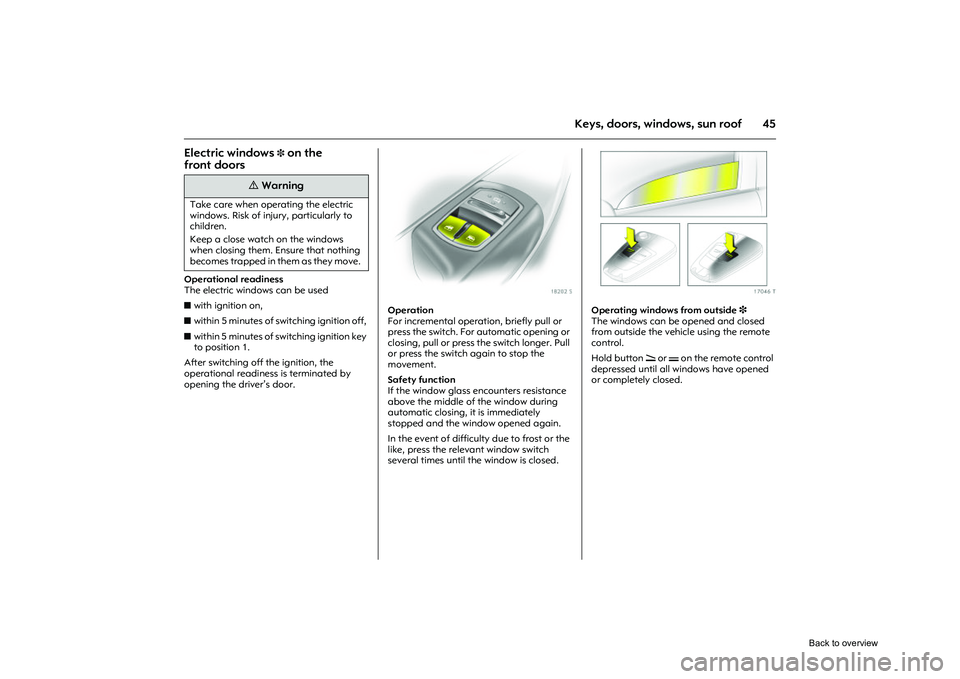

45
Keys, doors, windows, sun roof
Electric windows
3 on the
front doors
Operational readiness
The electric windows can be used
z with ignition on,
z within 5 minutes of sw itching ignition off,
z within 5 minutes of switching ignition key
to position 1.
After switching off the ignition, the
operational readiness is terminated by
opening the driver’s door.
Picture no: 18202s.tif
Operation
For incremental operation, briefly pull or
press the switch. For automatic opening or
closing, pull or press the switch longer. Pull
or press the switch again to stop the
movement.
Safety function
If the window glass encounters resistance
above the middle of the window during
automatic closing, it is immediately
stopped and the window opened again.
In the event of difficulty due to frost or the
like, press the releva nt window switch
several times until the window is closed.
Picture no: 17046t.tif
Operating windows from outside 3
The windows can be opened and closed
from outside the vehicle using the remote
control.
Hold button q or p on the remote control
depressed until all windows have opened
or completely closed.
9
Warning
Take care when oper ating the electric
windows. Risk of injury, particularly to
children.
Keep a close watch on the windows
when closing them. Ensure that nothing
becomes trapped in them as they move.
Back to overview

46 Keys, doors, windows, sun roof
Picture no: 18206s.tif
Heated rear window 3
Heating is activated or deactivated by
pressing the Ü button.
Heating works with the engine running and
is switched off automatically after a few
minutes.
The heated rear window automatically
switches on when the diesel particle filter is
being cleaned 3 depending on the engine. Overload
If the windows are repeatedly operated at
short intervals, the power supply is briefly
cut off.
Fault
If the windows cannot be opened and
closed automatically, activate the window
electronics as follows:
1. Close doors.
2. Switch on ignition.
3. Close the window completely and hold
the button depressed at least 5 seconds
longer.
4. Open the window completely and hold the button depressed at least 1 second
longer.
5. Repeat for each window.
Picture no: 18371s.tif
Sun roof
3
Operated via a rocker switch in the roof
console when the ignition is switched on.
Press the button briefly for activation in
steps. Hold down the button for longer for
automatic opening.
9
Warning
Take care when oper ating the electric
sunroof 3. Risk of injury, particularly to
children.
Keep a close watch on the sun roof when
it is being closed. Ensure that nothing
becomes trapped.
Back to overview

47
Keys, doors, windows, sun roof
To raise
With the sun roof closed, press button ü.
The sun roof is raised at the rear.
To open
Press button ü again with the sun roof in
the raised position. The sun roof opens
automatically until it reaches its limit
position.
To close
Hold down button d until the sun roof is
completely closed.
Picture no: 18372s.tif
Sunblind
The sun blind can be opened and closed
manually whether the sun roof is open or
closed.
Note
z If the top of the roof is wet, tilt sun roof,
allow water to run off and then open sun
roof.
z When using a roof rack 3, check the free
movement of the sun roof in order to
avoid damage. It is only permitted to
raise the sun roof. Overload
If the system is overloaded, the power
supply is automatically cut off for a short
time.
The system is protected by fuses in the fuse
box – see page
3208.
Fault
If perfect function of the sun roof is not
guaranteed. Activate the electronics as
follows:
1. Switch on ignition.
2. Close the sun roof and hold button d
depressed at least 10 seconds.
Please contact a workshop to have the
cause of the fault remedied.
Back to overview

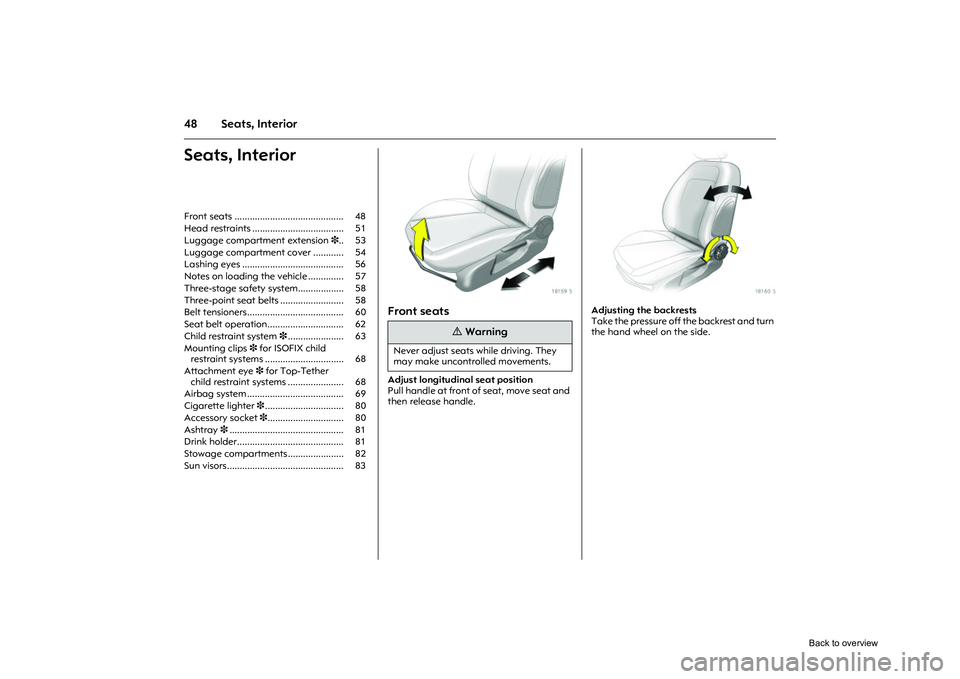

48 Seats, InteriorSeats, Interior
Picture no: 18159s.tif
Front seats Adjust longitudinal seat position
Pull handle at front of seat, move seat and
then release handle.
Picture no: 18160s.tif
Adjusting the backrests
Take the pressure off the backrest and turn
the hand wheel on the side.
Front seats ........................................... 48
Head restraints .................................... 51
Luggage compartment extension
3.. 53
Luggage compartment cover ............ 54
Lashing eyes ........................................ 56
Notes on loading the vehicle .............. 57
Three-stage safety system.................. 58
Three-point seat be lts ......................... 58
Belt tensioners...................................... 60
Seat belt operation.............................. 62
Child restraint system 3...................... 63
Mounting clips 3 for ISOFIX child
restraint systems ............................... 68
Attachment eye 3 for Top-Tether
child restraint systems ...................... 68
Airbag system ...................................... 69
Cigarette lighter 3............................... 80
Accessory socket 3.............................. 80
Ashtray 3............................................. 81
Drink holder.......................................... 81
Stowage compartments ...................... 82
Sun visors.............................................. 83
9
Warning
Never adjust seats while driving. They
may make uncontrolled movements.
Back to overview

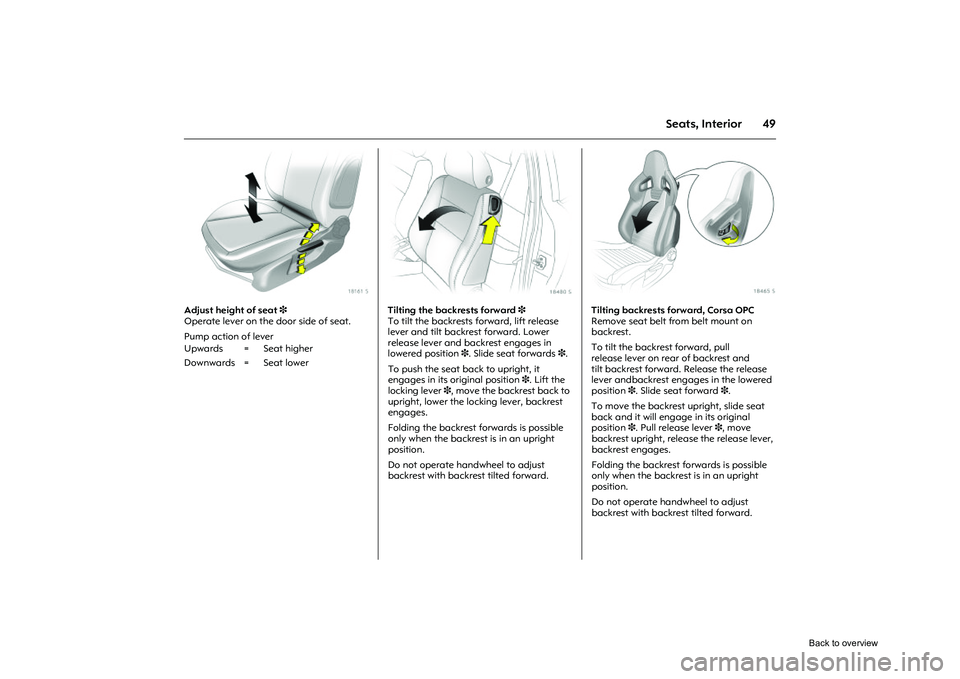

49
Seats, Interior
Picture no: 18161s.tif
Adjust height of seat 3
Operate lever on the door side of seat.
Pump action of lever
Picture no: 18480s.tif
Tilting the backrests forward 3
To tilt the backrests forward, lift release
lever and tilt backrest forward. Lower
release lever and backrest engages in
lowered position 3. Slide seat forwards 3.
To push the seat back to upright, it
engages in its original position 3 . Lift the
locking lever 3, move the backrest back to
upright, lower the locking lever, backrest
engages.
Folding the backrest forwards is possible
only when the backrest is in an upright
position.
Do not operate handwheel to adjust
backrest with backrest tilted forward.
Picture no: 18465s.tif
Tilting backrests forward, Corsa OPC
Remove seat belt from belt mount on
backrest.
To tilt the backrest forward, pull
release lever on rear of backrest and
tilt backrest forward. Release the release
lever andbackrest engages in the lowered
position 3. Slide seat forward 3.
To move the backrest upright, slide seat
back and it will engage in its original
position 3. Pull release lever 3, move
backrest upright, release the release lever,
backrest engages.
Folding the backrest forwards is possible
only when the backrest is in an upright
position.
Do not operate handwheel to adjust
backrest with backre st tilted forward.
Upwards = Seat higher
Downwards = Seat lower
Back to overview

50 Seats, Interior
Picture no: 18532t.tif
Seat position
zSit with your buttocks as far back against
the backrest as possible. Adjust the
distance between your feet and the
pedals so that your legs are slightly
angled when pressing the pedals. Slide
the passenger seat as far back as
possible. z
Sit with your shou lders as far back
against the backrest as possible. Set the
backrest rake so that you can easily
reach the steering wheel with your arms
slightly bent. Maintain contact between
your shoulders and the backrest when
turning the steering wheel. Do not angle
the backrest too far back. We
recommend a maximum rake of
approx. 25.
z Adjust the steering wheel 35.
z Set seat height 3 high enough to have a
clear field of vision on all sides and of all
display instruments. There should be at
least six inches of clearance between
your head and the headlining. Your
thighs should rest lightly on the seat
without pressing into it.
z Adjust the head restraint.
z Adjust the height of the seat belt 363.
Picture no: 18250s.tif
Heated front seats 3
Two buttons beneath the centre air vents
for the left and right seats.
When the ignition is switched on, the
heating of the front seats is activated by
pressing the corresponding button ß.
LED in button ß on: relevant front seat
heating on.
No LED on: front seat heating is off.
Seat heating is op erational when the
engine is running.
9
Warning
Only drive with the seat correctly
adjusted.
Back to overview

51
Seats, Interior
Picture no: 18306s.tif
Heated driver’s seat 3,
heated steering wheel 3
When the ignition is switched on, the
heating of the steering wheel and/or the
driver seat is activated by pressing the
corresponding button ß - once or several
times.
LED ß on: heating of the driver seat.
LEDs ß and - on: heating of the driver
seat and steering wheel.
Picture no: 18327s.tif
LED - on: heating of the steering wheel.
No LED on: heating of the driver seat and
steering wheel off.
The steering wheel is heated with the
engine running in the area shown in the
illustration above.
Picture no: 16976t.tif
Head restraintsFront head restraint adjustment 3
To adjust, press button on side and adjust
height.
Set height according to body size.
Back to overview

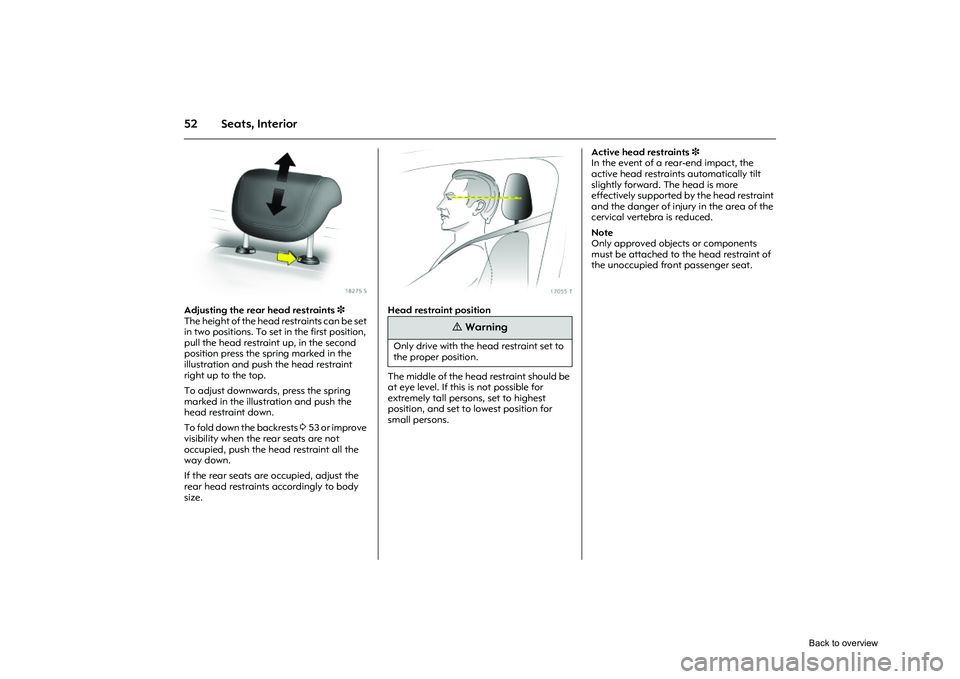

52 Seats, Interior
Picture no: 18275s.tif
Adjusting the rear head restraints 3
The height of the head restraints can be set
in two positions. To set in the first position,
pull the head restraint up, in the second
position press the spring marked in the
illustration and push the head restraint
right up to the top.
To adjust downwards, press the spring
marked in the illustration and push the
head restraint down.
To fold down the backrests 353 or improve
visibility when the rear seats are not
occupied, push the head restraint all the
way down.
If the rear seats are occupied, adjust the
rear head restraints accordingly to body
size.
Picture no: 17055t.tif
Head restraint position
The middle of the head restraint should be
at eye level. If this is not possible for
extremely tall persons, set to highest
position, and set to lowest position for
small persons. Active head restraints
3
In the event of a rear-end impact, the
active head restraints automatically tilt
slightly forward. The head is more
effectively supported by the head restraint
and the danger of injury in the area of the
cervical vertebra is reduced.
Note
Only approved objects or components
must be attached to the head restraint of
the unoccupied front passenger seat.
9
Warning
Only drive with the head restraint set to
the proper position.
Back to overview

53
Seats, Interior
Picture no: 18278s.tif
Luggage compartment
extension
3
Adjust angle of rear backrests
The rear backrest, in a single unit or split 3,
can also be locked in an upright position
for transporting bulky items.
Pull the unlocking hand le, pull the backrest
forwards to the vertical position and allow
to engage. When unlocking, a red marking appears
next to the unlocking lever. The backrest is
only engaged correctly when the red bolt is
no longer protruding.
If the backrest is split
3, unlock the relevant
side, and unlock at both sides if it is a single
unit.
Picture no: 18288s.tif
Folding the backrest
Remove luggage compartment cover and
push rear headrests down as far as they
will go 352.
Move the seat belts to protect them against
damage by means of side supports on the
release lever. When folding the backrests,
pull the seat belts along with them.
Back to overview

54 Seats, Interior
Picture no: 18282s.tif

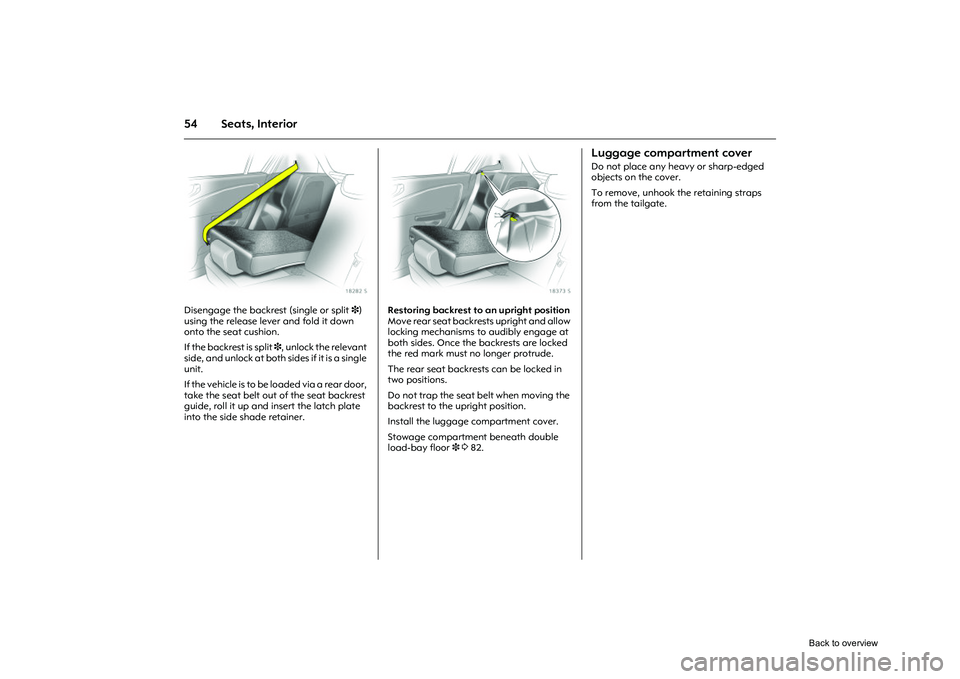

Disengage the backrest (single or split 3)
using the release lever and fold it down
onto the seat cushion.
If the backrest is split 3, unlock the relevant
side, and unlock at both sides if it is a single
unit.
I f t h e v e h i c l e i s t o b e l o a d e d v i a a r e a r d o o r ,
take the seat belt out of the seat backrest
guide, roll it up and insert the latch plate
into the side shade retainer.
Picture no: 18373s.tif
Restoring backrest to an upright position
Move rear seat backrests upright and allow
locking mechanisms to audibly engage at
both sides. Once the backrests are locked
the red mark must no longer protrude.
The rear seat backrests can be locked in
two positions.
Do not trap the seat belt when moving the
backrest to the upright position.
Install the luggage compartment cover.
Stowage compartment beneath double
load-bay floor 3382.
Luggage compartment cover Do not place any heavy or sharp-edged
objects on the cover.
To remove, unhook the retaining straps
from the tailgate.
Back to overview
