5
In Brief
Picture no: 18284s.tif

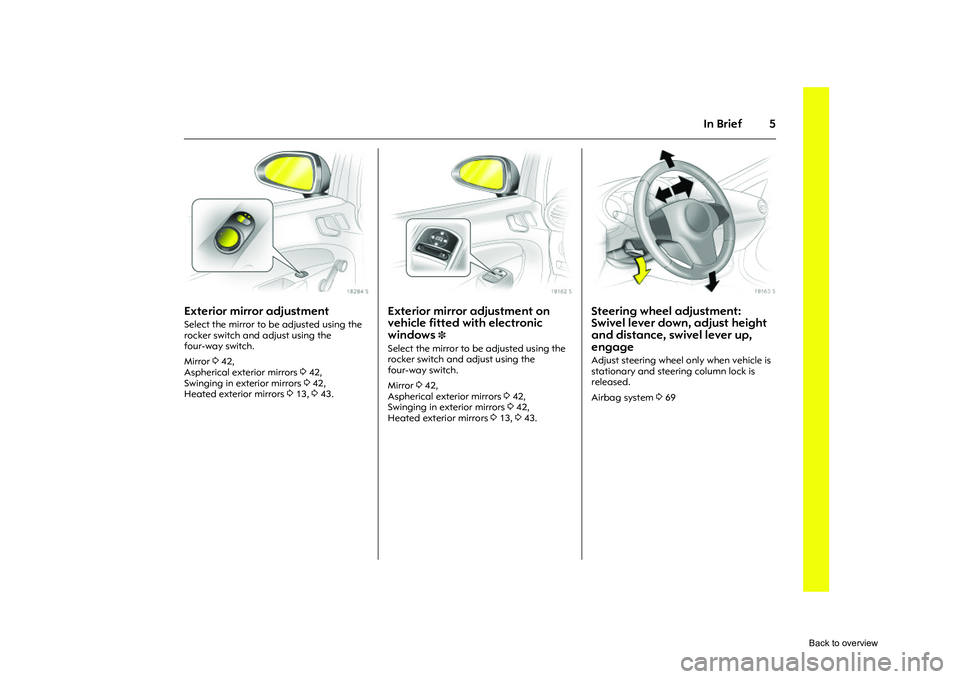

Exterior mirror adjustment Select the mirror to be adjusted using the
rocker switch and adjust using the
four-way switch.
Mirror 342,
Aspherical exterior mirrors 342,
Swinging in exterior mirrors 342,
Heated exterior mirrors 313, 343.
Picture no: 18162s.tif
Exterior mirror adjustment on
vehicle fitted with electronic
windows
3
Select the mirror to be adjusted using the
rocker switch and adjust using the
four-way switch.
Mirror 342,
Aspherical exterior mirrors 342,
Swinging in exterior mirrors 342,
Heated exterior mirrors 313, 343.
Picture no: 18163s.tif
Steering wheel adjustment:
Swivel lever down, adjust height
and distance, swivel lever up,
engage Adjust steering wheel only when vehicle is
stationary and steering column lock is
released.
Airbag system 369
Back to overview

7
In Brief
1Side air vents .............................. 3120
2 Parking lamps, dipped beam ... 3106
Instrument illumination .............. 3112
Fog tail lamp .............................. 3108
Fog lamps 3 ............................... 3108
Headlamp range
adjustment 3 .............................. 3109
3 Turn signal ..................................... 311
Headlamp flash
dipped beam, main beam .......... 311
Interior lighting 3 ........................3111
Parking lamps 3 ......................... 3112
Cruise control 3 .......................... 3158
4 Steering wheel
remote control 3......................... 3116
5 Horn ................................................ 312
Driver’s airbag ............................... 367
6 Instruments .................................... 382
7 Windscreen wipers,
windscreen washer system,
rear window washer system ......... 312
Trip computer 3 ............................ 399 8
Centre air vents .......................... 3120
9 Central information display for
time, date, outside temperature,
infotainment system 3,
check control 3 ............................. 392
Trip computer 3 ............................ 399
Climate control system 3 .......... 3126
10 Left seat
heater 3 ......................... 348
Steering wheel heater 3................ 349
Tyre pressure loss
monitoring system 3................... 3162
Central locking button .................. 332
Warning lights ............................... 312
Passenger airbag off switch ........ 373
Ultrasonic parking sensor .......... 3160
Electronic stability 3 ................... 3157
Right seat heater 3....................... 348
11 Front passenger airbag .............. 367
12 Glove compartment ..................... 380 13
Infotainment system 3 ............... 3116
14 Climate control .......................... 3118
15 Accessory socket 3 ....................... 378
Cigarette lighter 3 ....................... 378
16 Ashtray ......................................... 379
17 Ignition switch .......................................
with steering wheel lock .............. 316
18 Accelerator pedal ........... 3147, 3148
19 Brake pedal ........ 3148, 3163, 3165
20 Clutch pedal 3............................ 3142
21 Steering wheel ad justment ........... 35
22 Rel

easing the bonnet .................. 3188
Back to overview

9
In Brief
1Side air vents .............................. 3120
2 Front passenger airbag ............... 367
3 Left seat heater 3 .........................348
Steering wheel heater 3................ 349
Tyre deflation
detection system 3..................... 3162
Central locking button .................. 332
Warning light ................................. 312
Passenger airbag off switch ......... 373
Ultrasonic parking sensor ......... 3160
Electronic stability 3 ................... 3157
Right seat heater 3........................ 348
4 Central information display for
time, date, outside temperature,
infotainment system 3,
check control 3 ............................. 392
Trip computer 3 ........................... 399,
Climate control system 3 ......... 3126
5 Centre air vents ......................... 3120
6 Turn signal ..................................... 311
Headlamp flash
dipped beam, main beam .......... 311
Ambient lighting 3...................... 3111
Parking lamps 3 ......................... 3112
Cruise control 3 .......................... 3158 7
Steering wheel
remote control 3.......................... 3116
8 Instruments ...
................................. 382
9 Horn ................................................ 312
Driver’s airbag .............................. 367
10 Windscreen wipers,
windscreen washer system,
rear window washer system ......... 312
Trip computer 3 ............................ 399
11 Parking lamps, dipped beam .... 3106
Instrument illum ination .............. 3112
Fog tail lamp ............................... 3108
Fog lamps 3 ................................ 3108
Headlamp range
adjustment 3 .............................. 3109
12 Ignition switch
with steering wheel lock .............. 316 13
Accelerator pedal ........... 3147, 3148
14 Brake pedal ........ 3148, 3163, 3165
15 Clutch pedal 3............................ 3142
16 Steering wheel ad justment ........... 35
17 Ashtray ......................................... 379
18 Accessory socket 3 ....................... 378
Cigarette lighter 3 ....................... 378
19 Climate control .......................... 3118
20 Infotainment system 3 .............. 3116
21 Glove compartment .................... 380
22 Rel
easing the bonnet .................. 3188
Back to overview

10 In BriefControl indicators w
Deflation detection system 3,
3 84, 3164.
r
Ultrasonic parking sensors 3,
fault,
3 162.
B
Adaptive driving light 3, fault,
3 112, 3117.
j
Manual transmission
automated 3, starting the
engine 3,
3 85, 3137.
!
Preheating system 3,
Diesel particle filter 3,
3 85.
Z
Exhaust gases 3,
3 85, 3156.
A
Engine electronics, transmission
electronics 3, immobiliser, diesel
fuel filter 3 , fault,
3 27, 386, 3142, 3148, 3156.
S Engine oil level 3
,
3 86, 3242.
I
Engine oil pressure,
386.
p
Alternator,
3
87.
p
Electro-hydraulic power
assisted steering,
387.
O
Turn signal lamps,
311, 387.
Y
Fuel level,
387, 390.
C
Main beam,
311, 387.
W
Coolant temperature,
387, 3244.
*
Deactivate front passenger
airbag systems,
375.
T
Winter setting for automatic
transmission
3 or automated
transmission 3,
3 140, 3146.
1
Manual transmission
automated SPORT mode
3,
3 139, 3146.
q
Headlamp range adjustment,
375.
8
Exterior lights,
388, 3108.
>
Fog lamps 3,
3 88, 3110.
v
Airbag systems, belt tensioners,
361, 374.
X
Seat belt 3,
3 89, 362.
r
Fog tail lamp,
388, 3110.
R
Brake system, clutch system,
389, 3167, 3246.
u
Anti-lock brake system,
3166.
v
Electronic Stability Programme
(ESP®
Plus
) 3 ,
3 151.
m
Cruise control 3,
3 161.
Back to overview

11
In Brief
Picture no: 18164s.tif
Exterior lightsRotate
Press
Lighting 3108,
headlamp warning device 3105.
Picture no: 18165s.tif
Headlamp flash, main beam and
dipped beamMain beam, headlamp flash 3109.
Picture no: 18167s.tif
Switch turn signal onTurn signals 3109.
7
=Off
8 = Parking lamps
9 = Dipped or main beam
A Automatic dipped beam activation 3
> =Fog lamps 3
r = Fog tail lamp
Headlamp flash = Pull stalk towards
steering wheel
Main beam = Push stalk forwards
Dipped beam = Lever forward again or toward steering
wheel
Right = Lever upwards
Left = Lever downwards
Back to overview

12 In Brief
Picture no: 18169s.tif

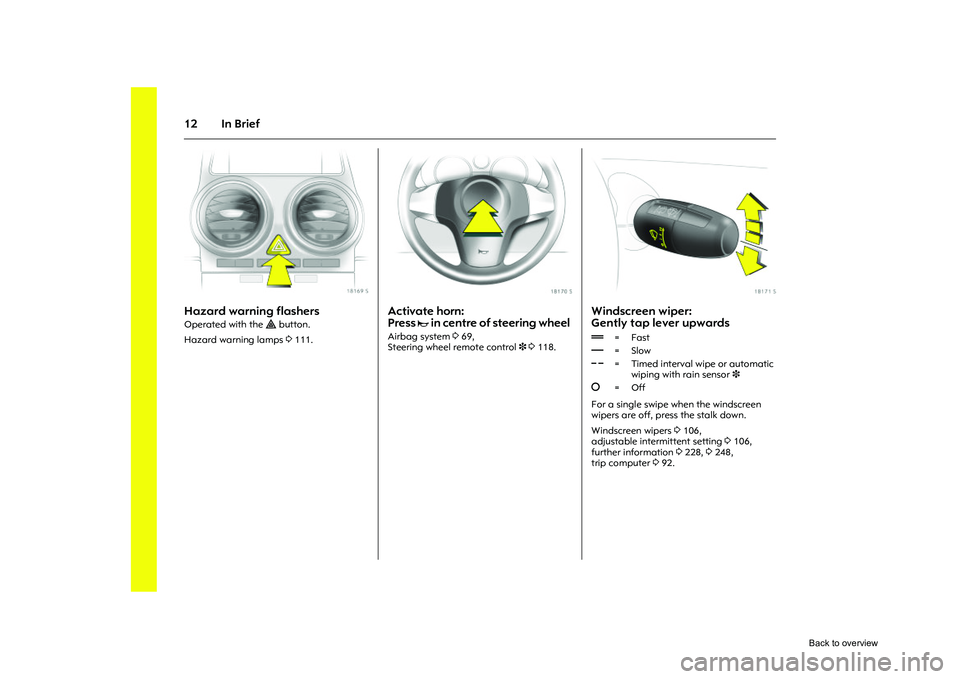

Hazard warning flashersOperated with the ¨ button.
Hazard warning lamps 3111.
Picture no: 18170s.tif
Activate horn:
Press
j in centre of steering wheel
Airbag system 3 69,
Steering wheel remote control 3 3 118.
Picture no: 18171s.tif
Windscreen wiper:
Gently tap lever upwards For a single swipe when the windscreen
wipers are off, press the stalk down.
Windscreen wipers 3106,
adjustable intermittent setting 3106,
further information 3228, 3248,
trip computer 392. & =Fast
% =Slow
$ = Timed interval wipe or automatic
wiping with rain sensor 3
§ =Off
Back to overview

13
In Brief
Picture no: 18174s.tif

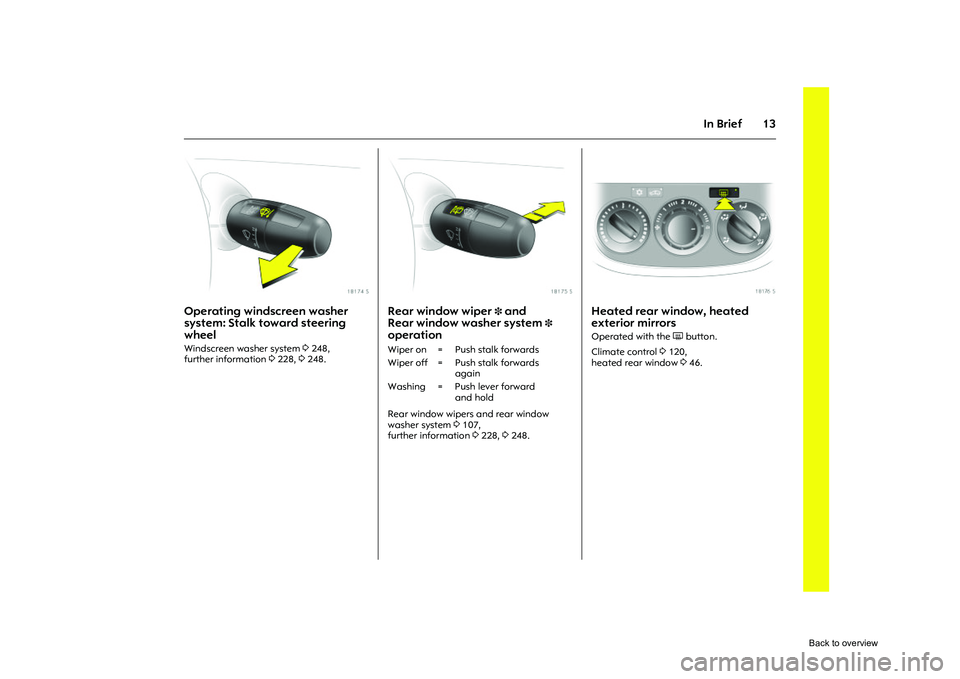

Operating windscreen washer
system: Stalk toward steering
wheel Windscreen washer system 3248,
further information 3228, 3248.
Picture no: 18175s.tif
Rear window wiper
3 and
Rear window washer system
3
operation Rear window wipers and rear window
washer system 3107,
further information 3228, 3248.
Picture no: 18176s.tif
Heated rear window, heated
exterior mirrorsOperated with the Ü button.
Climate control 3120,
heated rear window 346.
Wiper on = Push stalk forwards
Wiper off = Push stalk forwards
again
Washing = Push lever forward and hold
Back to overview

16 In Brief
Picture no: 16982t.tif
Steering wheel lock and ignitionTurn key to position 1. Move the steering
wheel slightly to release the steering wheel
lock.
Picture no: 17005t.tif
Starting the engineDepress clutch and brake pedals, select 3
P or N for automatic transmission, 3N for
manual transmission automated. Do not
press the accelerator, in the case of diesel
engines, release the key in position 2 until
the warning light ! goes out, turn the key
to position 3 and release once the engine is
running.
Before restarting or switching off the
engine, turn key back to 0.
To switch on the ignition, only turn the
key to 2.
Picture no: 18183s.tif
Releasing the hand brake:
Raise lever slightly,
press release button,
lower lever fully Hand brake 3167.
0
=Ignition off
1 = Steering free, ignition off
2 = Ignition on, with diesel engine:
pre-heating
3 =Starting
Back to overview

17
In Brief
Parking the vehicle zApply hand brake firmly without
operating release bu tton. On a downhill
or uphill slope, apply as firmly as
possible. Apply foot brake at same time
to reduce operating force.
z Switch off engine and ignition. Turn the
ignition key to position 0 and pull it out.
Turn the steering wheel until it is clear
that the steering lock has engaged
(anti-theft protection).
On vehicles with automatic
transmission 3, the key can only be
removed when the selector lever is in
the P position.
On vehicles with manual transmission
automated 3, control indicator R
flashes for a few seconds after the
ignition is switched off if the hand brake
has not been applied. z
If the vehicle is standing on a level
surface or a hill, select first gear before
switching the ignition off with manual
transmission automated 3, and with
automatic transmission 3 move selector
lever to P. Also turn front wheels away
from kerb if parked on an uphill slope.
If the vehicle is parked on a slope, with
manual transmi ssion or manual
transmission automated, 3 select
reverse gear before switching the
ignition off, and with automatic
transmission 3 move selector lever to
position P. Also turn front wheels
towards the kerb.
z Lock vehicle with key in lock or button p
on the remote key fob.
To activate the anti-theft locking
system 3 and anti-theft alarm system 3,
press button p twice.
Advice when parking zDo not park the vehicle on an easy
flammable surface. The high
temperature of the exhaust system
could ignite the surface.
z Close the windows and sun roof 3.
z The engine cooling fans may run after
the engine has been switched off 3241.
z After running at high engine speeds or
with high engine loads, operate the
engine briefly at a low load or run in
neutral for approx. 30 seconds before
switching off in order to protect the
turbocharger 3.
Remote control 331,
Central locking system 332,
Anti-theft alarm system 3 3 37,
Vehicle decommissioning 3249.
Back to overview

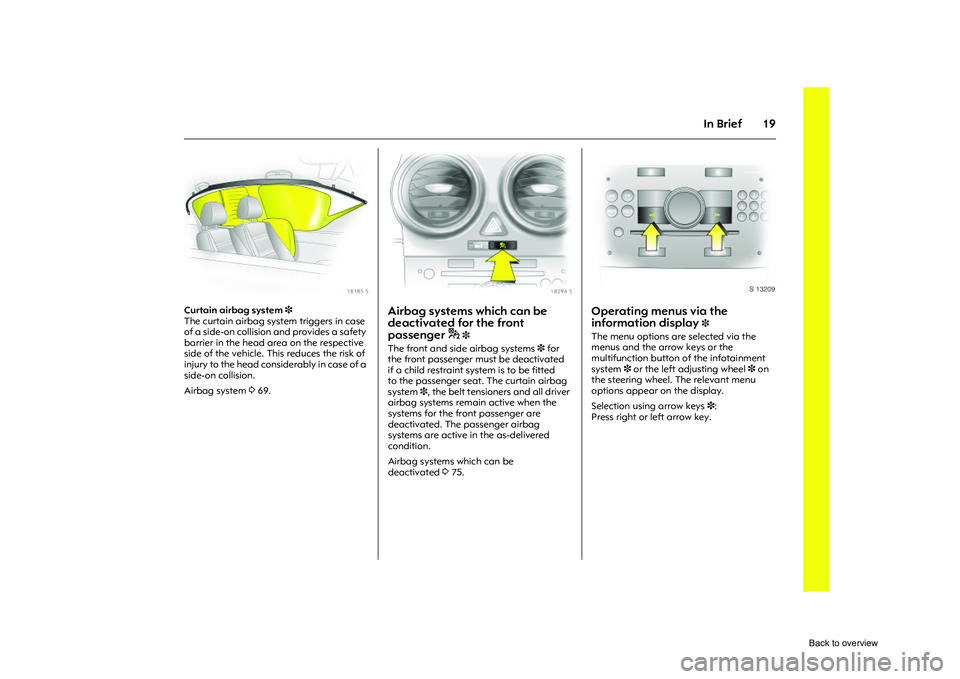

19
In Brief
Picture no: 18185s.tif
Curtain airbag system 3
The curtain airbag system triggers in case
of a side-on collision and provides a safety
barrier in the head area on the respective
side of the vehicle. This reduces the risk of
injury to the head considerably in case of a
side-on collision.
Airbag system 369.
Picture no: 18294s.tif
Airbag systems which can be
deactivated for the front
passenger *
3
The front and side airbag systems 3 for
the front passenger must be deactivated
if a child restraint system is to be fitted
to the passenger seat. The curtain airbag
system 3, the belt tensioners and all driver
airbag systems remain active when the
systems for the front passenger are
deactivated. The passenger airbag
systems are active in the as-delivered
condition.
Airbag systems which can be
deactivated 375.
Picture no: S0013209.tif
Operating menus via the
information display
3
The menu options are selected via the
menus and the arrow keys or the
multifunction button of the infotainment
system 3 or the left adjusting wheel 3 on
the steering wheel. The relevant menu
options appear on the display.
Selection using arrow keys 3:
Press right or left arrow key.
Back to overview
