Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............22
Seats, restraints ........................... 43
Storage ........................................ 64
Instruments and controls .............73
Lighting ...................................... 107
Climate control ........................... 115
Driving and operating .................127
Vehicle care ............................... 175
Service and maintenance ..........214
Technical data ........................... 218
Customer information ................231
Index .......................................... 238Contents

In brief111Power windows .....................38
2 Exterior mirrors .....................35
3 Cruise control .....................147
Speed limiter ....................... 149
4 Turn and lane-change
signals, headlight flash,
low/high beam, high beam
assist ................................... 108
Exit lighting ......................... 114
Parking lights ...................... 112
Buttons for Driver
Information Centre ................93
5 Side air vents ...................... 124
6 Instruments .......................... 83
Driver Information Centre ...... 93
7 Buttons for Driver
Information Centre ................93
8 Windscreen wiper and
washer, rear wiper and
washer ................................. 75
9 Head-up display ....................97
10 Centre air vents .................. 124
11 Hazard warning flashers ....110
12 Info-Display .......................... 9513Centre air vent ......................95
14 Light sensor
15 Central locking system ..........25
16 Glovebox .............................. 64
Fuse box ............................ 193
17 Controls for Info-Display
operation ............................... 95
18 Climate control system ........ 116
19 USB charging port ................ 78
20 Parking assist/Advanced
parking assist .....................151
Lane departure warning .....165
Eco button for stop-start
system ................................. 132
Electronic Stability Control and Traction Control ...........146
21 Power outlet .......................... 78
22 Manual transmission ..........143
Automatic transmission ......140
23 Manual parking brake .........145
24 Power button ....................... 129
25 Ignition switch .....................128
26 Steering wheel adjustment ..7427 Horn ..................................... 75
28 Bonnet release lever ..........177
29 Storage ................................. 64
30 Head-up display ....................97
31 Light switch ........................ 107
Headlight range
adjustment ......................... 109
Front/rear fog lights ............111
Instrument illumination .......112

In brief15Windscreen washer
Pull lever.
Windscreen washer system 3 75.
Washer fluid 3 179.
Wiper blade replacement 3 182.
Rear window wiper
Turn outer cap to activate the rear
window wiper:
OFF:offINT:intermittent operationON:continuous operationRear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper/washer 3 77.

16In briefClimate control
Heated rear windowHeating and ventilation system, air
conditioning system
The heating is operated by pressing
b .
Electronic climate control system
The heating is operated by pressing
b .
Heated rear window 3 39.
Heated exterior mirrors
Pressing b also activates the heated
exterior mirrors.
Heated exterior mirrors 3 36.
Demisting and defrosting the
windows
Heating and ventilation system, air conditioning system
● Press á: the air distribution is
directed towards the windscreen.
● Set fan speed Z to highest level.
● Air conditioning system: switch on air conditioning A/C, if
required.
● Set temperature control to warmest level.
● Switch on heated rear window b.

In brief17● Switch on heatedwindscreen ,.
● Open side air vents as required and direct them towards the doorwindows.
Heating and ventilation system
3 115.
Air conditioning system 3 116.
Heated windscreen 3 40.Electronic climate control system
Press à.
Temperature and air distribution are
set automatically and the fan runs at
high speed.
Switch on air conditioning by pressing A/C , if required.
Switch on heated rear window b.
Switch on heated windscreen ,.
Electronic climate control system
3 119.
Transmission
Manual transmission
To engage reverse on 5-speed
transmission, depress the clutch
pedal and then push and move the
selector lever to the right and rear.

18In brief
To engage reverse on 6-speed
transmission, depress the clutch
pedal, pull the ring under the selector
lever and move the selector lever to
the left and front.
Manual transmission 3 143.
Automatic transmissionP:park positionR:reverseN:neutral modeD:automatic modeM:manual mode<:upshift]:downshift
Automatic transmission 3 140.
Starting off
Check before starting off ● tyre pressure and condition 3 197, 3 229
● Engine oil level and fluid levels 3 178.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats, and seat belts 3 35, 3 44,
3 50.
● Brake function at low speed, particularly if the brakes are wet.

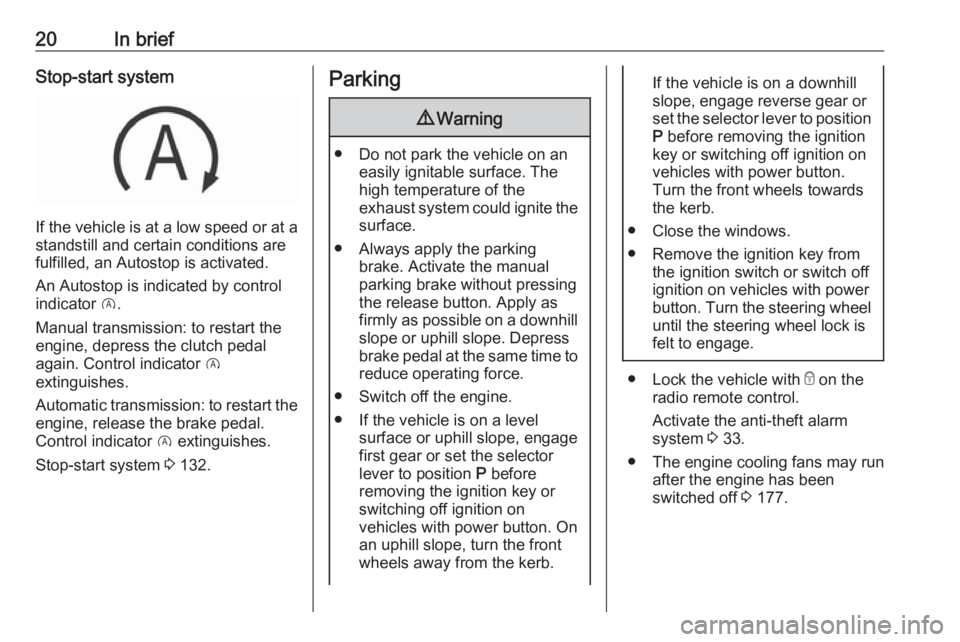

20In briefStop-start system
If the vehicle is at a low speed or at astandstill and certain conditions are
fulfilled, an Autostop is activated.
An Autostop is indicated by control
indicator D.
Manual transmission: to restart the
engine, depress the clutch pedal
again. Control indicator D
extinguishes.
Automatic transmission: to restart the
engine, release the brake pedal.
Control indicator D extinguishes.
Stop-start system 3 132.
Parking9 Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply the parking brake. Activate the manual
parking brake without pressing the release button. Apply as
firmly as possible on a downhill slope or uphill slope. Depress
brake pedal at the same time to
reduce operating force.
● Switch off the engine.
● If the vehicle is on a level surface or uphill slope, engage
first gear or set the selector
lever to position P before
removing the ignition key or
switching off ignition on
vehicles with power button. On an uphill slope, turn the front
wheels away from the kerb.
If the vehicle is on a downhill
slope, engage reverse gear or
set the selector lever to position
P before removing the ignition
key or switching off ignition on
vehicles with power button.
Turn the front wheels towards
the kerb.
● Close the windows.
● Remove the ignition key from the ignition switch or switch off
ignition on vehicles with power
button. Turn the steering wheel until the steering wheel lock is
felt to engage.
● Lock the vehicle with e on the
radio remote control.
Activate the anti-theft alarm
system 3 33.
● The engine cooling fans may run
after the engine has been
switched off 3 177.

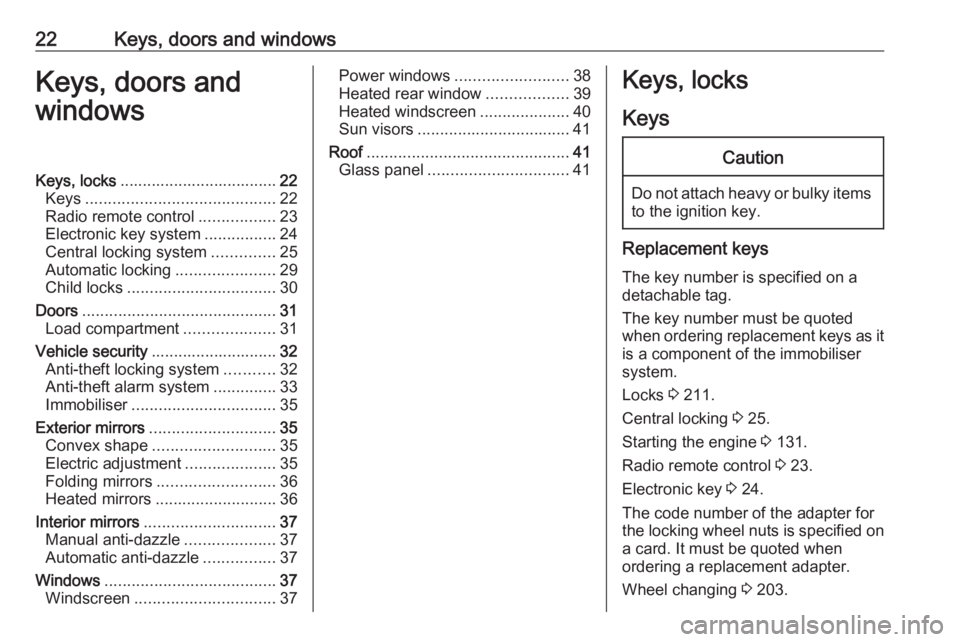

22Keys, doors and windowsKeys, doors and
windowsKeys, locks ................................... 22
Keys .......................................... 22
Radio remote control .................23
Electronic key system ................24
Central locking system ..............25
Automatic locking ......................29
Child locks ................................. 30
Doors ........................................... 31
Load compartment ....................31
Vehicle security ............................ 32
Anti-theft locking system ...........32
Anti-theft alarm system ..............33
Immobiliser ................................ 35
Exterior mirrors ............................ 35
Convex shape ........................... 35
Electric adjustment ....................35
Folding mirrors .......................... 36
Heated mirrors ........................... 36
Interior mirrors ............................. 37
Manual anti-dazzle ....................37
Automatic anti-dazzle ................37
Windows ...................................... 37
Windscreen ............................... 37Power windows......................... 38
Heated rear window ..................39
Heated windscreen ....................40
Sun visors .................................. 41
Roof ............................................. 41
Glass panel ............................... 41Keys, locks
KeysCaution
Do not attach heavy or bulky itemsto the ignition key.
Replacement keys
The key number is specified on a
detachable tag.
The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.
Locks 3 211.
Central locking 3 25.
Starting the engine 3 131.
Radio remote control 3 23.
Electronic key 3 24.
The code number of the adapter for
the locking wheel nuts is specified on
a card. It must be quoted when
ordering a replacement adapter.
Wheel changing 3 203.

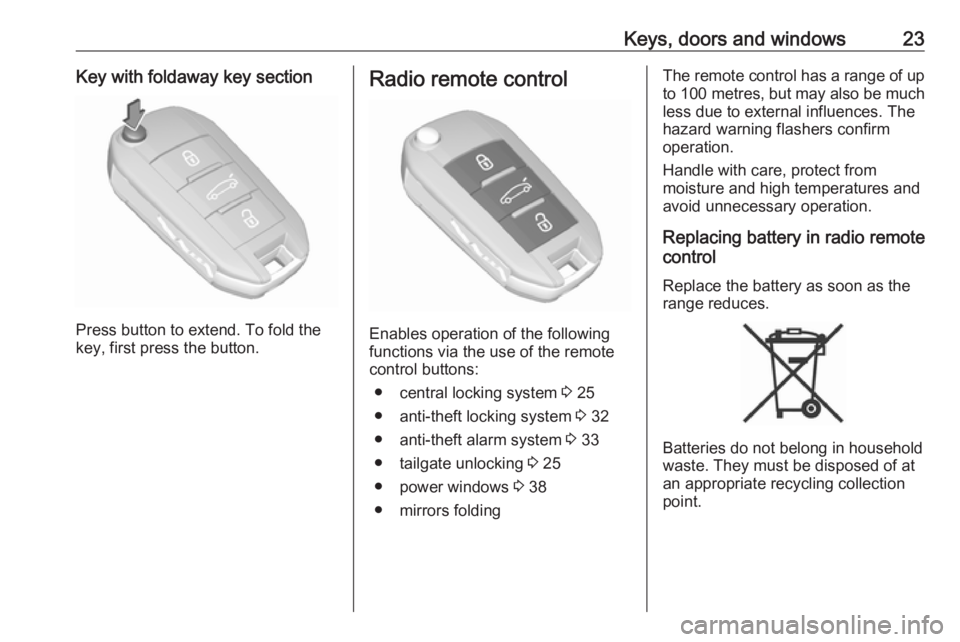

Keys, doors and windows23Key with foldaway key section
Press button to extend. To fold the
key, first press the button.
Radio remote control
Enables operation of the following
functions via the use of the remote control buttons:
● central locking system 3 25
● anti-theft locking system 3 32
● anti-theft alarm system 3 33
● tailgate unlocking 3 25
● power windows 3 38
● mirrors folding
The remote control has a range of up
to 100 metres , but may also be much
less due to external influences. The
hazard warning flashers confirm
operation.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Replacing battery in radio remote
control
Replace the battery as soon as the
range reduces.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.

24Keys, doors and windows
1. Unclip the cover using ascrewdriver in the cutout.
2. Remove the cover.
3. Extract the flat battery from its location.
4. Replace battery. Use CR 1620 or equivalent battery. Pay attentionto the installation position.
5. Clip the cover in place.
Fault
If the central locking system cannot
be operated with the radio remote
control, the cause may be one of the
following:
● Fault in radio remote control.● The range is exceeded.
● The battery voltage is too low.
● Frequent, repeated operation of the radio remote control while not
in range, which will require re-
synchronisation.
● Overload of the central locking system by operating at frequent
intervals, the power supply is
interrupted for a short time.
● Interference from higher-power radio waves from other sources.
Manual unlocking 3 25.Electronic key system
Enables a keyless operation of the
following functions:
● central locking system 3 25
● ignition switching on and starting the engine 3 131
The electronic key simply needs to be on the driver's person.
Additionally, the electronic key
includes the functionality of the radio
remote control 3 23.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
