ENGINE ELECTRICAL 6D – 23
QOS4 PREHEATING SYSTEM
GENERAL DESCRIPTION
QOS4 preheating system features a quick-on glow plug
with thermometer control of the glowing time and the
afterglow time function.
The system consists of the ECM, indicator lamp, ECT
sensor, vehicle speed sensor, relay and temperature
self-control type glow plugs.With the employment of the ECT sensor, the glow time
changes according to the engine coolant temperature,
thus allowing optimum starting conditions to be
obtained.
The after glow time function is controlled by ECM.
NOTE:
Refer to DTC P0380 and P0381 of 6E section.
SYSTEM DIAGRAM
+
-KEY
50A
ECM
50A
GLOW
50A
2
WHT/
RED
0.5
BLK/
BLU
ECM J1-15 3
WHT/
RED
3
RED/
BLKMAIN
80A
8BLK/RED
Glow
Relay
GLOW PLUG 4
BATTHeater & A/C
Relay
060RW132

6D – 24 ENGINE ELECTRICAL
1 Inspection on Quick Heating Operation
1. Disconnect ECT-sensor connection on the
thermostat housing
Legend
(1) ECT Sensor
(2) EVRV
2. Connect the circuit tester between glow plug and
engine earth.
3. Inspect the following items with starter switch set to
ON position (but do not start the engine).
1) The glow indicator shall light for about 5 sec.
2) The circuit tester shall indicate power supply
voltage for 9 – 13 sec.
If above specifications are not satisfied, inspect
wire harness, glow relay and ECT-sensor. If
satisfied, inspect glow plug.2 Inspection on Afterglow Operation
1. Disconnect ECT-sensor connection on the
thermostat housing
Legend
(1) ECT Sensor
(2) EVRV
2. Connect the circuit tester between glow plug and
engine earth.
3. Inspect the following item with the engine started.
1) The circuit tester shall indicate about 7 volts
after 360 seconds of engine start.
If above specifications are not satisfied, inspect
battery voltage, engine earth, wiring harness,
glow plug, and ECM.
12
060RW166
065RW035
12
060RW166
065RW035
INSPECTION ON QOS4 SYSTEM OPERATION

ENGINE ELECTRICAL 6D – 25
ECT SENSOR
Measure the resistance depending on the water
temperature.
Temperature (°C) Current (mA) Resistance (k
)
20 ± 1 1.0 2.0 – 3.0
50 ± 1 1.0 0.6 – 1.0
When installing the ECT sensor, apply sealant (Loctite
#262 or equivalent) to prevent water leakage.
Torque: 8 Nꞏm (0.8 kgꞏm/69 lb in)
Legend
(1) Sealing Material
GLOW PLUG
Inspect the resistance
Resistance at normal temperature: 0.8 – 1.0
Torque: 23 Nꞏm (2.3 kgꞏm/17 lbꞏft)
GLOW PLUG RELAY
Inspect the continuity
(2) – (4) No Continuity
(1) – (3) Continuity
If battery voltage is applied to the terminal between (1)
– (3)
(2) – (4) Continuity065RW058
065RW061
1
065RW060
2 42
311
34
065RW037

6E–1 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS
4JX1–TC 3.0L ENGINE
DRIVEABILITY AND EMISSIONS
CONTENTS
Specification 6E–7. . . . . . . . . . . . . . . . . . . . . . . . . .
Tightening Specifications 6E–7. . . . . . . . . . . . . . .
Diagrams and Schematics 6E–8. . . . . . . . . . . . . . . .
ECM Wiring Diagram (1 of 6) 6E–8. . . . . . . . . . . .
ECM Wiring Diagram (2 of 6) 6E–9. . . . . . . . . . . .
ECM Wiring Diagram (3 of 6) 6E–10. . . . . . . . . . . .
ECM Wiring Diagram (4 of 6) 6E–11. . . . . . . . . . . .
ECM Wiring Diagram (5 of 6) 6E–12. . . . . . . . . . . .
ECM Wiring Diagram (6 of 6) 6E–13. . . . . . . . . . . .
ECM Pinouts 6E–14. . . . . . . . . . . . . . . . . . . . . . . . . . .
ECM Pinout Table, 32-Way Connector – J1
RED – Upper 6E–14. . . . . . . . . . . . . . . . . . . . . . . . .
ECM Pinout Table, 32-Way Connector – J1
RED – Lower 6E–15. . . . . . . . . . . . . . . . . . . . . . . . .
ECM Pinout Table, 32-Way Connector – J2
BLUE – Upper 6E–16. . . . . . . . . . . . . . . . . . . . . . . .
ECM Pinout Table, 32-Way Connector – J2
BLUE – Lower 6E–17. . . . . . . . . . . . . . . . . . . . . . . .
ECM Pinout Table, 5-Way Connector – J3 6E–18
Component Locator 6E–19. . . . . . . . . . . . . . . . . . . . .
Sensors and Miscellaneous Component
Locators 6E–21. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Abbreviations Charts 6E–23. . . . . . . . . . . . . . . . . . . .
Diagnosis 6E–24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Strategy-Based Diagnostics 6E–24. . . . . . . . . . . . .
Strategy-Based Diagnostics 6E–24. . . . . . . . . . . . .
DTC Stored 6E–24. . . . . . . . . . . . . . . . . . . . . . . . . . .
No DTC 6E–24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
No Matching Symptom 6E–24. . . . . . . . . . . . . . . . .
Intermittents 6E–24. . . . . . . . . . . . . . . . . . . . . . . . . .
No Trouble Found 6E–24. . . . . . . . . . . . . . . . . . . . .
Verifying Vehicle Repair 6E–24. . . . . . . . . . . . . . . .
General Service Information 6E–25. . . . . . . . . . . . . .
Serviceability Issues 6E–25. . . . . . . . . . . . . . . . . . .
Visual/Physical Engine Compartment
Inspection 6E–25. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Basic Knowledge of Tools Required 6E–25. . . . . .
Serial Data Communications 6E–25. . . . . . . . . . . . . .
Class II Serial Data Communications 6E–25. . . . .
On-Board Diagnostic (OBD) 6E–25. . . . . . . . . . . . . .
On-Board Diagnostic Tests 6E–25. . . . . . . . . . . . .
Comprehensive Component Monitor
Diagnostic Operation 6E–25. . . . . . . . . . . . . . . . . .
Common OBD Terms 6E–26. . . . . . . . . . . . . . . . . .
The Diagnostic Executive 6E–26. . . . . . . . . . . . . . .
DTC Types 6E–26. . . . . . . . . . . . . . . . . . . . . . . . . . .
Verifying Vehicle Repair 6E–27. . . . . . . . . . . . . . . . Reading Flash Diagnostic Trouble Codes 6E–27.
Reading Diagnostic Trouble Codes Using
a TECH 2 6E–28. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tech 2 Scan Tool 6E–29. . . . . . . . . . . . . . . . . . . . . .
Getting Started 6E–30. . . . . . . . . . . . . . . . . . . . . . . .
DTC Modes 6E–32. . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC Information Mode 6E–32. . . . . . . . . . . . . . . . .
Injector Test 6E–32. . . . . . . . . . . . . . . . . . . . . . . . . .
EGR Valve Test 6E–32. . . . . . . . . . . . . . . . . . . . . . .
Rail Pressure Control Valve Test 6E–32. . . . . . . . .
Injector Balance Test 6E–32. . . . . . . . . . . . . . . . . . .
Data Programming in Case of ECM Change 6E–32
Rail Pressure Sensor Programming 6E–33. . . . . .
Injector Group Sign Programming
(Injector Change) 6E–33. . . . . . . . . . . . . . . . . . . . .
On-Board Diagnostic (OBD) System Check 6E–35.
Circuit Description 6E–37. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E–37. . . . . . . . . . . . . . . . . . . . . . . .
Engine Control Module ECM Diagnosis 6E–39. . . .
Multiple ECM Information Sensor DTCS Set 6E–39
Circuit Description 6E–39. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E–39. . . . . . . . . . . . . . . . . . . . . . . .
EGR (Exhaust Gas Recirculation) Diagnosis 6E–41
Tech 2 Data Definitions and Ranges 6E–41. . . . . . .
Typical Scan Data Values 6E–41. . . . . . . . . . . . . . . .
Test Conditions 6E–41. . . . . . . . . . . . . . . . . . . . . . . .
4JX1-TC Engine (Automatic and Manual
Transmission) 6E–42. . . . . . . . . . . . . . . . . . . . . . . .
No Malfunction Indicator Lamp (MIL) 6E–44. . . . . . .
Circuit Description 6E–44. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E–44. . . . . . . . . . . . . . . . . . . . . . . .
Malfunction Indicator Lamp (MIL) “ON”
Steady 6E–47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit description 6E–47. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E–47. . . . . . . . . . . . . . . . . . . . . . . .
Engine Cranks But Will Not Run 6E–49. . . . . . . . . . .
Circuit Description 6E–49. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E–49. . . . . . . . . . . . . . . . . . . . . . . .
Exhaust Gas Recirculation (EGR) System
Check 6E–52. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–52. . . . . . . . . . . . . . . . . . . . .
ECM Diagnostic Trouble Codes 6E–54. . . . . . . . . . .
ECM Diagnostic Trouble Codes 6E–54. . . . . . . . .
Diagnostic Trouble Code (DTC) P0107
(Flash DTC 34)
MAP Sensor Circuit Low Voltage 6E–56. . . . . . . . . .

6E–2
4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS
Circuit Description 6E–56. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–56. . . . . . .
Conditions for Clearing the MIL/DTC 6E–56. . . . .
Diagnostic Aids 6E–56. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0108
(Flash DTC 34)
MAP Sensor Circuit High Voltage 6E–58. . . . . . . . .
Circuit Description 6E–58. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–58. . . . . . .
Conditions for Clearing the MIL/DTC 6E–58. . . . .
Diagnostic Aids 6E–58. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0112
(Flash DTC 23) IAT Sensor Circuit Low
Voltage 6E–60. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–60. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–60. . . . . . .
Conditions for Clearing the MIL/DTC 6E–60. . . . .
Diagnostic Aids 6E–60. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E–61. . . . . . . . . . . . . . . . . . . . . . .
Intake Air Temperature Sensor 6E–61. . . . . . . . . .
Diagnostic Trouble Code (DTC) P0113
(Flash DTC 23) IAT Sensor Circuit High
Voltage 6E–62. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–62. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–62. . . . . . .
Conditions for Clearing the MIL/DTC 6E–62. . . . .
Diagnostic Aids 6E–62. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E–63. . . . . . . . . . . . . . . . . . . . . . .
Manifold Air Temperature Sensor 6E–63. . . . . . . .
Diagnostic Trouble Code (DTC) P0117
(Flash DTC 14) ECT Sensor Low Voltage 6E–65.
Circuit Description 6E–65. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–65. . . . . . .
Conditions for Clearing the MIL/DTC 6E–65. . . . .
Diagnostic Aids 6E–65. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E–65. . . . . . . . . . . . . . . . . . . . . . .
Engine Coolant Temperature Sensor 6E–66. . . . .
Diagnostic Trouble Code (DTC) P0118
(Flash DTC 14) ECT Sensor High Voltage 6E–67.
Circuit Description 6E–67. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–67. . . . . . .
Conditions for Clearing the MIL/DTC 6E–67. . . . .
Diagnostic Aids 6E–67. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E–68. . . . . . . . . . . . . . . . . . . . . . .
Engine Coolant Temperature Sensor 6E–68. . . . .
Diagnostic Trouble Code (DTC) P0121
(Flash DTC 33) AP Sensor Rationality 6E–70. . . . .
Circuit Description 6E–70. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–70. . . . . . .
Conditions for Clearing the MIL/DTC 6E–70. . . . .
Diagnostic Aids 6E–70. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0122
(Flash DTC 21) AP Sensor Low Voltage 6E–72. . .
Circuit Description 6E–72. . . . . . . . . . . . . . . . . . . . . Action Taken When the DTC Sets 6E–72. . . . . . .
Conditions for Clearing the MIL/DTC 6E–72. . . . .
Diagnostic Aids 6E–72. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0123
(Flash DTC 21) AP Sensor High Voltage 6E–75. . .
Circuit Description 6E–75. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–75. . . . . . .
Conditions for Clearing the MIL/DTC 6E–75. . . . .
Diagnostic Aids 6E–75. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E–75. . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0182
(Flash DTC 15) FT Sensor Low Voltage 6E–78. . .
Circuit Description 6E–78. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–78. . . . . . .
Conditions for Clearing the MIL/DTC 6E–78. . . . .
Diagnostic Aids 6E–78. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E–78. . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0183
(Flash DTC 15) FT Sensor High Voltage 6E–80. . .
Circuit Description 6E–80. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–80. . . . . . .
Conditions for Clearing the MIL/DTC 6E–80. . . . .
Diagnostic Aids 6E–80. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E–80. . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0192
(Flash DTC 63) Rail Pressure Sensor Low
Voltage 6E–82. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–82. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–82. . . . . . .
Conditions for Clearing the MIL/DTC 6E–82. . . . .
Diagnostic Aids 6E–82. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0193
(Flash DTC 63) Rail Pressure Sensor
High Voltage 6E–84. . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–84. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–84. . . . . . .
Conditions for Clearing the MIL/DTC 6E–84. . . . .
Diagnostic Aids 6E–84. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1193
(Flash DTC 64) RPCV Circuit Open/Short 6E–86. .
Circuit Description 6E–86. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–86. . . . . . .
Conditions for Clearing the MIL/DTC 6E–86. . . . .
Diagnostic Aids 6E–86. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1194
(Flash DTC 61) Rail Pressure System
Low Voltage 6E–88. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–88. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–88. . . . . . .
Conditions for Clearing the MIL/DTC 6E–88. . . . .
Diagnostic Aids 6E–88. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1195
(Flash DTC 61) Rail Pressure System
High Voltage 6E–90. . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–90. . . . . . . . . . . . . . . . . . . . .

6E–3 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS
Action Taken When the DTC Sets 6E–90. . . . . . .
Conditions for Clearing the MIL/DTC 6E–90. . . . .
Diagnostic Aids 6E–90. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1196
(Flash DTC 62) Rail Pressure System
High Warning 6E–92. . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–93. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–93. . . . . . .
Conditions for Clearing the MIL/DTC 6E–93. . . . .
Diagnostic Aids 6E–93. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E–93. . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0197
(Flash DTC 16) Oil Temp Sensor Low
Voltage 6E–94. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–94. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–94. . . . . . .
Conditions for Clearing the MIL/DTC 6E–94. . . . .
Diagnostic Aids 6E–94. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E–95. . . . . . . . . . . . . . . . . . . . . . .
Engine Oil Temperature Sensor 6E–95. . . . . . . . .
Diagnostic Trouble Code (DTC) P0198
(Flash DTC 16) Oil Temp Sensor High
Voltage 6E–96. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–96. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–96. . . . . . .
Conditions for Clearing the MIL/DTC 6E–96. . . . .
Diagnostic Aids 6E–96. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E–97. . . . . . . . . . . . . . . . . . . . . . .
Engine Oil Temperature Sensor 6E–97. . . . . . . . .
Diagnostic Trouble Code (DTC) P0201
(Flash DTC 51) Injector # 1 Circuit Fault 6E–99. . .
Circuit Description 6E–99. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–99. . . . . . .
Conditions for Clearing the MIL/DTC 6E–99. . . . .
Diagnostic Aids 6E–99. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E–99. . . . . . . . . . . . . . . . . . . . . . .
Injector Test 6E–99. . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0202
(Flash DTC 52) Injector # 2 Circuit Fault 6E–101. . .
Circuit Description 6E–101. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–101. . . . . . .
Conditions for Clearing the MIL/DTC 6E–101. . . . .
Diagnostic Aids 6E–101. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E–101. . . . . . . . . . . . . . . . . . . . . . .
Injector Test 6E–101. . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0203
(Flash DTC 52) Injector # 3 Circuit Fault 6E–103. . .
Circuit Description 6E–103. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–103. . . . . . .
Conditions for Clearing the MIL/DTC 6E–103. . . . .
Diagnostic Aids 6E–103. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E–103. . . . . . . . . . . . . . . . . . . . . . .
Injector Test 6E–103. . . . . . . . . . . . . . . . . . . . . . . . . . Diagnostic Trouble Code (DTC) P0204
(Flash DTC 54) Injector # 4 Circuit Fault 6E–105
. . .
Circuit Description 6E–105. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–105. . . . . . .
Conditions for Clearing the MIL/DTC 6E–105. . . . .
Diagnostic Aids 6E–105. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E–105. . . . . . . . . . . . . . . . . . . . . . .
Injector Test 6E–105. . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0217
(Flash DTC 22) High Coolant Temp Waring 6E–107
Circuit Description 6E–107. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–107. . . . . . .
Conditions for Clearing the MIL/DTC 6E–107. . . . .
Diagnostic Aids 6E–107. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E–107. . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1217
(Flash DTC 36) High Oil Temp Warning 6E–109. . . .
Circuit Description 6E–109. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–109. . . . . . .
Conditions for Clearing the MIL/DTC 6E–109. . . . .
Diagnostic Aids 6E–109. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0219
(Flash DTC 11) Engine Over Speed Warning 6E–111
Circuit Description 6E–111. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–111. . . . . . .
Conditions for Clearing the MIL/DTC 6E–111. . . . .
Diagnostic Aids 6E–111. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0336
(Flash DTC 43) CKP (Crank Position)
Sensor Out of Synchro 6E–114. . . . . . . . . . . . . . . . . .
Circuit Description 6E–114. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–114. . . . . . .
Conditions for Clearing the MIL/DTC 6E–114. . . . .
Diagnostic Aids 6E–114. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0337
(Flash DTC 43) CKP (Crank Position)
Sensor No Signal 6E–116. . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–116. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–116. . . . . . .
Conditions for Clearing the MIL/DTC 6E–116. . . . .
Diagnostic Aids 6E–116. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0341
(Flash DTC 41) CMP (Cam Position)
Sensor Out of Synchro 6E–119. . . . . . . . . . . . . . . . . .
Circuit Description 6E–119. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–119. . . . . . .
Conditions for Clearing the MIL/DTC 6E–119. . . . .
Diagnostic Aids 6E–119. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E–119. . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0342
(Flash DTC 41) CMP (Cam Position)
Sensor No Signal 6E–122. . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–122. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–122. . . . . . .
Conditions for Clearing the MIL/DTC 6E–122. . . . .

6E–4
4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Aids 6E–122. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E–122. . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0380
(Flash DTC 66) Glow Relay Circuit
Open/Short 6E–126. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–126. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–126. . . . . . .
Conditions for Clearing the MIL/DTC 6E–126. . . . .
Diagnostic Aids 6E–126. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0381
(Flash DTC 67) Glow Lamp Circuit
Open/Short 6E–128. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–128. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–128. . . . . . .
Conditions for Clearing the MIL/DTC 6E–128. . . . .
Diagnostic Aids 6E–128. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1403
(Flash DTC 32) EGR EVRV Fault 6E–130. . . . . . . . .
Circuit Description 6E–130. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E–130. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E–130. . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1404
(Flash DTC 31) EGR VSV Circuit 6E–132. . . . . . . . .
Circuit Description 6E–132. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E–132. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0405
(Flash DTC 26) EGR Pressure Sensor
Low Voltage 6E–134. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–134. . . . . . .
Conditions for Clearing the MIL/DTC 6E–134. . . . .
Diagnostic Aids 6E–134. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1405
(Flash DTC 37) EGR EVRV Circuit
Open/Short 6E–136. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–136. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–136. . . . . . .
Conditions for Clearing the MIL/DTC 6E–136. . . . .
Diagnostic Aids 6E–136. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0406
(Flash DTC 26) EGR Pressure Sensor
High Voltage 6E–138. . . . . . . . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–138. . . . . . .
Conditions for Clearing the MIL/DTC 6E–138. . . . .
Diagnostic Aids 6E–138. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0475
(Flash DTC 71) EXH #1 VSV Circuit 6E–140. . . . . . .
Circuit Description 6E–140. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–140. . . . . . .
Conditions for Clearing the MIL/DTC 6E–140. . . . .
Diagnostic Aids 6E–140. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1475
(Flash DTC 71) EXH #2 VSV Circuit
Open/Short 6E–142. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–142. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–142. . . . . . . Conditions for Clearing the MIL/DTC 6E–142. . . . .
Diagnostic Aids 6E–142. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1485
(Flash DTC 74) ITP (Intake Thorottle Position)
Sensor Low Voltage 6E–144. . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–144. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–144. . . . . . .
Conditions for Clearing the MIL/DTC 6E–144. . . . .
Diagnostic Aids 6E–144. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1486
(Flash DTC 74) ITP (Intake Throttle Position)
Sensor High Voltage 6E–146. . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–146. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–146. . . . . . .
Conditions for Clearing the MIL/DTC 6E–146. . . . .
Diagnostic Aids 6E–146. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1487
(Flash DTC 73) Intake Throttle System
Circuit Open/Start 6E–148. . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–148. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–148. . . . . . .
Conditions for Clearing the MIL/DTC 6E–148. . . . .
Diagnostic Aids 6E–148. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1488
(Flash DTC 72) Intake Throttle Motor Control
Circuit Signal Gap 6E–150. . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–150. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–150. . . . . . .
Conditions for Clearing the MIL/DTC 6E–150. . . . .
Diagnostic Aids 6E–150. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0502
(Flash DTC 24) VSS (Vehicle Speed Sensor)
No Signal 6E–152. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–152. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–152. . . . . . .
Conditions for Clearing the MIL/DTC 6E–152. . . . .
Test Description 6E–153. . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0510
(Flash DTC 75) Idle SW Malfunction, Open
Circuit 6E–155. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–155. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–155. . . . . . .
Conditions for Clearing the MIL/DTC 6E–155. . . . .
Diagnostic Aids 6E–155. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1510
(Flash DTC 75) Idle SW Malfunction
Short Circuit 6E–157. . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–157. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–157. . . . . . .
Conditions for Clearing the MIL/DTC 6E–157. . . . .
Diagnostic Aids 6E–157. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0562
(Flash DTC 35) System Voltage Too Low 6E–159. .
Circuit Description 6E–159. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–159. . . . . . .

6E–5 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS
Conditions for Clearing the MIL/DTC 6E–159. . . . .
Diagnostic Aids 6E–159. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1562
(Flash DTC 35) System Voltage Too Low
at Cranking 6E–160. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–160. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–160. . . . . . .
Conditions for Clearing the MIL/DTC 6E–160. . . . .
Diagnostic Aids 6E–160. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1587
(Flash DTC 25) Brake SW Malfunction 6E–161. . . .
Circuit Description 6E–161. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–161. . . . . . .
Conditions for Clearing the MIL/DTC 6E–161. . . . .
Diagnostic Aids 6E–161. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1588
(Flash DTC 25) Brake SW Malfunction 6E–163. . . .
Circuit Description 6E–163. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–163. . . . . . .
Conditions for Clearing the MIL/DTC 6E–163. . . . .
Diagnostic Aids 6E–163. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0601
(Flash DTC 55) ECM Checksum Error 6E–165. . . . .
Action Taken When the DTC Sets 6E–165. . . . . . .
Conditions for Clearing the MIL/DTC 6E–165. . . . .
Diagnostic Aids 6E–165. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0650
(Flash DTC 77) Check Engine Lam Circuit
Open/Short 6E–166. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–166. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–166. . . . . . .
Conditions for Clearing the MIL/DTC 6E–166. . . . .
Diagnostic Aids 6E–166. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0654
(Flash DTC 27) Tachometer Circuit
Open/Short 6E–168. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–168. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–168. . . . . . .
Conditions for Clearing the MIL/DTC 6E–168. . . . .
Diagnostic Aids 6E–168. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1655
(Flash DTC 17) Thermo Relay Circuit
Open/Short 6E–170. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–170. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–170. . . . . . .
Conditions for Clearing the MIL/DTC 6E–170. . . . .
Diagnostic Aids 6E–170. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1657
(Flash DTC 76) ECM Main Relay Circuit
Open/Short 6E–172. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–172. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–172. . . . . . .
Conditions for Clearing the MIL/DTC 6E–172. . . . .
Diagnostic Aids 6E–172. . . . . . . . . . . . . . . . . . . . . . . . Diagnostic Trouble Code (DTC) P1589
(Flash DTC 47) Transmission SW Circuit
Open/Short 6E–174. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E–174. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E–174. . . . . . .
Conditions for Clearing the MIL/DTC 6E–174. . . . .
Diagnostic Aids 6E–174. . . . . . . . . . . . . . . . . . . . . . . .
Symptom Diagnosis 6E–176. . . . . . . . . . . . . . . . . . . . .
Default Matrix Table 6E–199. . . . . . . . . . . . . . . . . . . . .
On–Vehicle Service Camshaft Position
(CMP) Sensor 6E–201. . . . . . . . . . . . . . . . . . . . . . . . . .
Removal Procedure 6E–201. . . . . . . . . . . . . . . . . . . .
Inspection Procedure 6E–201. . . . . . . . . . . . . . . . . .
Installation Procedure 6E–201. . . . . . . . . . . . . . . . . .
Crankshaft Position (CKP) Sensor 6E–202. . . . . . . . .
Removal Procedure 6E–202. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E–202. . . . . . . . . . . . . . . . . .
Engine Coolant Temperature (ECT) Sensor 6E–203.
Removal Procedure 6E–203. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E–203. . . . . . . . . . . . . . . . . .
Intake Air Temperature (IAT) Sensor 6E–203. . . . . . .
Removal Procedure 6E–203. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E–204. . . . . . . . . . . . . . . . . .
Manifold Absolute Pressure (MAP) Sensor 6E–204.
Removal Procedure 6E–204. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E–205. . . . . . . . . . . . . . . . . .
Oil Temperature (OT) Sensor 6E–205. . . . . . . . . . . . .
Removal Procedure 6E–205. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E–206. . . . . . . . . . . . . . . . . .
Malfunction Indicator Lamp (MIL) 6E–206. . . . . . . . . .
Removal and Installation Procedure 6E–206. . . . . .
Engine Control Module (ECM) 6E–206. . . . . . . . . . . .
Service Precaution 6E–206. . . . . . . . . . . . . . . . . . . .
Electrostatic Discharge (ESD) Damage 6E–206. . .
Removal Procedure 6E–207. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E–208. . . . . . . . . . . . . . . . . .
EEPROM 6E–208. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Description 6E–208. . . . . . . . . . . . . . . . . . . .
Functional Check 6E–208. . . . . . . . . . . . . . . . . . . . . .
Intake Throttle Position (ITP) Sensor 6E–208. . . . . . .
Removal Procedure 6E–208. . . . . . . . . . . . . . . . . . . .
Function Check 6E–209. . . . . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E–209. . . . . . . . . . . . . . . . . .
Vehicle Speed Sensor (VSS) 6E–210. . . . . . . . . . . . .
Removal Procedure 6E–210. . . . . . . . . . . . . . . . . . . .
Inspection Procedure 6E–210. . . . . . . . . . . . . . . . . .
Installation Procedure 6E–210. . . . . . . . . . . . . . . . . .
Air Cleaner/Air Filter 6E–211. . . . . . . . . . . . . . . . . . . . .
Removal Procedure 6E–211. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E–211. . . . . . . . . . . . . . . . . .
Accel Position (AP) Sensor 6E–211. . . . . . . . . . . . . . .
Removal Procedure 6E–211. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E–212. . . . . . . . . . . . . . . . . .
Accelerator Pedal Replacement 6E–212. . . . . . . . . . .

6E–6
4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS
Removal Procedure 6E–212. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E–212. . . . . . . . . . . . . . . . . .
Fuel Filter Cap 6E–213. . . . . . . . . . . . . . . . . . . . . . . . . .
General Description 6E–213. . . . . . . . . . . . . . . . . . . .
Inspection Procedure 6E–213. . . . . . . . . . . . . . . . . .
Fuel Filter 6E–213. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal and Installation Procedure 6E–213. . . . . .
Fuel Gauge Unit 6E–213. . . . . . . . . . . . . . . . . . . . . . . .
Removal Procedure 6E–213. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E–214. . . . . . . . . . . . . . . . . .
Fuel Injectors 6E–214. . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal and Installation Procedure 6E–214. . . . . .
Fuel Temperature Sensor 6E–214. . . . . . . . . . . . . . . .
Removal Procedure 6E–214. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E–215. . . . . . . . . . . . . . . . . .
Rail Pressure (RP) Sensor 6E–216. . . . . . . . . . . . . . .
Removal Procedure 6E–216. . . . . . . . . . . . . . . . . . . .

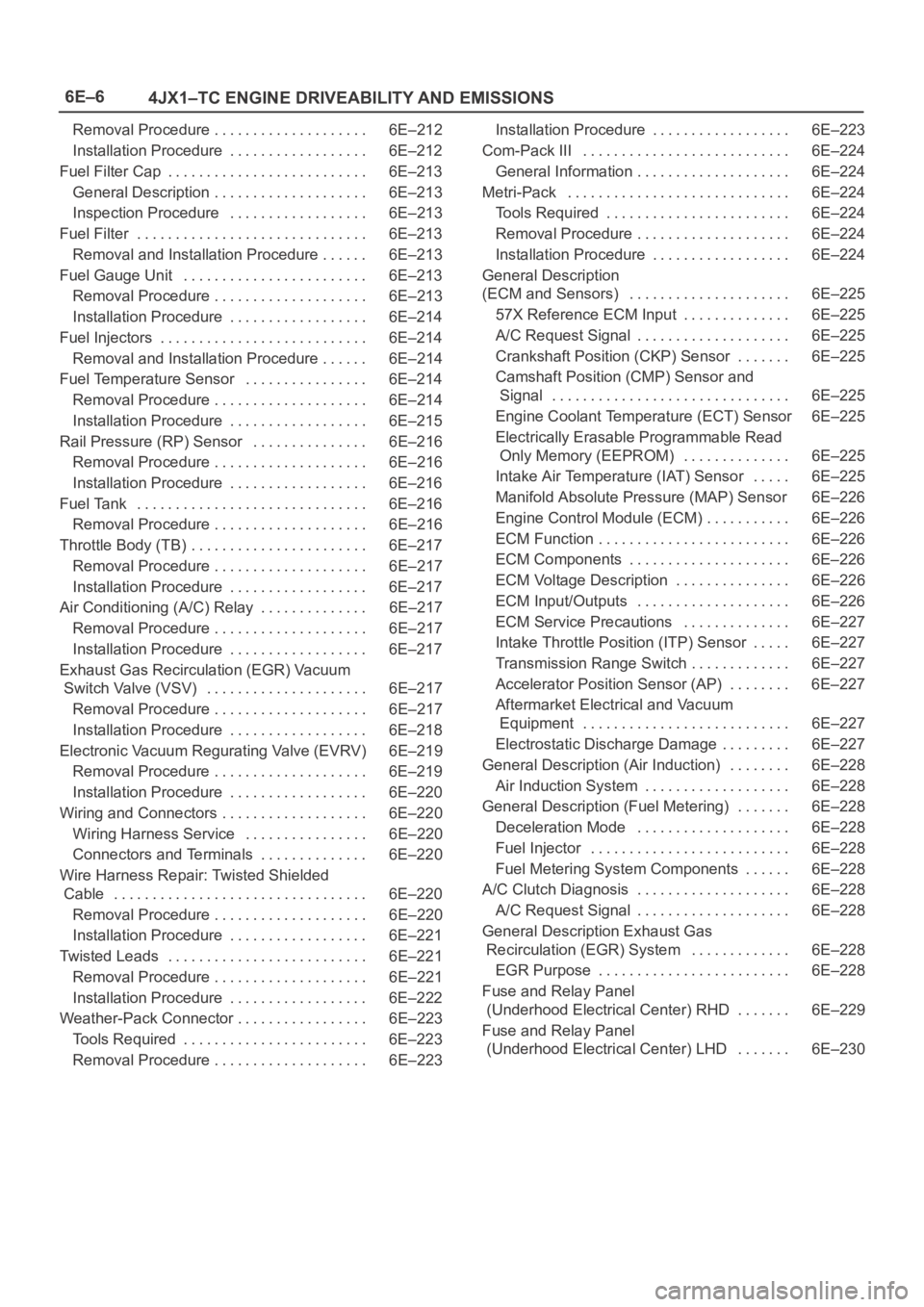

Installation Procedure 6E–216. . . . . . . . . . . . . . . . . .
Fuel Tank 6E–216. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal Procedure 6E–216. . . . . . . . . . . . . . . . . . . .
Throttle Body (TB) 6E–217. . . . . . . . . . . . . . . . . . . . . . .
Removal Procedure 6E–217. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E–217. . . . . . . . . . . . . . . . . .
Air Conditioning (A/C) Relay 6E–217. . . . . . . . . . . . . .
Removal Procedure 6E–217. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E–217. . . . . . . . . . . . . . . . . .
Exhaust Gas Recirculation (EGR) Vacuum
Switch Valve (VSV) 6E–217. . . . . . . . . . . . . . . . . . . . .
Removal Procedure 6E–217. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E–218. . . . . . . . . . . . . . . . . .
Electronic Vacuum Regurating Valve (EVRV) 6E–219
Removal Procedure 6E–219. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E–220. . . . . . . . . . . . . . . . . .
Wiring and Connectors 6E–220. . . . . . . . . . . . . . . . . . .
Wiring Harness Service 6E–220. . . . . . . . . . . . . . . .
Connectors and Terminals 6E–220. . . . . . . . . . . . . .
Wire Harness Repair: Twisted Shielded
Cable 6E–220. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal Procedure 6E–220. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E–221. . . . . . . . . . . . . . . . . .
Twisted Leads 6E–221. . . . . . . . . . . . . . . . . . . . . . . . . .
Removal Procedure 6E–221. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E–222. . . . . . . . . . . . . . . . . .
Weather-Pack Connector 6E–223. . . . . . . . . . . . . . . . .
Tools Required 6E–223. . . . . . . . . . . . . . . . . . . . . . . .
Removal Procedure 6E–223. . . . . . . . . . . . . . . . . . . . Installation Procedure 6E–223. . . . . . . . . . . . . . . . . .
Com-Pack III 6E–224. . . . . . . . . . . . . . . . . . . . . . . . . . .
General Information 6E–224. . . . . . . . . . . . . . . . . . . .
Metri-Pack 6E–224. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools Required 6E–224. . . . . . . . . . . . . . . . . . . . . . . .
Removal Procedure 6E–224
. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E–224. . . . . . . . . . . . . . . . . .
General Description
(ECM and Sensors) 6E–225. . . . . . . . . . . . . . . . . . . . .
57X Reference ECM Input 6E–225. . . . . . . . . . . . . .
A/C Request Signal 6E–225. . . . . . . . . . . . . . . . . . . .
Crankshaft Position (CKP) Sensor 6E–225. . . . . . .
Camshaft Position (CMP) Sensor and
Signal 6E–225. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Coolant Temperature (ECT) Sensor 6E–225
Electrically Erasable Programmable Read
Only Memory (EEPROM) 6E–225. . . . . . . . . . . . . .
Intake Air Temperature (IAT) Sensor 6E–225. . . . .
Manifold Absolute Pressure (MAP) Sensor 6E–226
Engine Control Module (ECM) 6E–226. . . . . . . . . . .
ECM Function 6E–226. . . . . . . . . . . . . . . . . . . . . . . . .
ECM Components 6E–226. . . . . . . . . . . . . . . . . . . . .
ECM Voltage Description 6E–226. . . . . . . . . . . . . . .
ECM Input/Outputs 6E–226. . . . . . . . . . . . . . . . . . . .
ECM Service Precautions 6E–227. . . . . . . . . . . . . .
Intake Throttle Position (ITP) Sensor 6E–227. . . . .
Transmission Range Switch 6E–227. . . . . . . . . . . . .
Accelerator Position Sensor (AP) 6E–227. . . . . . . .
Aftermarket Electrical and Vacuum
Equipment 6E–227. . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrostatic Discharge Damage 6E–227. . . . . . . . .
General Description (Air Induction) 6E–228. . . . . . . .
Air Induction System 6E–228. . . . . . . . . . . . . . . . . . .
General Description (Fuel Metering) 6E–228. . . . . . .
Deceleration Mode 6E–228. . . . . . . . . . . . . . . . . . . .
Fuel Injector 6E–228. . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Metering System Components 6E–228. . . . . .
A/C Clutch Diagnosis 6E–228. . . . . . . . . . . . . . . . . . . .
A/C Request Signal 6E–228. . . . . . . . . . . . . . . . . . . .
General Description Exhaust Gas
Recirculation (EGR) System 6E–228. . . . . . . . . . . . .
EGR Purpose 6E–228. . . . . . . . . . . . . . . . . . . . . . . . .
Fuse and Relay Panel
(Underhood Electrical Center) RHD 6E–229. . . . . . .
Fuse and Relay Panel
(Underhood Electrical Center) LHD 6E–230. . . . . . .

6E–7 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS
Specification
Tightening Specifications
Application
NꞏmKgꞏmLb Ft.Lb In.
Camshaft Position Sensor Retaining Screw90.9—78
Crankshaft Position Sensor Mounting Bolt90.9—78
Engine Coolant Temperature Sensor191.914—
Throttle Body Mounting Nuts202.014—
VSS Retaining Bolt161.612—
MAP Sensor Screw40.4—35
EGR VSV Bolts80.8—69
Fuel Temp Sensor191.914—
Oil Temp Sensor Bolt191.914—
Rail Pressure Sensor Bolt202.014—
