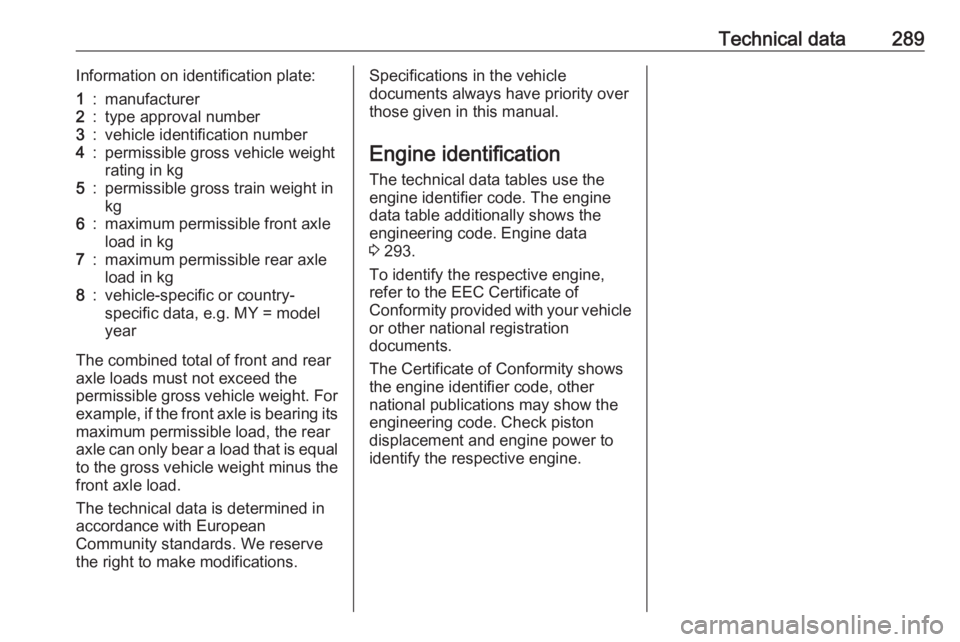

Technical data289Information on identification plate:1:manufacturer2:type approval number3:vehicle identification number4:permissible gross vehicle weightrating in kg5:permissible gross train weight in
kg6:maximum permissible front axle
load in kg7:maximum permissible rear axle
load in kg8:vehicle-specific or country-
specific data, e.g. MY = model
year
The combined total of front and rear
axle loads must not exceed the
permissible gross vehicle weight. For
example, if the front axle is bearing its
maximum permissible load, the rear
axle can only bear a load that is equal
to the gross vehicle weight minus the front axle load.
The technical data is determined in
accordance with European
Community standards. We reserve
the right to make modifications.
Specifications in the vehicle
documents always have priority over those given in this manual.
Engine identification The technical data tables use the
engine identifier code. The engine
data table additionally shows the
engineering code. Engine data
3 293.
To identify the respective engine,
refer to the EEC Certificate of
Conformity provided with your vehicle
or other national registration
documents.
The Certificate of Conformity shows the engine identifier code, other
national publications may show the
engineering code. Check piston
displacement and engine power to
identify the respective engine.

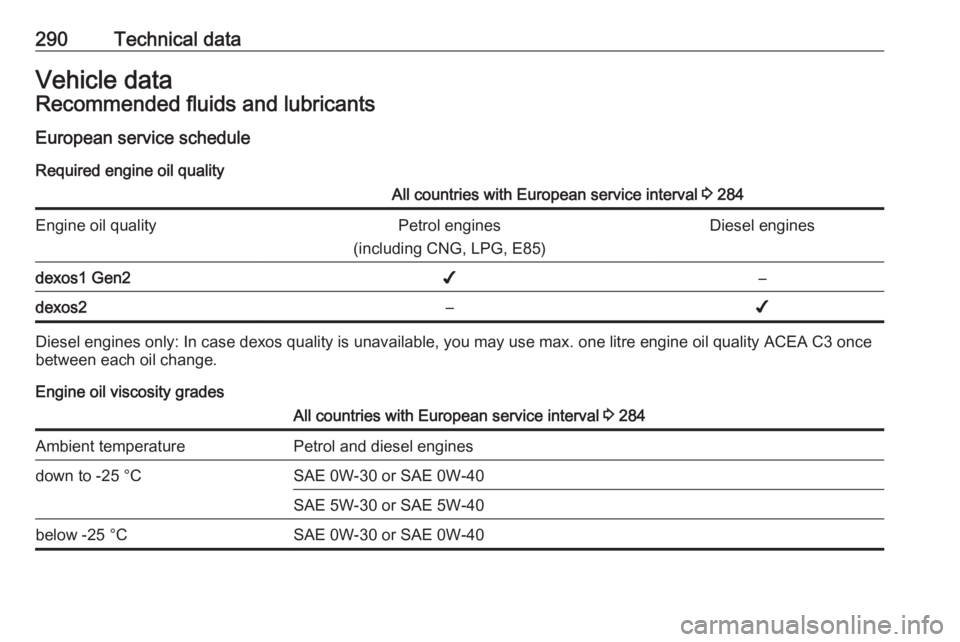

290Technical dataVehicle dataRecommended fluids and lubricantsEuropean service schedule Required engine oil qualityAll countries with European service interval 3 284Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesdexos1 Gen2✔–dexos2–✔
Diesel engines only: In case dexos quality is unavailable, you may use max. one litre engine oil quality ACEA C3 once
between each oil change.
Engine oil viscosity grades
All countries with European service interval 3 284Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 0W-30 or SAE 0W-40SAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40

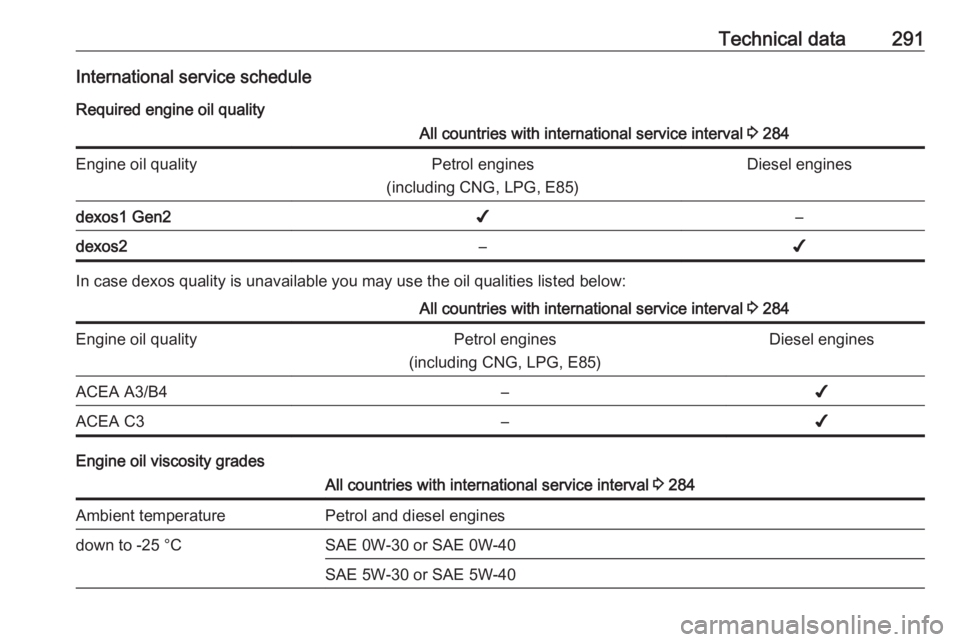

Technical data291International service scheduleRequired engine oil qualityAll countries with international service interval 3 284Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesdexos1 Gen2✔–dexos2–✔
In case dexos quality is unavailable you may use the oil qualities listed below:
All countries with international service interval 3 284Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesACEA A3/B4–✔ACEA C3–✔
Engine oil viscosity grades
All countries with international service interval 3 284Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 0W-30 or SAE 0W-40SAE 5W-30 or SAE 5W-40

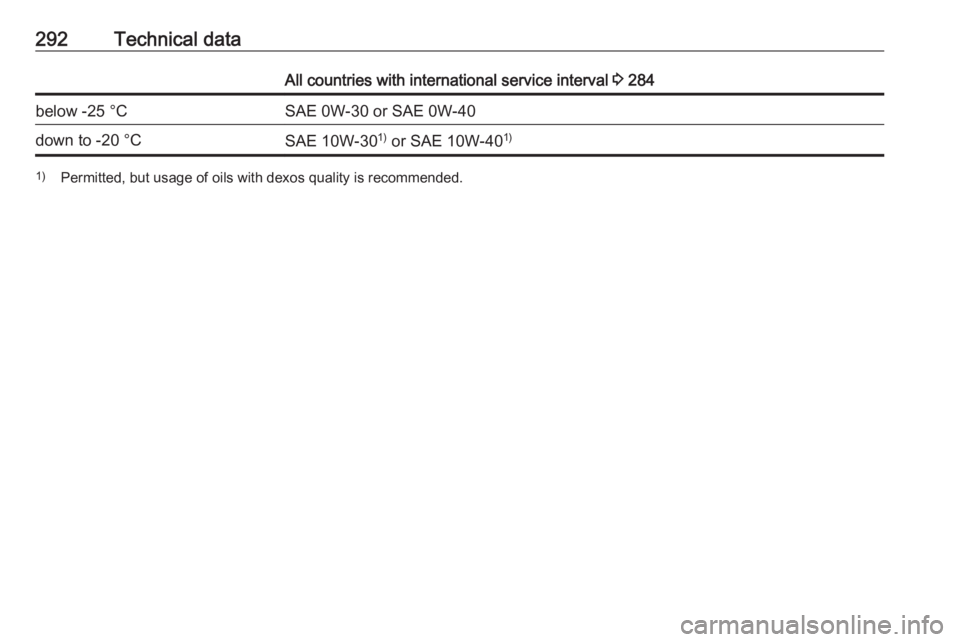

292Technical dataAll countries with international service interval 3 284below -25 °CSAE 0W-30 or SAE 0W-40down to -20 °CSAE 10W-30 1)
or SAE 10W-40 1)1)
Permitted, but usage of oils with dexos quality is recommended.

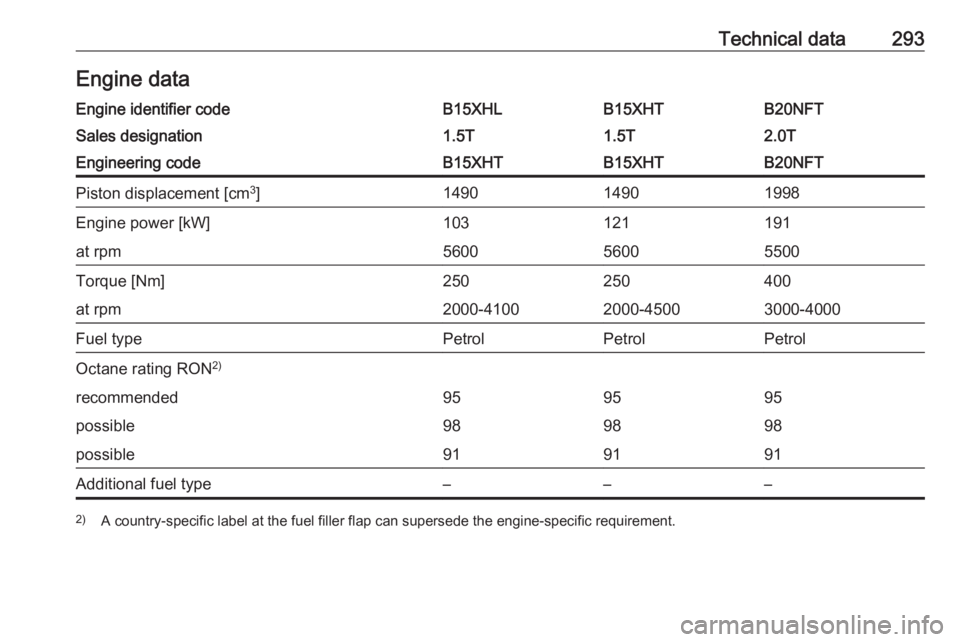

Technical data293Engine dataEngine identifier codeB15XHLB15XHTB20NFTSales designation1.5T1.5T2.0TEngineering codeB15XHTB15XHTB20NFTPiston displacement [cm3
]149014901998Engine power [kW]103121191at rpm560056005500Torque [Nm]250250400at rpm2000-41002000-45003000-4000Fuel typePetrolPetrolPetrolOctane rating RON 2)recommended959595possible989898possible919191Additional fuel type–––2)
A country-specific label at the fuel filler flap can supersede the engine-specific requirement.

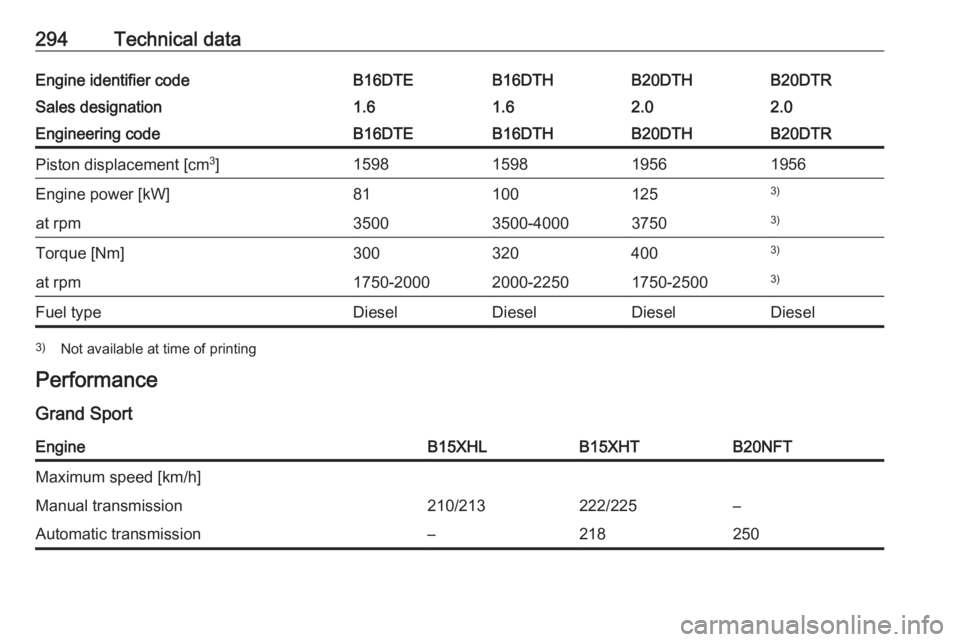

294Technical dataEngine identifier codeB16DTEB16DTHB20DTHB20DTRSales designation1.61.62.02.0Engineering codeB16DTEB16DTHB20DTHB20DTRPiston displacement [cm3
]1598159819561956Engine power [kW]811001253)at rpm35003500-400037503)Torque [Nm]3003204003)at rpm1750-20002000-22501750-25003)Fuel typeDieselDieselDieselDiesel3) Not available at time of printingPerformance
Grand SportEngineB15XHLB15XHTB20NFTMaximum speed [km/h]Manual transmission210/213222/225–Automatic transmission–218250

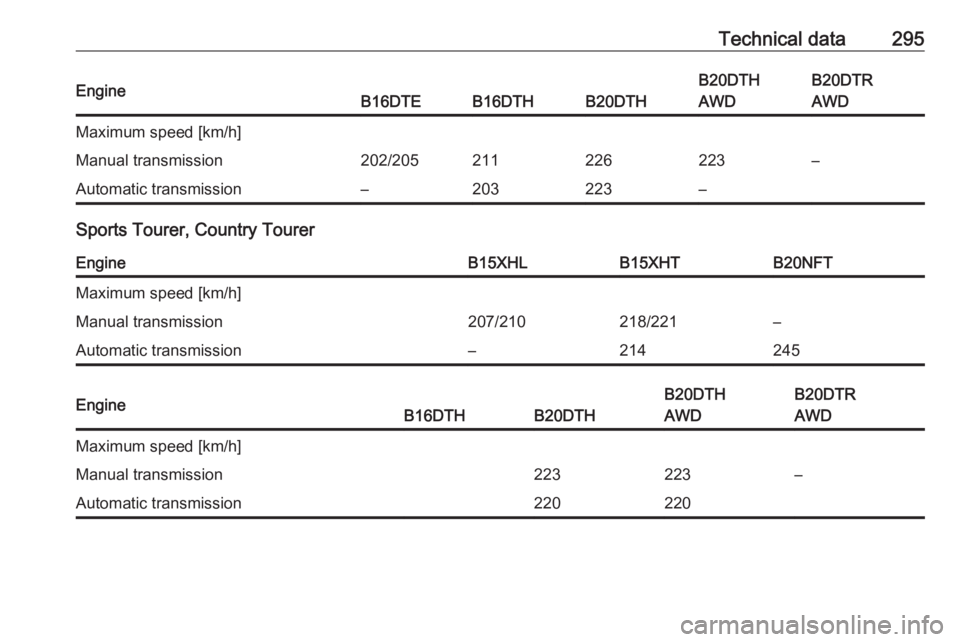

Technical data295EngineB16DTEB16DTHB20DTH
B20DTH
AWDB20DTR
AWDMaximum speed [km/h]Manual transmission202/205211226223–Automatic transmission–203223–
Sports Tourer, Country Tourer
EngineB15XHLB15XHTB20NFTMaximum speed [km/h]Manual transmission207/210218/221–Automatic transmission–214245EngineB16DTHB20DTH
B20DTH
AWDB20DTR
AWDMaximum speed [km/h]Manual transmission223223–Automatic transmission220220

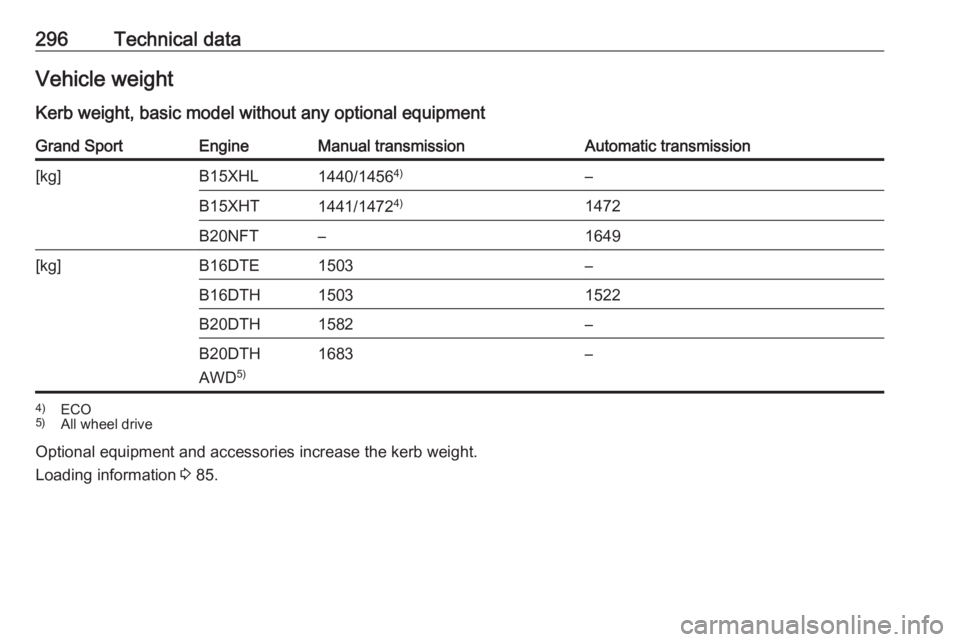

296Technical dataVehicle weight
Kerb weight, basic model without any optional equipmentGrand SportEngineManual transmissionAutomatic transmission[kg]B15XHL1440/1456 4)–B15XHT1441/1472 4)1472B20NFT–1649[kg]B16DTE1503–B16DTH15031522B20DTH1582–B20DTH
AWD 5)1683–4)
ECO
5) All wheel drive
Optional equipment and accessories increase the kerb weight.
Loading information 3 85.

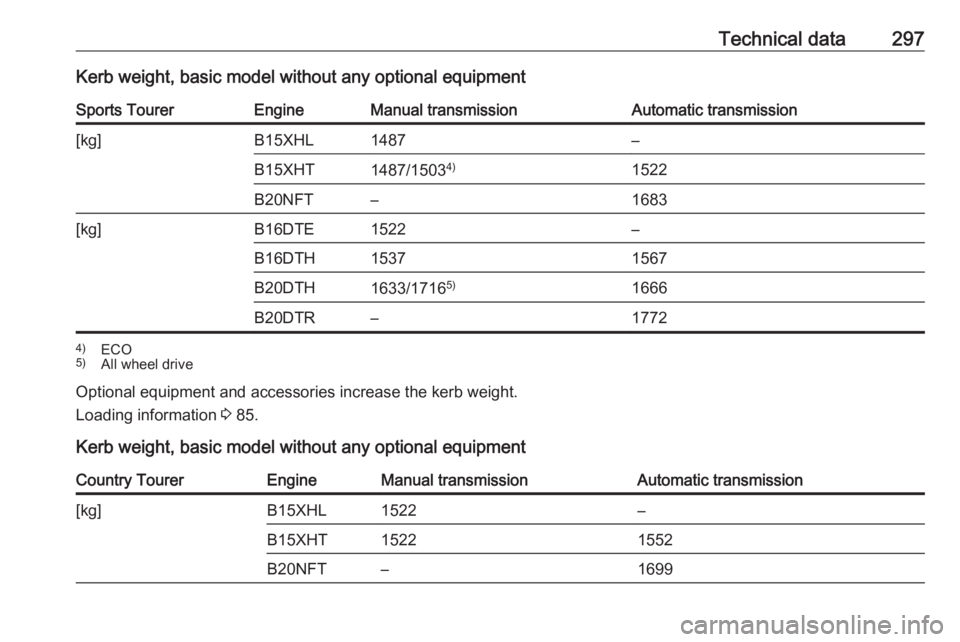

Technical data297Kerb weight, basic model without any optional equipmentSports TourerEngineManual transmissionAutomatic transmission[kg]B15XHL1487–B15XHT1487/15034)1522B20NFT–1683[kg]B16DTE1522–B16DTH15371567B20DTH1633/1716 5)1666B20DTR–17724)
ECO
5) All wheel drive
Optional equipment and accessories increase the kerb weight.
Loading information 3 85.
Kerb weight, basic model without any optional equipment
Country TourerEngineManual transmissionAutomatic transmission[kg]B15XHL1522–B15XHT15221552B20NFT–1699

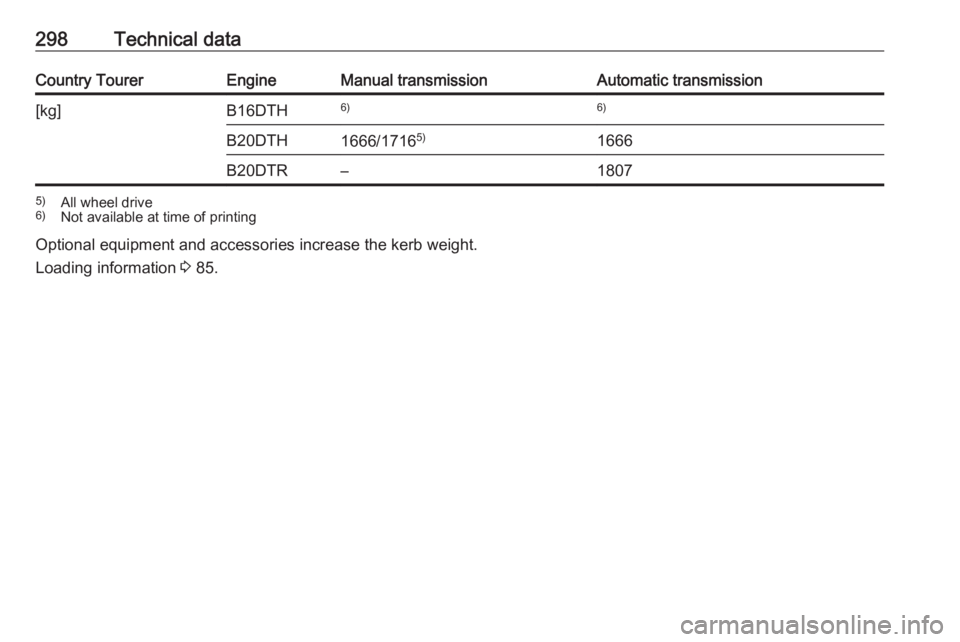

298Technical dataCountry TourerEngineManual transmissionAutomatic transmission[kg]B16DTH6)6)B20DTH1666/17165)1666B20DTR–18075)
All wheel drive
6) Not available at time of printing
Optional equipment and accessories increase the kerb weight.
Loading information 3 85.
