OPEL INSIGNIA 2018 Owners Manual

Customer information309Maximum output: 20 EIRP dBm
Radio remote control transmitter
Robert Bosch GmbH
Robert Bosch Platz 1, 70839
Gerlingen, Germany
Operation frequency: 433.92 MHz
Maximum output: -4 dBm
Radio remote control receiver
Robert Bosch GmbH
Robert Bosch Platz 1, 70839
Gerlingen, Germany
Operation frequency: N/A
Maximum output: N/A
Tyre pressure sensors
Schrader Electronics Ltd.
11 Technology Park, Belfast Road,
Antrim BT41 1QS, Northern Ireland,
United Kingdom
Operation frequency: 433.92 MHz
Maximum output: 10 dBm

310Customer informationJack

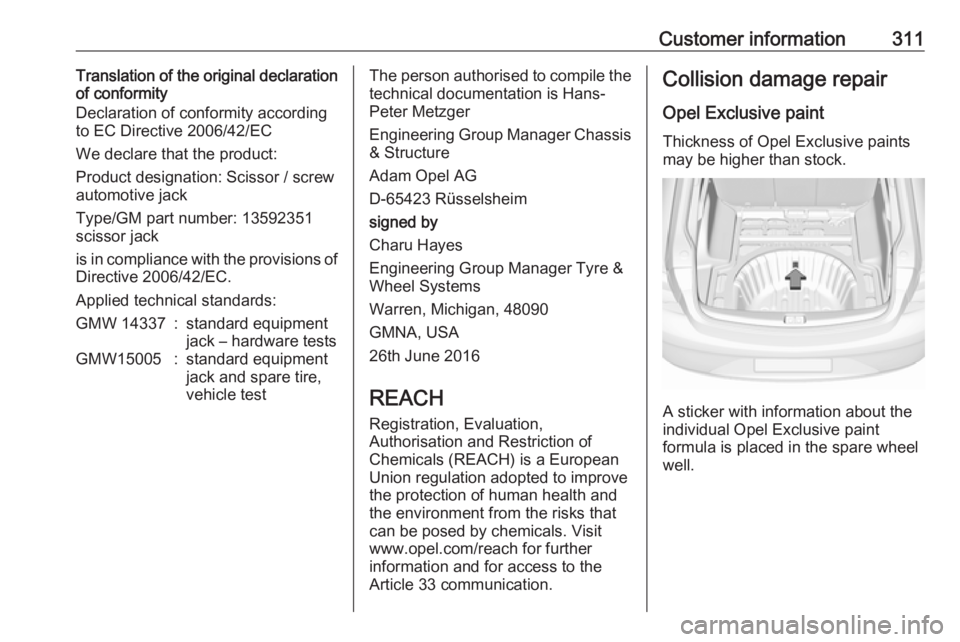

Customer information311Translation of the original declaration
of conformity
Declaration of conformity according
to EC Directive 2006/42/EC
We declare that the product:
Product designation: Scissor / screw
automotive jack
Type/GM part number: 13592351
scissor jack
is in compliance with the provisions of
Directive 2006/42/EC.
Applied technical standards:GMW 14337:standard equipment
jack – hardware testsGMW15005:standard equipment
jack and spare tire,
vehicle testThe person authorised to compile the technical documentation is Hans-
Peter Metzger
Engineering Group Manager Chassis & Structure
Adam Opel AG
D-65423 Rüsselsheim
signed by
Charu Hayes
Engineering Group Manager Tyre &
Wheel Systems
Warren, Michigan, 48090
GMNA, USA
26th June 2016
REACH Registration, Evaluation,
Authorisation and Restriction of
Chemicals (REACH) is a European
Union regulation adopted to improve
the protection of human health and
the environment from the risks that
can be posed by chemicals. Visit
www.opel.com/reach for further
information and for access to the
Article 33 communication.Collision damage repair
Opel Exclusive paint
Thickness of Opel Exclusive paints
may be higher than stock.
A sticker with information about the
individual Opel Exclusive paint
formula is placed in the spare wheel
well.

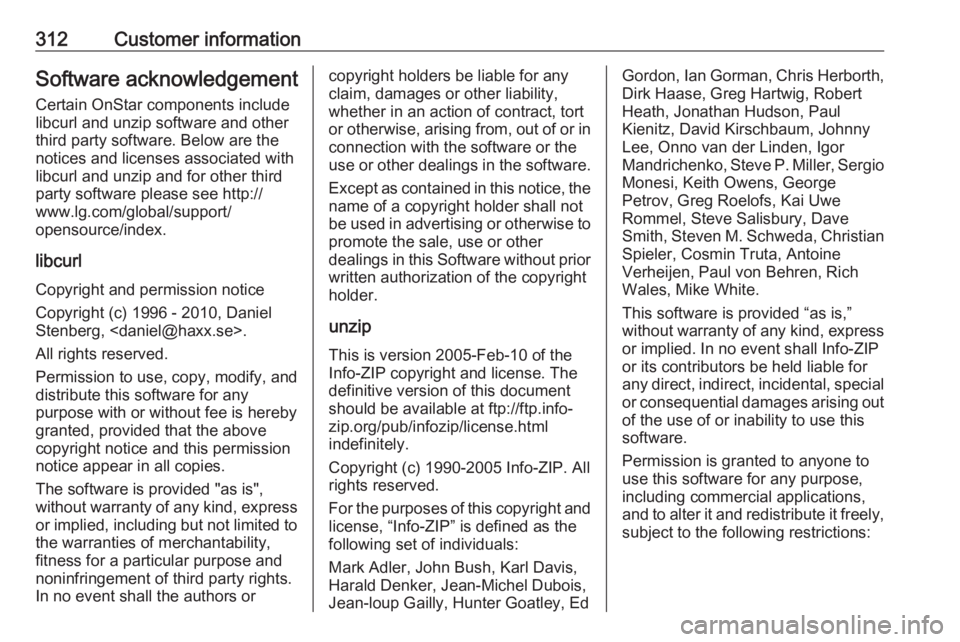

312Customer informationSoftware acknowledgementCertain OnStar components include
libcurl and unzip software and other
third party software. Below are the
notices and licenses associated with
libcurl and unzip and for other third
party software please see http://
www.lg.com/global/support/
opensource/index.
libcurl Copyright and permission notice
Copyright (c) 1996 - 2010, Daniel
Stenberg, .
All rights reserved.
Permission to use, copy, modify, and
distribute this software for any
purpose with or without fee is hereby
granted, provided that the above
copyright notice and this permission
notice appear in all copies.
The software is provided "as is",
without warranty of any kind, express or implied, including but not limited to
the warranties of merchantability,
fitness for a particular purpose and
noninfringement of third party rights.
In no event shall the authors orcopyright holders be liable for any claim, damages or other liability,
whether in an action of contract, tort
or otherwise, arising from, out of or in connection with the software or the
use or other dealings in the software.
Except as contained in this notice, the
name of a copyright holder shall not
be used in advertising or otherwise to
promote the sale, use or other
dealings in this Software without prior
written authorization of the copyright
holder.
unzip This is version 2005-Feb-10 of theInfo-ZIP copyright and license. The
definitive version of this document
should be available at ftp://ftp.info-
zip.org/pub/infozip/license.html
indefinitely.
Copyright (c) 1990-2005 Info-ZIP. All
rights reserved.
For the purposes of this copyright and
license, “Info-ZIP” is defined as the
following set of individuals:
Mark Adler, John Bush, Karl Davis,
Harald Denker, Jean-Michel Dubois,
Jean-loup Gailly, Hunter Goatley, EdGordon, Ian Gorman, Chris Herborth, Dirk Haase, Greg Hartwig, Robert
Heath, Jonathan Hudson, Paul
Kienitz, David Kirschbaum, Johnny
Lee, Onno van der Linden, Igor
Mandrichenko, Steve P. Miller, Sergio
Monesi, Keith Owens, George
Petrov, Greg Roelofs, Kai Uwe
Rommel, Steve Salisbury, Dave
Smith, Steven M. Schweda, Christian Spieler, Cosmin Truta, Antoine
Verheijen, Paul von Behren, Rich
Wales, Mike White.
This software is provided “as is,”
without warranty of any kind, express
or implied. In no event shall Info-ZIP
or its contributors be held liable for
any direct, indirect, incidental, special
or consequential damages arising out of the use of or inability to use this
software.
Permission is granted to anyone to
use this software for any purpose,
including commercial applications,
and to alter it and redistribute it freely,
subject to the following restrictions:

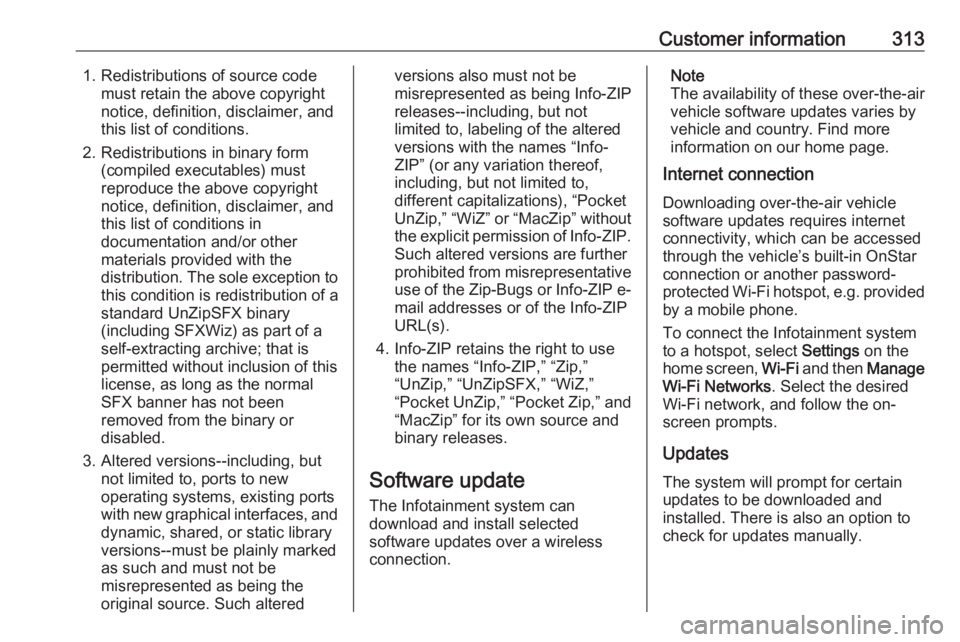

Customer information3131. Redistributions of source codemust retain the above copyright
notice, definition, disclaimer, and
this list of conditions.
2. Redistributions in binary form (compiled executables) must
reproduce the above copyright
notice, definition, disclaimer, and
this list of conditions in
documentation and/or other
materials provided with the
distribution. The sole exception to this condition is redistribution of a
standard UnZipSFX binary
(including SFXWiz) as part of a
self-extracting archive; that is
permitted without inclusion of this
license, as long as the normal
SFX banner has not been
removed from the binary or
disabled.
3. Altered versions--including, but not limited to, ports to new
operating systems, existing ports
with new graphical interfaces, and dynamic, shared, or static library
versions--must be plainly marked
as such and must not be
misrepresented as being the
original source. Such alteredversions also must not be
misrepresented as being Info-ZIP
releases--including, but not
limited to, labeling of the altered
versions with the names “Info-
ZIP” (or any variation thereof,
including, but not limited to,
different capitalizations), “Pocket UnZip,” “WiZ” or “MacZip” without
the explicit permission of Info-ZIP.
Such altered versions are further
prohibited from misrepresentative use of the Zip-Bugs or Info-ZIP e-mail addresses or of the Info-ZIP
URL(s).
4. Info-ZIP retains the right to use the names “Info-ZIP,” “Zip,”
“UnZip,” “UnZipSFX,” “WiZ,” “Pocket UnZip,” “Pocket Zip,” and
“MacZip” for its own source and
binary releases.
Software update The Infotainment system can
download and install selected
software updates over a wireless
connection.Note
The availability of these over-the-air
vehicle software updates varies by
vehicle and country. Find more
information on our home page.
Internet connection
Downloading over-the-air vehicle
software updates requires internet
connectivity, which can be accessed
through the vehicle’s built-in OnStar
connection or another password-
protected Wi-Fi hotspot, e.g. provided
by a mobile phone.
To connect the Infotainment system
to a hotspot, select Settings on the
home screen, Wi-Fi and then Manage
Wi-Fi Networks . Select the desired
Wi-Fi network, and follow the on-
screen prompts.
Updates The system will prompt for certain
updates to be downloaded and
installed. There is also an option to
check for updates manually.

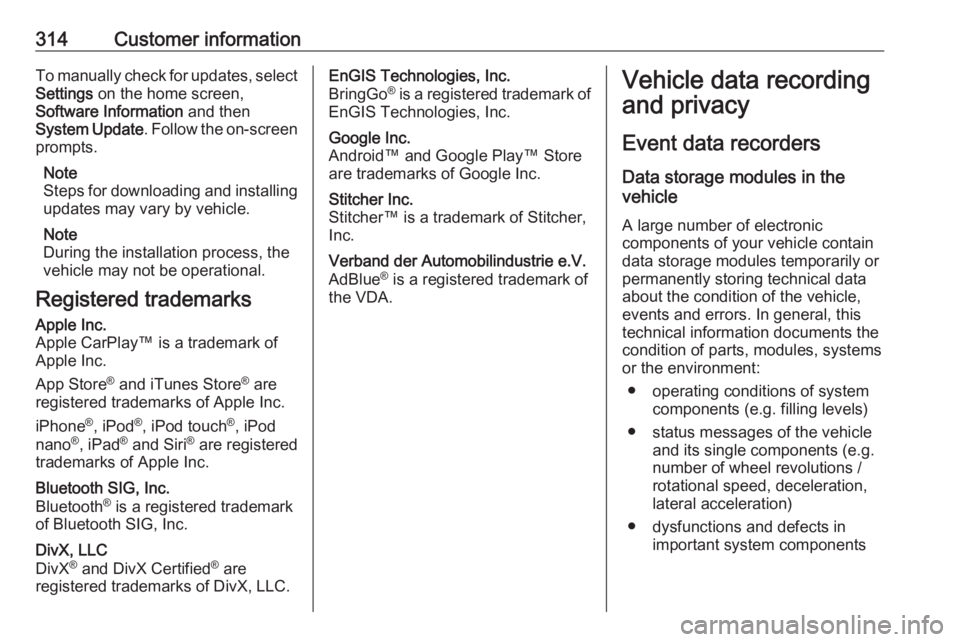

314Customer informationTo manually check for updates, select
Settings on the home screen,
Software Information and then
System Update . Follow the on-screen
prompts.
Note
Steps for downloading and installing
updates may vary by vehicle.
Note
During the installation process, the
vehicle may not be operational.
Registered trademarksApple Inc.
Apple CarPlay™ is a trademark of
Apple Inc.
App Store ®
and iTunes Store ®
are
registered trademarks of Apple Inc.
iPhone ®
, iPod ®
, iPod touch ®
, iPod
nano ®
, iPad ®
and Siri ®
are registered
trademarks of Apple Inc.Bluetooth SIG, Inc.
Bluetooth ®
is a registered trademark
of Bluetooth SIG, Inc.DivX, LLC
DivX ®
and DivX Certified ®
are
registered trademarks of DivX, LLC.EnGIS Technologies, Inc.
BringGo ®
is a registered trademark of
EnGIS Technologies, Inc.Google Inc.
Android™ and Google Play™ Store
are trademarks of Google Inc.Stitcher Inc.
Stitcher™ is a trademark of Stitcher,
Inc.Verband der Automobilindustrie e.V.
AdBlue ®
is a registered trademark of
the VDA.Vehicle data recording
and privacy
Event data recorders
Data storage modules in the
vehicle
A large number of electronic
components of your vehicle contain
data storage modules temporarily or
permanently storing technical data
about the condition of the vehicle,
events and errors. In general, this
technical information documents the
condition of parts, modules, systems
or the environment:
● operating conditions of system components (e.g. filling levels)
● status messages of the vehicle and its single components (e.g.
number of wheel revolutions / rotational speed, deceleration,
lateral acceleration)
● dysfunctions and defects in important system components

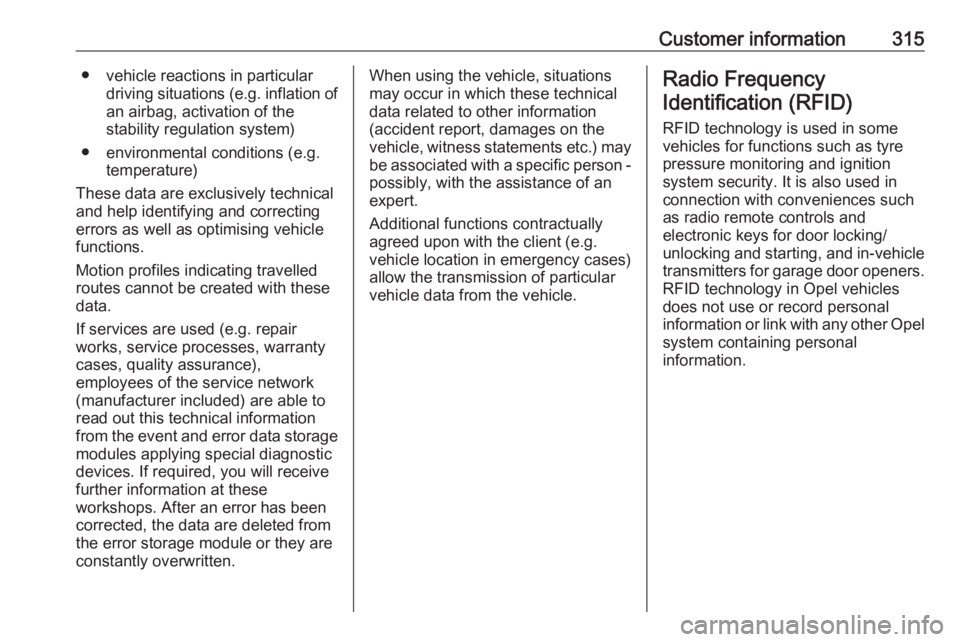

Customer information315● vehicle reactions in particulardriving situations ( e.g. inflation of
an airbag, activation of the
stability regulation system)
● environmental conditions (e.g. temperature)
These data are exclusively technical
and help identifying and correcting
errors as well as optimising vehicle
functions.
Motion profiles indicating travelled
routes cannot be created with these
data.
If services are used (e.g. repair
works, service processes, warranty
cases, quality assurance),
employees of the service network
(manufacturer included) are able to
read out this technical information
from the event and error data storage
modules applying special diagnostic
devices. If required, you will receive
further information at these
workshops. After an error has been
corrected, the data are deleted from
the error storage module or they are
constantly overwritten.When using the vehicle, situations
may occur in which these technical
data related to other information
(accident report, damages on the
vehicle, witness statements etc.) may
be associated with a specific person - possibly, with the assistance of an
expert.
Additional functions contractually
agreed upon with the client (e.g.
vehicle location in emergency cases)
allow the transmission of particular
vehicle data from the vehicle.Radio Frequency
Identification (RFID)
RFID technology is used in some
vehicles for functions such as tyre
pressure monitoring and ignition
system security. It is also used in
connection with conveniences such
as radio remote controls and
electronic keys for door locking/
unlocking and starting, and in-vehicle transmitters for garage door openers.
RFID technology in Opel vehicles
does not use or record personal
information or link with any other Opel system containing personal
information.

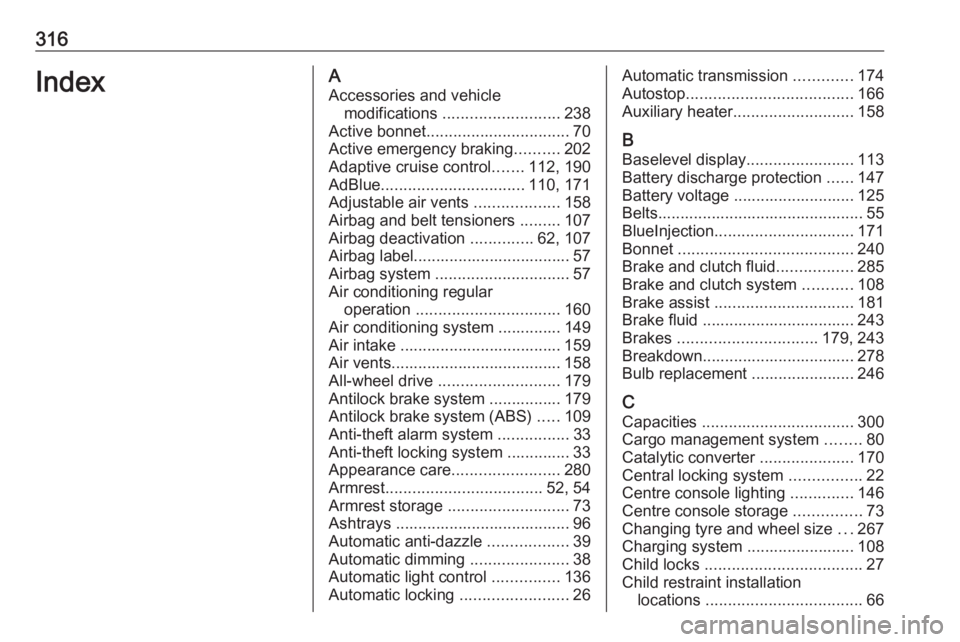

316IndexAAccessories and vehicle modifications .......................... 238
Active bonnet ................................ 70
Active emergency braking ..........202
Adaptive cruise control .......112, 190
AdBlue ................................ 110, 171
Adjustable air vents ...................158
Airbag and belt tensioners .........107
Airbag deactivation ..............62, 107
Airbag label................................... 57
Airbag system .............................. 57
Air conditioning regular operation ................................ 160
Air conditioning system .............. 149
Air intake .................................... 159
Air vents...................................... 158
All-wheel drive ........................... 179
Antilock brake system ................ 179
Antilock brake system (ABS) .....109
Anti-theft alarm system ................33
Anti-theft locking system .............. 33
Appearance care ........................280
Armrest ................................... 52, 54
Armrest storage ........................... 73
Ashtrays ....................................... 96 Automatic anti-dazzle ..................39
Automatic dimming ......................38
Automatic light control ...............136
Automatic locking ........................26Automatic transmission .............174
Autostop ..................................... 166
Auxiliary heater ........................... 158
B Baselevel display ........................113
Battery discharge protection ......147
Battery voltage ........................... 125
Belts.............................................. 55 BlueInjection ............................... 171
Bonnet ....................................... 240
Brake and clutch fluid .................285
Brake and clutch system ...........108
Brake assist ............................... 181
Brake fluid .................................. 243
Brakes ............................... 179, 243
Breakdown.................................. 278
Bulb replacement ....................... 246
C Capacities .................................. 300
Cargo management system ........80
Catalytic converter .....................170
Central locking system ................22
Centre console lighting ..............146
Centre console storage ...............73
Changing tyre and wheel size ...267
Charging system ........................ 108
Child locks ................................... 27
Child restraint installation locations ................................... 66

317Child restraints.............................. 63
Child restraint systems ................63
Climate control ............................. 16
Clock............................................. 92
Collision damage repair ..............311
Control indicators........................ 106
Control of the vehicle .................162
Controls ........................................ 88
Convex shape .............................. 36
Coolant and antifreeze ...............285
Cruise control ....................112, 187
Cupholders .................................. 72
Curtain airbag system .................. 61
Curve lighting.............................. 139
D Danger, Warnings and Cautions ...4
Daytime running lights ...............139
Declaration of conformity ............307
DEF ............................................ 171
Diesel exhaust fluid ....................171
Diesel fuel system bleeding .......245
Diesel particle filter ....................169
Door open .................................. 112
Doors ............................................ 28
Driver assistance systems ..........187
Driver Information Centre ...........113
Driving characteristics and towing tips .............................. 235
Driving hints ................................ 162E
Electric adjustment ......................36
Electrical system......................... 256
Electric parking brake .........108, 180
Electric parking brake fault .........108
Electronic climate control system 152
Electronic key system ...................20
Electronic Stability Control.......... 183
Electronic Stability Control and Traction Control system ..........109
Electronic Stability Control off..... 109
End-of-life vehicle recovery .......239
Engine compartment fuse box ...257
Engine coolant ........................... 242
Engine coolant temperature ......110
Engine coolant temperature gauge ..................................... 105
Engine data ............................... 293
Engine exhaust .......................... 169
Engine identification ...................289
Engine oil ................... 241, 285, 290
Engine oil pressure ....................110
Entry lighting .............................. 146
Event data recorders ..................314
Exit lighting ................................ 146
Exterior care .............................. 280
Exterior light ............................... 111
Exterior lighting ....................13, 135
Exterior mirrors ............................. 36F
First aid kit ................................... 83
Fixed air vents ........................... 159
Fog light ..................................... 111
Fog lights ................................... 248
Folding mirrors ............................. 37
Following distance ......................109
Following distance indication ......201
Forward collision alert................. 198
Front airbag system .....................60
Front fog lights ........................... 143
Front pedestrian protection ........205
Front seats.................................... 46
Front storage ................................ 73
Fuel............................................. 231
Fuel for diesel engines ..............232
Fuel for petrol engines ...............231
Fuel gauge ................................. 104
Funnel......................................... 232
Fuses ......................................... 256
G Gauges ....................................... 102
Gear shifting ............................... 109
General information ...................234
Glovebox ..................................... 72
H Halogen headlights ....................246
Hand brake ................................. 179
Hazard warning flashers ............142

318Headlight flash ........................... 138
Headlight range adjustment ......138
Headlights................................... 135 Headlights when driving abroad 138
Head restraint adjustment .............8
Head restraints ............................ 44
Head-up display.......................... 122 Heated mirrors ............................. 38
Heated rear window ..................... 41
Heated steering wheel .................89
Heated windscreen .......................42
Heating .................................. 53, 54
High beam ......................... 111, 136
High beam assist ................111, 136
Hill start assist ........................... 182
Horn ....................................... 14, 89
I
Identification plate .....................288
Immobiliser .......................... 36, 111
Indicators .................................... 102
Inductive charging ........................95
Info display ................................. 120
Information displays.................... 113
Instrument cluster ........................97
Instrument panel fuse box .........260
Instrument panel illumination .....256
Instrument panel illumination control .................................... 144
Instrument panel overview ........... 10Interactive driving system ...........184
Interior care ............................... 282
Interior lighting ............................ 144
Interior lights ...................... 144, 256
Interior mirrors .............................. 38
Introduction .................................... 3
J
Jump starting ............................. 277
K
Key, memorised settings ..............22
L
Lane change alert .......................217
Lane keep assist ................109, 229
Lashing eyes ............................... 80
LED headlights ...........111, 139, 248
Lighting features .........................146
Light switch ................................ 135
Load compartment ................28, 74
Load compartment cover .............77
Loading information .....................85
Low fuel ..................................... 111
M Malfunction indicator light ..........108
Manual anti-dazzle ......................38
Manual seat adjustment ...............47
Manual transmission .................. 178
Massage ....................................... 54Memorised settings......................22
Midlevel display .......................... 113
Mirror adjustment ........................... 8
Misted light covers .....................144
N New vehicle running-in ..............162
Number plate light .....................256
O Object detection systems ...........207
Odometer ................................... 103
Oil, engine .......................... 285, 290
OnStar ........................................ 130
Outside temperature ....................92
Overrun cut-off ........................... 165
P Panoramic view system ..............219
Parking ................................ 19, 168
Parking assist ......................38, 207
Parking brake ............................ 180
Parking lights ............................. 143
Particulate filter ........................... 169
Pedestrian detection ...................112
Performance .............................. 294
Performing work ........................240
Power button .............................. 163
Power outlets ............................... 94
Power seat adjustment ................49
Power windows ............................ 39
