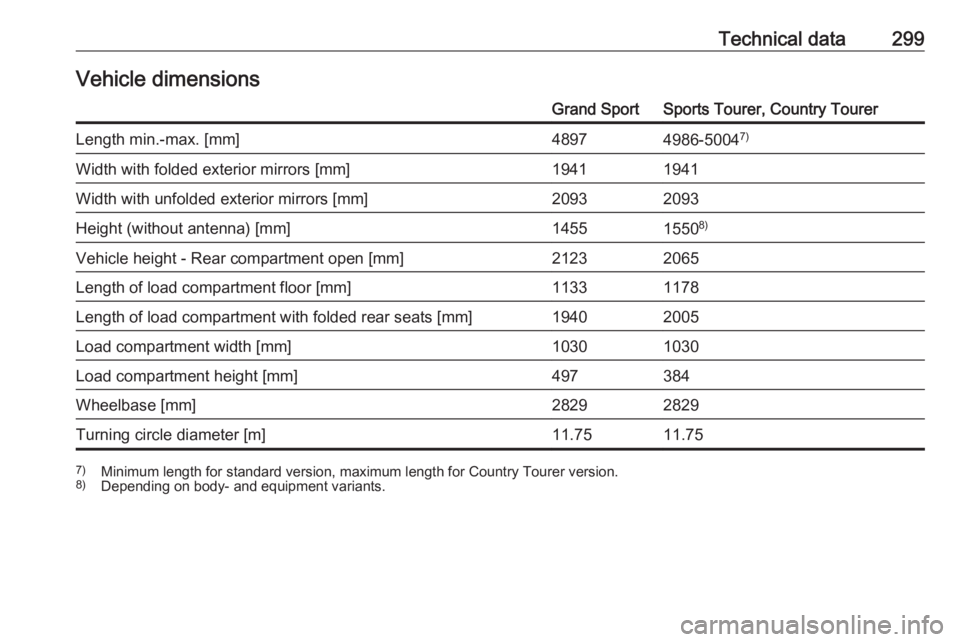

Technical data299Vehicle dimensionsGrand SportSports Tourer, Country TourerLength min.-max. [mm]48974986-50047)Width with folded exterior mirrors [mm]19411941Width with unfolded exterior mirrors [mm]20932093Height (without antenna) [mm]145515508)Vehicle height - Rear compartment open [mm]21232065Length of load compartment floor [mm]11331178Length of load compartment with folded rear seats [mm]19402005Load compartment width [mm]10301030Load compartment height [mm]497384Wheelbase [mm]28292829Turning circle diameter [m]11.7511.757)
Minimum length for standard version, maximum length for Country Tourer version.
8) Depending on body- and equipment variants.

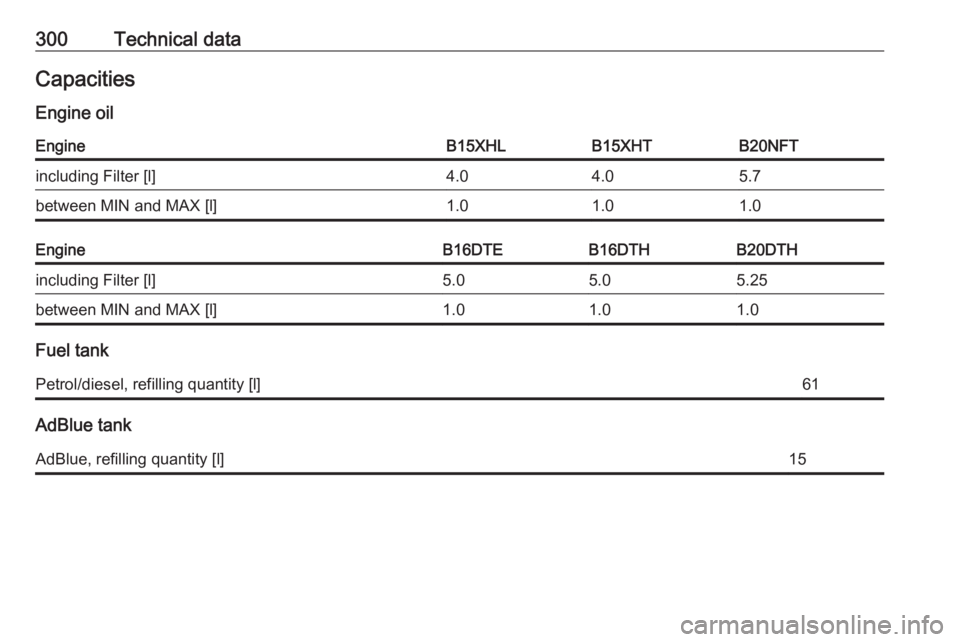

300Technical dataCapacities
Engine oilEngineB15XHLB15XHTB20NFTincluding Filter [l]4.04.05.7between MIN and MAX [l]1.01.01.0EngineB16DTEB16DTHB20DTHincluding Filter [l]5.05.05.25between MIN and MAX [l]1.01.01.0
Fuel tank
Petrol/diesel, refilling quantity [l]61
AdBlue tank
AdBlue, refilling quantity [l]15

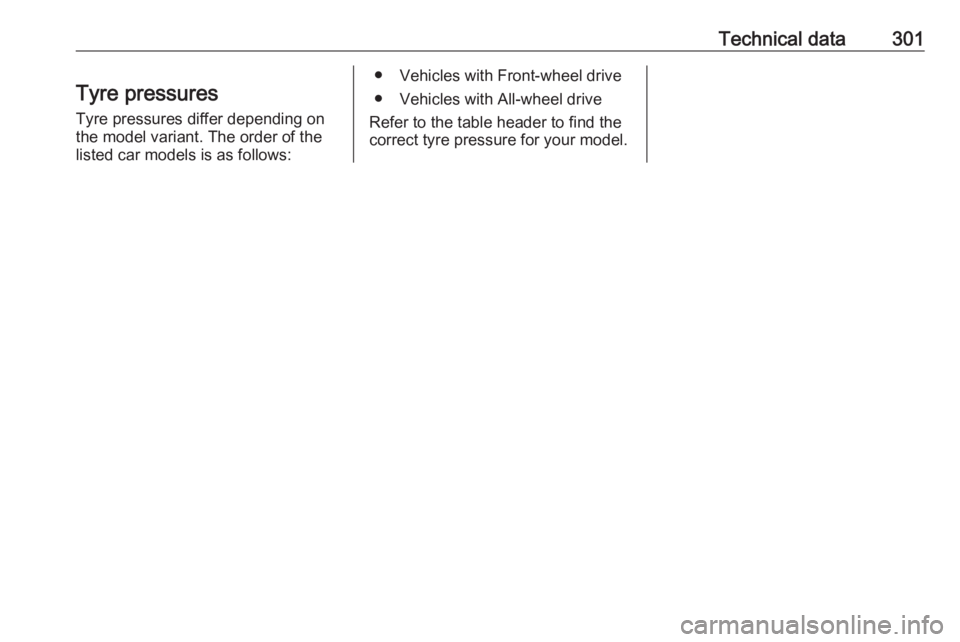

Technical data301Tyre pressures
Tyre pressures differ depending on
the model variant. The order of the
listed car models is as follows:
● Vehicles with Front-wheel drive
● Vehicles with All-wheel drive
Refer to the table header to find the
correct tyre pressure for your model.

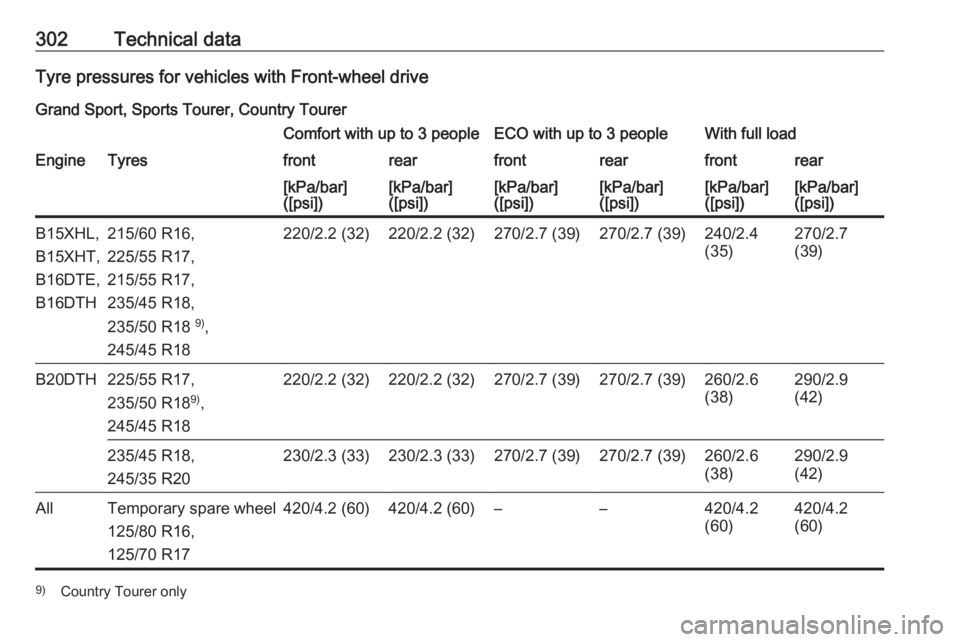

302Technical dataTyre pressures for vehicles with Front-wheel drive
Grand Sport, Sports Tourer, Country TourerComfort with up to 3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B15XHL,
B15XHT,
B16DTE,
B16DTH215/60 R16,
225/55 R17,
215/55 R17,
235/45 R18,
235/50 R18 9)
,
245/45 R18220/2.2 (32)220/2.2 (32)270/2.7 (39)270/2.7 (39)240/2.4
(35)270/2.7
(39)B20DTH225/55 R17,
235/50 R18 9)
,
245/45 R18220/2.2 (32)220/2.2 (32)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)235/45 R18,
245/35 R20230/2.3 (33)230/2.3 (33)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)AllTemporary spare wheel
125/80 R16,
125/70 R17420/4.2 (60)420/4.2 (60)––420/4.2
(60)420/4.2
(60)9) Country Tourer only

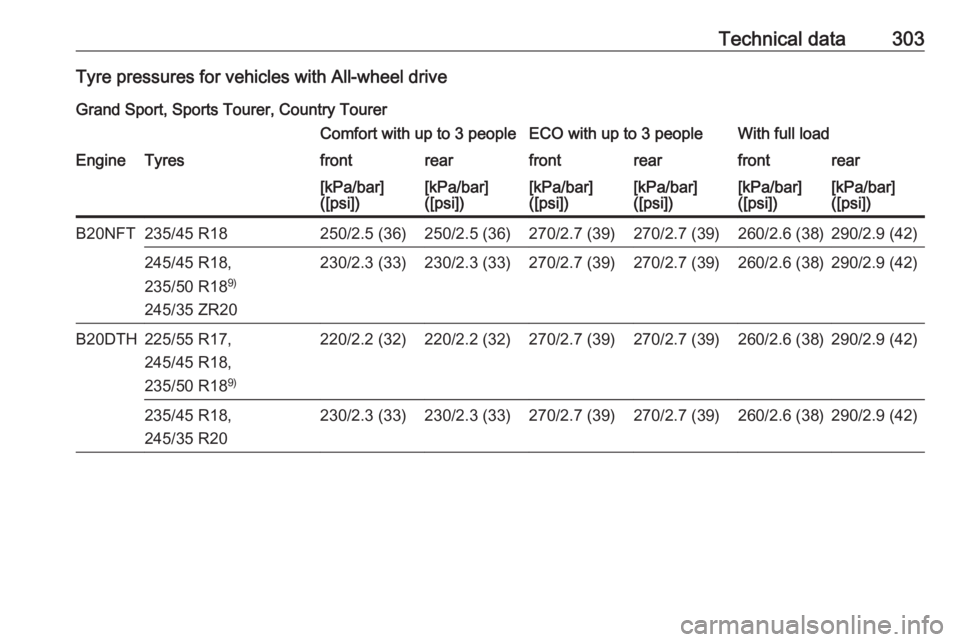

Technical data303Tyre pressures for vehicles with All-wheel driveGrand Sport, Sports Tourer, Country TourerComfort with up to 3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B20NFT235/45 R18250/2.5 (36)250/2.5 (36)270/2.7 (39)270/2.7 (39)260/2.6 (38)290/2.9 (42)245/45 R18,
235/50 R18 9)
245/35 ZR20230/2.3 (33)230/2.3 (33)270/2.7 (39)270/2.7 (39)260/2.6 (38)290/2.9 (42)B20DTH225/55 R17,
245/45 R18,
235/50 R18 9)220/2.2 (32)220/2.2 (32)270/2.7 (39)270/2.7 (39)260/2.6 (38)290/2.9 (42)235/45 R18,
245/35 R20230/2.3 (33)230/2.3 (33)270/2.7 (39)270/2.7 (39)260/2.6 (38)290/2.9 (42)

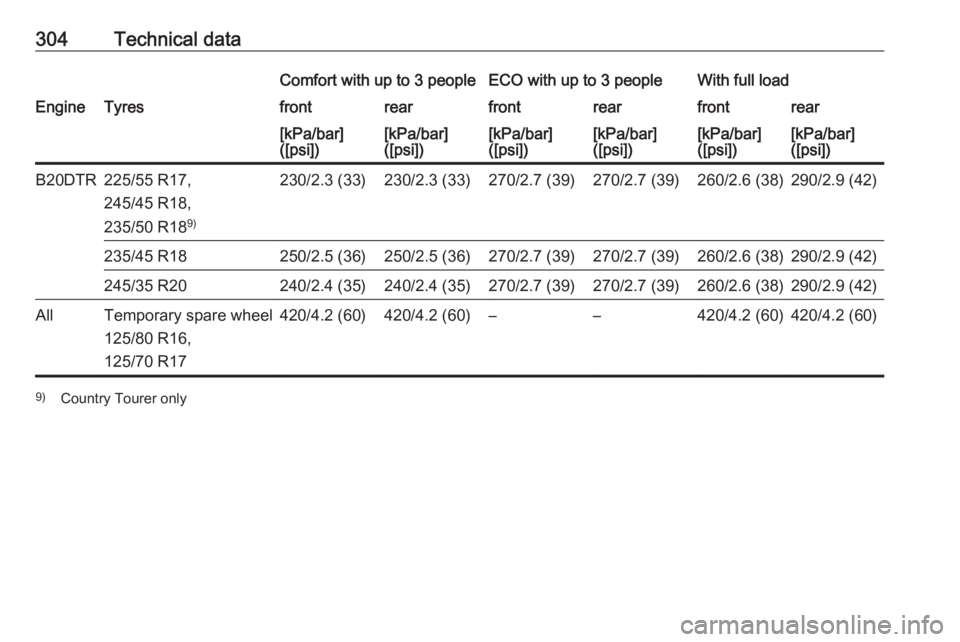

304Technical dataComfort with up to 3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B20DTR225/55 R17,
245/45 R18,
235/50 R18 9)230/2.3 (33)230/2.3 (33)270/2.7 (39)270/2.7 (39)260/2.6 (38)290/2.9 (42)235/45 R18250/2.5 (36)250/2.5 (36)270/2.7 (39)270/2.7 (39)260/2.6 (38)290/2.9 (42)245/35 R20240/2.4 (35)240/2.4 (35)270/2.7 (39)270/2.7 (39)260/2.6 (38)290/2.9 (42)AllTemporary spare wheel
125/80 R16,
125/70 R17420/4.2 (60)420/4.2 (60)––420/4.2 (60)420/4.2 (60)9) Country Tourer only

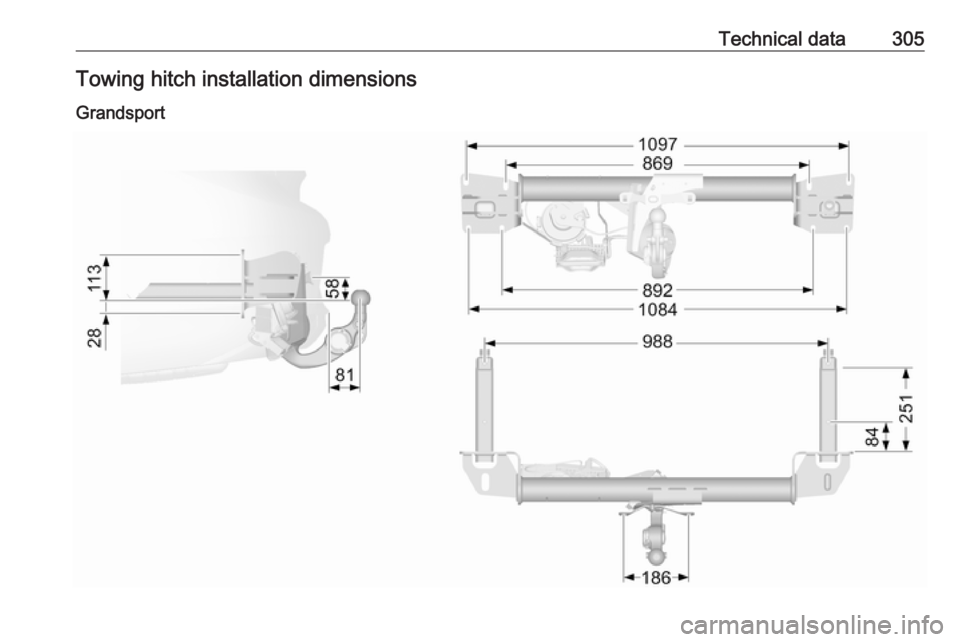

Technical data305Towing hitch installation dimensions
Grandsport

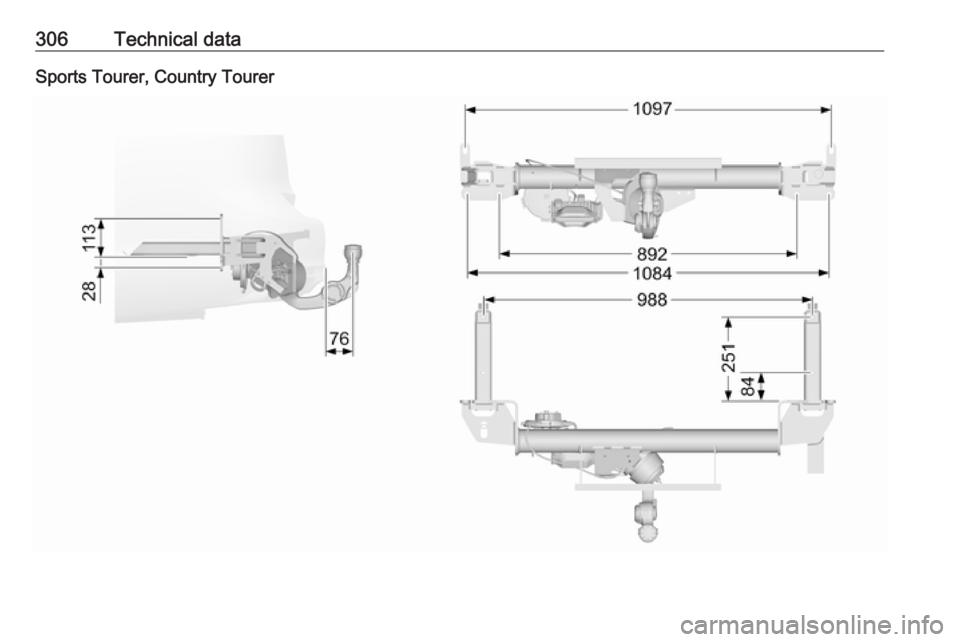

306Technical dataSports Tourer, Country Tourer

Customer information307Customer
informationCustomer information ................307
Declaration of conformity .........307
REACH .................................... 311
Collision damage repair ...........311
Software acknowledgement ....312
Software update ......................313
Registered trademarks ............314
Vehicle data recording and pri‐
vacy ........................................... 314
Event data recorders ...............314
Radio Frequency Identification (RFID) ..................................... 315Customer information
Declaration of conformity
Radio transmission systems
This vehicle has systems that
transmit and/or receive radio waves subject to Directive 1999/5/EC or
2014/53/EU. These systems are in compliance with the essential
requirements and other relevant
provisions of Directive 1999/5/EC or 2014/53/EU. The full text of the EU
declaration of conformity for each
system is available at the following
internet address: www.opel.com/
conformity
Importer is
Opel / Vauxhall, Bahnhofsplatz,
65423 Ruesselsheim am Main,
Germany.
Antenna
Laird
Daimlerring 31, 31135 Hildesheim, Germany
Operation frequency: N/A
Maximum output: N/AAntenna
Kathrein Automotive GmbH
Roemerring 1, 31137 Hildesheim,
Germany
Operation frequency: N/A
Maximum output: N/A
Electronic key receiver
Denso Corporation
Waldeckerstaße 11, 64546
Mörfelden-Walldorf, Germany
Operation frequency: 125 kHz
Maximum output: -0.14 dBm
Electronic key transmitter
Denso Corporation
1-1, Showa-cho, Kariya-shi, Aichi-
ken 448-8661, Japan
Operation frequency: 433.92 MHz
Maximum output: -5.88 dBm
Immobiliser
Robert Bosch GmbH
Robert Bosch Platz 1, 70839
Gerlingen, Germany
Operation frequency: 125 kHz

308Customer informationMaximum output:
5.1 dBµA/m @ 10 m
Infotainment system R 4.0 IntelliLink
LGE
LG Electronics European Shared
Service Center B.V., Krijgsman 1,
1186 DM Amstelveen, The
NetherlandsOperation
frequency (MHz)Maximum output
(dBm)2400.0 - 2483.542400.0 - 2483.5135725.0 - 5850.013
Infotainment system Navi 900
IntelliLink
Robert Bosch Car Multimedia GmbH
Robert-Bosch-Straße 200, 31139
Hildesheim, Germany
Operation
frequency (MHz)Maximum output
(dBm)2400.0 - 2480.0102400.0 - 2480.020Delphi Deutschland GmbH
42367 Wuppertal, Germany
Operation frequency: N/A
Maximum output: N/A
OnStar module
LGE
LG Electronics European Shared
Service Center B.V., Krijgsman 1,
1186 DM Amstelveen, The
NetherlandsOperation
frequency (MHz)Maximum output
(dBm)2402 - 248042412 - 246218880 - 915331710 - 1785241850 - 1910241920 - 1980242500 - 257023
Parking heater remote control
receiver
Webasto Thermo & Comfort SE
Friedrichshafener Str. 9, 82205
Gilching, Germany
Operation frequency: N/A
Maximum output: N/A
Parking heater remote control
transmitter
Webasto Thermo & Comfort SE
Friedrichshafener Str. 9, 82205
Gilching, Germany
Operation frequency: 869.0 MHz
Maximum output: 14 dBm
Radar unit
Continental Automotive GmbH
ADC Automotive Distance Control
Systems GmbH, Peter-Dornier-
Strasse 10, 88131 Lindau, Germany
Operation frequency: 76-77 Ghz
Maximum output: 35 EIRP dBm
Radar unit
Hella KGaA Hueck & Co.
Rixbecker Straße 75, 59552
Lippstadt
Operation frequency:
24.05-24.25 Ghz
