Instruments and Controls 69
The menu and function can be
selected via the buttons on the
indicator lever.

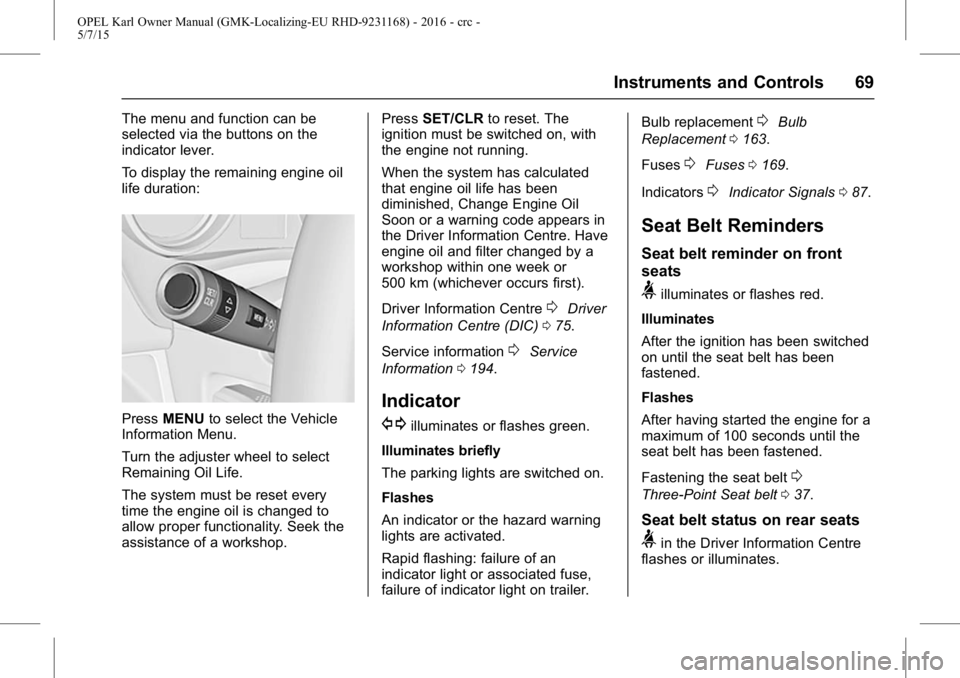

To display the remaining engine oil
life duration:
PressMENU to select the Vehicle
Information Menu.
Turn the adjuster wheel to select
Remaining Oil Life.
The system must be reset every
time the engine oil is changed to
allow proper functionality. Seek the
assistance of a workshop. Press
SET/CLR to reset. The
ignition must be switched on, with
the engine not running.
When the system has calculated
that engine oil life has been
diminished, Change Engine Oil
Soon or a warning code appears in
the Driver Information Centre. Have
engine oil and filter changed by a
workshop within one week or
500 km (whichever occurs first).
Driver Information Centre
0Driver
Information Centre (DIC) 075.
Service information
0Service
Information 0194.
Indicator
G
illuminates or flashes green.
Illuminates briefly
The parking lights are switched on.
Flashes
An indicator or the hazard warning
lights are activated.
Rapid flashing: failure of an
indicator light or associated fuse,
failure of indicator light on trailer. Bulb replacement
0Bulb
Replacement 0163.
Fuses
0Fuses 0169.
Indicators
0Indicator Signals 087.
Seat Belt Reminders
Seat belt reminder on front
seats
>illuminates or flashes red.
Illuminates
After the ignition has been switched
on until the seat belt has been
fastened.
Flashes
After having started the engine for a
maximum of 100 seconds until the
seat belt has been fastened.
Fastening the seat belt
0
Three-Point Seat belt 037.
Seat belt status on rear seats
>in the Driver Information Centre
flashes or illuminates.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Vehicle Care 155
Vehicle Care
General Information
Accessories andModifications . . . . . . . . . . . . . . . . 156
Vehicle Storage . . . . . . . . . . . . . . 156
End-of-Life Vehicle Recovery . . . . . . . . . . . . . . . . . . . . 157
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . 157
Bonnet . . . . . . . . . . . . . . . . . . . . . . . 157
Engine Oil . . . . . . . . . . . . . . . . . . . . 158
Engine Coolant . . . . . . . . . . . . . . . 159
Washer Fluid . . . . . . . . . . . . . . . . . 160
Brakes . . . . . . . . . . . . . . . . . . . . . . . 160
Brake Fluid . . . . . . . . . . . . . . . . . . . 160
Battery . . . . . . . . . . . . . . . . . . . . . . . . 160
Wiper Blade Replacement . . . . 162
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . 163
Headlamps and Parking Lamps . . . . . . . . . . . . . . . . . . . . . . 163
Fog Lamps . . . . . . . . . . . . . . . . . . . 165
Front Indicator Lamps . . . . . . . . 165
Taillights . . . . . . . . . . . . . . . . . . . . . . 165
Side Indicator Lamps . . . . . . . . . 167 Centre High-Mounted Brake
lamp (CHMBL) . . . . . . . . . . . . . . 167
Number Plate Lamp . . . . . . . . . . 168
Interior Lamps . . . . . . . . . . . . . . . . 168
Instrument Panel Illumination . . . . . . . . . . . . . . . . . . 168
Electrical System
Fuses . . . . . . . . . . . . . . . . . . . . . . . . 169
Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 170
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 172
Vehicle Tools
Tools . . . . . . . . . . . . . . . . . . . . . . . . . 173
Wheels and Tyres
Wheels and Tyres . . . . . . . . . . . . 174
Winter Tyres . . . . . . . . . . . . . . . . . . 174
Tyre Designations . . . . . . . . . . . . 174
Tyre Pressure . . . . . . . . . . . . . . . . 175
Tyre Pressure MonitorSystem . . . . . . . . . . . . . . . . . . . . . . 176
Tread Depth . . . . . . . . . . . . . . . . . . 179
Wheel Covers . . . . . . . . . . . . . . . . 180
Tyre Chains . . . . . . . . . . . . . . . . . . 180
Tyre Repair Kit . . . . . . . . . . . . . . . 180
Tyre Changing . . . . . . . . . . . . . . . . 184
Compact Spare Tyre . . . . . . . . . 186
Jump Starting
Jump Starting . . . . . . . . . . . . . . . . 188
Towing the Vehicle
Towing the Vehicle . . . . . . . . . . . 190
Appearance Care
Exterior Care . . . . . . . . . . . . . . . . . 191
Interior Care . . . . . . . . . . . . . . . . . . 192

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Vehicle Care 163
Wiper blade on the rear
window

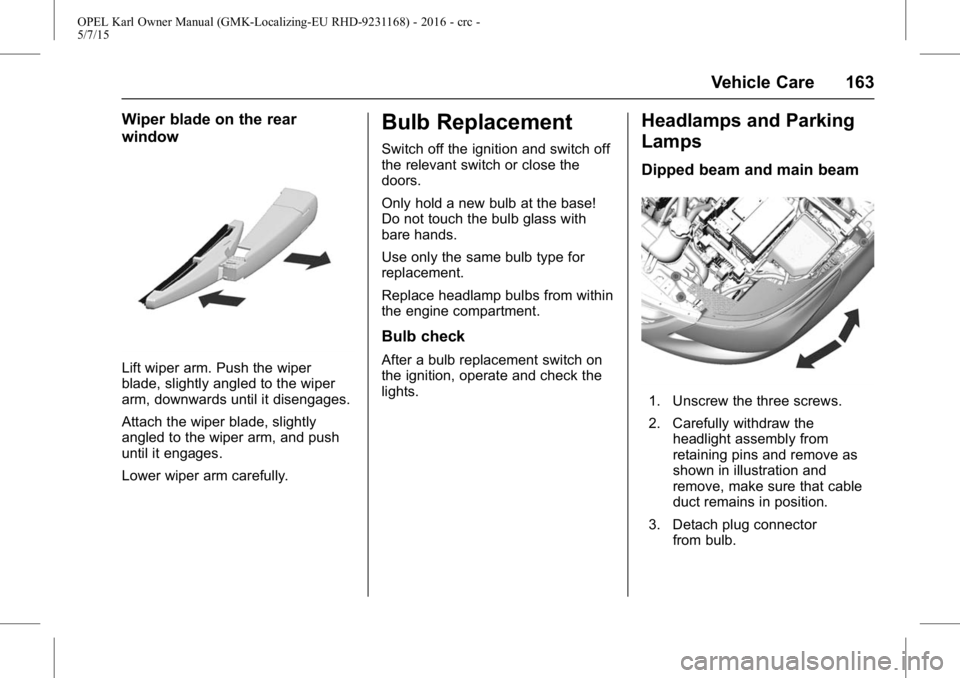

Lift wiper arm. Push the wiper
blade, slightly angled to the wiper
arm, downwards until it disengages.
Attach the wiper blade, slightly
angled to the wiper arm, and push
until it engages.
Lower wiper arm carefully.
Bulb Replacement
Switch off the ignition and switch off
the relevant switch or close the
doors.
Only hold a new bulb at the base!
Do not touch the bulb glass with
bare hands.
Use only the same bulb type for
replacement.
Replace headlamp bulbs from within
the engine compartment.
Bulb check
After a bulb replacement switch on
the ignition, operate and check the
lights.
Headlamps and Parking
Lamps
Dipped beam and main beam
1. Unscrew the three screws.
2. Carefully withdraw theheadlight assembly from
retaining pins and remove as
shown in illustration and
remove, make sure that cable
duct remains in position.
3. Detach plug connector from bulb.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
164 Vehicle Care

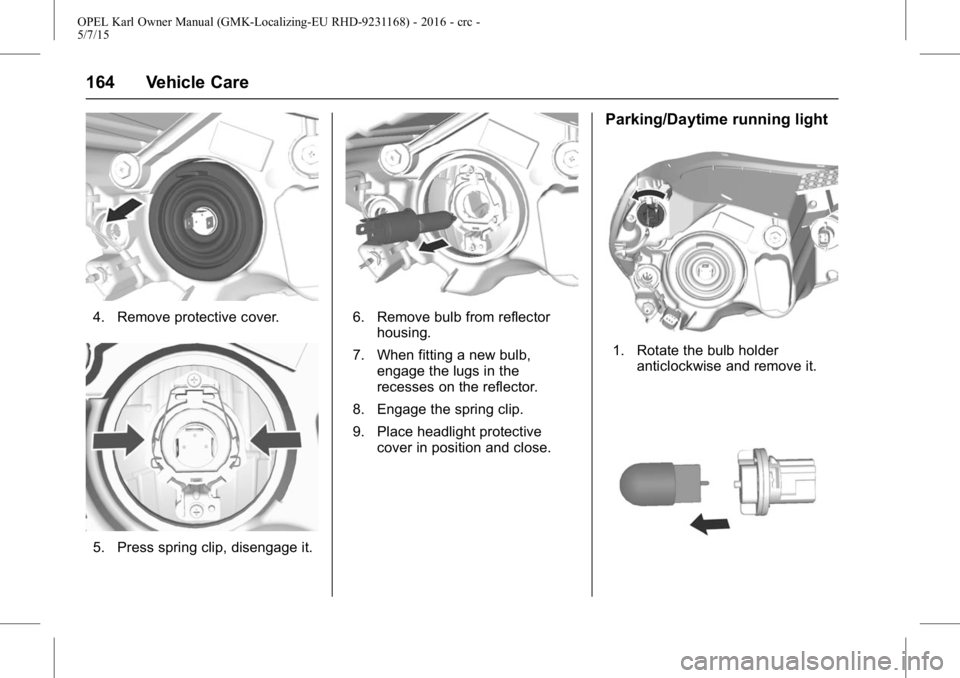

4. Remove protective cover.
5. Press spring clip, disengage it.
6. Remove bulb from reflectorhousing.
7. When fitting a new bulb, engage the lugs in the
recesses on the reflector.
8. Engage the spring clip.
9. Place headlight protective cover in position and close.
Parking/Daytime running light
1. Rotate the bulb holderanticlockwise and remove it.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Vehicle Care 165
2. Detach bulb from the bulbholder and replace it.
3. Insert the bulb holder into the reflector and rotate clockwise.
Fog Lamps
Have bulbs replaced by a workshop.
Front Indicator Lamps

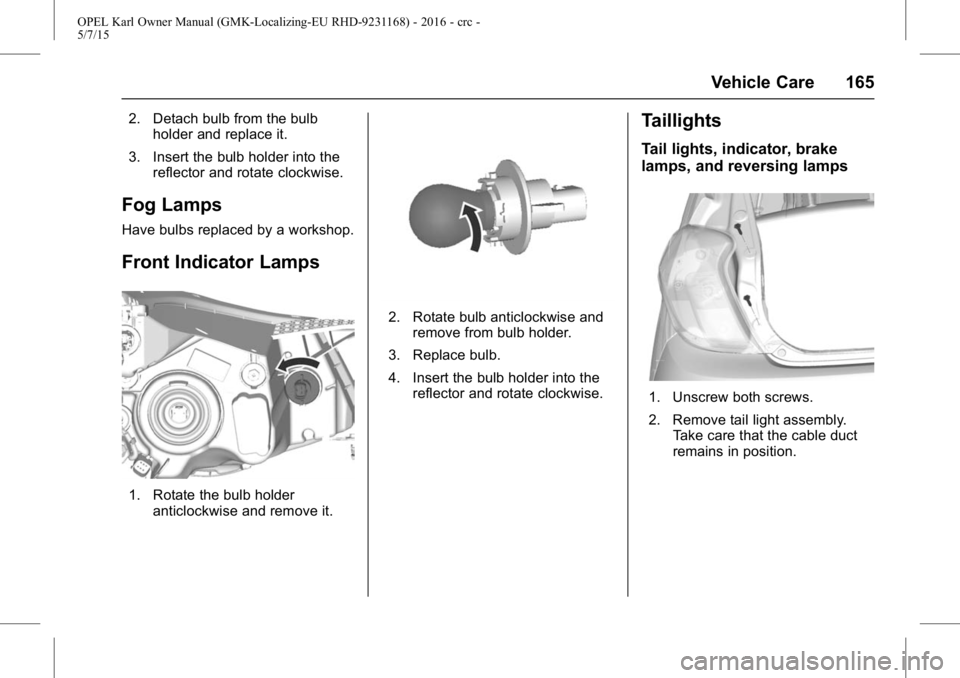

1. Rotate the bulb holderanticlockwise and remove it.
2. Rotate bulb anticlockwise andremove from bulb holder.
3. Replace bulb.
4. Insert the bulb holder into the reflector and rotate clockwise.
Taillights
Tail lights, indicator, brake
lamps, and reversing lamps
1. Unscrew both screws.
2. Remove tail light assembly.Take care that the cable duct
remains in position.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
166 Vehicle Care

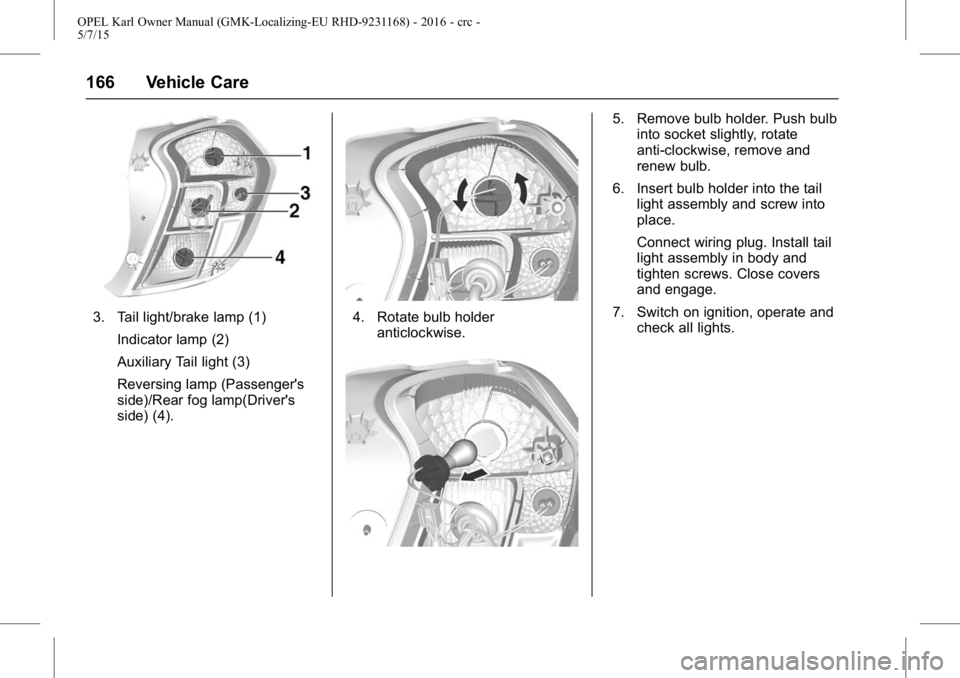

3. Tail light/brake lamp (1)Indicator lamp (2)
Auxiliary Tail light (3)
Reversing lamp (Passenger's
side)/Rear fog lamp(Driver's
side) (4).4. Rotate bulb holderanticlockwise.
5. Remove bulb holder. Push bulbinto socket slightly, rotate
anti-clockwise, remove and
renew bulb.
6. Insert bulb holder into the tail light assembly and screw into
place.
Connect wiring plug. Install tail
light assembly in body and
tighten screws. Close covers
and engage.
7. Switch on ignition, operate and check all lights.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Vehicle Care 167
Side Indicator Lamps

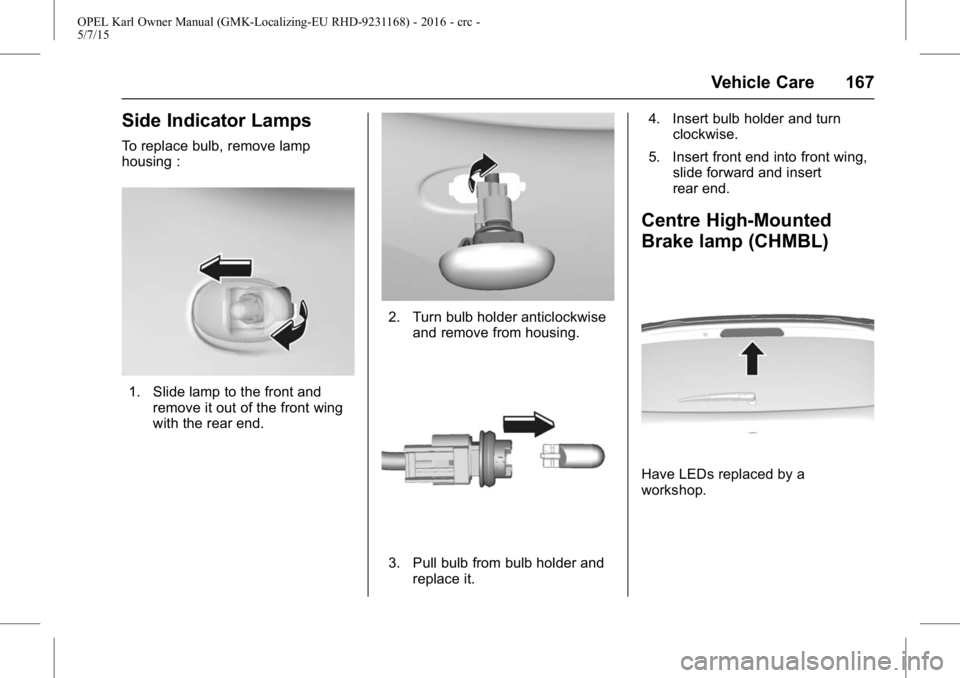

To replace bulb, remove lamp
housing :
1. Slide lamp to the front andremove it out of the front wing
with the rear end.
2. Turn bulb holder anticlockwiseand remove from housing.
3. Pull bulb from bulb holder andreplace it. 4. Insert bulb holder and turn
clockwise.
5. Insert front end into front wing, slide forward and insert
rear end.
Centre High-Mounted
Brake lamp (CHMBL)
Have LEDs replaced by a
workshop.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
168 Vehicle Care
Number Plate Lamp

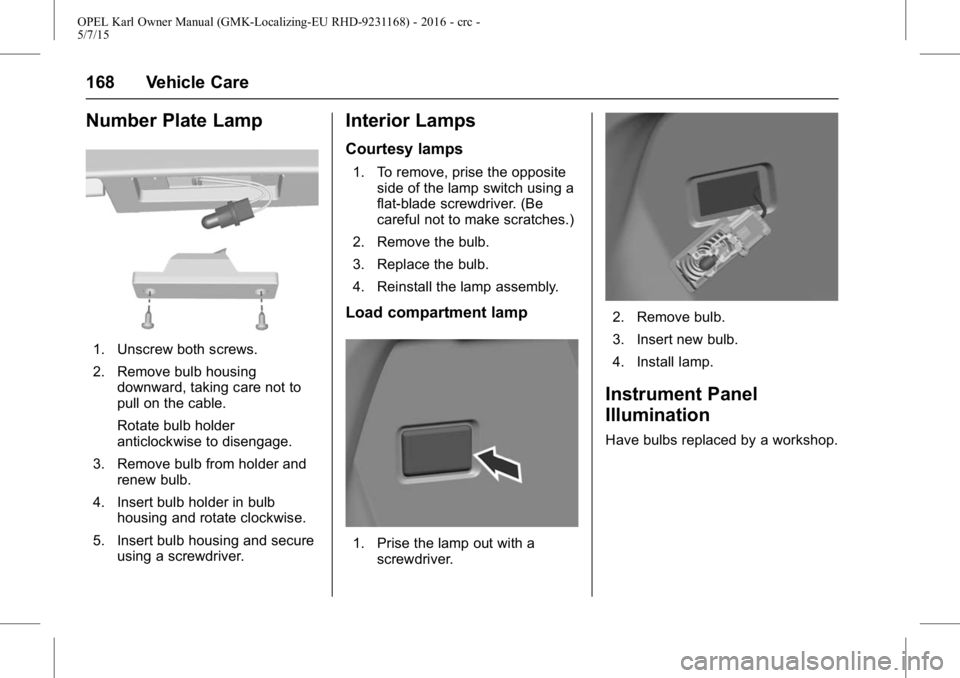

1. Unscrew both screws.
2. Remove bulb housingdownward, taking care not to
pull on the cable.
Rotate bulb holder
anticlockwise to disengage.
3. Remove bulb from holder and renew bulb.
4. Insert bulb holder in bulb housing and rotate clockwise.
5. Insert bulb housing and secure using a screwdriver.
Interior Lamps
Courtesy lamps
1. To remove, prise the oppositeside of the lamp switch using a
flat-blade screwdriver. (Be
careful not to make scratches.)
2. Remove the bulb.
3. Replace the bulb.
4. Reinstall the lamp assembly.
Load compartment lamp
1. Prise the lamp out with a screwdriver.
2. Remove bulb.
3. Insert new bulb.
4. Install lamp.
Instrument Panel
Illumination
Have bulbs replaced by a workshop.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Index 209
Brakes (cont'd)Parking . . . . . . . . . . . . . . . . . . . . . . . 142
Bulb Replacement Centre High-Mounted
Brake lamp (CHMBL) . . . . . . . 167
Fog Lamps . . . . . . . . . . . . . . . . . . . 165
Front Indicator Lamps . . . . . . . . 165
Headlamps . . . . . . . . . . . . . . . . . . . 163
Headlamps and Parking Lamps . . . . . . . . . . . . . . . . . . . . . . 163
Instrument Panel Illumination . . . . . . . . . . . . . . . . . . 168
Interior Lamps . . . . . . . . . . . . . . . . 168
Number Plate Lamps . . . . . . . . . 168
Position Lamps . . . . . . . . . . . . . . . . . 88
Side Indicator Lamps . . . . . . . . . 167
Taillights . . . . . . . . . . . . . . . . . . . . . . 165
Buzzers, Warning . . . . . . . . . . . . . . . . 81
C
Capacities and
Specifications . . . . . . . . . . . . . . . . . 204
Car Pass . . . . . . . . . . . . . . . . . . . . . . . . 21
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 140
Fuel Consumption CO2Emissions . . . . . . . . . . . . . . . . . . . 154
Catalytic Converter . . . . . . . . . . . . . 140
Caution, Danger, and Warning . . . . 4 Central Locking System . . . . . . . . . 22
Centre Console Lighting . . . . . . . . . 90
Centre High-Mounted Brake
lamp (CHMBL) . . . . . . . . . . . . . . . . 167
Chains, Tyre . . . . . . . . . . . . . . . . . . . . 180
Charging System Light . . . . . . . . . . 70
Check Malfunction Indicator EngineLight . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Child Restraint Installation Locations . . . . . . . . . . . . . . . . . . . . . . 46
Child Restraint Systems Top Tether . . . . . . . . . . . . . . . . . . . . . . 51
Child Restraints Installation Locations . . . . . . . . . . . 46
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . 50
Systems . . . . . . . . . . . . . . . . . . . . . . . . 45
Cleaning Exterior Care . . . . . . . . . . . . . . . . . 191
Interior Care . . . . . . . . . . . . . . . . . . 192
Climate Control System
Electronic . . . . . . . . . . . . . . . . . . . . . 128
Climate Control Systems Heating and Ventilation . . . . . . . 125
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Compact Spare Tyre . . . . . . . . . . . . 186
Compartment . . . . . . . . . . . . . . . . . . . . 53
Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Compartments
Storage . . . . . . . . . . . . . . . . . . . . . . . . . 52
Conformity Declaration of . . . . . . . . . . . . . . . . . 205
Control Indicators . . . . . . . . . . . . . . . . 65
Control of a Vehicle . . . . . . . . . . . . . 134
Convenience Net . . . . . . . . . . . . . . . . 56
Convex Mirrors . . . . . . . . . . . . . . . . . . 27
Coolant Engine . . . . . . . . . . . . . . . . . . . . . . . . 159
Engine Temperature Gauge . . . . 68
Engine TemperatureWarning Light . . . . . . . . . . . . . . . . . 72
Cornering Lights . . . . . . . . . . . . . . . . . 88
Covers . . . . . . . . . . . . . . . . . . . . . . . . . . 89 Misted Lamps . . . . . . . . . . . . . . . . . . 89
Rear Compartment/Storage
Panel . . . . . . . . . . . . . . . . . . . . . . . . . 56
Wheel . . . . . . . . . . . . . . . . . . . . . . . . 180
Cruise Control . . . . . . . . . . . . . . . . . . 148 Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Cupholders . . . . . . . . . . . . . . . . . . . . . . 53
Curtain Airbag System . . . . . . . . . . . 43

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
210 Index
D
Danger, Warning, and Caution . . . . 4
Data Recorders, Event . . . . . . . . . 206
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . . . . 86
Declaration of Conformity . . . . . . . 205
Devices Auxiliary . . . . . . . . . . . . . . . . . . . . . . 108
Dimensions Vehicle . . . . . . . . . . . . . . . . . . . . . . . 203
Displays Service . . . . . . . . . . . . . . . . . . . . . . . . . 68
Door Ajar Light . . . . . . . . . . . . . . . . . . . . . . . 74
Central Locking System . . . . . . . . 22
Driver Assistance Systems . . . . . 148
Driver Information Centre (DIC) . . . . . . . . . . . . . . . . . . . 75
E
Electrical SystemEngine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 170
Fuses . . . . . . . . . . . . . . . . . . . . . . . . 169 Electrical System (cont'd)
Instrument Panel Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 172
Electronic Climate Control
System . . . . . . . . . . . . . . . . . . . . . . . . 128
Electronic Stability Control . . . . . . 144
Electronic Stability Control (ESC) Off Light . . . . . . . . . . . . . . . . . 72
Electronic Stability Control
Indicator Light . . . . . . . . . . . . . . . . . . 72
Emissions - CO2 Fuel Consumption . . . . . . . . . . . . 154
End-of-Life Vehicle Recovery . . . 157
Engine Automatic Start/StopFeature . . . . . . . . . . . . . . . . . . . . . 137
Check and Service Engine Soon Light . . . . . . . . . . . . . . . . . . . . 70
Coolant . . . . . . . . . . . . . . . . . . . . . . . 159
Coolant Temperature Gauge . . . . 68
Coolant Temperature Warning Light . . . . . . . . . . . . . . . . . 72
Exhaust . . . . . . . . . . . . . . . . . . . . . . 140
Oil Pressure Light . . . . . . . . . . . . . . 73
Reduced Power Light . . . . . . . . . . . 74
Starting . . . . . . . . . . . . . . . . . . . .18, 136
Engine Data . . . . . . . . . . . . . . . . . . . . 202
Engine Identification . . . . . . . . . . . . 200 Entry Lighting . . . . . . . . . . . . . . . . . . . . 90
Event Data Recorders . . . . . . . . . . 206
Exit Lighting . . . . . . . . . . . . . . . . . . . . . 91
Exterior Lamp Controls . . . . . . . . . . 85
F
First Aid Kit . . . . . . . . . . . . . . . . . . . . . . 57
Fixed Air Vents . . . . . . . . . . . . . . . . . 132
Flat Tyre
Changing . . . . . . . . . . . . . . . . . . . . . 184
Fluid Brakes . . . . . . . . . . . . . . . . . . . . . . . . 160
Washer . . . . . . . . . . . . . . . . . . . . . . . 160
Fog Lamp Light, Rear . . . . . . . . . . . 74
Fog Lamps Bulb Replacement . . . . . . . . . . . . 165
Front . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Folding Mirrors . . . . . . . . . . . . . . . . . . 28
Front Airbag System . . . . . . . . . . . . . 42
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Front Indicator Lamps . . . . . . . . . . 165
Front Seat Position Seats Adjustment . . . . . . . . . . . . . . . . . . . . . 33
Front Seats
Adjustment . . . . . . . . . . . . . . . . . . . . . 34
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 35
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
