OPEL KARL 2015 Owners Manual

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
ContentsIntroduction . . . . . . . . . . . . . . . . . . . . . . 2
In Brief . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Keys, Doors, and Windows . . . . . 20
Seats and Restraints . . . . . . . . . . . 32
Storage . . . . . . . . . . . . . . . . . . . . . . . . . 52
Instruments and Controls . . . . . . . 59
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . 85
Infotainment System . . . . . . . . . . . . 92
Climate Controls . . . . . . . . . . . . . . 125
Driving and Operating . . . . . . . . . 134
Vehicle Care . . . . . . . . . . . . . . . . . . 155
Service and Maintenance . . . . . 194
Technical Data . . . . . . . . . . . . . . . . 200
Customer Information . . . . . . . . . 205
Index . . . . . . . . . . . . . . . . . . . . 208

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15

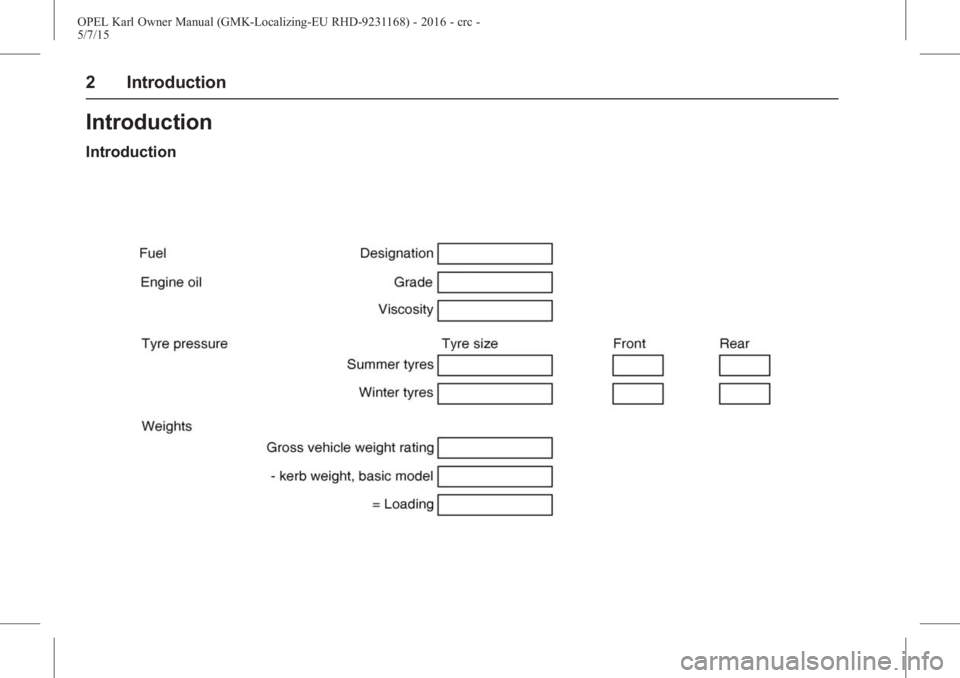

2 Introduction
Introduction
Introduction

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Introduction 3
Vehicle specific data
Please enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service
and maintenance" and "Technical
data" as well as on the identification
plate.
Introduction
Your vehicle is a designed
combination of advanced
technology, safety, environmental
friendliness and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of
accident and injury which may result
from improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in
this Owner's Manual.When this Owner's Manual refers to
a workshop visit, we recommend
your Opel Service Partner. For gas
vehicles we recommend an Opel
workshop authorised for servicing
gas vehicles.
All Opel Service Partners provide
first-class service at reasonable
prices. Experienced mechanics
trained by Opel work according to
specific Opel instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this Manual
.
This manual describes all
options and features available
for this model. Certain
descriptions, including those for
display and menu functions, may
not apply to your vehicle due to
model variant, country
specifications, special equipment
or accessories.
. The "In brief" section will give
you an initial overview. .
The table of contents at the
beginning of this manual and
within each section shows where
the information is located.
. The index will enable you to
search for specific information.
. This Owner's Manual depicts
left-hand drive vehicles.
Operation is similar for
right-hand drive vehicles.
. The Owner's Manual uses the
factory engine designations. The
corresponding sales
designations can be found in the
section "Technical data".
. Directional data, e.g. left or right,
or front or back, always relate to
the direction of travel.
. The vehicle display screens may
not support your specific
language.
. Display messages and interior
labelling are written in bold
letters.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
4 Introduction
Danger, Warning, and
Caution
{Danger
Text marked{Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.
{Warning
Text marked{Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.
Caution
Text marked Caution provides
information on possible damage
to the vehicle. Disregarding this
information may lead to vehicle
damage.
Symbols
Page references are indicated with0.0means "see page".
We wish you many hours of
pleasurable driving.
Adam Opel AG

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15

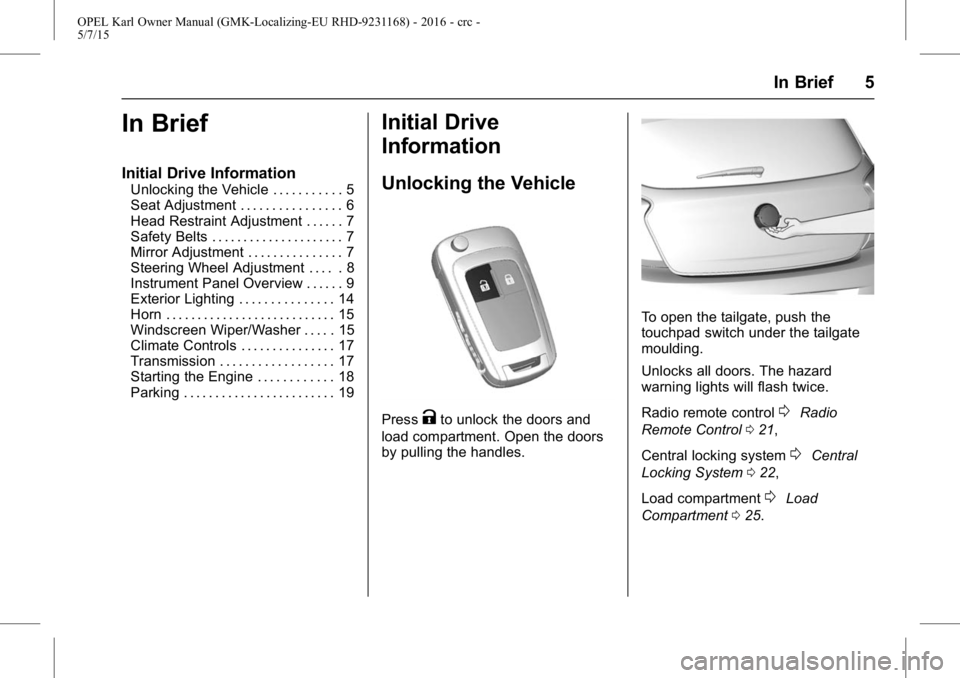

In Brief 5
In Brief
Initial Drive Information
Unlocking the Vehicle . . . . . . . . . . . 5
Seat Adjustment . . . . . . . . . . . . . . . . 6
Head Restraint Adjustment . . . . . . 7
Safety Belts . . . . . . . . . . . . . . . . . . . . . 7
Mirror Adjustment . . . . . . . . . . . . . . . 7
Steering Wheel Adjustment . . . . . 8
Instrument Panel Overview . . . . . . 9
Exterior Lighting . . . . . . . . . . . . . . . 14
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Windscreen Wiper/Washer . . . . . 15
Climate Controls . . . . . . . . . . . . . . . 17
Transmission . . . . . . . . . . . . . . . . . . 17
Starting the Engine . . . . . . . . . . . . 18
Parking . . . . . . . . . . . . . . . . . . . . . . . . 19
Initial Drive
Information
Unlocking the Vehicle
PressKto unlock the doors and
load compartment. Open the doors
by pulling the handles.
To open the tailgate, push the
touchpad switch under the tailgate
moulding.
Unlocks all doors. The hazard
warning lights will flash twice.
Radio remote control
0Radio
Remote Control 021,
Central locking system
0Central
Locking System 022,
Load compartment
0Load
Compartment 025.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
6 In Brief
Seat Adjustment
Seat positioning
Pull handle, slide seat, release
handle.
Try to move the seat back and forth
to ensure that the seat is locked in
place.
Seat position
0Seat Position033,
Seat adjustment
0Seat
Adjustment 034.
{Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.
Seat backrests
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.
Seat position
0Seat Position 033,
Seat adjustment
0Seat
Adjustment 034.
Seat height
Lever pumping motion
Up : Seat higher
Down : Seat lower
Seat position
0Seat Position 033,
Seat adjustment
0Seat
Adjustment 034.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
In Brief 7
Head Restraint
Adjustment
Press release button, adjust height
and engage.
Safety Belts
Pull out the seat belt and engage in
belt buckle. The seat belt must not
be twisted and must fit close against
the body. The backrest must not be
tilted back too far (maximum
approx. 25°).
To release belt, press red button on
belt buckle.
Seat position
0Seat Position033,
Seat belts
0Safety Belts 036,
Airbag system
0Airbag
System 038.
Mirror Adjustment
Interior Mirror
To reduce dazzle, adjust the lever
on the underside of the mirror
housing.
Interior mirror
0Manual Rearview
Mirror 028.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
8 In Brief

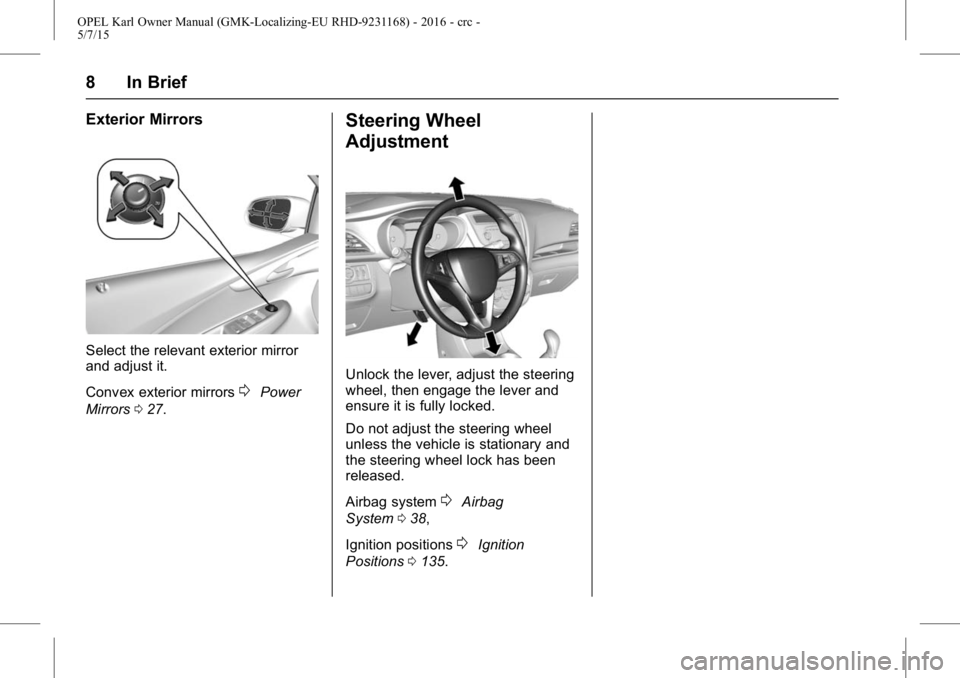

Exterior Mirrors
Select the relevant exterior mirror
and adjust it.
Convex exterior mirrors
0Power
Mirrors 027.
Steering Wheel
Adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and
the steering wheel lock has been
released.
Airbag system
0Airbag
System 038,
Ignition positions
0Ignition
Positions 0135.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
In Brief 9

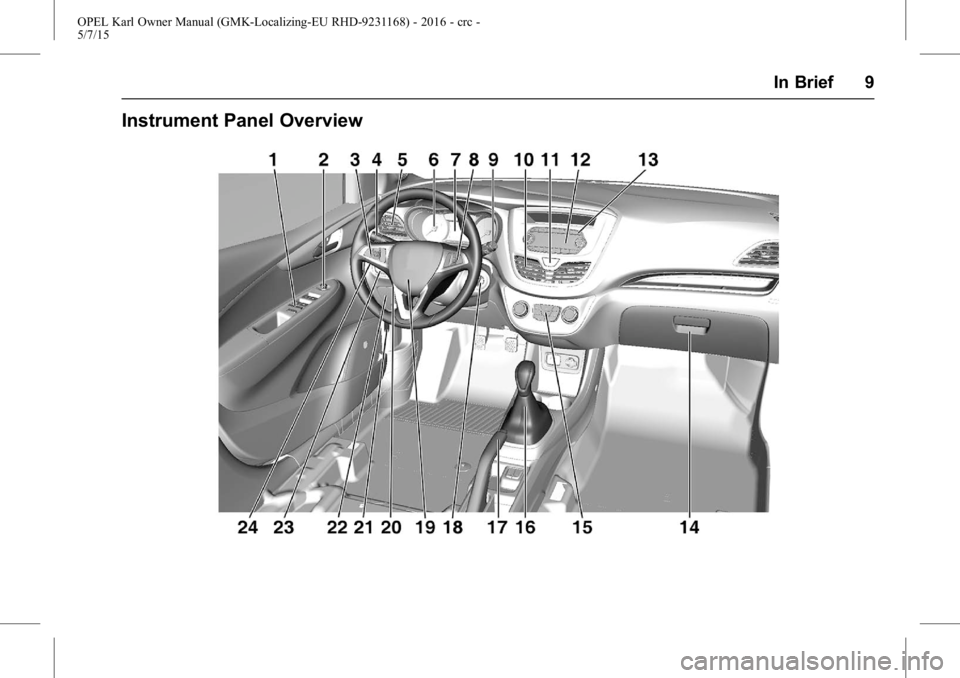

Instrument Panel Overview
